Model Whirlpool KUDS220T1 – Common Parts & Diagrams

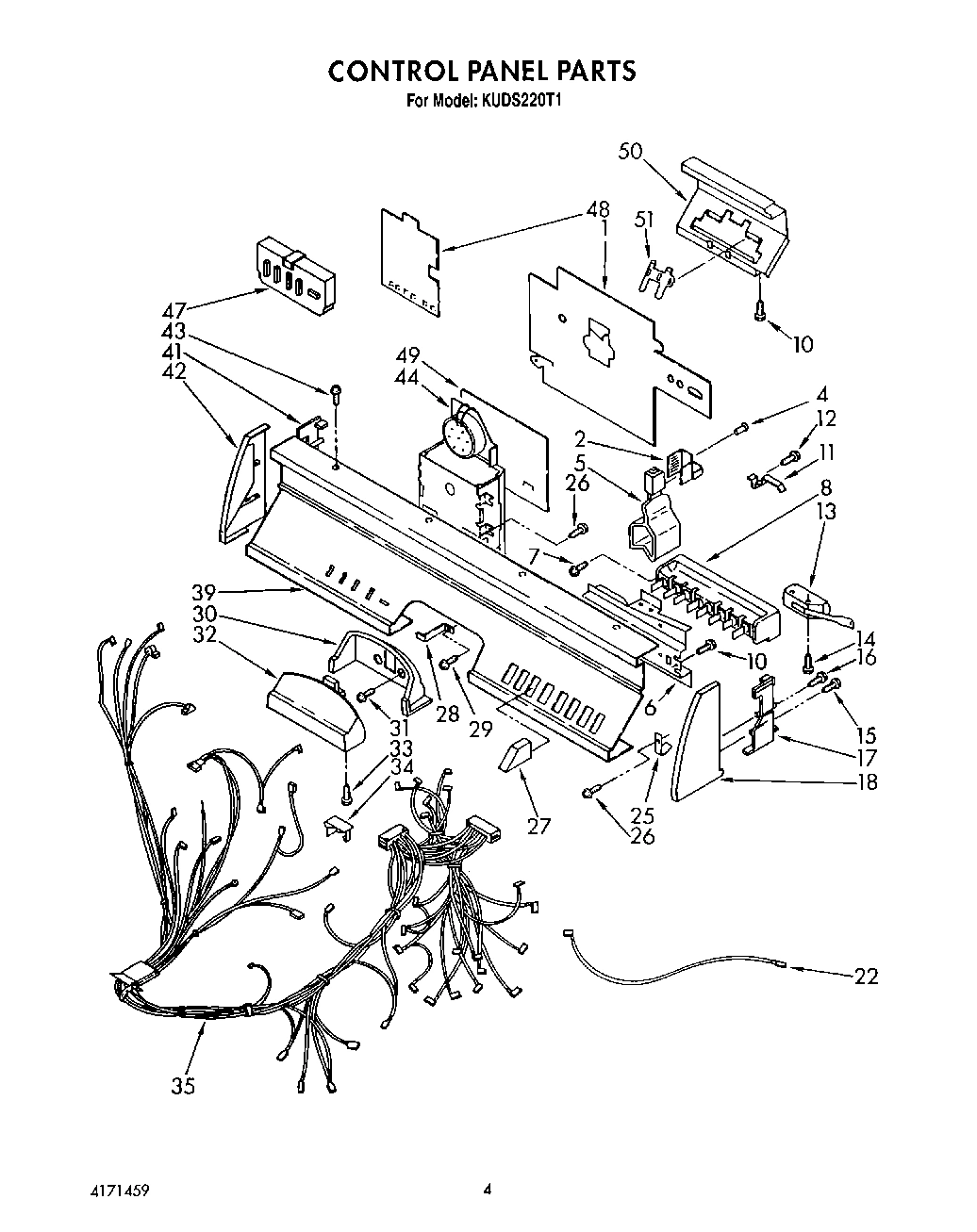

04 - CONTROL PANEL, LIT/OPTIONAL
11 - UPPER RACK AND TRACK

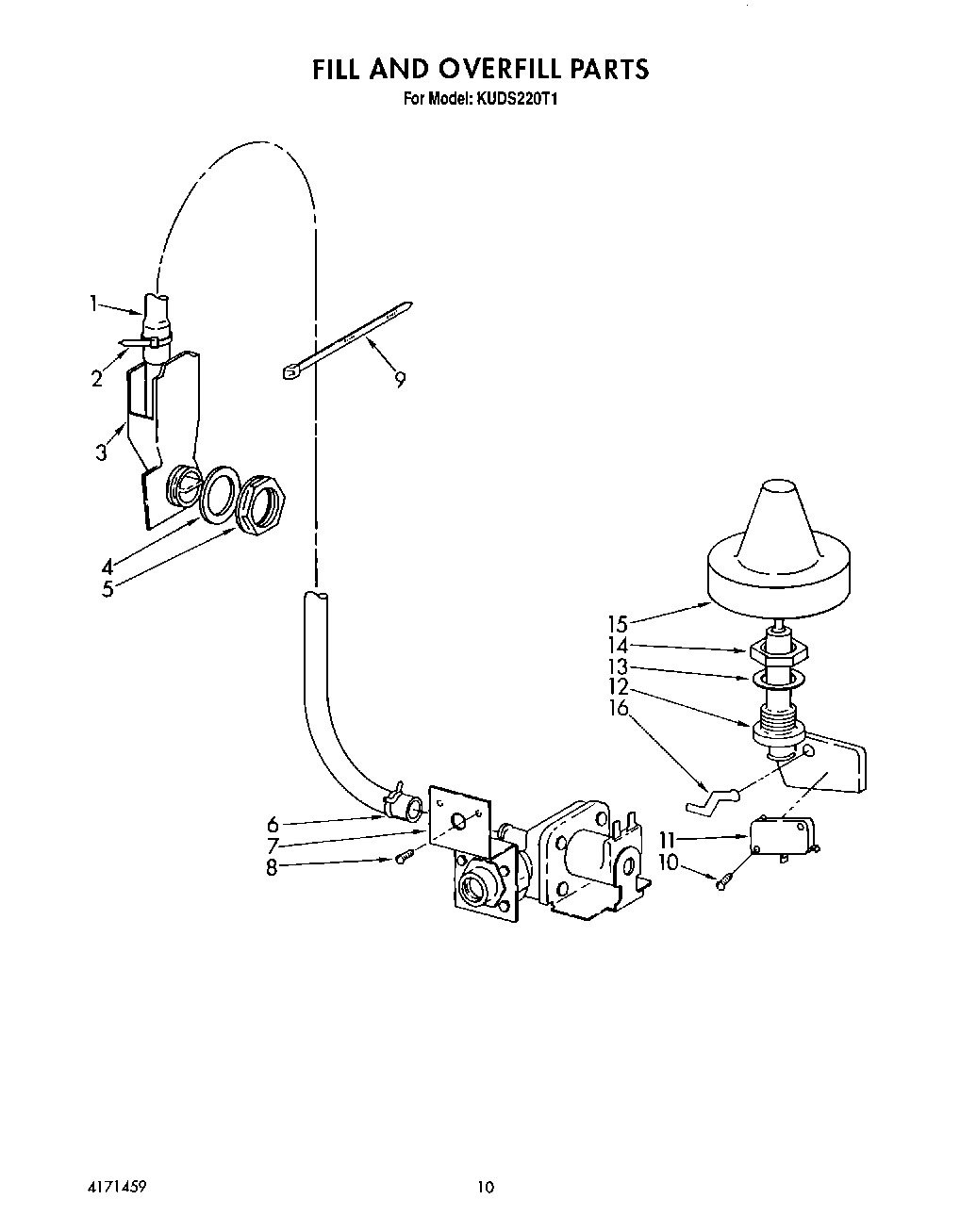

08 - FILL AND OVERFILL

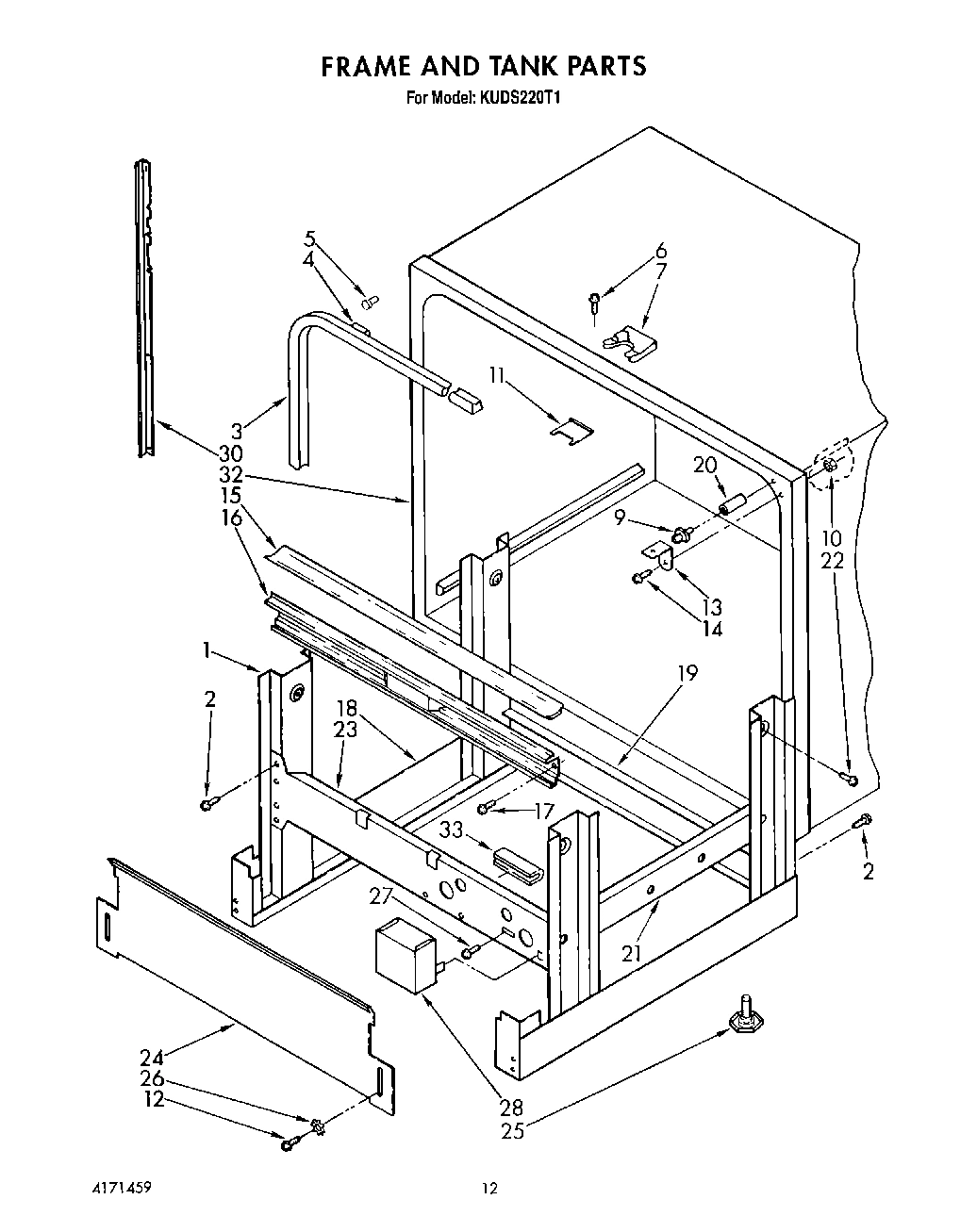

10 - FRAME AND TANK

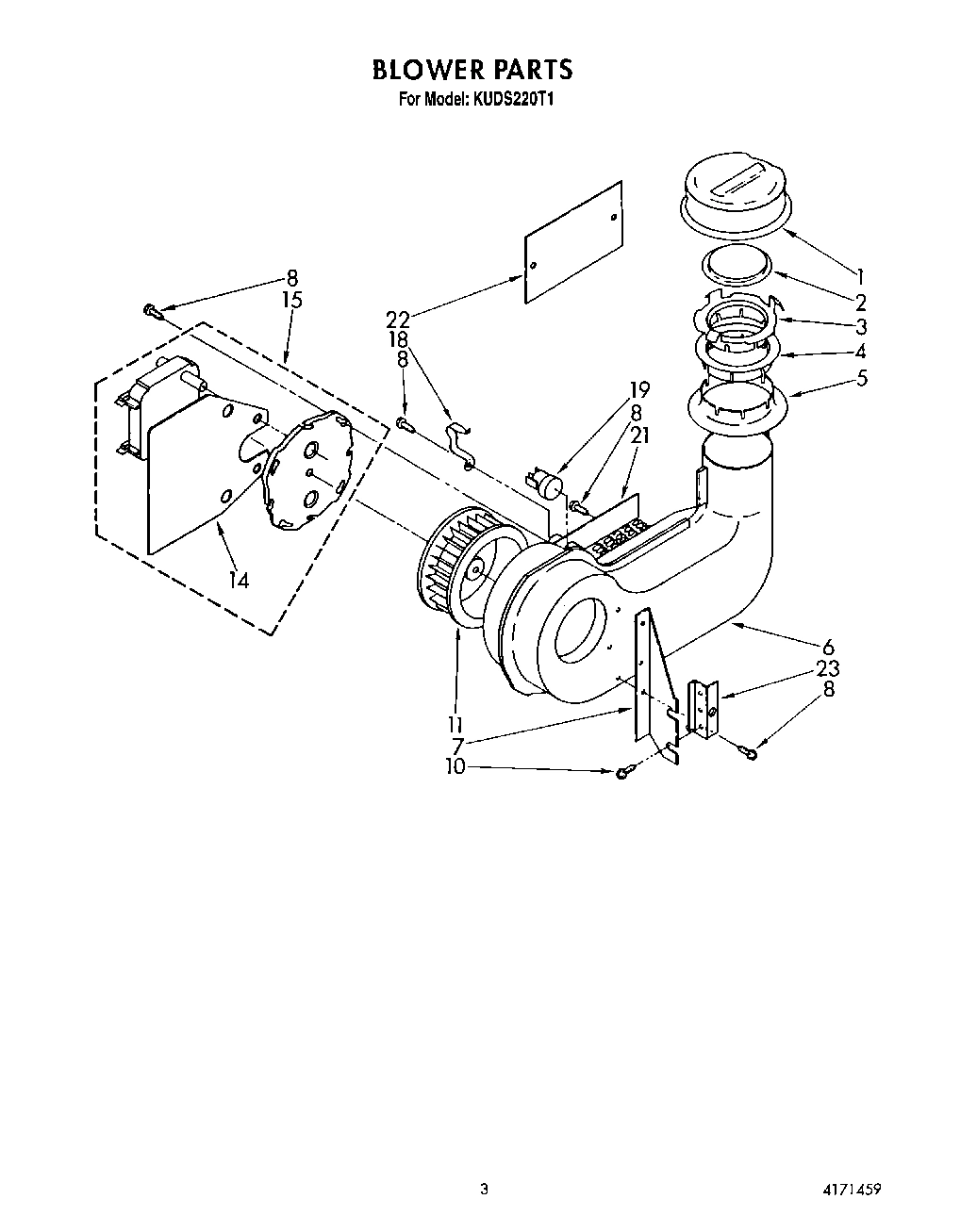

03 - BLOWER

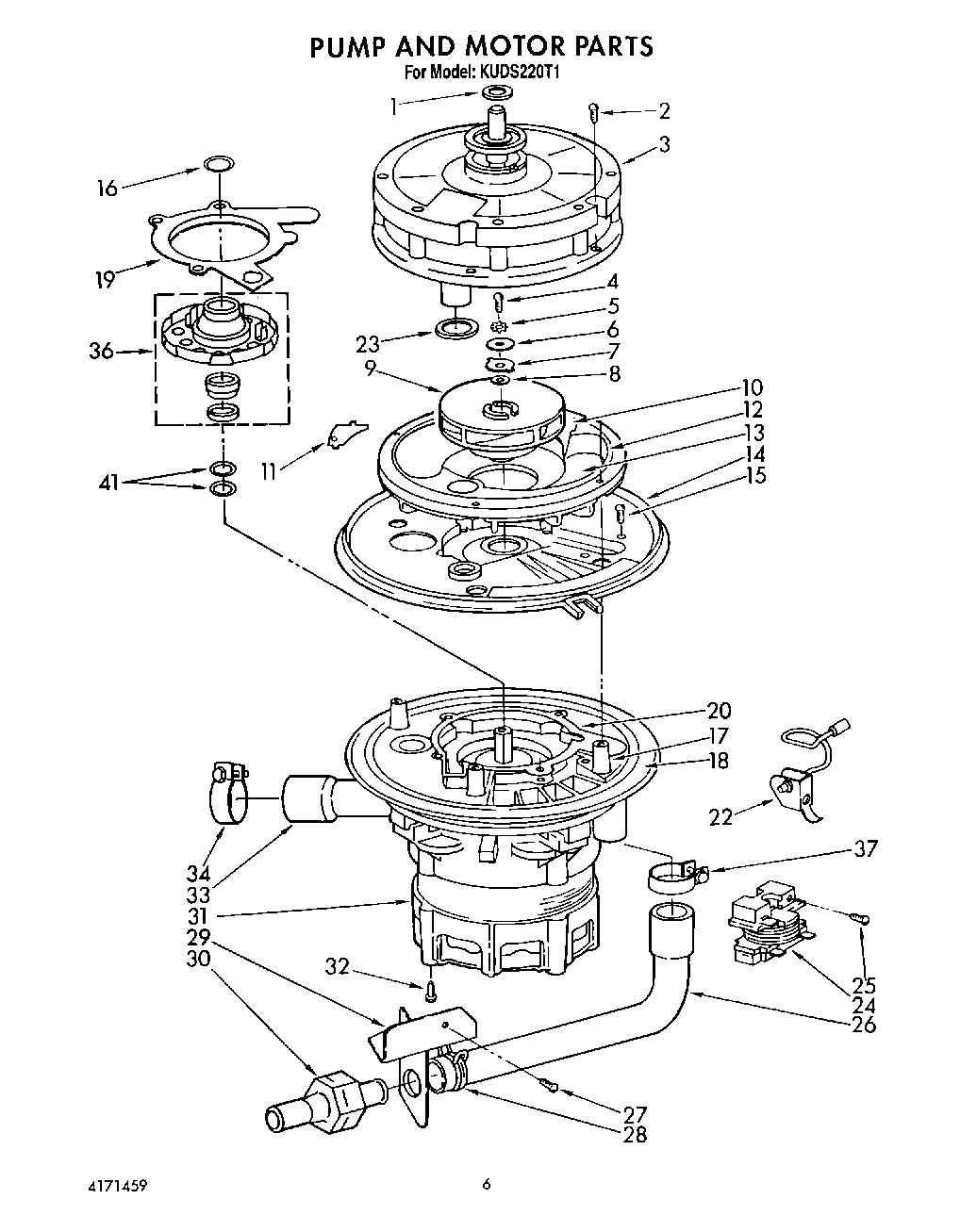

05 - PUMP AND MOTOR

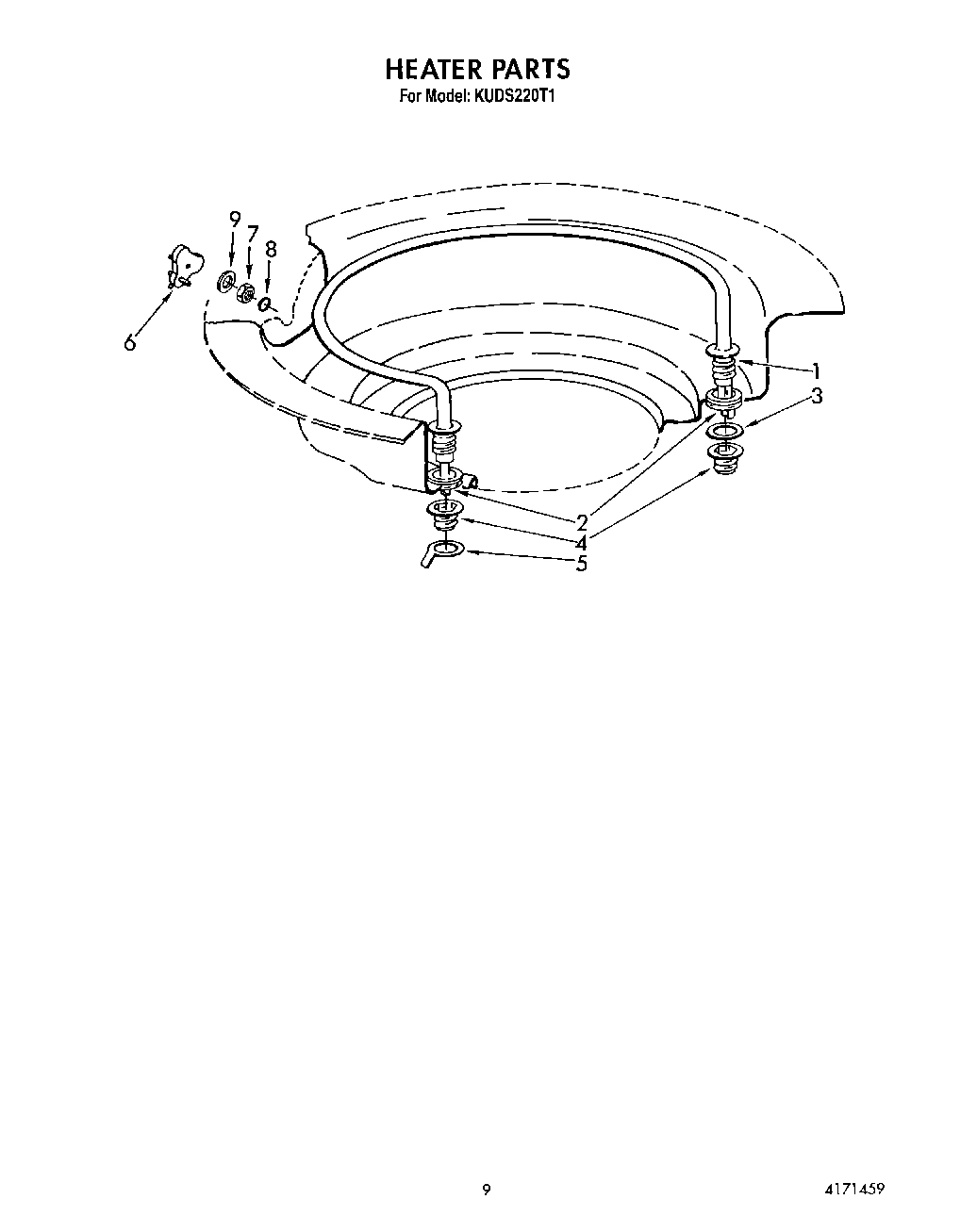

07 - HEATER

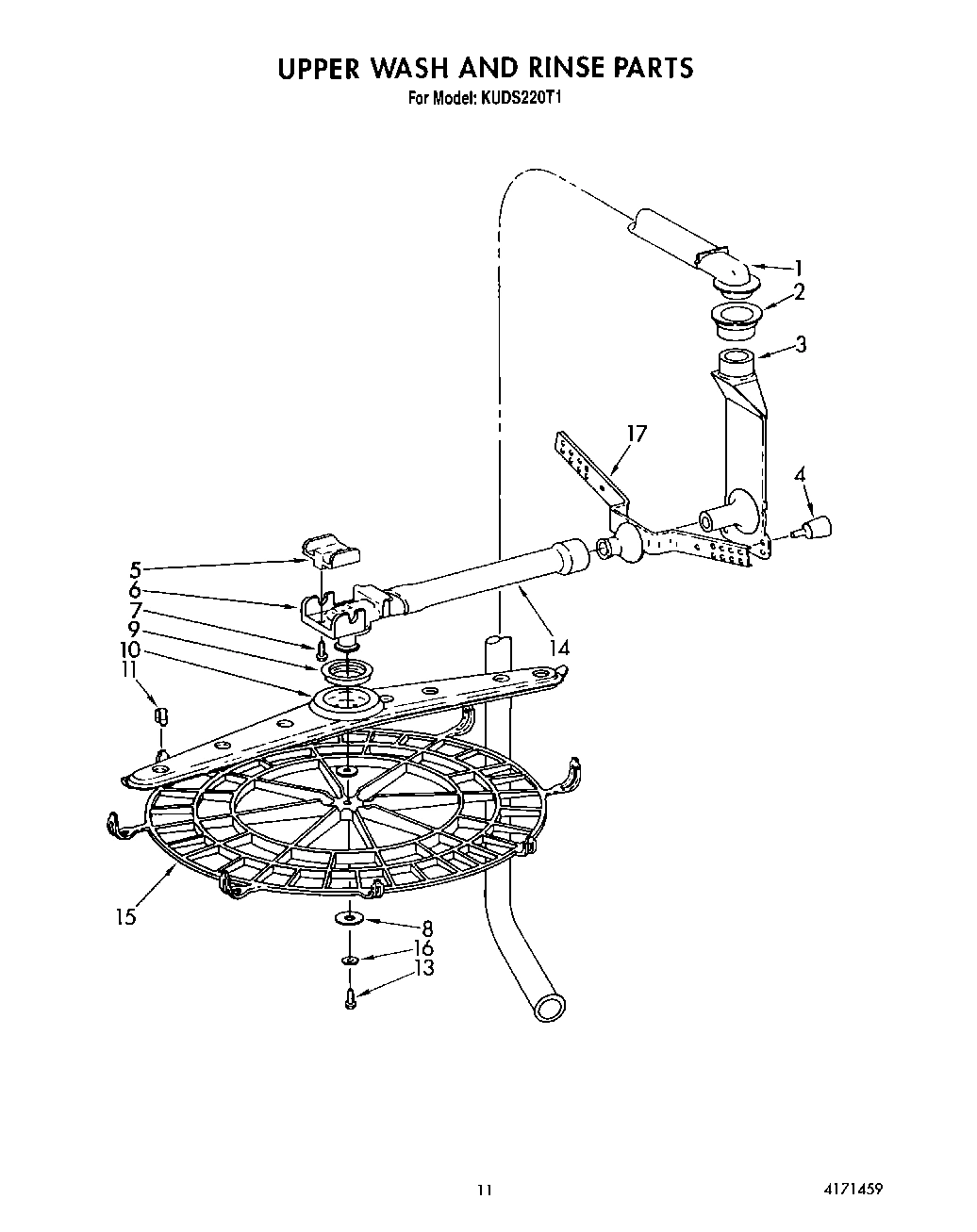

09 - UPPER WASH AND RINSE

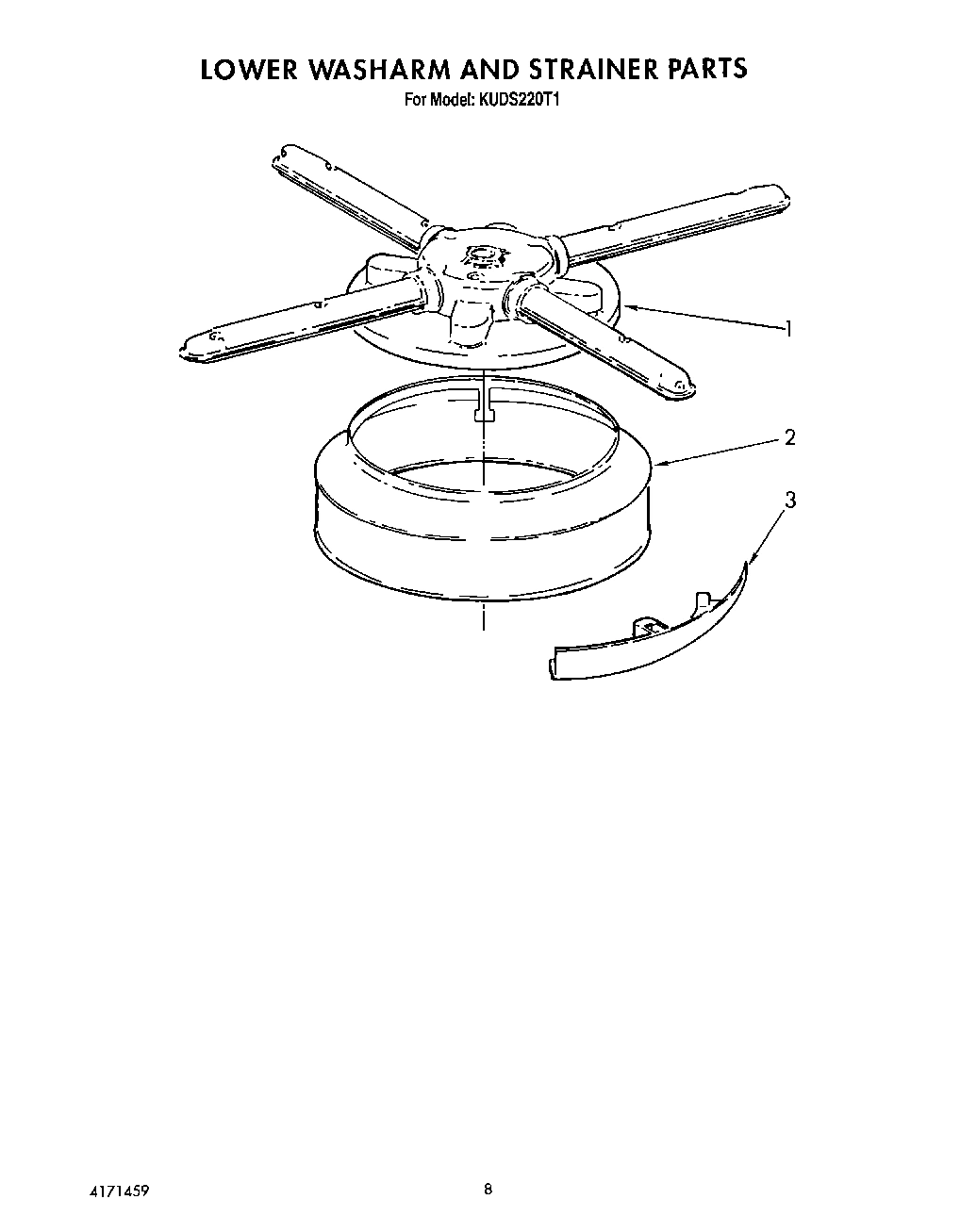

06 - LOWER WASHARM AND STRAINER

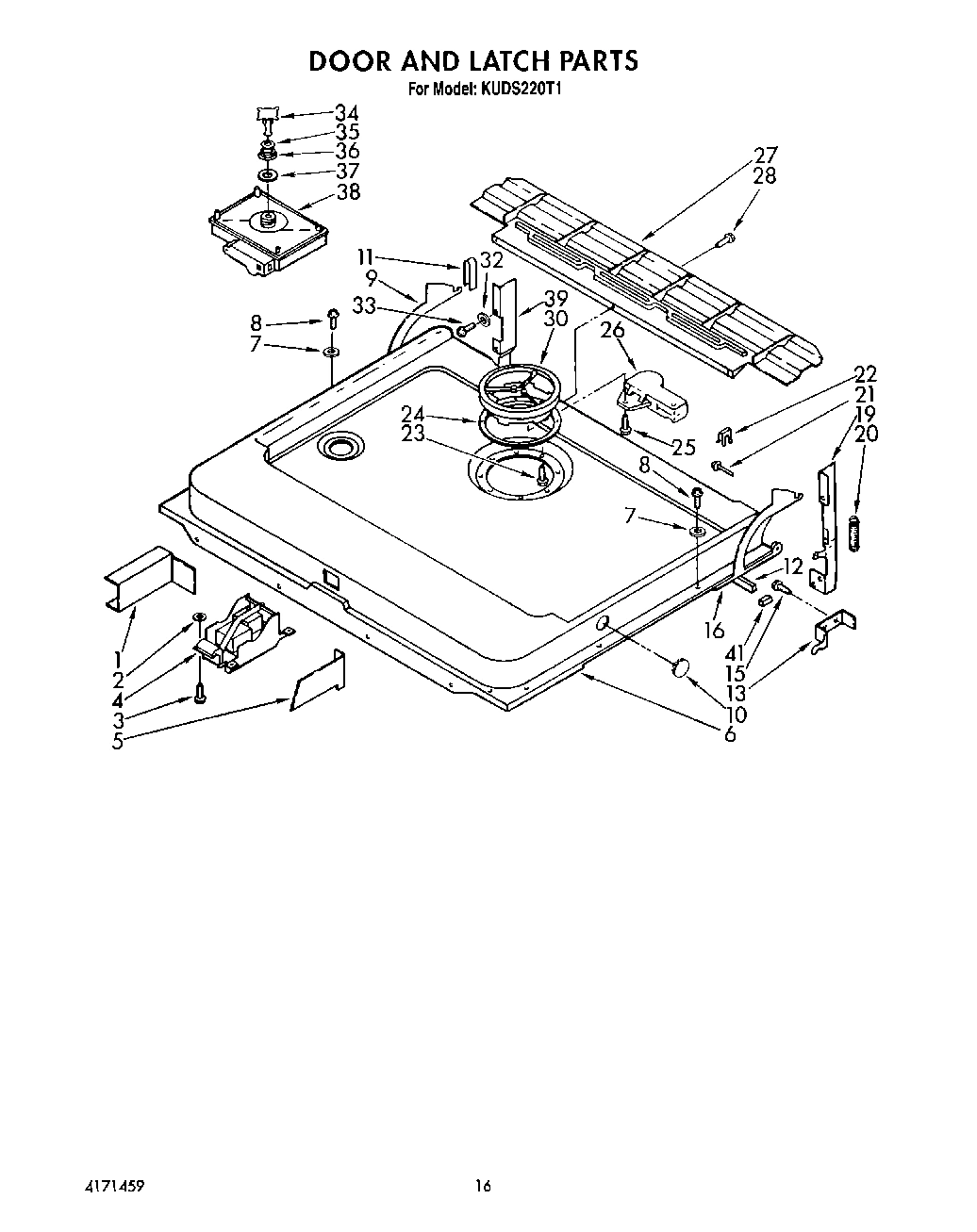

13 - DOOR AND LATCH
02 - DOOR AND PANEL

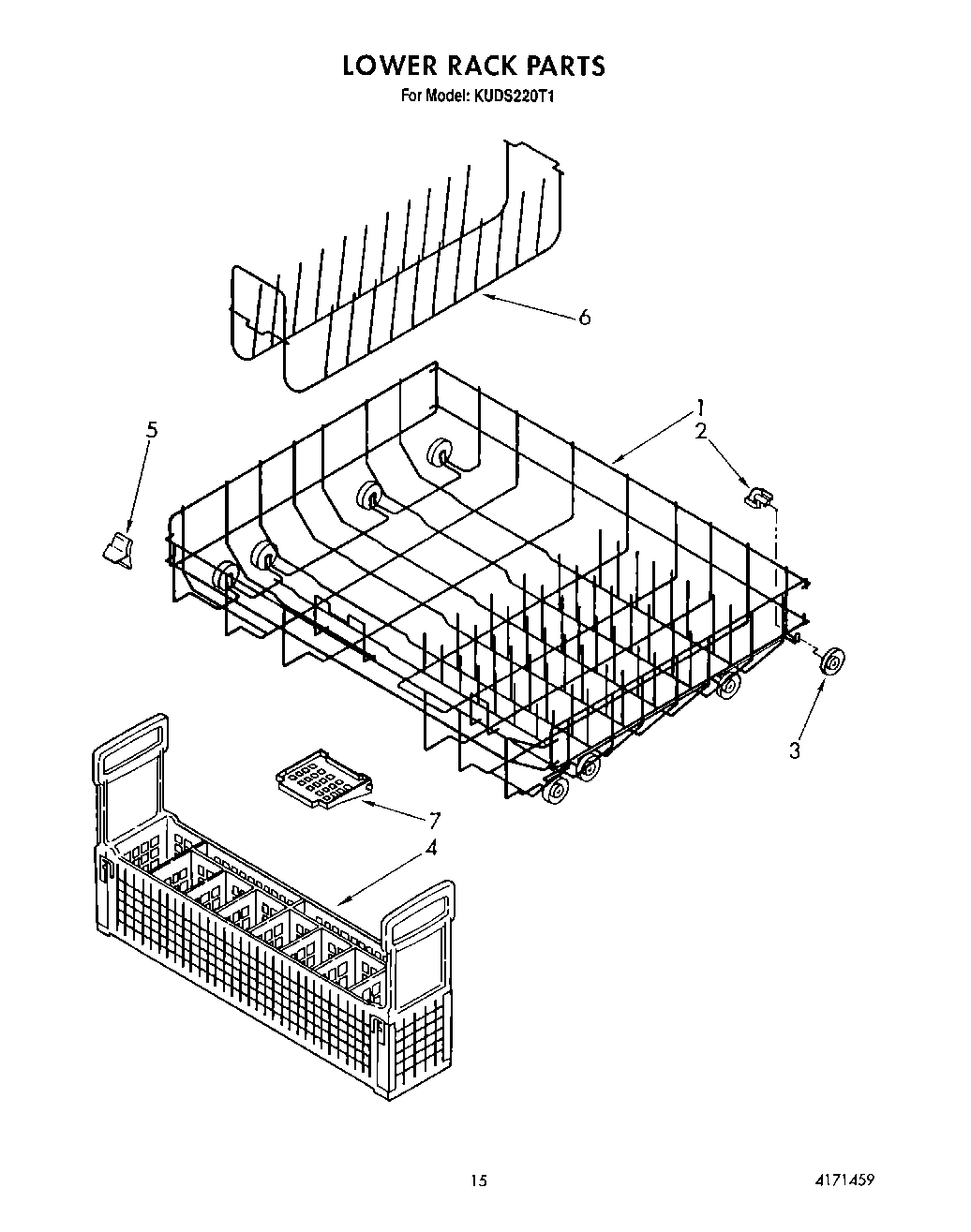

12 - LOWER RACK
Common parts from model Whirlpool KUDS220T1
WPL 799344 WPL 799344 Contact Us For Availability
1
Upper Rack Assembly (Includes Items 2, 3, 4, WPL 4171287 Contact Us For Availability
1
Complete Upper Rack Assembly (Includes Upper WPL 4171425 Contact Us For Availability
1
Hose, Flexible (Fill Valve to Air Gap) WPL 9740392 Contact Us For Availability
1
Short Frame Assembly (Includes Items 2, 18, 1 WPL 4162908 Contact Us For Availability
1
Cover, Air Inlet (Includes Items 2 thru 5) WPL 4162102 Contact Us For Availability
1
Washer WPL 4162892 Contact Us For Availability
1
(Alt.) WPL 4163524 Contact Us For Availability
1
(Alt.) WPL 4171154 Contact Us For Availability
1
Element, Heater WPL 4171155 Contact Us For Availability
1
Tube & Connector Assembly WPL 9740307 Contact Us For Availability
1
Wash Arm Assembly WPL 4162925 Contact Us For Availability
1
Cover, Wiring Harness WPL 4161659 Contact Us For Availability
1
Screw WPL 4162215 Contact Us For Availability
1
Lower Rack Assembly (Includes Items 2 & 3) WPL 4171295 Contact Us For Availability
2
Axle, Lower Rack WPL 4162321 Contact Us For Availability
2
Nut, Roller WPL 4161226 Contact Us For Availability
2
Clamp, Hose WPL 4162103 Contact Us For Availability
2
Float, Check Valve WPL 4161590 Contact Us For Availability
2
Grommet, Heater Element WPL 4162520 Contact Us For Availability
2
Connector, Vertical Conduit WPL 4162723 Contact Us For Availability
2
Strainer (Fine) WPL 4162927 Contact Us For Availability
2
Washer WPL 4159513 Contact Us For Availability
2
Upper Mounting Panel Assembly (Includes Upper WPL 4162736 Contact Us For Availability
3
Door Seal Assembly (Includes Item 4) WPL 4161631 Contact Us For Availability
3
Bearing & Spacer, Rack Roller WPL 4171288 Contact Us For Availability
3
Air Gap, Fill Assembly (Includes Items 1 & 2) WPL 9740394 Contact Us For Availability
3
Support, Air Inlet Cover WPL 4161597 Contact Us For Availability
3
Wash Pump Top (Includes Items 1 & 23) WPL 4163521 Contact Us For Availability
3
Washer, Heater Element WPL 4159600 Contact Us For Availability
3
Conduit, Vertical WPL 4162655 Contact Us For Availability
3
Strainer (Coarse) WPL 4171195 Contact Us For Availability
3
Filler (Upper Panel) WPL 4162733 Contact Us For Availability
4
Washer WPL 4162452 Contact Us For Availability
4
Clip, Seal WPL 4161608 Contact Us For Availability
4
Deflector, Air (Upper) WPL 4161650 Contact Us For Availability
4
Screw, 10-32 WPL 4162918 Contact Us For Availability
4
Nut, Heater Element WPL 4162518 Contact Us For Availability
4
Retainer, Conduit WPL 4162609 Contact Us For Availability
4
Latch Mechanism Assembly WPL 4161613 Contact Us For Availability
4
Screw, 6 X 1/4 WPL 4159439 Contact Us For Availability
5
Bumper, Door WPL 4161626 Contact Us For Availability
5
Deflector, Air (Lower) WPL 4160652 Contact Us For Availability
5
Lock Washer WPL 4159500 Contact Us For Availability
5
Terminal, Ground WPL 4163306 Contact Us For Availability
5
Retainer, Manifold WPL 4162500 Contact Us For Availability
5
Insulation, Switch WPL 4162145 Contact Us For Availability
5
Side Trim (Upper Panel) WPL 4162685 Contact Us For Availability
5
Bumper, Lower Rack WPL 4171297 Contact Us For Availability
6
Track, Rack WPL 4162442 Contact Us For Availability
6
Clamp, Hose WPL 4161505 Contact Us For Availability
6
Dryer Housing & Bracket Assembly (Includes It WPL 4162701 Contact Us For Availability
6
Washer, Spring (Impeller) WPL 4160297 Contact Us For Availability
6
Thermostat WPL 4171092 Contact Us For Availability
6
Manifold, Upper Arm WPL 4162466 Contact Us For Availability
6
Inner Door Assembly WPL 4162508 Contact Us For Availability
6
Side Trim (Lower Panel) WPL 4162686 Contact Us For Availability
6
Plate Rack WPL 4171296 Contact Us For Availability
7
Screw, 10-16 X 3/8 WPL 4159466 Contact Us For Availability
7
Clip, Retainer WPL 9740303 Contact Us For Availability
7
Bracket, Housing Support WPL 4162703 Contact Us For Availability
7
Washer, Impeller WPL 4162917 Contact Us For Availability
7
Nut, Heat Sensing WPL 4161640 Contact Us For Availability
7
Grommet WPL 4162735 Contact Us For Availability
7
Lid, Basket WPL 4171299 Contact Us For Availability
8
Gasket, Rack Stud WPL 4162943 Contact Us For Availability
8
Screw, 8-18 X 5/16 (8) WPL 4159442 Contact Us For Availability
8
``O`` Ring WPL 4159826 Contact Us For Availability
8
``O`` Ring WPL 4159822 Contact Us For Availability
8
Bearing, Arm (Bottom) WPL 4162625 Contact Us For Availability
8
Screw, 10-32 x 5/16 WPL 4159275 Contact Us For Availability
8
Lower Mounting Panel Assembly (Includes Upper WPL 4162737 Contact Us For Availability
9
Bracket, L.H. Door Stop WPL 4161592 Contact Us For Availability
9
Stud, Rack Roller WPL 4162945 Contact Us For Availability
9
Strap (Flexible Connector to Tank) WPL 4162935 Contact Us For Availability
9
Actuator, Interlock Switch WPL 4171197 Contact Us For Availability
9
Wash Impeller Assembly WPL 4162921 Contact Us For Availability
9
Gasket WPL 4161644 Contact Us For Availability
9
Bearing, Arm (Top) WPL 4162491 Contact Us For Availability
9
Filler (Lower Panel) WPL 4162734 Contact Us For Availability
10
Screw, 4-40 X 3/4 WPL 4159424 Contact Us For Availability
10
Lock Nut WPL 4159115 Contact Us For Availability
10
Lock Washer WPL 4159494 Contact Us For Availability
10
Screw, 10-16 X 5/8 (2) WPL 4159178 Contact Us For Availability
10
Plate, Air Inlet Cover WPL 4162952 Contact Us For Availability
10
Wash/Rinse Arm Assembly WPL 4162468 Contact Us For Availability
10
Plug Button WPL 4159121 Contact Us For Availability
11
Bearing, Door Stop Insert WPL 4160355 Contact Us For Availability
11
Roller, Rack Track WPL 4162944 Contact Us For Availability
11
Keeper, Latch WPL 4160092 Contact Us For Availability
11
Wheel, Blower WPL 4162741 Contact Us For Availability
11
Gasket, Cover Plate WPL 4162953 Contact Us For Availability
11
Clip, Arm Guard WPL 4162501 Contact Us For Availability
12
Panel Insert Kits (Stainless Steal) WPL 4169400 Contact Us For Availability
12
Bushing, Rack Roller WPL 4162946 Contact Us For Availability
12
Screw, 10-16 x 3/8 WPL 4159421 Contact Us For Availability
12
Lower Pump Housing (Includes Items 13 & 23) WPL 4162929 Contact Us For Availability
12
Vapor Barrier, Inner Door (Includes Item No. WPL 4162949 Contact Us For Availability
12
Panel Insert Kits (Fresh Avocado/ Coffee) WPL 4162835 Contact Us For Availability
12
Panel Insert Kits (Almond/White OPTIONAL KITS WPL 4162836 Contact Us For Availability
12
Panel Insert Kits (Platinum/Toast) WPL 4169402 Contact Us For Availability
12
Panel Insert Kits (Sand/Onyx Black) WPL 4169403 Contact Us For Availability
12
Panel Insert Kits (Silver/Onyx Black) WPL 4169404 Contact Us For Availability
12
Panel Insert Kits (Harvest Gold/Onyx Black) WPL 4171096 Contact Us For Availability
13
Bumper, Rack Track WPL 4162084 Contact Us For Availability
13
Seal, Wash Pump Ring WPL 4162919 Contact Us For Availability
13
Screw WPL 4161737 Contact Us For Availability
13
Bracket, Spring Mounting (L.H.) WPL 4161957 Contact Us For Availability
13
Bracket, Spring Mounting (R.H.) WPL 4161958 Contact Us For Availability
14
Screw (2) WPL 9740003 Contact Us For Availability
14
Stud, Bumper Retaining WPL 4160423 Contact Us For Availability
14
Nut, Standpipe WPL 4161596 Contact Us For Availability
14
Cover, Dryer Motor WPL 4162443 Contact Us For Availability
14
Fine Strainer WPL 4162933 Contact Us For Availability
14
Tube (Manifold to Receiver) WPL 4161617 Contact Us For Availability
15
Screw & Washer Assembly WPL 4163263 Contact Us For Availability
15
Bumper, Upper Rack WPL 4162048 Contact Us For Availability
15
Float & Retainer Assembly WPL 4171216 Contact Us For Availability
15
Channel, Evaporation WPL 4162306 Contact Us For Availability
15
Blower Motor Assembly WPL 4162742 Contact Us For Availability
15
Guard, Arm WPL 4162469 Contact Us For Availability
16
Bracket, R.H. Door Stop WPL 4161594 Contact Us For Availability
16
Screw, 8-32 X 7/8 WPL 4159467 Contact Us For Availability
16
Track, Adjustable (R.H.) WPL 4171289 Contact Us For Availability
16
Track, Adjustable (L.H.) WPL 4171290 Contact Us For Availability
16
Lever, Overflow Switch WPL 4171116 Contact Us For Availability
16
Support, Evaporation Channel WPL 4161564 Contact Us For Availability
16
``O`` Ring WPL 4159827 Contact Us For Availability
16
Washer WPL 4162624 Contact Us For Availability
17
Roller, Upper Rack Track WPL 4161607 Contact Us For Availability
17
Spacer, End Cap (R.H.) WPL 4171219 Contact Us For Availability
17
Motor Mounting Plate (Includes Items 18 & 20) WPL 4162932 Contact Us For Availability
17
Arm, Receiver WPL 4161581 Contact Us For Availability
18
End Cap (R.H.) WPL 4171243 Contact Us For Availability
18
Washer WPL 4159593 Contact Us For Availability
18
Frame Assembly (L.H.) WPL 4162910 Contact Us For Availability
18
Clip, Thermoprotector WPL 4162990 Contact Us For Availability
18
Gasket, Motor Mounting Plate WPL 4161497 Contact Us For Availability
19
Bracket, R.H. Hinge WPL 4161587 Contact Us For Availability
19
Screw, 8-32 X 1/4 (4) WPL 4159283 Contact Us For Availability
19
Cross Frame, Rear WPL 4162867 Contact Us For Availability
19
Thermostat WPL 4160464 Contact Us For Availability
19
(Alt.) WPL 4171162 Contact Us For Availability
19
(Alt.) WPL 4171163 Contact Us For Availability
19
(Alt.) WPL 4171164 Contact Us For Availability
19
Screw, 8-32 x 1/2 WPL 4159299 Contact Us For Availability
19
Drain Pump Top Assembly WPL 4162924 Contact Us For Availability
20
Lift, Receiver (R.H.) WPL 4171293 Contact Us For Availability
20
Lift, Receiver (L.H.) WPL 4171294 Contact Us For Availability
20
Sleeve, Actuator Spacer WPL 9740120 Contact Us For Availability
20
Gasket, Drain Pump WPL 4163050 Contact Us For Availability
21
Screw, 10 X 5/8 WPL 4159428 Contact Us For Availability
21
Frame Assembly (R.H.) WPL 4163604 Contact Us For Availability
21
Heater, Open WPL 4162034 Contact Us For Availability
21
(Alt.) WPL 4171159 Contact Us For Availability
21
(Alt.) WPL 4171160 Contact Us For Availability
21
(Alt.) WPL 4171161 Contact Us For Availability
21
Pin, Hinge WPL 4161563 Contact Us For Availability
22
Lead Assembly (Interlock Switch to Program Sw WPL 4162614 Contact Us For Availability
22
Partition WPL 4171286 Contact Us For Availability
22
Screw, 1/4-20 x 1/2 WPL 4159443 Contact Us For Availability
22
Access Cover WPL 4163186 Contact Us For Availability
22
Motor Clamp Assembly WPL 4161986 Contact Us For Availability
22
Clip, Hinge Pin Retaining WPL 4161585 Contact Us For Availability
23
Clip, Partition (6) WPL 4160480 Contact Us For Availability
23
Cross Frame, Front WPL 4161368 Contact Us For Availability
23
Bracket, Blower Mounting WPL 4171153 Contact Us For Availability
23
Gasket, Venturi WPL 4162916 Contact Us For Availability
23
Screw WPL 4162113 Contact Us For Availability
24
Quadrant, Divider (L.H.) WPL 4160860 Contact Us For Availability
24
Quadrant, Divider (R.H.) WPL 4160861 Contact Us For Availability
24
Kick Board WPL 4161580 Contact Us For Availability
24
Start Relay Kit (Includes Item 25) WPL 4171129 Contact Us For Availability
25
Clip, Grounding (Front Panel) WPL 4162043 Contact Us For Availability
25
Foot, Leveling WPL 4162911 Contact Us For Availability
25
Screw, 8-18 x 1-1/4 WPL 4159403 Contact Us For Availability
26
Bimetal Assembly WPL 4162568 Contact Us For Availability
26
Clip, Wash Arm Guard WPL 4171224 Contact Us For Availability
26
Tube - Flexible (Drain) WPL 4163151 Contact Us For Availability
27
Baffle, Lower WPL 4161295 Contact Us For Availability
27
Button, Program Switch (8) WPL 4163239 Contact Us For Availability
27
Rackstop (R.H.) WPL 4171291 Contact Us For Availability
27
Rackstop (L.H.) WPL 4171292 Contact Us For Availability
27
Screw, 10-32 X 3/8 WPL 4159372 Contact Us For Availability
28
Bracket, Panel Reinforcement WPL 4163245 Contact Us For Availability
28
Enclosure, Elec. Supply WPL 4161369 Contact Us For Availability
28
Clamp, Hose (.937`` Dia.) WPL 4161508 Contact Us For Availability
29
Screw, 6-20 x 3/8 WPL 4159446 Contact Us For Availability
29
Bracket, Check Valve WPL 4171311 Contact Us For Availability
30
Detergent Dispenser & Gasket Assembly (115 V. WPL 9740171 Contact Us For Availability
30
Trim, Handle WPL 4163254 Contact Us For Availability
30
Trim, Tank (Screw, 10-16 X 1/2) WPL 4159389 Contact Us For Availability
30
Trim, Tank (R.H.) WPL 4171304 Contact Us For Availability
30
Trim, Tank (L.H.) WPL 4171305 Contact Us For Availability
30
Check Valve Assembly WPL 4162920 Contact Us For Availability
31
Motor, Seal & Gasket Kit (Includes Items 18, WPL 4163523 Contact Us For Availability
32
Handle, Latch WPL 4163243 Contact Us For Availability
32
Tank (Serviced Complete with Frame) WPL 4163603 Contact Us For Availability
32
Screw, 1/4-20 x 1 WPL 4159235 Contact Us For Availability
32
Washer (Rubber) WPL 4159594 Contact Us For Availability
33
Screw, 10-32 x 5/8 WPL 4159225 Contact Us For Availability
33
Screw, 10-32 X 1/2 WPL 4162151 Contact Us For Availability
33
Protector, Edge WPL 4171215 Contact Us For Availability
33
Connector WPL 4161605 Contact Us For Availability
34
Fill Hole Plug Assembly (Includes Item 35) WPL 4171221 Contact Us For Availability
34
Clip, Harness Guide WPL 4163372 Contact Us For Availability
34
Clamp, Hose (1.468`` Dia.) WPL 4162031 Contact Us For Availability
35
Screw, 8-18 X 3/8 WPL 4159349 Contact Us For Availability
35
Wiring Harness (Main) WPL 9740205 Contact Us For Availability
35
Washer, Fill Hole Plug WPL 4162496 Contact Us For Availability
36
Nut, Rinse Agent Dispenser WPL 4171300 Contact Us For Availability
36
Cutter Kit (Includes Shaft Seal Kit) WPL 4163042 Contact Us For Availability
37
Gasket, Rinse Agent Dispenser WPL 4161545 Contact Us For Availability
38
Rinse Agent Dispensing Valve WPL 4171217 Contact Us For Availability
39
Bracket, L.H. Hinge WPL 4161589 Contact Us For Availability
39
Control Panel WPL ARI115929A Contact Us For Availability
41
Spacer, End Cap (L.H.) WPL 4171220 Contact Us For Availability
41
Shim Washer Kit WPL 4163634 Contact Us For Availability
41
Vapor Barrier, Corner (2) WPL 4162950 Contact Us For Availability
42
End Cap (L.H.) WPL 4171244 Contact Us For Availability
43
Screw, 6-20 x 3/8 WPL 4159408 Contact Us For Availability
44
Timer Assembly (115 V., 60 Hz.) WPL 4171245 Contact Us For Availability
47
Light Package WPL 4163237 Contact Us For Availability
48
Insulator, Light WPL 4163352 Contact Us For Availability
49
Barrier, Timer WPL 4171158 Contact Us For Availability
50
Screw, 6-32 X 3/8 WPL 4159432 Contact Us For Availability
50
Retaining Bracket WPL 4171134 Contact Us For Availability
51
Lens, Program Light WPL 4171336 Contact Us For Availability
× ![]()
