Model Whirlpool KUDS21MS2 – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $15.99

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $15.74

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

WPL 799344 WPL 799344 Contact Us For Availability

Golden Harvest WPL 261890 Contact Us For Availability

Golden Harvest (Uncut) WPL 261891 Contact Us For Availability

Toast WPL 285365 Contact Us For Availability

Paint, Spray (13 Oz WPL 285366 Contact Us For Availability

WPL 285367 WPL 285367 Contact Us For Availability

WPL 285368 WPL 285368 Contact Us For Availability

WPL 350941 WPL 350941 Contact Us For Availability

WPL 4171179 WPL 4171179 Contact Us For Availability

WPL 675476 WPL 675476 Contact Us For Availability

WPL 675506 WPL 675506 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799640 WPL 799640 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL LIT4171136 WPL LIT4171136 Contact Us For Availability

WPL LIT4171187 WPL LIT4171187 Contact Us For Availability

WPL LIT4171188 WPL LIT4171188 Contact Us For Availability

WPL LIT4171320 WPL LIT4171320 Contact Us For Availability

WPL LIT4177706 WPL LIT4177706 Contact Us For Availability

1

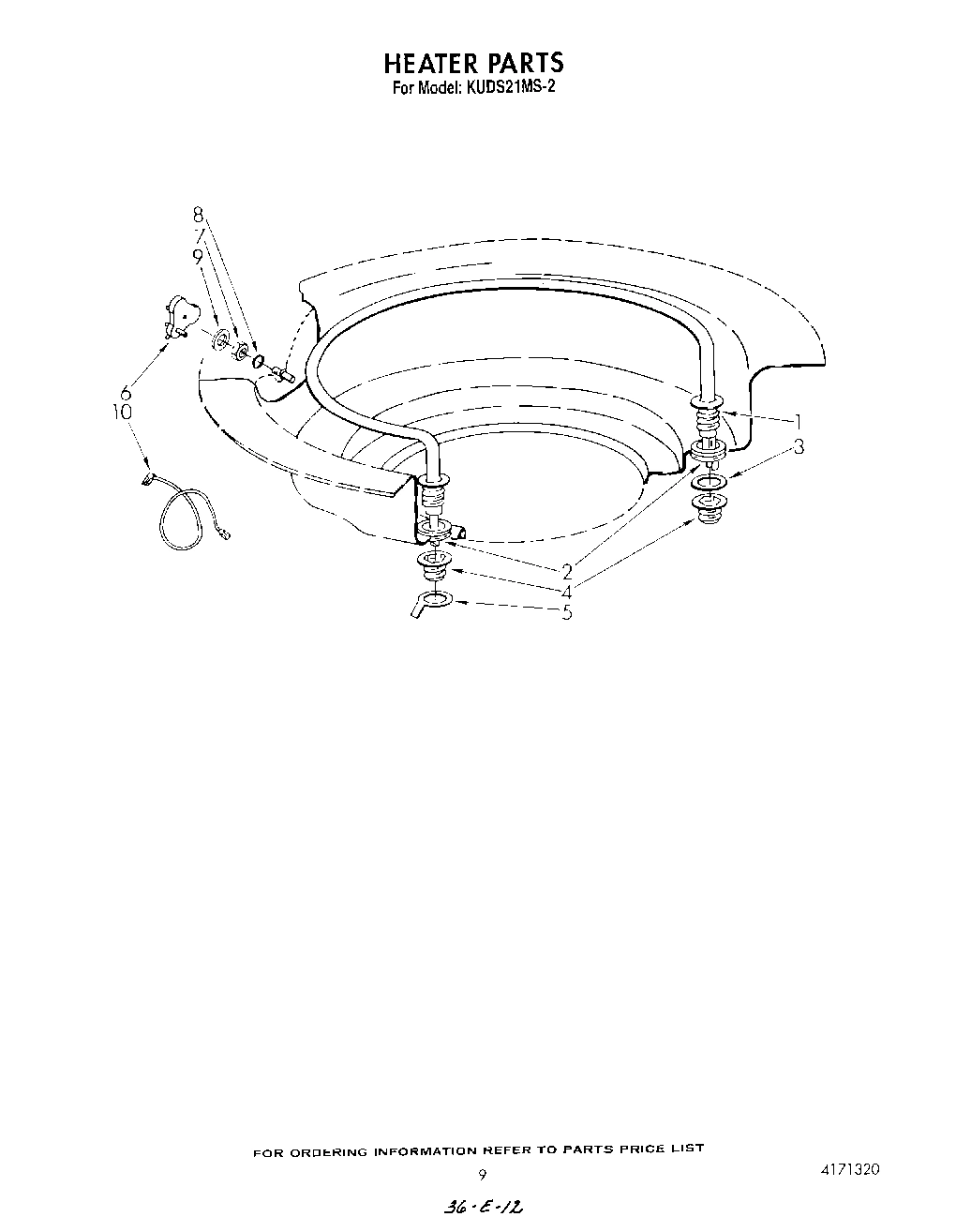

Element, Heater (Alt.) WPL 4163524 Contact Us For Availability

1

Element, Heater (Alt.) WPL 4171154 Contact Us For Availability

1

Element, Heater WPL 4171155 Contact Us For Availability

1

Tube & Connector Assembly WPL 4162664 Contact Us For Availability

1

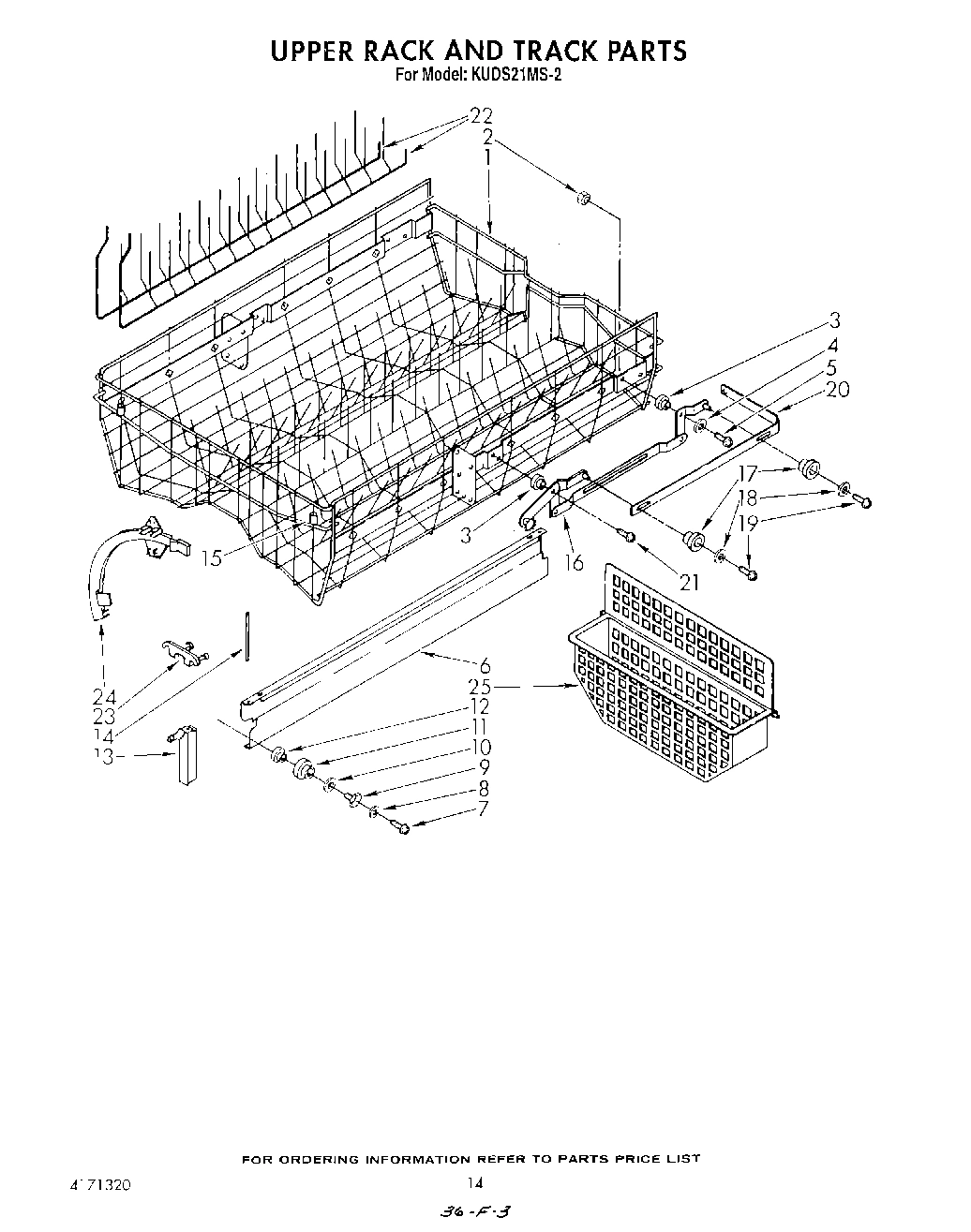

Upper Rack Assy. (Incls. Items 2, 3, 4, 5 & 1 WPL 4162515 Contact Us For Availability

1

Screw WPL 4162215 Contact Us For Availability

1

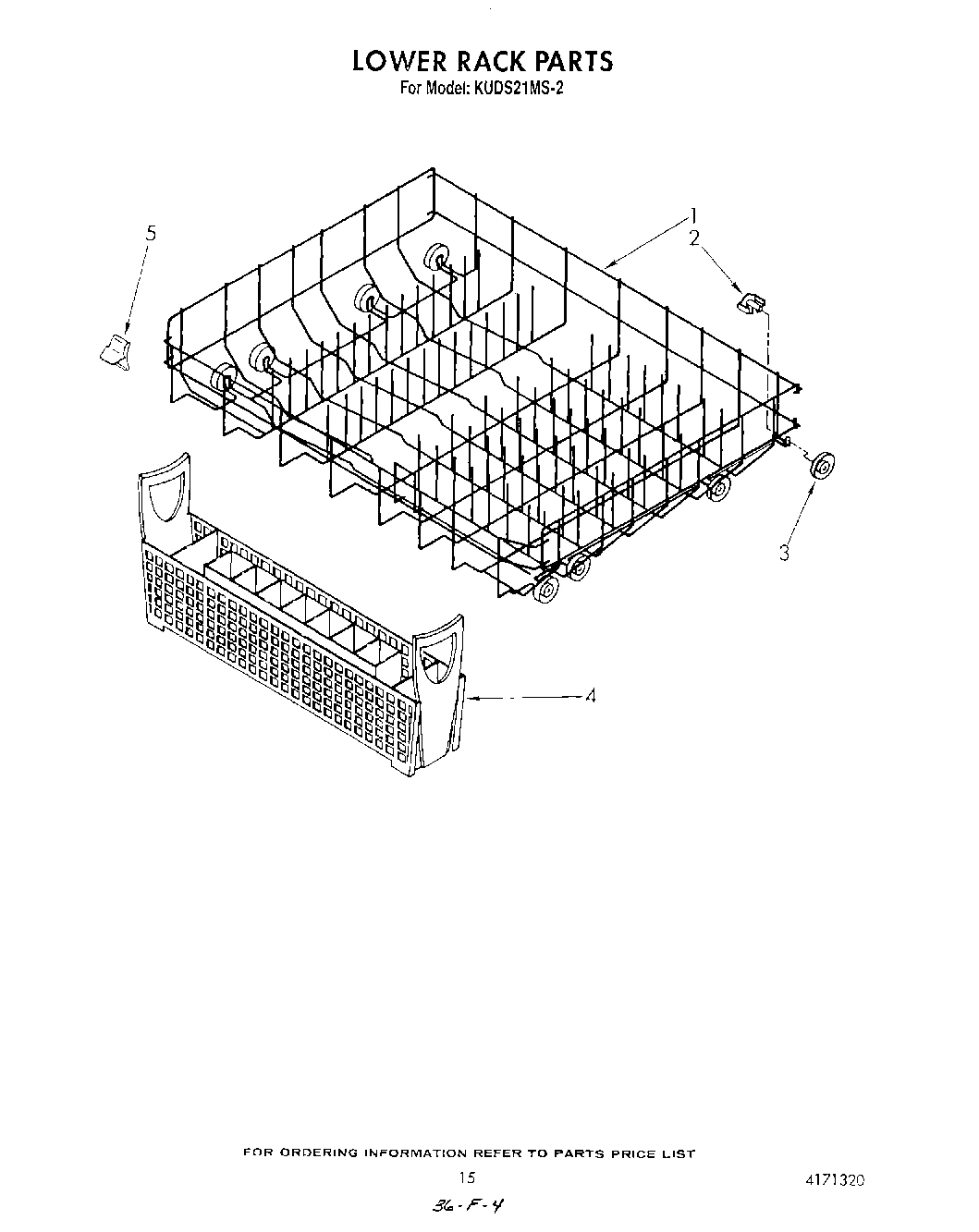

Lower Rack Assembly (Includes Items 2 & 3) WPL 4161654 Contact Us For Availability

1

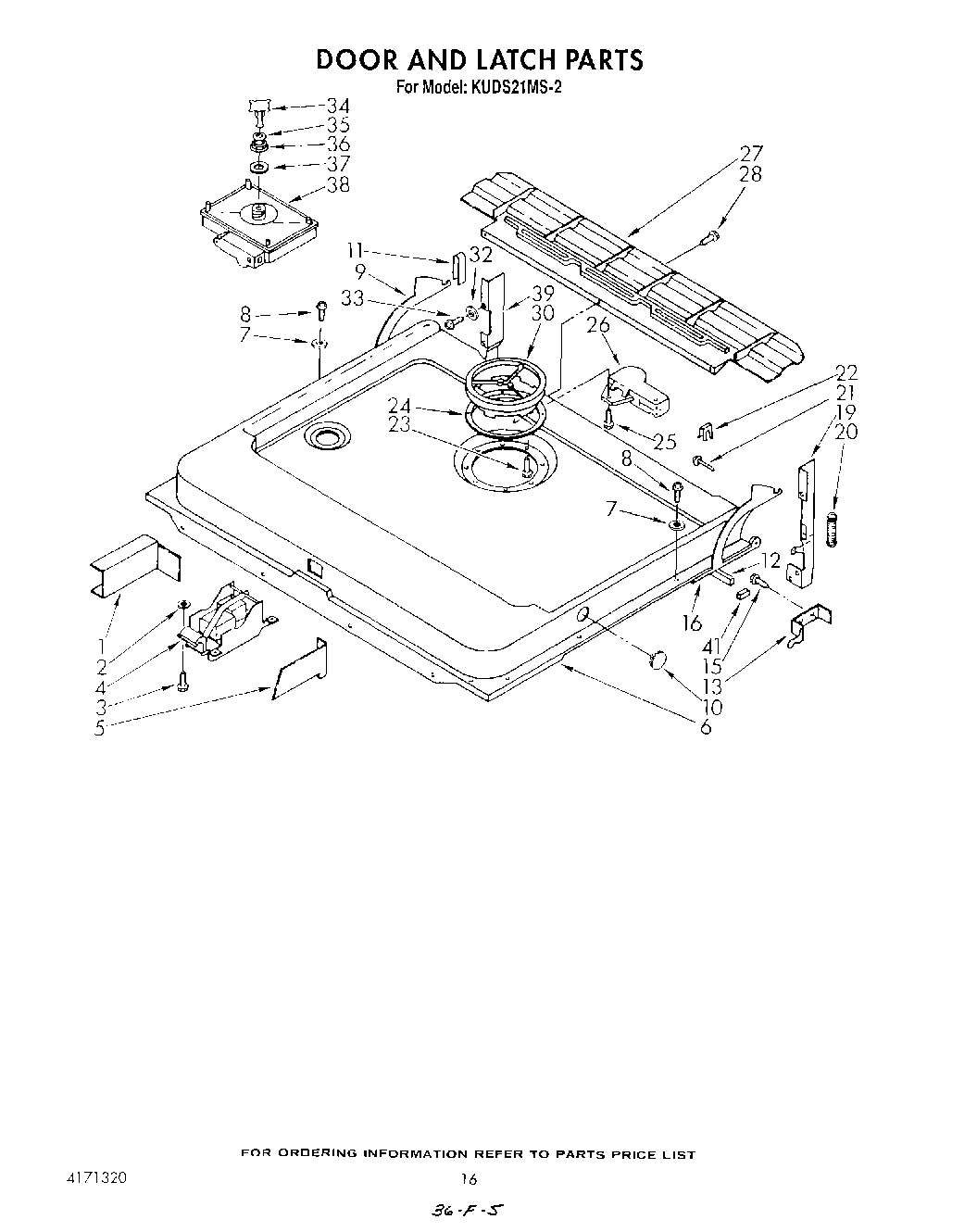

Insulator, Latch WPL 4171130 Contact Us For Availability

1

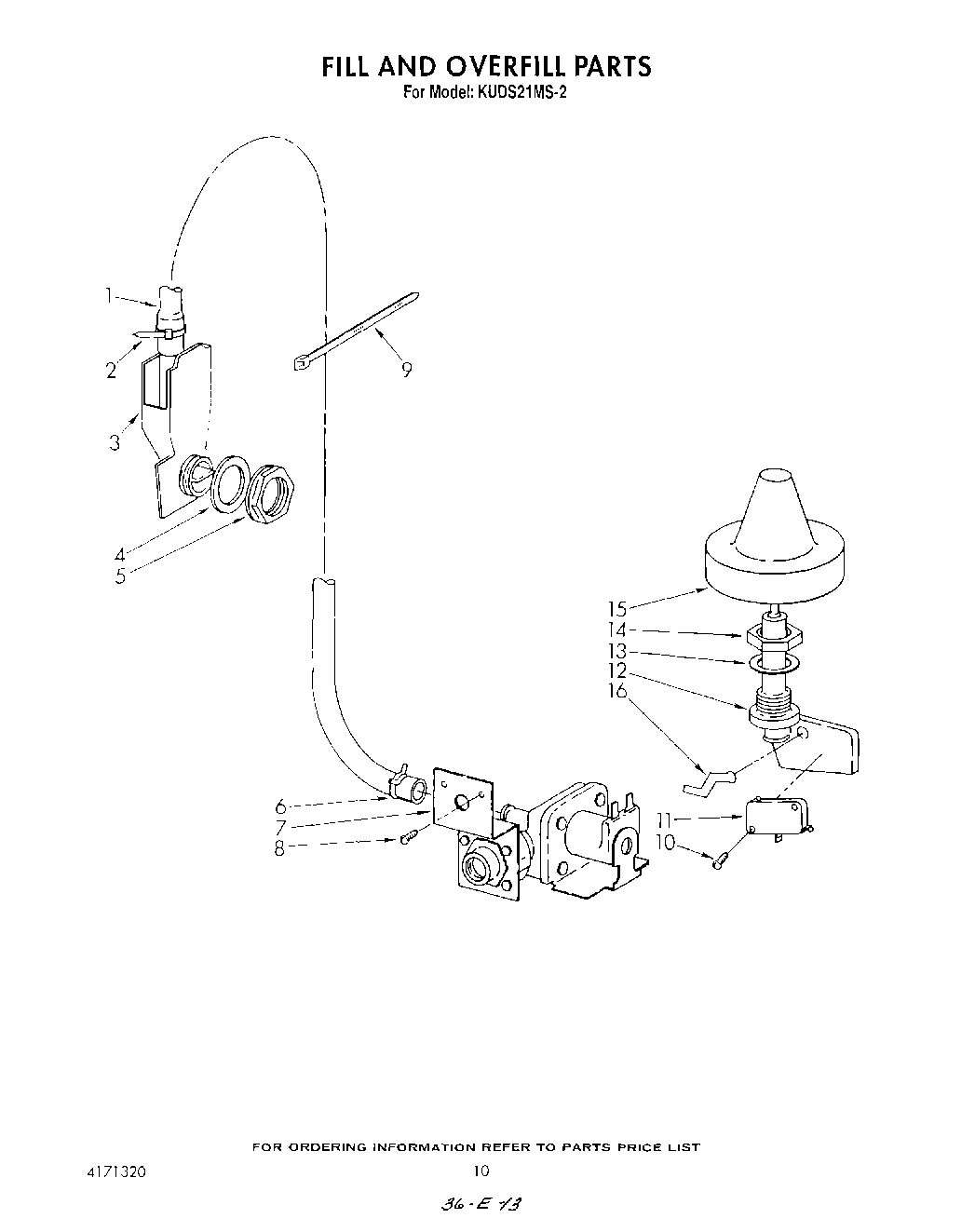

Hose, Flexible (Fill Valve to Air Gap) WPL 4163236 Contact Us For Availability

1

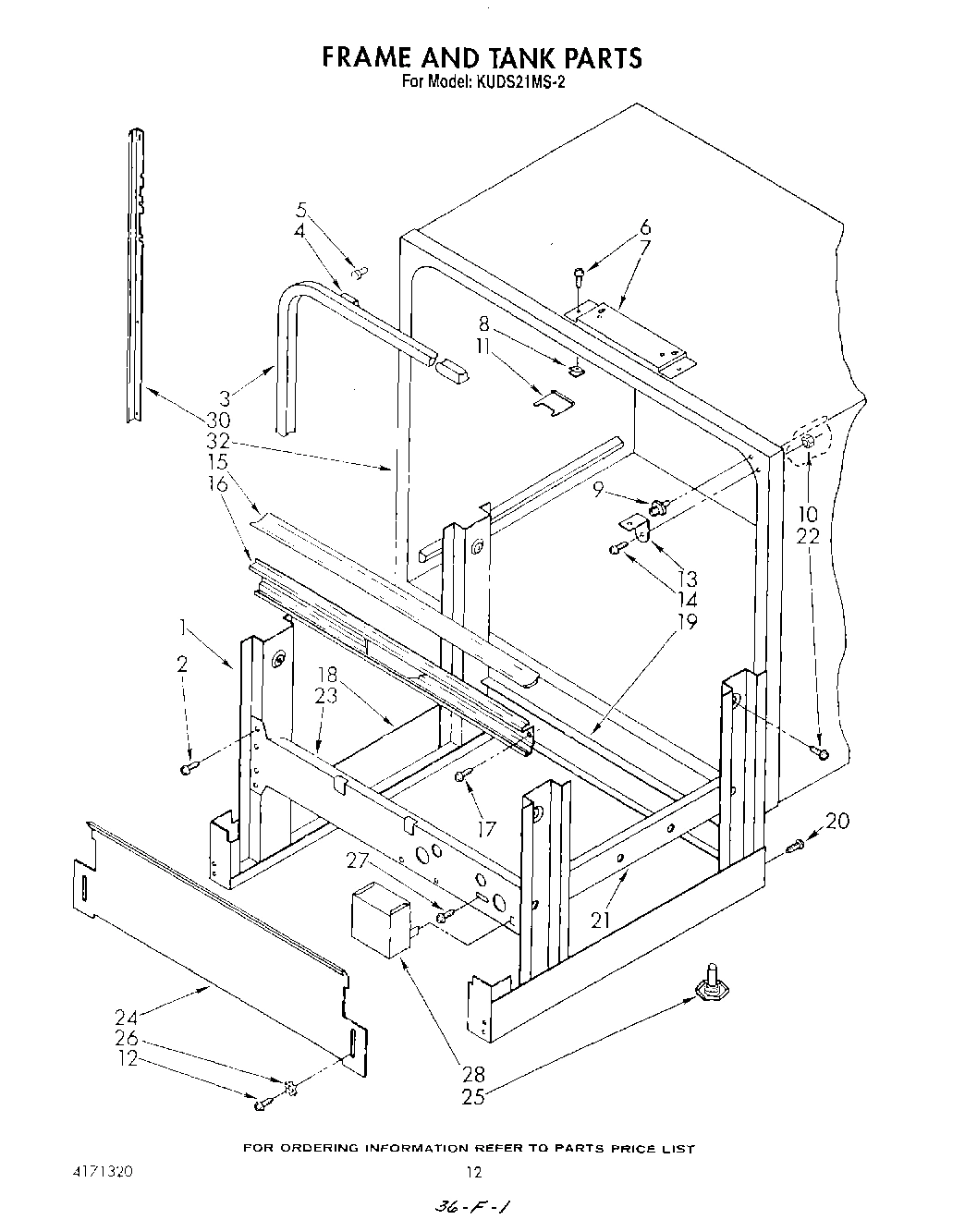

Short Frame Assembly (Includes Items 2, 18, 1 WPL 4162908 Contact Us For Availability

1

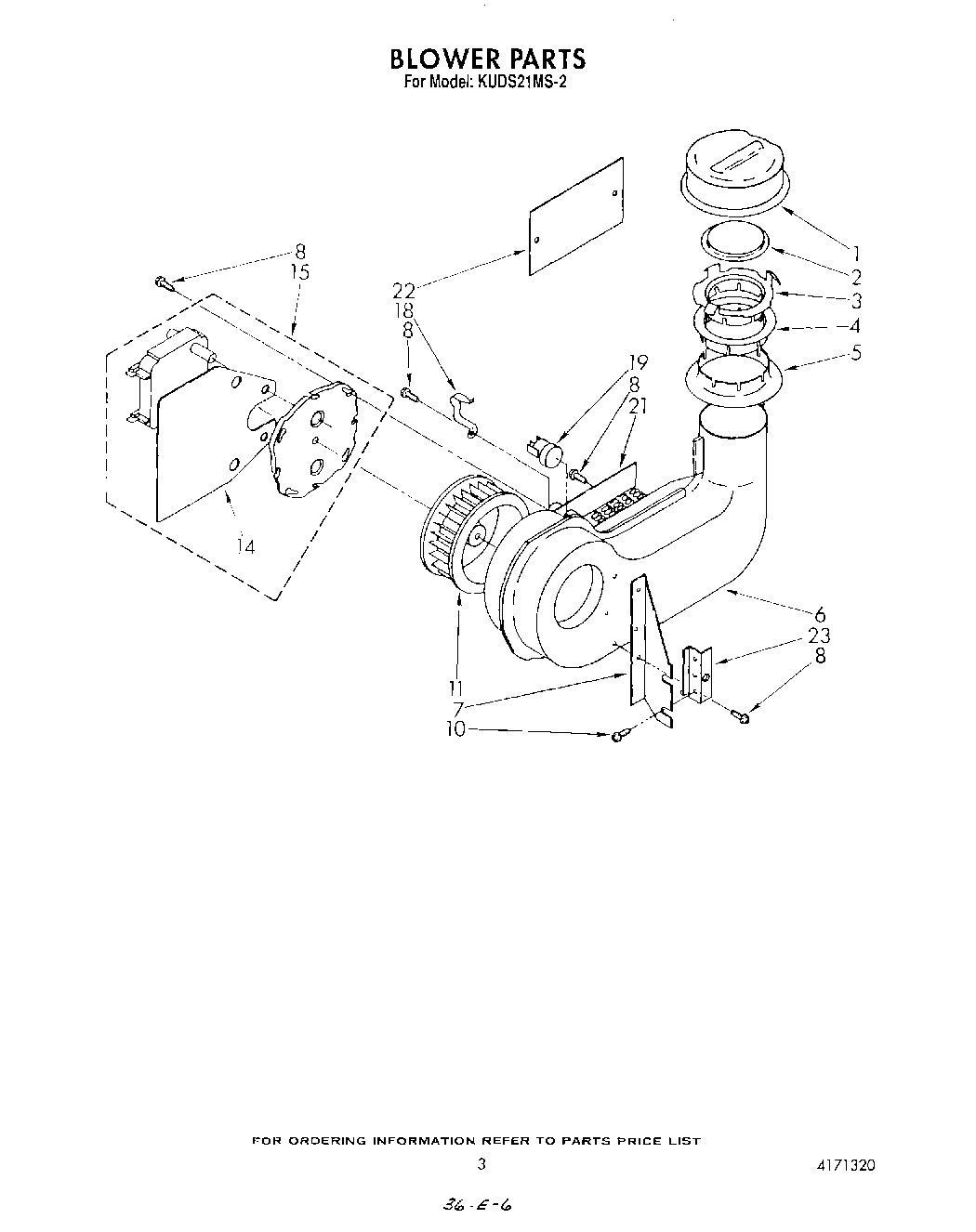

Cover, Air Inlet (Incls. Items 2 thru 5) WPL 4162102 Contact Us For Availability

1

Washer WPL 4162892 Contact Us For Availability

2

W11233072 Whirlpool Screw In Stock WPL W11233072 $19.85

2

Axle, Lower Rack WPL 4162321 Contact Us For Availability

2

Grommet, Heater Element WPL 4162520 Contact Us For Availability

2

Connector, Vertical Conduit WPL 4162723 Contact Us For Availability

2

Nut, Roller WPL 4161226 Contact Us For Availability

2

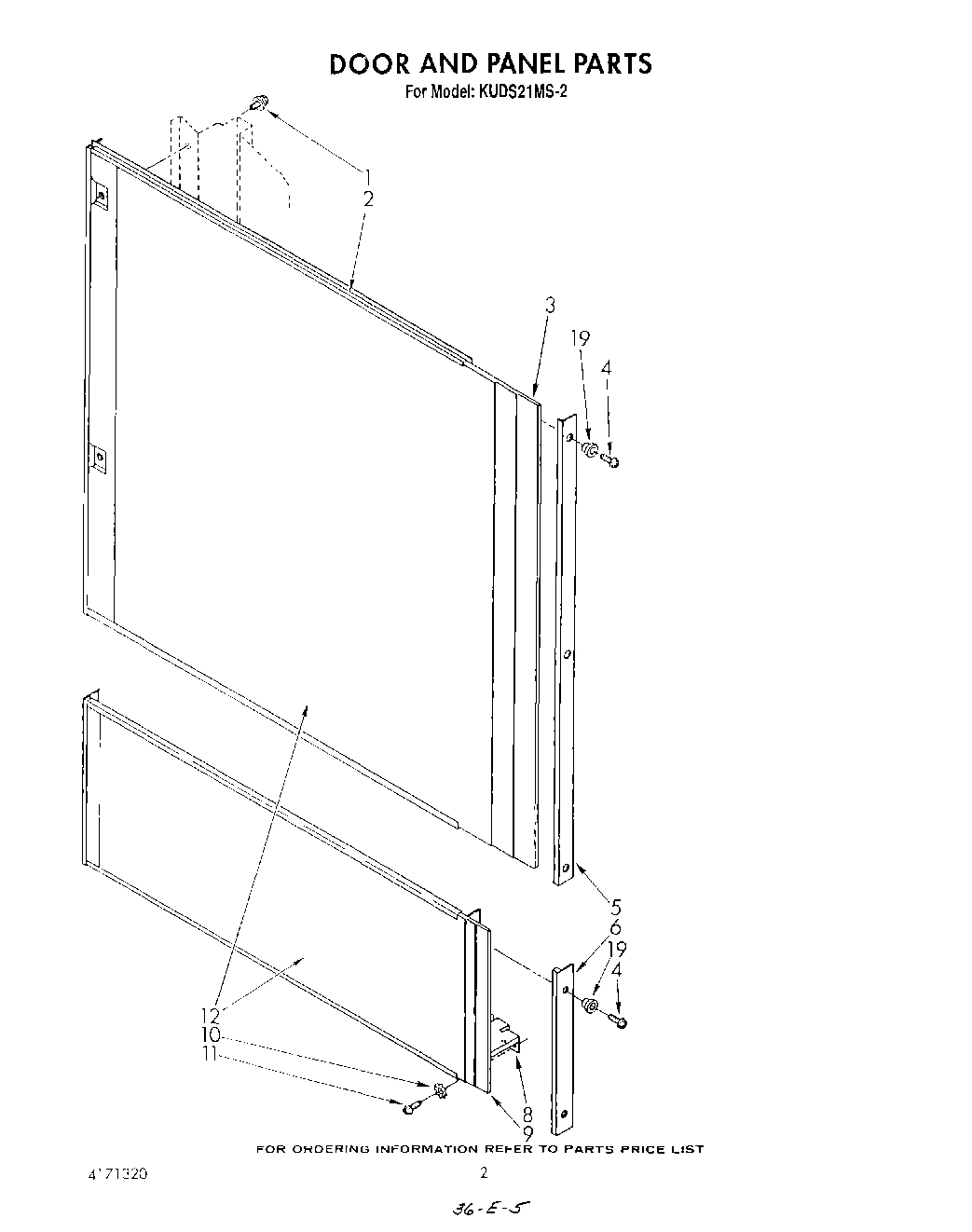

Upper Mounting Panel Assy WPL ARI115899A Contact Us For Availability

2

Anchor, Cancel Spring WPL 4171120 Contact Us For Availability

2

Clamp, Hose WPL 4162103 Contact Us For Availability

2

Float, Check Valve WPL 4161590 Contact Us For Availability

3

WP4162322 Whirlpool Dishwasher Roller In Stock WPL WP4162322 $3.91

3

Door Seal Assy. (Incls. Item 4) WPL 4161631 Contact Us For Availability

3

Washer, Heater Element WPL 4159600 Contact Us For Availability

3

Conduit, Vertical WPL 4162655 Contact Us For Availability

3

Bearing & Spacer, Rack Roller WPL 4162457 Contact Us For Availability

3

Filler (Upper Panel) WPL ARI115900A Contact Us For Availability

3

Air Gap, Fill Assy. (Incls. Items 1 & 2) WPL 4163273 Contact Us For Availability

3

Support, Air Inlet Cover WPL 4161597 Contact Us For Availability

3

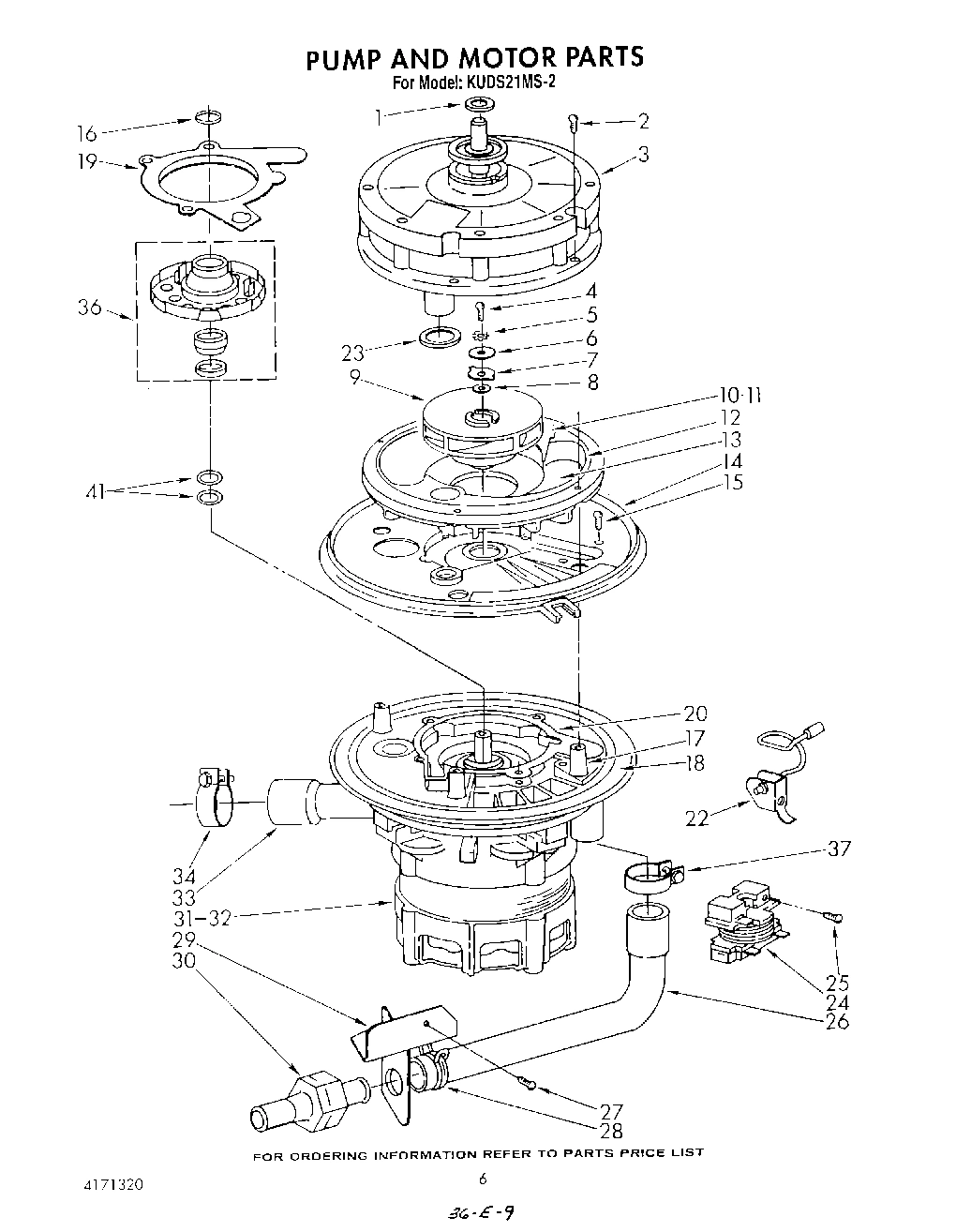

Wash Pump Top (Includes Items 1 & 23) WPL 4163521 Contact Us For Availability

4

Gasket, Rubber WPL 4161545 Contact Us For Availability

4

Nut, Heater Element WPL 4162518 Contact Us For Availability

4

Retainer, Conduit WPL 4162609 Contact Us For Availability

4

Washer WPL 4162452 Contact Us For Availability

4

Screw, 6 X 1/4 WPL 4159439 Contact Us For Availability

4

Rivet WPL 4159169 Contact Us For Availability

4

Clip, Seal WPL 4161608 Contact Us For Availability

4

Deflector, Air (Upper) WPL 4161650 Contact Us For Availability

4

Screw, 10-32 WPL 4162918 Contact Us For Availability

5

Nut (Fill Air Gap) WPL 4161667 Contact Us For Availability

5

Terminal, Ground WPL 4163306 Contact Us For Availability

5

Retainer, Manifold WPL 4162500 Contact Us For Availability

5

Side Trim (Upper Panel) WPL 4162685 Contact Us For Availability

5

Bumper, Lower Rack WPL 4162575 Contact Us For Availability

5

Spring, Switch Cancel WPL 4163257 Contact Us For Availability

5

Bumper, Door WPL 4161626 Contact Us For Availability

5

Deflector, Air (Lower) WPL 4160652 Contact Us For Availability

5

Lock Washer WPL 4159500 Contact Us For Availability

6

WP693304 Whirlpool Screw Backorder WPL WP693304 $4.82

6

Thermostat WPL 4171092 Contact Us For Availability

6

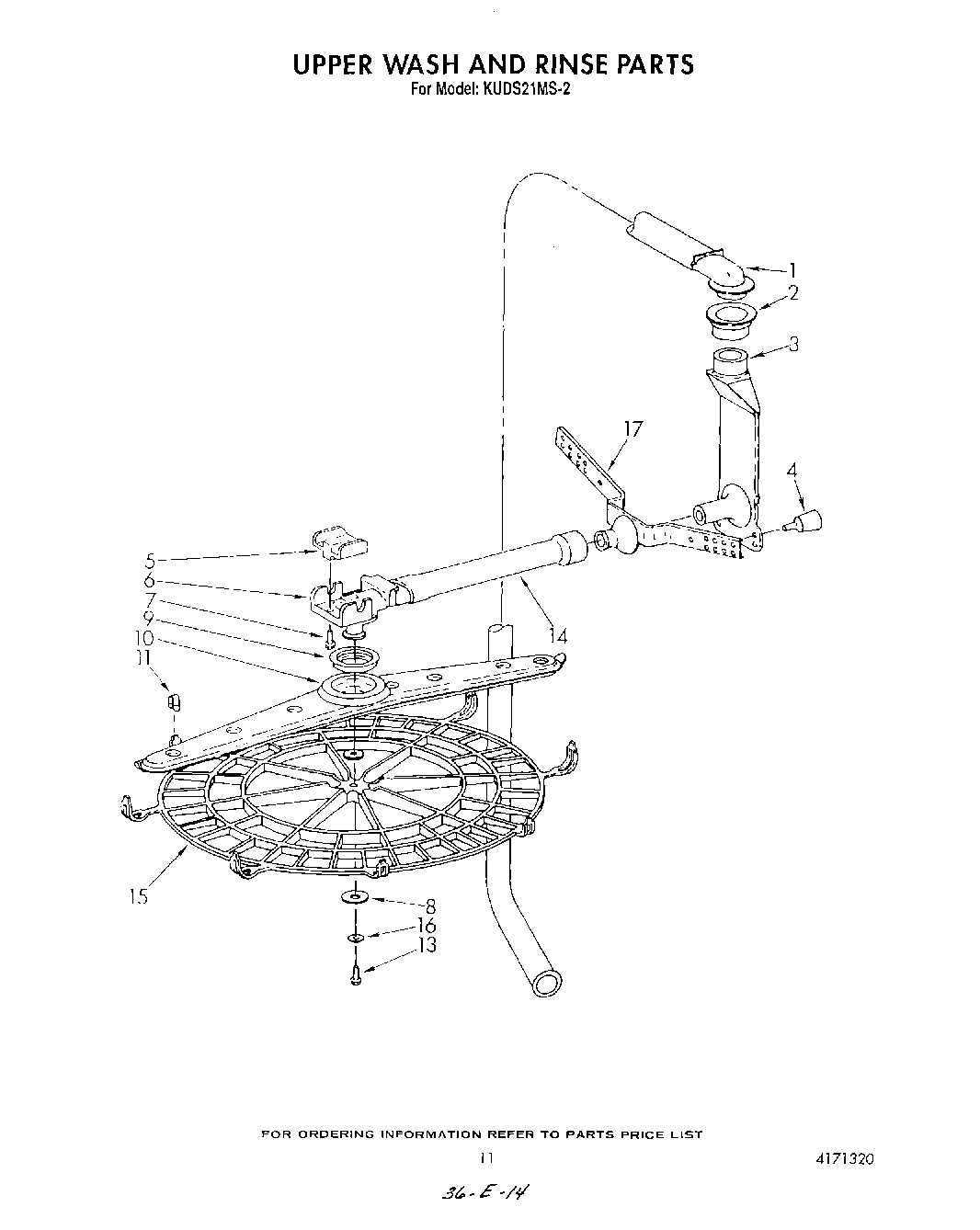

Manifold, Upper Arm WPL 4162466 Contact Us For Availability

6

Track, Rack WPL 4162442 Contact Us For Availability

6

Side Trim (Lower Panel) WPL 4162686 Contact Us For Availability

6

Bracket, Program Switch WPL 4163256 Contact Us For Availability

6

Clamp, Hose WPL 4161507 Contact Us For Availability

6

Dryer Housing & Bracket Assembly (Includes It WPL 4162701 Contact Us For Availability

6

Washer, Spring (Impeller) WPL 4160297 Contact Us For Availability

7

WP4171000 Whirlpool Dishwasher Inlet Valve In Stock WPL WP4171000 $100.75

7

Nut, Heat Sensing WPL 4161640 Contact Us For Availability

7

Screw, 10-16 X 3/8 WPL 4159466 Contact Us For Availability

7

Protector, Upper Water Inlet WPL 4161699 Contact Us For Availability

7

Bracket, Housing Support WPL 4162703 Contact Us For Availability

7

Washer, Impeller WPL 4162917 Contact Us For Availability

8

``O`` Ring WPL 4159822 Contact Us For Availability

8

Bearing, Arm (Bottom) WPL 4162625 Contact Us For Availability

8

Gasket, Rack Stud WPL 4162943 Contact Us For Availability

8

Lower Mounting Panel Assy WPL ARI115901A Contact Us For Availability

8

Switch, Program WPL 4163286 Contact Us For Availability

8

Speed Nut WPL 4162174 Contact Us For Availability

8

Screw, 8-18 X 5/16 (8) WPL 4159442 Contact Us For Availability

8

``O`` Ring WPL 4159826 Contact Us For Availability

9

Bracket, L.H. Door Stop WPL 4161592 Contact Us For Availability

9

Gasket WPL 4161644 Contact Us For Availability

9

Bearing, Arm (Top) WPL 4162491 Contact Us For Availability

9

Stud, Rack Roller WPL 4162945 Contact Us For Availability

9

Filler (Lower Panel) WPL ARI115902A Contact Us For Availability

9

Strap (Flexible Connector to Tank) WPL 4162935 Contact Us For Availability

9

Actuator, Interlock Switch WPL 4163574 Contact Us For Availability

9

Wash Impeller Assembly WPL 4162921 Contact Us For Availability

Lead WPL 4161741 Contact Us For Availability

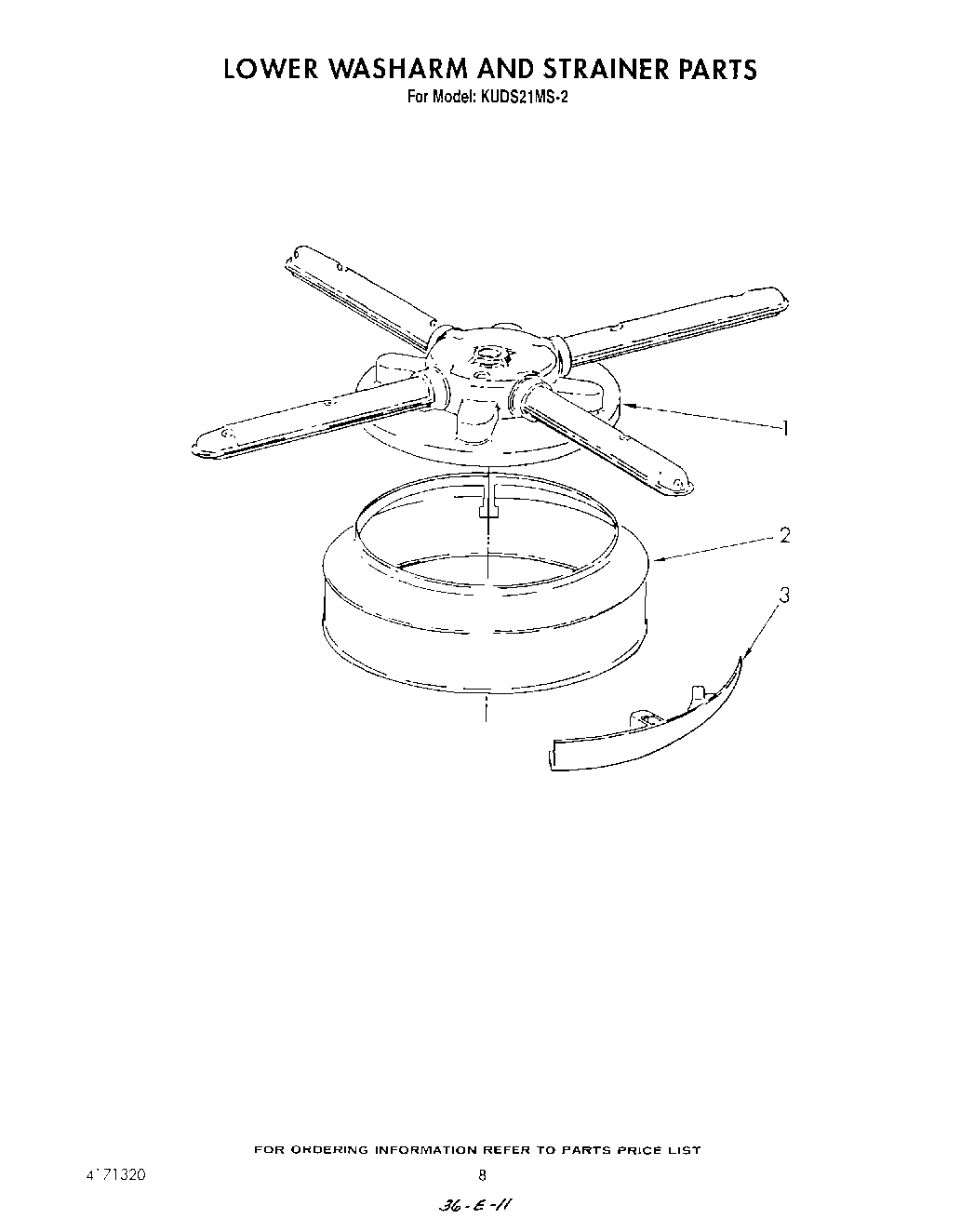

Wash/Rinse Arm Assembly WPL 4162468 Contact Us For Availability

Washer, Roller Spacing WPL 4162947 Contact Us For Availability

Screw, 6-32 X 3/8 WPL 4159432 Contact Us For Availability

Screw, 4-40 X 3/4 WPL 4159424 Contact Us For Availability

Lock Nut WPL 4159115 Contact Us For Availability

Screw, 10-16 X 5/8 (2) WPL 4159178 Contact Us For Availability

Plate, Air Inlet Cover WPL 4162952 Contact Us For Availability

Bearing, Door Stop Insert WPL 4160355 Contact Us For Availability

Clip, Arm Guard WPL 4162501 Contact Us For Availability

Roller, Rack Track WPL 4162944 Contact Us For Availability

Spring, Door Interlock WPL 4163571 Contact Us For Availability

Keeper, Latch WPL 4160092 Contact Us For Availability

Wheel, Blower WPL 4162741 Contact Us For Availability

Gasket, Cover Plate WPL 4162953 Contact Us For Availability

Panel Insert Kits (Stainless Steal (Optional) WPL 4169400 Contact Us For Availability

Bushing, Rack Roller WPL 4162946 Contact Us For Availability

Panel Insert Kits (Fresh Avocado/Coffee (Opti WPL 4162835 Contact Us For Availability

Panel Insert Kits (Almond/White) WPL 4162836 Contact Us For Availability

Panel Insert Kits (Platinum/Toast (Optional)) WPL 4169402 Contact Us For Availability

Panel Insert Kits (Sand/Onyx Black (Optional) WPL 4169403 Contact Us For Availability

Panel Insert Kits (Silver/Onyx Black (Optiona WPL 4169404 Contact Us For Availability

Panel Insert Kits (Harvest Gold/Onyx Black) WPL 4171096 Contact Us For Availability

Screw, 10-16 x 3/8 WPL 4159421 Contact Us For Availability

Lower Pump Housing (Includes Items 13 & 23) WPL 4162929 Contact Us For Availability

WP8531743 Whirlpool Dishwasher Float Switch B In Stock WPL WP8531743 $36.85

WP9741251 Whirlpool Mounting Bracket In Stock WPL WP9741251 $5.99

Screw WPL 4161737 Contact Us For Availability

Bumper, Rack Track WPL 4162084 Contact Us For Availability

Switch, Interlock WPL 4160658 Contact Us For Availability

Seal, Wash Pump Ring WPL 4162919 Contact Us For Availability

Tube (Manifold to Receiver) WPL 4161617 Contact Us For Availability

Stud, Bumper Retaining WPL 4160423 Contact Us For Availability

Screw 6-32 X 7/8 WPL 4159353 Contact Us For Availability

Nut, Standpipe WPL 4161596 Contact Us For Availability

Cover, Dryer Motor WPL 4162443 Contact Us For Availability

Fine Strainer WPL 4162933 Contact Us For Availability

Guard, Arm WPL 4162469 Contact Us For Availability

Bumper, Upper Rack WPL 4162048 Contact Us For Availability

Screw & Washer Assy WPL 4163263 Contact Us For Availability

Float & Retainer Assembly WPL 4162407 Contact Us For Availability

Channel, Evaporation WPL 4162306 Contact Us For Availability

Blower Motor Assembly WPL 4162742 Contact Us For Availability

Bracket, R.H. Door Stop WPL 4161594 Contact Us For Availability

Washer WPL 4162624 Contact Us For Availability

Track, Adjustable (L.H.) WPL 4161652 Contact Us For Availability

Track, Adjustable (R.H.) WPL 4161653 Contact Us For Availability

Screw, 8-32 X 7/8 WPL 4159467 Contact Us For Availability

Lever, Overflow Switch WPL 4171116 Contact Us For Availability

Support, Evaporation Channel WPL 4161564 Contact Us For Availability

``O`` Ring WPL 4159827 Contact Us For Availability

Roller, Upper Rack Track WPL 4161607 Contact Us For Availability

Arm, Receiver WPL 4161581 Contact Us For Availability

Spacer, End Cap (R.H.) WPL 4163288 Contact Us For Availability

Screw, 10-32 X 1/2 WPL 4162151 Contact Us For Availability

Motor Mounting Plate (Incls. Items 18 & 35) WPL 4162932 Contact Us For Availability

Washer WPL 4159593 Contact Us For Availability

End Cap (R.H.) WPL 4163241 Contact Us For Availability

Frame Assembly (L.H.) WPL 4162910 Contact Us For Availability

Clip, Thermoprotector WPL 4162990 Contact Us For Availability

Gasket, Motor Mounting Plate WPL 4161497 Contact Us For Availability

Bracket, R.H. Hinge WPL 4161587 Contact Us For Availability

Screw, 8-32 X 1/4 (4) WPL 4159283 Contact Us For Availability

Grommet, Panel (10) WPL 4162735 Contact Us For Availability

Wiring Harness (Grounding) WPL 4163272 Contact Us For Availability

Cross Frame, Rear WPL 4162867 Contact Us For Availability

Thermostat WPL 4160464 Contact Us For Availability

Thermostat (Alt.) WPL 4171162 Contact Us For Availability

Thermostat (Alt.) WPL 4171163 Contact Us For Availability

Thermostat (Alt.) WPL 4171164 Contact Us For Availability

Screw, 8-32 x 1/2 WPL 4159299 Contact Us For Availability

Drain Pump Top Assembly WPL 4162924 Contact Us For Availability

WP4162629 Whirlpool Dishwasher Spring Backorder WPL WP4162629 $20.49

Lift, Receiver (L.H.) WPL 4161629 Contact Us For Availability

Lift, Receiver (R.H.) WPL 4161630 Contact Us For Availability

Gasket, Drain Pump WPL 4163050 Contact Us For Availability

Screw, 10 X 5/8 WPL 4159428 Contact Us For Availability

Lead (Fill Control to Fill Valve) WPL 4163471 Contact Us For Availability

Frame Assembly (R.H.) WPL 4163604 Contact Us For Availability

Heater, Open WPL 4162034 Contact Us For Availability

Heater, Open (Alt.) WPL 4171159 Contact Us For Availability

Heater, Open (Alt.) WPL 4171160 Contact Us For Availability

Heater, Open (Alt.) WPL 4171161 Contact Us For Availability

Partition WPL 4161577 Contact Us For Availability

Lead Assembly (Interlock Switch to Program Sw WPL 4162614 Contact Us For Availability

Screw, 1/4-20 x 1/2 WPL 4159443 Contact Us For Availability

Access Cover WPL 4163186 Contact Us For Availability

Motor Clamp Assembly WPL 4161986 Contact Us For Availability

Clip, Partition (6) WPL 4160480 Contact Us For Availability

Wiring Harness (Lower Common) WPL 4163270 Contact Us For Availability

Cross Frame, Front WPL 4161368 Contact Us For Availability

Bracket, Blower Mounting WPL 4171153 Contact Us For Availability

Gasket, Venturi WPL 4162916 Contact Us For Availability

Quadrant, Divider (L.H.) WPL 4160860 Contact Us For Availability

Quadrant, Divider (R.H.) WPL 4160861 Contact Us For Availability

Kick Board WPL 4161580 Contact Us For Availability

Start Relay Kit (Includes Item 25) WPL 4171129 Contact Us For Availability

W11175758 Whirlpool Dishwasher Basket Ware In Stock WPL W11175758 $72.36

Clip, Grounding (Front Panel) WPL 4162043 Contact Us For Availability

Foot, Leveling WPL 4162911 Contact Us For Availability

Screw, 8-18 x 1-1/4 WPL 4159403 Contact Us For Availability

26

Bimetal Assembly WPL 4162568 Contact Us For Availability

26

Lock Washer WPL 4159494 Contact Us For Availability

26

Tube - Flexible (Drain) WPL 4163151 Contact Us For Availability

27

Baffle, Lower WPL 4161295 Contact Us For Availability

27

Button, Program Switch (7) WPL 4163239 Contact Us For Availability

27

Screw, 10-32 X 3/8 WPL 4159372 Contact Us For Availability

28

Bracket, Panel Reinforcement WPL 4163245 Contact Us For Availability

28

Enclosure, Elec. Supply WPL 4161369 Contact Us For Availability

28

Clamp, Hose (.937`` Dia.) WPL 4161508 Contact Us For Availability

29

Screw, 6-20 x 3/8 WPL 4159446 Contact Us For Availability

29

Bracket, Check Valve WPL 4163305 Contact Us For Availability

Trim, Handle WPL 4163254 Contact Us For Availability

Trim, Tank (Screw, 10-16 X 1/2) WPL 4159389 Contact Us For Availability

Trim, Tank (R.H.) WPL 4160560 Contact Us For Availability

Trim, Tank (L.H.) WPL 4161559 Contact Us For Availability

Check Valve Assembly WPL 4162920 Contact Us For Availability

31

WP912618 Whirlpool Dishwasher Screw Backorder WPL WP912618 $4.82

31

Motor, Seal & Gasket Kit (Incls. Items 18, 24 WPL 4163523 Contact Us For Availability

32

Handle, Latch WPL 4163243 Contact Us For Availability

32

Tank (Serviced Complete with Frame) WPL 4163603 Contact Us For Availability

32

Screw, 1/4-20 x 1 WPL 4159235 Contact Us For Availability

33

Screw, 10-32 x 5/8 WPL 4159225 Contact Us For Availability

33

Connector, Overhead WPL 4161605 Contact Us For Availability

34

Clip, Harness Guide WPL 4163372 Contact Us For Availability

34

Clamp, Hose (1.468`` Dia.) WPL 4162031 Contact Us For Availability

35

Washer, Fill Hole Plug WPL 4162496 Contact Us For Availability

35

Screw, 8-18 X 3/8 WPL 4159349 Contact Us For Availability

35

Wiring Harness (Main) WPL 4171093 Contact Us For Availability

36

Cutter Kit (Incls. Shaft Seal Kit) WPL 4163042 Contact Us For Availability

37

3363365 Whirlpool Clamp Backorder WPL 3363365 $7.15

38

Rinse Agent Dispensing Valve WPL 4162522 Contact Us For Availability

39

Bracket, L.H. Hinge WPL 4161589 Contact Us For Availability

39

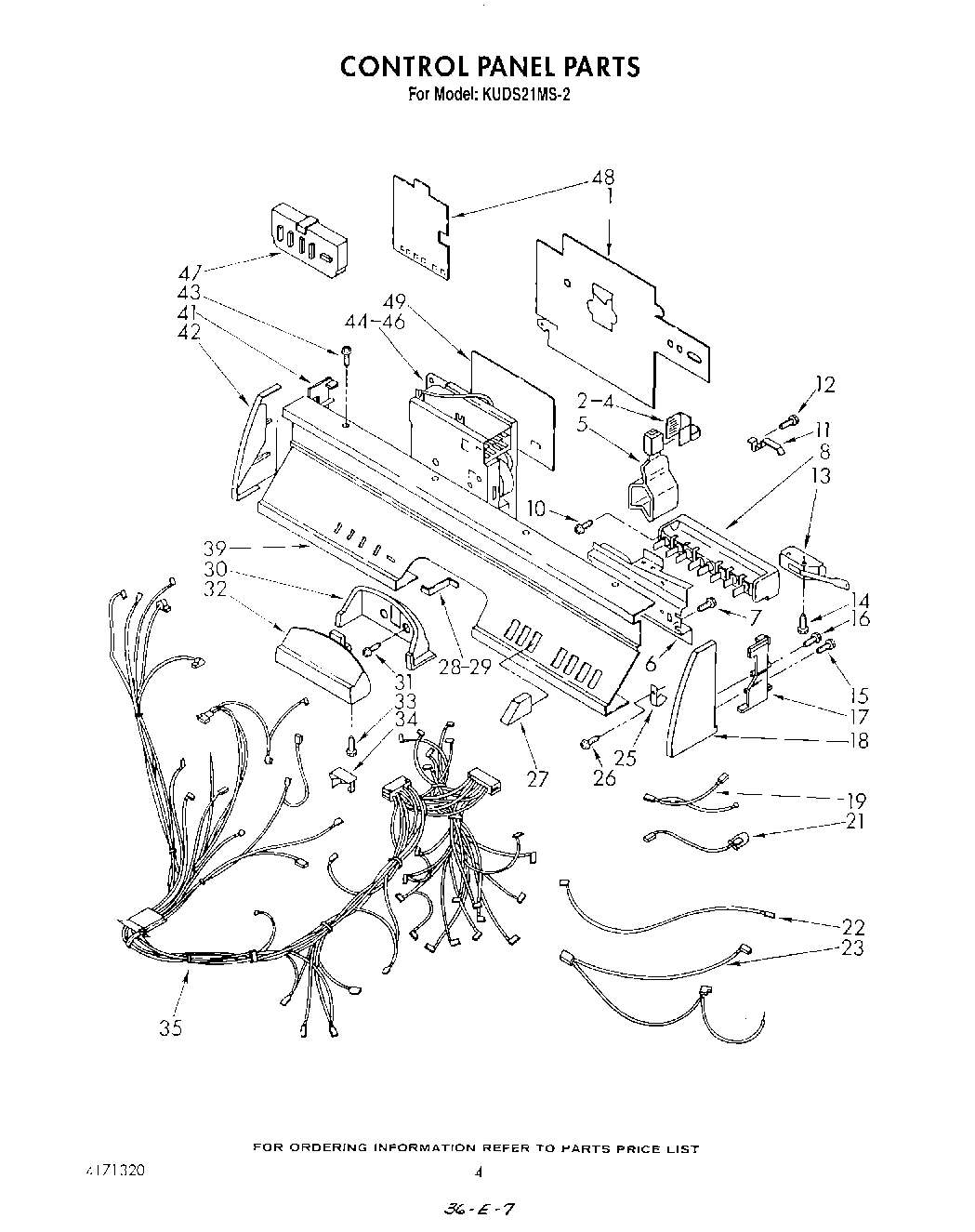

Control Panel WPL 4169306 Contact Us For Availability

41

Vapor Barrier, Corner (2) WPL 4162950 Contact Us For Availability

41

Spacer, End Cap (L.H.) WPL 4163289 Contact Us For Availability

41

Shim Washer Kit WPL 4163634 Contact Us For Availability

42

End Cap (L.H.) WPL 4163242 Contact Us For Availability

43

Screw, 6-20 x 3/8 WPL 4159408 Contact Us For Availability

44

Timer Assy. (115 V., 60 Hz.) (Alt.) WPL 4171091 Contact Us For Availability

44

Timer Assy. (115 V., 60 Hz.) WPL 4171156 Contact Us For Availability

44

Timer Assy. (115 V., 60 Hz.) (Alt.) WPL 4171157 Contact Us For Availability

47

Light Package WPL 4163237 Contact Us For Availability

48

Insulator, Light WPL 4163352 Contact Us For Availability

49

Barrier, Timer WPL 4171158 Contact Us For Availability
