Model Whirlpool KUDI220WWH4 – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $15.99

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $15.74

W10840471 Whirlpool Dishwasher Touch Up In Stock WPL W10840471 $25.17

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

WPL 799344 WPL 799344 Contact Us For Availability

Golden Harvest WPL 261890 Contact Us For Availability

Golden Harvest (Uncut) WPL 261891 Contact Us For Availability

Toast WPL 285365 Contact Us For Availability

Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability

Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability

Platinum (Uncut) WPL 285368 Contact Us For Availability

Leveler (Thinner) WPL 350941 Contact Us For Availability

Wood Top Kit WPL 4162841 Contact Us For Availability

Insulation Kit (Kit Includes Tub, Kickboard WPL 4171179 Contact Us For Availability

WPL 4171632 WPL 4171632 Contact Us For Availability

WPL 4171633 WPL 4171633 Contact Us For Availability

WPL 4171634 WPL 4171634 Contact Us For Availability

WPL 4171635 WPL 4171635 Contact Us For Availability

WPL 675506 WPL 675506 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799640 WPL 799640 Contact Us For Availability

WPL 9741087 WPL 9741087 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL LIT4171208 WPL LIT4171208 Contact Us For Availability

WPL LIT4171655 WPL LIT4171655 Contact Us For Availability

WPL LIT4171669 WPL LIT4171669 Contact Us For Availability

WPL LIT9740073 WPL LIT9740073 Contact Us For Availability

WPL LIT9741159 WPL LIT9741159 Contact Us For Availability

1

Limiter Ground Terminal WPL 9740978 Contact Us For Availability

1

Screw, 6-32 X 7/8 WPL 4159436 Contact Us For Availability

1

Washer WPL 4162892 Contact Us For Availability

1

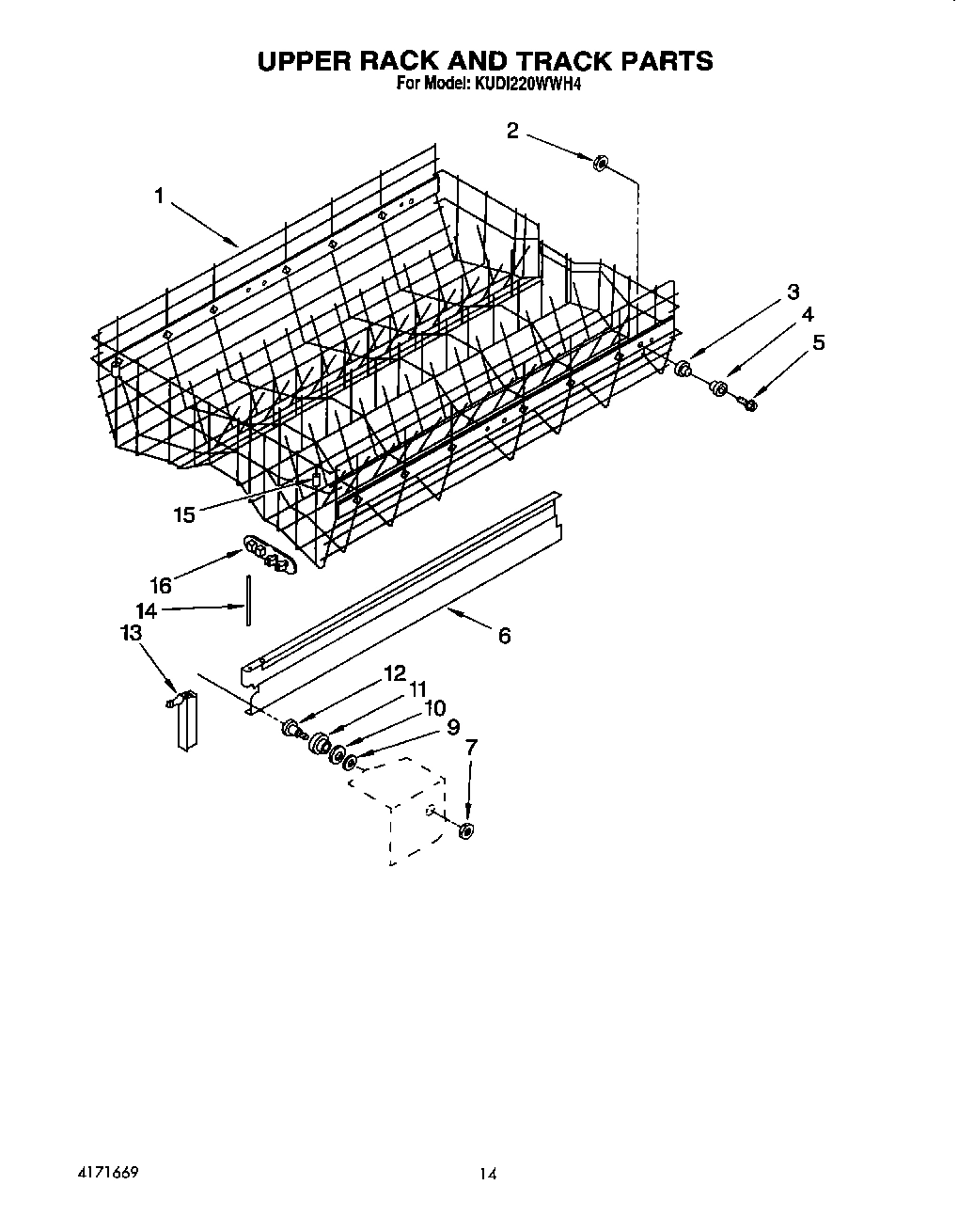

Upper Rack Assembly (Includes Items 2, 3, 4, WPL 4171570 Contact Us For Availability

1

Tube & Connector Assembly WPL 9740307 Contact Us For Availability

1

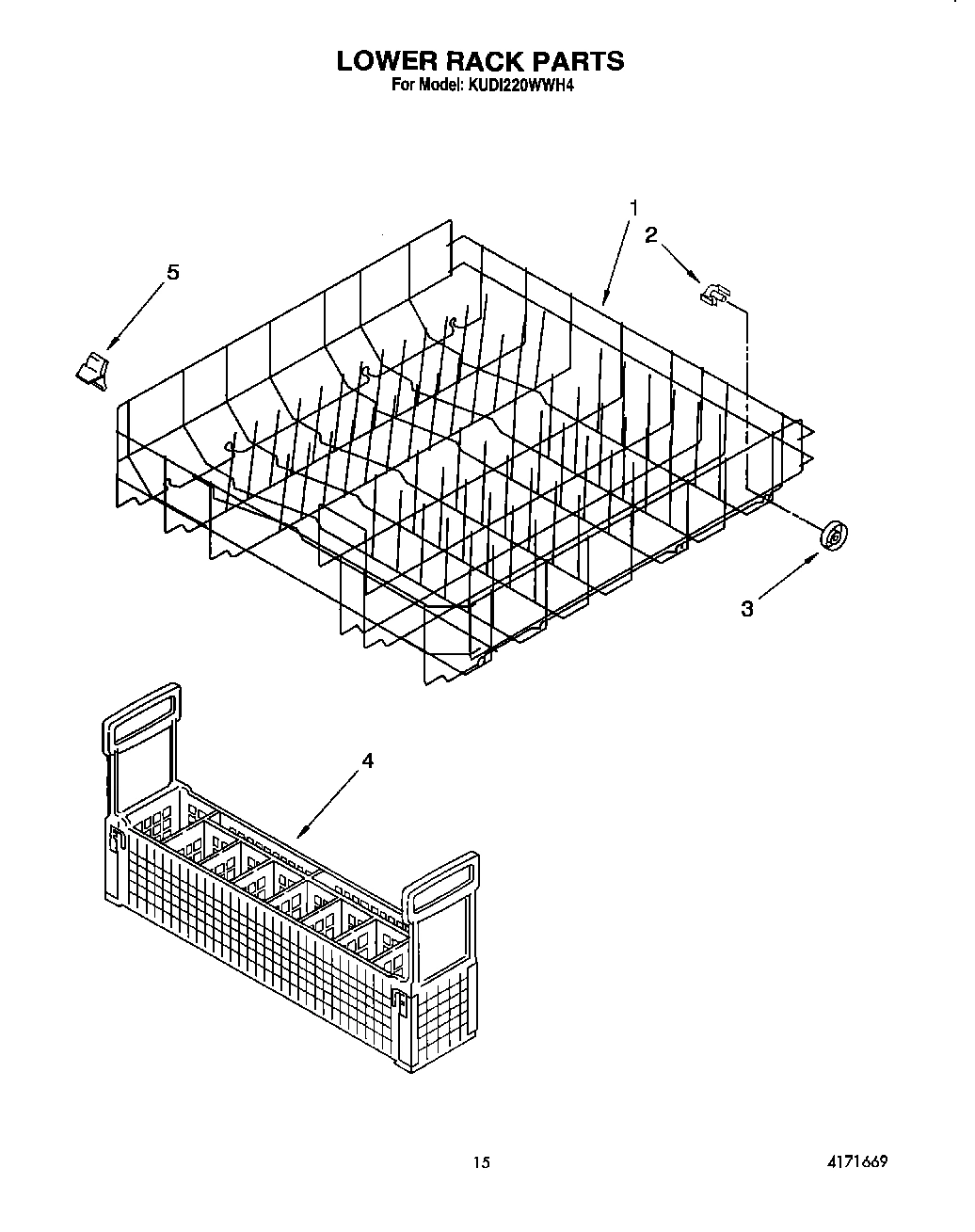

Lower Rack Assembly (Includes Items 2, 3 & 5) WPL 4171638 Contact Us For Availability

1

Cover, Wiring Harness WPL 4161659 Contact Us For Availability

1

Screw WPL 4162215 Contact Us For Availability

1

Insulator, Latch WPL 4171130 Contact Us For Availability

1

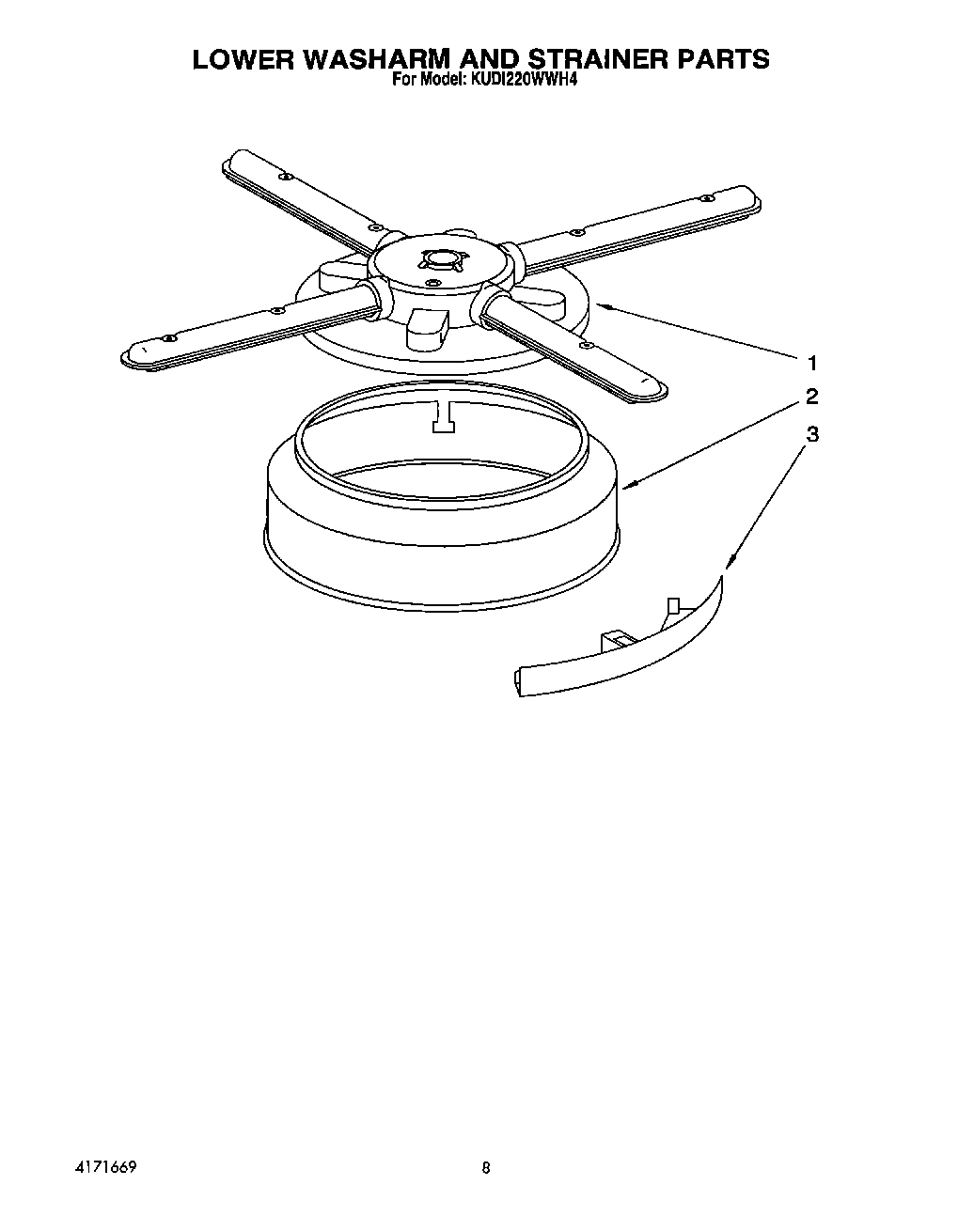

Wash Arm Assembly WPL 4162925 Contact Us For Availability

2

W11233072 Whirlpool Screw In Stock WPL W11233072 $19.85

2

Axle, Lower Rack WPL 4162321 Contact Us For Availability

2

Hook, Heater Element WPL 4163549 Contact Us For Availability

2

Cap, Air Inlet WPL 4162482 Contact Us For Availability

2

Nut, Roller WPL 4161226 Contact Us For Availability

2

Connector, Vertical Conduit WPL 9740763 Contact Us For Availability

2

Washer WPL 4159513 Contact Us For Availability

2

Upper Mounting Panel Assembly (Includes Upper WPL 4171670 Contact Us For Availability

2

Anchor, Cancel Spring WPL 4171120 Contact Us For Availability

2

Strainer (Fine) WPL 4162930 Contact Us For Availability

3

WP4162322 Whirlpool Dishwasher Roller In Stock WPL WP4162322 $3.91

3

Door Seal Assembly (Includes Item 4) WPL 4161631 Contact Us For Availability

3

Washer WPL 4159477 Contact Us For Availability

3

Damper, Air Inlet WPL 4162485 Contact Us For Availability

3

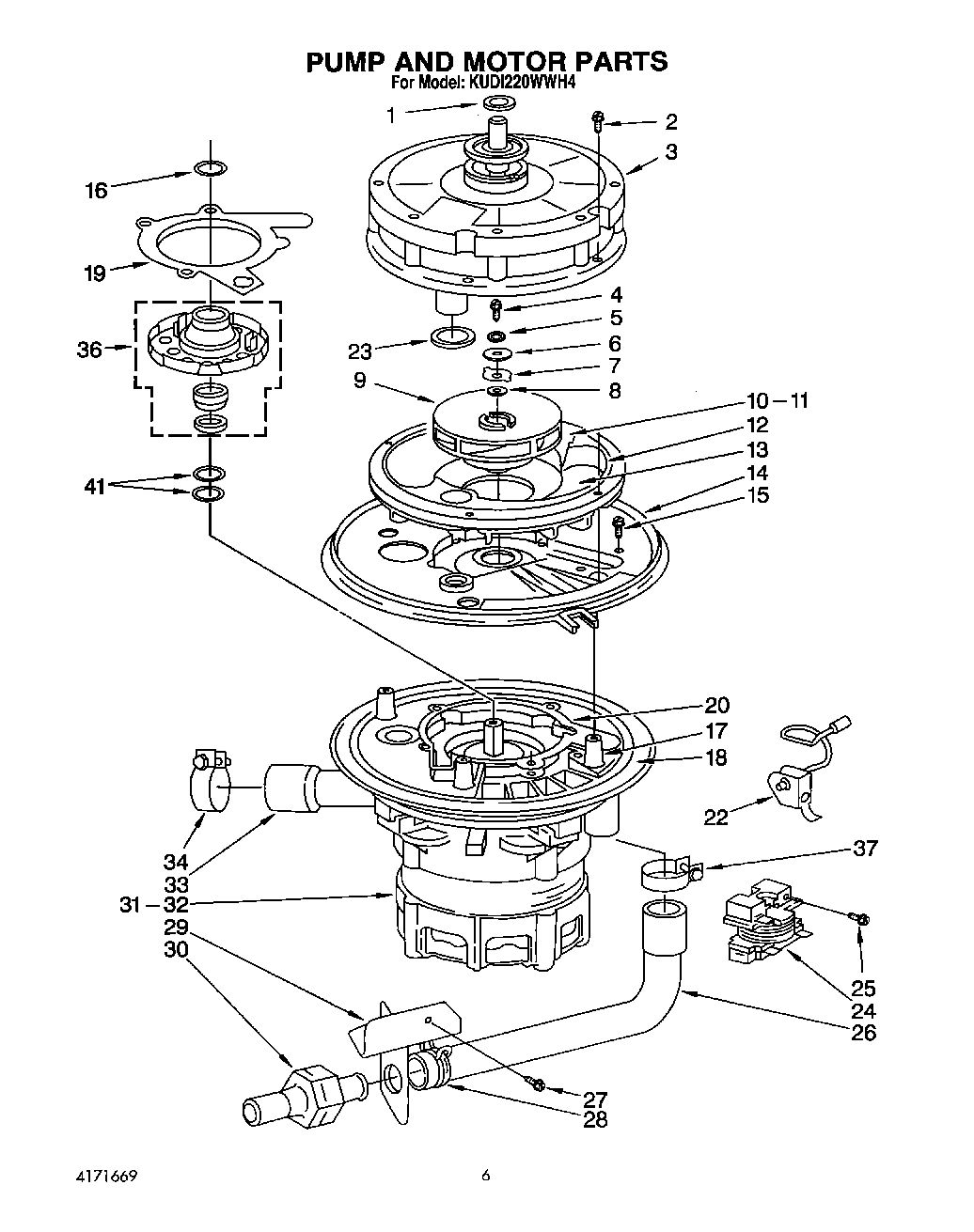

Wash Pump Top (Includes Items 1 & 23) WPL 4163521 Contact Us For Availability

3

Bearing & Spacer, Rack Roller WPL 9740879 Contact Us For Availability

3

Conduit, Vertical WPL 4162655 Contact Us For Availability

3

Screw, 10-16 X 3/8 WPL 3369139 Contact Us For Availability

3

Filler (Upper Panel) WPL 4171462 Contact Us For Availability

3

Trim, Panel WPL 9740455 Contact Us For Availability

3

Strainer (Coarse) WPL 4171195 Contact Us For Availability

4

Roller, Upper Rack Track WPL 4161607 Contact Us For Availability

4

Washer, Sealing WPL 4160051 Contact Us For Availability

4

Tube, Air Inlet WPL 4162483 Contact Us For Availability

4

Screw, 10-32 WPL 4162918 Contact Us For Availability

4

Retainer, Conduit WPL 4162609 Contact Us For Availability

4

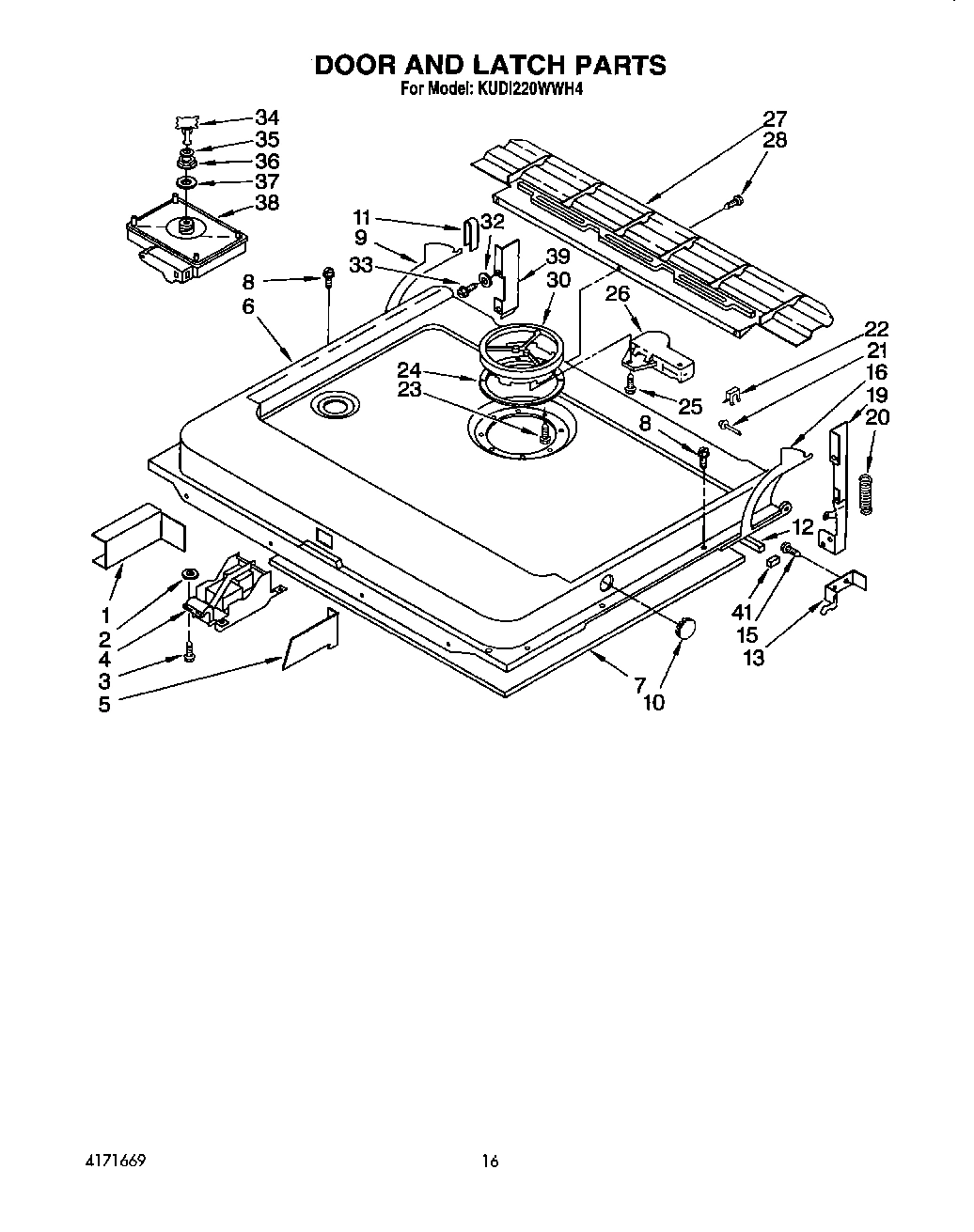

Latch Mechanism Assembly WPL 4171578 Contact Us For Availability

4

Screw (10) WPL 4171463 Contact Us For Availability

4

Rivet WPL 4159169 Contact Us For Availability

5

Bumper, Lower Rack WPL 4171555 Contact Us For Availability

5

Washer WPL 4159567 Contact Us For Availability

5

Seal, Air Inlet WPL 4162481 Contact Us For Availability

5

Lock Washer WPL 4159500 Contact Us For Availability

5

Screw, 10-16 X 1 WPL 4159426 Contact Us For Availability

5

Retainer, Manifold WPL 4171540 Contact Us For Availability

5

Insulation, Switch WPL 4162145 Contact Us For Availability

5

Side Trim (Upper Panel) WPL 9740456 Contact Us For Availability

5

Spring, Switch Cancel WPL 4163257 Contact Us For Availability

6

Washer WPL 4159583 Contact Us For Availability

6

Washer, Spring (Impeller) WPL 4160297 Contact Us For Availability

6

Track, Rack WPL 4162442 Contact Us For Availability

6

Manifold, Upper Arm WPL 4171541 Contact Us For Availability

6

Inner Door Assembly WPL 4162508 Contact Us For Availability

6

Side Trim (Lower Panel) WPL 4171673 Contact Us For Availability

6

Bracket, Program Switch WPL 4163256 Contact Us For Availability

7

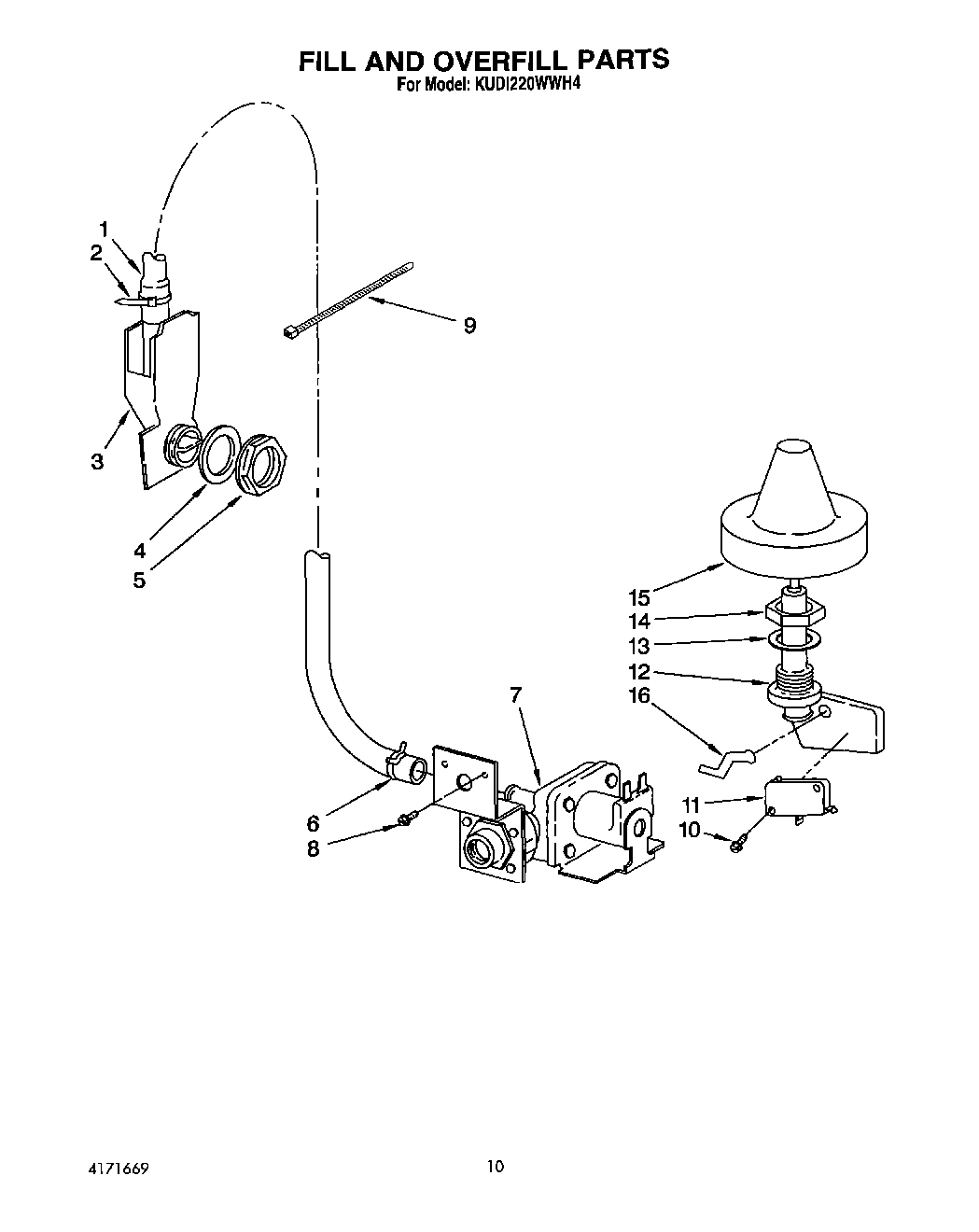

WP4171000 Whirlpool Dishwasher Inlet Valve In Stock WPL WP4171000 $100.75

7

Thermostat WPL 4163589 Contact Us For Availability

7

Nut, Lock WPL 718829 Contact Us For Availability

7

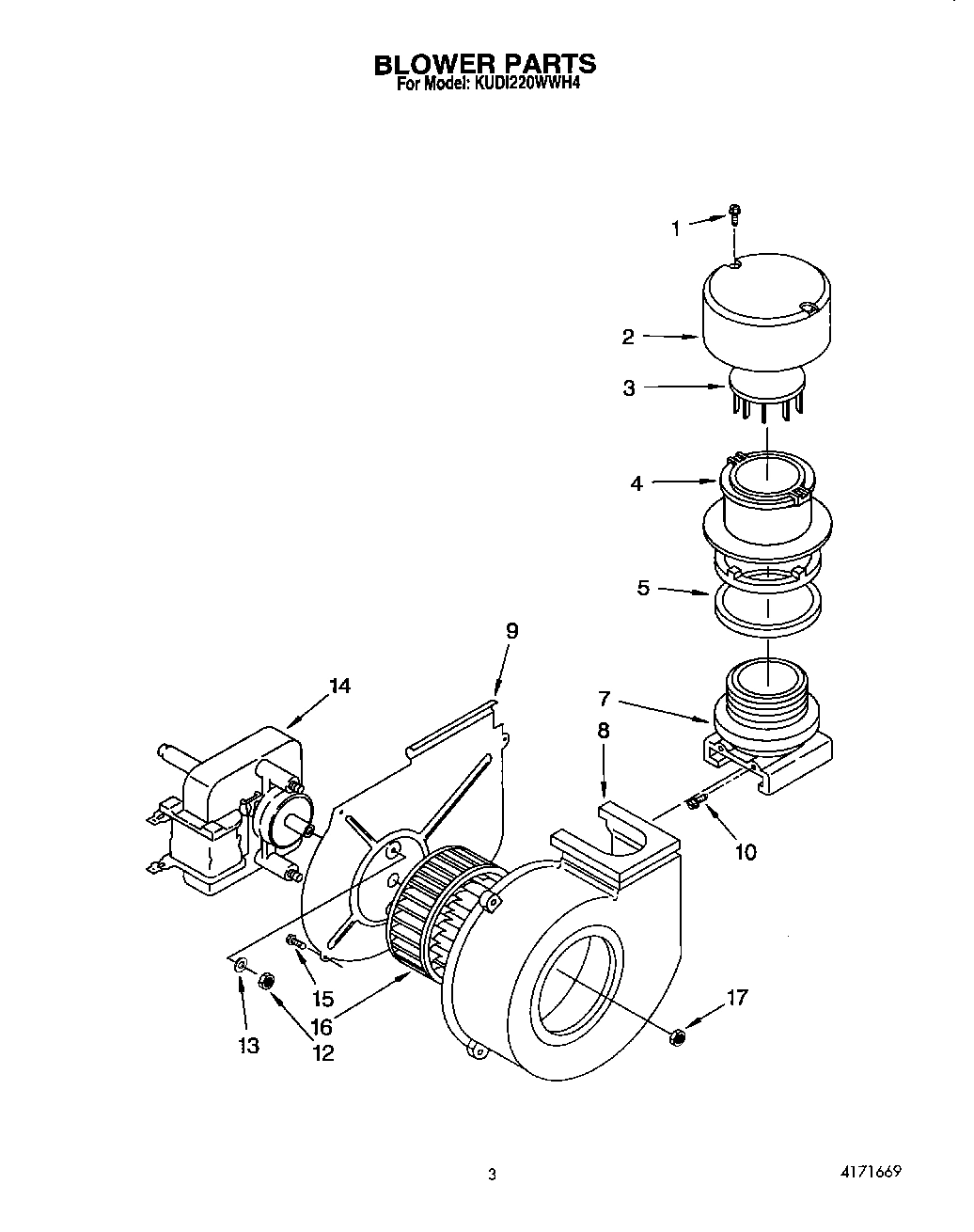

Support, Blower WPL 9740989 Contact Us For Availability

7

Washer, Impeller WPL 4162917 Contact Us For Availability

7

Insulation, Inner Door WPL 4163577 Contact Us For Availability

7

Grommet, Panel WPL 4162735 Contact Us For Availability

8

Bracket, Thermostat WPL 4163552 Contact Us For Availability

8

Housing, Blower WPL 4162487 Contact Us For Availability

8

``O`` Ring WPL 4159826 Contact Us For Availability

8

Bearing, Arm (Bottom) WPL 4162625 Contact Us For Availability

8

Screw & Washer Assembly WPL 9740922 Contact Us For Availability

8

Lower Mounting Panel Assembly (Includes Upper WPL 4171672 Contact Us For Availability

8

Switch, Program WPL 4163547 Contact Us For Availability

9

Bracket, L.H. Door Stop WPL 4161592 Contact Us For Availability

9

Plate, Motor Mounting WPL 9740961 Contact Us For Availability

9

Wash Impeller Assembly WPL 4162921 Contact Us For Availability

9

Washer WPL 9741062 Contact Us For Availability

9

Bearing, Arm (Top) WPL 4162491 Contact Us For Availability

9

Filler (Lower Panel) WPL 4171464 Contact Us For Availability

9

Seal, Moisture WPL 9740767 Contact Us For Availability

Lock Washer WPL 4159494 Contact Us For Availability

Screw WPL 9740973 Contact Us For Availability

Plate, Air Inlet Cover WPL 4162952 Contact Us For Availability

Washer, Cup WPL 718817 Contact Us For Availability

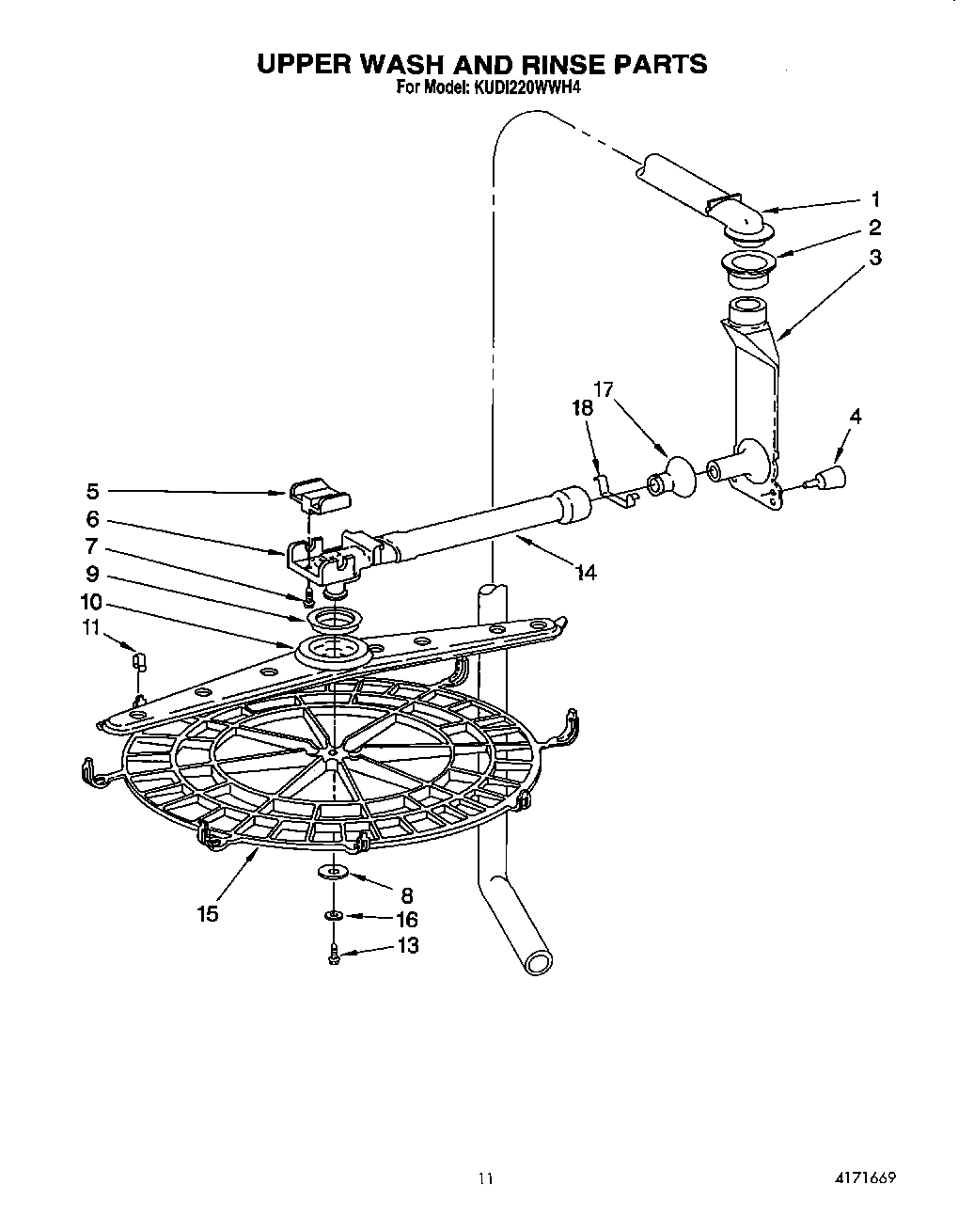

Wash/Rinse Arm Assembly WPL 9740878 Contact Us For Availability

Plug Button WPL 9740847 Contact Us For Availability

Screw, 6-32 X 3/8 WPL 4159428 Contact Us For Availability

Clip, Guard WPL 4171542 No Longer Available

Bearing, Door Stop Insert (2) WPL 4160355 Contact Us For Availability

Gasket, Cover Plate WPL 4162953 Contact Us For Availability

Roller, Rack Track WPL 9740963 Contact Us For Availability

Spring, Door Interlock WPL 4163571 Contact Us For Availability

WP693304 Whirlpool Screw Backorder WPL WP693304 $4.82

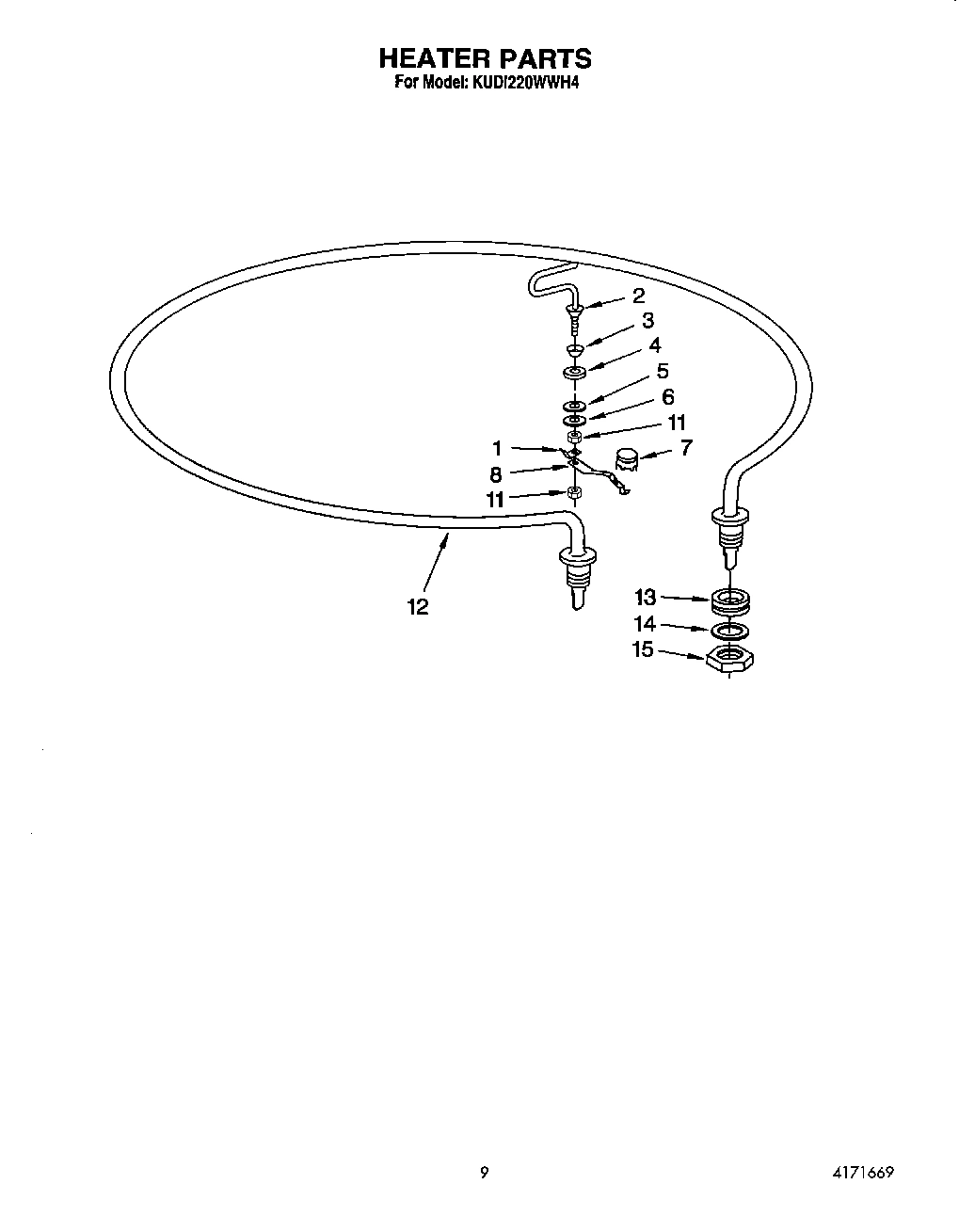

Element, Heater WPL 9740416 Contact Us For Availability

Nut, 6-32 Hex WPL 4159071 Contact Us For Availability

Lower Pump Housing (Includes Items 13 & 23) WPL 4162929 Contact Us For Availability

Screw. Track Roller WPL 9740964 Contact Us For Availability

Vapor Barrier, Inner Door (Includes Item No. WPL 4162949 Contact Us For Availability

Trim, Panel (Upper & Lower) WPL 4171671 Contact Us For Availability

WP9741251 Whirlpool Mounting Bracket In Stock WPL WP9741251 $5.99

Bumper, Rack Track WPL 4171547 Contact Us For Availability

Grommet, Heater Element WPL 4162521 Contact Us For Availability

Lockwasher WPL 4159491 Contact Us For Availability

Seal, Wash Pump Ring WPL 4162919 Contact Us For Availability

Screw WPL 4161737 Contact Us For Availability

Bracket, Spring Mounting (L.H.) WPL 4161957 Contact Us For Availability

Bracket, Spring Mounting (R.H.) WPL 4161958 Contact Us For Availability

Channel, Evaporation WPL 9740868 Contact Us For Availability

Switch, Interlock WPL 4160658 Contact Us For Availability

W11596033 Whirlpool Microwave Screw Backorder WPL W11596033 $8.89

Tube (Manifold to Receiver) WPL 4171544 Contact Us For Availability

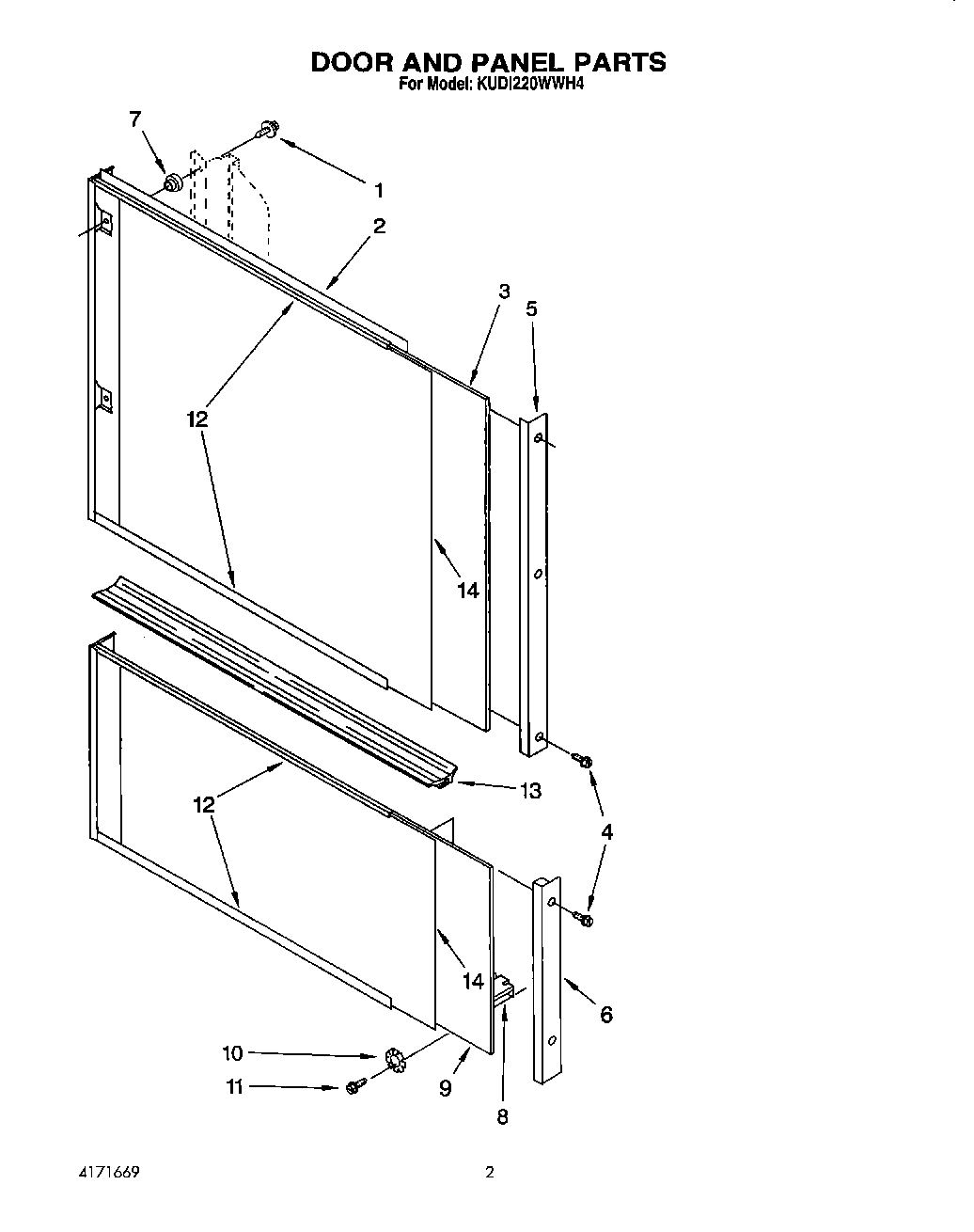

Panel Insert Kits (Stainless Steel) WPL 4169400 Contact Us For Availability

Washer, Heater Element WPL 4163554 Contact Us For Availability

Motor, Blower WPL 9740267 Contact Us For Availability

Fine Strainer WPL 4162933 Contact Us For Availability

Stud, Bumper Retaining WPL 4160423 Contact Us For Availability

Panel Insert Kits (White/Black) WPL 4162833 Contact Us For Availability

Panel Insert Kits (Harvest Gold/Almond) WPL 4162834 Contact Us For Availability

Panel Insert Kits (Fresh Avocado/ Coffee) WPL 4162835 Contact Us For Availability

Panel Insert Kits (Almond/White) WPL 4162836 Contact Us For Availability

Panel Insert Kits (Platinum/Toast) WPL 4169402 Contact Us For Availability

Panel Insert Kits (Sand/Onyx Black) WPL 4169403 Contact Us For Availability

Panel Insert Kits (Silver/Onyx Black) WPL 4169404 Contact Us For Availability

Panel Insert Kits (Harvest Gold/Onyx Black) WPL 4171096 Contact Us For Availability

Panel Insert Kits (Almond/Black) WPL 4171534 Contact Us For Availability

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

Nut, Heater Element WPL 718537 Contact Us For Availability

Screw, 6 X 1/2 WPL 4171131 Contact Us For Availability

Bumper, Upper Rack WPL 4162048 Contact Us For Availability

Guard, Arm WPL 4171543 Contact Us For Availability

Screw & Washer Assembly WPL 4163263 Contact Us For Availability

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.91

Bracket, R.H. Door Stop WPL 4161594 Contact Us For Availability

Blower Wheel Assembly (Includes Item 17) WPL 4162499 Contact Us For Availability

``O`` Ring WPL 4159827 Contact Us For Availability

Clip, Wash Arm Guard WPL 4171551 Contact Us For Availability

Washer WPL 4162624 Contact Us For Availability

4171566 Whirlpool Dishwasher Receiver Backorder WPL 4171566 $17.84

Nut WPL 9740265 Contact Us For Availability

Motor Mounting Plate (Includes Items 18 & 20) WPL 4162932 Contact Us For Availability

Spacer, End Cap (R.H.) WPL 4171124 Contact Us For Availability

18

Gasket, Motor Mounting Plate WPL 4161497 Contact Us For Availability

18

Support, Receiver WPL 4171565 Contact Us For Availability

18

End Cap (R.H.) WPL 9740463 Contact Us For Availability

19

Bracket, R.H. Hinge WPL 4161587 Contact Us For Availability

19

Screw, 8-32 x 1/2 WPL 4159299 Contact Us For Availability

19

Drain Pump Top Assembly WPL 4162924 Contact Us For Availability

20

WP4171237 Whirlpool Dishwasher Spring In Stock WPL WP4171237 $21.13

20

Gasket, Drain Pump WPL 4163050 Contact Us For Availability

21

Pin, Hinge WPL 4161563 Contact Us For Availability

22

Motor Clamp Assembly WPL 4161986 Contact Us For Availability

22

Clip, Hinge Pin Retaining WPL 4161585 Contact Us For Availability

23

Gasket, Venturi WPL 4162916 Contact Us For Availability

23

Screw WPL 9740851 Contact Us For Availability

24

WP4171447 Whirlpool Dishwasher Seal Backorder WPL WP4171447 $7.56

24

Start Relay Kit WPL 9740418 Contact Us For Availability

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $4.82

Foot, Leveling (4) WPL 4162911 Contact Us For Availability

Screw, 8-18 x 1-1/4 WPL 4159403 Contact Us For Availability

Clip, Grounding (Front Panel) WPL 4162043 Contact Us For Availability

26

Bimetal Assembly WPL 4162568 Contact Us For Availability

26

Tube - Flexible (Drain) WPL 4163151 Contact Us For Availability

27

Baffle, Lower WPL 4161295 Contact Us For Availability

27

Screw, 10-32 X 3/8 WPL 4159372 Contact Us For Availability

27

Button, Program Switch (5) WPL 9740462 Contact Us For Availability

28

Clamp, Hose WPL 371499 Contact Us For Availability

28

Enclosure, Elec. Supply WPL 4161369 Contact Us For Availability

28

Bracket, Panel Reinforcement WPL 4163245 Contact Us For Availability

29

Shield, Insulation WPL 4171176 Contact Us For Availability

29

Bracket, Check Valve WPL 4171311 Contact Us For Availability

29

Screw, 6-20 x 3/8 WPL 4159446 Contact Us For Availability

30

Check Valve Assembly WPL 4162920 Contact Us For Availability

30

Detergent Dispenser & Gasket Assembly (115 V. WPL 9740170 Contact Us For Availability

30

Trim, Handle WPL 9740465 Contact Us For Availability

31

WP912618 Whirlpool Dishwasher Screw Backorder WPL WP912618 $4.82

31

Motor, Seal & Gasket Kit) (Includes Items 18, WPL 9740949 Contact Us For Availability

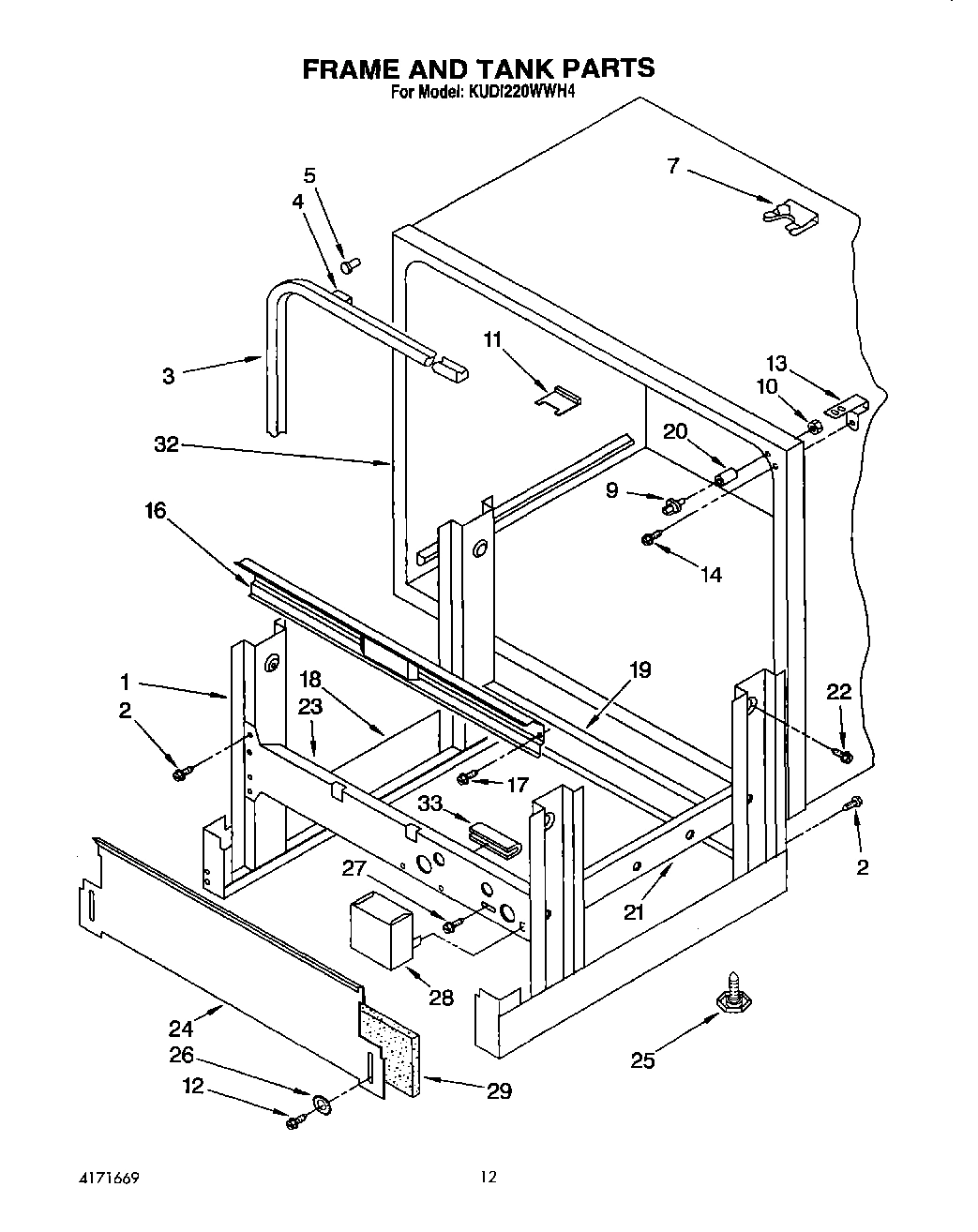

Tank (Serviced Complete with Frame) WPL 9741207 Contact Us For Availability

Screw, 1/4-20 x 1 WPL 4159235 Contact Us For Availability

Washer (Rubber) WPL 4159594 Contact Us For Availability

Handle, Latch WPL 9740460 Contact Us For Availability

Protector, Edge WPL 4171215 Contact Us For Availability

Connector WPL 4161605 Contact Us For Availability

Screw, 10-32 X 1/2 WPL 4162151 Contact Us For Availability

Screw, 10-32 x 5/8 WPL 4159225 Contact Us For Availability

34

Fill Hole Plug Assembly (Includes Item 35) WPL 4171221 Contact Us For Availability

34

Clamp, Hose (1.468`` Dia.) WPL 4162031 Contact Us For Availability

34

Clip, Harness Guide WPL 4163372 Contact Us For Availability

35

Washer, Fill Hole Plug WPL 4162496 Contact Us For Availability

35

Screw, 8-18 X 3/8 WPL 4159349 Contact Us For Availability

35

Wiring Harness (Main) WPL 9740834 Contact Us For Availability

36

Cutter Kit (Includes Shaft Seal Kit) WPL 4163042 Contact Us For Availability

36

Nut, Rinse Agent Dispenser WPL 4171300 Contact Us For Availability

37

3363365 Whirlpool Clamp Backorder WPL 3363365 $7.15

37

Gasket, Rinse Agent Dispenser WPL 4161545 Contact Us For Availability

38

Rinse Agent Dispensing Valve WPL 4171217 Contact Us For Availability

38

Knob, Timer WPL 4171647 Contact Us For Availability

39

Bracket, L.H. Hinge WPL 4161589 Contact Us For Availability

39

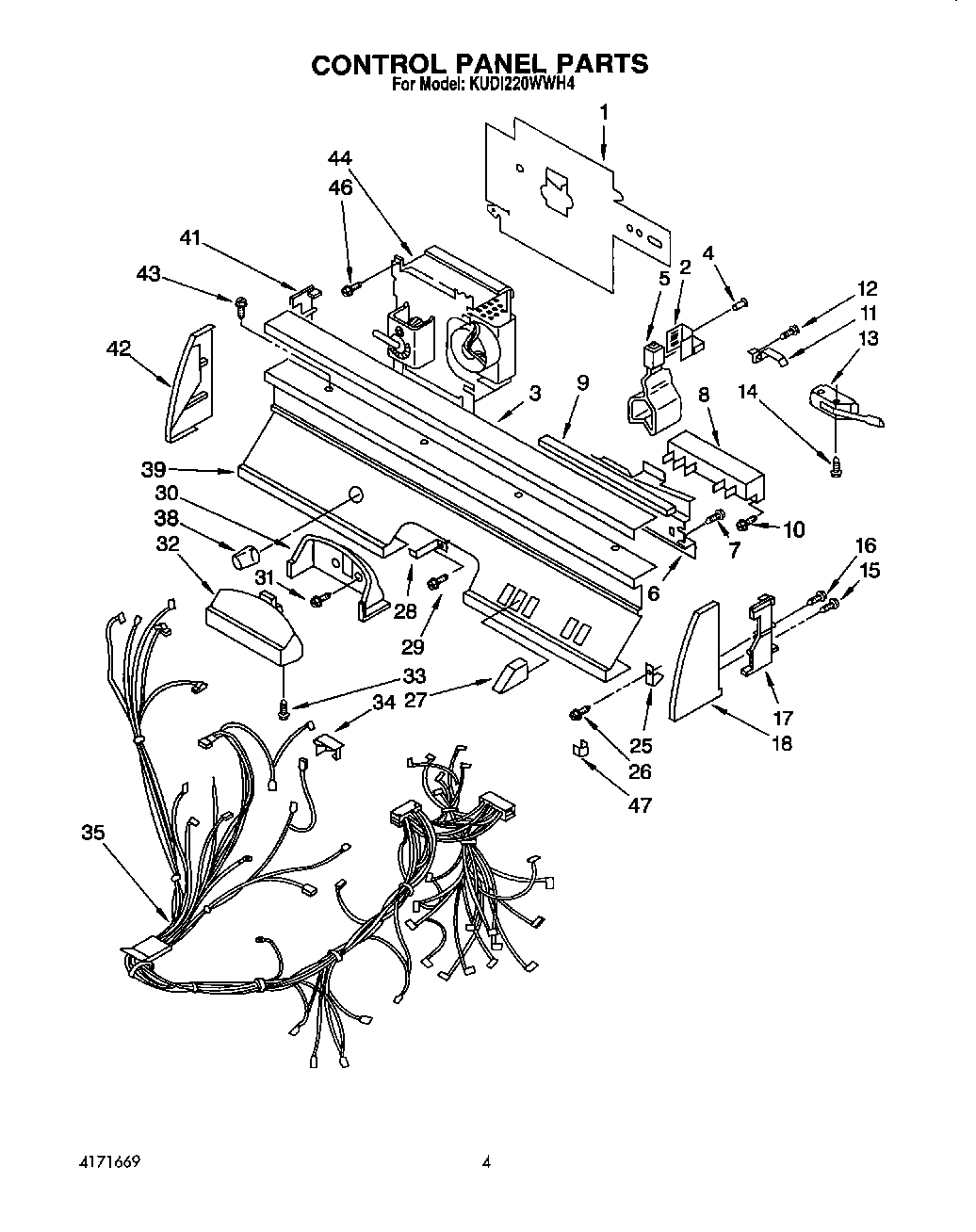

Control Panel WPL 9741244 Contact Us For Availability

41

Shim Washer Kit WPL 4163634 Contact Us For Availability

41

Vapor Barrier, Corner (2) WPL 4162950 Contact Us For Availability

41

Spacer, End Cap (L.H.) WPL 4171125 Contact Us For Availability

42

End Cap (L.H.) WPL 9740464 Contact Us For Availability

43

Screw, 6-20 x 3/8 WPL 4159408 Contact Us For Availability

44

Timer Assembly (115 V., 60 Hz.) WPL 4163550 Contact Us For Availability

47

Clip, Endcap (2) WPL 4171127 Contact Us For Availability
