Model Alliance KT170S Dryer – Common Parts & Diagrams

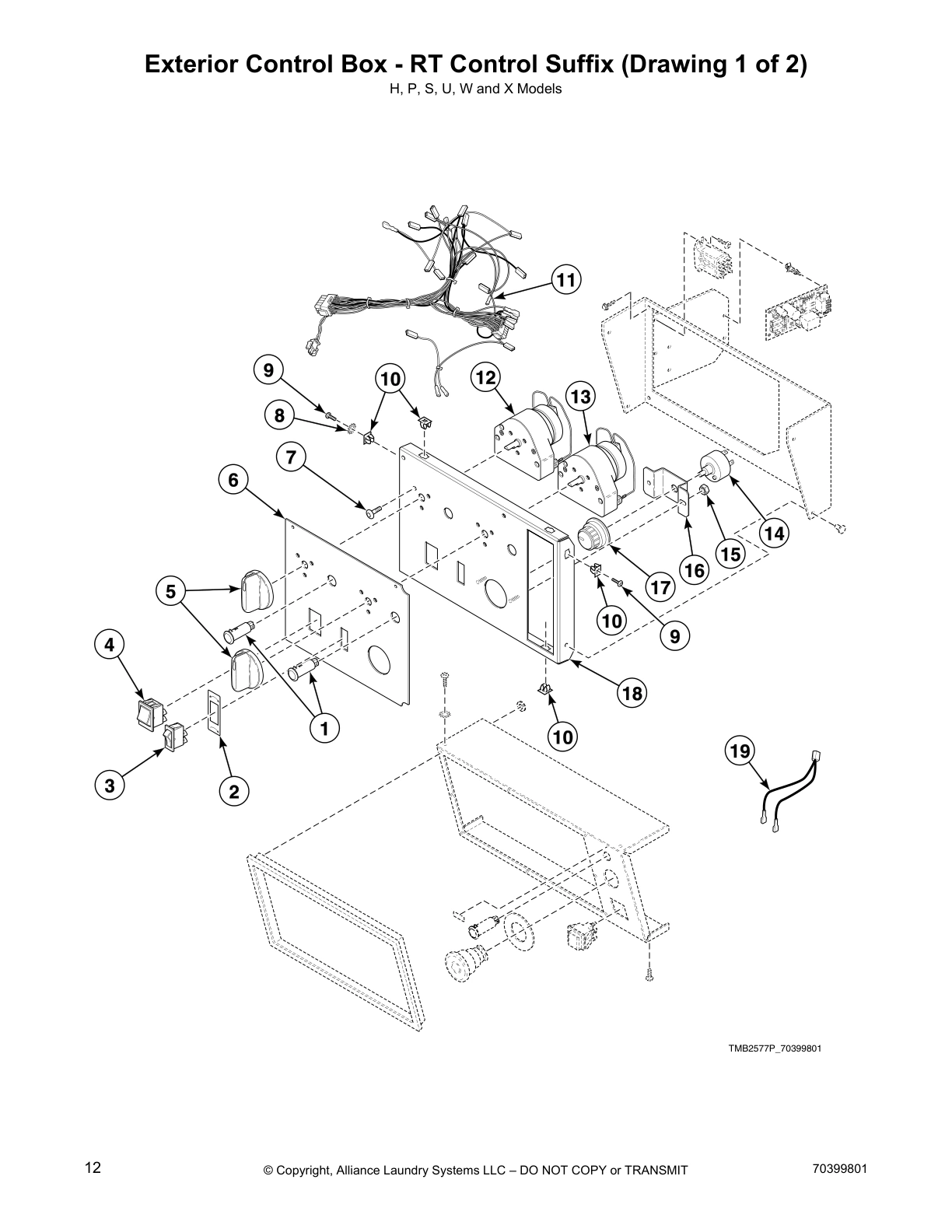

Exterior Control Box - RT Control Suffix (Drawing 1 of 2)
Exterior Control Box - RT Control Suffix (Drawing 2 of 2)
Exterior Control Box - RM Control Suffix
Exterior Control Box - RQ Control Suffix (Drawing 1 of 2)
Exterior Control Box - RQ Control Suffix (Drawing 2 of 2)
Interior Control Box - RM and RT Control Suffixes
Interior Control Box - RQ Control Suffix
DMP Control Box - C and I Models with RD Control Suffix
DX4 Control Box - B Models with R3 Control Suffix
Fire Suppression System Control Box
Cabinet Front Components (Drawing 1 of 2)
Cabinet Front Components (Drawing 2 of 2)
Door and Hinge Components - G, H, K, L, P, S, U, W,
X and Y Models
Door and Hinge Components - B, C and I Models
Lint Panel Components
Lint Panel Switch Assembly
Lint Screen and Drive Guard - 120 Pound Models
Lint Screen and Drive Guard - 170 Pound Models
Cylinder and Trunnion Assembly
Trunnion Bearings
Drive Sheave, Step Pulley and Belts
Cylinder Drive Motor
Fan Assembly - 120 Pound 50 Hertz Models
Fan Motor Assembly - 120 Pound 50 Hertz Models
Fan and Fan Motor Assembly - 120 Pound 60 Hertz Models
Fan Assembly - 170 Pound Models
Fan Motor Assembly - 170 Pound Models
Airflow Switch Assembly
Gas Heater Components - 120 Pound Models
Gas Heater Components - Non-CE 170 Pound Models
Gas Heater Components - CE 170 Pound Models (Drawing 1 of 2)
Steam Heater Components - 120 Pound Models Through
Serial No. 0412012320 Except B, C, I and L Models
Steam Heater Components - 120 Pound Models Starting
Serial No. 0412012321 Except B, C, and I Models
Steam Heater Components - 120 Pound B, C and I Models
Steam Heater Components - 170 Pound Models Through
Serial No. 0412012320 Except B, C, I and L Models
Steam Heater Components - 170 Pound Models
Starting Serial No. 0412012321 Except B, C and I Models
Steam Heater Components - 170 Pound B, C and I Models
Steam Solenoid Valve
Contactor Box Assembly (Drawing 1 of 2)
Contactor Box Assembly (Drawing 2 of 2)
Junction Box Assembly
Junction Box Harnesses
Common parts from model Alliance KT170S Dryer
SPQ 44161501 SPQ 44161501 Contact Us For Availability
SPQ 70351011P SPQ 70351011P Contact Us For Availability
SPQ M413760 SPQ M413760 Contact Us For Availability
SPQ M413862 SPQ M413862 Contact Us For Availability
1
Door Assembly SPQ 70407401 Contact Us For Availability
1
Handle Bumper SPQ 70407204 Contact Us For Availability
1
Lint Panel Switch Harness SPQ 44019701P Contact Us For Availability
1
Cylinder and Trunnion Assembly SPQ 44054702 Contact Us For Availability
1
Bushing SPQ H8752922HP Contact Us For Availability
1
Motor SPQ 44046601P Contact Us For Availability
1
Screw SPQ M401938 Contact Us For Availability
1
Steam Filter Top Hinge Assembly SPQ 44088101 Contact Us For Availability
1
Fuse SPQ M413118 Contact Us For Availability
1
Fuse Holder SPQ M413544P Contact Us For Availability
2
Door Glass Installation Tool SPQ 44008201P Contact Us For Availability
2
Overlay SPQ 44099601 Contact Us For Availability
2
Nut SPQ M400977 Contact Us For Availability
2
Damper Rod SPQ 44051301 Contact Us For Availability
2
Cylinder Assembly SPQ 44054701 Contact Us For Availability
2
Washer SPQ M400015 Contact Us For Availability
2
Bearing Retainer SPQ 70187202 Contact Us For Availability
2
Rod End SPQ H8752060H Contact Us For Availability
2
Lever Arm Switch SPQ 44021701 Contact Us For Availability
2
Nut SPQ M412905P Contact Us For Availability
2
SPQ H96362264 SPQ H96362264 Contact Us For Availability
2
Steam Valve Rebuild Kit SPQ M412259 Contact Us For Availability
2
Jumper Configuration Assembly SPQ 91024P Contact Us For Availability
3
Nameplate Overlay SPQ 44130501 Contact Us For Availability
3
Roller Catch Mounting Bracket SPQ 44014001 Contact Us For Availability
3
Pop Rivet SPQ 430725 Contact Us For Availability
3
SPQ M411593 SPQ M411593 Contact Us For Availability
3
Trunnion Assembly SPQ M409826 Contact Us For Availability
3
SPQ H96428693 SPQ H96428693 Contact Us For Availability
3
Mounting Insulation SPQ H96418728 Contact Us For Availability
3
SPQ M409833P SPQ M409833P Contact Us For Availability
3
Valve Kit SPQ 70351021P Contact Us For Availability
3
Jumper Harness Assembly SPQ M413509 Contact Us For Availability
4
SPQ M411403 SPQ M411403 Contact Us For Availability
4
Steam Valve SPQ F8521701 Contact Us For Availability
4
Access Panel Trim SPQ 70399404 Contact Us For Availability
4
SPQ 44319902P SPQ 44319902P Contact Us For Availability
4
Nut SPQ H96367545 Contact Us For Availability
4
SPQ M414490P SPQ M414490P Contact Us For Availability
4
Insulator SPQ M413575 Contact Us For Availability
5
SPQ 44075207B SPQ 44075207B Contact Us For Availability
5
Lint Panel Switch Cover SPQ 44026801 Contact Us For Availability
5
Washer SPQ 44240801 Contact Us For Availability
5
SPQ H8752026H SPQ H8752026H Contact Us For Availability
5
SPQ M413171 SPQ M413171 Contact Us For Availability
5
Nut SPQ 430370 Contact Us For Availability
5
SPQ 44091601 SPQ 44091601 Contact Us For Availability
5
Steam Solenoid SPQ F8322903 Contact Us For Availability
5
Warning Label SPQ M413542 Contact Us For Availability
6
Pushbutton Switch SPQ 70413301 Contact Us For Availability
6
SPQ H88213996 SPQ H88213996 Contact Us For Availability
6
SPQ H87529111P SPQ H87529111P Contact Us For Availability
6
Idler Housing SPQ M401370 Contact Us For Availability
6
SPQ 44091501 SPQ 44091501 Contact Us For Availability
6
Solenoid Valve DIN Connector SPQ F8322902 Contact Us For Availability
6
Fan Contactor SPQ 51778 Contact Us For Availability
7
Idler Housing Assembly SPQ M401375P Contact Us For Availability
7
Lint Panel Switch Bracket SPQ 44013401 Contact Us For Availability
7
SPQ H88412101 SPQ H88412101 Contact Us For Availability
7
SPQ M411165 SPQ M411165 Contact Us For Availability
7
SPQ 44053001P SPQ 44053001P Contact Us For Availability
7
Cotter Pin SPQ M413042P Contact Us For Availability
7
SPQ 02422 SPQ 02422 Contact Us For Availability
7
SPQ 44115201 SPQ 44115201 Contact Us For Availability
7
Drive Rivet SPQ M413863 Contact Us For Availability
7
SPQ M413576 SPQ M413576 Contact Us For Availability
8
SPQ 44035102 SPQ 44035102 Contact Us For Availability
8
SPQ 44012302P SPQ 44012302P Contact Us For Availability
8
SPQ 44048301P SPQ 44048301P Contact Us For Availability
8
SPQ H88412093 SPQ H88412093 Contact Us For Availability
8
SPQ 44052901P SPQ 44052901P Contact Us For Availability
8
SPQ M414235 SPQ M414235 Contact Us For Availability
8
Airflow Switch Vane SPQ 02470 Contact Us For Availability
8
SPQ 20253 SPQ 20253 Contact Us For Availability
8
SPQ 44018501 SPQ 44018501 Contact Us For Availability
8
SPQ M400713 SPQ M400713 Contact Us For Availability
9
SPQ 70033504 SPQ 70033504 Contact Us For Availability
9
SPQ 44012301WP SPQ 44012301WP Contact Us For Availability
9
SPQ H96428008 SPQ H96428008 Contact Us For Availability
9
SPQ H96428487 SPQ H96428487 Contact Us For Availability
9
SPQ M401327 SPQ M401327 Contact Us For Availability
9
SPQ 70502301 SPQ 70502301 Contact Us For Availability
9
SPQ M414451 SPQ M414451 Contact Us For Availability
9
SPQ M409834P SPQ M409834P Contact Us For Availability
9
SPQ M413684P SPQ M413684P Contact Us For Availability
10
Door Hinge Lug Assembly SPQ 44035001 Contact Us For Availability
10
Screw SPQ 70126201 Contact Us For Availability
10
Nut SPQ 44087101 Contact Us For Availability
10
Belt Guard Cover SPQ M411072 Contact Us For Availability
10
Spacer SPQ M401402 Contact Us For Availability
10
Blower Cover SPQ M414237 Contact Us For Availability
10
Fan Motor SPQ 44313501P Contact Us For Availability
10
Filter Channel SPQ 44045101 Contact Us For Availability
10
Contactor Box End SPQ M413757 Contact Us For Availability
11
Key SPQ 70155601 Contact Us For Availability
11
Temperature Knob SPQ 44104601 Contact Us For Availability
11
Washer SPQ 70261401 Contact Us For Availability
11
Door Hinge Lug Assembly SPQ 44035002 Contact Us For Availability
11
Lint Panel Clip SPQ 44017801 Contact Us For Availability
11
Damper Vane SPQ M414284 Contact Us For Availability
11
Screw SPQ H88012034 Contact Us For Availability
11
Retaining Ring SPQ H96357751 Contact Us For Availability
12
Door Seal Kit SPQ 70211902P Contact Us For Availability
12
Bolt SPQ 44017901 Contact Us For Availability
12
Plug SPQ M400985 Contact Us For Availability
12
Thermostat SPQ H8900530H Contact Us For Availability
12
Cabinet Limit Harness SPQ 44108101P Contact Us For Availability
13
Door Glass SPQ 44008401P Contact Us For Availability
13
Kickplate SPQ 70117611 Contact Us For Availability
13
Belt SPQ H88603477 Contact Us For Availability
13
Cabinet Limit Harness SPQ 44022701 Contact Us For Availability
13
Loading Spring SPQ M400401 Contact Us For Availability
13
Nut SPQ M412201 Contact Us For Availability
13
Contactor Box Wrapper SPQ 44028401 Contact Us For Availability
14
Door Glass SPQ 70399501B Contact Us For Availability
14
Pop Rivet SPQ 70126301 Contact Us For Availability
14
Step Pulley and Bearing Kit SPQ H87672374 Contact Us For Availability
14
Fan SPQ M412917P Contact Us For Availability
14
Contactor SPQ M413758 Contact Us For Availability
14
Reversing Timer SPQ M412081 Contact Us For Availability
15
Washer SPQ H96368469 Contact Us For Availability
15
Nut SPQ H88010038 Contact Us For Availability
15
Actuator Arm Assembly SPQ M413331 Contact Us For Availability
15
Relay SPQ M412534 Contact Us For Availability
16
Bushing SPQ M4696P3 Contact Us For Availability
16
Door Latch SPQ M400072 Contact Us For Availability
16
Nut SPQ M400661 Contact Us For Availability
16
Damper Motor SPQ H96387501 Contact Us For Availability
16
Bypass Harness Assembly SPQ F330186P Contact Us For Availability
17
Panel Locator SPQ D512218P Contact Us For Availability
17
Front Panel SPQ 44166601 Contact Us For Availability
17
Door Ring Gasket SPQ M414215 Contact Us For Availability
17
Sheave SPQ M414367 Contact Us For Availability
17
Sheave SPQ H87520334 Contact Us For Availability
17
Sheave SPQ 22688 Contact Us For Availability
17
Motor Bracket SPQ H88010574 Contact Us For Availability
17
Network Capacitor Harness Assembly SPQ M413168 Contact Us For Availability
18
Nut SPQ M401223 Contact Us For Availability
18
Door Ring Gasket SPQ 70409301 Contact Us For Availability
18
Thermistor SPQ 70030401 Contact Us For Availability
18
Thermistor Bracket Assembly SPQ M413402 Contact Us For Availability
18
Cabinet Limit Harness SPQ H8752006H Contact Us For Availability
18
Base Bracket SPQ M412995P Contact Us For Availability
18
Washer SPQ M413592P Contact Us For Availability
18
Reversing Contactor Jumper Assembly SPQ M413878 Contact Us For Availability
18
End Stop SPQ 70121001 Contact Us For Availability
19
Washer SPQ 44012502P Contact Us For Availability
19
Sheave SPQ M400063 Contact Us For Availability
19
Motor Base SPQ H8752065H Contact Us For Availability
19
Sheave SPQ M414241 Contact Us For Availability
19
Nut SPQ H96388145 Contact Us For Availability
19
Fuse SPQ M413624 Contact Us For Availability
20
Washer SPQ M411537 Contact Us For Availability
20
Nut SPQ M400976 Contact Us For Availability
20
Screw SPQ H8752985HP Contact Us For Availability
21
Roller Catch SPQ M413401 Contact Us For Availability
21
Belt Adjustment Tube SPQ H8752251H Contact Us For Availability
21
Drive Wheel SPQ H88900683 Contact Us For Availability
21
Transformer SPQ M402917 Contact Us For Availability
21
Reversing Timer SPQ M413506 Contact Us For Availability
22
Drive Chain SPQ H96382072P Contact Us For Availability
23
SPQ 44007703 SPQ 44007703 Contact Us For Availability
23
Bushing SPQ H96388178 Contact Us For Availability
24
Reversing Timer SPQ M400044 Contact Us For Availability
25
Bushing SPQ H87020202 Contact Us For Availability
25
Roll Pin SPQ H96388186 Contact Us For Availability
25
Transformer SPQ M414229P Contact Us For Availability
26
Thermistor SPQ 44077703P Contact Us For Availability
26
SPQ H88001565 SPQ H88001565 Contact Us For Availability
26
Steam Coil SPQ M414459 Contact Us For Availability
26
Emergency Stop Harness SPQ 44074401 Contact Us For Availability
27
SPQ 44063603P SPQ 44063603P Contact Us For Availability
27
Steam Heater Assembly SPQ M400013 Contact Us For Availability
27
Network Capacitor Assembly SPQ M413510 Contact Us For Availability
28
Hairpin Cotter SPQ 70142 Contact Us For Availability
28
Fuse Holder Bracket SPQ M414228P Contact Us For Availability
31
Terminal Block SPQ 44008001 Contact Us For Availability
33
Shaft Collar SPQ 44096501 Contact Us For Availability
33
Mount Bracket SPQ 44111401 Contact Us For Availability
35
Damper Assembly SPQ H88970256 Contact Us For Availability
37
SPQ M414485 SPQ M414485 Contact Us For Availability
NI
SPQ 430642 SPQ 430642 Contact Us For Availability
NI
SPQ M412612 SPQ M412612 Contact Us For Availability
NI
SPQ 298P4P SPQ 298P4P Contact Us For Availability
NI
SPQ 297P4 SPQ 297P4 Contact Us For Availability
NI
SPQ 286P4 SPQ 286P4 Contact Us For Availability
NI
SPQ 70409801 SPQ 70409801 Contact Us For Availability
NI
SPQ M4221P4 SPQ M4221P4 Contact Us For Availability
NI
SPQ M405535 SPQ M405535 Contact Us For Availability
NI
SPQ M400984 SPQ M400984 Contact Us For Availability
NI
SPQ M412334 SPQ M412334 Contact Us For Availability
NI
SPQ H8830143H SPQ H8830143H Contact Us For Availability
NI
SPQ 44048501 SPQ 44048501 Contact Us For Availability
NI
SPQ M400993 SPQ M400993 Contact Us For Availability
NI
SPQ M412630 SPQ M412630 Contact Us For Availability
NI
SPQ M413528 SPQ M413528 Contact Us For Availability
NI
SPQ M413086 SPQ M413086 Contact Us For Availability
NI
SPQ H96367685 SPQ H96367685 Contact Us For Availability
NI
Valve Rebuild Kit SPQ 70351012 Contact Us For Availability
NI
SPQ 70370301P SPQ 70370301P Contact Us For Availability
NI
SPQ F8379502 SPQ F8379502 Contact Us For Availability
NI
SPQ M405364 SPQ M405364 Contact Us For Availability
NI
SPQ M414276 SPQ M414276 Contact Us For Availability
NI
SPQ M413614P SPQ M413614P Contact Us For Availability
NI
SPQ M413508 SPQ M413508 Contact Us For Availability
× ![]()
