Model Whirlpool KSSS48QKB02 48`` BUILT IN REFRIGERATOR – Common Parts & Diagrams

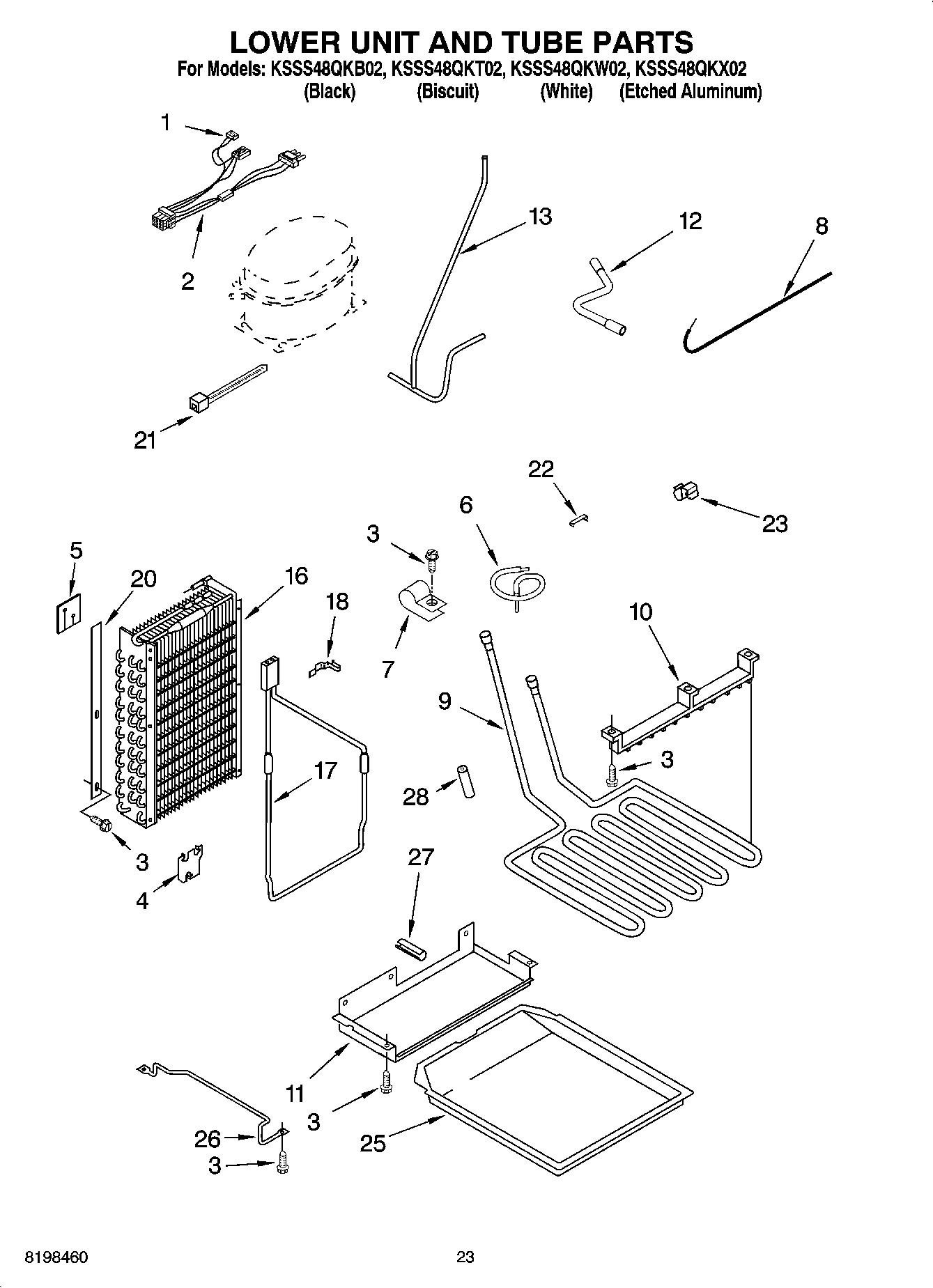

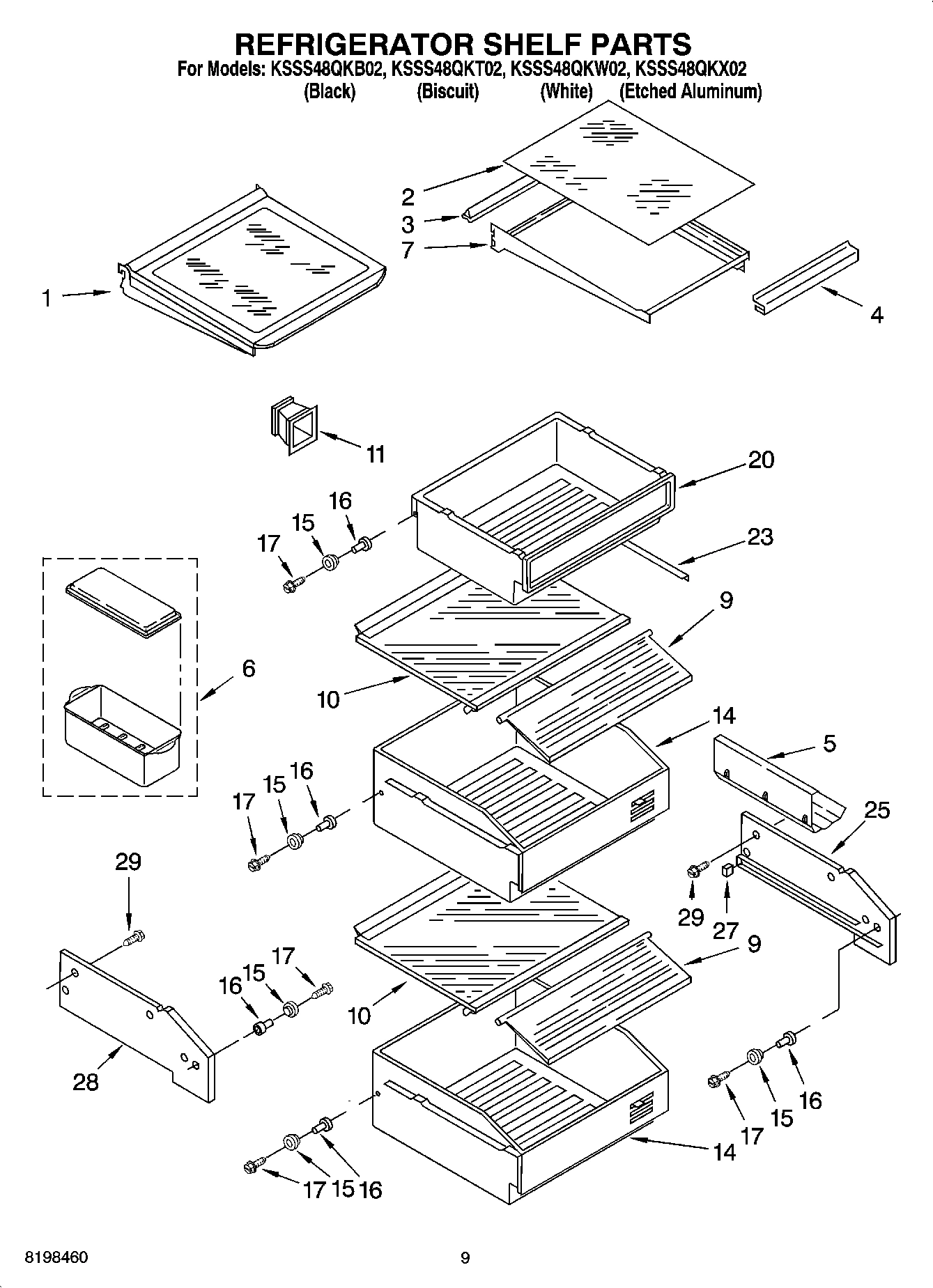

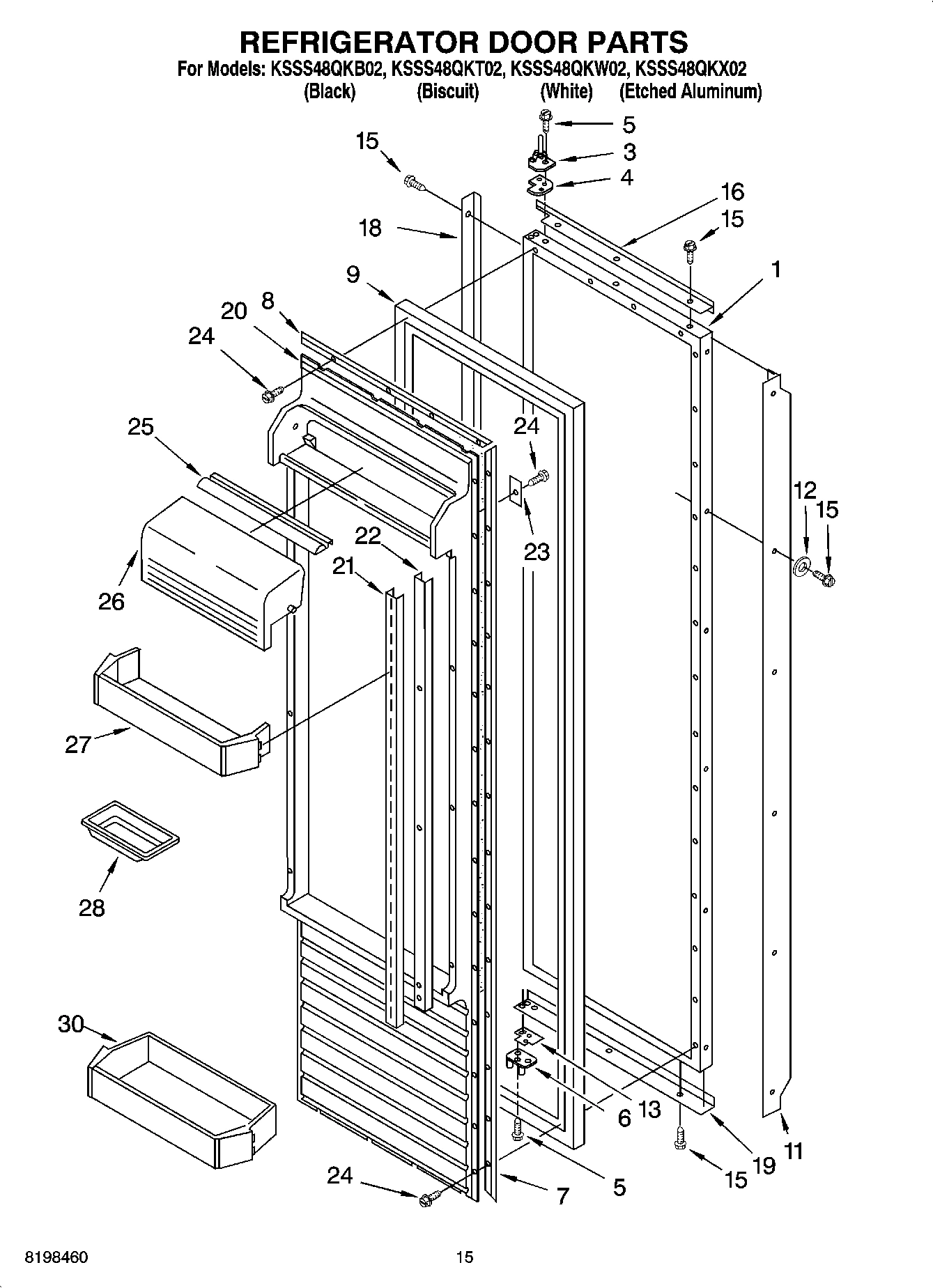

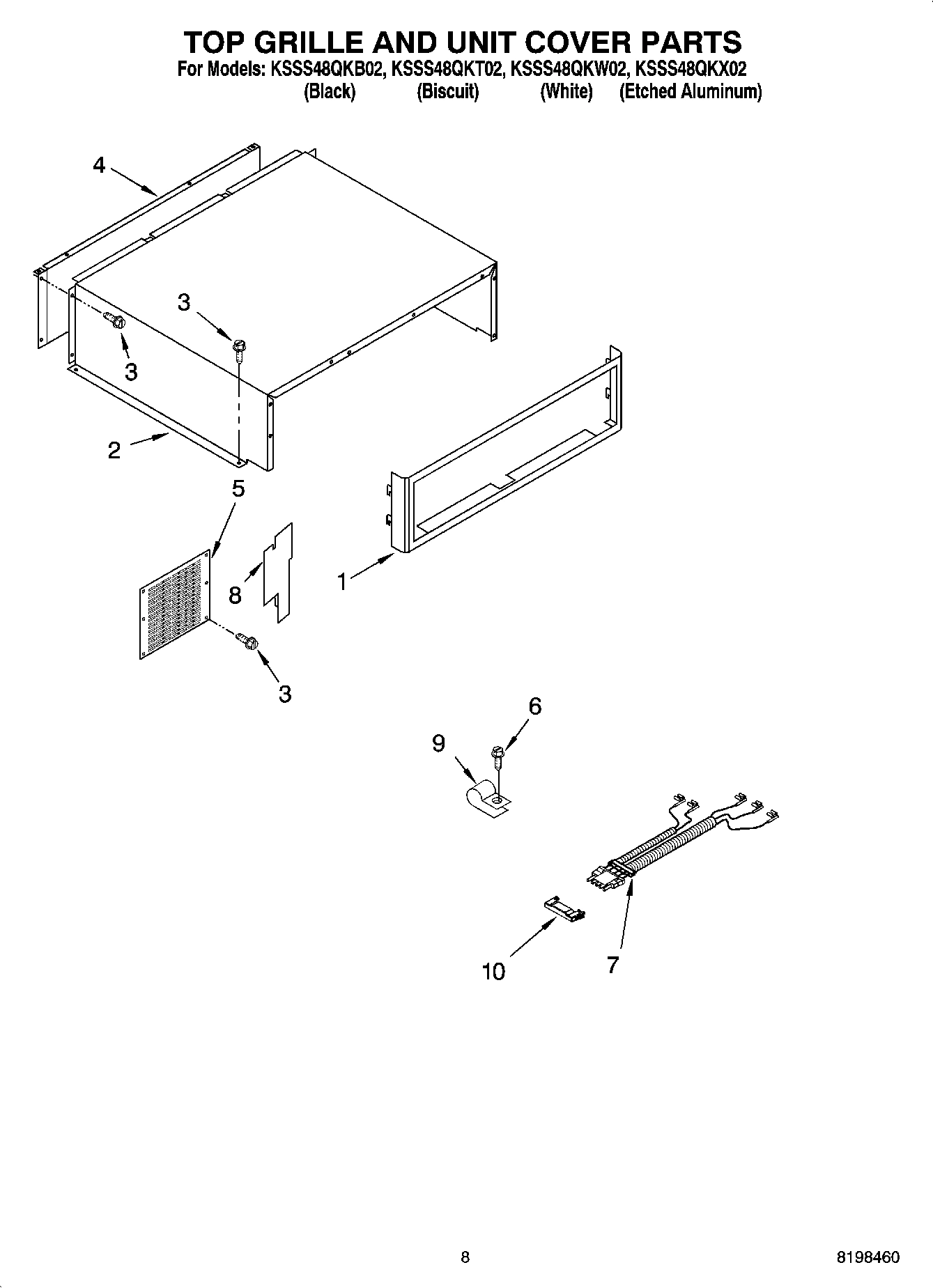

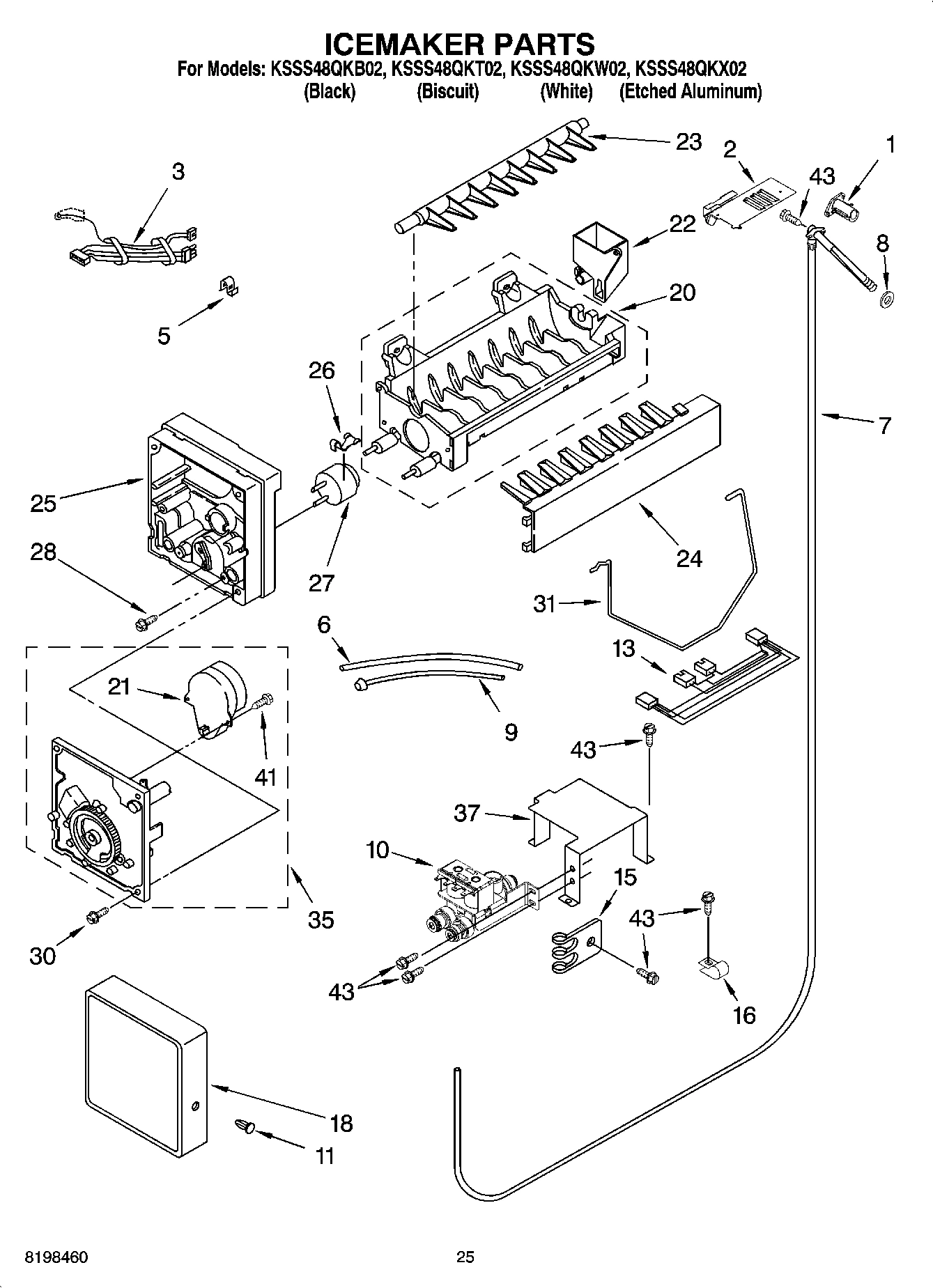

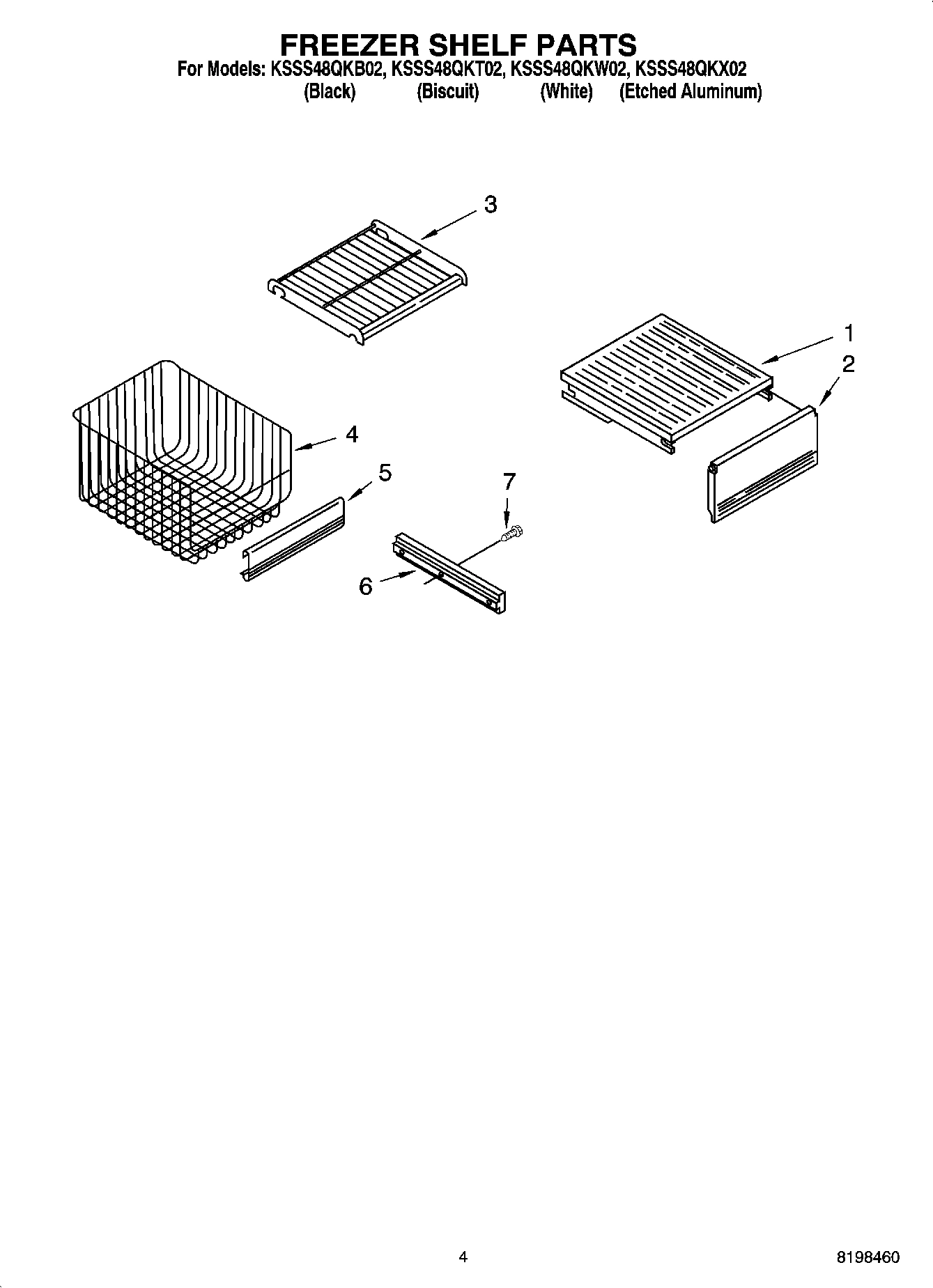

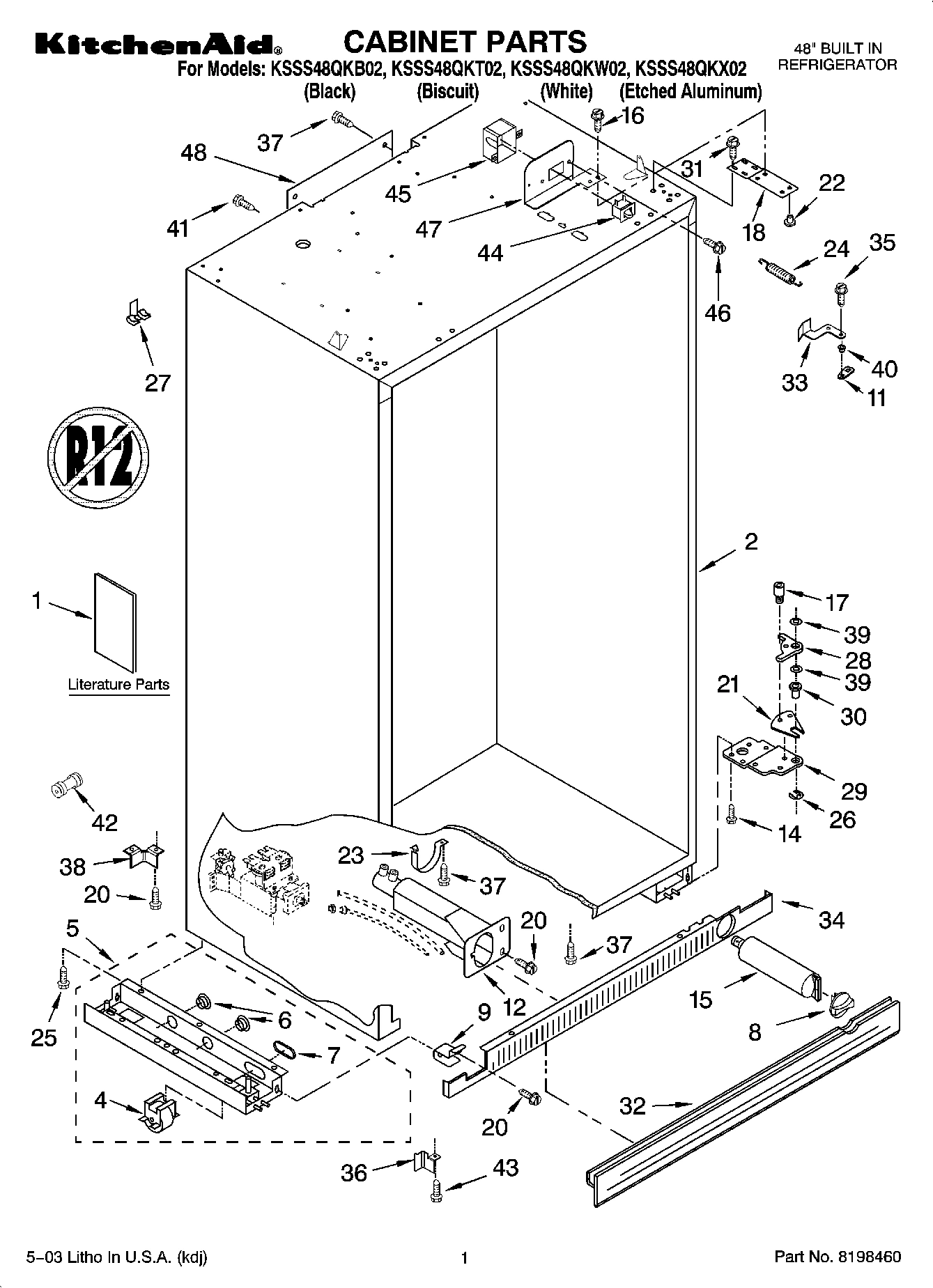

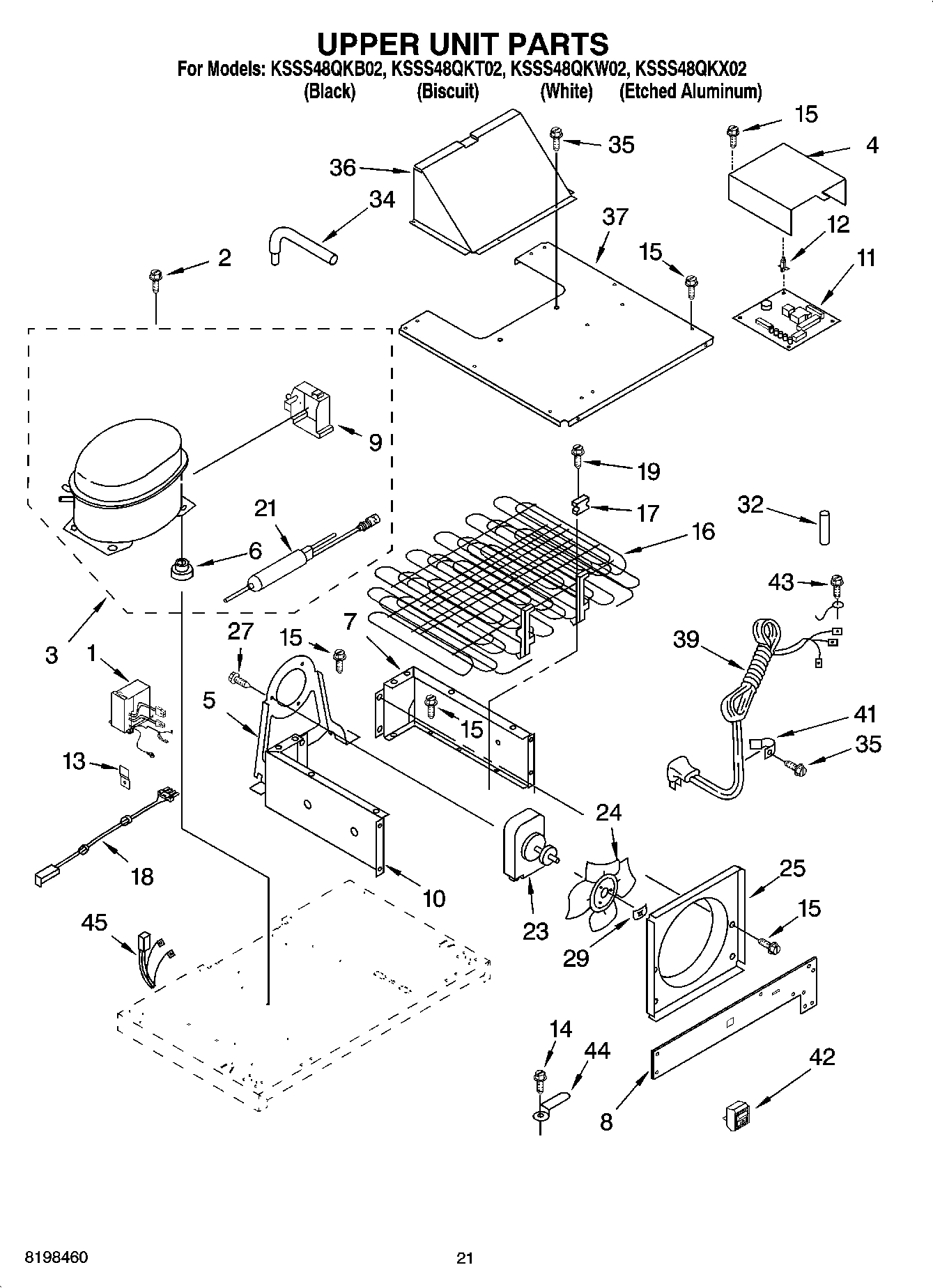

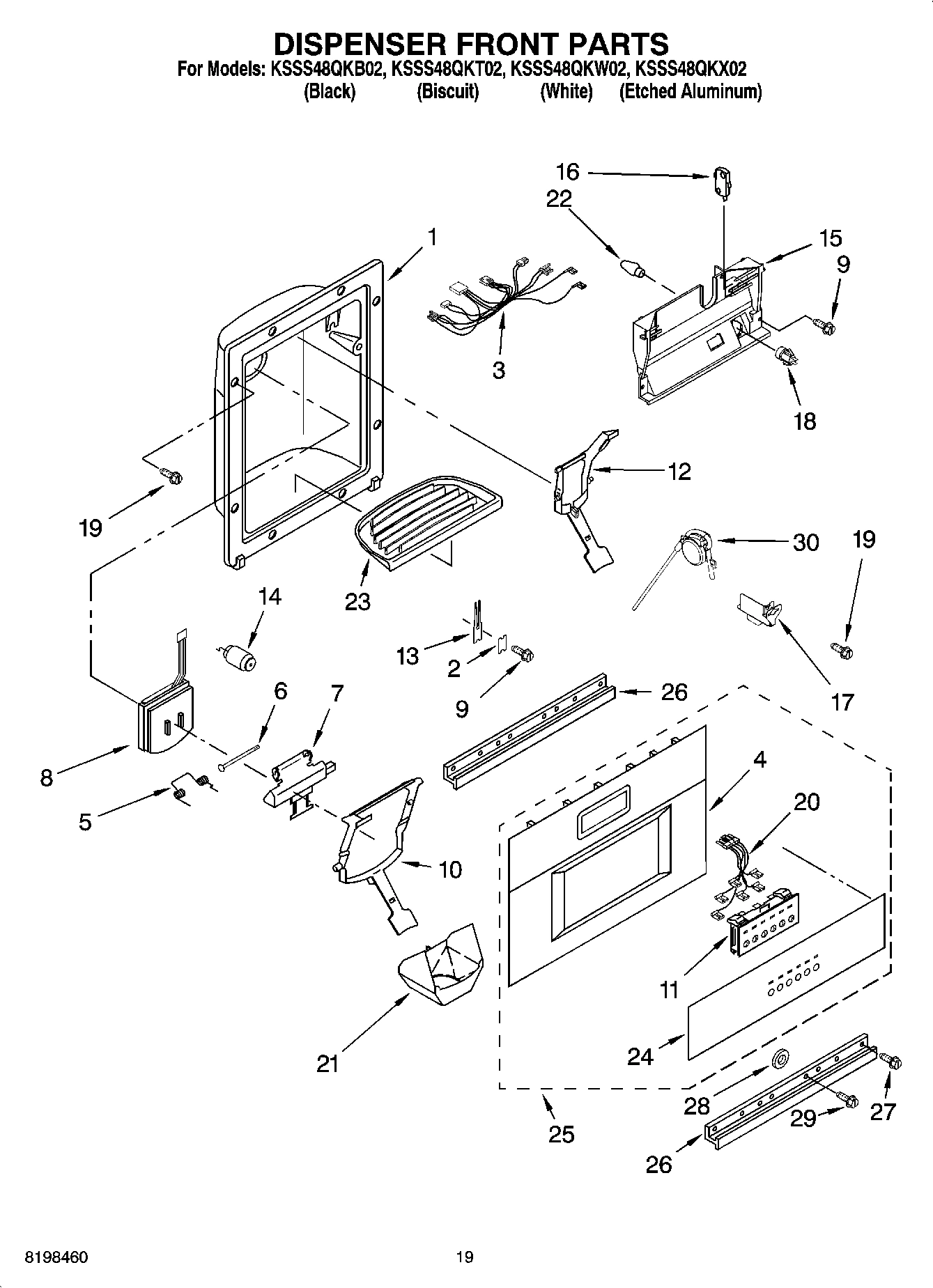

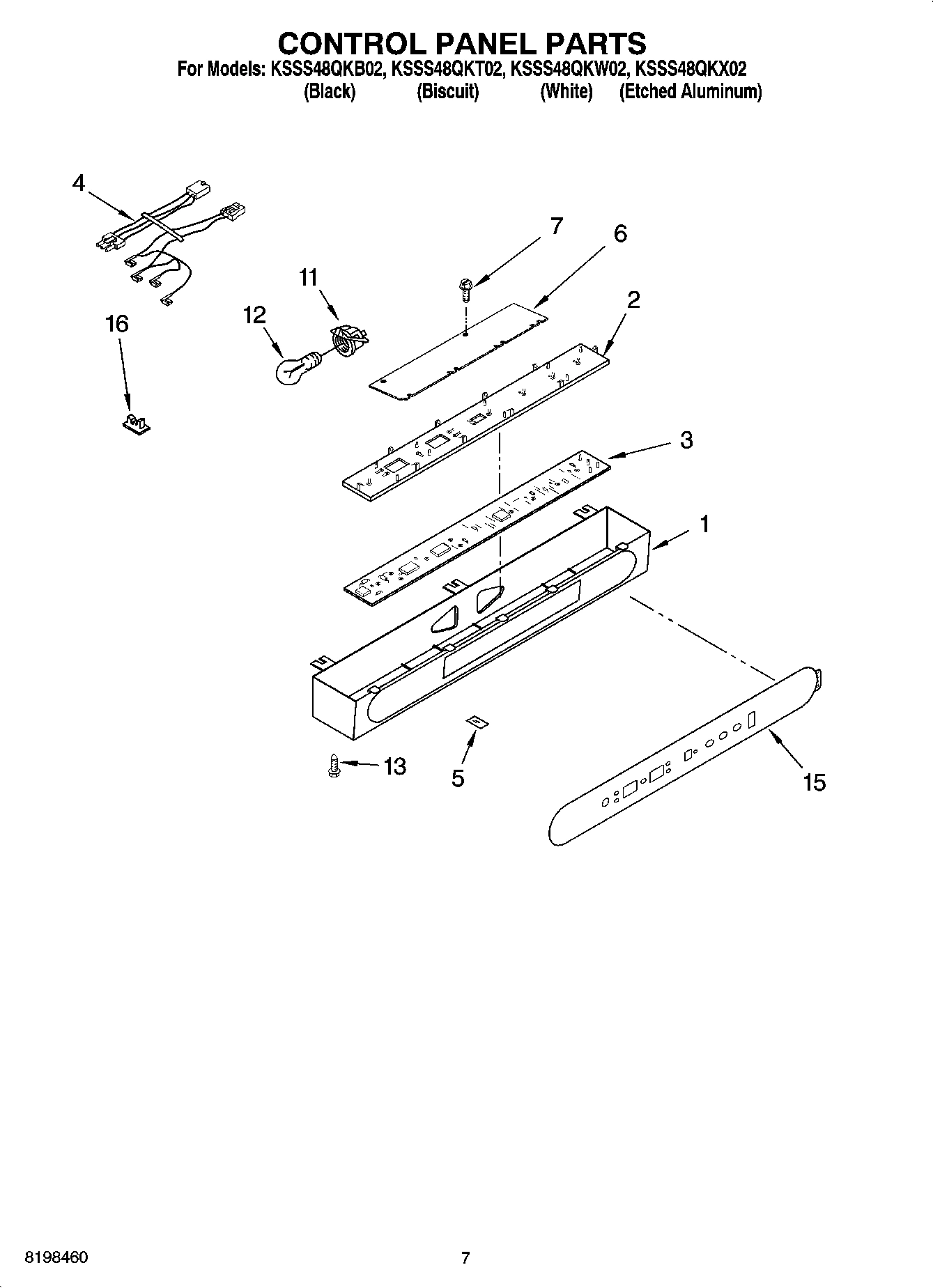

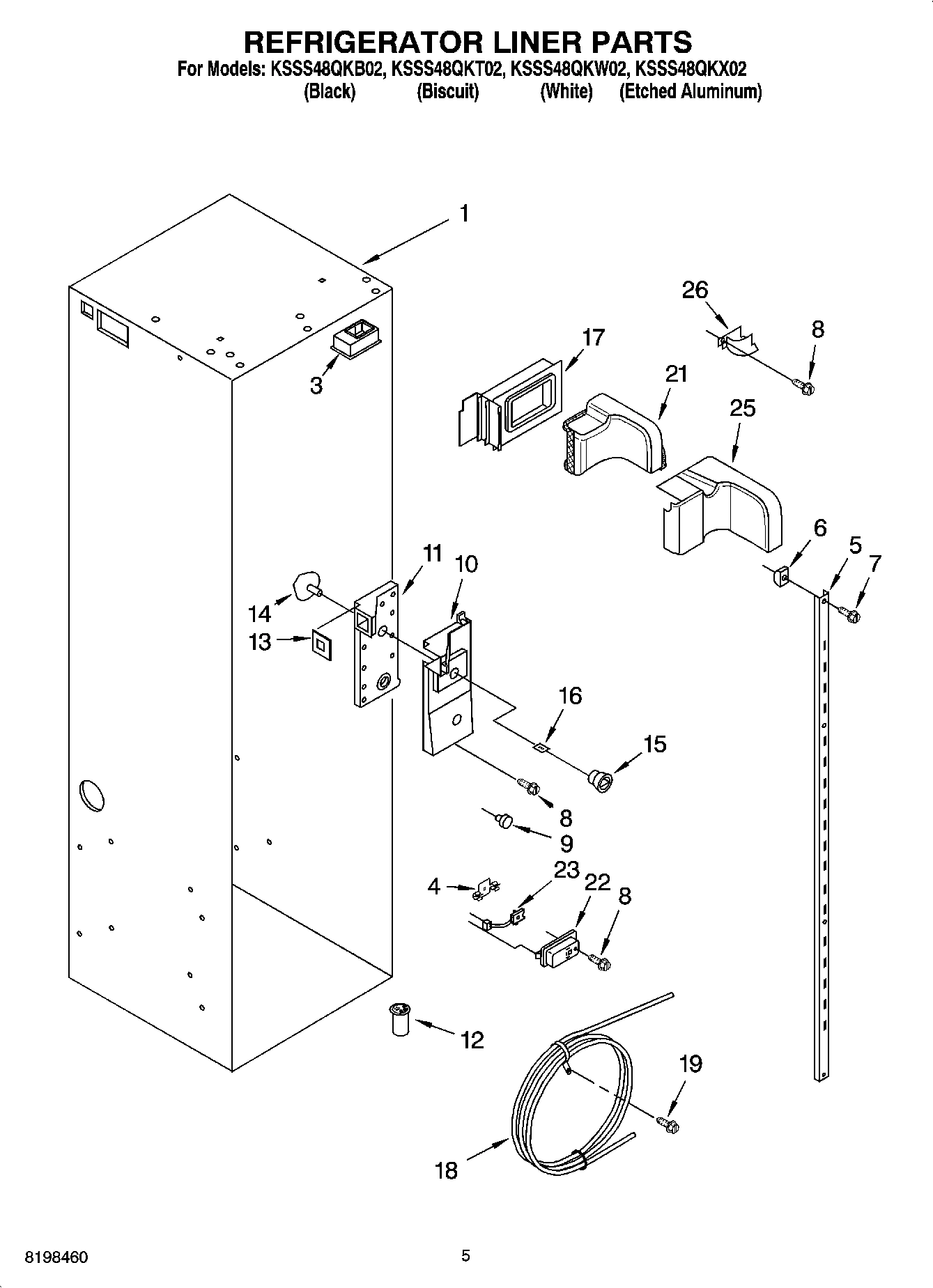

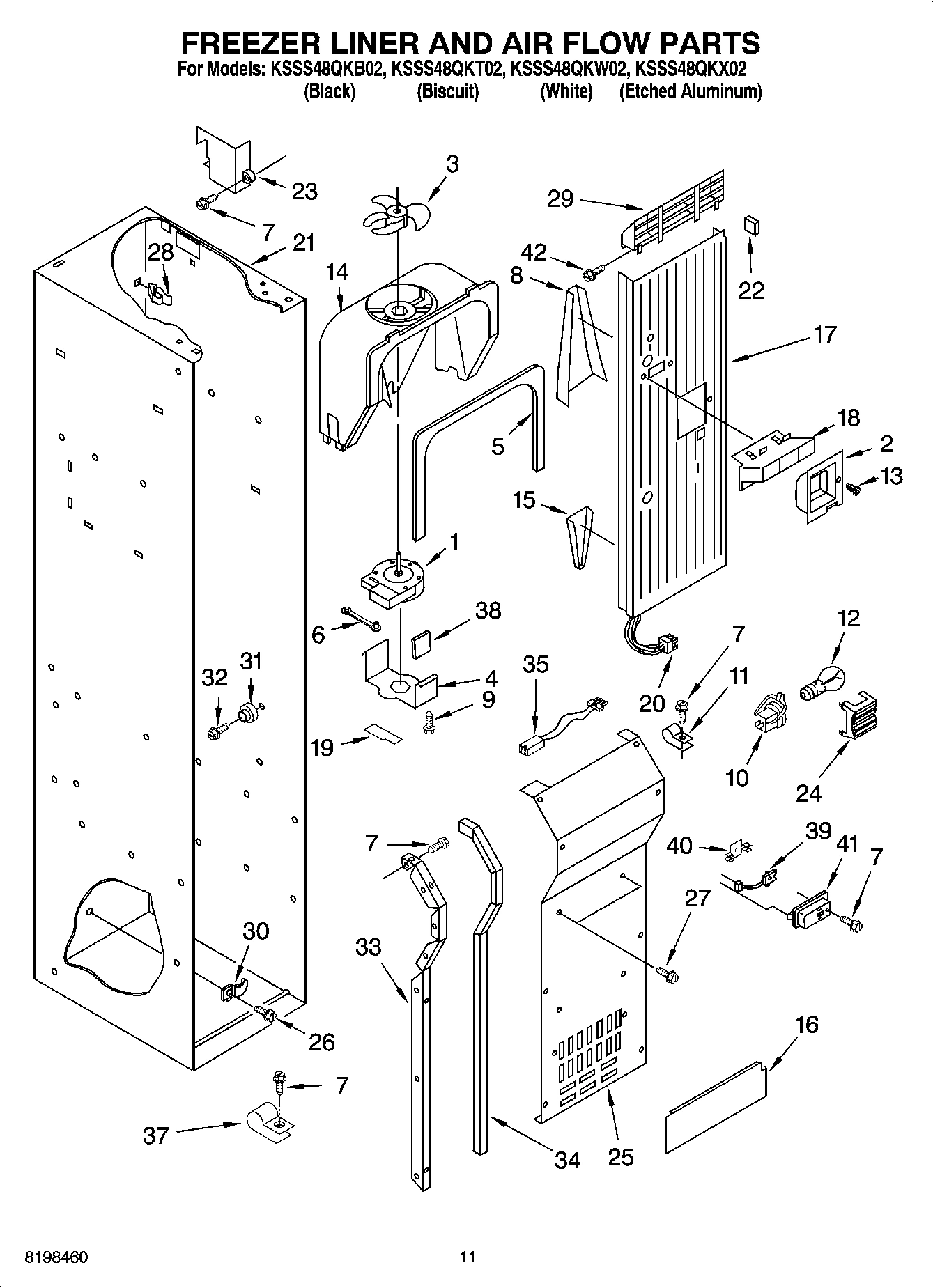

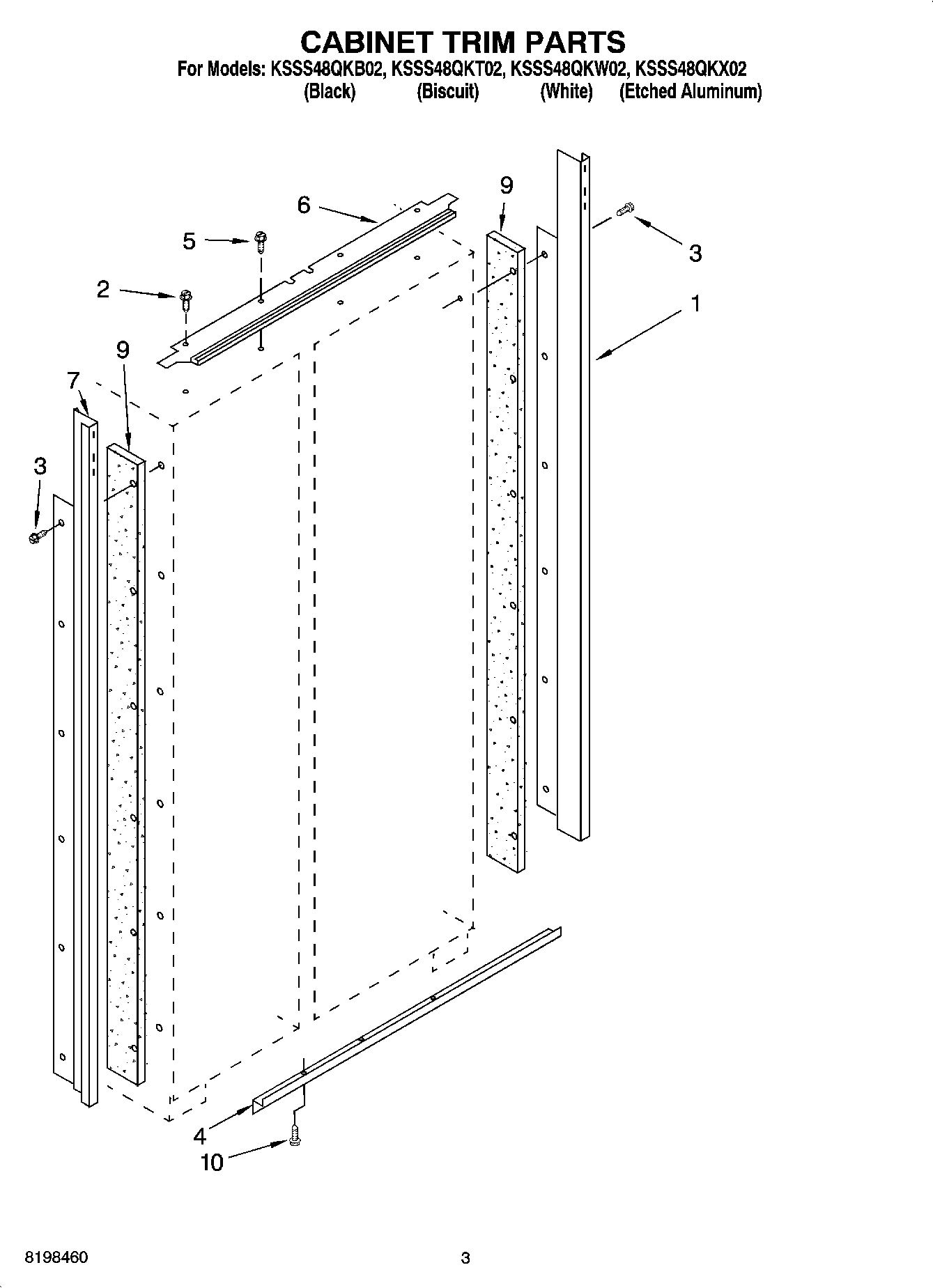

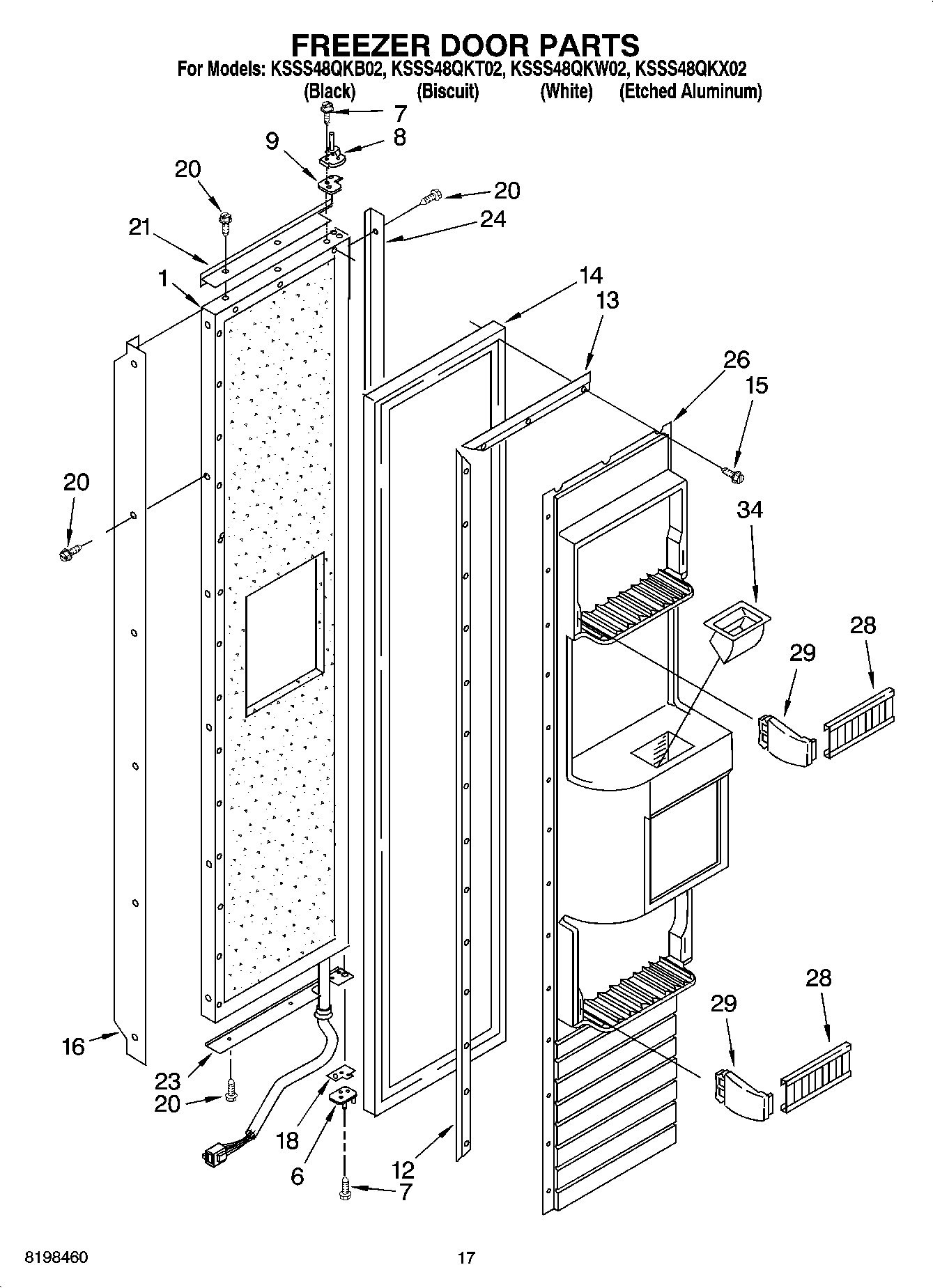

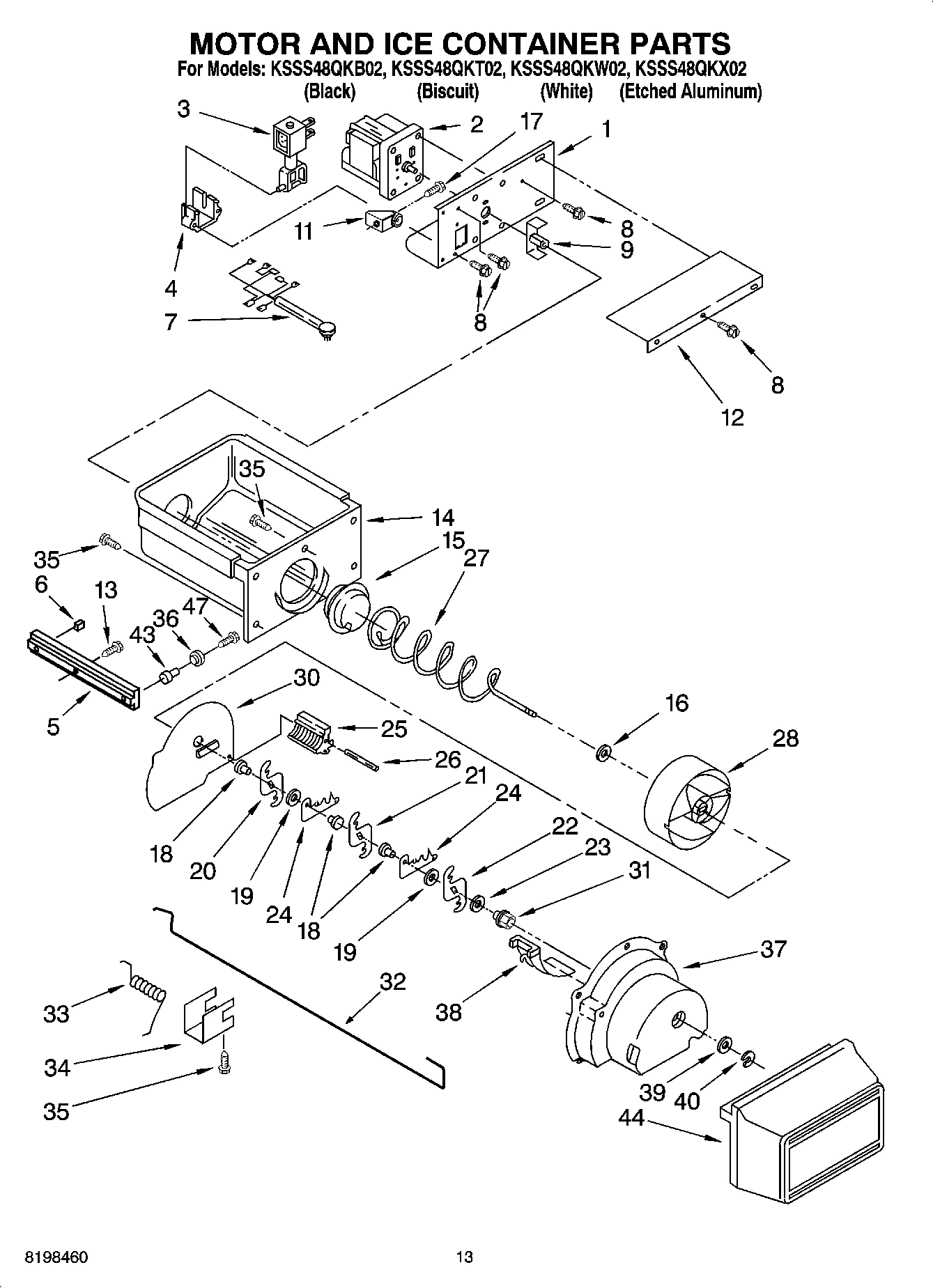

Common parts from model Whirlpool KSSS48QKB02 48`` BUILT IN REFRIGERATOR
1

Solid Shelf WPL 2220891 Contact Us For Availability
1

Control Box WPL 8201533 Contact Us For Availability
1

Frame, Shelf WPL 2174404 Contact Us For Availability
1

Bracket, Motor WPL 2003941 Contact Us For Availability
1

Refrigerator Door Panel (Includes Insulation) WPL 2259182 Contact Us For Availability
1

Cabinet, Trim (Right Side) (Black) WPL 2215919B Contact Us For Availability
1

Cabinet, Trim (Right Side) (Biscuit) WPL 2215919T Contact Us For Availability
1

Cabinet, Trim (Right Side) (White) WPL 2215919W Contact Us For Availability
1

Cabinet, Trim Right Side (Etched Aluminum) WPL 8201535 Contact Us For Availability
1

Liner (Not A Serviceable Part) WPL ARI155371A Contact Us For Availability
2

Front, Ice Compartment WPL 2220848 Contact Us For Availability
2

Insert, Control Box WPL 2215670 Contact Us For Availability
2

Glass, Shelf WPL 2003377 Contact Us For Availability
2

Wire Harness WPL 2209119 Contact Us For Availability
2

Cup, Clearance WPL 2002732 Contact Us For Availability
3

Shelf, Deep WPL 1112052 Contact Us For Availability
3

Shelf, Fixed (2) WPL 1113638 Contact Us For Availability
3

Circuit Board, Housing Control WPL 2209159 Contact Us For Availability
3

Reflector, Shelf WPL 1112006 Contact Us For Availability
3

Wire Assembly, Icemaker WPL 2254792 Contact Us For Availability
3

Soleniod Assembly WPL 2003979 Contact Us For Availability
3

Screw (White) WPL 8281251 Contact Us For Availability
3

Screw (Biscuit) WPL 8281253 Contact Us For Availability
4

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
4

Clip, Thermistor WPL 2209204 Contact Us For Availability
4

Basket WPL 2208196 Contact Us For Availability
4

Control Box Wire Harness WPL 2187424 Contact Us For Availability
4

Gasket, Glass (2) WPL 1113792 Contact Us For Availability
4

Bracket WPL 2215508 Contact Us For Availability
4

Cabinet, Trim (Bottom) WPL 2254726 Contact Us For Availability
5

Trim, Basket WPL 2220845 Contact Us For Availability
5

Side Support WPL 2209067 Contact Us For Availability
5

Slide, Container (Right Side) WPL 2002720 Contact Us For Availability
5

Ladder, Shelf (2) WPL 2221211 Contact Us For Availability
6

Slide, Basket (Left Side) WPL 2208197 Contact Us For Availability
6

Slide, Basket (Right Side) WPL 2208198 Contact Us For Availability
6

Support, Control Box WPL 2221121 Contact Us For Availability
6

Egg Bin WPL 2221071 Contact Us For Availability
6

Suction Tube WPL 2209035 Contact Us For Availability
6

Tube, Filter Inlet WPL 2214613 Contact Us For Availability
6

Cabinet, Trim Top WPL 2003647 Contact Us For Availability
7

Frame, Assembly Meat Pan WPL 2006525 Contact Us For Availability
7

Water Inlet Tube Assembly WPL 2221140 Contact Us For Availability
7

Wiring Assembly, Ice Dispenser WPL 2187421 Contact Us For Availability
7

Gasket Retainer, Side (2) WPL 1112533 Contact Us For Availability
7

Cabinet Trim (Left Side) (Etched Aluminum) WPL 2215936 Contact Us For Availability
7

Cabinet Trim (Left Side) (Black) WPL 2215936B Contact Us For Availability
7

Cabinet Trim (Left Side) (Biscuit) WPL 2215936T Contact Us For Availability
7

Cabinet Trim (Left Side) (White) WPL 2215936W Contact Us For Availability
8

Tube, Connect (Drier) WPL 2209454 Contact Us For Availability
8

Deflector, Air Duct WPL 2003924 Contact Us For Availability
8

Gasket Retainer, Top & Bottom WPL 1112542 Contact Us For Availability
9

Heater, Drain Pan WPL 2209451 Contact Us For Availability
9

Door Spacer, Top WPL 2256381 Contact Us For Availability
9

Seal, Side Trim WPL 2005925 Contact Us For Availability
9

Tube, Filter Outlet WPL 2254800 Contact Us For Availability
9

Door Gasket, Magnetic WPL 2188499 Contact Us For Availability
9

Hole Plug WPL 1112257 Contact Us For Availability
10

Lever, Ice Dispenser (White) WPL 2180259 Contact Us For Availability
10

Glass, Crisper (Includes 9) WPL 2003380 Contact Us For Availability
10

Hanger, Heater WPL 2209450 Contact Us For Availability
10

Meat Pan, Air Duct Cover WPL 2220888 Contact Us For Availability
11

Cam, Door Closer WPL 2005783 Contact Us For Availability
11

Meat Pan, Connector WPL 2000742 Contact Us For Availability
11

Shield, Drain Pan WPL 2005908 Contact Us For Availability
11

Handle, Door (Etched Aluminum) WPL 2005952 Contact Us For Availability
11

Handle, Door (White) WPL 2005953 Contact Us For Availability
11

Handle, Door (Biscuit) WPL 2005955 Contact Us For Availability
11

Handle, Door (Black) WPL 2005956 Contact Us For Availability
11

Meat Pan, Air Duct WPL 2000337 Contact Us For Availability
12

Tube, Transition WPL 2256475 Contact Us For Availability
12

Cover, Motor WPL 1113130 Contact Us For Availability
12

Washer WPL 2001230 Contact Us For Availability
13

Tube, Discharge WPL 2209036 Contact Us For Availability
13

Fastner WPL 1112871 Contact Us For Availability
13

Harness, Water Valve WPL 2254795 Contact Us For Availability
13

Seal, Air Duct WPL 2221175 Contact Us For Availability
14

Screw WPL 3400525 Contact Us For Availability
14

Ice Container WPL 2208908 Contact Us For Availability
14

Crisper Pan (2) WPL 2220897 Contact Us For Availability
14

Damper Control, Meat Pan WPL 1112218 Contact Us For Availability
15

Deflector, Air Duct WPL 2003929 Contact Us For Availability
15

Overlay WPL 2221065 Contact Us For Availability
15

Control Knob, Meat Pan WPL 2003811 Contact Us For Availability
16

Eyelet, Roller WPL 2174478 Contact Us For Availability
16

Retainer, Knob WPL 2003841 Contact Us For Availability
16

Clip, Wiring (3) WPL 1115375 Contact Us For Availability
16

Clamp, Tube WPL 488937 Contact Us For Availability
16

Trim (Top) (Etched Aluminum) WPL 2005012 Contact Us For Availability
16

Trim (Top) (White) WPL 2005015 Contact Us For Availability
16

Trim (Top) (Biscuit) WPL 2005769 Contact Us For Availability
16

Trim (Top) (Black) WPL 2005841 Contact Us For Availability
17

Assembly, Air Duct WPL 2209336 Contact Us For Availability
18

Door Spacer, Bottom WPL 2257637 Contact Us For Availability
18

Cover WPL 2257538 Contact Us For Availability
18

Trim, Side (Etched Aluminum) WPL 2005967 Contact Us For Availability
18

Trim (Side) (White) WPL 2005968 Contact Us For Availability
18

Trim (Side) (Biscuit) WPL 2005970 Contact Us For Availability
18

Trim, Side (Black) WPL 2005971 Contact Us For Availability
19

Screw WPL 487522 Contact Us For Availability
19

Trim (Bottom) (Etched Aluminum) WPL 2215995 Contact Us For Availability
19

Trim (Bottom) (Black) WPL 2215995B Contact Us For Availability
19

Trim (Bottom) (Biscuit) WPL 2215995T Contact Us For Availability
19

Trim (Bottom) (White) WPL 2215995W Contact Us For Availability
19

Screw WPL 488280 Contact Us For Availability
20

Meat Pan WPL 2220903 Contact Us For Availability
20

Gasket, Evaporator WPL 2220832 Contact Us For Availability
20

Harness, Wire WPL 2221262 Contact Us For Availability
20

Panel, Interior Door WPL 1113950 Contact Us For Availability
21

Liner (Not A Serviceable Part) WPL ARI155372A Contact Us For Availability
21

Ladder, Shelf (2) WPL 1113949 Contact Us For Availability
21

Diffuser Assembly WPL 2208997 Contact Us For Availability
22

Bushing WPL 2002903 Contact Us For Availability
22

Gasket, Air Baffle WPL 1112869 Contact Us For Availability
22

Retainer, Shelf Ladder (2) WPL 1113948 Contact Us For Availability
23

Grille, Overflow (White) WPL 2180323 Contact Us For Availability
23

Cover, Air Outlet WPL 2215718 Contact Us For Availability
23

Retainer, Glass WPL 2002181 Contact Us For Availability
23

Clip, Water Tube WPL 934011 Contact Us For Availability
23

Back Up Plate (8) WPL 1112514 Contact Us For Availability
24

Blade, Fan WPL 2190685 Contact Us For Availability
24

Light Shield WPL 2198589 Contact Us For Availability
24

Blade, Fixed (2) WPL 1119009 Contact Us For Availability
25

Crisper Spacer, Right Side (2) WPL 2006515 Contact Us For Availability
25

Cover, Evaporator WPL 2221106 Contact Us For Availability
25

Gasket WPL 1113955 Contact Us For Availability
26

Bracket, Drain Pan (Left) WPL 1113206 Contact Us For Availability
26

Bracket, Drain Pan (Right) WPL 1113207 Contact Us For Availability
26

Door, Utility Bin WPL 2003465 Contact Us For Availability
27

Stop, Roller WPL 1113169 Contact Us For Availability
27

Conveyor WPL 2160602 Contact Us For Availability
27

Door Shelf (3) WPL 1113974 Contact Us For Availability
28

Crisper Spacer, Left Side (2) WPL 2006516 Contact Us For Availability
28

Trim, Door Shelf WPL 2195934 Contact Us For Availability
28

Butter Tray WPL 2165792 Contact Us For Availability
29

Trim, End Cap (Right Side) WPL 2209134 Contact Us For Availability
29

Trim, Endcap (Left Side) WPL 2208954 Contact Us For Availability
29

Diffuser, Air Duct WPL 2208929 Contact Us For Availability
30

Shelf, Gallon Door WPL 2006381 Contact Us For Availability
32

SKIRT, GRILLE BOTTOM (BLACK) WPL 2209026B Contact Us For Availability
32

Control Arm WPL 2002728 Contact Us For Availability
33

Evaporator, Cover Rail (Left Side) WPL 2221107 Contact Us For Availability
33

Evaporator, Cover Rail (Right Side) WPL 2221108 Contact Us For Availability
34

Grille Bottom, Front (Black) WPL 2209431B Contact Us For Availability
34

WPL 2209431W WPL 2209431W Contact Us For Availability
35

WPL 2005921 WPL 2005921 Contact Us For Availability
35

Wire, Jumper WPL 2221077 Contact Us For Availability
36

Roller WPL 2188212 Contact Us For Availability
37

Water Valve Mounting Bracket WPL 2221282 Contact Us For Availability
44

Front Cover, Ice Container WPL 2002724 Contact Us For Availability
45

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
48

WPL 2209449 WPL 2209449 Contact Us For Availability
99

Complete Ice Crusher Mechanism Assembly WPL 2160606 Contact Us For Availability
100

Front Panel Kit (White) WPL 2220866 Contact Us For Availability
100

Front Panel Kit (Black) WPL 2220869 Contact Us For Availability
100

Front Panel Kit Black Acrylic Static Cleaner WPL 2220872 Contact Us For Availability
100

Front Panel Kit (Stainless Steel) WPL 2220875 Contact Us For Availability
100

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI155379A Contact Us For Availability
100

(Optional Parts Only) WPL ARI155380A Contact Us For Availability
100

Complete Ice Container Assembly WPL 2006543 Contact Us For Availability
× ![]()
