Model Whirlpool KSSS48FTX04 48`` BUILT IN REFRIGERATOR – Common Parts &amp; Diagrams

3

2208970 Whirlpool Refrigerator Air Duct In Stock WPL 2208970 $97.38

3

2302884 Whirlpool Refrigerator Wire Shelf Backorder WPL 2302884 $202.72

3

2310136 Whirlpool Refrigerator Wire Harness In Stock WPL 2310136 $115.87

3

2318189 Whirlpool Refrigerator Drip Pan Backorder WPL 2318189 $96.75

3

W10306442 Whirlpool Refrigerator Tube Backorder WPL W10306442 $55.25

3

W11752085 Whirlpool Door Hinge Backorder WPL W11752085 $36.99

3

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $30.99

4

2310164 Whirlpool Refrigerator Wire Harness In Stock WPL 2310164 $81.25

4

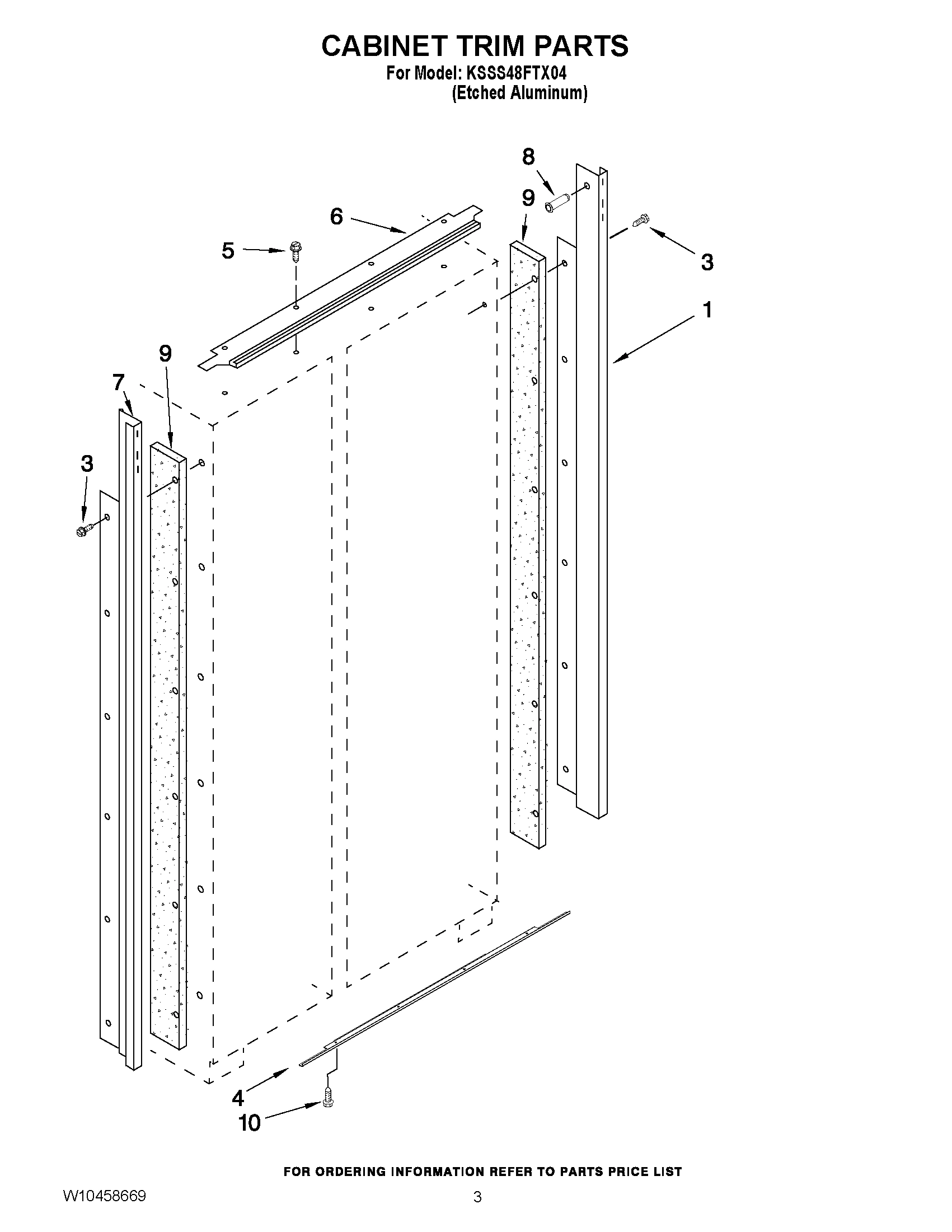

2316688 Whirlpool Refrigerator Cabinet Trim Backorder WPL 2316688 $109.01

4

W10388653 Whirlpool Refrigerator Tube Backorder WPL W10388653 $24.52

4

W11318849 Whirlpool Refrigerator Freezer Bask Backorder WPL W11318849 $109.20

4

WPW10138054 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10138054 $20.98

4

Meat Pan Cover Assembly WPL 2302843 Contact Us For Availability

4

Housing, Control Board WPL 2318087 Contact Us For Availability

5

2005032 Whirlpool Refrigerator Leveler Backorder WPL 2005032 $126.45

5

W11724512 Whirlpool Door Hinge In Stock WPL W11724512 $176.96

5

WP2256271 Whirlpool Refrigerator Front Basket Backorder WPL WP2256271 $57.99

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

5

WPW10281063 Whirlpool Refrigerator Heater Pan In Stock WPL WPW10281063 $216.80

5

Cover, Unit Front WPL W10185625 Contact Us For Availability

5

Crisper Cover Assembly WPL 2302836 Contact Us For Availability

6

2259317 Whirlpool Refrigerator Slide Backorder WPL 2259317 $158.71

6

2302878 Whirlpool Refrigerator Door Hinge In Stock WPL 2302878 $58.07

6

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $19.90

6

W11565275 Whirlpool Refrigerator Water Tube Backorder WPL W11565275 $39.87

6

W11669856 Whirlpool Grommet Backorder WPL W11669856 $9.12

6

W11673500 Whirlpool Door Hinge In Stock WPL W11673500 $86.99

6

WP2259318 Whirlpool Refrigerator Slide Backorder WPL WP2259318 $215.89

7

WP8533928 Whirlpool Refrigerator Screw In Stock WPL WP8533928 $6.99

8

2259464 Whirlpool Refrigerator Wedge Backorder WPL 2259464 $62.16

8

2302954 Whirlpool Refrigerator Slide In Stock WPL 2302954 $221.69

8

2302955 Whirlpool Refrigerator Slide In Stock WPL 2302955 $221.69

8

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $6.17

8

WP2260518B Whirlpool Water Filter Cap In Stock WPL WP2260518B $22.99

8

WPW10121451 Whirlpool Refrigerator Insert Backorder WPL WPW10121451 $4.82

8

NAMEPLATE WPL 2317923S Contact Us For Availability

9

2215676 Whirlpool Refrigerator Terminal Cover Backorder WPL 2215676 $61.35

9

W11533506 Whirlpool Refrigerator Water Tube In Stock WPL W11533506 $18.97

9

WP2266932 Whirlpool Refrigerator Container Backorder WPL WP2266932 $107.25

9

WP2302937 Whirlpool Refrigerator Thermistor In Stock WPL WP2302937 $54.60

9

WP2306086 Whirlpool Refrigerator Electronic C Backorder WPL WP2306086 $226.84

9

WPW10205102 Whirlpool Evaporator In Stock WPL WPW10205102 $283.62

9

SEAL TRIM, SIDE WPL 2005925 Contact Us For Availability

10

WP2307650 Whirlpool Refrigerator Inlet Valve In Stock WPL WP2307650 $169.55

10

WPW10140162 Whirlpool Refrigerator Heater In Stock WPL WPW10140162 $111.70

1113048 Whirlpool Refrigerator Clamp Backorder WPL 1113048 $7.19

W10219462 Whirlpool Refrigerator Electronic C Backorder WPL W10219462 $248.93

W10407625 Whirlpool Refrigerator Crisper Pan Backorder WPL W10407625 $107.07

W11215550 Whirlpool Ice Level Arm In Stock WPL W11215550 $46.99

WPW10169528 Whirlpool Refrigerator Diffuser Backorder WPL WPW10169528 $228.05

Cam, Door Closer WPL 2005783 Contact Us For Availability

12

WPA3073101 Whirlpool Light Bulb In Stock WPL WPA3073101 $14.95

12

WPW10121140 Whirlpool Refrigerator Housing In Stock WPL WPW10121140 $193.47

13

2256222 Whirlpool Refrigerator Track Backorder WPL 2256222 $57.59

13

2256223 Whirlpool Refrigerator Track Backorder WPL 2256223 $54.61

13

Gasket, Evaporator WPL 2220832 Contact Us For Availability

2215648 Whirlpool Refrigerator Dampener Backorder WPL 2215648 $8.35

2302956 Whirlpool Refrigerator Slide Backorder WPL 2302956 $203.21

2302957 Whirlpool Refrigerator Slide Backorder WPL 2302957 $155.33

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $71.16

Screw WPL 3400525 Contact Us For Availability

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $65.79

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $7.20

WP8281250 Whirlpool Refrigerator Screw In Stock WPL WP8281250 $8.99

Trim-Door, Side WPL 2005964 Contact Us For Availability

2003577 Whirlpool Refrigerator Guard Backorder WPL 2003577 $8.90

2307998 Whirlpool Refrigerator Condenser Backorder WPL 2307998 $322.99

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.51

W11590561 Whirlpool Refrigerator Cantilever B Backorder WPL W11590561 $54.94

W10407628 Whirlpool Refrigerator Meat Pan Backorder WPL W10407628 $107.07

W11769878 Whirlpool Screw Backorder WPL W11769878 $8.39

WP2221240 Whirlpool Refrigerator Heater In Stock WPL WP2221240 $125.60

WP2221296 Whirlpool Air Baffle In Stock WPL WP2221296 $268.89

18

2257644 Whirlpool Refrigerator Door Hinge Backorder WPL 2257644 $115.07

18

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $4.82

18

Trim-Door, Side WPL 2005969 Contact Us For Availability

2209066 Whirlpool Refrigerator Fan Block Backorder WPL 2209066 $59.00

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $43.68

BRACKET Backorder WPL W11755873 $47.10

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $3.91

20

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $176.99

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $115.71

WP2004994 Whirlpool Refrigerator Hinge Bushin Backorder WPL WP2004994 $4.82

WPW10323172 Whirlpool Refrigerator Retainer E Backorder WPL WPW10323172 $4.82

WPW10323173 Whirlpool Refrigerator Retainer E Backorder WPL WPW10323173 $4.82

22

W10122561 Whirlpool Refrigerator Cup Fill In Stock WPL W10122561 $17.79

22

Bushing WPL 2300082 Contact Us For Availability

23

2259025 Whirlpool Refrigerator Air Cover Backorder WPL 2259025 $60.06

23

W11578915 Whirlpool Condenser Motor In Stock WPL W11578915 $54.75

23

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $59.71

W10475010 Whirlpool Refrigerator Spacer Backorder WPL W10475010 $198.06

WPW10122563 Whirlpool Refrigerator Stripper A Backorder WPL WPW10122563 $61.99

WPW10139483 Whirlpool Refrigerator Condenser In Stock WPL WPW10139483 $54.88

Light Shield WPL 2307751 Contact Us For Availability

25

2309087 Whirlpool Refrigerator Cover Backorder WPL 2309087 $11.41

25

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $68.41

26

2307566 Whirlpool Refrigerator Tube Backorder WPL 2307566 $10.91

26

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $6.88

27

BIN-CNTLVR Backorder WPL W11752086 $38.33

27

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $71.99

28

2259398 Whirlpool Refrigerator Seal Backorder WPL 2259398 $8.23

28

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $14.99

28

W10234133 Whirlpool Refrigerator Tube Backorder WPL W10234133 $10.91

29

W10527053 Whirlpool Refrigerator Door Hinge Backorder WPL W10527053 $81.96

29

WP2006780 Whirlpool Refrigerator Door Hinge Backorder WPL WP2006780 $181.40

29

WP2221231 Whirlpool Refrigerator Shield In Stock WPL WP2221231 $60.77

30

W10323748 Whirlpool Refrigerator Cantilever B Backorder WPL W10323748 $74.35

30

WP2302876 Whirlpool Refrigerator Hinge Bushin Backorder WPL WP2302876 $55.57

30

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.91

31

W10279393 Whirlpool Refrigerator Wire Harness Backorder WPL W10279393 $101.35

31

W11721628 Whirlpool Screw Assembly Backorder WPL W11721628 $8.89

31

WP2259350 Whirlpool Refrigerator Electronic C Backorder WPL WP2259350 $100.99

W10528578 Whirlpool Refrigerator Tube Backorder WPL W10528578 $25.40

WPW10141604 Whirlpool Screw Backorder WPL WPW10141604 $5.65

SKIRT, GRILLE BOTTOM (BLACK) WPL 2209026B Contact Us For Availability

Screw WPL W10191952 Contact Us For Availability

33

W10847927 Whirlpool Refrigerator Extension In Stock WPL W10847927 $50.90

33

W11298172 Whirlpool Refrigerator Extension Backorder WPL W11298172 $54.25

2220904 Whirlpool Refrigerator Gasket Backorder WPL 2220904 $16.21

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

WP2310251 Whirlpool Refrigerator Power Cord Backorder WPL WP2310251 $60.50

Grille Bottom, Front (Black) WPL 2325186B Contact Us For Availability

35

W10139189 Whirlpool Refrigerator Wire Harness Backorder WPL W10139189 $103.82

35

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

35

SCREW WPL W10004850 Contact Us For Availability

36

2006616 Whirlpool Refrigerator Bracket Backorder WPL 2006616 $59.47

36

W11624204 Whirlpool Screw Backorder WPL W11624204 $8.89

36

WP2266802 Whirlpool Refrigerator Switch In Stock WPL WP2266802 $62.93

37

WP2188820 Whirlpool Refrigerator Thermistor In Stock WPL WP2188820 $25.99

38

2006617 Whirlpool Refrigerator Bracket Backorder WPL 2006617 $59.25

39

WP2006346 Whirlpool Refrigerator Washer Backorder WPL WP2006346 $7.60

40

WP2316859 Whirlpool Refrigerator Bushing In Stock WPL WP2316859 $35.70

41

WP1163283 Whirlpool Air Conditioner Screw Backorder WPL WP1163283 $4.82

42

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $6.83

42

WPW10160570 Whirlpool Refrigerator Bimetallic In Stock WPL WPW10160570 $74.99

43

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $7.55

44

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $17.77

100

WPW10277450 Whirlpool Refrigerator Icemaker In Stock WPL WPW10277450 $205.79

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

W10129081 Whirlpool Refrigerator Handle Backorder WPL W10129081 $211.11

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

CLEANER, STAINLESS STEEL WPL W10355016 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
