Model Whirlpool KSSO42FMX00 42`` BUILT IN REFRIGERATOR – Common Parts & Diagrams

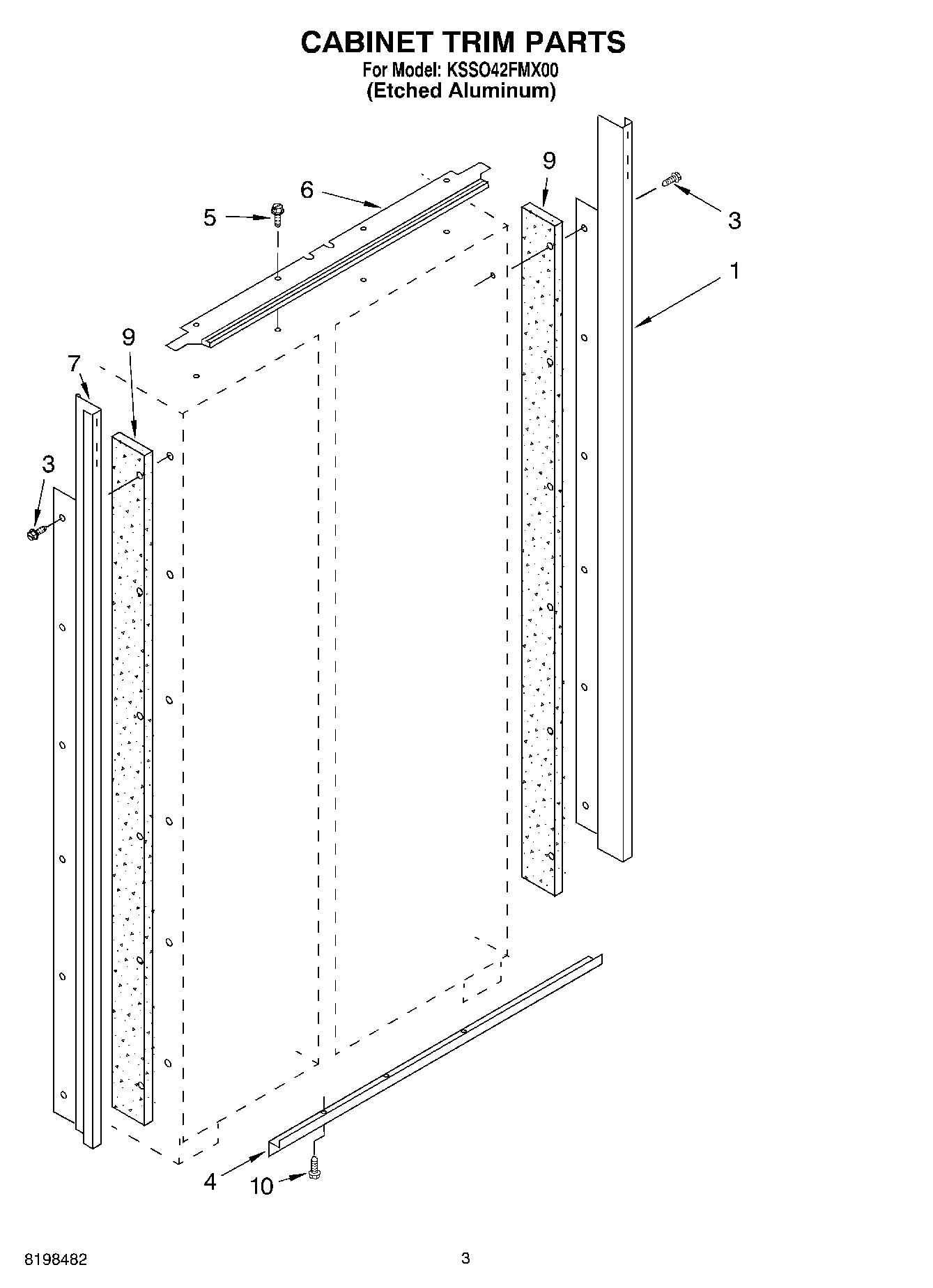

02 - CABINET TRIM PARTS

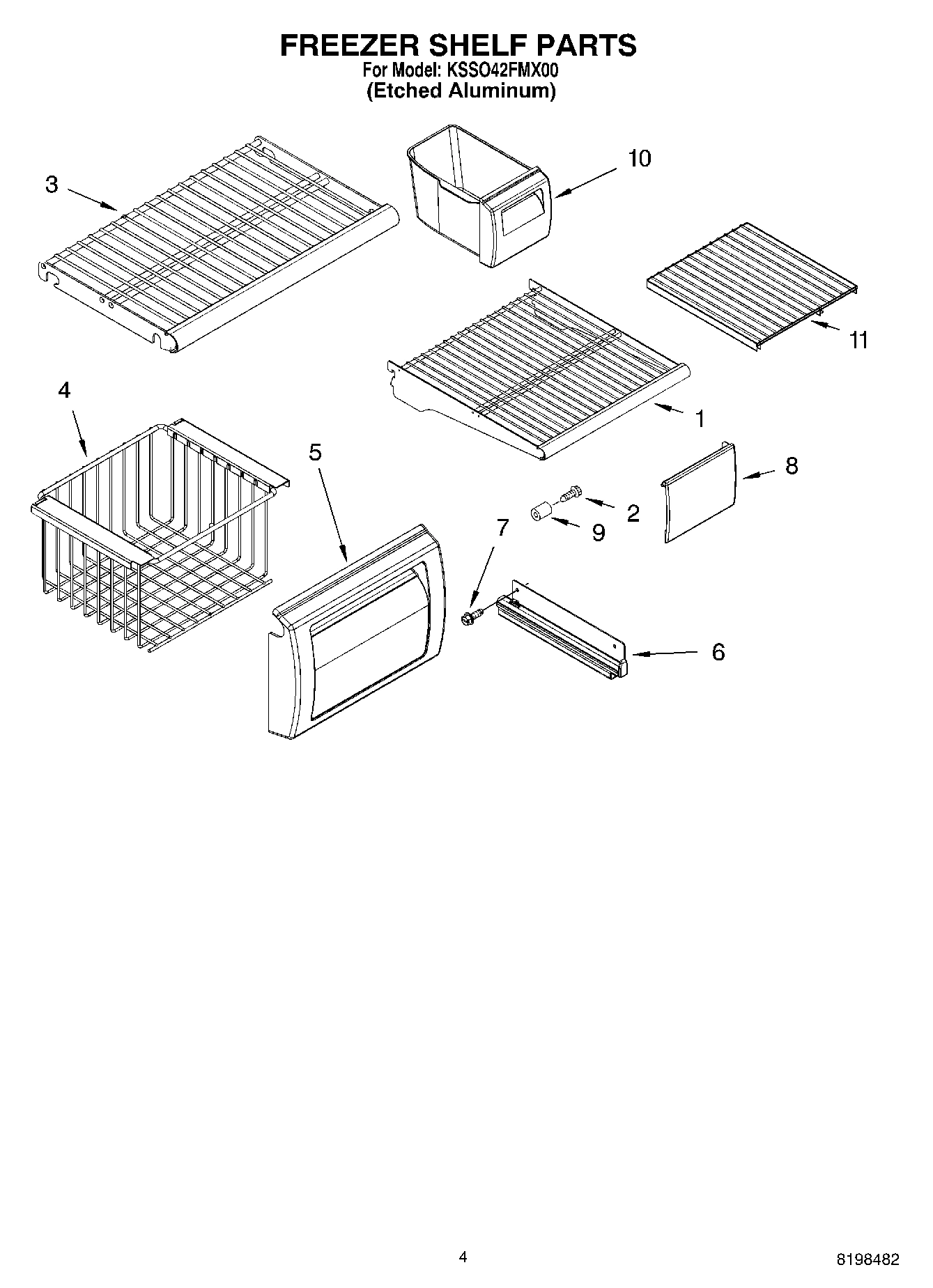

03 - FREEZER SHELF PARTS

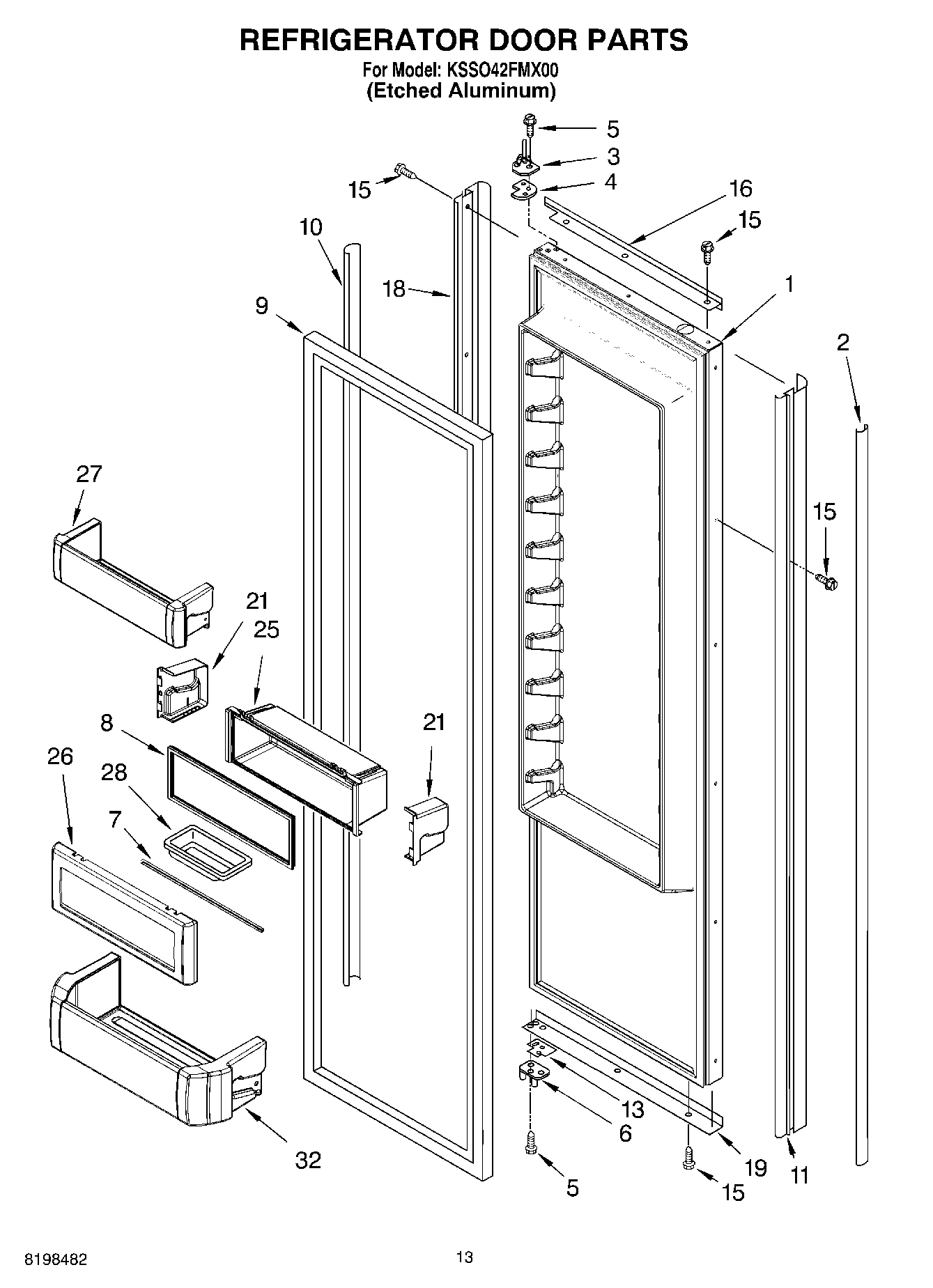

09 - REFRIGERATOR DOOR PARTS

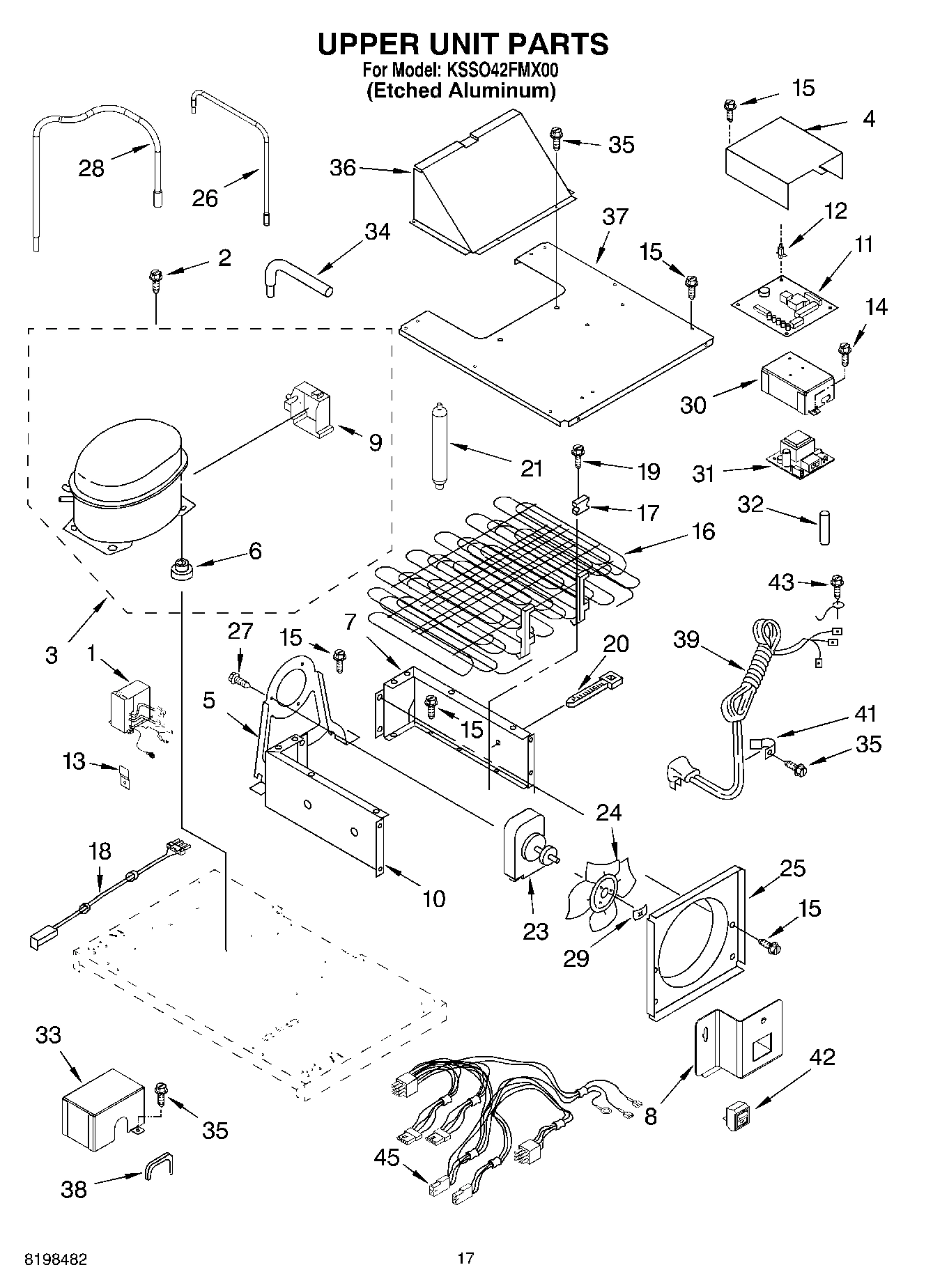

11 - UPPER UNIT PARTS

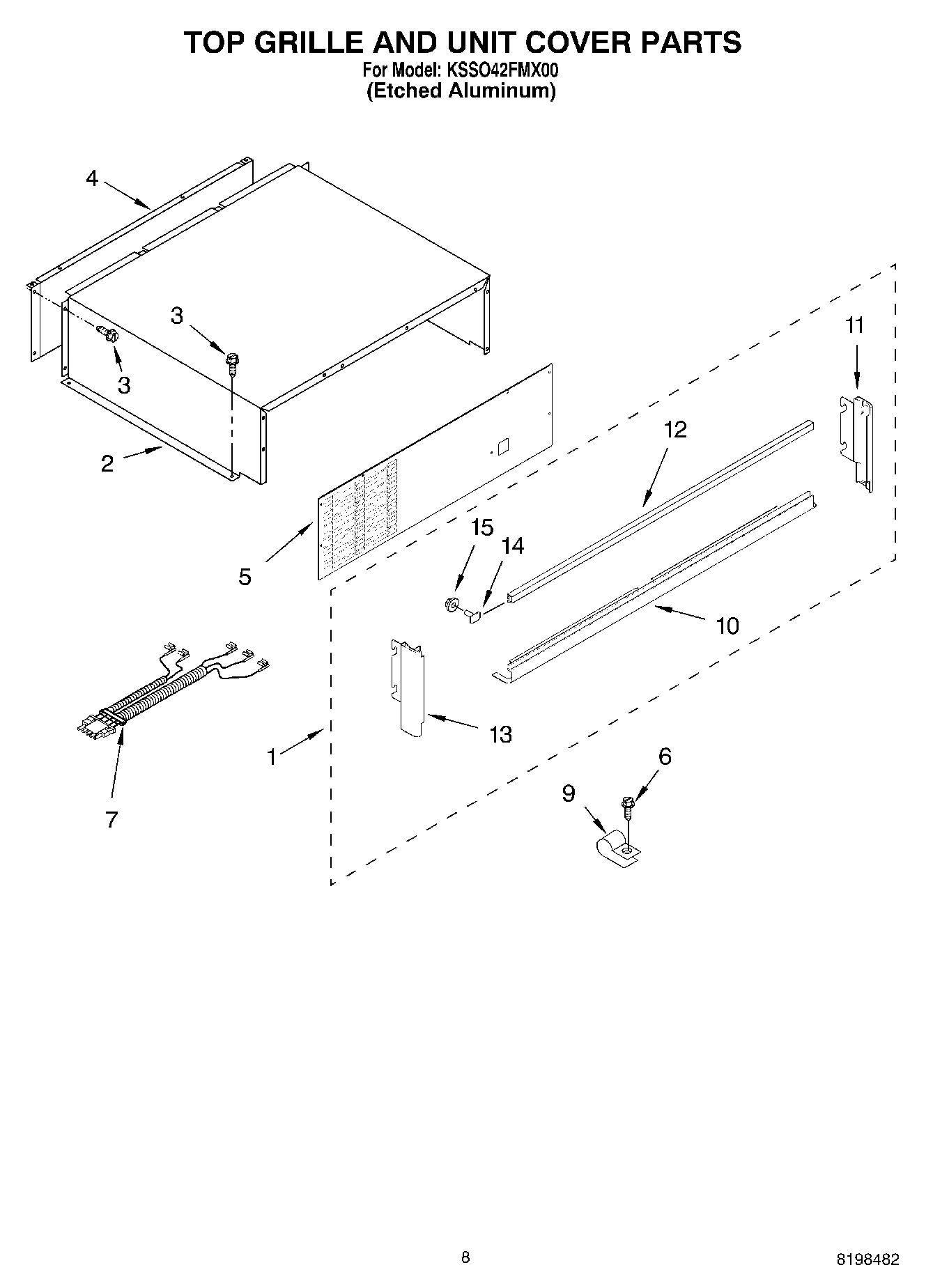

06 - TOP GRILLE AND UNIT COVER PARTS

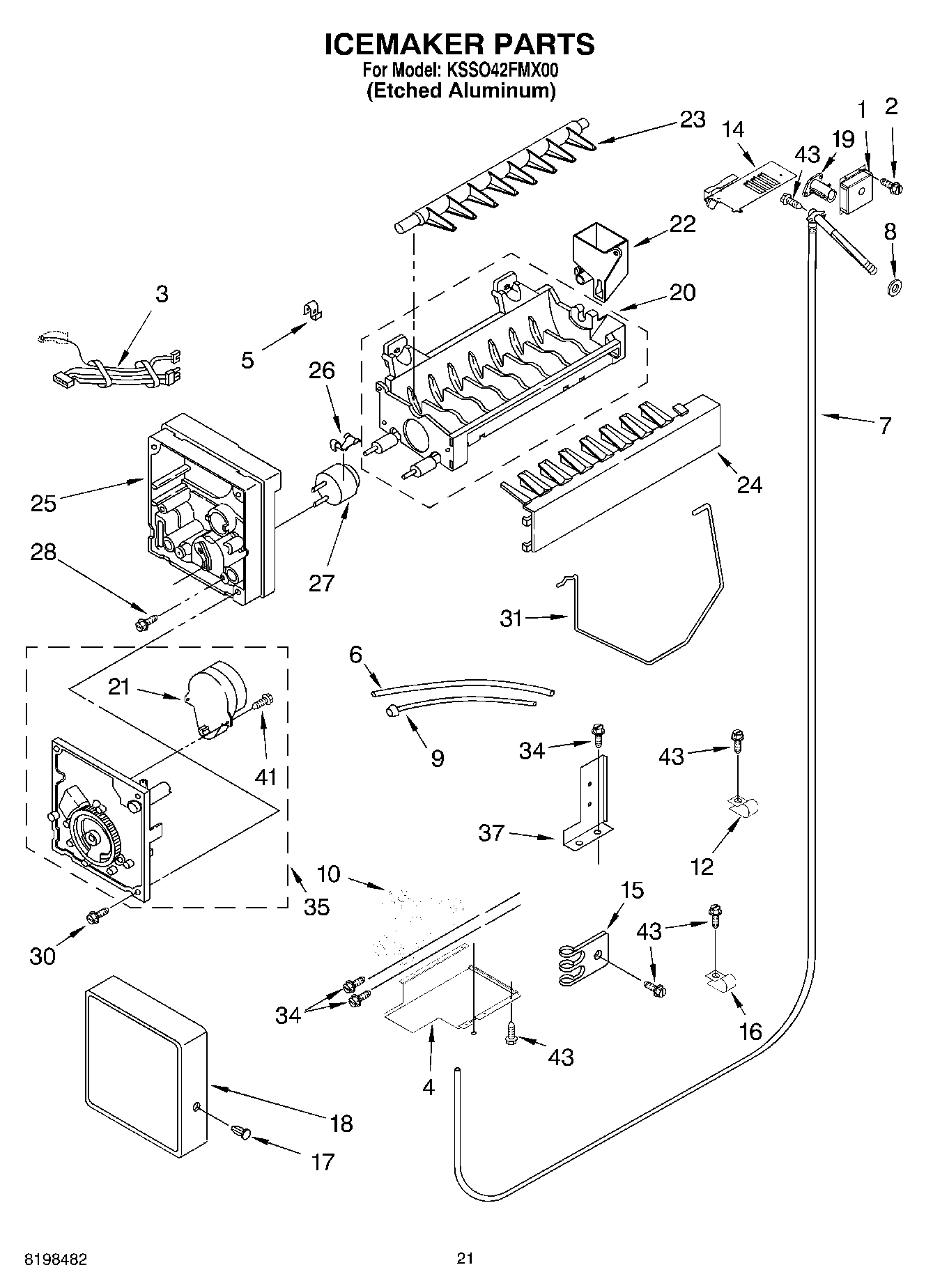

13 - ICEMAKER PARTS PARTS NOT ILLUSTRATED

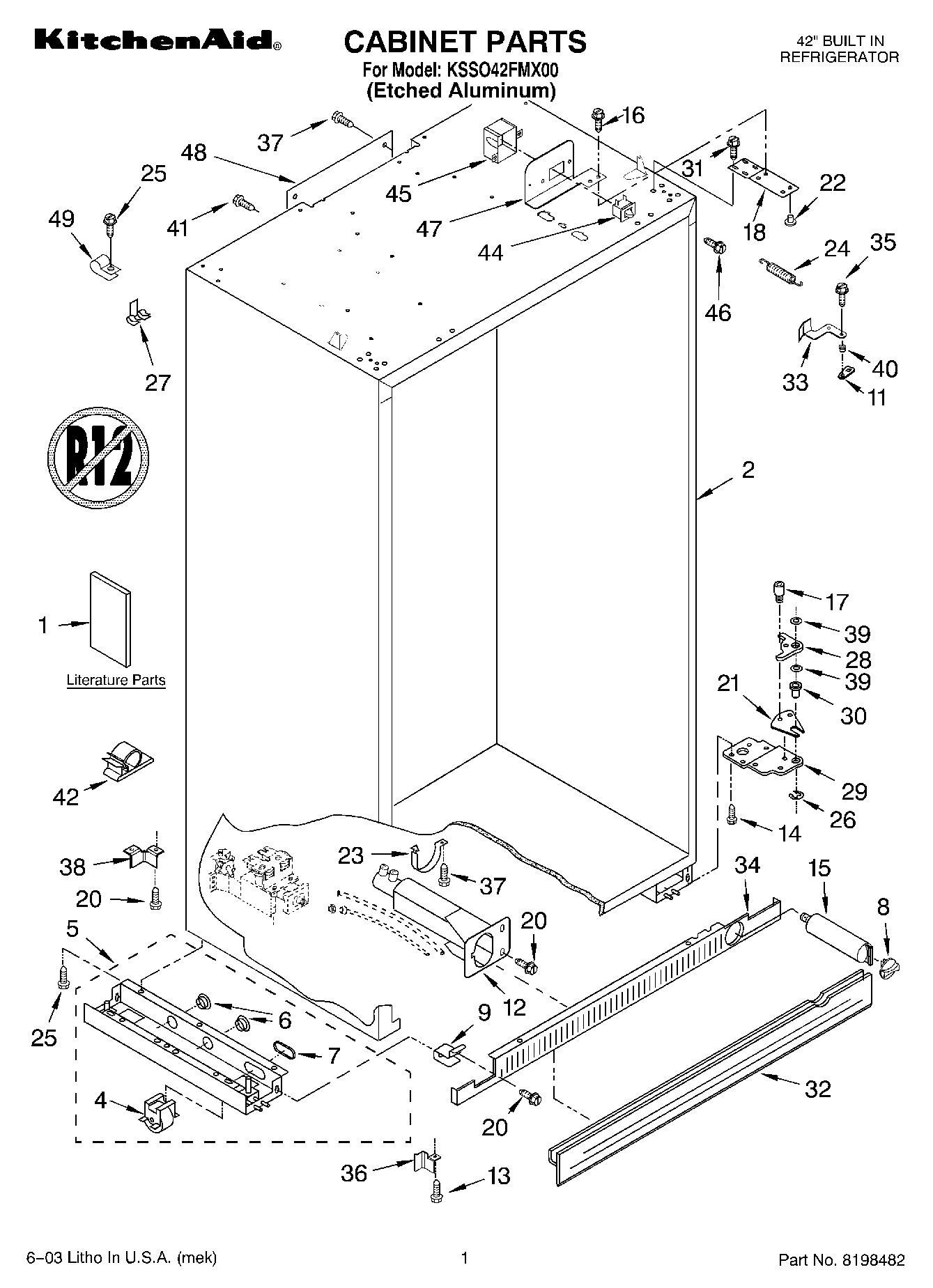

01 - CABINET PARTS

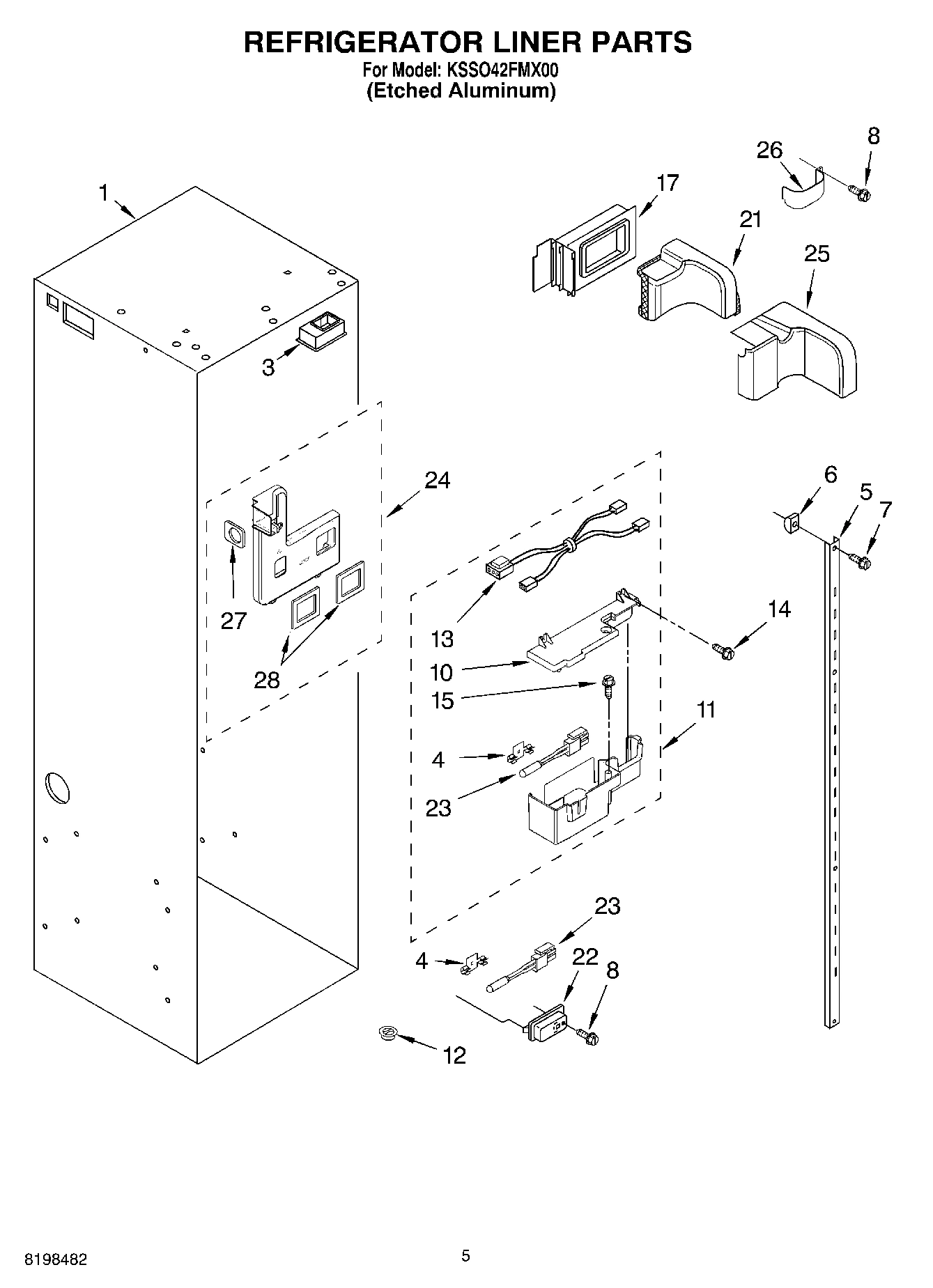

04 - REFRIGERATOR LINER PARTS

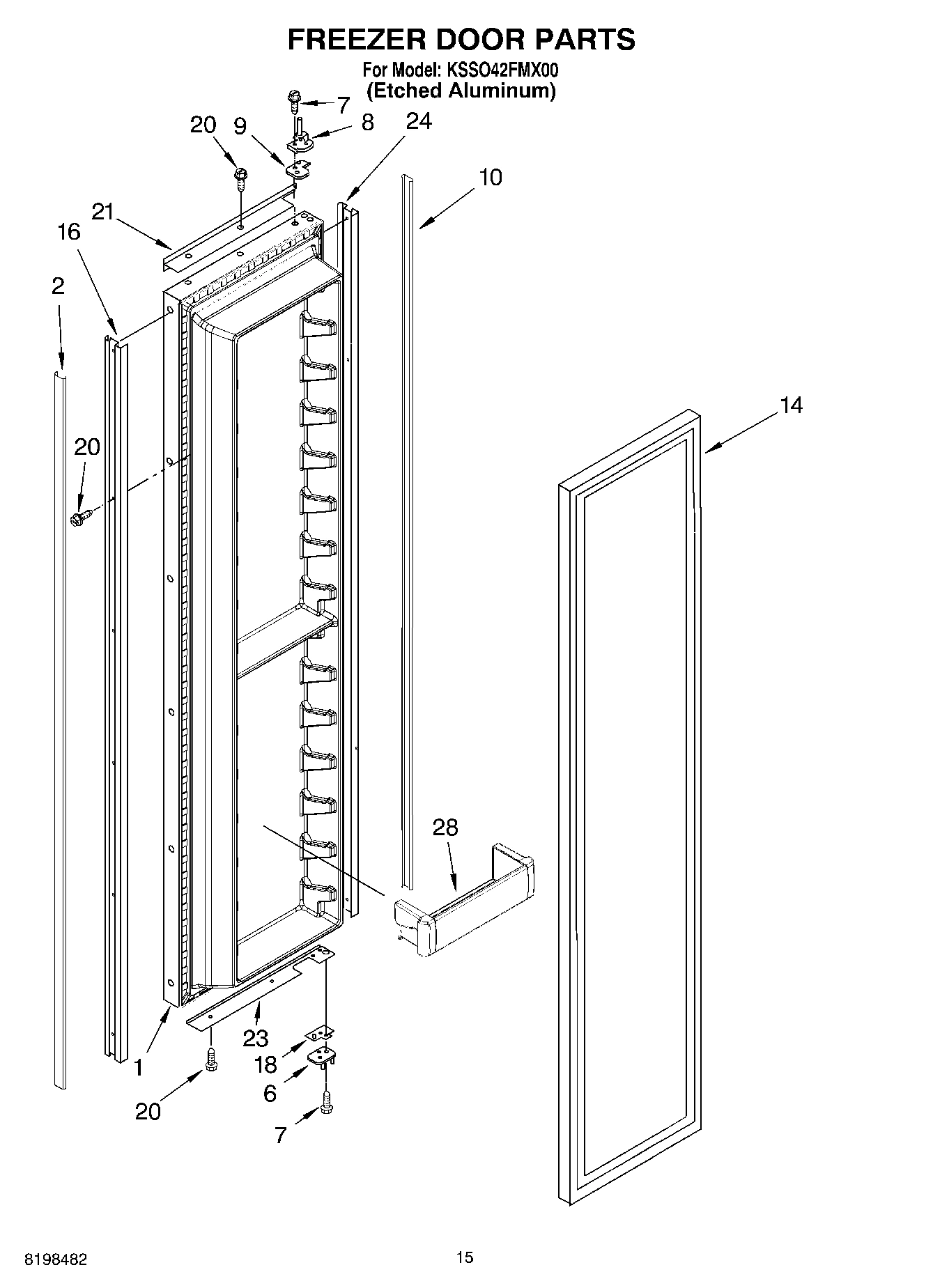

10 - FREEZER DOOR PARTS

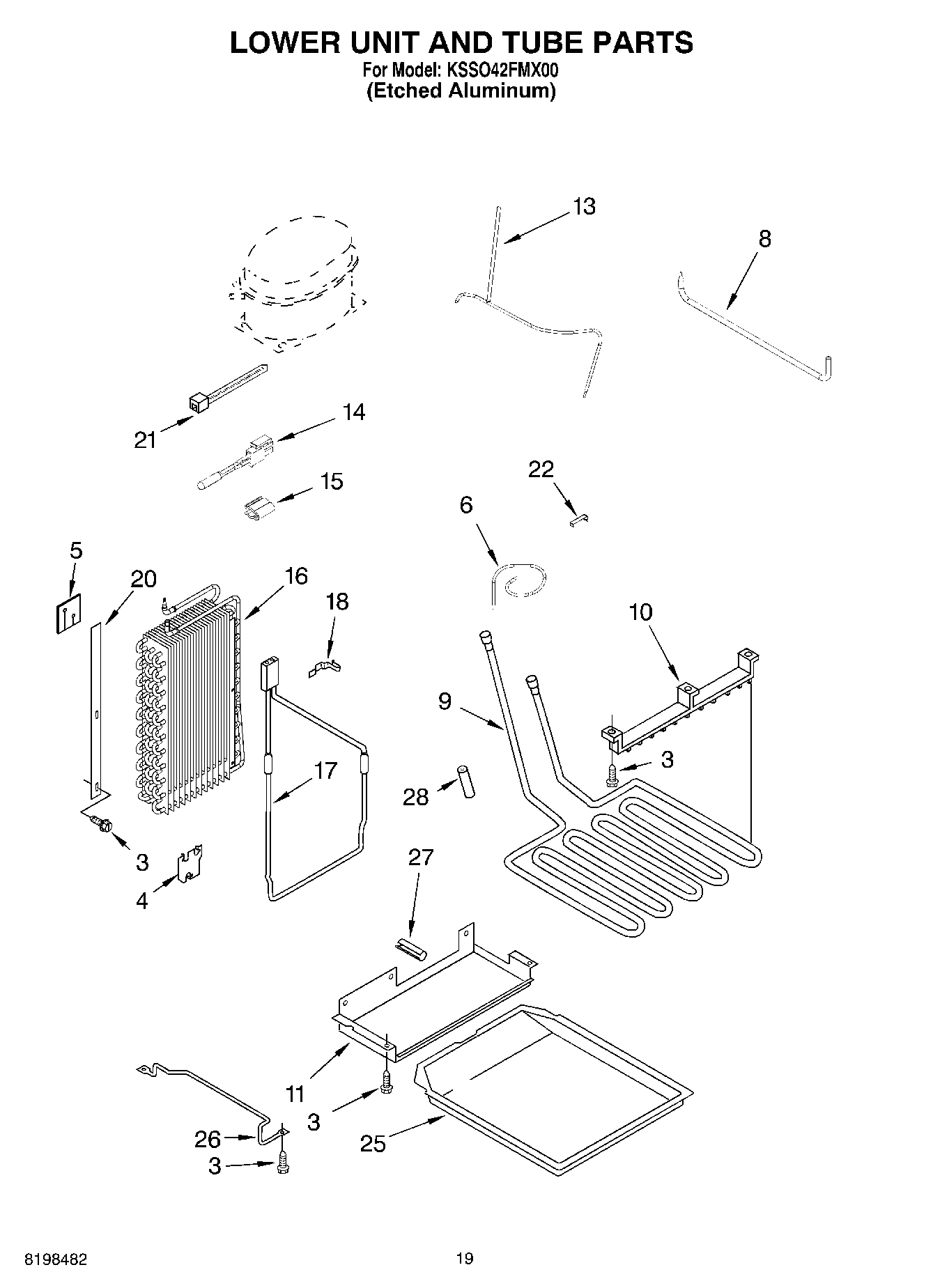

12 - LOWER UNIT AND TUBE PARTS

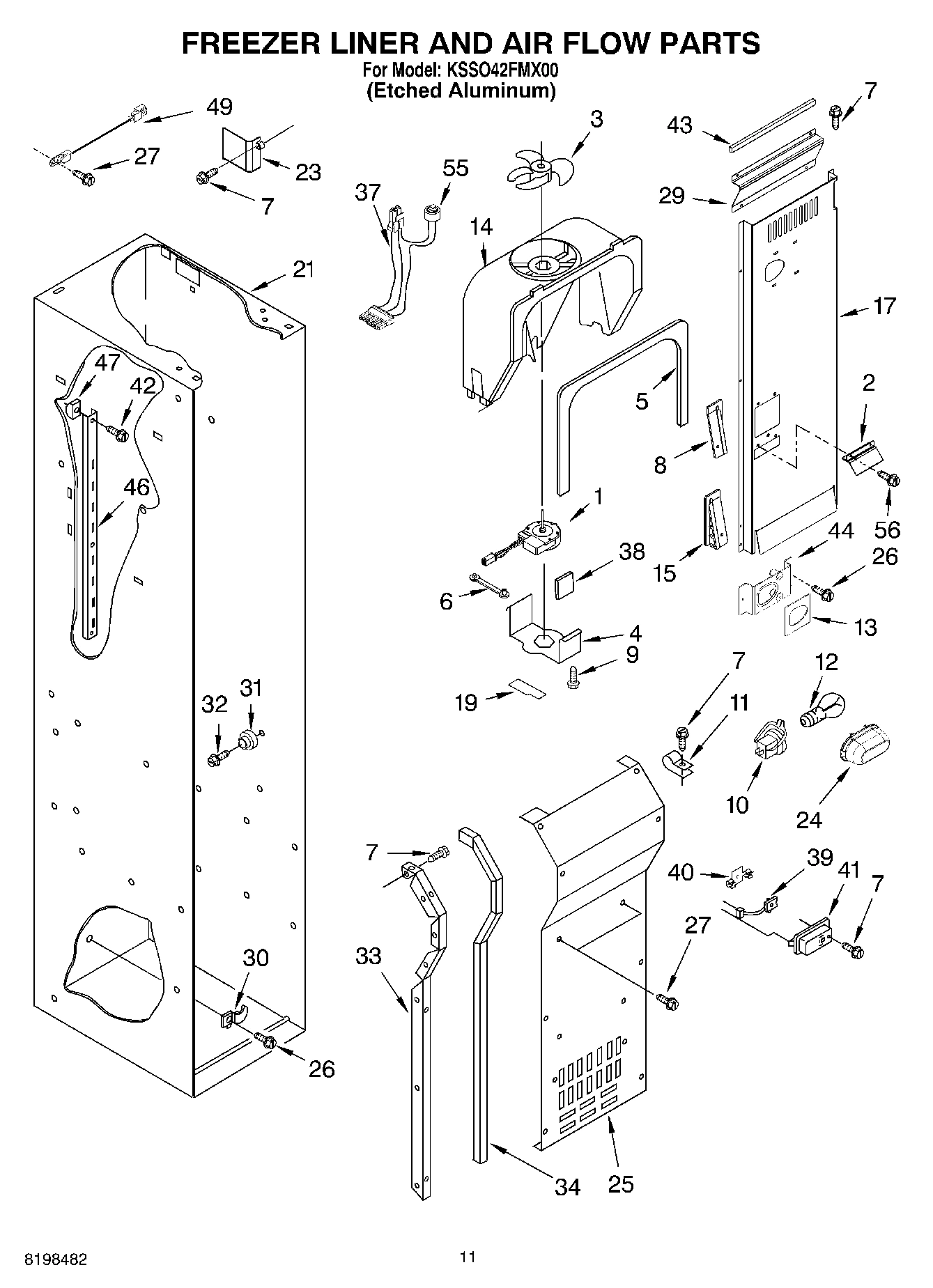

08 - FREEZER LINER AND AIR FLOW PARTS

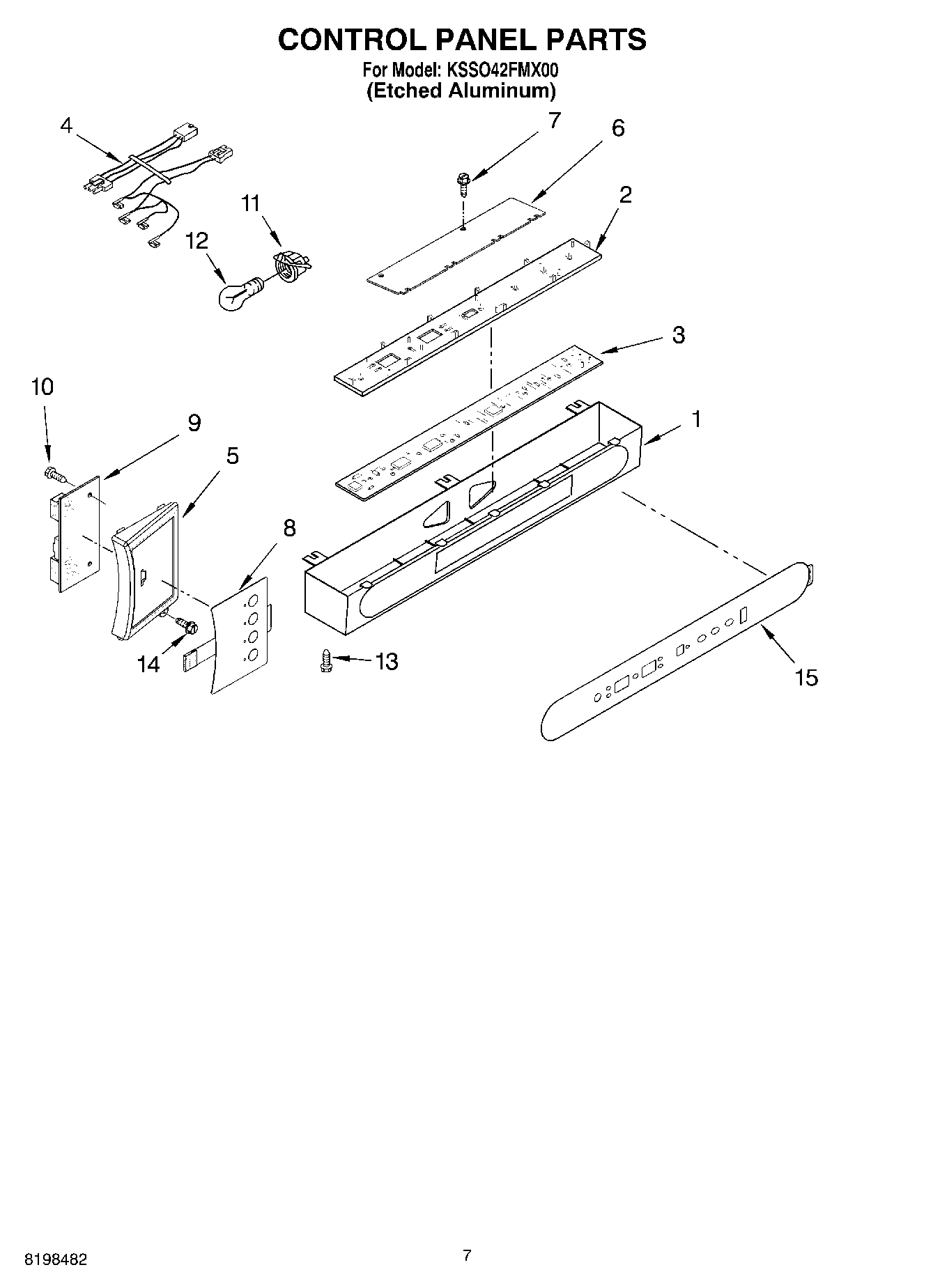

05 - CONTROL PANEL PARTS

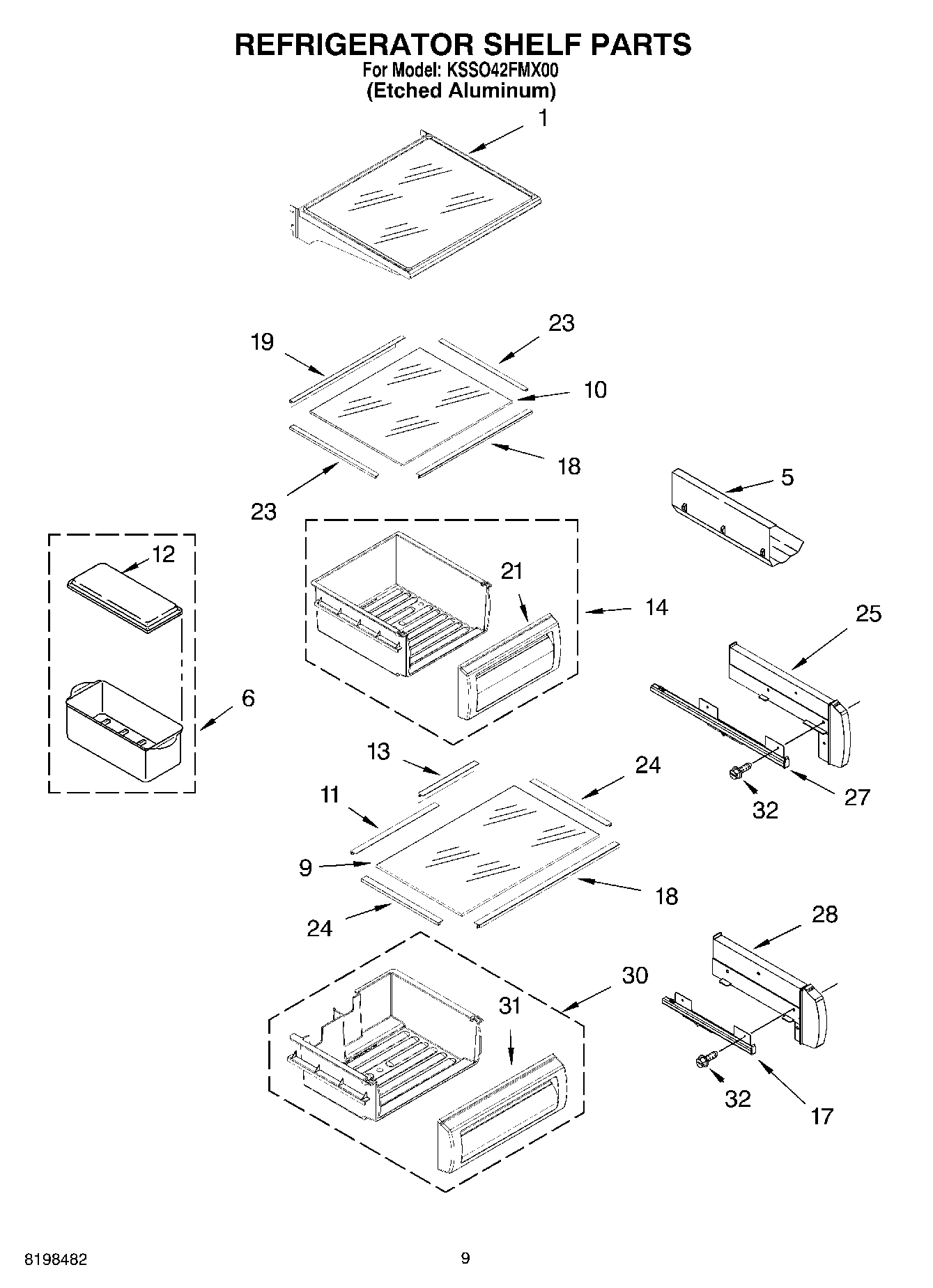

07 - REFRIGERATOR SHELF PARTS
Common parts from model Whirlpool KSSO42FMX00 42`` BUILT IN REFRIGERATOR
1
Literature Parts (Use & Care Guide) WPL LIT2266808 Contact Us For Availability
1
Literature Parts (Installation Instructions) WPL LIT2266811 Contact Us For Availability
1
Literature Parts (Energy Label) WPL LIT2266817 Contact Us For Availability
1
Literature Parts (Service & Wiring Sheet) WPL LIT2300021 Contact Us For Availability
1
Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI105885A Contact Us For Availability
1
Fan Motor WPL 2259385 Contact Us For Availability
1
Control Box WPL 2215716 Contact Us For Availability
1
Shelf Assembly WPL 2222592 Contact Us For Availability
2
Cabinet (Not A Serviceable Part) WPL ARI105884A Contact Us For Availability
2
Trim, Screw Cover (Handle Side) WPL 2259448X Contact Us For Availability
2
Deflector, Air WPL 2266801 Contact Us For Availability
2
Insert, Control Box WPL 2215670 Contact Us For Availability
3
Circuit Board, Housing Control WPL 2252110 Contact Us For Availability
4
Spacer-Door, Top WPL 2256381 Contact Us For Availability
4
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
4
Clip, Thermistor WPL 2209204 Contact Us For Availability
4
Bracket WPL 2215508 Contact Us For Availability
4
Control Box Wire Harness WPL 2187424 Contact Us For Availability
5
Side Support WPL 2259244 Contact Us For Availability
5
Panel Control, Meat Pan WPL 2258914 Contact Us For Availability
6
Suction Tube WPL 2259303 Contact Us For Availability
6
Grommet, Wiring WPL 2005006 Contact Us For Availability
6
Support, Control Box WPL 2221121 Contact Us For Availability
6
Egg Bin WPL 2221071 Contact Us For Availability
7
Grommet, Flexible WPL 2005007 Contact Us For Availability
8
Tube, Connect (Drier/Restrictor) WPL 2259304 Contact Us For Availability
8
Gasket, Bin WPL 2222982 Contact Us For Availability
8
Touch Pad, Meat Pan WPL 2252067 Contact Us For Availability
9
Seal, Side Trim WPL 2005925 Contact Us For Availability
9
Mounting Stud, Grill WPL 2006442 Contact Us For Availability
9
Heater, Drain Pan WPL 2259329 Contact Us For Availability
9
Glass, Meat Pan Cover WPL 2256277 Contact Us For Availability
10
Lid-Baffle, Meat Pan WPL 2257528 Contact Us For Availability
10
Trim, Screw Cover (Hinge Side) Top WPL 2259365X Contact Us For Availability
10
Hanger, Heater WPL 2209450 Contact Us For Availability
10
Clip, Retainer WPL 2302712 Contact Us For Availability
11
Cam, Door Closer WPL 2005783 Contact Us For Availability
11
TRIM, GLASS WPL 2257611 Contact Us For Availability
11
Baffle Control Assembly WPL 2257526 Contact Us For Availability
11
Shield, Drain Pan WPL 2005908 Contact Us For Availability
11
Clamp, Nylon WPL 488937 Contact Us For Availability
12
Cover WPL 2169935 Contact Us For Availability
13
Door Spacer, Bottom WPL 2257637 Contact Us For Availability
13
Air Baffle, Jumper Harness WPL 2187619 Contact Us For Availability
13
Seal-Light, Socket WPL 2302777 Contact Us For Availability
13
TRIM, GLASS REAR WPL 2257582 Contact Us For Availability
14
Screw WPL 3400525 Contact Us For Availability
14
Screw WPL 488357 Contact Us For Availability
15
Clip, Thermistor WPL 2257639 Contact Us For Availability
15
OVERLAY WPL 2257519 Contact Us For Availability
16
CONDENSER WPL 2259307 Contact Us For Availability
16
Trim (Handle Side) (Etched Aluminum) WPL 2259041X Contact Us For Availability
17
Air Duct WPL 2259019 Contact Us For Availability
18
Trim, Glass (Front) WPL 2256228 Contact Us For Availability
19
Screw WPL 487522 Contact Us For Availability
19
TRIM, GLASS REAR WPL 2256254 Contact Us For Availability
20
Gasket, Evaporator WPL 2220832 Contact Us For Availability
21
Diffuser Assembly WPL 2208997 Contact Us For Availability
21
Trim (Top) (Etched Aluminum) WPL 2005020 Contact Us For Availability
21
Liner (Not A Serviceable Part) WPL ARI105886A Contact Us For Availability
22
Bushing WPL 2002903 Contact Us For Availability
23
Clamp, Filter Housing WPL 2209090 Contact Us For Availability
23
Trim (Bottom) (Etched Aluminum) WPL 2215985 Contact Us For Availability
23
Trim, Side Glass Crisper Pan WPL 2252255 Contact Us For Availability
24
Blade, Fan WPL 2190685 Contact Us For Availability
24
Spacer, Air Baffle WPL 2259372 Contact Us For Availability
24
Trim (Hinge Side) (Etched Aluminum) WPL 2257687X Contact Us For Availability
24
Light Shield (2) WPL 2259367 Contact Us For Availability
25
Cover, Evaporator WPL 2221105 Contact Us For Availability
26
Cover, Air Return WPL 2259066 Contact Us For Availability
26
Bracket, Drain Pan (Left) WPL 1113206 Contact Us For Availability
26
Bracket, Drain Pan (Right) WPL 1113207 Contact Us For Availability
27
Fastener (3) WPL 1113227 Contact Us For Availability
27
Seal, Air Duct (Round Hole) WPL 2259412 Contact Us For Availability
28
Tube, Transition (Heat Loop) WPL 2259340 Contact Us For Availability
28
Gap, Cover Assembly (Bottom) WPL 2006342 Contact Us For Availability
29
Deflector, Air Duct WPL 2259055 Contact Us For Availability
32
Skirt-Grille, Bottom (Black) WPL 2209025B Contact Us For Availability
33
Evaporator, Cover Rail (Left Side) WPL 2221107 Contact Us For Availability
34
Grille Bottom, Front (Black) WPL 2209428B Contact Us For Availability
35
Screw WPL 2005921 Contact Us For Availability
37
Harness, Evap Fan WPL 2187520 Contact Us For Availability
42
WPL 2004514 WPL 2004514 Contact Us For Availability
43
Gasket, Air Duct WPL 2259058 Contact Us For Availability
44
Bracket, Light WPL 2257571 Contact Us For Availability
45
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
49
THERMISTOR WPL 2266949 Contact Us For Availability
100
FOLLOWING PARTS NOT ILLUSTRATED WPL ARI105890A Contact Us For Availability
100
(Optional Parts Only) WPL ARI105891A Contact Us For Availability
× ![]()
