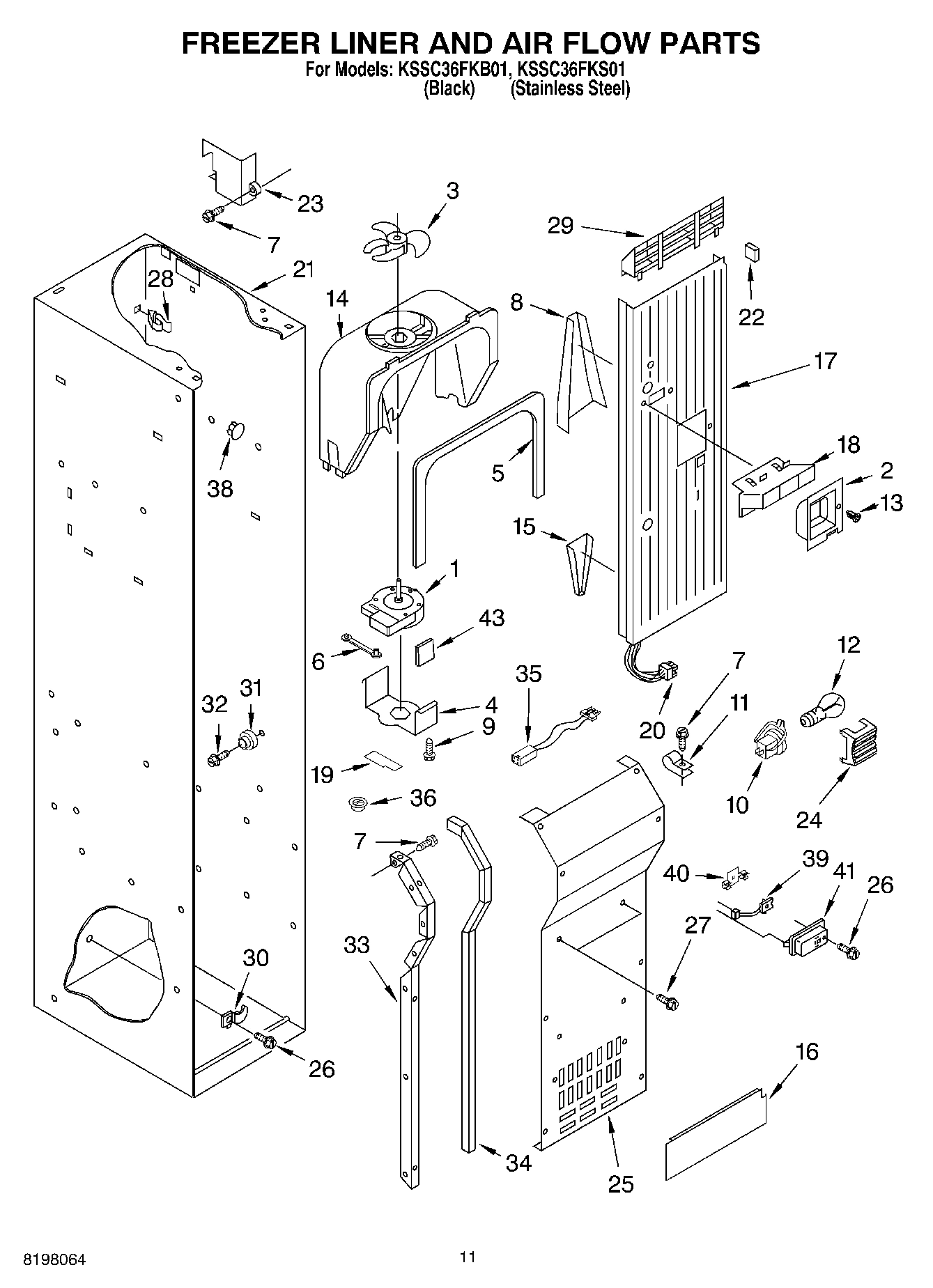

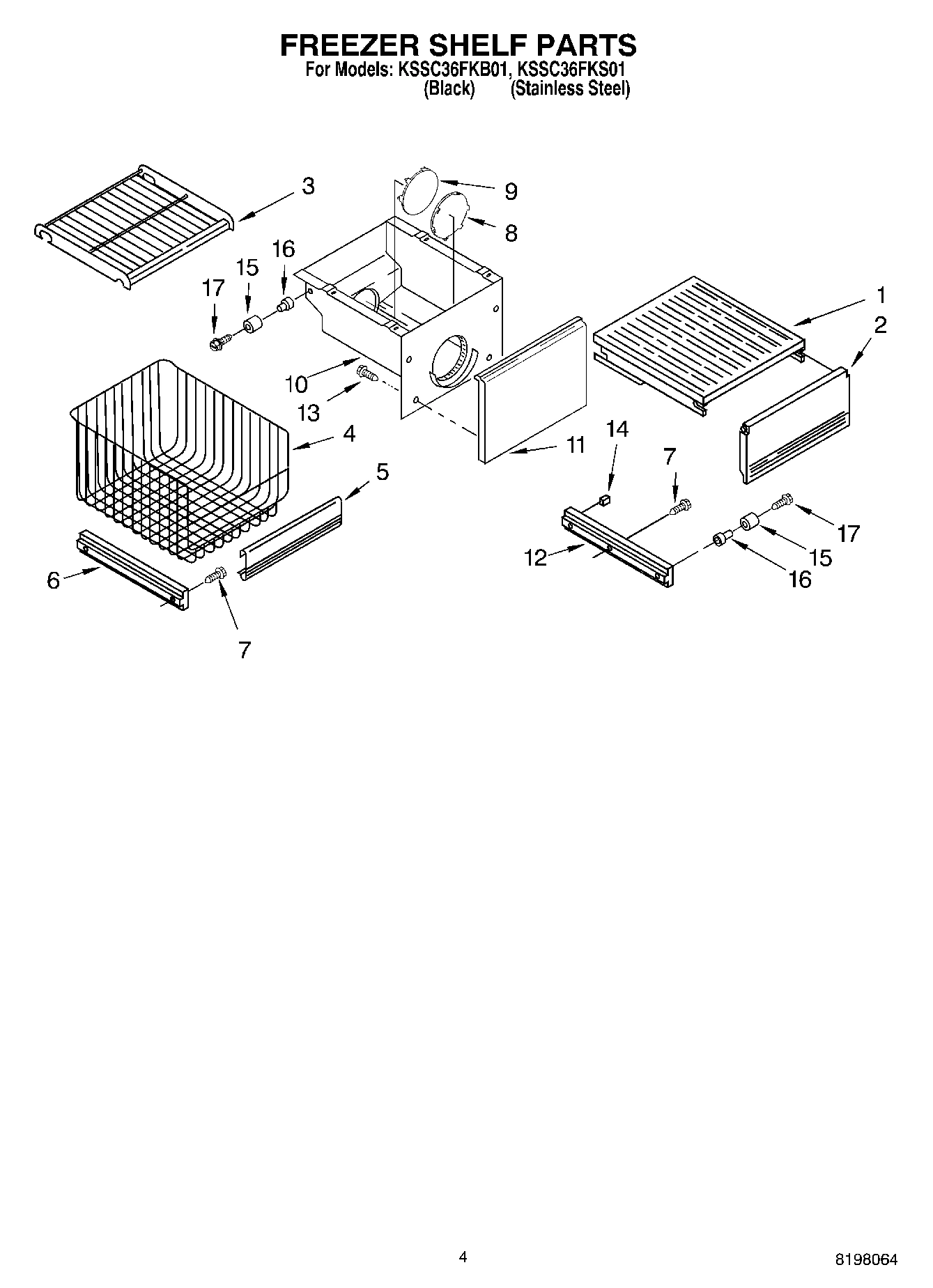

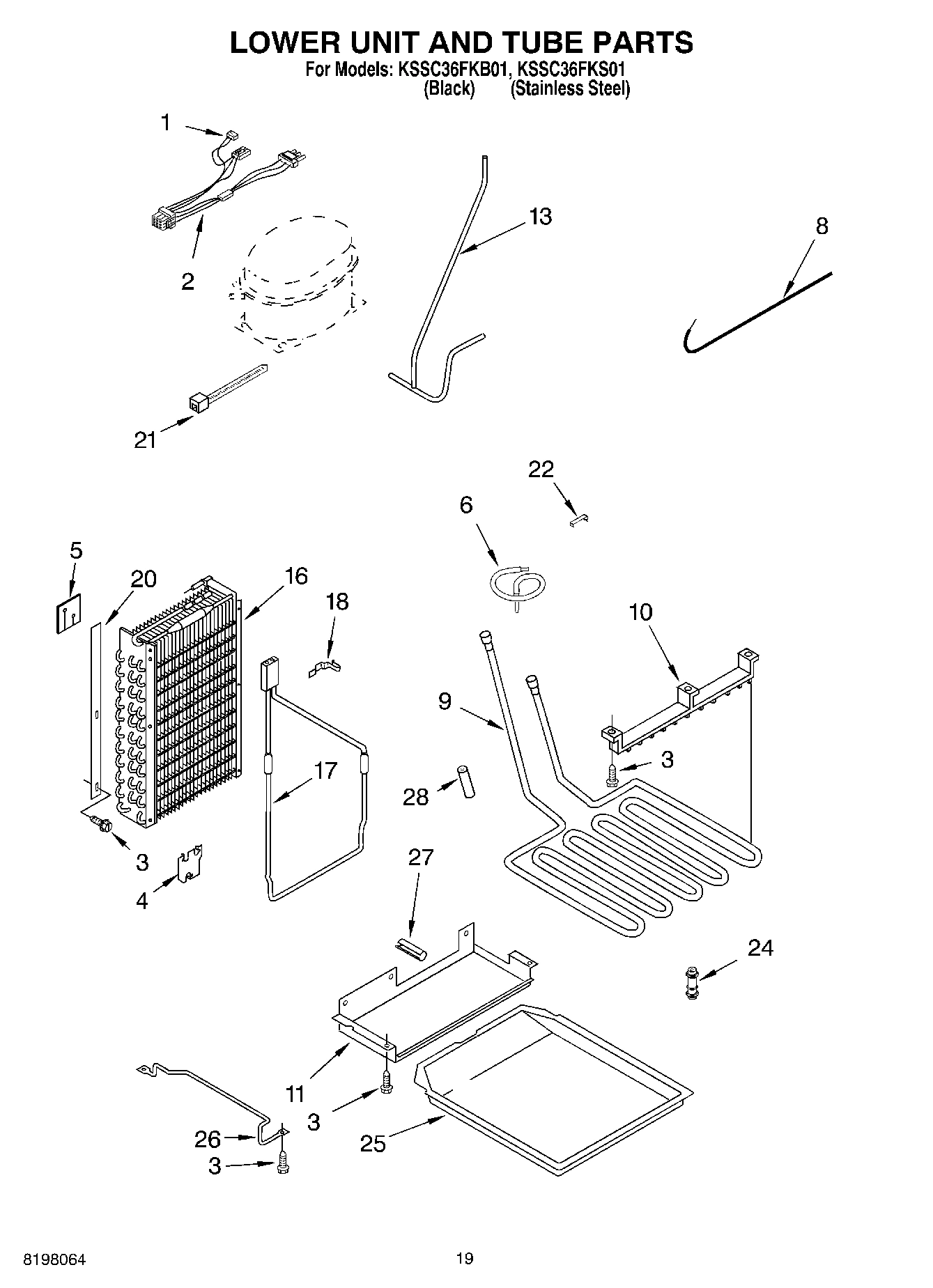

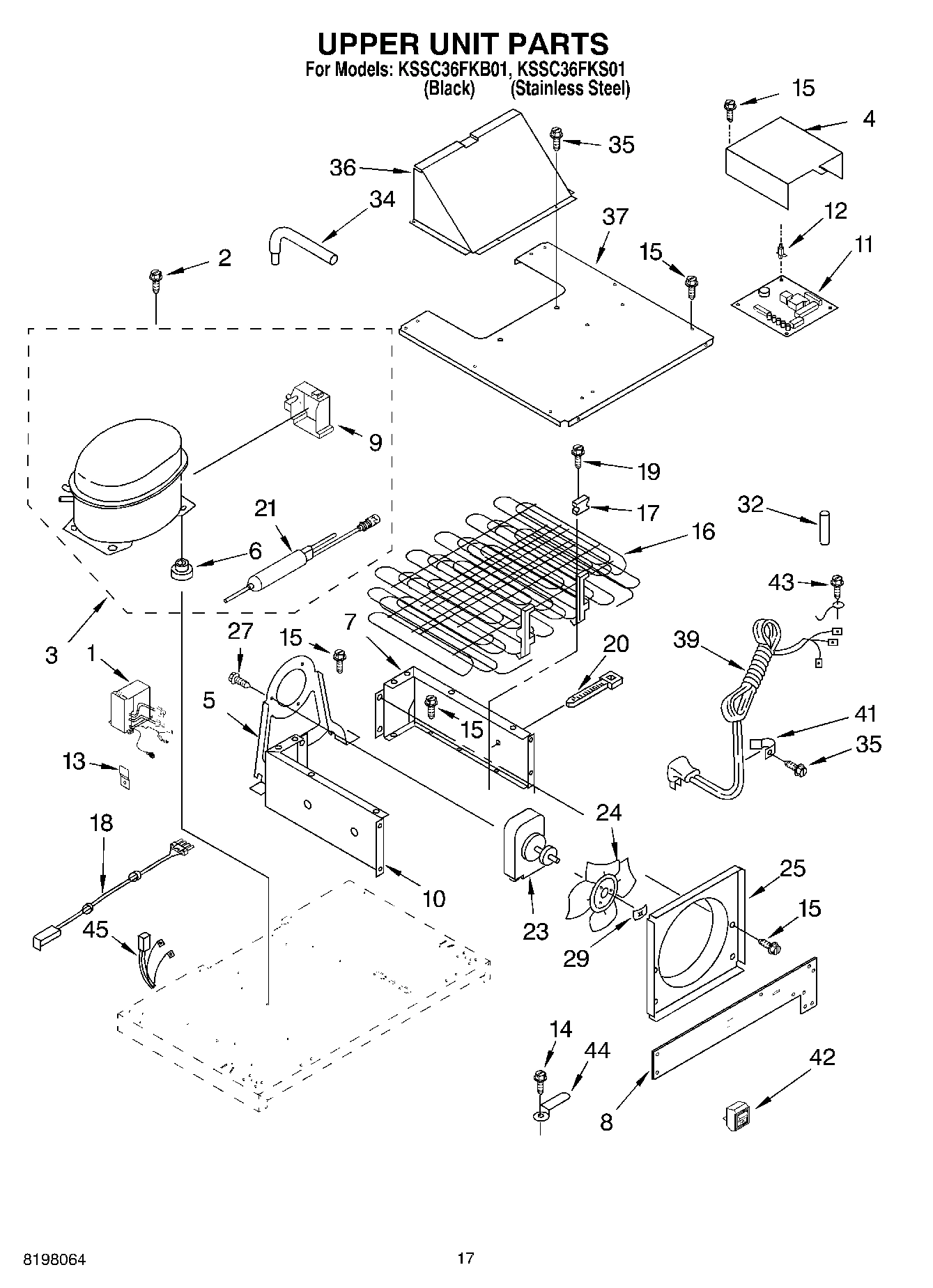

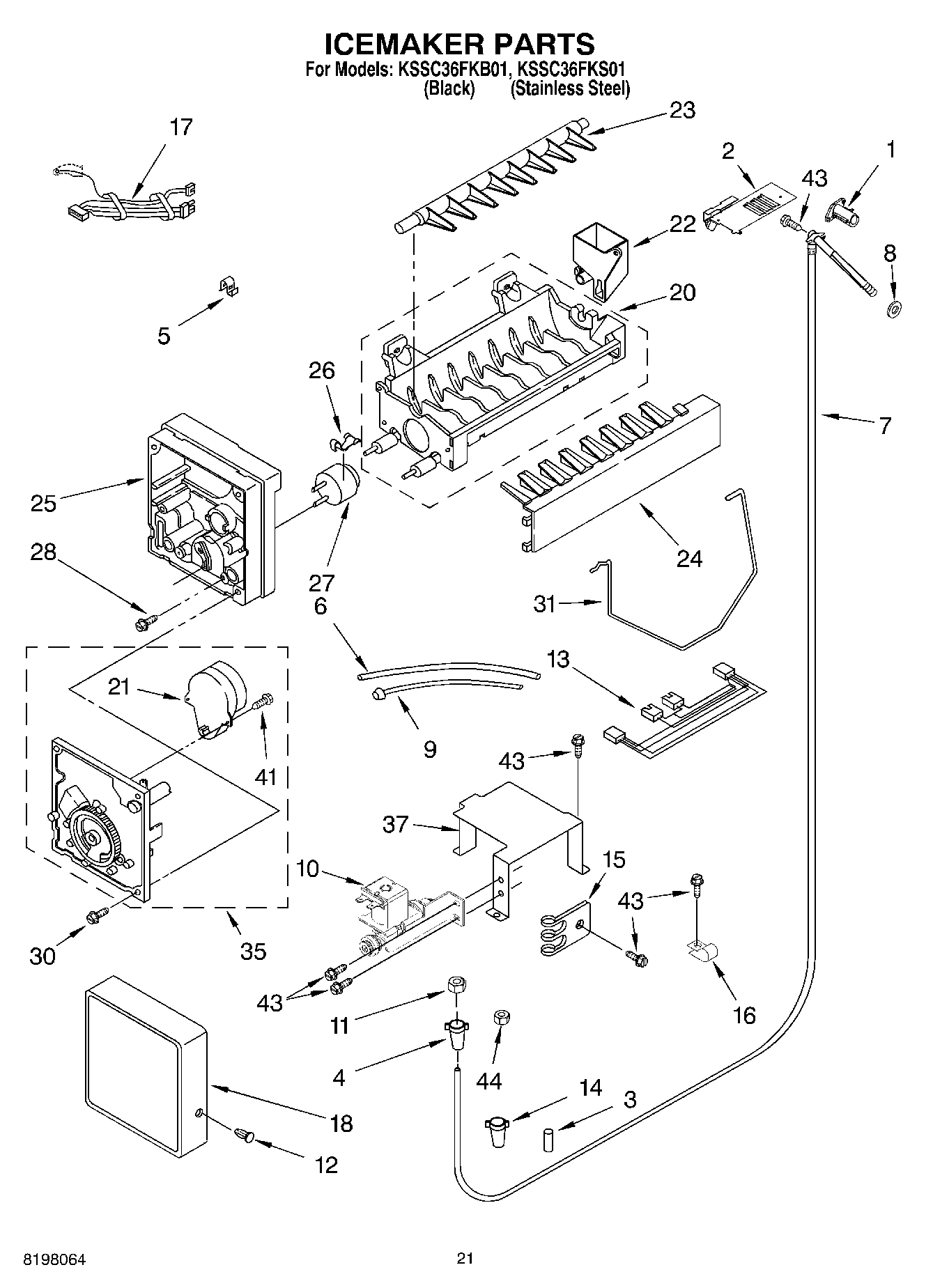

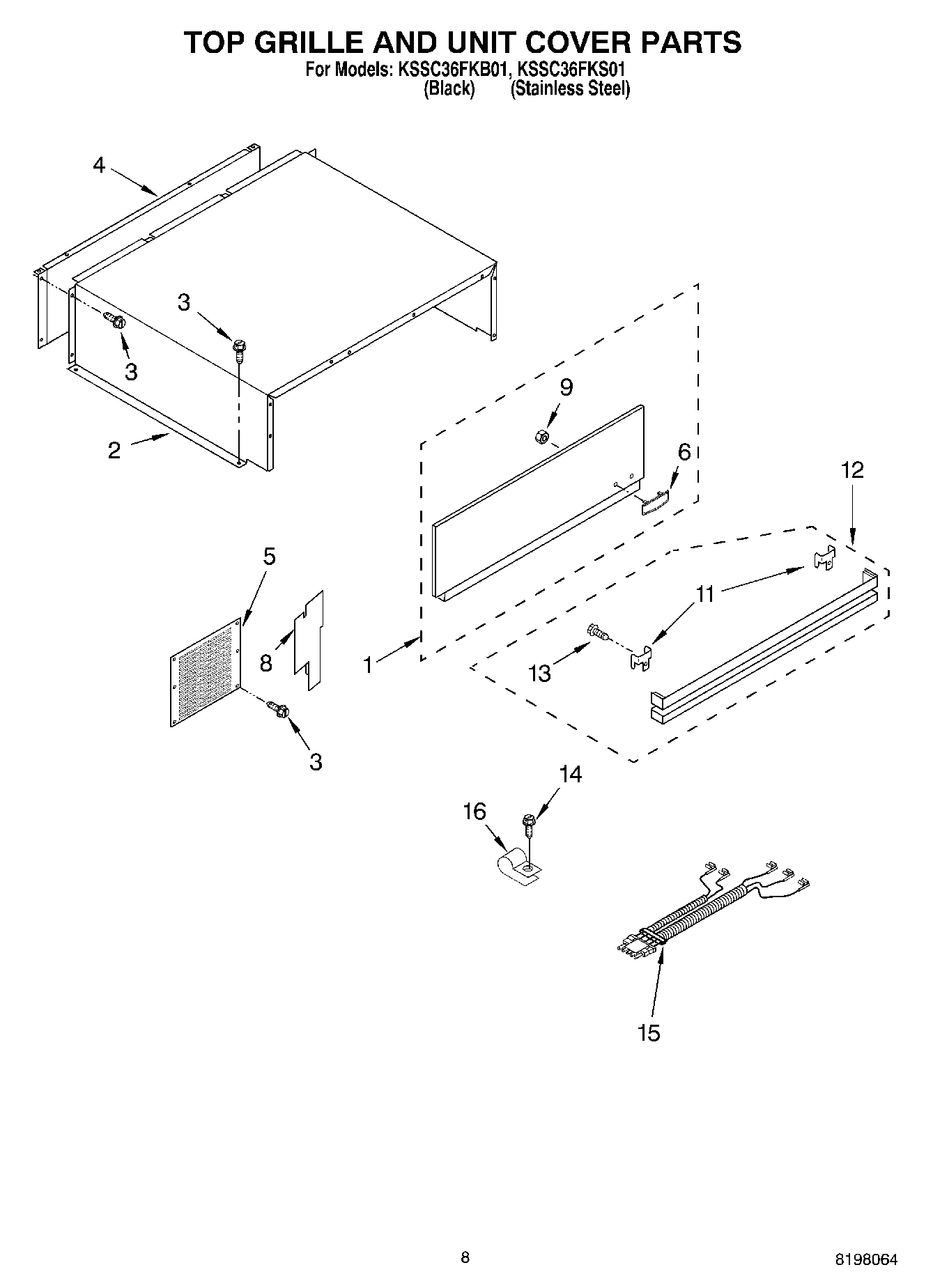

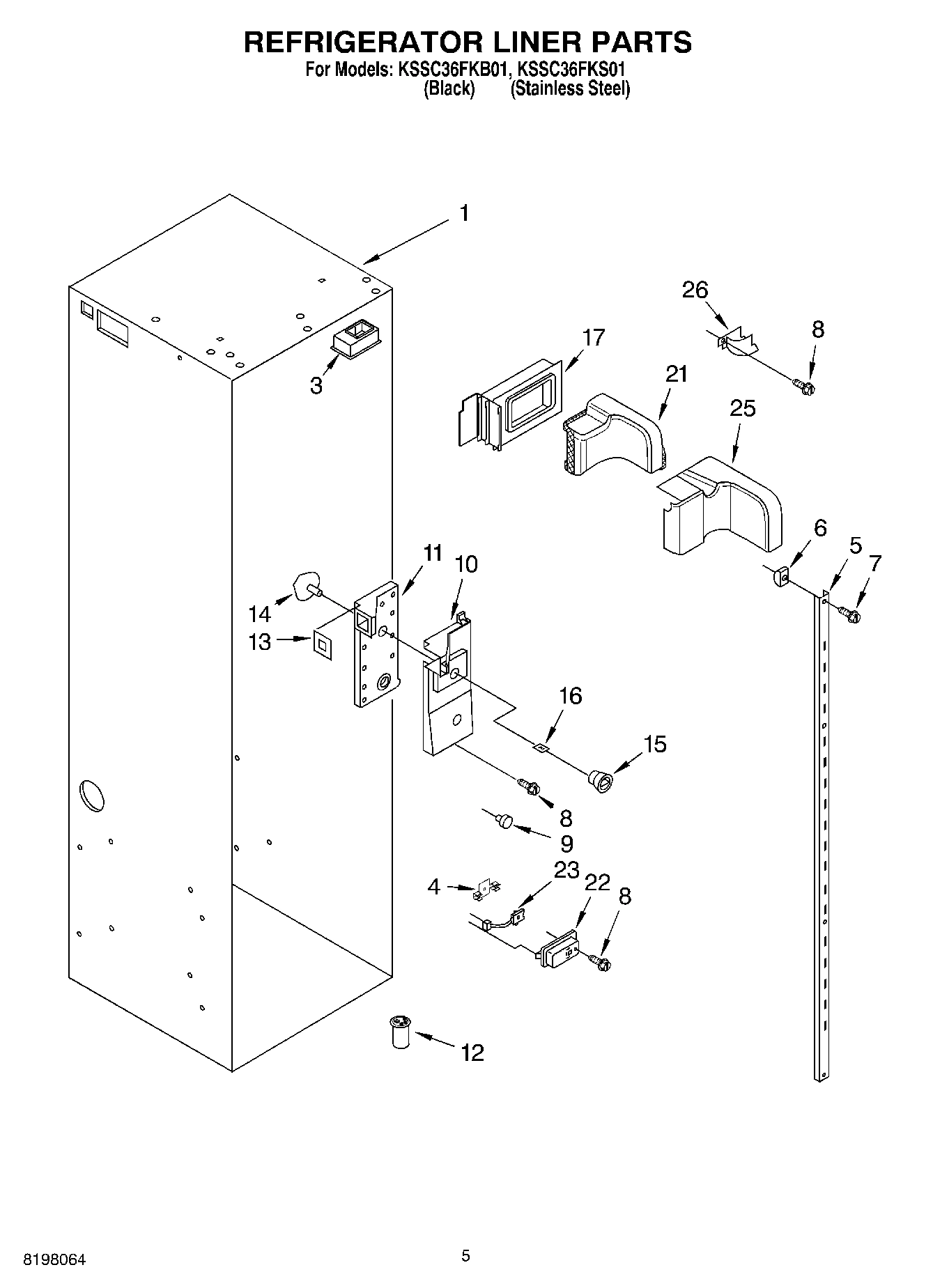

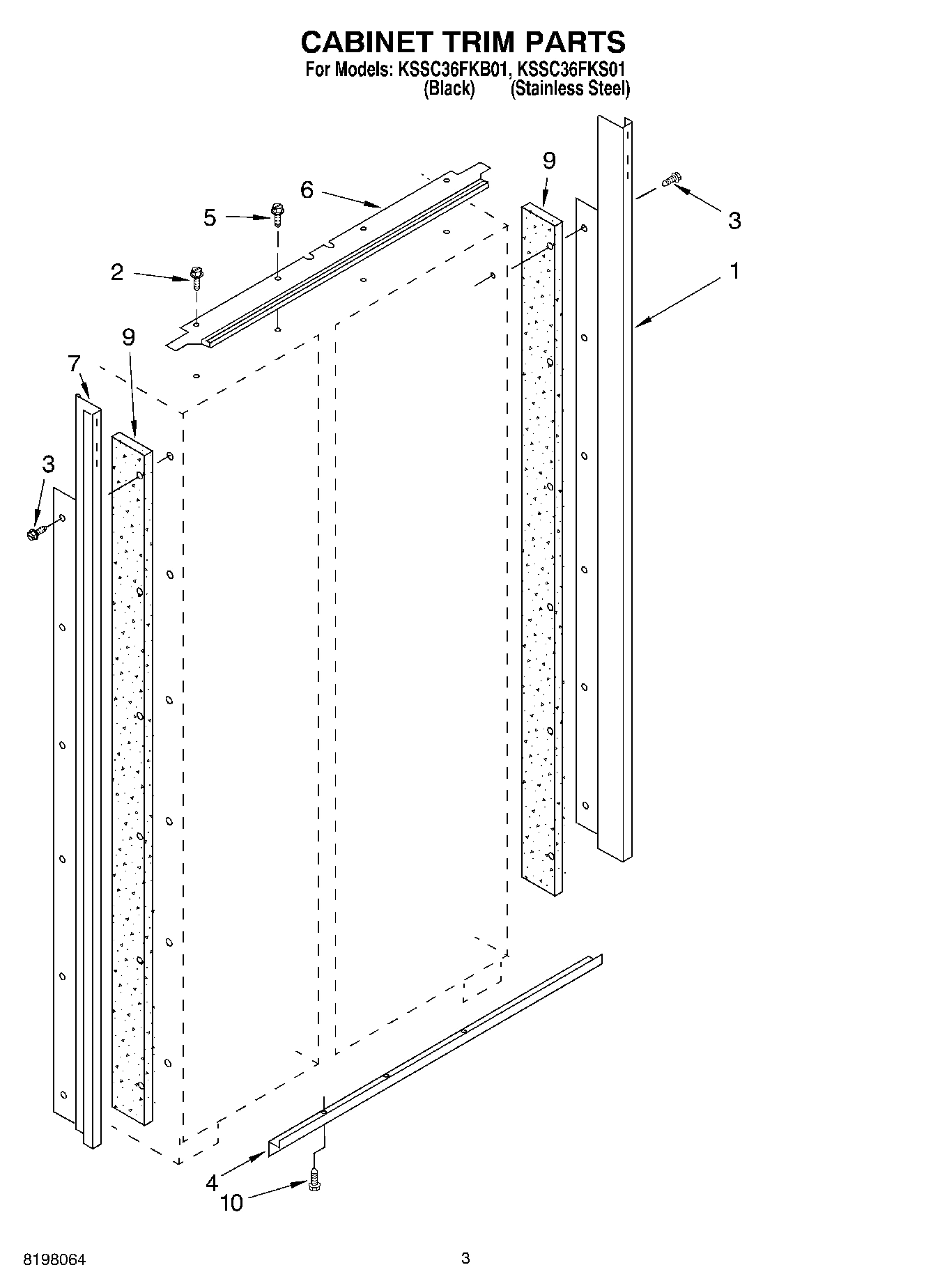

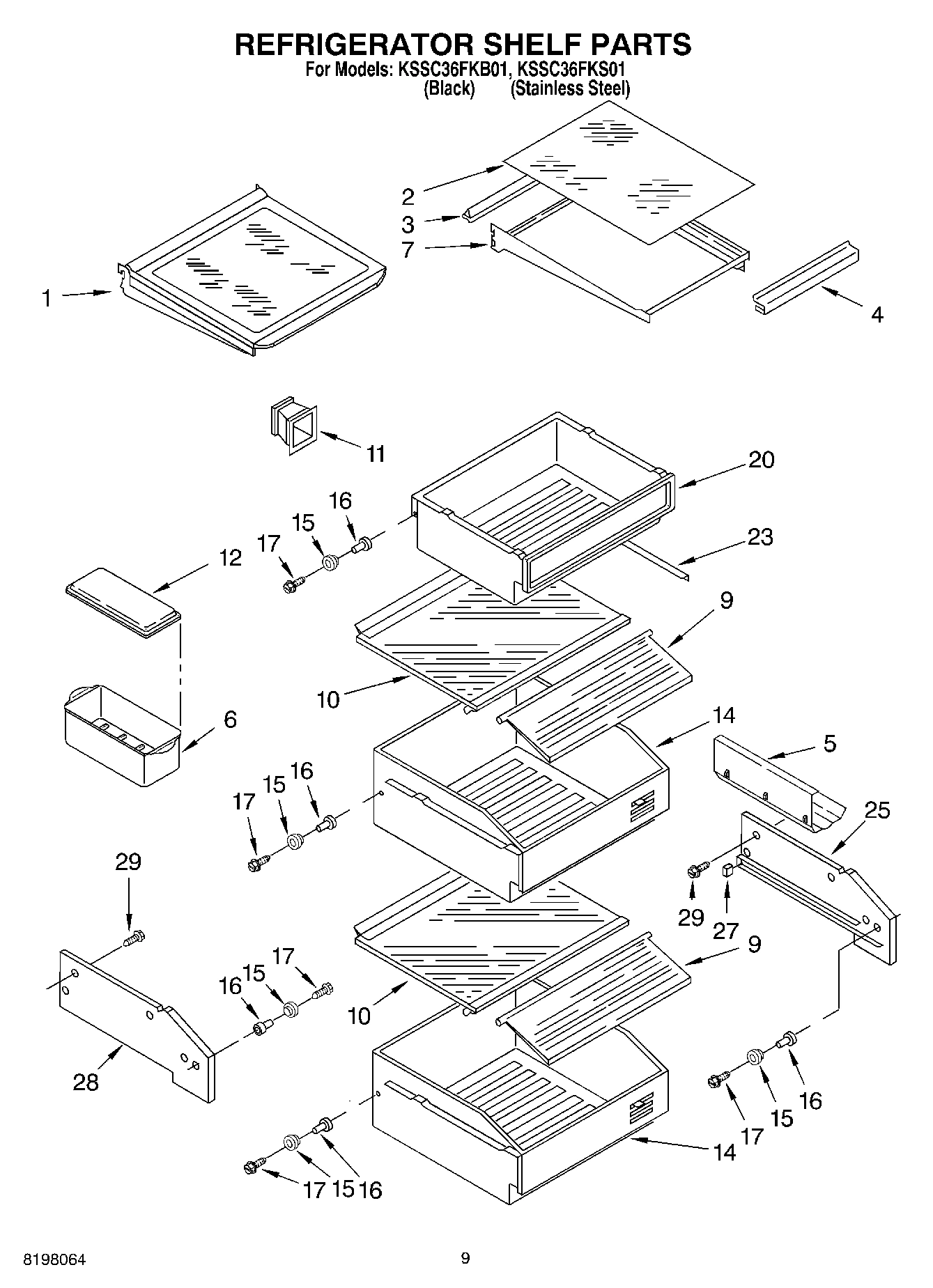

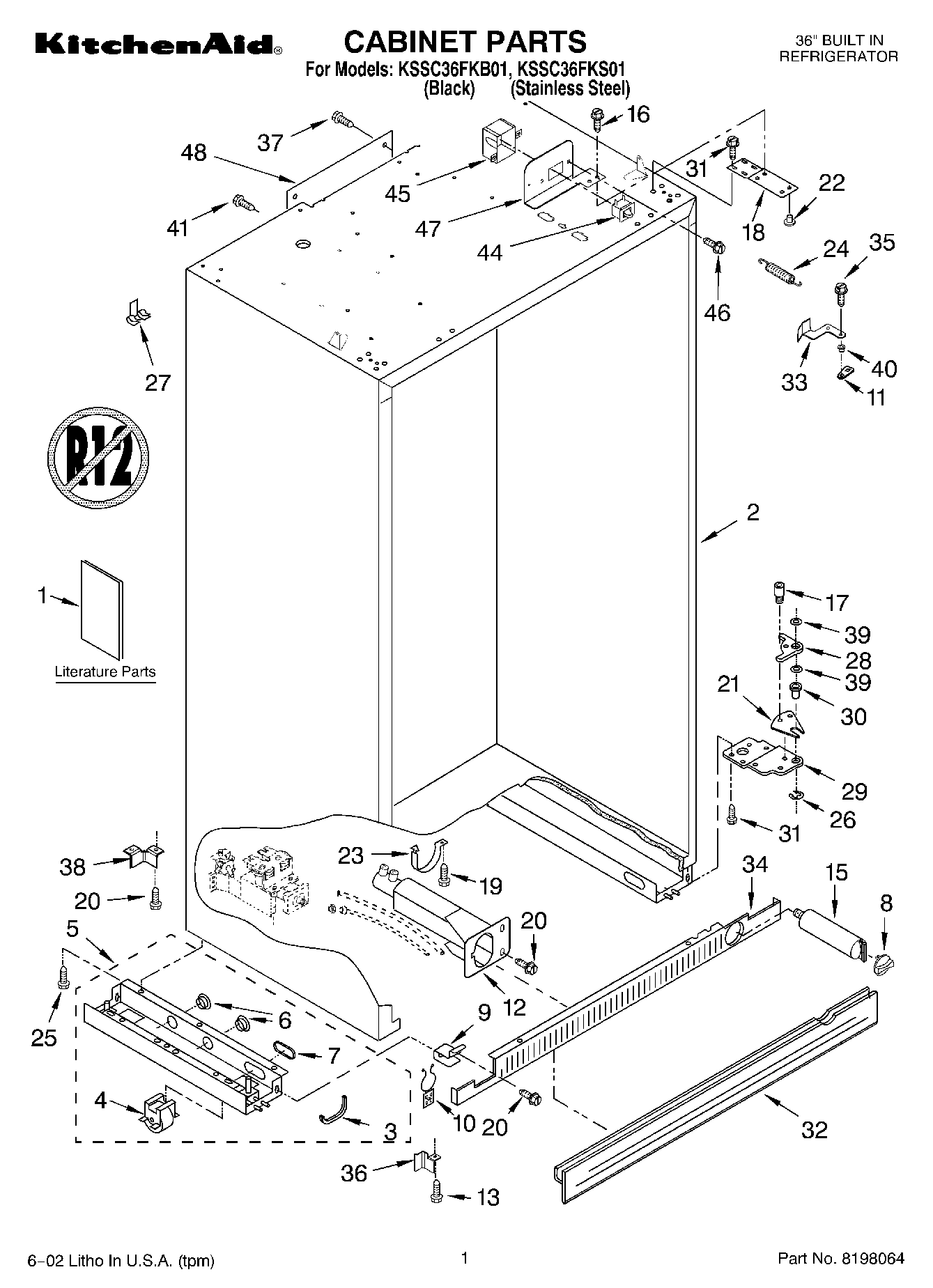

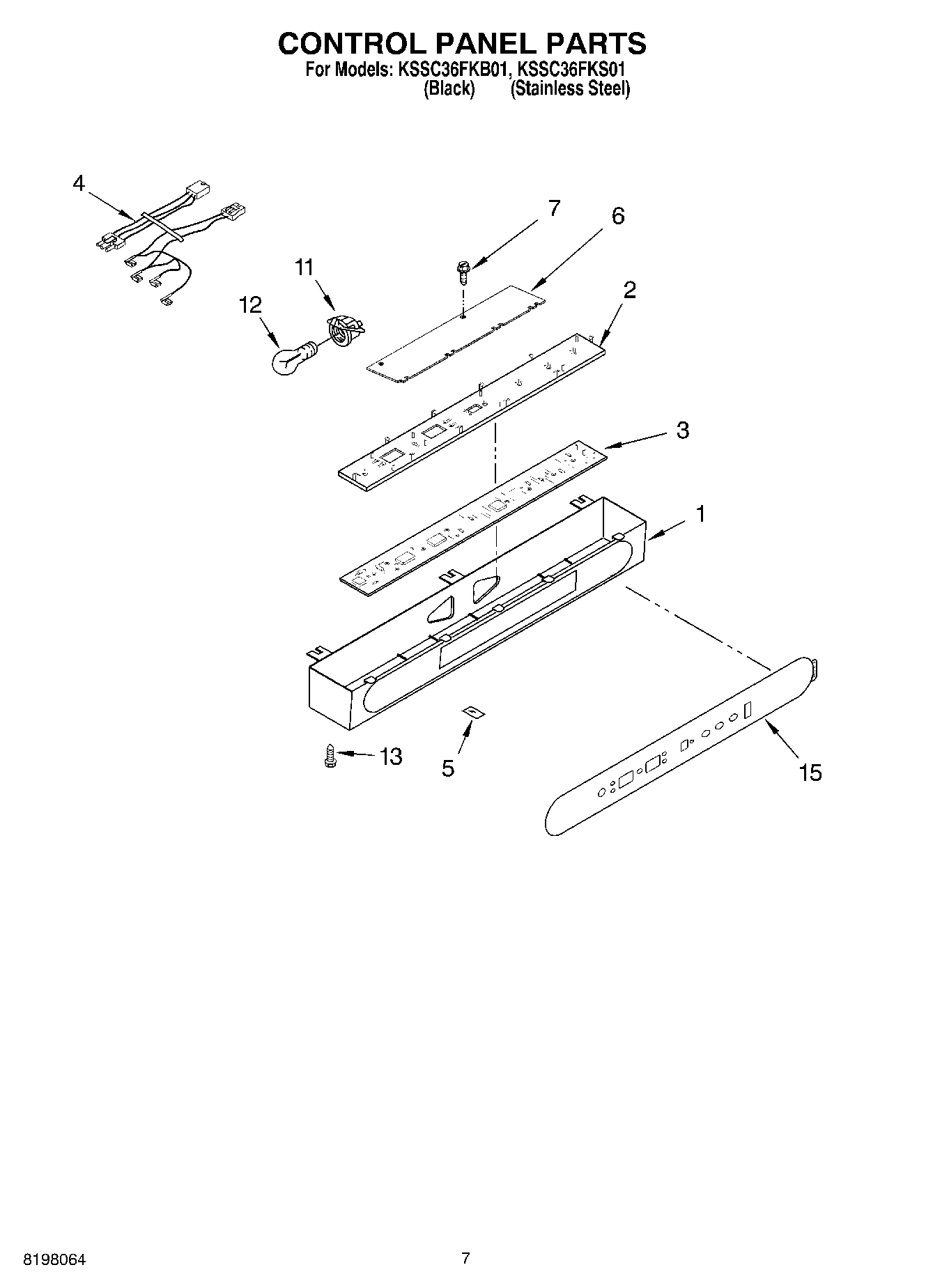

Model Whirlpool KSSC36FKS01 BUILT IN REFRIGERATOR – Common Parts &amp; Diagrams

1

WP2221240 Whirlpool Refrigerator Heater In Stock WPL WP2221240 $125.60

1

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $23.99

1

Panel, Decorator (Black) WPL 2215952B Contact Us For Availability

1

Panel, Decorator (Stainless Steel) WPL 2215952S Contact Us For Availability

1

Frame, Shelf WPL 2174402 Contact Us For Availability

1

Literature Parts (Installation Instructions) WPL LIT2215852 Contact Us For Availability

1

Literature Parts (Energy Label) WPL LIT2221223 Contact Us For Availability

1

Literature Parts (Use & Care Guide) WPL LIT2254714 Contact Us For Availability

1

Literature Parts (Service & Wiring Sheet) WPL LIT2254722 Contact Us For Availability

1

Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability

1

Cabinet, Trim (Right Side) (Black) WPL 2215919B Contact Us For Availability

1

Cabinet, Trim (Right Side) (Stainless Steel) WPL 2215919S Contact Us For Availability

1

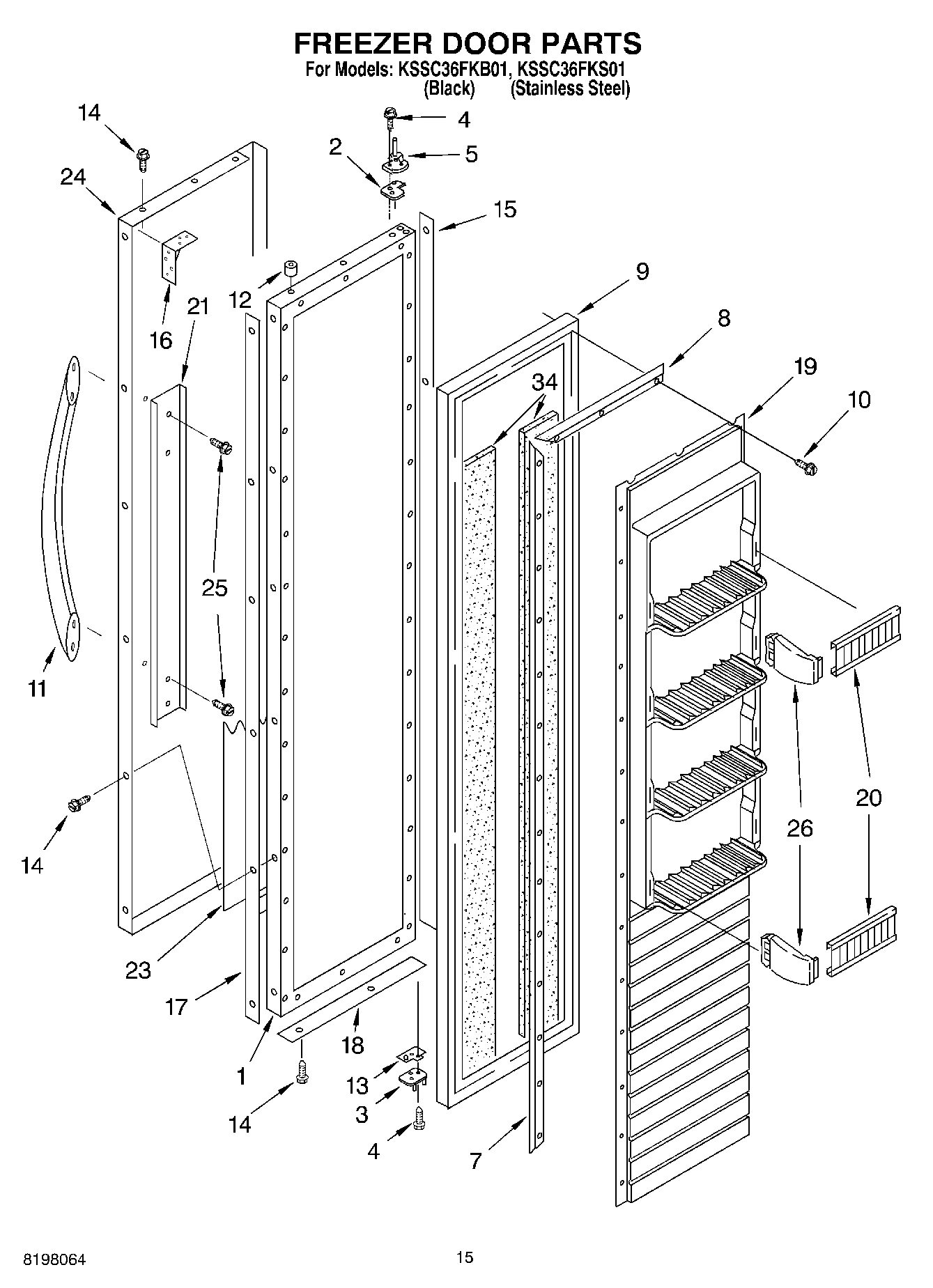

Freezer Door Panel (Includes Insulation) WPL 2215975 Contact Us For Availability

1

Control Box WPL 2215715 Contact Us For Availability

2

WP2221231 Whirlpool Refrigerator Shield In Stock WPL WP2221231 $60.77

2

Cover, Unit WPL 2209490 Contact Us For Availability

2

Glass, Shelf WPL 2003375 Contact Us For Availability

2

Cabinet (Not A Serviceable Part) WPL ARI105169A Contact Us For Availability

2

Cup, Clearance WPL 2002732 Contact Us For Availability

2

Spacer-Door, Top WPL 2004520 Contact Us For Availability

2

Wire Harness WPL 2209119 Contact Us For Availability

2

Insert, Control Box WPL 2215670 Contact Us For Availability

3

2208970 Whirlpool Refrigerator Air Duct In Stock WPL 2208970 $97.38

3

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $49.99

3

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $30.99

3

Reflector, Shelf WPL 1113546 Contact Us For Availability

3

Grommet, Tube Crossover WPL 2005004 Contact Us For Availability

3

Hinge, Bottom WPL 2220810 Contact Us For Availability

3

Circuit Board, Housing Control WPL 2209159 Contact Us For Availability

3

Plug, Water Valve WPL 2005038 Contact Us For Availability

4

2256466 Whirlpool Refrigerator Unit Cover Backorder WPL 2256466 $210.17

4

4387491 Whirlpool Refrigerator Insert In Stock WPL 4387491 $5.99

4

WPW10138054 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10138054 $20.98

4

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

4

Gasket, Glass (2) WPL 1113790 Contact Us For Availability

4

Cabinet, Trim (Bottom) WPL 2254724 Contact Us For Availability

4

Bracket WPL 2215508 Contact Us For Availability

4

Control Box Wire Harness WPL 2187424 Contact Us For Availability

5

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $14.29

5

W10860229 Whirlpool Refrigerator Support Backorder WPL W10860229 $219.93

5

W10860448 Whirlpool Refrigerator Support Backorder WPL W10860448 $216.57

5

W11474472 Whirlpool Screw In Stock WPL W11474472 $3.91

5

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $4.82

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

5

Retainer, Knob WPL 2003841 Contact Us For Availability

5

Guard, Wiring WPL 2209492 Contact Us For Availability

5

Hinge, Top WPL 2220922 Contact Us For Availability

5

Side Support WPL 2209067 Contact Us For Availability

6

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $19.90

6

8201663 Whirlpool Refrigerator Primary Fan Bl Backorder WPL 8201663 $102.33

6

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $10.99

6

Nameplate WPL 2005292 Contact Us For Availability

6

Grommet, Wiring WPL 2005006 Contact Us For Availability

6

Cabinet, Trim Top WPL 2003645 Contact Us For Availability

6

Suction Tube WPL 2209035 Contact Us For Availability

6

Support, Control Box WPL 2221121 Contact Us For Availability

6

Tube, Filter Inlet WPL 2214613 Contact Us For Availability

7

WP488920 Whirlpool Refrigerator Screw In Stock WPL WP488920 $4.82

7

Frame, Assembly Meat Pan WPL 2006523 Contact Us For Availability

7

Grommet, Flexible WPL 2005007 Contact Us For Availability

7

Cabinet Trim (Left Side) (Black) WPL 2215936B Contact Us For Availability

7

Cabinet Trim (Left Side) (Stainless Steel) WPL 2215936S Contact Us For Availability

7

Gasket Retainer, Side (2) WPL 1112533 Contact Us For Availability

7

Water Inlet Tube Assembly WPL 2221140 Contact Us For Availability

8

2003046 Whirlpool Refrigerator Plug Backorder WPL 2003046 $56.37

8

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $6.17

8

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $42.99

8

Baffle-Air, Condenser WPL 8201530 Contact Us For Availability

8

Deflector, Air Duct WPL 2003924 Contact Us For Availability

8

Gasket Retainer, Top & Bottom WPL 1112538 Contact Us For Availability

8

Tube, Connect (Drier) WPL 2209454 Contact Us For Availability

9

2003047 Whirlpool Refrigerator Plug Backorder WPL 2003047 $13.04

9

2215676 Whirlpool Refrigerator Terminal Cover Backorder WPL 2215676 $61.35

9

WP2004333 Whirlpool Refrigerator Nut Backorder WPL WP2004333 $6.88

9

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

9

Heater, Drain Pan WPL 2209451 Contact Us For Availability

9

Seal, Side Trim WPL 2005925 Contact Us For Availability

9

Cover, Crisper WPL 1113893 Contact Us For Availability

9

Mounting Stud, Grill WPL 2006442 Contact Us For Availability

9

Door Gasket, Magnetic WPL 2188495 Contact Us For Availability

9

Tube, Filter Outlet WPL 2209430 Contact Us For Availability

WP2313917 Whirlpool Refrigerator Inlet Valve In Stock WPL WP2313917 $166.59

Glass, Crisper (Includes No.9) WPL 2003378 Contact Us For Availability

Clip, Wire WPL 2005237 Contact Us For Availability

Hanger, Heater WPL 2209450 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $67.99

Cam, Door Closer WPL 2005783 Contact Us For Availability

Bracket, Louver WPL 2005483 Contact Us For Availability

Meat Pan, Connector WPL 2000742 Contact Us For Availability

Handle, Door (Stainless Steel) WPL 2005290 Contact Us For Availability

Handle, Door (Black) WPL 2209095B Contact Us For Availability

Shield, Drain Pan WPL 2005908 Contact Us For Availability

Nut Compression WPL 2204357 Contact Us For Availability

W10887190 Whirlpool Refrigerator Light Bulb In Stock WPL W10887190 $11.45

WP2209022 Whirlpool Refrigerator Housing In Stock WPL WP2209022 $165.50

WP489115 Whirlpool Refrigerator Rivet Backorder WPL WP489115 $4.82

Grille, Louver (Black) WPL 2215933B Contact Us For Availability

Grille, Louver (Stainless Steel) WPL 2215933S Contact Us For Availability

Cover WPL 2169935 Contact Us For Availability

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $6.92

Fastner WPL 1112871 Contact Us For Availability

Door, Spacer WPL 2004549 Contact Us For Availability

Tube, Discharge WPL 2209036 Contact Us For Availability

Water Valve, Harness WPL 2254711 Contact Us For Availability

W10851443 Whirlpool Refrigerator Screw In Stock WPL W10851443 $6.99

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $212.50

Screw WPL 3400525 Contact Us For Availability

Crisper Pan (2) WPL 2220895 Contact Us For Availability

Insert, Tube WPL 1129177 Contact Us For Availability

EDR5RXD1 Whirlpool Refrigerator Ice and Water In Stock WPL EDR5RXD1 $61.83

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $7.20

WP8281250 Whirlpool Refrigerator Screw In Stock WPL WP8281250 $8.99

Wire Assembly RC/FC Light Switch WPL 2187429 Contact Us For Availability

Roller WPL 2188212 Contact Us For Availability

Deflector, Air Duct WPL 2003927 Contact Us For Availability

Spacer, Hinge Side WPL 2005030 Contact Us For Availability

Overlay WPL 2221067 Contact Us For Availability

2215612 Whirlpool Refrigerator Duct Cover Backorder WPL 2215612 $65.16

488946 Whirlpool Air Conditioner Clamp Backorder WPL 488946 $13.22

WP2306092 Whirlpool Refrigerator Evaporator Backorder WPL WP2306092 $216.13

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $3.91

Eyelet, Roller WPL 2174478 Contact Us For Availability

Clamp, Tube WPL 488937 Contact Us For Availability

Door Brace, Corner WPL 2004447 Contact Us For Availability

2005433 Whirlpool Refrigerator Spacer Backorder WPL 2005433 $14.81

WP2005378 Whirlpool Refrigerator Screw In Stock WPL WP2005378 $6.84

WP2221296 Whirlpool Air Baffle In Stock WPL WP2221296 $268.89

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $7.55

Assembly, Air Duct WPL 2209334 Contact Us For Availability

Spacer, Handle Side WPL 2221012 Contact Us For Availability

Heater, Defrost WPL 2006749 Contact Us For Availability

Wire Assembly, Icemaker WPL 2254737 Contact Us For Availability

1113048 Whirlpool Refrigerator Clamp Backorder WPL 1113048 $7.19

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $64.58

2257644 Whirlpool Refrigerator Door Hinge Backorder WPL 2257644 $115.07

Spacer, Door Skin Bottom WPL 2004931 Contact Us For Availability

Cover WPL 2221232 Contact Us For Availability

2209066 Whirlpool Refrigerator Fan Block Backorder WPL 2209066 $59.00

8201798 Whirlpool Refrigerator Fan Block Backorder WPL 8201798 $126.77

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

Screw WPL 487522 Contact Us For Availability

Interior Door Panel WPL 2209030 Contact Us For Availability

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $176.99

Gasket, Evaporator WPL 2220832 Contact Us For Availability

Meat Pan WPL 2220901 Contact Us For Availability

Harness, Wire WPL 2221262 Contact Us For Availability

Trim-Shelf, Door WPL 2209163 Contact Us For Availability

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $71.99

WP2004994 Whirlpool Refrigerator Hinge Bushin Backorder WPL WP2004994 $4.82

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

Diffuser Assembly WPL 2208997 Contact Us For Availability

Liner (Not A Serviceable Part) WPL ARI105171A Contact Us For Availability

Plate, Door Handle WPL 2209202 Contact Us For Availability

W10169509 Whirlpool Refrigerator Clip Backorder WPL W10169509 $58.36

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

Bushing WPL 2002903 Contact Us For Availability

Gasket, Air Baffle WPL 1112869 Contact Us For Availability

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $59.71

Cover, Air Outlet WPL 2215718 Contact Us For Availability

Retainer, Glass WPL 2002181 Contact Us For Availability

Clamp, Filter Housing WPL 2209090 Contact Us For Availability

Filler, Door WPL 2005324 Contact Us For Availability

WP2004517 Whirlpool Refrigerator Spring In Stock WPL WP2004517 $60.46

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $55.70

Blade, Fan WPL 2190685 Contact Us For Availability

Light Shield (2) WPL 2198589 Contact Us For Availability

Door Skin (Stainless Steel) WPL 2006774 Contact Us For Availability

Door Skin (Black) WPL 2209097B Contact Us For Availability

Grommet, Water Tube WPL 2209444 Contact Us For Availability

2309087 Whirlpool Refrigerator Cover Backorder WPL 2309087 $11.41

WP2001264 Whirlpool Refrigerator Drip Pan In Stock WPL WP2001264 $170.91

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $68.41

WP308544 Whirlpool Screw In Stock WPL WP308544 $4.82

Crisper Spacer, Right Side (2) WPL 2006515 Contact Us For Availability

Cover, Evaporator WPL 2221104 Contact Us For Availability

2003577 Whirlpool Refrigerator Guard Backorder WPL 2003577 $8.90

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $6.88

WP489236 Whirlpool Refrigerator Ring In Stock WPL WP489236 $7.64

Trim, End Cap (Right Side) WPL 2209134 Contact Us For Availability

Trim, Endcap (Left Side) WPL 2208954 Contact Us For Availability

Bracket, Drain Pan (Left) WPL 1113206 Contact Us For Availability

Bracket, Drain Pan (Right) WPL 1113207 Contact Us For Availability

WP2158826 Whirlpool Refrigerator Dampener In Stock WPL WP2158826 $0.91

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.91

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $71.99

Stop, Roller WPL 1113169 Contact Us For Availability

Fastener (3) WPL 1113227 Contact Us For Availability

Cement Alumilastic) WPL 542639 Contact Us For Availability

2215648 Whirlpool Refrigerator Dampener Backorder WPL 2215648 $8.35

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $6.90

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $14.99

Crisper Spacer, Left Side (2) WPL 2006516 Contact Us For Availability

Gap, Cover Assembly (Bottom) WPL 2006342 Contact Us For Availability

W10527053 Whirlpool Refrigerator Door Hinge Backorder WPL W10527053 $81.96

WP2006780 Whirlpool Refrigerator Door Hinge Backorder WPL WP2006780 $181.40

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

Diffuser, Air Duct WPL 1112851 Contact Us For Availability

30

1112260 Whirlpool EV Support Backorder WPL 1112260 $6.78

30

WP2302876 Whirlpool Refrigerator Hinge Bushin Backorder WPL WP2302876 $55.57

30

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.91

31

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $43.68

31

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $6.50

31

WP8204624 Whirlpool Bolt In Stock WPL WP8204624 $10.90

32

WP2209024B Whirlpool Refrigerator Front Grill Backorder WPL WP2209024B $107.67

32

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $4.99

WP2307857 Whirlpool Refrigerator Extension In Stock WPL WP2307857 $59.99

WPW10121046 Whirlpool Refrigerator Extension In Stock WPL WPW10121046 $50.58

Evaporator, Cover Rail (Left Side) WPL 2221107 Contact Us For Availability

Evaporator, Cover Rail (Right Side) WPL 2221108 Contact Us For Availability

2220904 Whirlpool Refrigerator Gasket Backorder WPL 2220904 $16.21

W10528578 Whirlpool Refrigerator Tube Backorder WPL W10528578 $25.40

Grille Bottom, Front WPL 2209425B Contact Us For Availability

Seal WPL 2005610 Contact Us For Availability

35

Screw WPL 2005921 Contact Us For Availability

35

Wire, Jumper WPL 2221077 Contact Us For Availability

36

2006556 Whirlpool Refrigerator Bracket Backorder WPL 2006556 $23.27

36

2006616 Whirlpool Refrigerator Bracket Backorder WPL 2006616 $59.47

36

WP2210509 Whirlpool Refrigerator Tub Valve Backorder WPL WP2210509 $62.27

37

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $4.99

37

Water Valve Mounting Bracket WPL 2221282 Contact Us For Availability

38

2006617 Whirlpool Refrigerator Bracket Backorder WPL 2006617 $59.25

38

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $5.99

39

WP2006346 Whirlpool Refrigerator Washer Backorder WPL WP2006346 $7.60

39

WP2188820 Whirlpool Refrigerator Thermistor In Stock WPL WP2188820 $25.99

40

WP2316859 Whirlpool Refrigerator Bushing In Stock WPL WP2316859 $35.70

40

Clip, Thermistor WPL 2209204 Contact Us For Availability

41

1116793 Whirlpool Refrigerator Cover Backorder WPL 1116793 $9.15

41

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

41

WP1163283 Whirlpool Air Conditioner Screw Backorder WPL WP1163283 $4.82

43

W11553819 Whirlpool Refrigerator Insulation In Stock WPL W11553819 $10.99

43

W11624204 Whirlpool Screw Backorder WPL W11624204 $8.89

44

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $17.77

44

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $17.77

44

Compresion Nut WPL 1129179 Contact Us For Availability

2215938 Whirlpool Refrigerator Switch Cover In Stock WPL 2215938 $59.36

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

46

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $6.51

47

2221096 Whirlpool Refrigerator Bracket Backorder WPL 2221096 $63.54

47

2221097 Whirlpool Refrigerator Bracket Backorder WPL 2221097 $63.54

48

WPL 2209449 WPL 2209449 Contact Us For Availability

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $130.99
