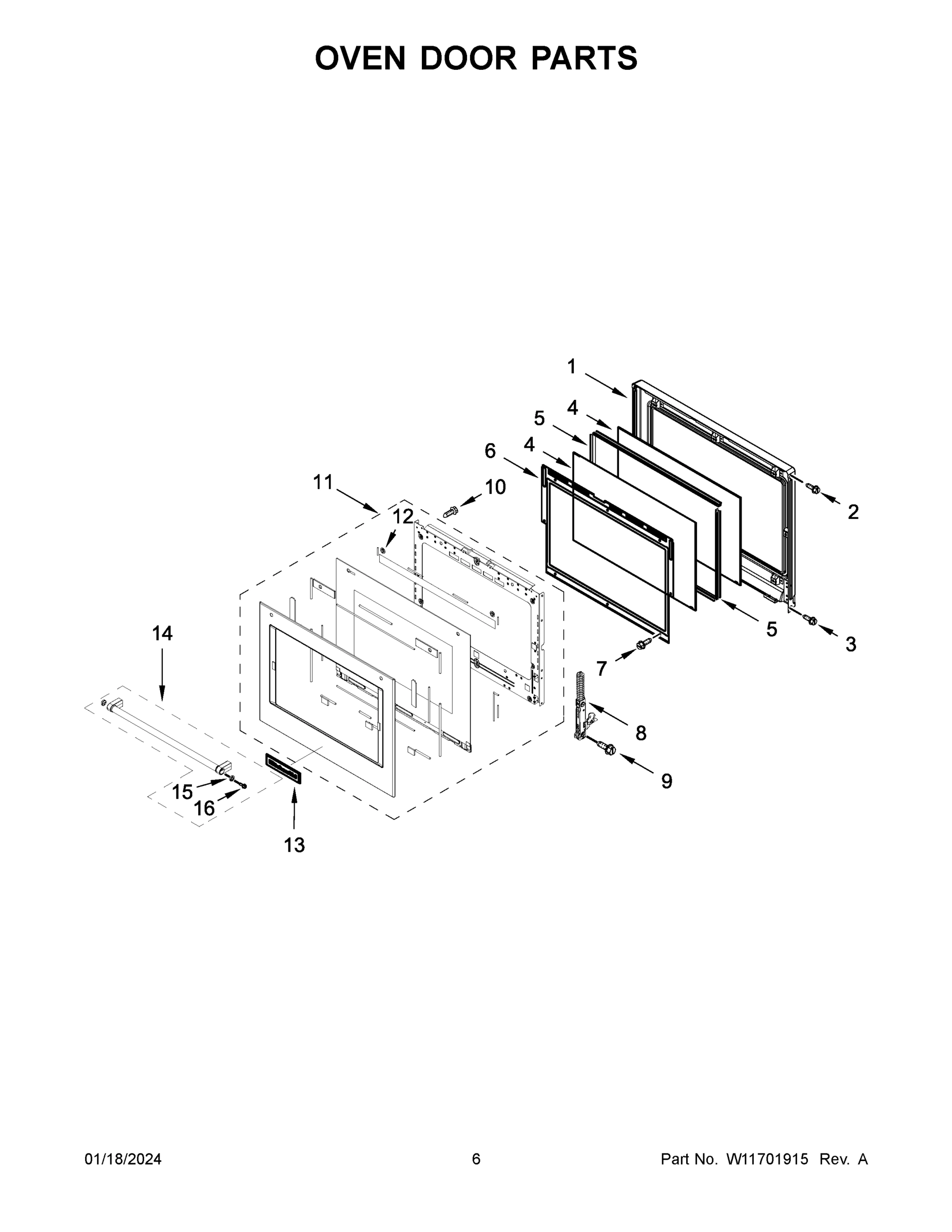

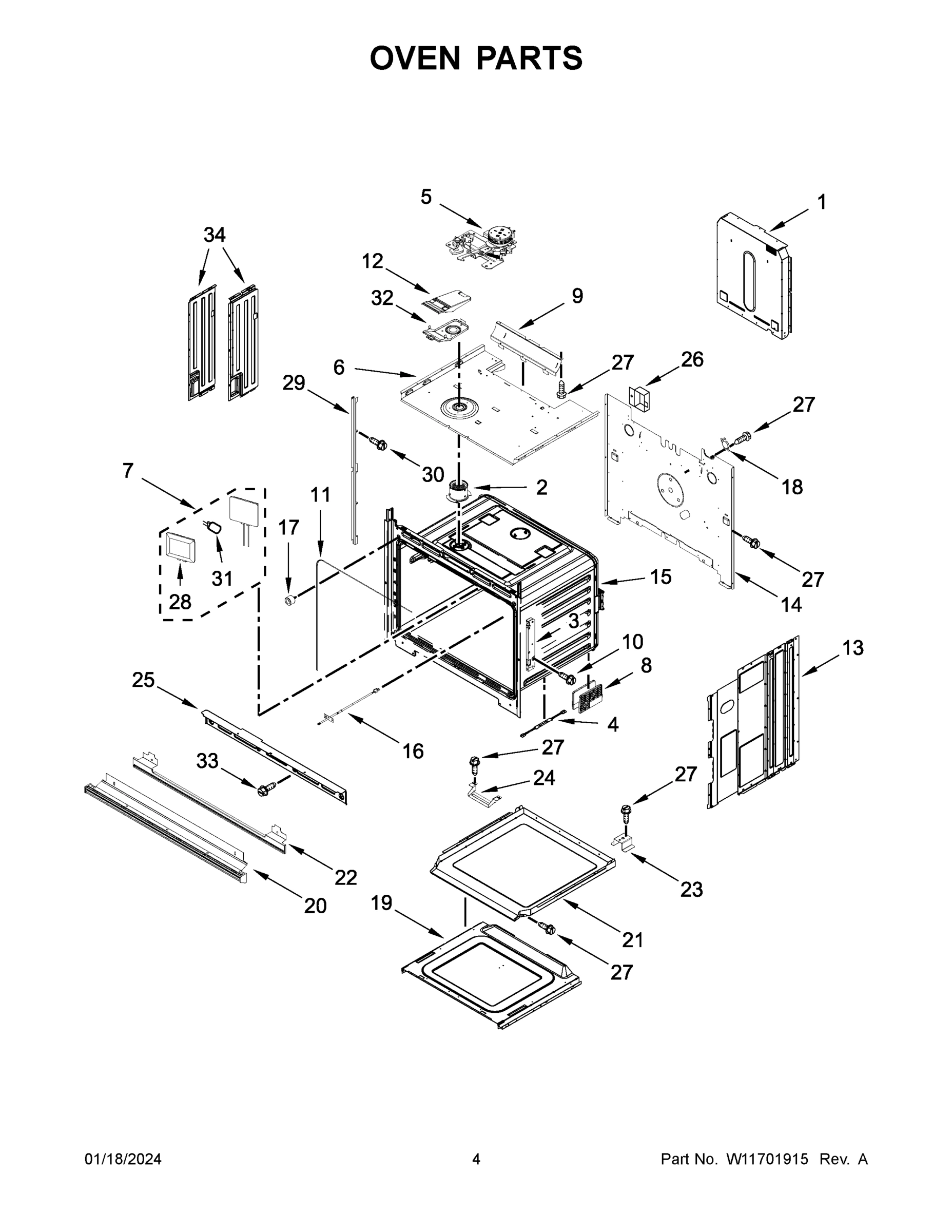

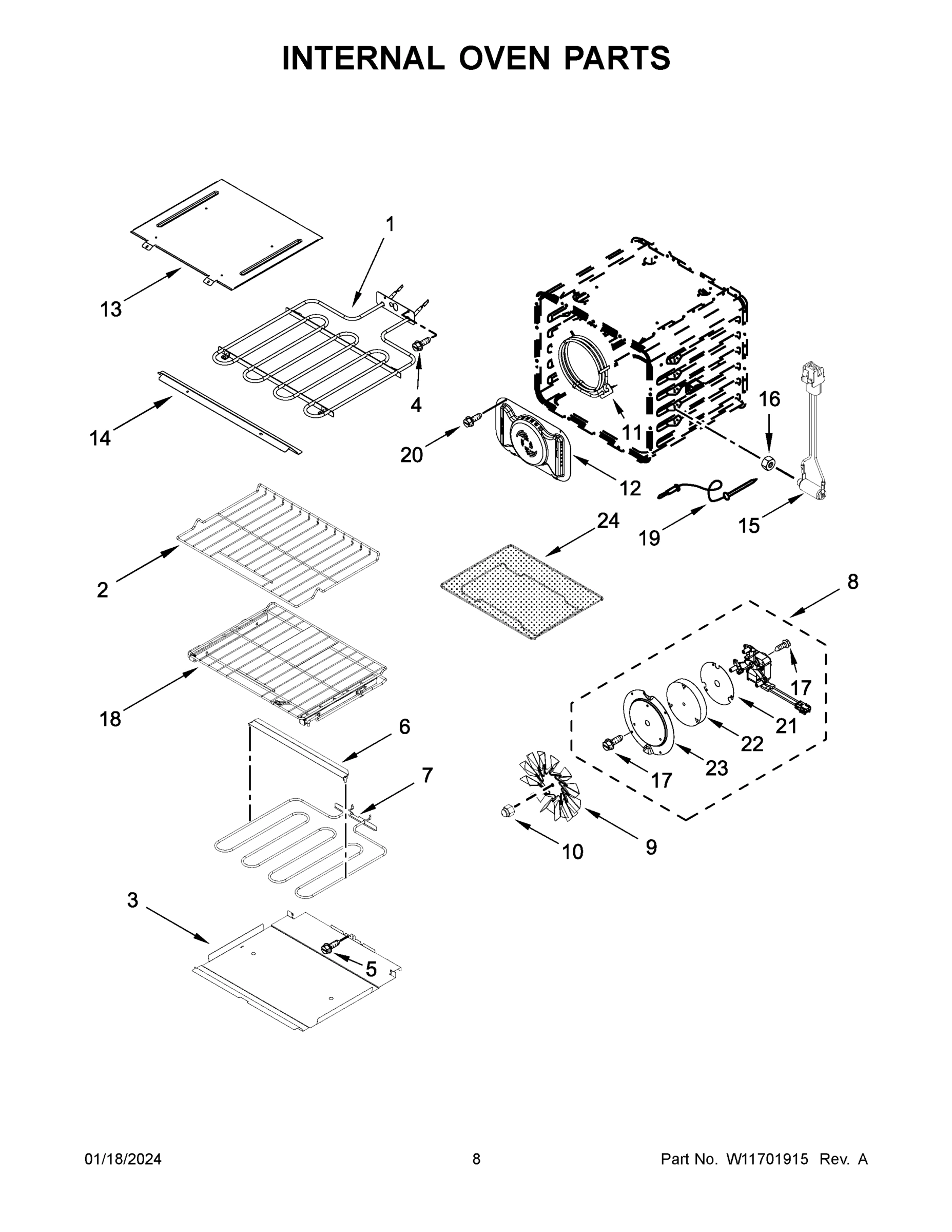

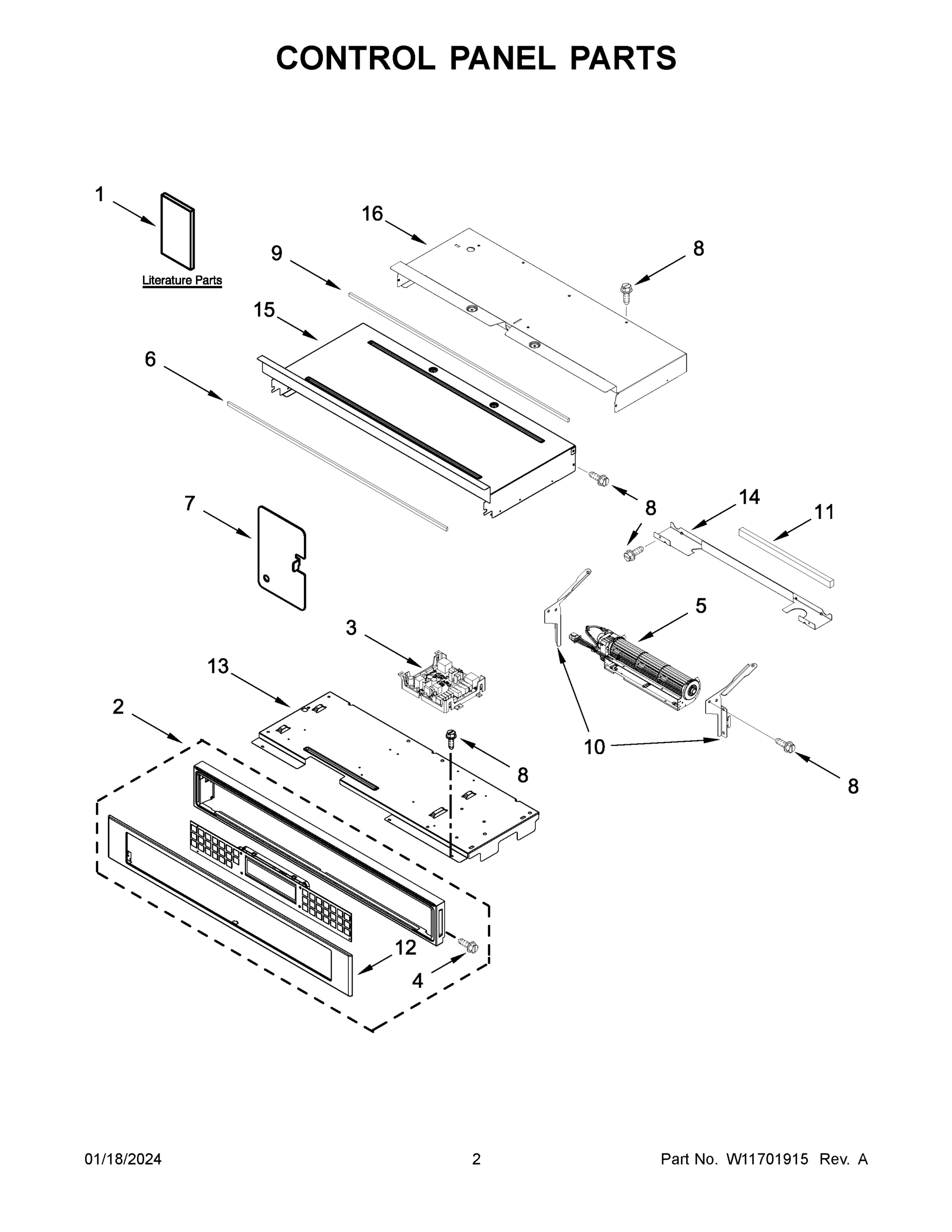

Model Whirlpool KOES527PSS00 WALL OVEN, ELECTRIC – Common Parts &amp; Diagrams

1

W11598122 Whirlpool Broil Element Backorder WPL W11598122 $75.65

1

W11598186 Whirlpool Glass Frame Backorder WPL W11598186 $213.85

2

W11240525 Whirlpool Vent Tube Backorder WPL W11240525 $14.02

2

WPW10554529 Whirlpool Oven Rack Backorder WPL WPW10554529 $103.06

2

SCREW WPL 7101P37560 Contact Us For Availability

3

W10318198 Whirlpool Bake Tray Backorder WPL W10318198 $125.31

3

W11617225 Whirlpool Oven Screw Backorder WPL W11617225 $8.89

3

W11752201 Whirlpool Hinge Receiver Backorder WPL W11752201 $26.72

4

W11598152 Whirlpool Spacer Backorder WPL W11598152 $10.22

4

WPW10284902 Whirlpool Door Glass Backorder WPL WPW10284902 $138.26

4

SCREW WPL 7101P43460 Contact Us For Availability

5

W11598187 Whirlpool Bracket Assembly In Stock WPL W11598187 $38.90

5

W11686858 Whirlpool Door Latch In Stock WPL W11686858 $37.79

5

SCREW WPL 7101P42660 Contact Us For Availability

6

W10282957 Whirlpool Bracket Support In Stock WPL W10282957 $29.60

6

TOP-CABNT Backorder WPL W11244456 $52.33

6

W11598188 Whirlpool Retainer Backorder WPL W11598188 $45.47

7

W11292252 Whirlpool Oven Light In Stock WPL W11292252 $63.99

7

W11545804 Whirlpool Bake Element In Stock WPL W11545804 $72.99

8

W11598170 Whirlpool Level Foot Backorder WPL W11598170 $17.37

8

W11617227 Whirlpool Fan Motor In Stock WPL W11617227 $137.99

8

W11665208 Whirlpool Door Hinge Backorder WPL W11665208 $99.99

8A

W11665209 Whirlpool Door Hinge Backorder WPL W11665209 $84.95

9

W10904163 Whirlpool Vent Deflector Backorder WPL W10904163 $110.23

9

W11548753 Whirlpool Convection Fan Backorder WPL W11548753 $97.82

9

WP3196183 Whirlpool Screw Backorder WPL WP3196183 $4.99

10

W11548755 Whirlpool Nut Backorder WPL W11548755 $8.89

10

W11602624 Whirlpool Oven Screw In Stock WPL W11602624 $14.99

10

WPW10254050 Whirlpool Screw Backorder WPL WPW10254050 $4.82

11

W11600239 Whirlpool Door Glass Backorder WPL W11600239 $571.81

11

W11608109 Whirlpool Gasket Backorder WPL W11608109 $42.88

11

W11678579 Whirlpool Element Backorder WPL W11678579 $70.71

11A

W11600238 Whirlpool Door Glass Backorder WPL W11600238 $682.71

W10588741 Whirlpool Control Panel Backorder WPL W10588741 $154.91

W11234761 Whirlpool Baffle Convector Backorder WPL W11234761 $142.74

COVR-EXHST Backorder WPL W11256424 $18.09

W11676355 Whirlpool Washer Backorder WPL W11676355 $8.89

12A

W11234763 Whirlpool Convection Baffle Backorder WPL W11234763 $142.74

13

W10839793 Whirlpool Refrigerator Nameplate In Stock WPL W10839793 $31.81

13

W11165274 Whirlpool Side Panel Backorder WPL W11165274 $50.97

13

W11598121 Whirlpool Top-Cabnt Backorder WPL W11598121 $37.25

14

Backorder WPL W10588737 $68.33

14

W11525064 Whirlpool Door Handle Backorder WPL W11525064 $140.36

14

BACK, CHASSIS (NOT SERVICED) WPL ARI6655B8C91FC6F816F7982F80F561FE0E Contact Us For Availability

15

W10846207 Whirlpool Refrigerator Handle Medal Backorder WPL W10846207 $15.74

15

W11252826 Whirlpool Probe Jack Backorder WPL W11252826 $44.82

15

LINER, OVEN (NOT SERVICEABLE) WPL ARI221486ECAEC93F8B8C6C8EF9CFFD9E68 Contact Us For Availability

16

W10920281 Whirlpool Screw Backorder WPL W10920281 $4.82

16

W11231343 Whirlpool Lock Nut In Stock WPL W11231343 $8.89

16

W11598120 Whirlpool Thermostat In Stock WPL W11598120 $19.99

17

W10850807 Whirlpool Screw Backorder WPL W10850807 $4.82

17

W11598125 Whirlpool Bumper Backorder WPL W11598125 $14.02

18

WP4449751 Whirlpool Range Oven Thermostat Fix In Stock WPL WP4449751 $126.49

18

NLA:RACK-OVEN Backorder WPL WPW10554532 $213.69

19

WP9755542 Whirlpool Oven Meat Probe In Stock WPL WP9755542 $68.99

19

BASE, CHASSIS WPL W11244454 Contact Us For Availability

20

W11658445 Whirlpool Vent Backorder WPL W11658445 $139.16

20

WP74003976 Whirlpool Screw Backorder WPL WP74003976 $4.82

20A

ASSEMBLY, BOTTOM VENT (BLACK) WPL W11467807 Contact Us For Availability

21

W11244446 Whirlpool Cover Access Backorder WPL W11244446 $44.99

21

PLATE, CONVECT MOTOR WPL W11251715 Contact Us For Availability

22

TRIM, BOTTOM VENT (BLACK) WPL W11624688 Contact Us For Availability

22

INSULATION, CONVECT MOTOR WPL W11251716 Contact Us For Availability

23

SUPPORT Backorder WPL W11135135 $23.56

23

COVER, CONVECT PLATE WPL W11398057 Contact Us For Availability

24

W11692811 Whirlpool Fryer Basket Backorder WPL W11692811 $68.84

24

SPACER, CHASSIS BOTTOM DUCT WPL W11390667 Contact Us For Availability

25

W11334858 Whirlpool Vent Exhaust Backorder WPL W11334858 $67.40

26

8285593 Whirlpool Oven Wire Cover Backorder WPL 8285593 $60.72

28

WPW10519866 Whirlpool Light Backorder WPL WPW10519866 $63.33

29

W11235463 Whirlpool Mounting Rail Backorder WPL W11235463 $53.42

29A

W11235462 Whirlpool Mounting Rail Backorder WPL W11235462 $53.42

30

W11602623 Whirlpool Screw Backorder WPL W11602623 $8.89

31

WPW10472384 Whirlpool Light Bulb In Stock WPL WPW10472384 $82.47

32

TUBE-VENT Backorder WPL W11256423 $33.01

33

WPY706189 Whirlpool Stove Screw In Stock WPL WPY706189 $4.99

34

W11598150 Whirlpool Side Cover Backorder WPL W11598150 $44.52

34A

W11598151 Whirlpool Side Cover Backorder WPL W11598151 $44.52

285006 Whirlpool Spray In Stock WPL 285006 $31.65

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

W10655464 Whirlpool Bracket Backorder WPL W10655464 $24.71

HARNS-WIRE Backorder WPL W11132988 $15.99

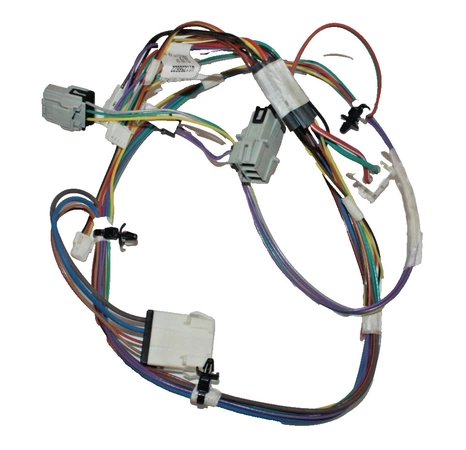

W11256622 Whirlpool Wire Harness In Stock WPL W11256622 $82.57

W11369891 Whirlpool Heat Deflector Backorder WPL W11369891 $56.79

W11369893 Whirlpool Heat Deflector Backorder WPL W11369893 $56.79

DEFLCTR-HT Backorder WPL W11551865 $20.46

TRIM Backorder WPL W11570324 $144.89

W11570326 Whirlpool Trim Backorder WPL W11570326 $136.49

W11699910 Whirlpool Wire Harness Backorder WPL W11699910 $19.48

W11727826 Whirlpool Wire Harness Backorder WPL W11727826 $36.11

W11759107 Whirlpool Wire Harness Backorder WPL W11759107 $159.27

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $34.73

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI7C4B781E09F4C135E8A56A812FBF5A4D Contact Us For Availability

BAG, HARDWARE WPL W11547720 Contact Us For Availability

INSULATION, WRAP WPL W11244474 Contact Us For Availability

INSULATION, BACK WPL W11244475 Contact Us For Availability

ACCESSORY PARTS, VENT, DEFLECTOR (BLACK) WPL W11594554 Contact Us For Availability
