Model Whirlpool KLRF15XTAL00 – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

WPL 350941 WPL 350941 Contact Us For Availability

WPL LIT1107577 WPL LIT1107577 Contact Us For Availability

WPL LIT1107933 WPL LIT1107933 Contact Us For Availability

WPL LIT1117595 WPL LIT1117595 Contact Us For Availability

WPL LIT879937 WPL LIT879937 Contact Us For Availability

1

Breaker Trim (R.S) WPL 1107470 Contact Us For Availability

1

Breaker Trim (R.S) (Without Switch Holes) WPL 843333 Contact Us For Availability

1

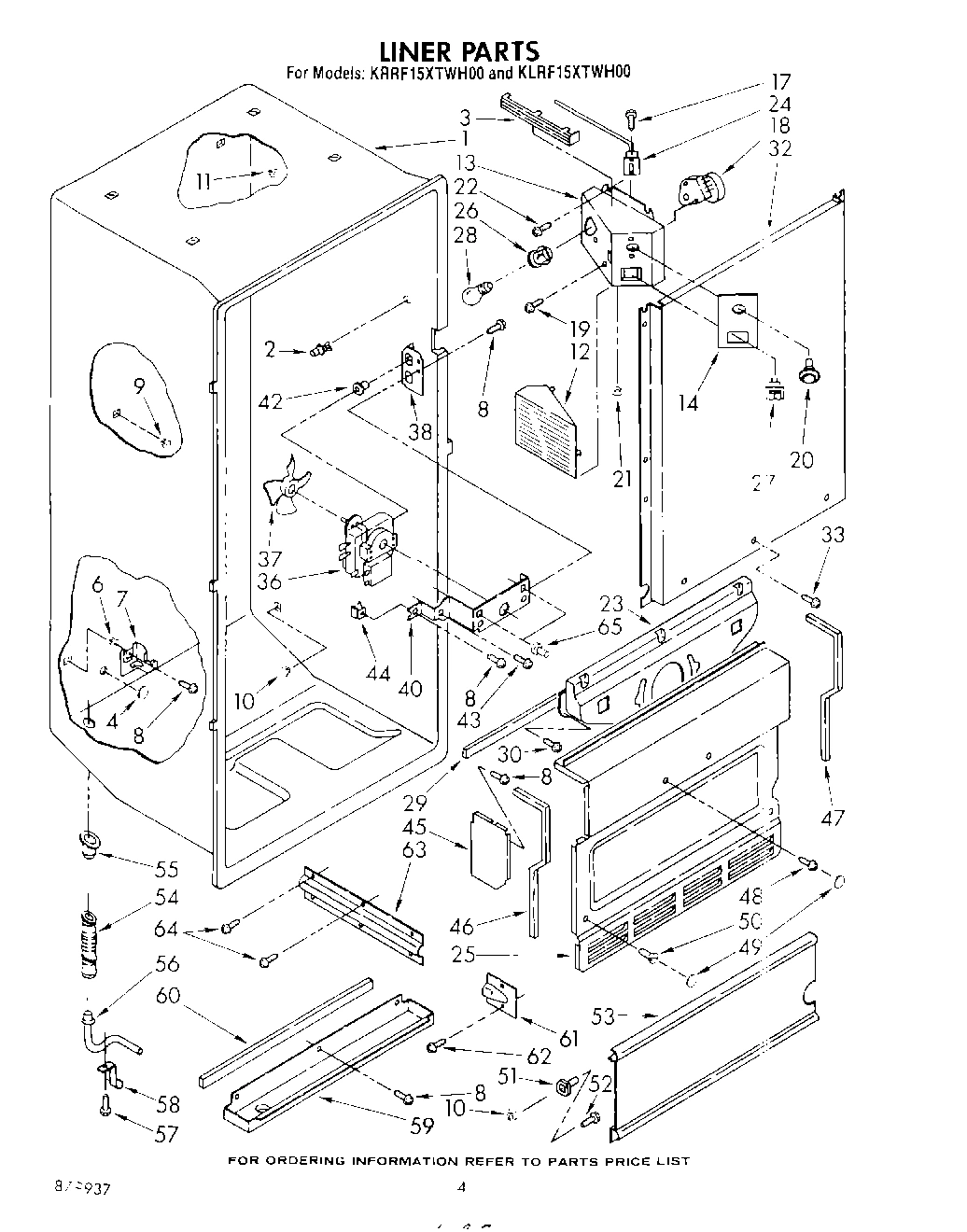

Liner (Not A Serviceable Part) WPL ARI89012A8 Contact Us For Availability

1

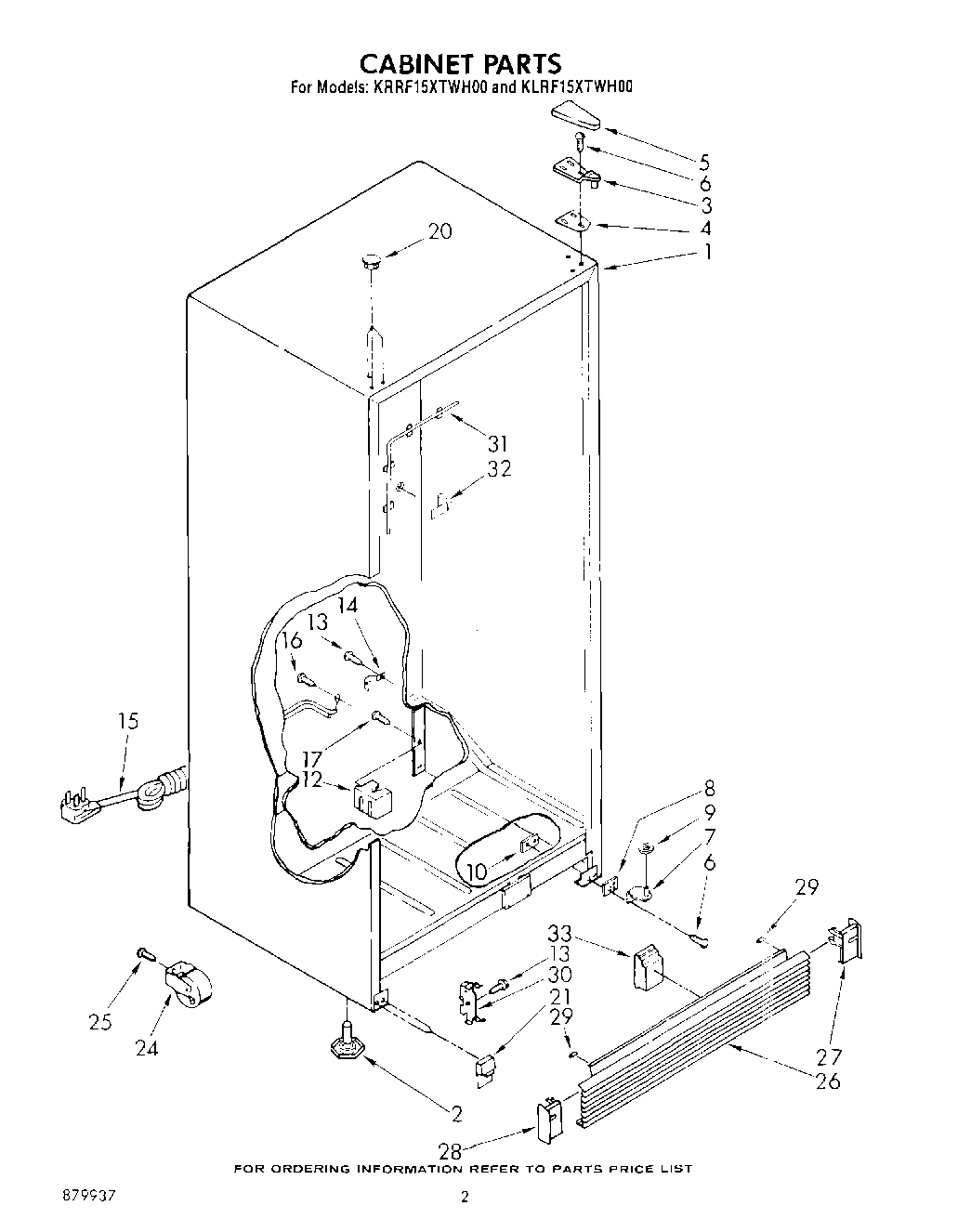

Cabinet (Not A Serviceable Part) WPL ARI89011A2 Contact Us For Availability

1

Condensate, Heater WPL 1107920 Contact Us For Availability

2

939962 Whirlpool Refrigerator Rivet Backorder WPL 939962 $7.67

2

Breaker Trim (Top) WPL 940923 Contact Us For Availability

2

Leveler (2) WPL 836392 Contact Us For Availability

2

Spacer, Condenser WPL 1107667 Contact Us For Availability

3

W11624204 Whirlpool Screw Backorder WPL W11624204 $8.89

3

Breaker Trim (L.S) (With Switch Holes) WPL 1107749 Contact Us For Availability

3

Breaker Trim (L.S) WPL 840054 Contact Us For Availability

3

Cover, Rivet WPL 1107558 Contact Us For Availability

3

Hinge, Top WPL 842039 Contact Us For Availability

4

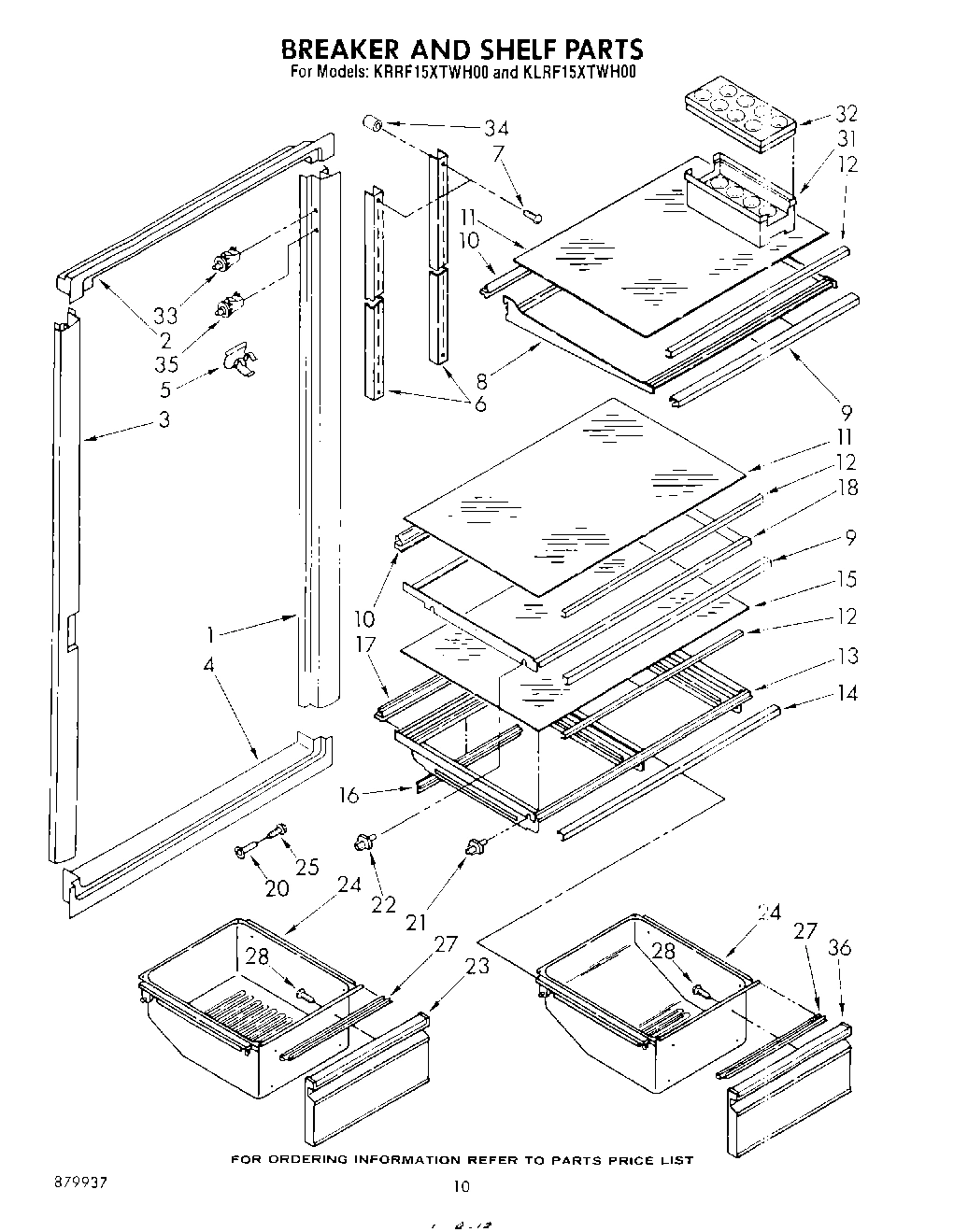

Breaker Trim, Bottom WPL 836176 Contact Us For Availability

4

Hole, Plug WPL 519890 Contact Us For Availability

4

Shim, Hinge WPL 836151 Contact Us For Availability

5

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $15.75

5

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $49.99

5

Breaker, Trim Clip (3) WPL 534365 Contact Us For Availability

5

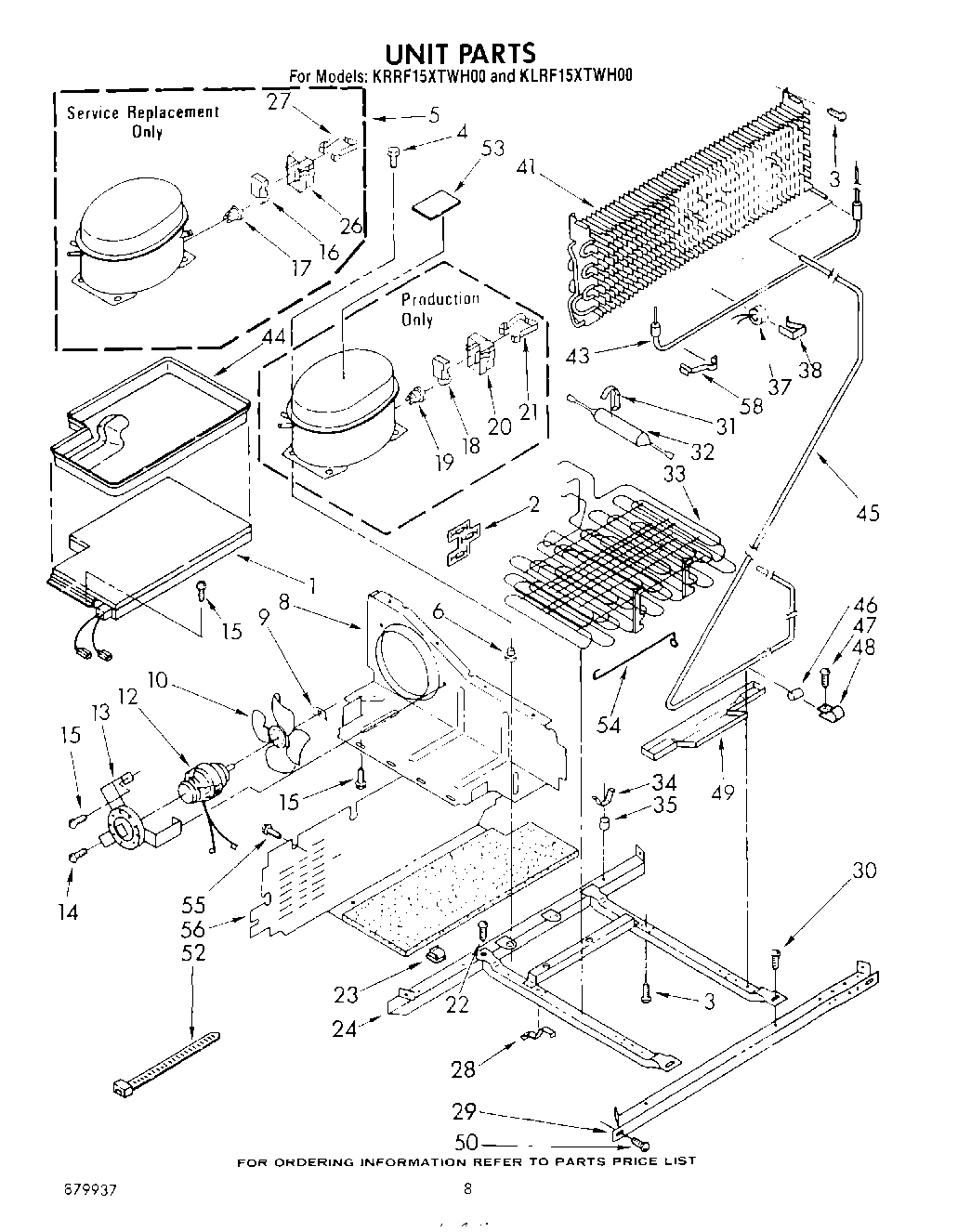

Compressor Includes Items 16, 17, 26 & 27) (A WPL 482997 Contact Us For Availability

6

876811 Whirlpool Grommet Backorder WPL 876811 $4.82

6

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $4.82

6

Shelf Ladder (2) WPL 1107616 Contact Us For Availability

7

Evaporator Support (2) WPL 842436 Contact Us For Availability

7

Hinge, Bottom R.H. WPL 1115900 Contact Us For Availability

7

Hinge, Bottom (L.H.) WPL 1115903 Contact Us For Availability

8

Shelf, Cantilever (3) WPL 1107576 Contact Us For Availability

8

Shim, Bottom Hinge WPL 836161 Contact Us For Availability

8

Baffle WPL 1107561 Contact Us For Availability

9

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

9

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $4.99

9

Trim, Shelf Front WPL 1107528 Contact Us For Availability

9

Grommet WPL 842339 Contact Us For Availability

10

Reflector, Glass Shelf WPL 1107622 Contact Us For Availability

10

Tap Plate, Bottom WPL 836162 Contact Us For Availability

10

Blade, Fan WPL 989524 Contact Us For Availability

11

Glass, Cantilever Shelf WPL 1107579 Contact Us For Availability

11

Grommet (6) WPL 848445 Contact Us For Availability

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $61.51

Shelf Gasket, Glass WPL 1107580 Contact Us For Availability

Light, Lens WPL 1100466 Contact Us For Availability

Box, Junction WPL 549947 Contact Us For Availability

13

Cover Frame (2) WPL 1107582 Contact Us For Availability

13

Control Box WPL 1107555 Contact Us For Availability

13

Bracket, Fan Motor WPL 548695 Contact Us For Availability

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $8.91

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $8.39

Trim, Frame (2) WPL 1107583 Contact Us For Availability

Insert, Control Box WPL 1107556 Contact Us For Availability

15

Glass, Cover (2) WPL 1107584 Contact Us For Availability

15

Cord, Service WPL 1107603 Contact Us For Availability

15

Screw, 8 x 3/8 WPL 488624 Contact Us For Availability

16

Gasket, Rear (4) WPL 1107478 Contact Us For Availability

16

Screw, 8-32 x 3/8 WPL 488474 Contact Us For Availability

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.91

Reflector, Glass Shelf (2) WPL 1107578 Contact Us For Availability

Screw WPL 488974 Contact Us For Availability

Overload WPL 753611 Contact Us For Availability

18

WP4391974 Whirlpool Refrigerator Defrost Time In Stock WPL WP4391974 $155.72

18

Shelf, Fixed WPL 1107625 Contact Us For Availability

18

Relay WPL 938385 Contact Us For Availability

19

WP487353 Whirlpool Refrigerator Screw In Stock WPL WP487353 $4.82

19

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $4.82

19

Overload WPL 1108036 Contact Us For Availability

Stud, Shelf (3) WPL 1117317 Contact Us For Availability

Control Knob, Thermostat WPL 1100467 Contact Us For Availability

Hole Plug (3) (White) WPL 842031 Contact Us For Availability

Hole Plug (3) (Almond) WPL 989195 Contact Us For Availability

Relay Case WPL 1108144 Contact Us For Availability

21

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $13.22

21

Shelf Stud (5) WPL 1107968 Contact Us For Availability

21

Filler, Corner WPL 839178 Contact Us For Availability

22

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $6.92

22

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $4.99

22

Stud, Fixed Shelf WPL 849297 Contact Us For Availability

23

Front Pan, Crisper WPL 1107349 Contact Us For Availability

23

Fan Orfice WPL 1107593 Contact Us For Availability

23

Clip, Wire (2) WPL 548745 Contact Us For Availability

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $25.38

Pan (4) WPL 1107871 Contact Us For Availability

Thermostat & Barrier Assembly WPL 1107590 Contact Us For Availability

Frame WPL 1107663 Contact Us For Availability

25

Screw, 8-15 x 1 (3) WPL 487547 Contact Us For Availability

25

Evaporator, Cover WPL 1107560 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $67.99

Insert, Handle WPL 1117548 Contact Us For Availability

Grille WPL 1107193 Contact Us For Availability

Relay, Case WPL 1105015 Contact Us For Availability

Reatiner, Door Trim WPL 1107300 Contact Us For Availability

Front Pan, Gasket (4) WPL 1107252 Contact Us For Availability

Grille, End Cap (R.S) WPL 1107443 Contact Us For Availability

Strap, Cover WPL 938384 Contact Us For Availability

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $6.45

Door, Utility (2) WPL 1107288 Contact Us For Availability

Screw, (Repair) 10-16 x 9/16 WPL 488132 Contact Us For Availability

Grille, End Cap (L.S.) WPL 1107444 Contact Us For Availability

Clip (2) WPL 548744 Contact Us For Availability

Ladder, Door (2) WPL 1107587 Contact Us For Availability

Gasket, Orfice WPL 659202 Contact Us For Availability

Bumper, Grille (2) WPL 1107614 Contact Us For Availability

Rail, Front WPL 1107657 Contact Us For Availability

30

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $6.83

30

Spacer, Shelf Ladder (4) WPL 1107352 Contact Us For Availability

30

Clip, Grille WPL 989068 Contact Us For Availability

31

Egg Container, Bottom WPL 1107384 Contact Us For Availability

31

Stile Heater WPL 851778 Contact Us For Availability

31

Clamp WPL 548508 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $37.99

Screw, 8-15 x 1 1/4 (4) WPL 489188 Contact Us For Availability

Egg Container, Top WPL 1107388 Contact Us For Availability

Air Duct WPL 1107128 Contact Us For Availability

Retainer, Clip WPL 935663 Contact Us For Availability

Nameplate WPL 1107915 Contact Us For Availability

Screw, 8 x 1-1/4 WPL 488357 Contact Us For Availability

Switch, Light WPL 549191 Contact Us For Availability

Screw, 10 x 1 1/4 WPL 488623 Contact Us For Availability

Insert, Air Baffle WPL 1107271 Contact Us For Availability

Condencer WPL 1107665 Contact Us For Availability

34

Door Shelf, Cantilever WPL 1107548 Contact Us For Availability

34

Spacer Ground WPL 1107542 Contact Us For Availability

34

Clamp (4) WPL 548738 Contact Us For Availability

35

Fan Motor, Switch WPL 1107764 Contact Us For Availability

35

Grommet WPL 943447 Contact Us For Availability

36

482469 Whirlpool Refrigerator Evaporator Fan In Stock WPL 482469 $106.99

36

Front, Meat Pan WPL 1107351 Contact Us For Availability

37

Fan Blade WPL 1107256 Contact Us For Availability

37

Defrost, Bimetal WPL 1107391 Contact Us For Availability

38

Fan Braket Double WPL 548263 Contact Us For Availability

38

Clamp WPL 513584 Contact Us For Availability

40

Fan, Bracket Single WPL 548264 Contact Us For Availability

41

Evaporator WPL 1107503 Contact Us For Availability

42

Grommet, Fan Motor (3) WPL 548268 Contact Us For Availability

43

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

43

Heater, Defrost WPL 989613 Contact Us For Availability

44

Expansion Clip WPL 537095 Contact Us For Availability

44

Evaporating, Tray WPL 1107441 Contact Us For Availability

45

Air Baffle (2) WPL 1107559 Contact Us For Availability

45

Exchanger, Heat WPL 1107511 Contact Us For Availability

46

Gasket, (L.S) Evaporator Cover WPL 1107728 Contact Us For Availability

46

Dampener (2) WPL 510769 Contact Us For Availability

47

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

47

Gasket, (R.S) Evaporator Cover WPL 1107729 Contact Us For Availability

48

Screw WPL 489175 Contact Us For Availability

48

Clamp, Tube (2) WPL 510716 Contact Us For Availability

49

Cap, Screw WPL 1107633 Contact Us For Availability

49

Pan, Drip WPL 945572 Contact Us For Availability

50

Screw, 1/4-28 1/2 (2) WPL 488454 Contact Us For Availability

51

Stud, Deflector WPL 658944 Contact Us For Availability

52

Screw 8-15 1 1/4 (4) WPL 487559 Contact Us For Availability

52

Strap WPL 851095 Contact Us For Availability

53

Deflector WPL 1107731 Contact Us For Availability

53

Pad, Sound WPL 301774 Contact Us For Availability

54

Fitting, Drain WPL 981147 Contact Us For Availability

54

Guard, Fan WPL 851165 Contact Us For Availability

55

NLA:SCREW Backorder WPL WPW10141645 $4.82

55

Drain Ferrule WPL 981148 Contact Us For Availability

56

Extension, Drain WPL 841646 Contact Us For Availability

56

Cover WPL 850639 Contact Us For Availability

57

Screw, 8-32 x 1/2 WPL 489050 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Clip, Drain Extension WPL 841648 Contact Us For Availability

Clip, Heater WPL 548459 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

59

Drain Pan WPL 1107562 Contact Us For Availability

60

Gasket, Drain Pan WPL 1107954 Contact Us For Availability

61

Cover, Tube Entry WPL 839826 Contact Us For Availability

63

Cover, Tube WPL 1107615 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $141.89

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

WPL 876029 WPL 876029 Contact Us For Availability

Tape, Vinyl (1/4`` x 108``) WPL 479502 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

WPL 538449 WPL 538449 Contact Us For Availability

WPL 542639 WPL 542639 Contact Us For Availability

WPL 799340 WPL 799340 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

NI

Screw (Repair) WPL 488949 Contact Us For Availability
