Model Whirlpool KGCD807XSS02 GAS COOKTOP – Common Parts & Diagrams
02 - COOKTOP PARTS
05 - OPTIONAL PARTS

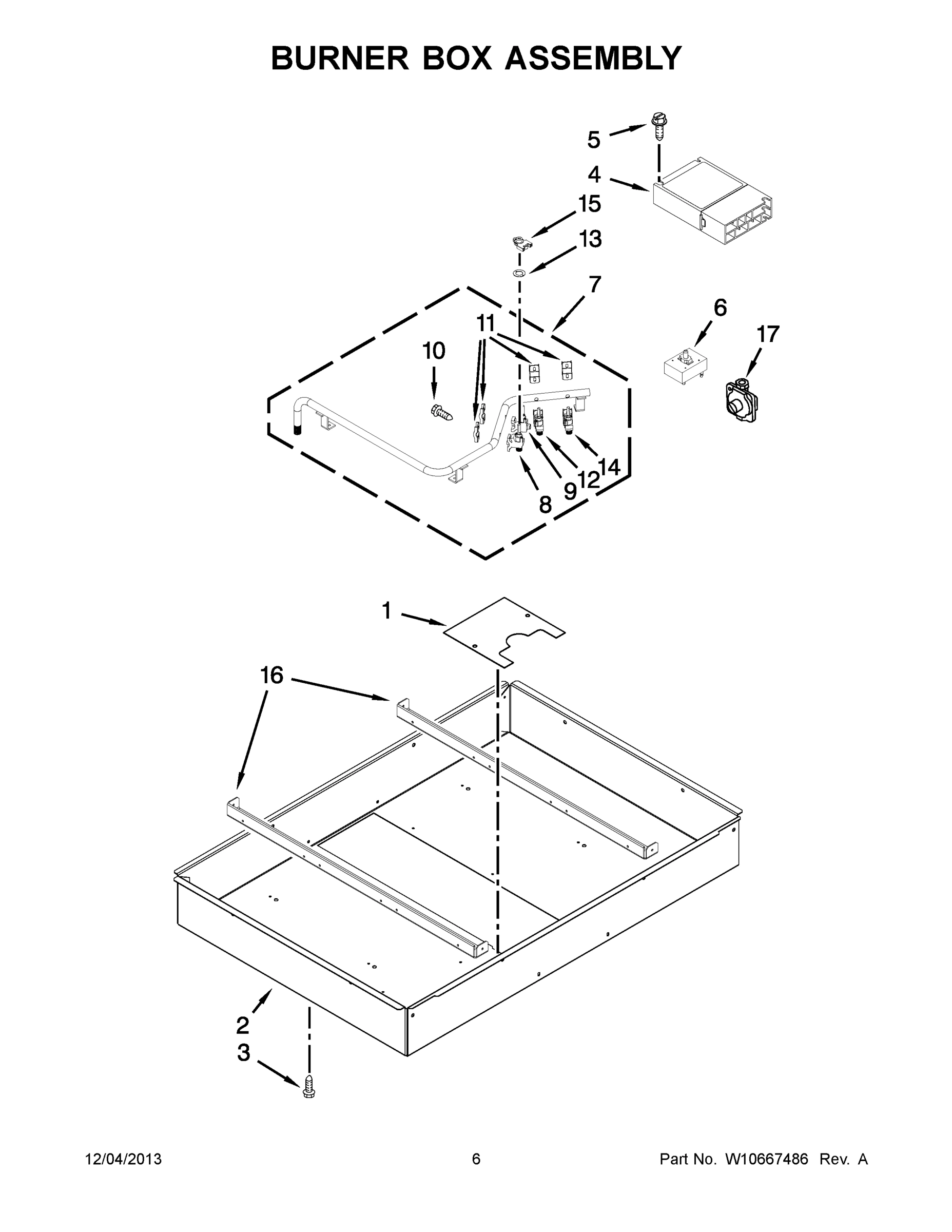

04 - BURNER BOX ASSEMBLY

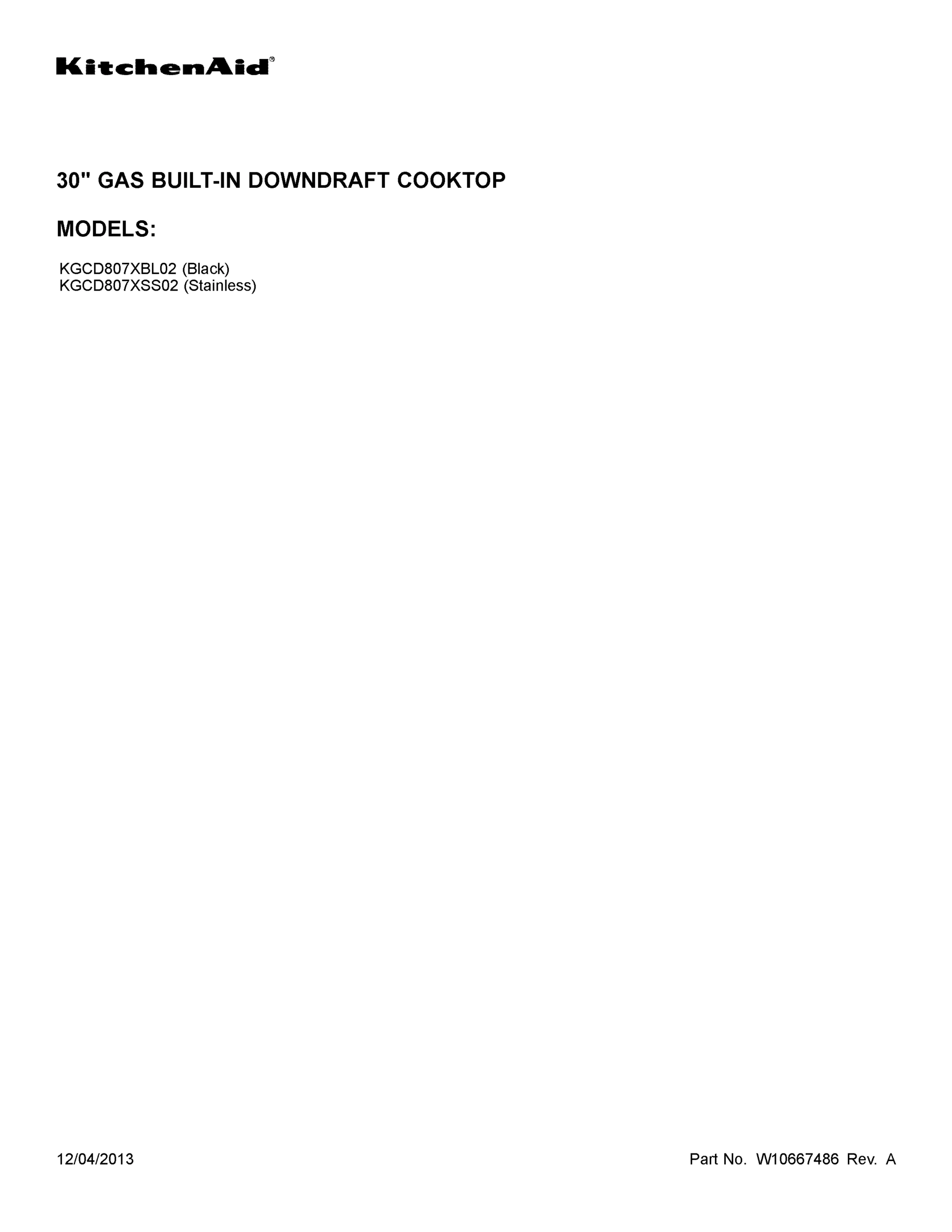

01 - COVER SHEET

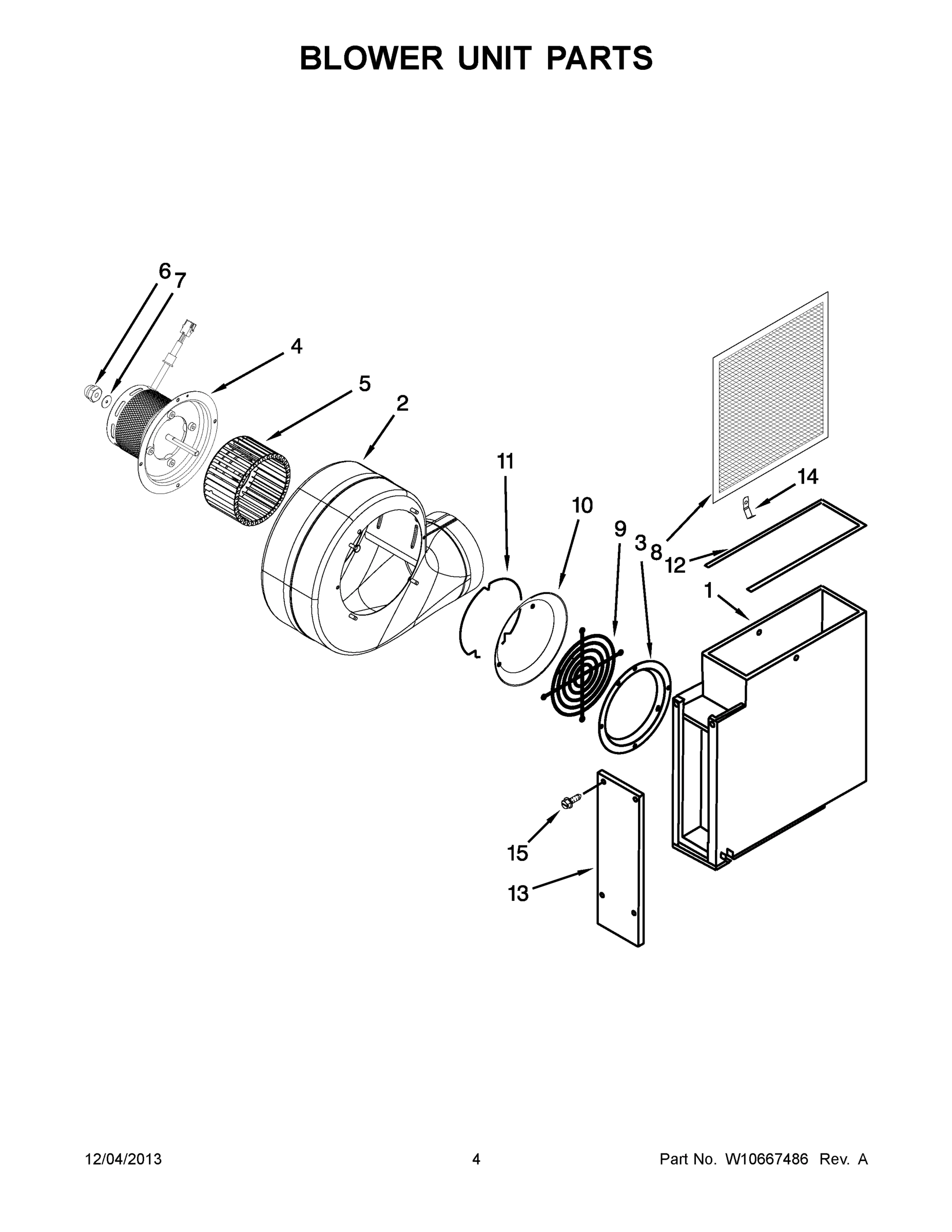

03 - BLOWER UNIT PARTS
Common parts from model Whirlpool KGCD807XSS02 GAS COOKTOP
1
INSULATOR, BAFFLE WPL 7003P14960 Contact Us For Availability
1
ASSEMBLY,PLENUM WPL 2801W03680 Contact Us For Availability
2
BOX, BURNER WPL W10498372 Contact Us For Availability
2
ASSEMBLY, SCROLL WPL 2822W00180 Contact Us For Availability
3
Screw WPL 7101P38860 Contact Us For Availability
3
RING, INLET WPL 4026F00851 Contact Us For Availability
5
SCREW WPL 7101P42660 Contact Us For Availability
5
WHEEL, BLOWER WPL 7114P00560 Contact Us For Availability
6
SWITCH, ROTARY WPL 7450P02860 Contact Us For Availability
6
NUT, LOCK WPL 7103P16260 Contact Us For Availability
7
IGNITOR, COOKTOP WPL 7432P12160 Contact Us For Availability
7
ASSEMBLY, PIPE MANIFOLD WPL 7513P42160 Contact Us For Availability
7
WASHER WPL 7109P08660 Contact Us For Availability
8
VALVE (9.2K) (LEFT FRONT) WPL 7502P50760 Contact Us For Availability
8
FILTER, GREASE WPL 8312P24060 Contact Us For Availability
9
VALVE (5K) (LEFT REAR) WPL 7502P52160 Contact Us For Availability
9
GUARD, BLOWER WPL 8312P15160 Contact Us For Availability
10
ASSEMBLY, GRATE WPL W10296743 Contact Us For Availability
10
SCREW WPL 7101P55060 Contact Us For Availability
10
RING, RESTRICTOR WPL 4026F00951 Contact Us For Availability
11
HOLDER, ORIFICE (RIGHT FRONT) WPL 7527P06660 Contact Us For Availability
11
HOLDER, ORIFICE (RIGHT REAR) WPL 7527P06760 Contact Us For Availability
11
HOLDER, ORIFICE (LEFT FRONT) WPL 7527P06860 Contact Us For Availability
11
HOLDER, ORIFICE (LEFT REAR) WPL 7527P06960 Contact Us For Availability
11
BRACKET, VALVE WPL 8405P02860 Contact Us For Availability
11
RETAINER WPL 8038P00360 Contact Us For Availability
12
TRIM, STAINLESS (REAR) WPL W10168883 Contact Us For Availability
12
TRIM, STAINLESS (FRONT) WPL W10298860 Contact Us For Availability
12
VALVE (9.2K) (RIGHT REAR) WPL 7502P52060 Contact Us For Availability
12
GASKET, PLENUM WPL 7201P14660 Contact Us For Availability
13
GROMMET WPL 8008P07160 Contact Us For Availability
13
GASKET (LEFT) WPL 7201P13560 Contact Us For Availability
13
GASKET (RIGHT) WPL 7201P14460 Contact Us For Availability
13
COVER, PLENUM WPL 4005F64880 Contact Us For Availability
14
BRACKET, ORIFICE SUPPORT WPL 3801F94651 Contact Us For Availability
14
VALVE (17K) (RIGHT FRONT) WPL 7502P50560 Contact Us For Availability
14
RETAINER, FILTER WPL 3804F18850 Contact Us For Availability
15
LOCATOR, GRATE WPL 8008P07560 Contact Us For Availability
15
SWITCH, SPARK (RIGHT) WPL 7403P99860 Contact Us For Availability
15
SWITCH, SPARK (LEFT) WPL 7403P99960 Contact Us For Availability
15
Screw WPL 7101P63460 Contact Us For Availability
16
BRACKET, DOWNDRAFT BRACE WPL 8405P08760 Contact Us For Availability
17
REGULATOR, PRESSURE WPL 7510P09360 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, SPARK WPL W10173472 Contact Us For Availability
NI
WIRING HARNESS PARTS, KIT, LP ORIFICE WPL W10299787 Contact Us For Availability
NI
WIRING HARNESS PARTS, WIRE, GREEN WPL 5112P84260 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, MAIN WPL 5171P50060 Contact Us For Availability
NI
INSULATION, BAFFLE WPL 7002P46260 Contact Us For Availability
NI
WIRING HARNESS PARTS, SCREW WPL 7101P46060 Contact Us For Availability
NI
SEAL, MANIFOLD PIPE INLET WPL 7208P02460 Contact Us For Availability
NI
WIRING HARNESS PARTS, CORD, POWER WPL 7402P08760 Contact Us For Availability
NI
WIRING HARNESS PARTS, RELIEF, STRAIN WPL 8019P01860 Contact Us For Availability
× ![]()
