Model Whirlpool KEMS377DBL6 – Common Parts & Diagrams

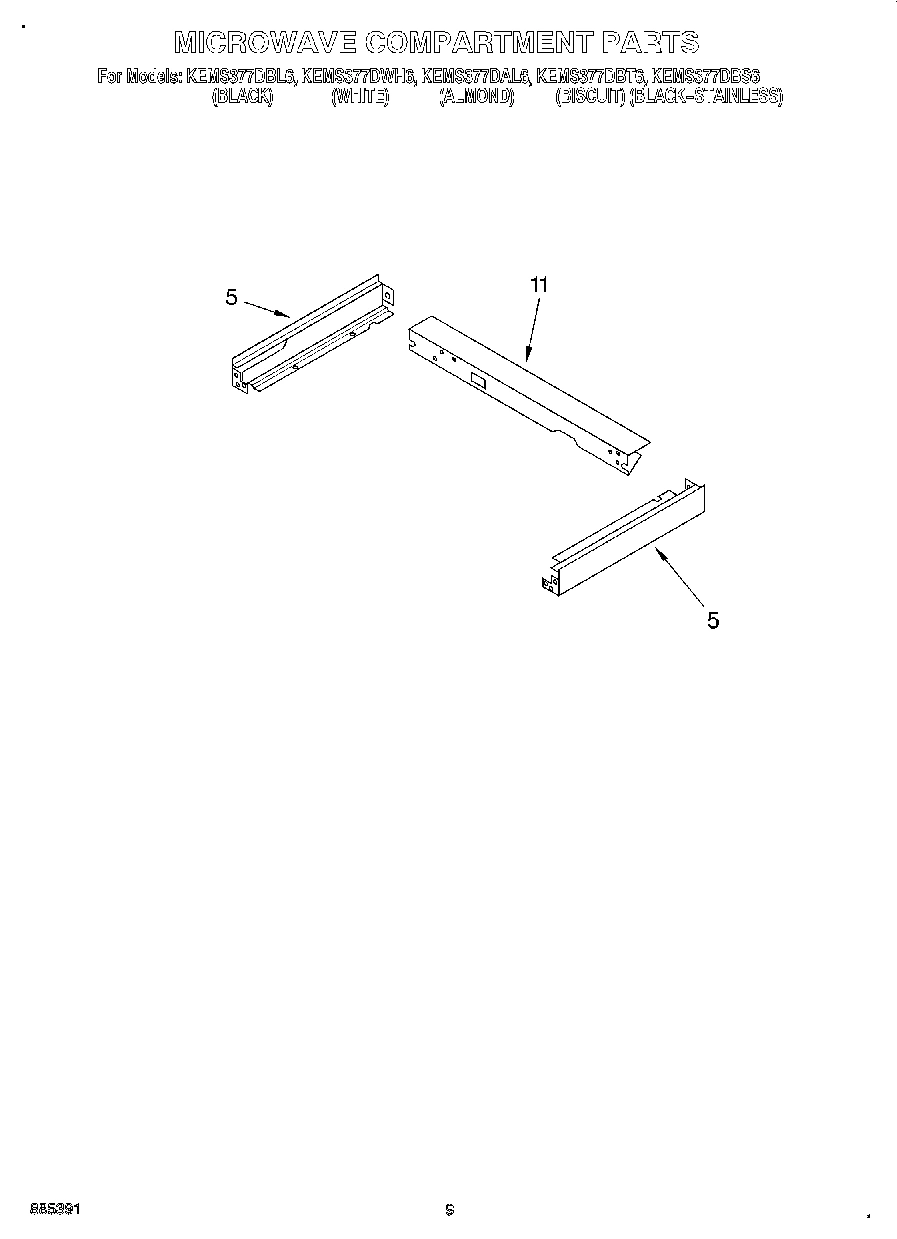

07 - MICROWAVE COMPARTMENT

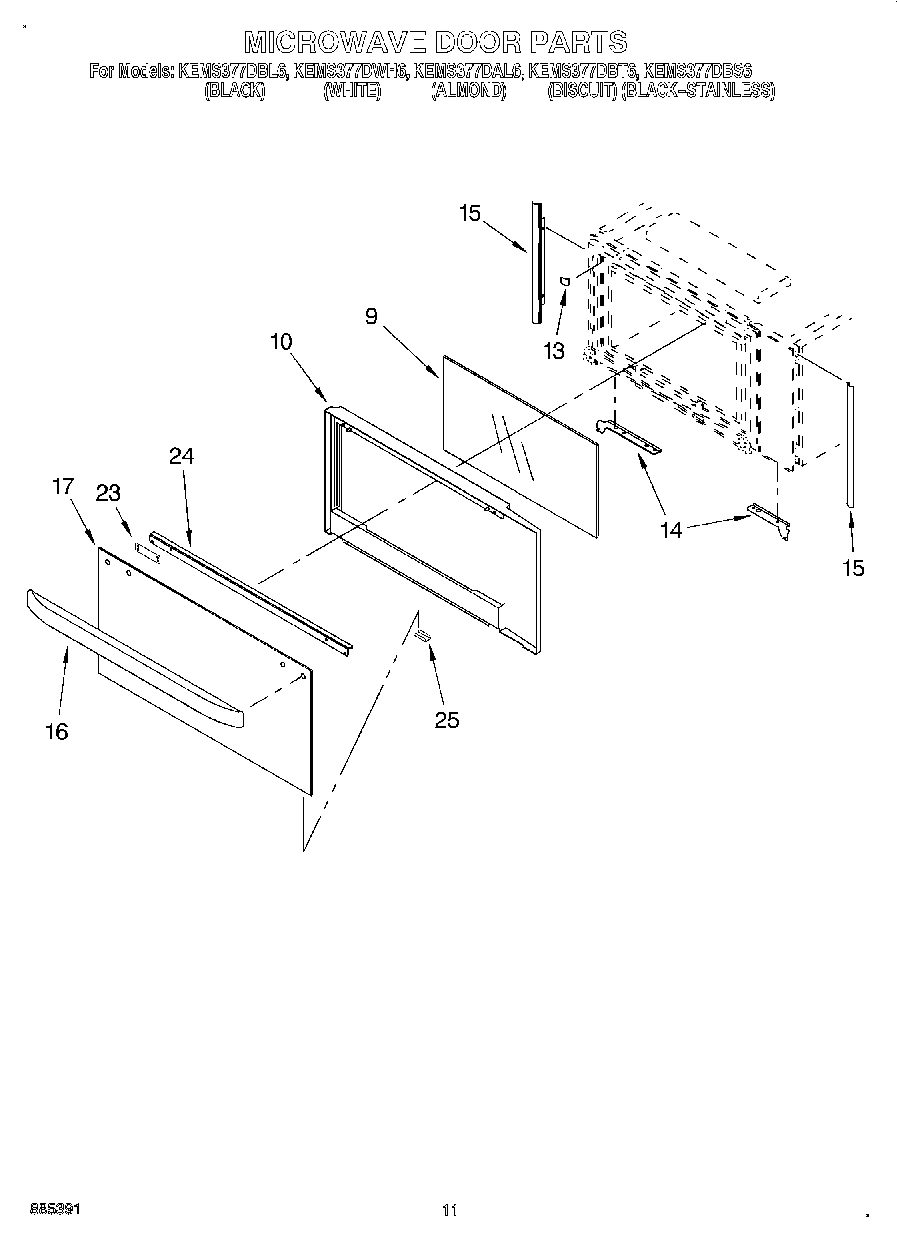

09 - MICROWAVE DOOR, OPTIONAL

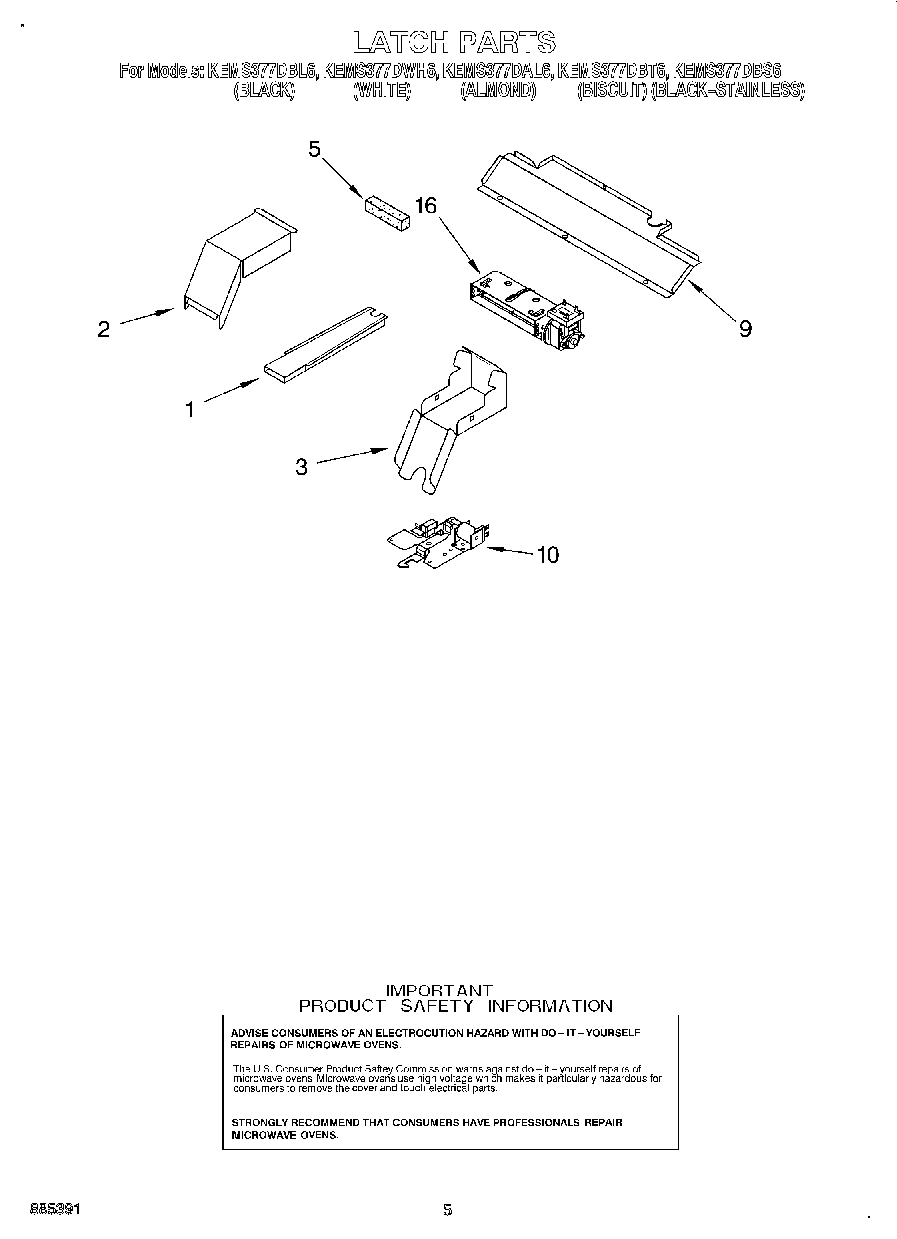

04 - LATCH

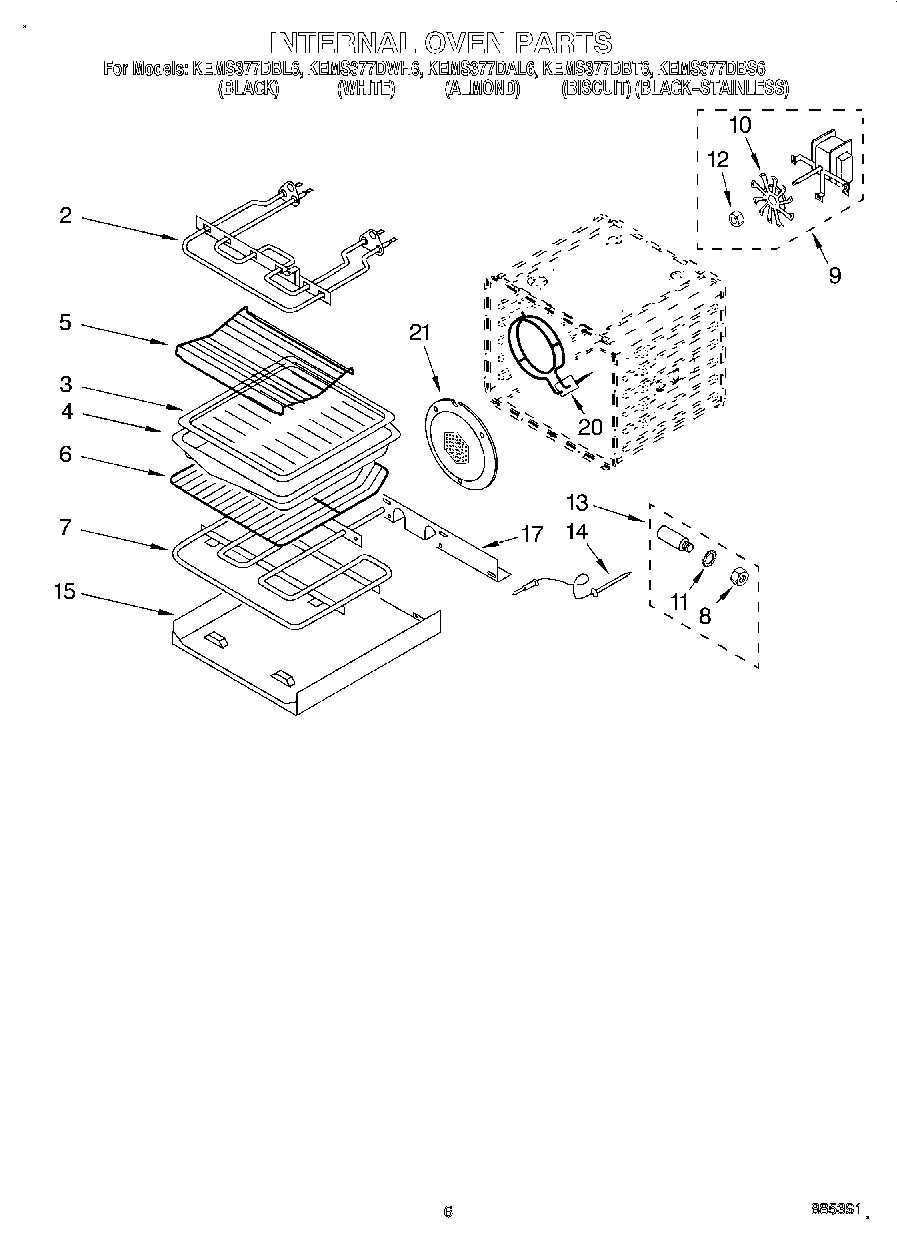

05 - INTERNAL OVEN

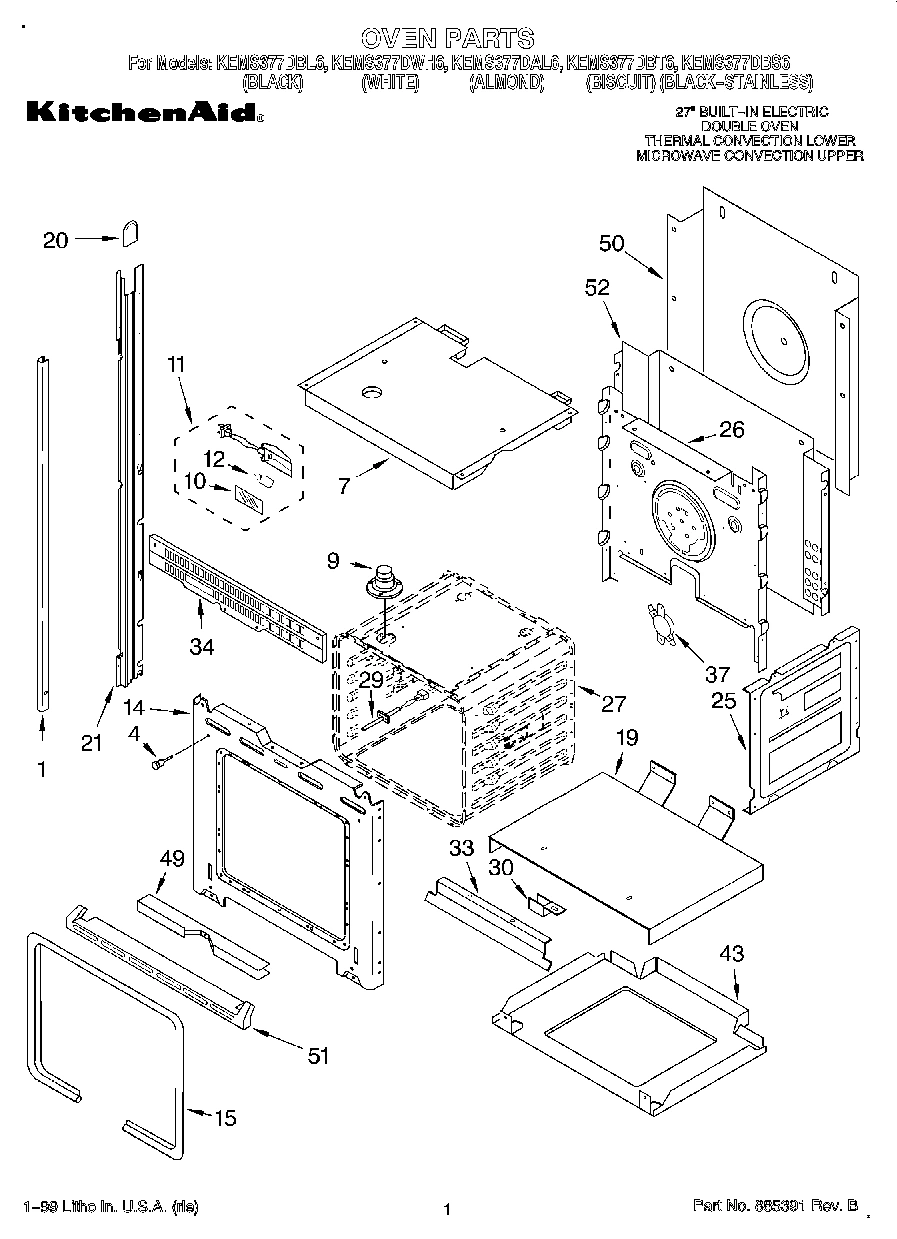

01 - OVEN

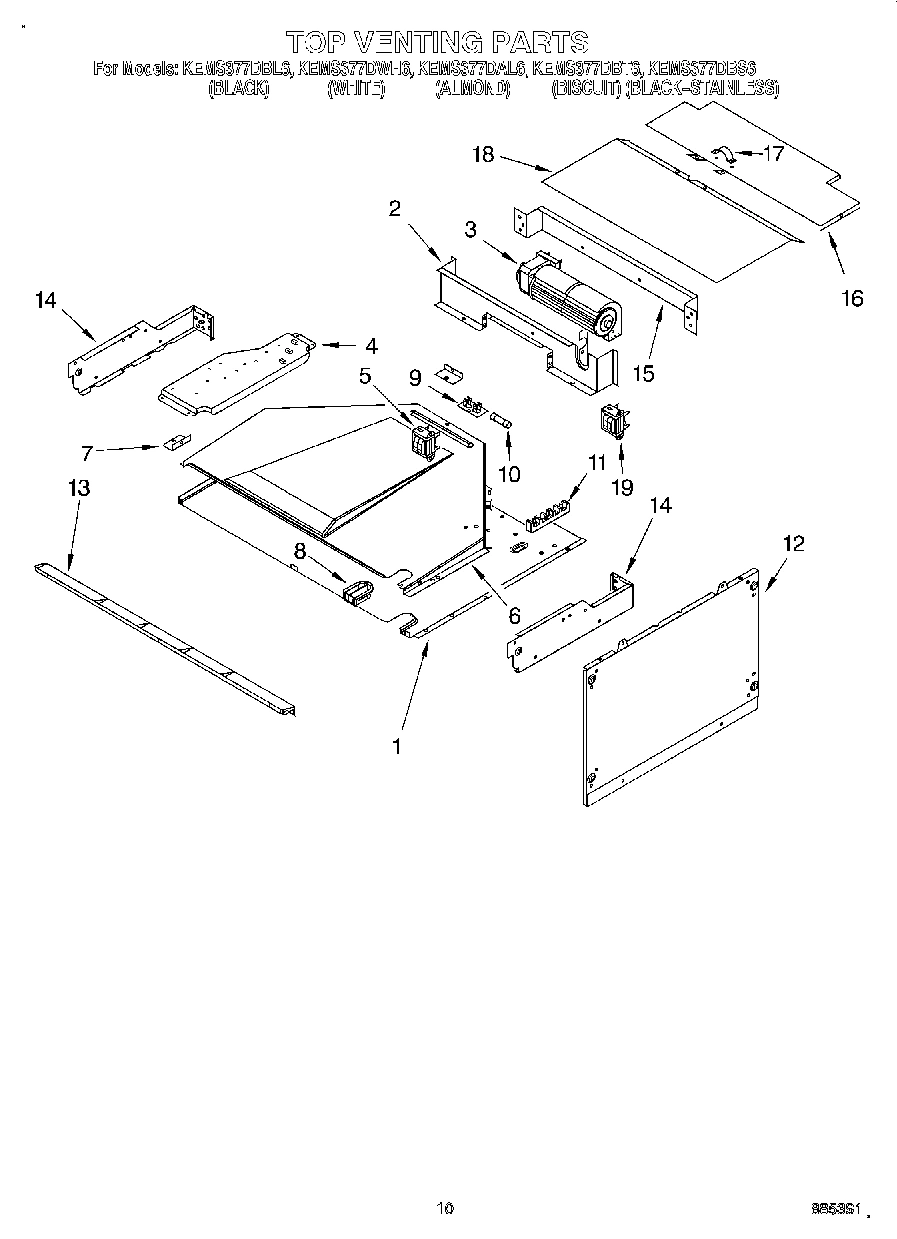

08 - TOP VENTING

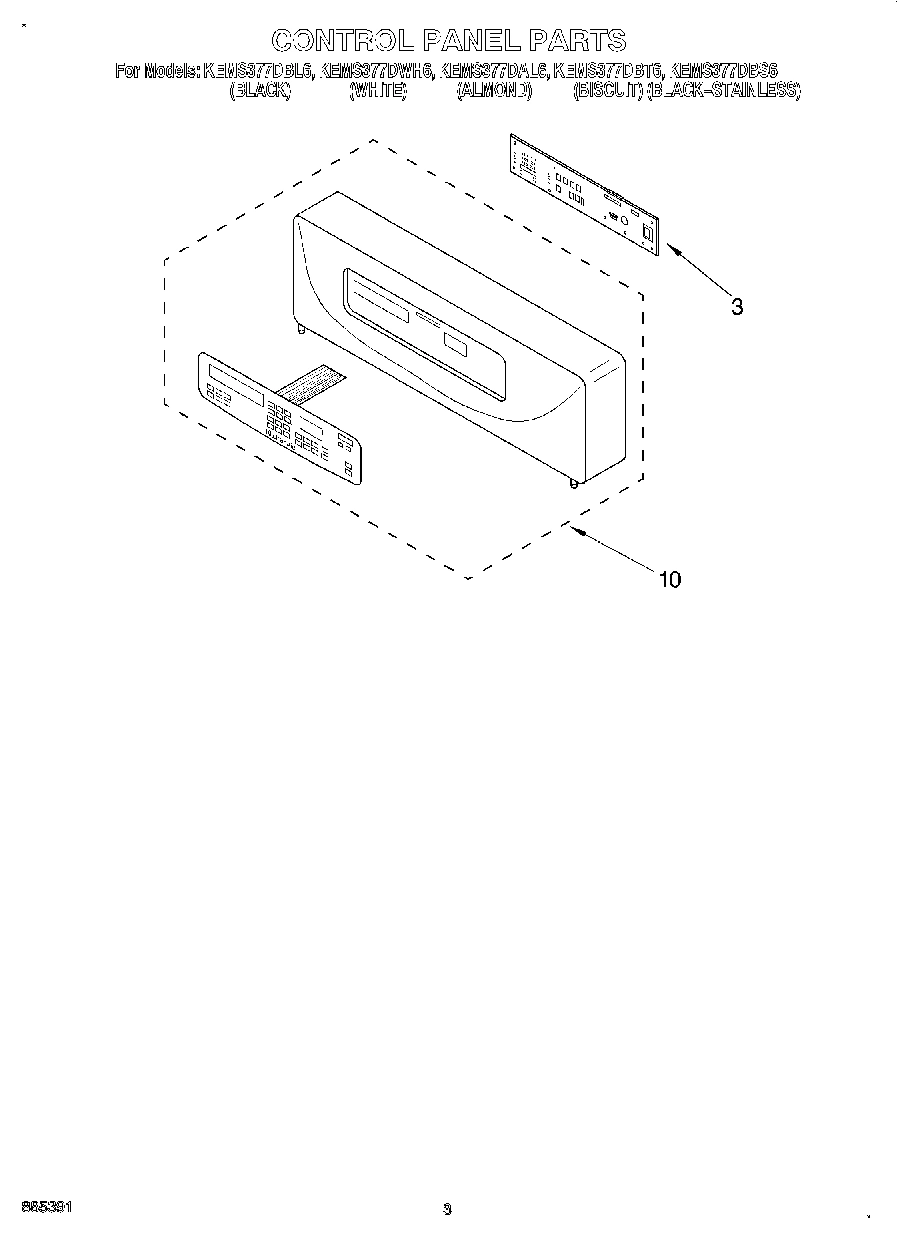

02 - CONTROL PANEL, LITERATURE

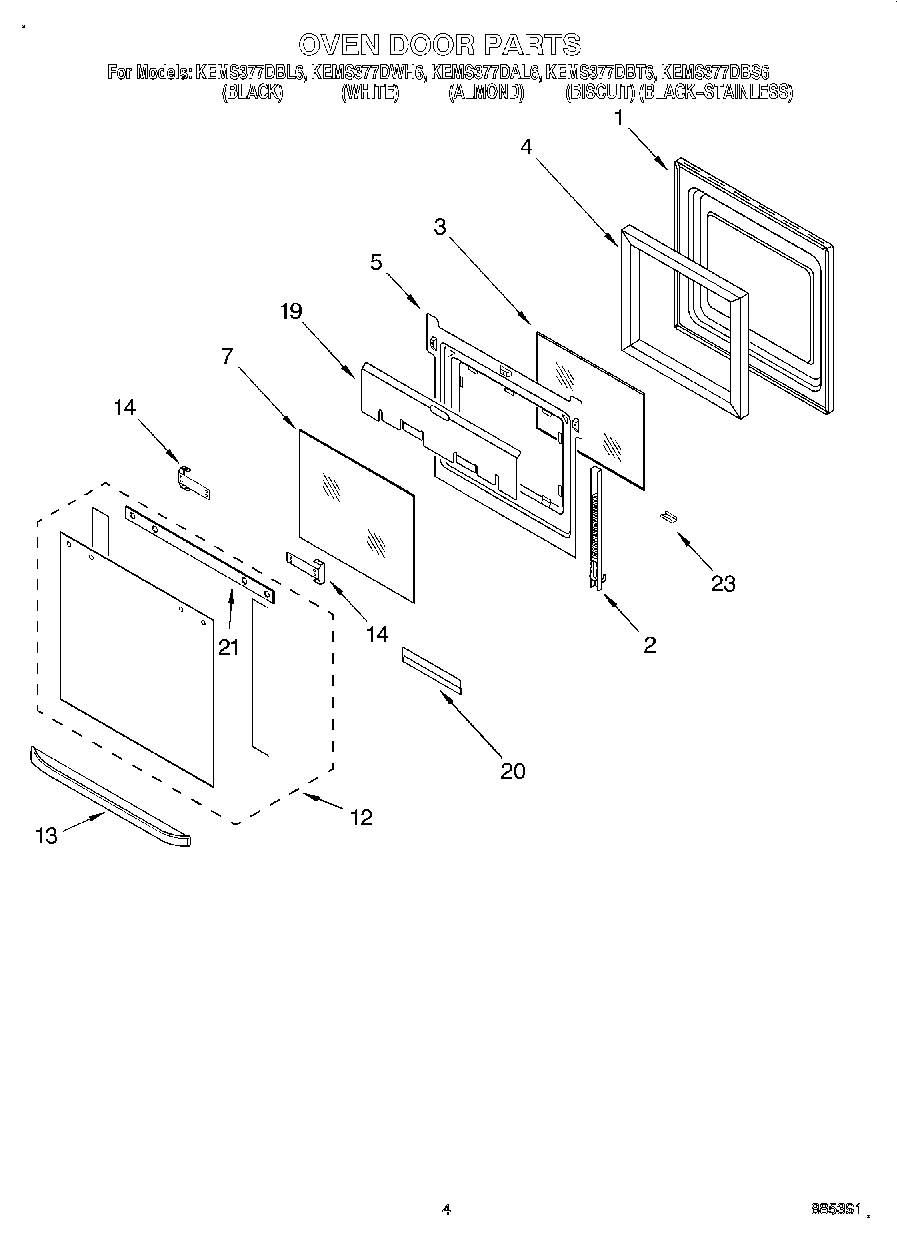

03 - OVEN DOOR

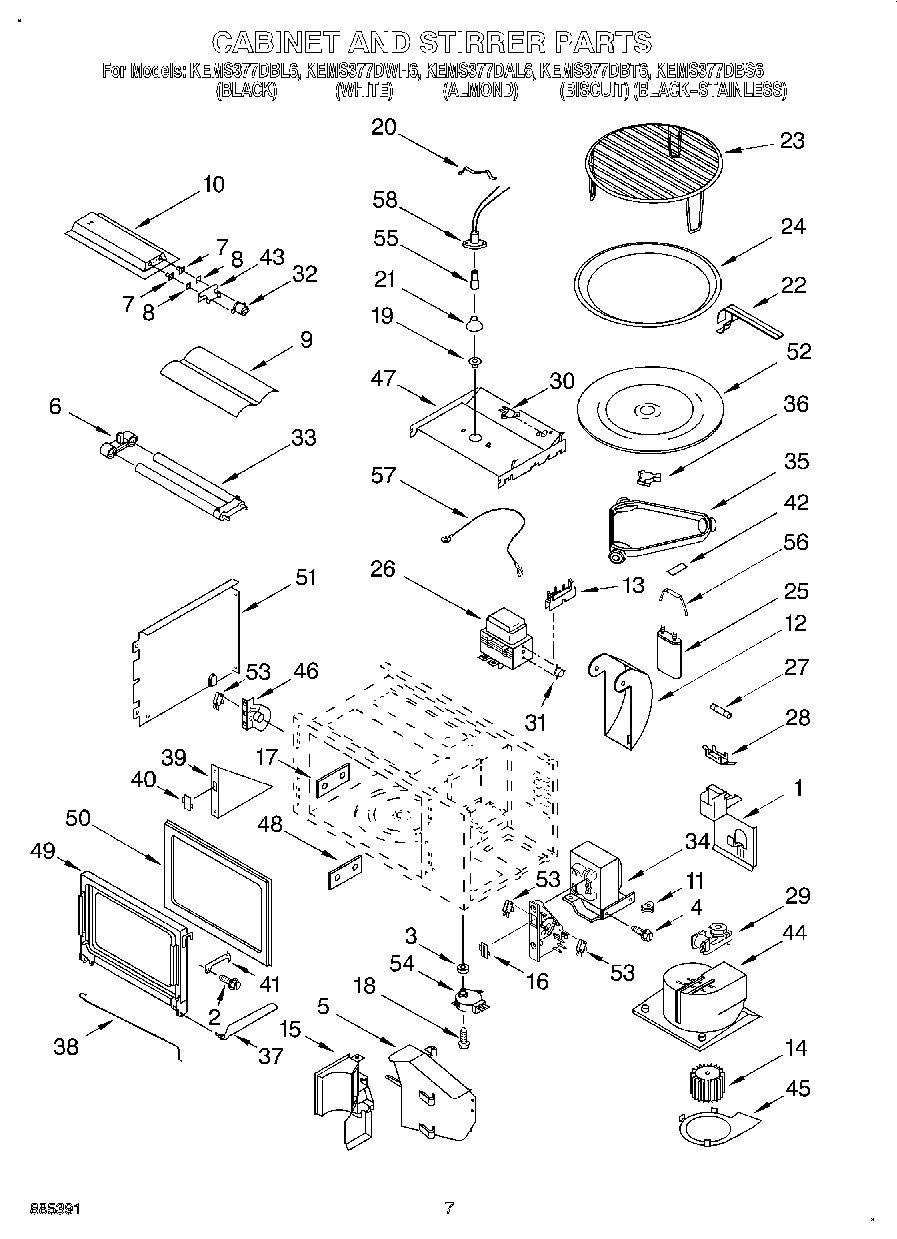

06 - CABINET AND STIRRER
Common parts from model Whirlpool KEMS377DBL6
Safer Cooking Tips WPL LIT3191638 Contact Us For Availability
Cookbook, T/C Oven WPL LIT4449066 Contact Us For Availability
Easy Set Guide (Oven) WPL LIT4449264 Contact Us For Availability
Installation Instructions WPL LIT4450412 Contact Us For Availability
Cooking Guide (Label) WPL LIT4450786 Contact Us For Availability
Guide, Easy Use (Microwave) WPL LIT4451052 Contact Us For Availability
Use & Care Guide (Oven) WPL LIT4451399 Contact Us For Availability
Use & Care Guide (Microwave) WPL LIT4451400 Contact Us For Availability
Tech Sheet (Oven) WPL LIT4452028 Contact Us For Availability
1
Trim, Side (RH White) WPL 4450857 Contact Us For Availability
1
Trim, Side (RH Almond) WPL 4450858 Contact Us For Availability
1
Trim, Side (LH Black) WPL 4450859 Contact Us For Availability
1
Trim, Side (LH White) WPL 4450860 Contact Us For Availability
1
Trim, Side (LH Almond) WPL 4450861 Contact Us For Availability
1
Trim, Side (RH Biscuit) WPL 4452124 Contact Us For Availability
1
Trim, Side (LH Biscuit) WPL 4452125 Contact Us For Availability
1
Cover, Top WPL 4450377 Contact Us For Availability
1
Door Liner WPL 4451718 Contact Us For Availability
1
Bracket, Capacitor WPL 4375299 Contact Us For Availability
2
Baffle, Blower WPL 4448935 Contact Us For Availability
2
Screw WPL 4375313 Contact Us For Availability
3
Microcomputer WPL 4448869 Contact Us For Availability
3
Blower WPL 4450920 Contact Us For Availability
3
Rubber Ring WPL 4375037 Contact Us For Availability
4
Insulation, Door WPL 4451721 Contact Us For Availability
4
Plate, Mounting Transformer WPL 4451789 Contact Us For Availability
4
Screw WPL 4375038 Contact Us For Availability
5
Retainer, Glass WPL 4451670 Contact Us For Availability
5
Air Duct, Magnetron WPL 4375314 Contact Us For Availability
6
Rack, Oven WPL 4448715 Contact Us For Availability
6
Exhaust Duct WPL 4450366 Contact Us For Availability
6
Support, Tube WPL 4375253 Contact Us For Availability
7
Top, Chassis WPL 4452236 Contact Us For Availability
7
Bracket, Duct WPL 4450027 Contact Us For Availability
7
Plug, Ceramic WPL 4375254 Contact Us For Availability
8
Grommet WPL 4449964 Contact Us For Availability
8
Bushing WPL 4375255 Contact Us For Availability
9
Convection Motor WPL 4451583 Contact Us For Availability
9
Glass, Middle WPL 4448937 Contact Us For Availability
9
Reflector WPL 4375256 Contact Us For Availability
10
Latch Assembly WPL 4451424 Contact Us For Availability
10
Lens, Light WPL 4452163 Contact Us For Availability
10
Control Panel Assy W/Membrane Switch (Black) WPL 4451060 Contact Us For Availability
10
Control Panel Assy W/Membrane Switch (White M WPL 4451061 Contact Us For Availability
10
Control Panel Assy W/Membrane Switch (Almond WPL 4451062 Contact Us For Availability
10
Control Panel Assy W/Membrane Switch (Biscuit WPL 4452137 Contact Us For Availability
10
Chamber, Reflector WPL 4375257 Contact Us For Availability
11
Damper WPL 4375315 Contact Us For Availability
12
Duct, Inlet WPL 4375260 Contact Us For Availability
12
Side, Combo WPL 4450401 Contact Us For Availability
12
Door Glass, Assy (Black Model) WPL 4452071 Contact Us For Availability
12
Door Glass, Assy (White Model) WPL 4452072 Contact Us For Availability
12
Door Glass, Assy (Almond) WPL 4452073 Contact Us For Availability
12
Door Glass, Assy (Black-Stainless) WPL 4452077 Contact Us For Availability
12
Door Glass, Assy (Biscuit) WPL 4452146 Contact Us For Availability
13
Vent, (Control Panel) WPL 4449764 Contact Us For Availability
13
Door Handle (Black) WPL 4448411 Contact Us For Availability
13
Door Handle (White) WPL 4448412 Contact Us For Availability
13
Door Handle (Almond) WPL 4448413 Contact Us For Availability
13
Door Handle (Biscuit) WPL 4452128 Contact Us For Availability
13
Insulation, Switch WPL 4375316 Contact Us For Availability
14
Bracket, Mounting (Right Side) WPL 4449141 Contact Us For Availability
14
Bracket, Mounting (Left Side) WPL 4449142 Contact Us For Availability
14
Bracket, Handle WPL 4450813 Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
14
Frame, Front WPL 4451739 Contact Us For Availability
14
Screw WPL 4451040 Contact Us For Availability
14
Fan Wheel WPL 4375322 Contact Us For Availability
15
Filler, Side WPL 4449083 Contact Us For Availability
15
Back, Control WPL 4452244 Contact Us For Availability
15
Duct, Air WPL 4375317 Contact Us For Availability
16
Cover, Top Rear WPL 4450550 Contact Us For Availability
16
Block, Slide WPL 4375264 Contact Us For Availability
17
Cover Plate, Upper WPL 4375248 Contact Us For Availability
18
Cover, Top Front WPL 4450553 Contact Us For Availability
19
Support, Insulation WPL 4451477 Contact Us For Availability
19
Transformer, Control Panel WPL 4451658 Contact Us For Availability
19
Shield, Heat WPL 4450361 Contact Us For Availability
20
Retainer, Glass WPL 4451668 Contact Us For Availability
20
Cap, Spacer WPL 4451605 Contact Us For Availability
21
Seal, Door Top WPL 4451673 Contact Us For Availability
23
RETAINER, GLASS CLIP (BLACK) WPL 4450863 Contact Us For Availability
23
RETAINER,GLASS CLIP (WHITE) WPL 4450864 Contact Us For Availability
23
Retainer, Glass-Clip (Almond) WPL 4450865 Contact Us For Availability
23
RETAINER,GLASS CLIP (BISCUIT) WPL 4452119 Contact Us For Availability
23
Rack WPL 4375276 Contact Us For Availability
25
Side, Chassis (R.H. & L.H.) WPL 4454691 Contact Us For Availability
26
Back, Chassis WPL 4452233 Contact Us For Availability
27
Liner, Oven (Not a Serviceable Part) WPL ARI86142A5 Contact Us For Availability
29
Sensor WPL 4451665 Contact Us For Availability
30
Thermostat WPL 4375279 Contact Us For Availability
30
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
32
Thermostat WPL 4375281 Contact Us For Availability
33
Deflector, Vent WPL 4450280 Contact Us For Availability
33
Q Tube Assembly WPL 4375282 Contact Us For Availability
34
Vent, Center WPL 4451666 Contact Us For Availability
35
Ring Assembly WPL 4375344 Contact Us For Availability
36
Cabinet Parts WPL ARI86143A3 Contact Us For Availability
39
Bracket, Hinge (Left) WPL 4375327 Contact Us For Availability
39
Bracket, Hinge (Right) WPL 4375328 Contact Us For Availability
40
Inlet WPL 4375329 Contact Us For Availability
41
Strap, Door WPL 4375330 Contact Us For Availability
42
Grill Plate WPL 4375331 Contact Us For Availability
43
Base, Chassis WPL 4451397 Contact Us For Availability
43
Bracket, Thermostat WPL 4375332 Contact Us For Availability
44
Fan Cap WPL 4375333 Contact Us For Availability
45
Fan Cap Bottom WPL 4375334 Contact Us For Availability
47
Isolation Plate WPL 4375337 Contact Us For Availability
48
Cover Plate (Lower) WPL 4375338 Contact Us For Availability
49
Plate, Door WPL 4375339 Contact Us For Availability
50
Inner Frame WPL 4375340 Contact Us For Availability
51
Trim, Bottom (Screw) WPL 4159465 Contact Us For Availability
51
Trim, Bottom (Black) WPL 4448475 Contact Us For Availability
51
Trim, Bottom (White Model) WPL 4448476 Contact Us For Availability
51
Trim, Bottom (Almond) WPL 4448861 Contact Us For Availability
51
Trim, Bottom (Biscuit Model) WPL 4452414 Contact Us For Availability
51
Plate, Side (Right) WPL 4375341 Contact Us For Availability
51
Plate, Side (Left) WPL 4375342 Contact Us For Availability
52
Insulation, Wrap WPL 4449315 Contact Us For Availability
52
Insulation, Back WPL 4450364 Contact Us For Availability
52
Chassis, Back WPL 4451755 Contact Us For Availability
57
Cable WPL 4375350 Contact Us For Availability
58
Holder, Lamp WPL 4375351 Contact Us For Availability
× ![]()
