Model Whirlpool KEMS307GBT0 – Common Parts & Diagrams

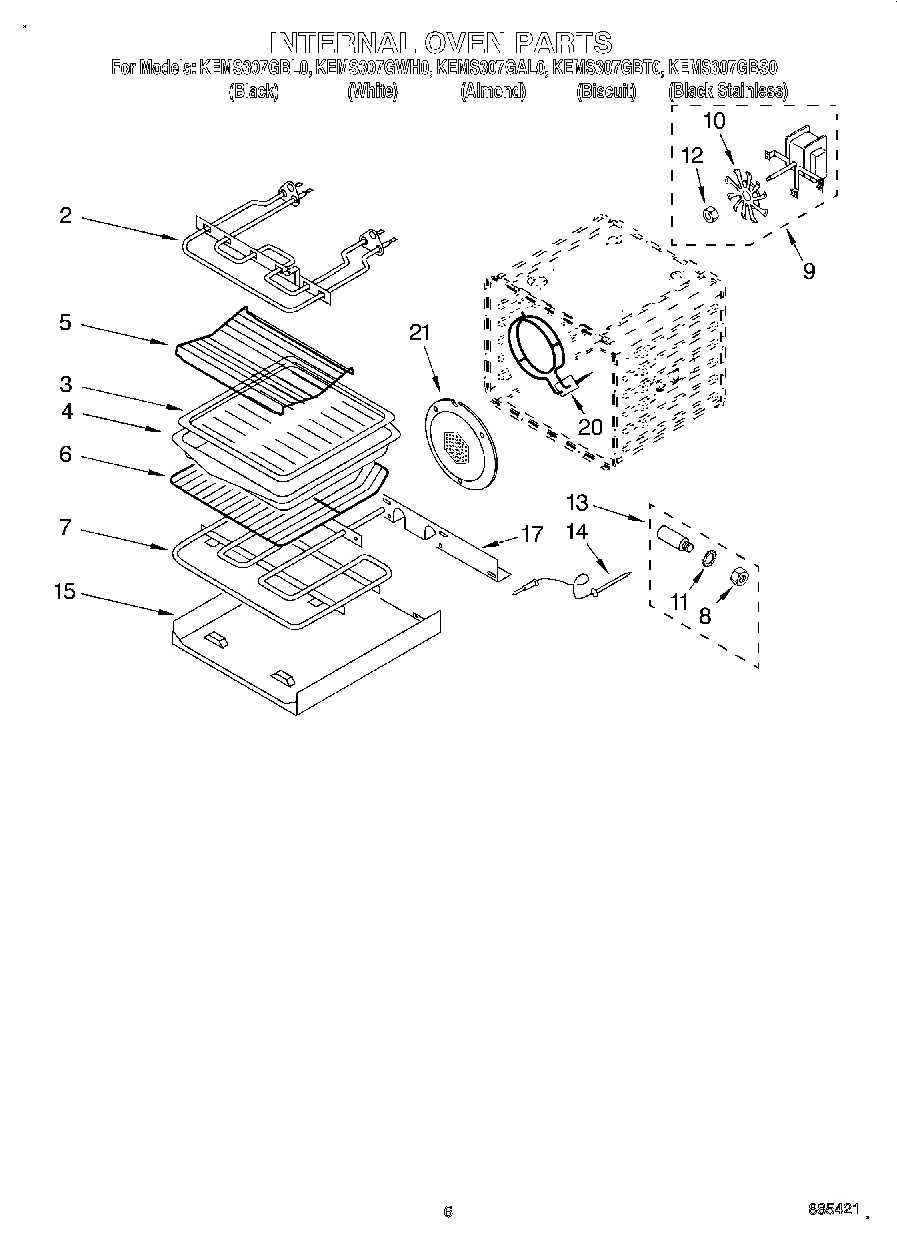

05 - INTERNAL OVEN

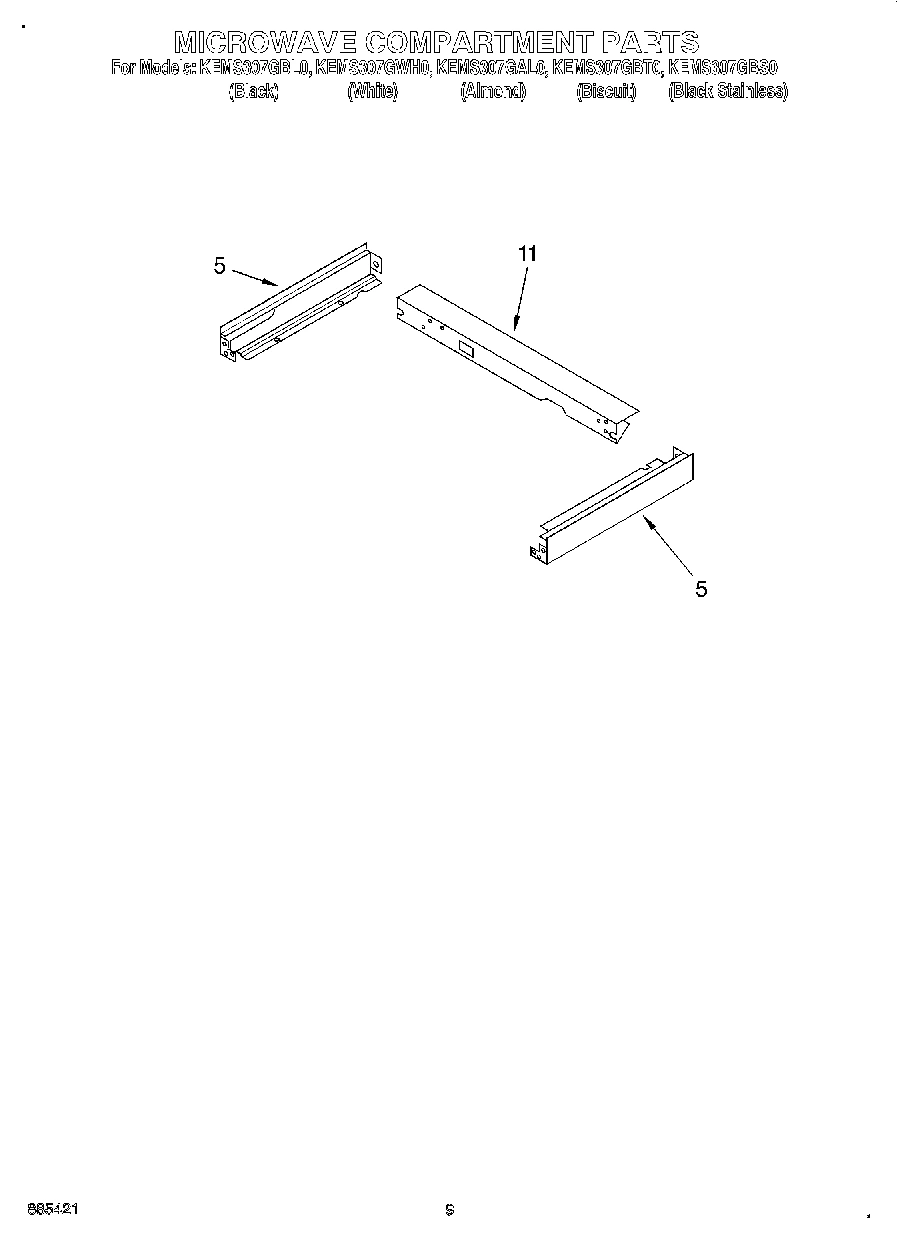

07 - MICROWAVE COMPARTMENT

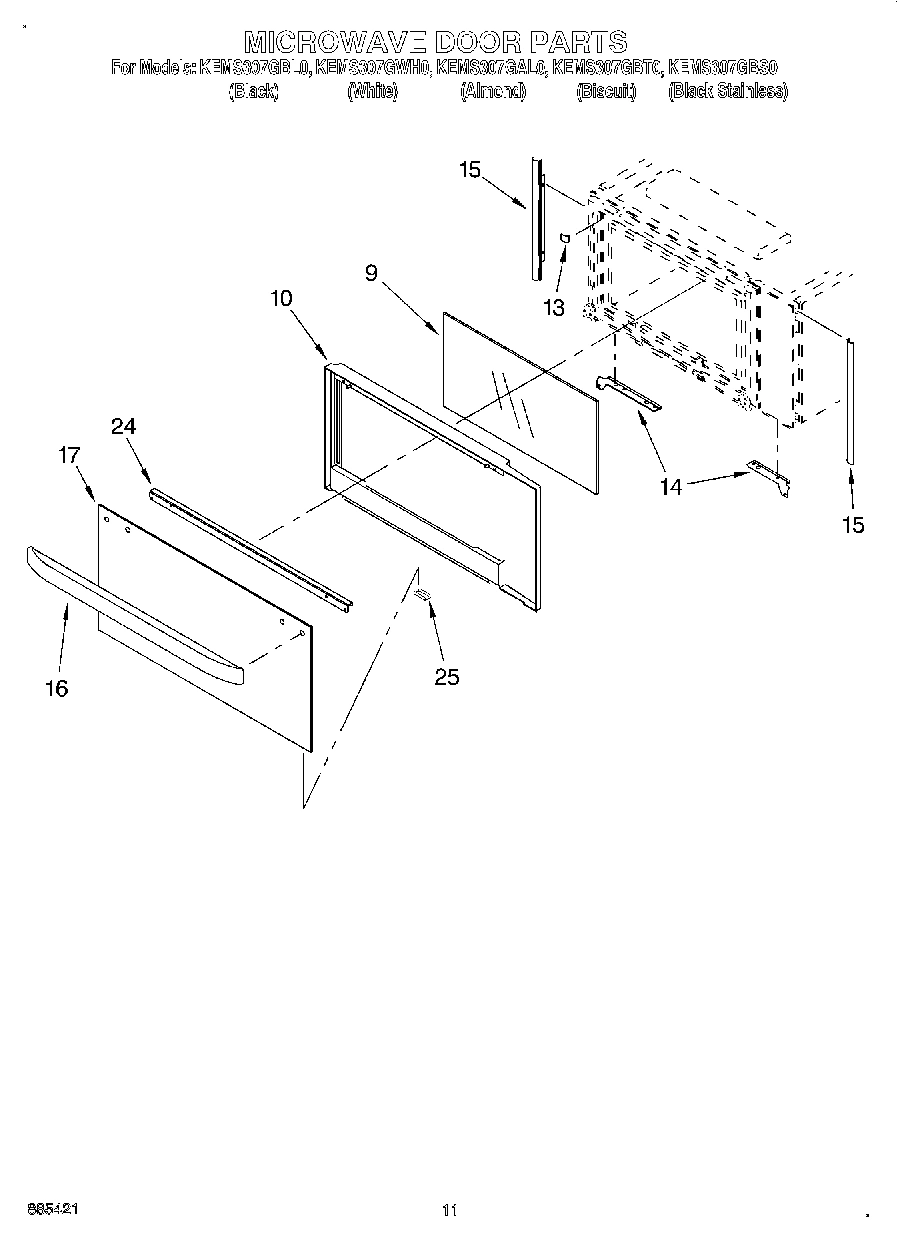

09 - MICROWAVE DOOR, OPTIONAL

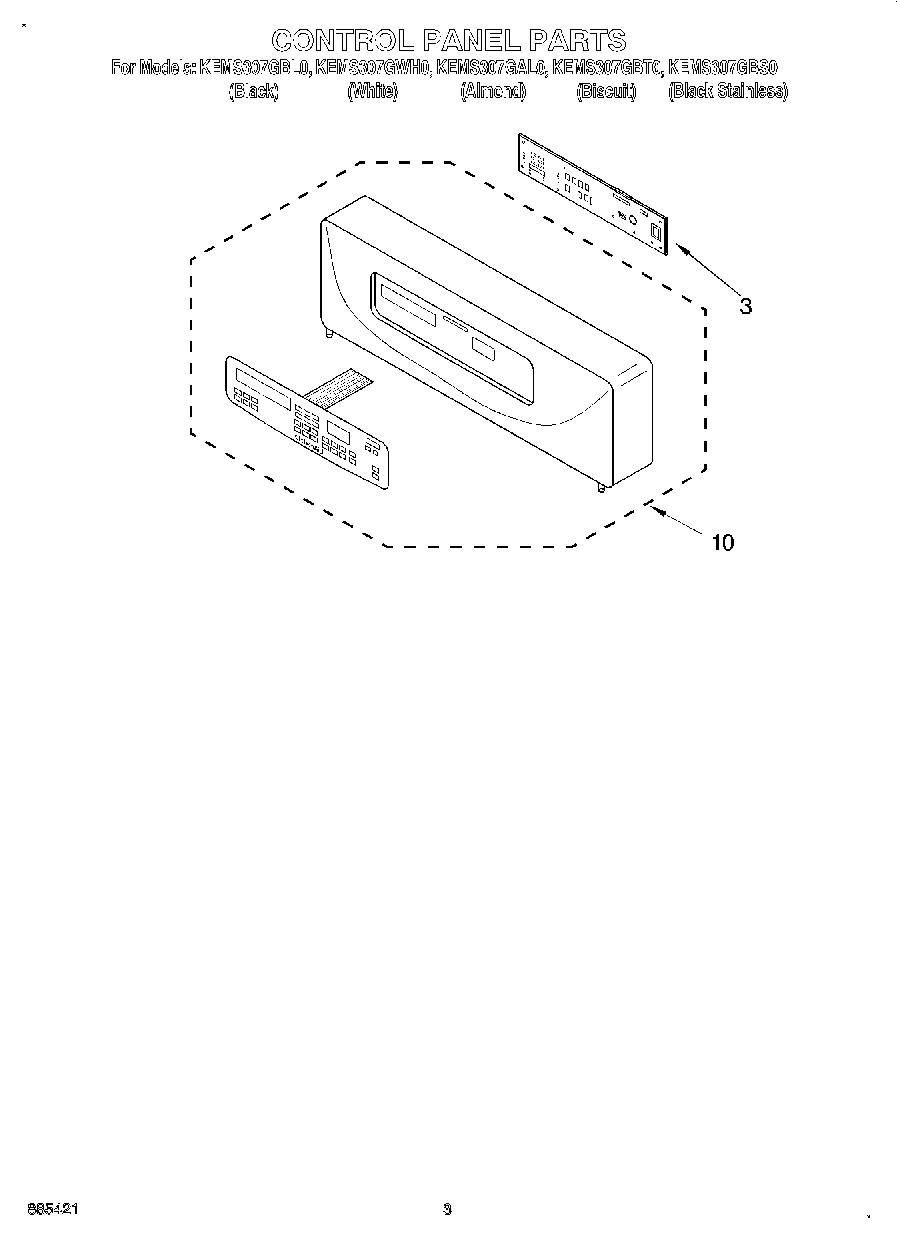

02 - CONTROL PANEL, LITERATURE

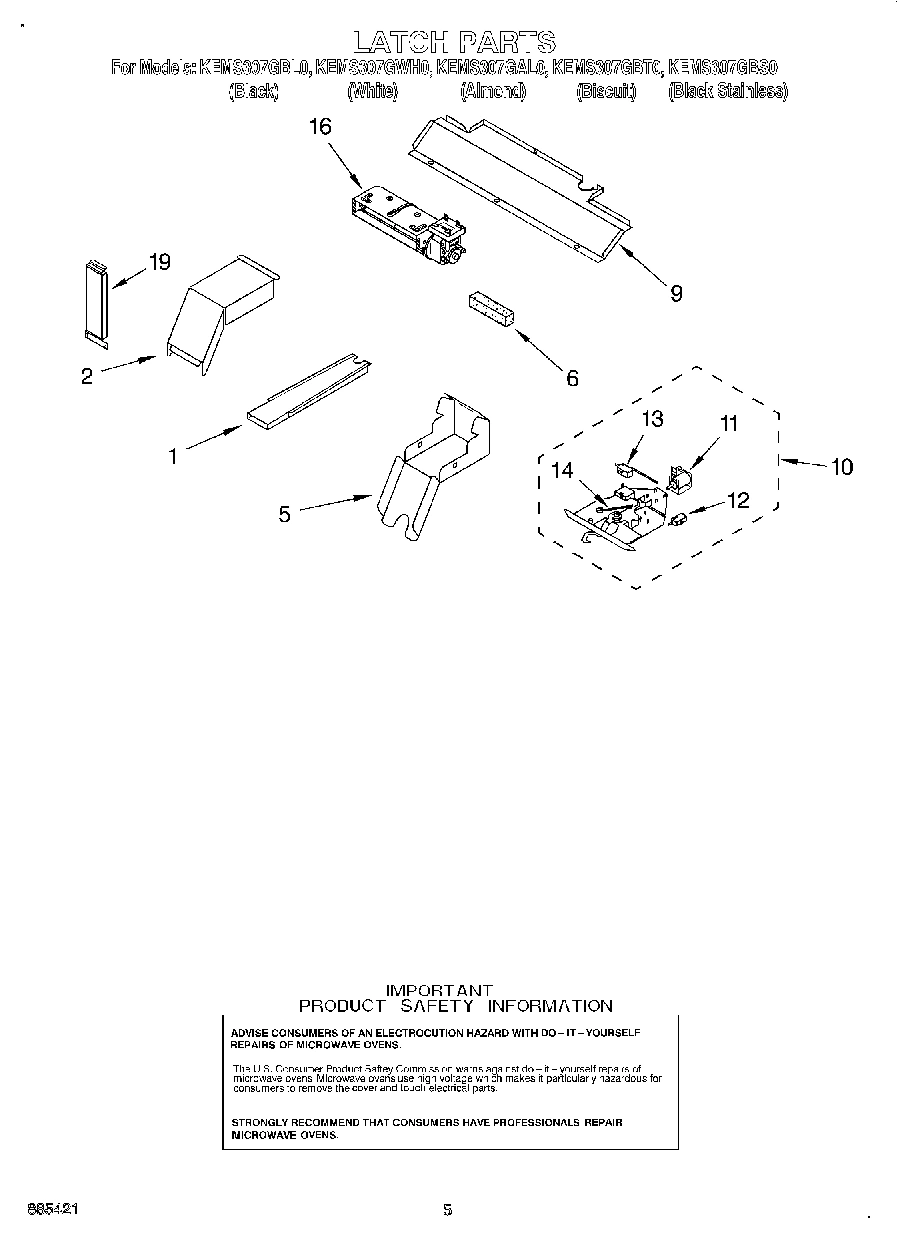

04 - LATCH

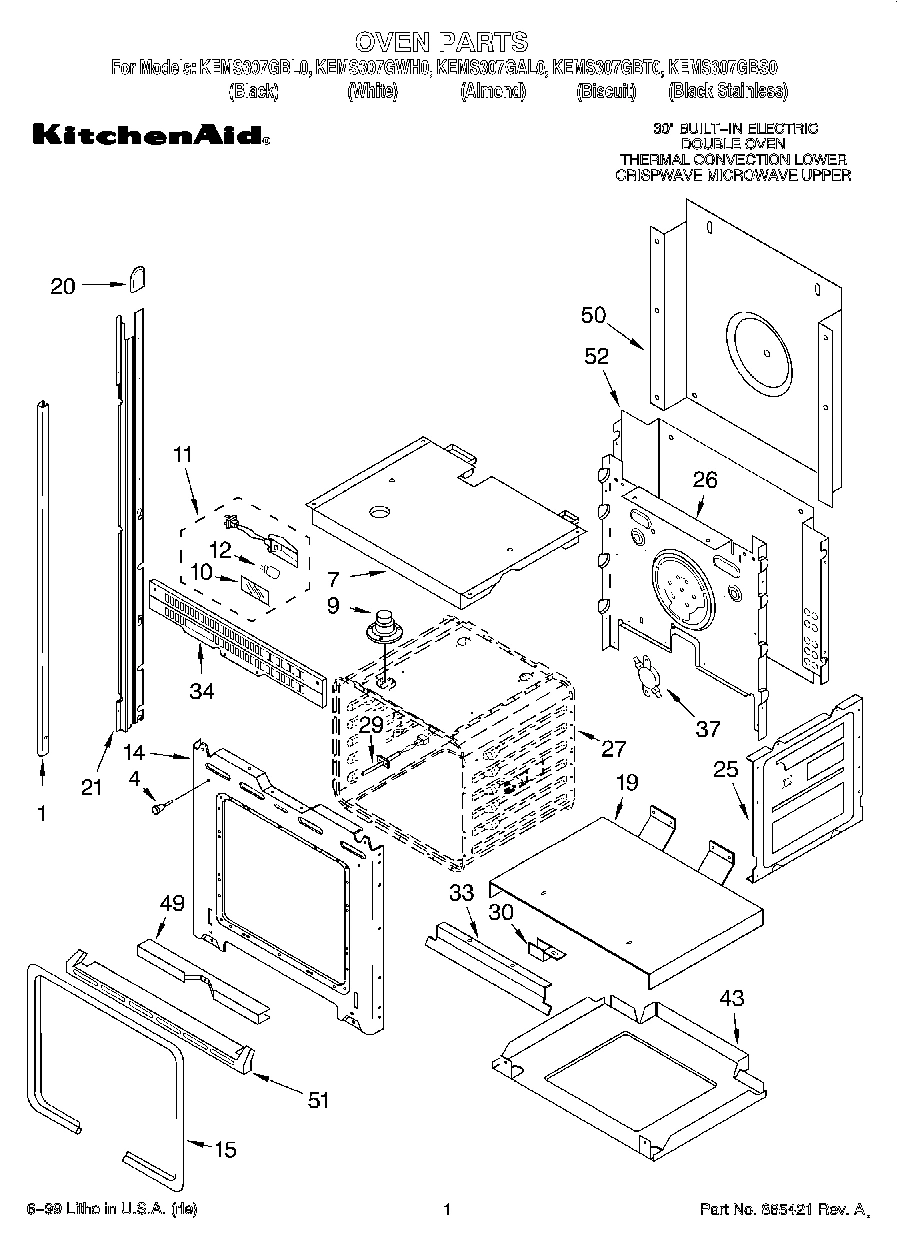

01 - OVEN

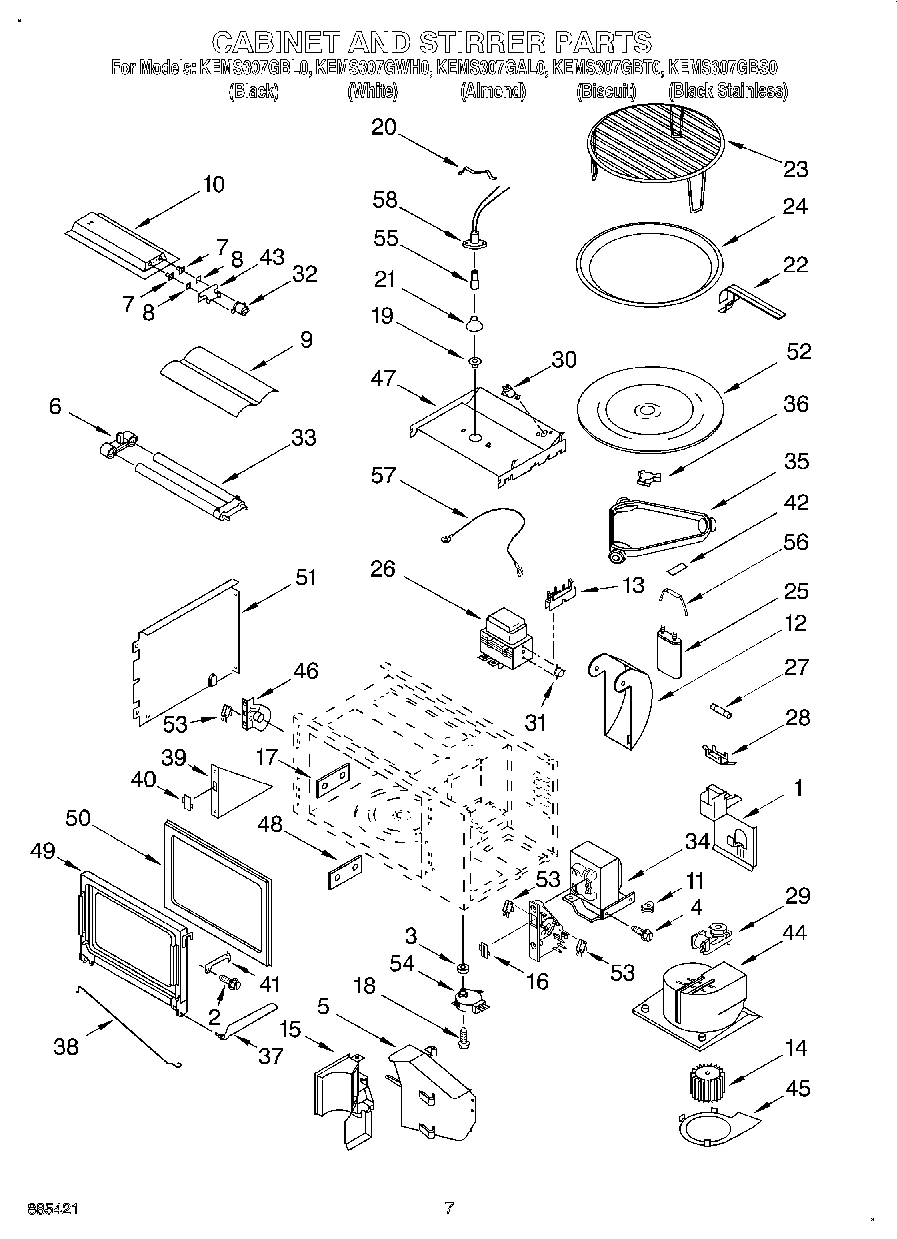

06 - CABINET AND STIRRER

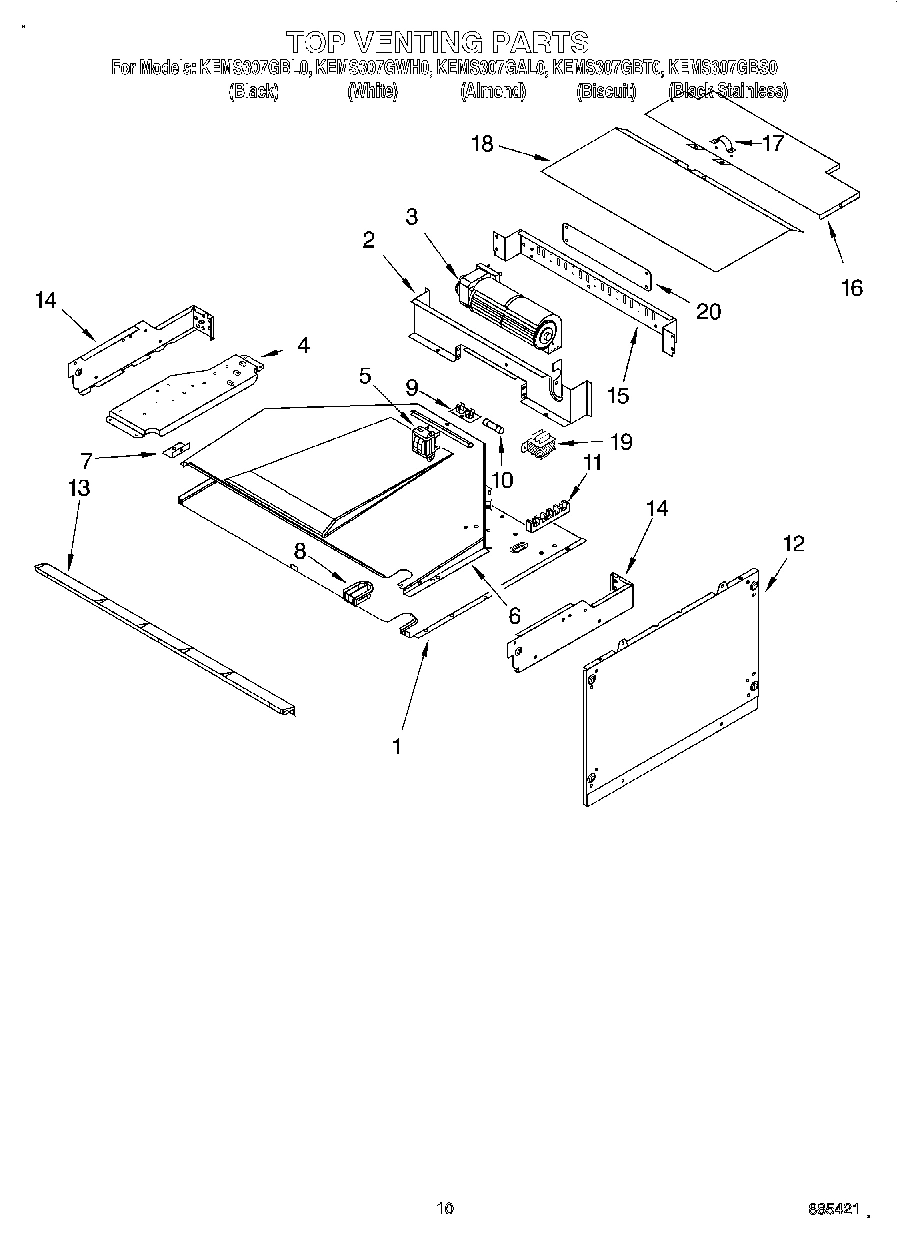

08 - TOP VENTING

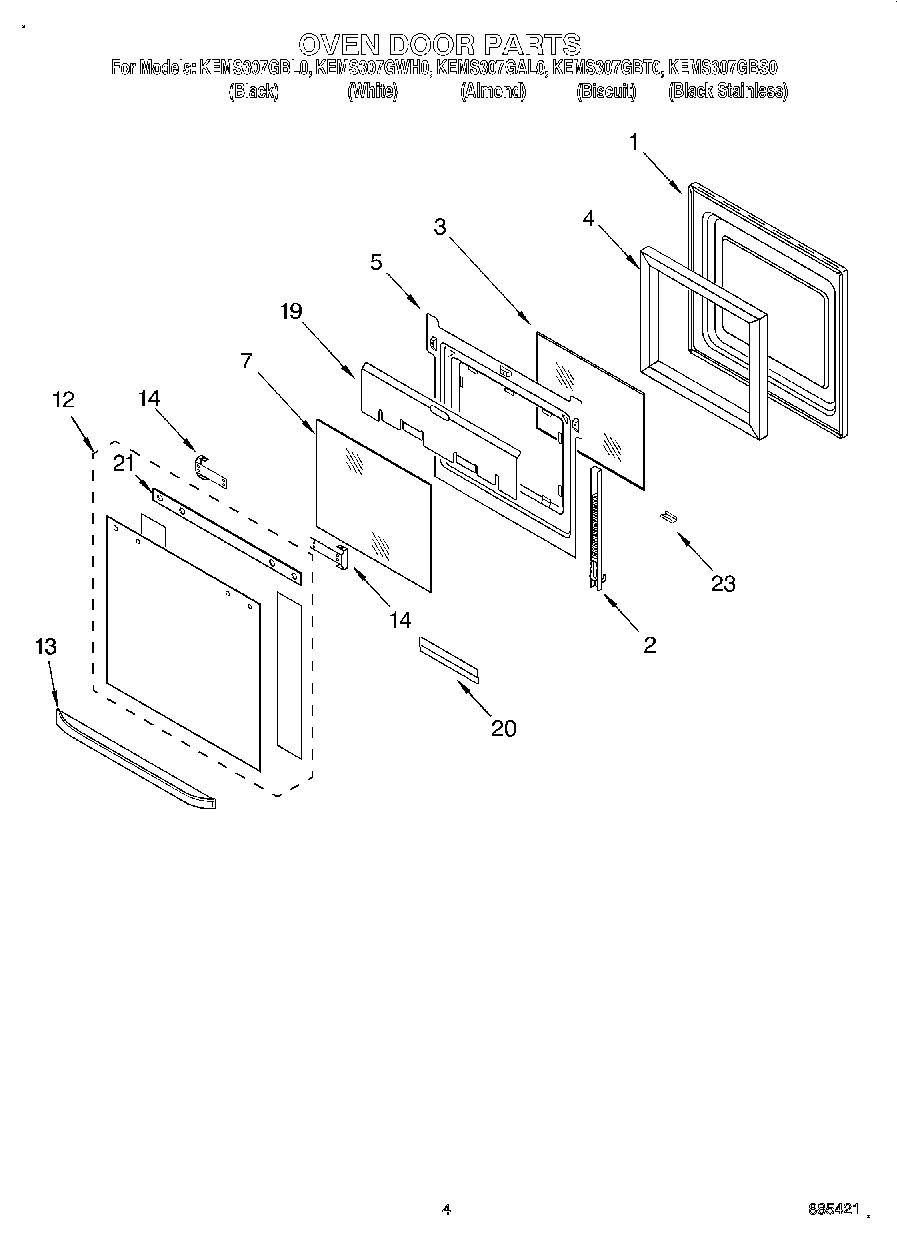

03 - OVEN DOOR
Common parts from model Whirlpool KEMS307GBT0
Cabinet Parts WPL ARI86003A9 Contact Us For Availability
1
Trim, Side (Screw White) WPL 4449041 Contact Us For Availability
1
Trim, Side (RH Black) WPL 4450856 Contact Us For Availability
1
Trim, Side (RH White) WPL 4450857 Contact Us For Availability
1
Trim, Side (RH Almond) WPL 4450858 Contact Us For Availability
1
Trim, Side (LH Black) WPL 4450859 Contact Us For Availability
1
Trim, Side (LH White) WPL 4450860 Contact Us For Availability
1
Trim, Side (LH Almond) WPL 4450861 Contact Us For Availability
1
Trim, Side (RH Biscuit) WPL 4452124 Contact Us For Availability
1
Trim, Side (LH Biscuit) WPL 4452125 Contact Us For Availability
1
Bracket, Capacitor WPL 4375299 Contact Us For Availability
1
Cover, Top WPL 4450378 Contact Us For Availability
2
Screw WPL 4375313 Contact Us For Availability
2
Baffle, Blower WPL 4448935 Contact Us For Availability
3
Rubber Ring WPL 4375037 Contact Us For Availability
3
Blower WPL 4450920 Contact Us For Availability
4
Screw WPL 4375038 Contact Us For Availability
4
Plate, Mounting WPL 4451789 Contact Us For Availability
5
Air Duct, Magnetron WPL 4375314 Contact Us For Availability
5
Retainer, Glass WPL 4451671 Contact Us For Availability
6
Support, Tube WPL 4375253 Contact Us For Availability
6
Duct, Exhaust WPL 4451634 Contact Us For Availability
7
Top, Chassis WPL 4452237 Contact Us For Availability
7
Plug, Ceramic WPL 4375254 Contact Us For Availability
7
Bracket, Duct WPL 4450027 Contact Us For Availability
8
Bushing WPL 4375255 Contact Us For Availability
8
Grommet WPL 4449964 Contact Us For Availability
9
Convection Motor WPL 4451583 Contact Us For Availability
9
Glass, Middle WPL 4448937 Contact Us For Availability
9
Baffle, Rear WPL 4450408 Contact Us For Availability
9
Reflector WPL 4375256 Contact Us For Availability
10
Latch Assembly WPL 4451424 Contact Us For Availability
10
Lens, Light WPL 4452163 Contact Us For Availability
10
Chamber, Reflector WPL 4375257 Contact Us For Availability
11
Solenoid WPL 4451663 Contact Us For Availability
11
Damper WPL 4375315 Contact Us For Availability
12
Duct, Inlet WPL 4375260 Contact Us For Availability
12
Micro Switch N.C. WPL 4451422 Contact Us For Availability
12
Side, Combo WPL 4450401 Contact Us For Availability
12
Door Glass, Assy (White Model) WPL 4452075 Contact Us For Availability
12
Door Glass, Assy (Almond Model) WPL 4452076 Contact Us For Availability
12
Door Glass, Assy (Black-Stainless) WPL 4452078 Contact Us For Availability
12
Door Glass, Assy (Biscuit Model) WPL 4452147 Contact Us For Availability
13
Microswitch WPL 4451426 Contact Us For Availability
13
Insulation, Switch WPL 4375316 Contact Us For Availability
13
Vent, (Control Panel) WPL 4449767 Contact Us For Availability
13
Door Handle (Black) WPL 4448414 Contact Us For Availability
13
Handle, Door (White Model) WPL 4448415 Contact Us For Availability
13
Handle, Door (Almond Model) WPL 4448416 Contact Us For Availability
13
Handle, Door (Biscuit) WPL 4452129 Contact Us For Availability
14
Bracket, Mounting (Right Side) WPL 4449141 Contact Us For Availability
14
Bracket, Mounting (Left Side) WPL 4449142 Contact Us For Availability
14
Bracket, Handle WPL 4450813 Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
14
Spring, Latch WPL 4451537 Contact Us For Availability
14
Frame, Front WPL 4451740 Contact Us For Availability
14
Fan Wheel WPL 4375322 Contact Us For Availability
14
Screw WPL 4451040 Contact Us For Availability
15
Filler, Side (Right Side) WPL 4449083 Contact Us For Availability
15
Filler, Side (Left) WPL 4449086 Contact Us For Availability
15
Duct, Air WPL 4375317 Contact Us For Availability
15
Back, Control WPL 4452244 Contact Us For Availability
16
Block, Slide WPL 4375264 Contact Us For Availability
16
Cover, Top Rear WPL 4450551 Contact Us For Availability
17
Cover Plate, Upper WPL 4375248 Contact Us For Availability
19
Extension Filler WPL 4449906 Contact Us For Availability
19
Support, Insulation WPL 4451478 Contact Us For Availability
19
Transformer, Control Panel WPL 4455038 Contact Us For Availability
19
Shield, Heat WPL 4450362 Contact Us For Availability
20
Retainer, Glass WPL 4451668 Contact Us For Availability
20
Cap, Spacer WPL 4451605 Contact Us For Availability
20
Plate, Cover WPL 4452247 Contact Us For Availability
21
Seal, Door Top WPL 4451674 Contact Us For Availability
23
Rack WPL 4375276 Contact Us For Availability
23
RETAINER, GLASS CLIP (BLACK) WPL 4450863 Contact Us For Availability
23
RETAINER,GLASS CLIP (WHITE) WPL 4450864 Contact Us For Availability
23
Retainer, Glass-Clip (Almond) WPL 4450865 Contact Us For Availability
23
RETAINER,GLASS CLIP (BISCUIT) WPL 4452119 Contact Us For Availability
24
Bracket, Handle WPL 4452331 Contact Us For Availability
25
Side, Chassis (R.H. & L.H.) WPL 4454691 Contact Us For Availability
26
Back, Chassis WPL 4452234 Contact Us For Availability
27
Liner, Oven (Not a Serviceable Part) WPL ARI86002A5 Contact Us For Availability
29
Sensor WPL 4451665 Contact Us For Availability
30
Thermostat WPL 4375279 Contact Us For Availability
30
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
32
Thermostat WPL 4375281 Contact Us For Availability
33
Deflector, Vent WPL 4451619 Contact Us For Availability
33
Q Tube Assembly WPL 4375282 Contact Us For Availability
34
Vent, Center WPL 4451667 Contact Us For Availability
35
Ring, Turntable WPL 4375344 Contact Us For Availability
39
Bracket, Hinge (Left) WPL 4375327 Contact Us For Availability
39
Bracket, Hinge (Right) WPL 4375328 Contact Us For Availability
40
Inlet WPL 4375329 Contact Us For Availability
41
Strap, Door WPL 4375330 Contact Us For Availability
42
Plate, Grill WPL 4375331 Contact Us For Availability
43
Base, Chassis WPL 4451398 Contact Us For Availability
43
Bracket WPL 4375332 Contact Us For Availability
44
Fan Cap WPL 4375333 Contact Us For Availability
45
Fan Cap Bottom WPL 4375334 Contact Us For Availability
47
Isolation Plate WPL 4375337 Contact Us For Availability
48
Cover Plate WPL 4375338 Contact Us For Availability
49
Plate, Door WPL 4375339 Contact Us For Availability
50
Inner Frame WPL 4375340 Contact Us For Availability
51
Trim, Bottom (Black) WPL 4448477 Contact Us For Availability
51
Trim, Bottom (Screw) WPL 4159465 Contact Us For Availability
51
Trim, Bottom (White) WPL 4448478 Contact Us For Availability
51
Trim, Bottom (Almond Model) WPL 4448862 Contact Us For Availability
51
Trim, Bottom (Biscuit) WPL 4452415 Contact Us For Availability
51
Side Plate (Left) WPL 4375341 Contact Us For Availability
51
Side Plate (Right) WPL 4375342 Contact Us For Availability
52
Insulation, Back WPL 4450365 Contact Us For Availability
52
Chassis, Back WPL 4451756 Contact Us For Availability
57
Cable WPL 4375350 Contact Us For Availability
58
Holder, Lamp WPL 4375351 Contact Us For Availability
× ![]()
