Model Whirlpool KEMS307DWH6 – Common Parts & Diagrams
01 - OVEN
02 - CONTROL PANEL, LITERATURE

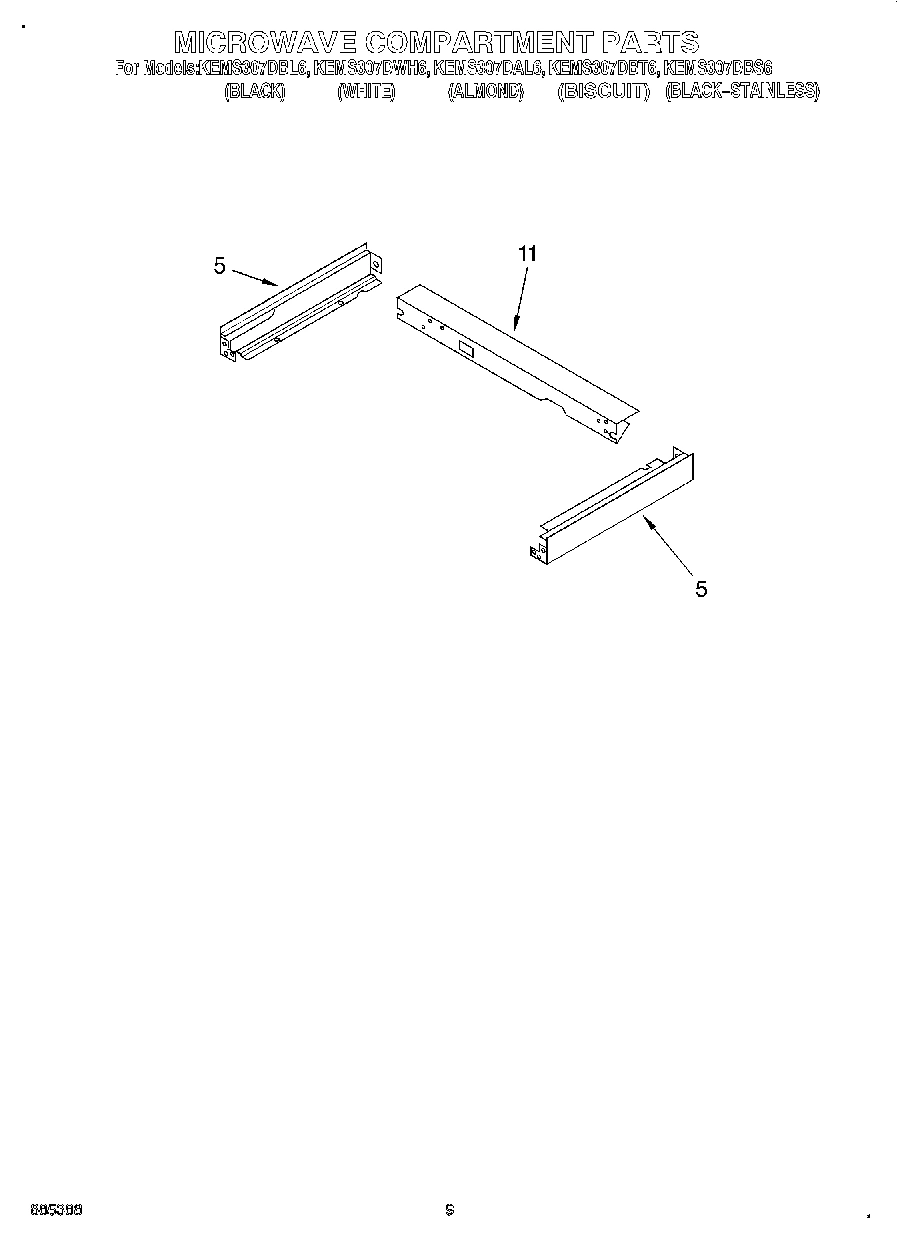

07 - MICROWAVE COMPARTMENT

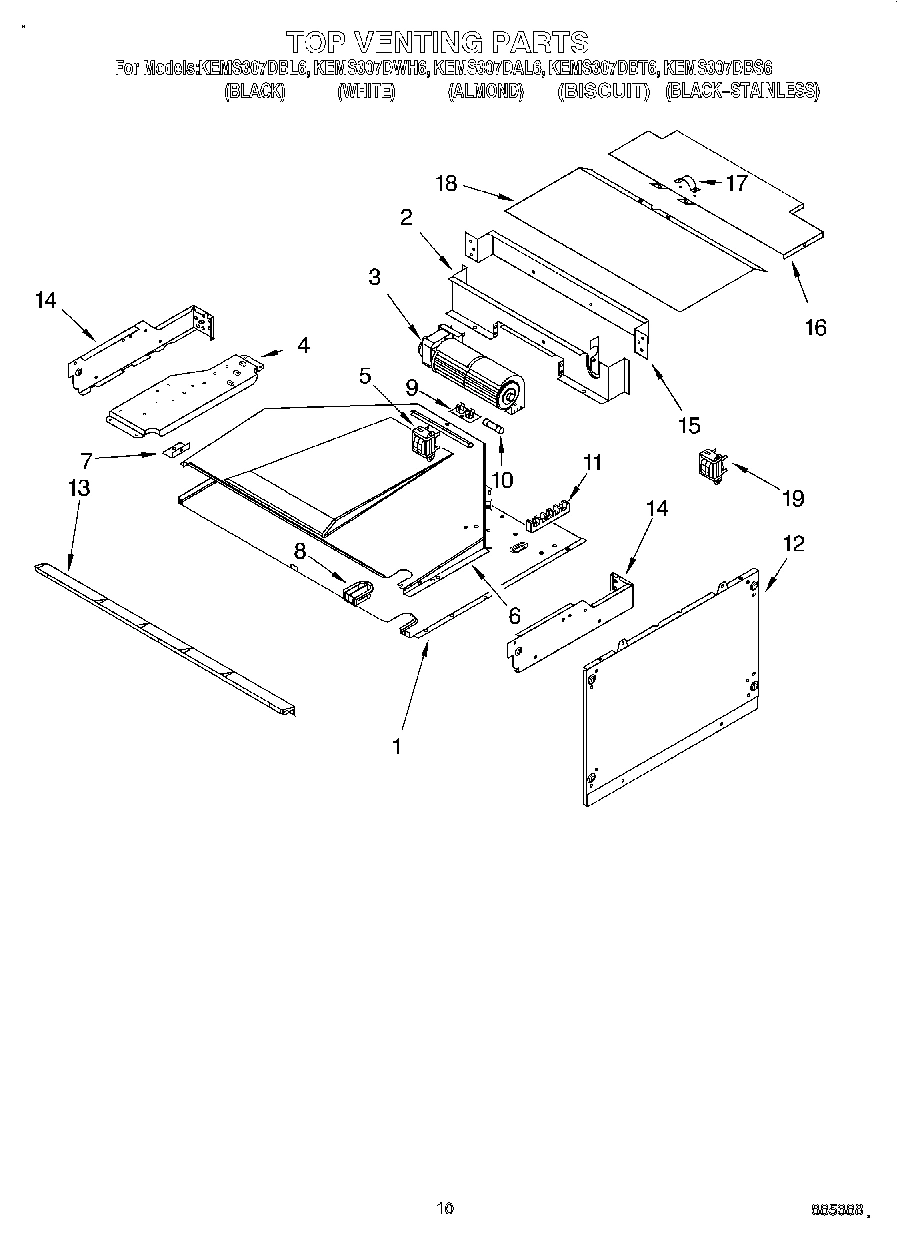

08 - TOP VENTING

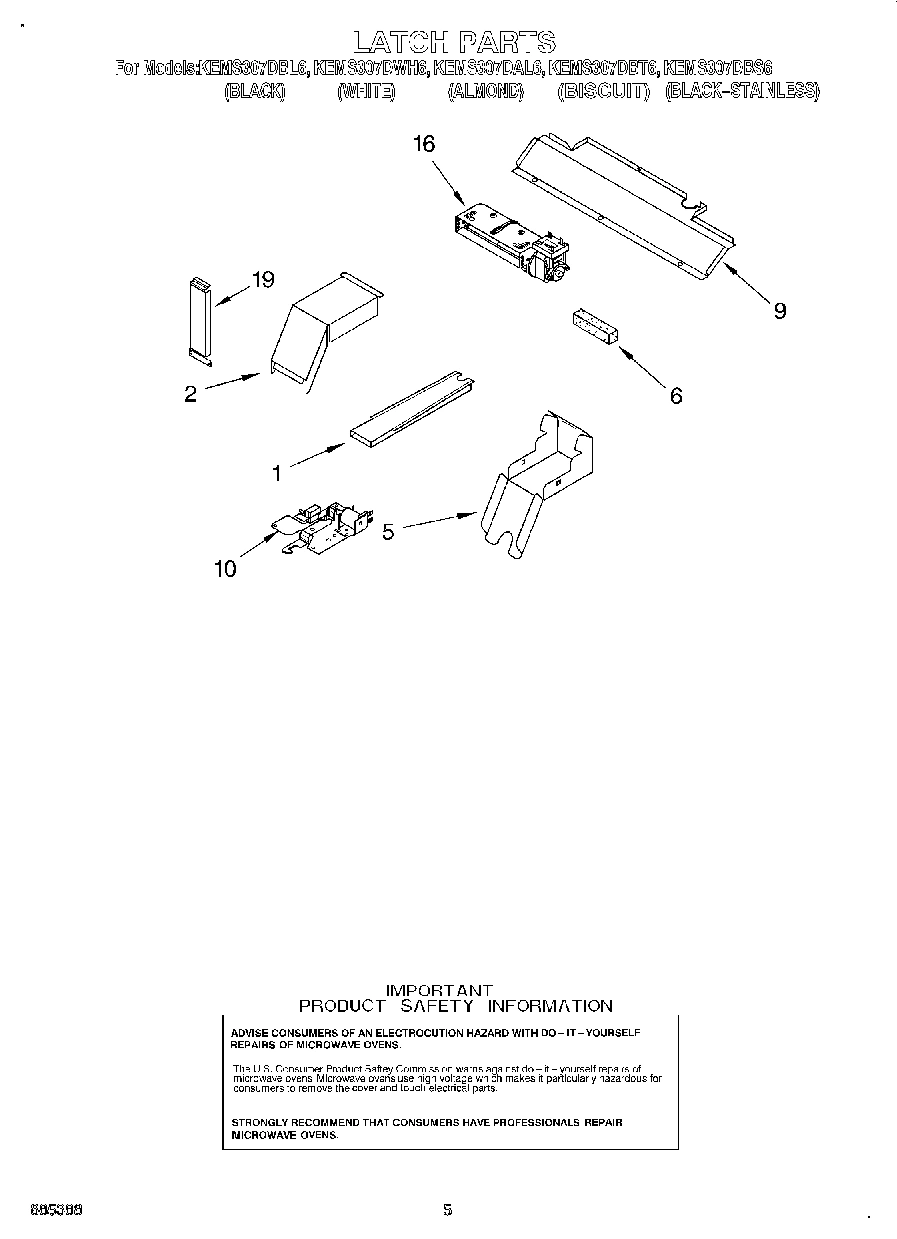

04 - LATCH

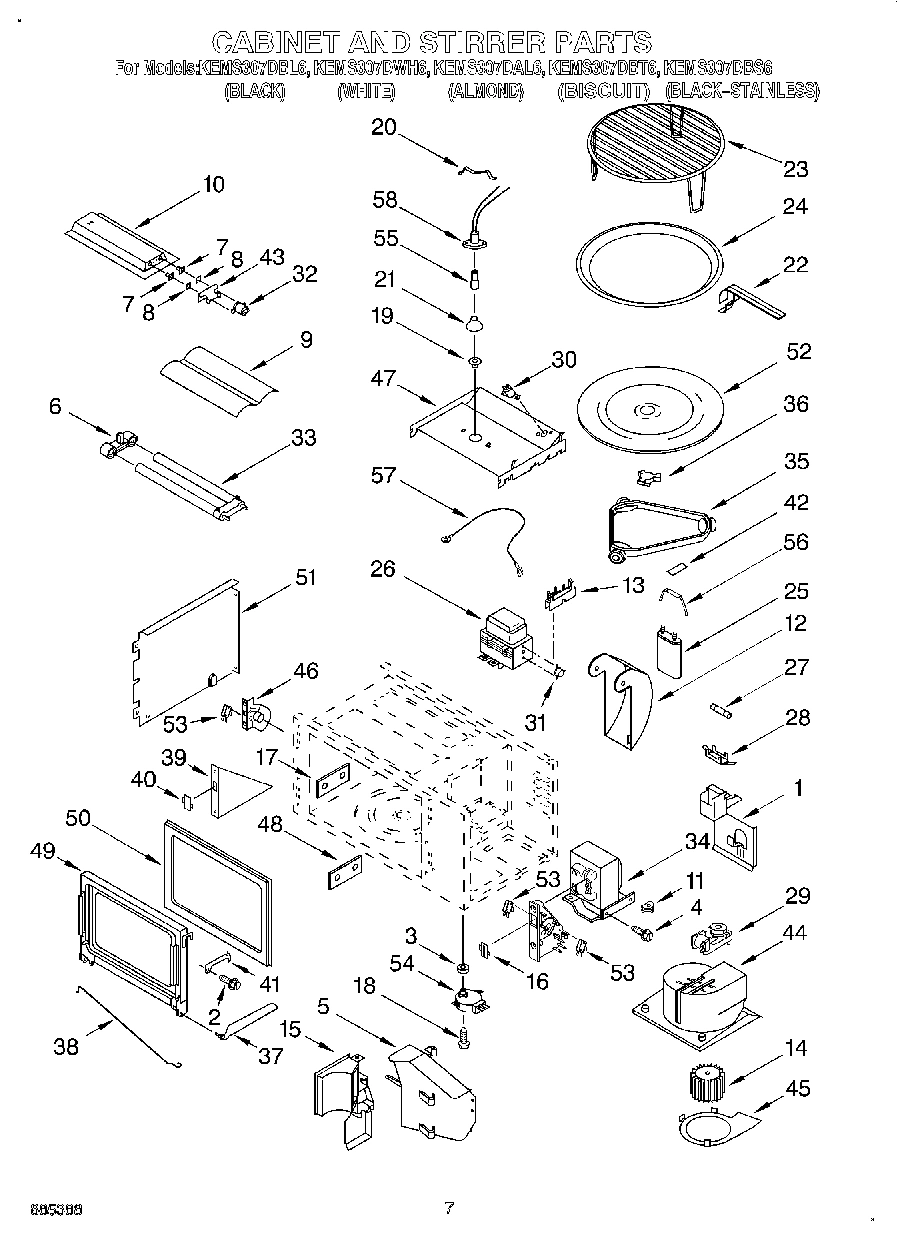

06 - CABINET AND STIRRER

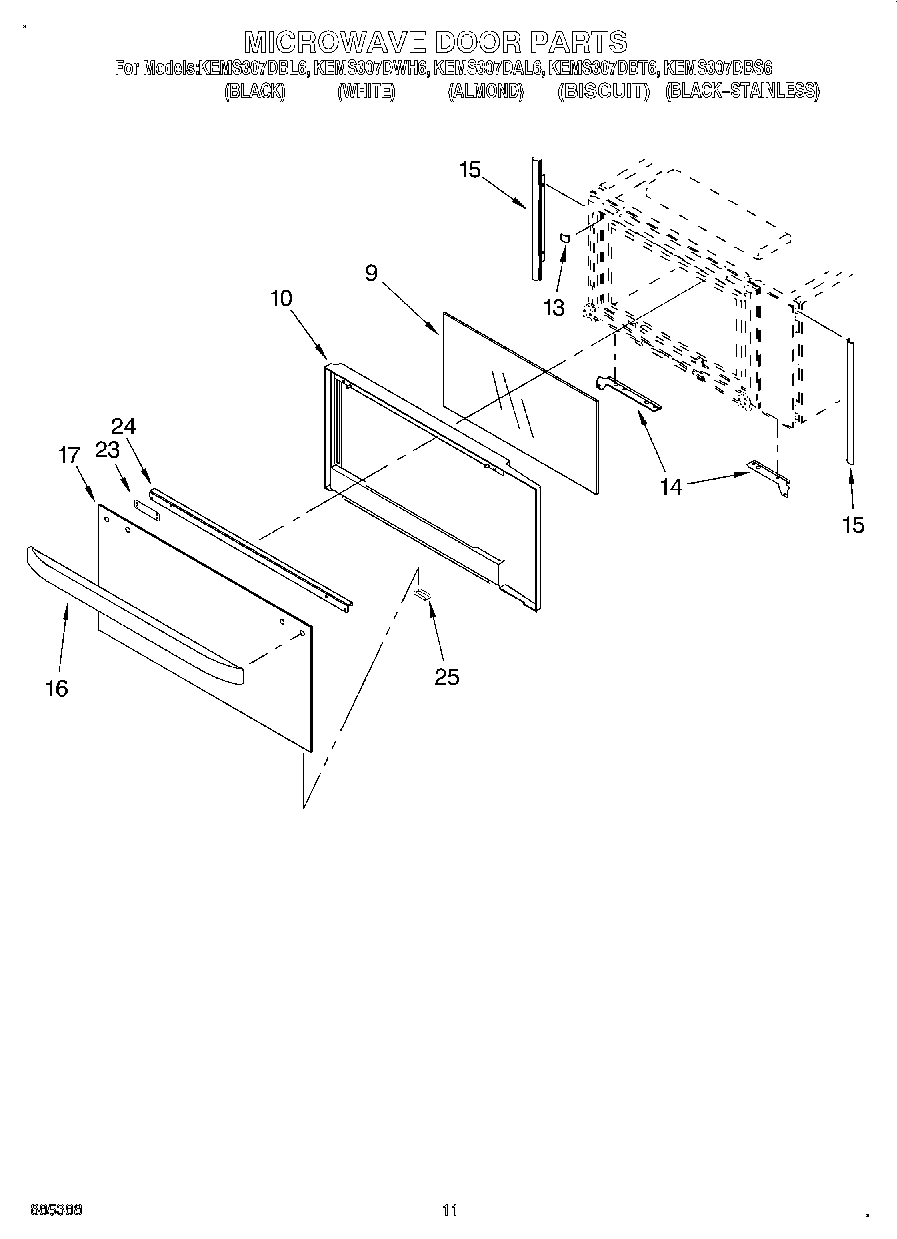

09 - MICROWAVE DOOR, OPTIONAL

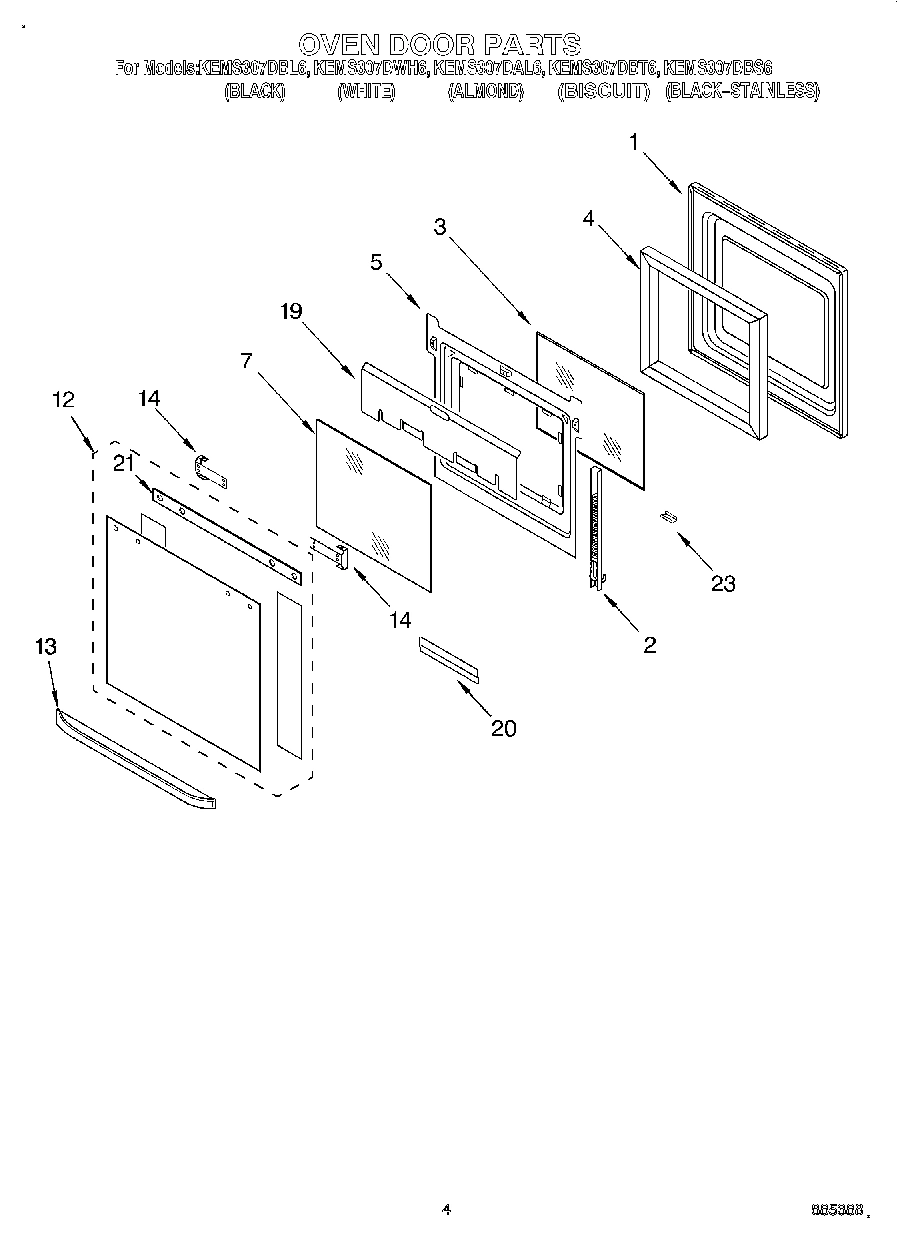

03 - OVEN DOOR
05 - INTERNAL OVEN
Common parts from model Whirlpool KEMS307DWH6
Cabinet Parts WPL ARI85982A3 Contact Us For Availability
1
Bracket, Capacitor WPL 4375299 Contact Us For Availability
2
Screw WPL 4375313 Contact Us For Availability
3
Microcomputer WPL 4448869 Contact Us For Availability
3
Rubber Ring WPL 4375037 Contact Us For Availability
4
Screw WPL 4375038 Contact Us For Availability
5
Air Duct, Magnetron WPL 4375314 Contact Us For Availability
5
Retainer, Glass WPL 4451671 Contact Us For Availability
5
Rack, Roasting WPL 3181534 Contact Us For Availability
6
Support, Tube WPL 4375253 Contact Us For Availability
7
Plug, Ceramic WPL 4375254 Contact Us For Availability
8
Bushing WPL 4375255 Contact Us For Availability
9
Convection Motor WPL 4451583 Contact Us For Availability
9
Glass, Middle WPL 4448937 Contact Us For Availability
9
Reflector WPL 4375256 Contact Us For Availability
10
Latch Assembly WPL 4451424 Contact Us For Availability
10
Lens, Light WPL 4452163 Contact Us For Availability
10
Micro Switch N.C. WPL 4451422 Contact Us For Availability
10
Microswitch WPL 4451426 Contact Us For Availability
10
Solenoid WPL 4451663 Contact Us For Availability
10
Chamber, Reflector WPL 4375257 Contact Us For Availability
11
Damper WPL 4375315 Contact Us For Availability
12
Duct, Inlet WPL 4375260 Contact Us For Availability
12
Door Glass, Assy (White Model) WPL 4452075 Contact Us For Availability
12
Door Glass, Assy (Almond Model) WPL 4452076 Contact Us For Availability
12
Door Glass, Assy (Black-Stainless) WPL 4452078 Contact Us For Availability
12
Door Glass, Assy (Biscuit Model) WPL 4452147 Contact Us For Availability
12
Nut WPL 4452227 Contact Us For Availability
13
Insulation, Switch WPL 4375316 Contact Us For Availability
13
Tape, Foam WPL 4450265 Contact Us For Availability
13
Door Handle (Black) WPL 4448414 Contact Us For Availability
13
Handle, Door (White Model) WPL 4448415 Contact Us For Availability
13
Handle, Door (Almond Model) WPL 4448416 Contact Us For Availability
13
Handle, Door (Biscuit) WPL 4452129 Contact Us For Availability
14
Bracket, Mounting (Right Side) WPL 4449141 Contact Us For Availability
14
Bracket, Mounting (Left Side) WPL 4449142 Contact Us For Availability
14
Bracket, Handle WPL 4450813 Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
14
Fan Wheel WPL 4375322 Contact Us For Availability
14
Screw WPL 4451040 Contact Us For Availability
15
Filler, Side (Right Side) WPL 4449083 Contact Us For Availability
15
Filler, Side (Left) WPL 4449086 Contact Us For Availability
15
Duct, Air WPL 4375317 Contact Us For Availability
15
Tray, Bake WPL 4448723 Contact Us For Availability
16
Block, Slide WPL 4375264 Contact Us For Availability
17
Cover Plate, Upper WPL 4375248 Contact Us For Availability
17
Glass, Outer (Black Model) WPL 4449136 Contact Us For Availability
17
Glass, Outer (White Model) WPL 4449137 Contact Us For Availability
17
Glass, Outer (Almond Model) WPL 4449138 Contact Us For Availability
17
Glass, Outer (Black-Stainless) WPL 4451591 Contact Us For Availability
17
Glass, Outer (Biscuit) WPL 4452149 Contact Us For Availability
19
Extension Filler WPL 4449906 Contact Us For Availability
19
Shield, Heat WPL 4450362 Contact Us For Availability
20
Retainer, Glass WPL 4451668 Contact Us For Availability
21
Seal, Door Top WPL 4451674 Contact Us For Availability
23
Rack WPL 4375276 Contact Us For Availability
23
Spacer WPL 4451055 Contact Us For Availability
23
RETAINER, GLASS CLIP (BLACK) WPL 4450863 Contact Us For Availability
23
RETAINER,GLASS CLIP (WHITE) WPL 4450864 Contact Us For Availability
23
Retainer, Glass-Clip (Almond) WPL 4450865 Contact Us For Availability
23
RETAINER,GLASS CLIP (BISCUIT) WPL 4452119 Contact Us For Availability
24
Bracket, Handle WPL 4450961 Contact Us For Availability
25
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
25
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
25
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
25
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
25
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
25
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
25
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
25
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
25
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
25
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
25
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
25
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
25
Filler Kit (Bl) WPL 4378944 Contact Us For Availability
25
Filler Kit (Wh) WPL 4378945 Contact Us For Availability
25
Filler Kit (Al) WPL 4378946 Contact Us For Availability
25
WPL 4450291 WPL 4450291 Contact Us For Availability
25
WPL 4450831 WPL 4450831 Contact Us For Availability
25
WPL 4452222 WPL 4452222 Contact Us For Availability
25
WPL 4452239 WPL 4452239 Contact Us For Availability
25
WPL 4454929 WPL 4454929 Contact Us For Availability
25
WPL 591014 WPL 591014 Contact Us For Availability
29
Sensor WPL 4451665 Contact Us For Availability
30
Thermostat WPL 4375279 Contact Us For Availability
32
Thermostat WPL 4375281 Contact Us For Availability
33
Q Tube Assembly WPL 4375282 Contact Us For Availability
35
Ring, Turntable WPL 4375344 Contact Us For Availability
39
Bracket, Hinge (Left) WPL 4375327 Contact Us For Availability
39
Bracket, Hinge (Right) WPL 4375328 Contact Us For Availability
40
Inlet WPL 4375329 Contact Us For Availability
41
Strap, Door WPL 4375330 Contact Us For Availability
42
Plate, Grill WPL 4375331 Contact Us For Availability
43
Bracket WPL 4375332 Contact Us For Availability
44
Fan Cap WPL 4375333 Contact Us For Availability
45
Fan Cap Bottom WPL 4375334 Contact Us For Availability
47
Isolation Plate WPL 4375337 Contact Us For Availability
48
Cover Plate WPL 4375338 Contact Us For Availability
49
Plate, Door WPL 4375339 Contact Us For Availability
50
Inner Frame WPL 4375340 Contact Us For Availability
51
Trim, Bottom (Black) WPL 4448477 Contact Us For Availability
51
Side Plate (Left) WPL 4375341 Contact Us For Availability
51
Side Plate (Right) WPL 4375342 Contact Us For Availability
57
Cable WPL 4375350 Contact Us For Availability
58
Holder, Lamp WPL 4375351 Contact Us For Availability
× ![]()
