Model Whirlpool KEMI371GBL0 – Common Parts & Diagrams
05 - INTERNAL OVEN

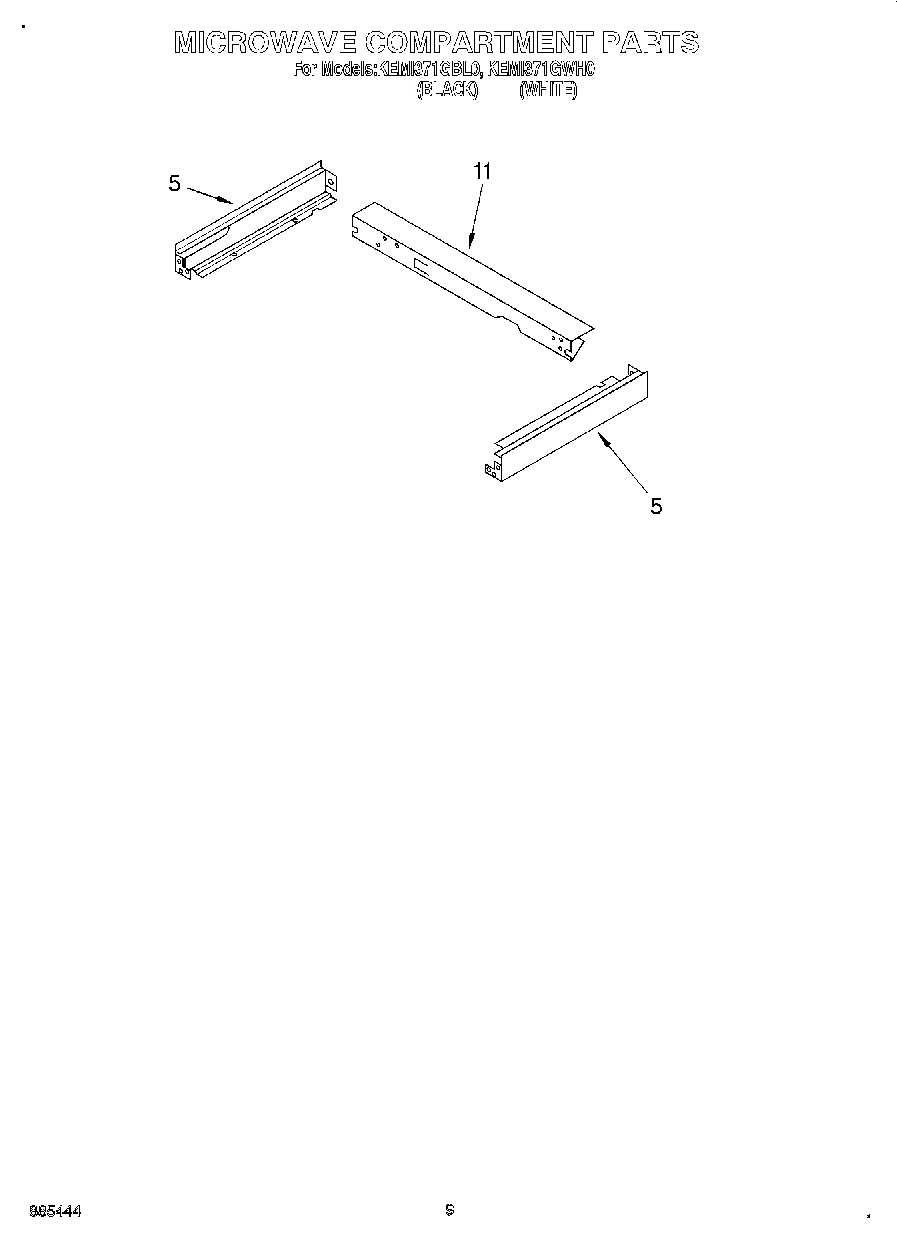

07 - MICROWAVE COMPARTMENT

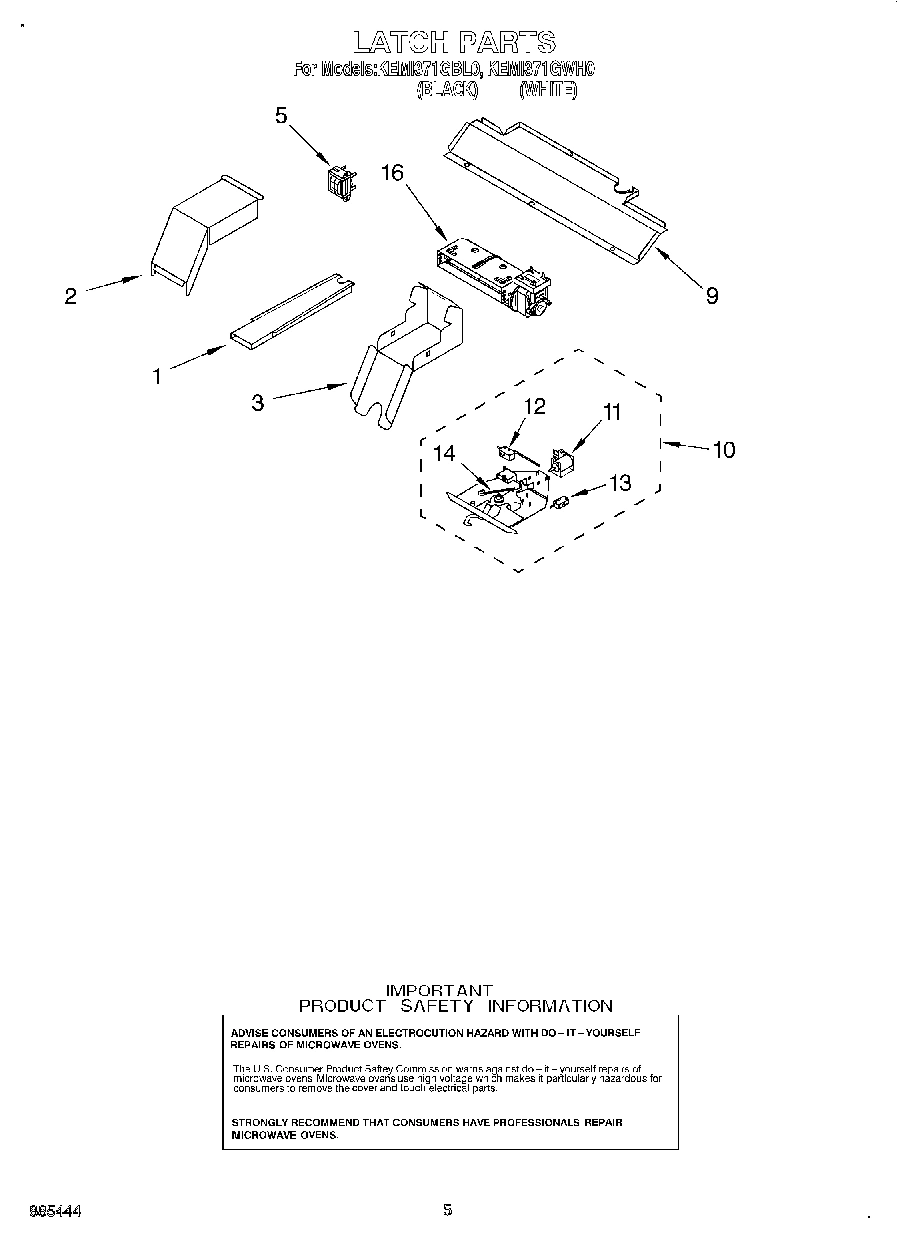

04 - LATCH

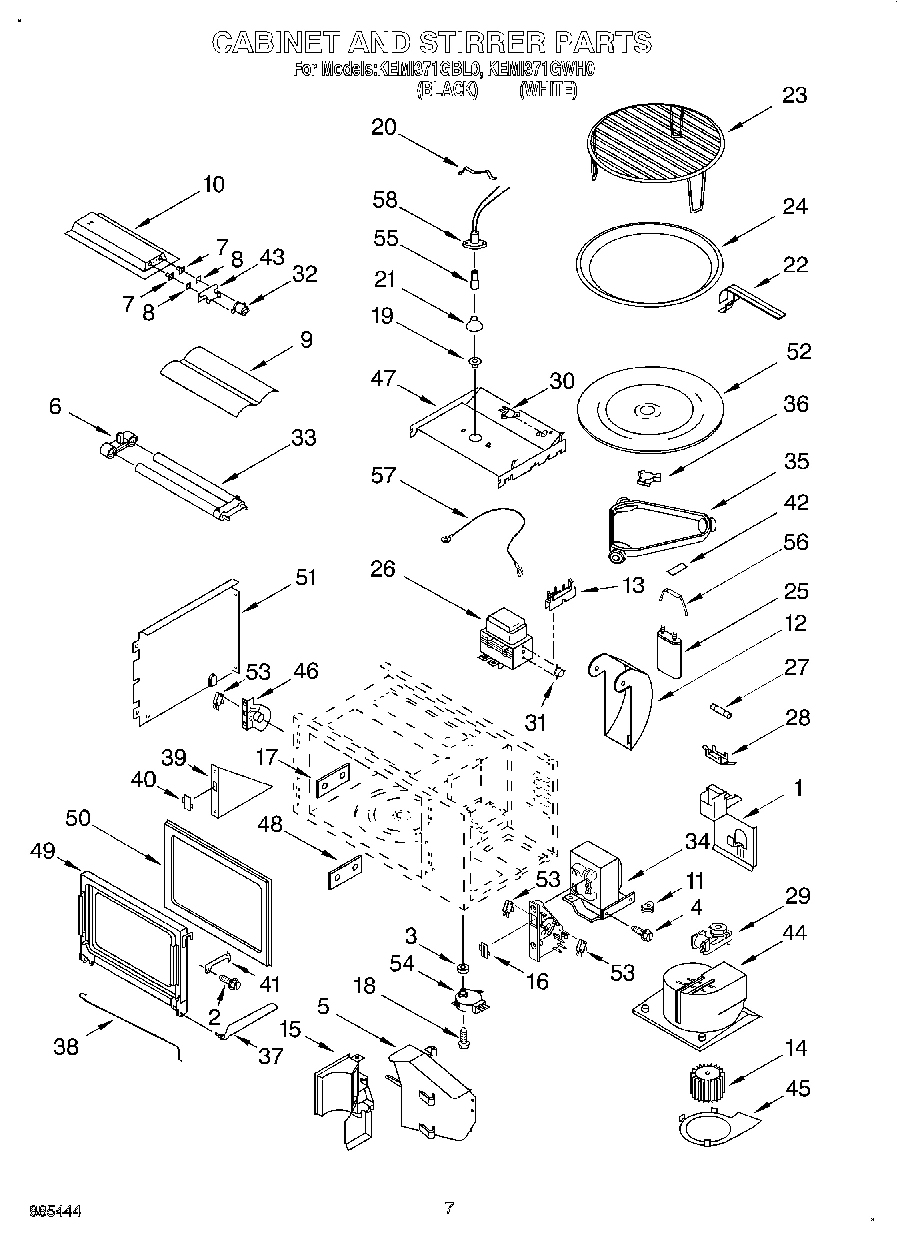

06 - CABINET AND STIRRER

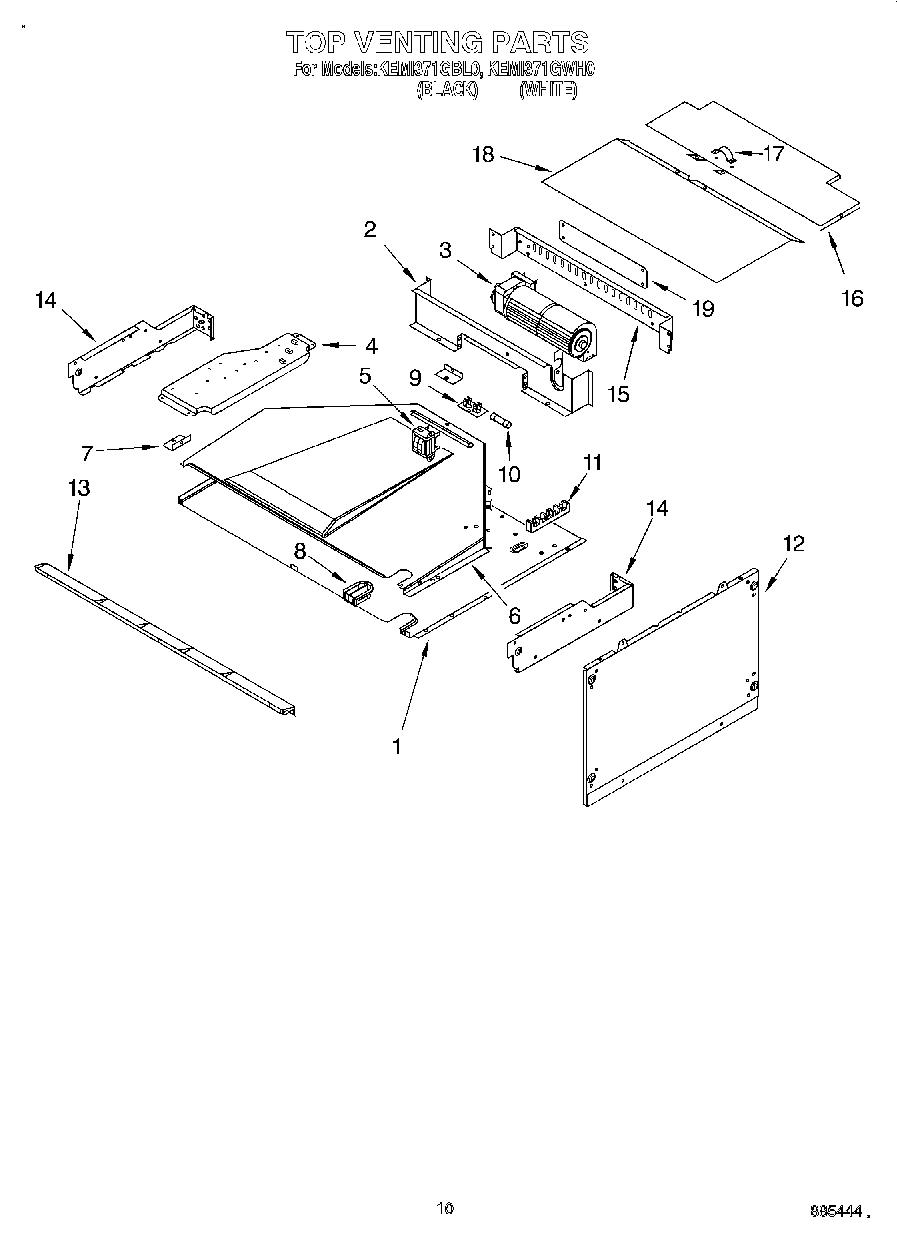

08 - TOP VENTING

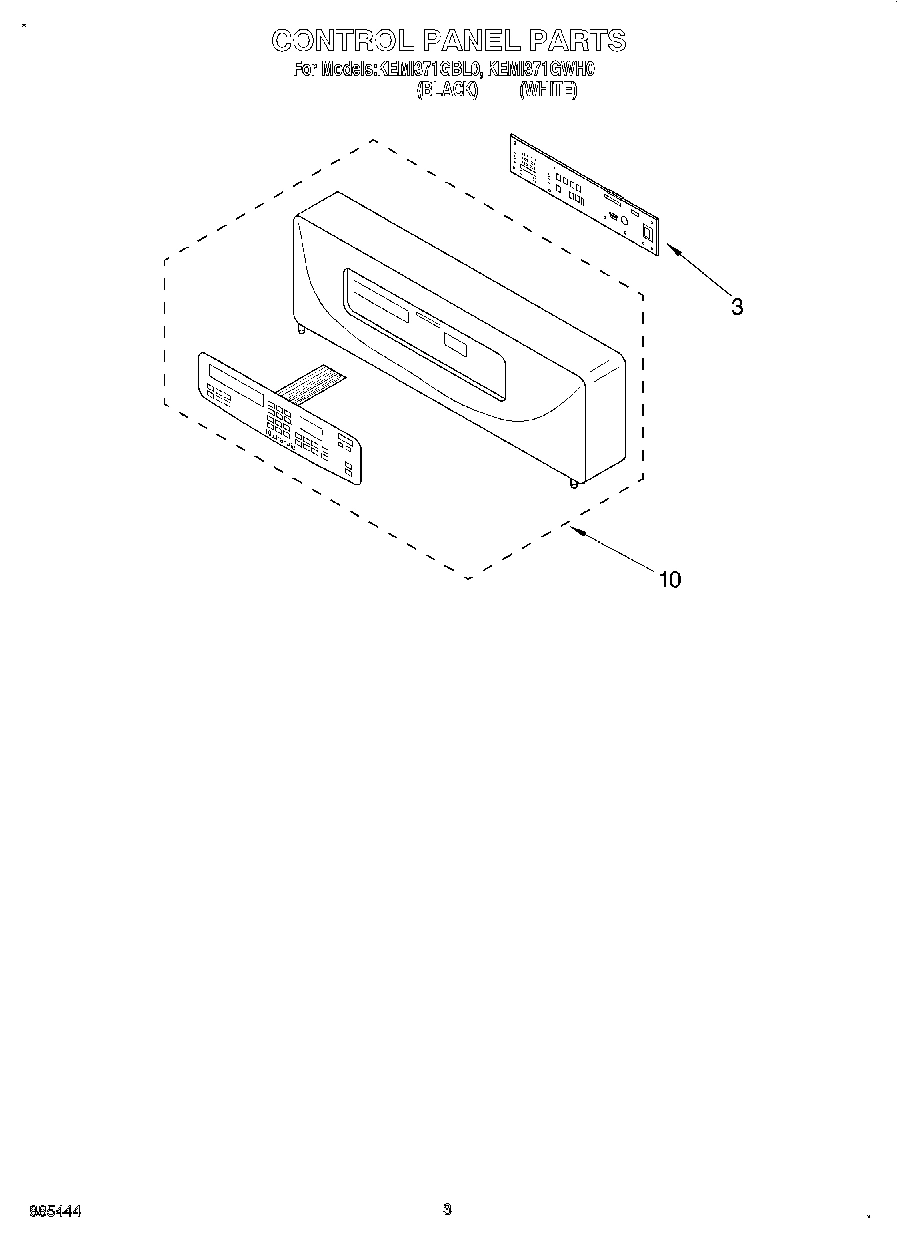

02 - CONTROL PANEL, LITERATURE

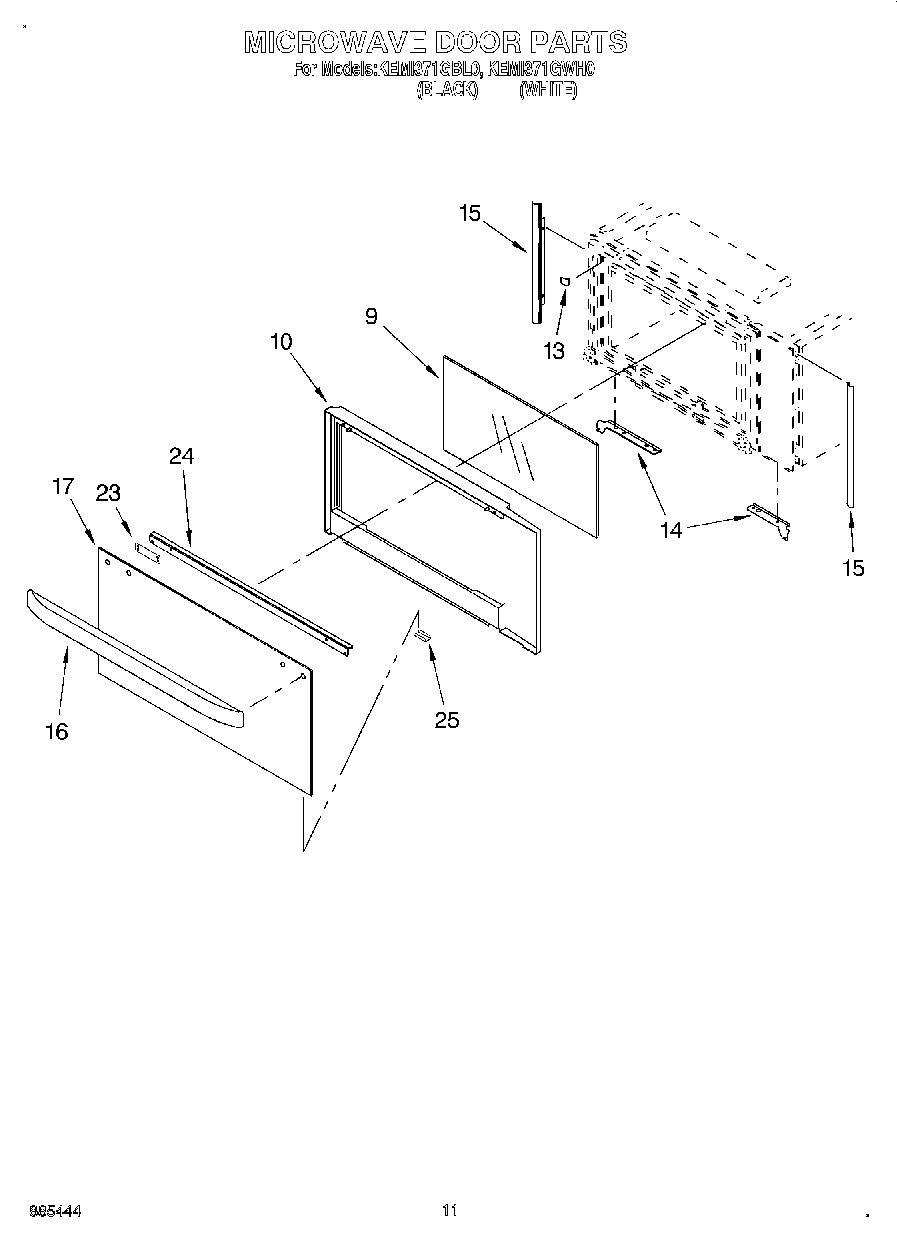

09 - MICROWAVE DOOR, OPTIONAL

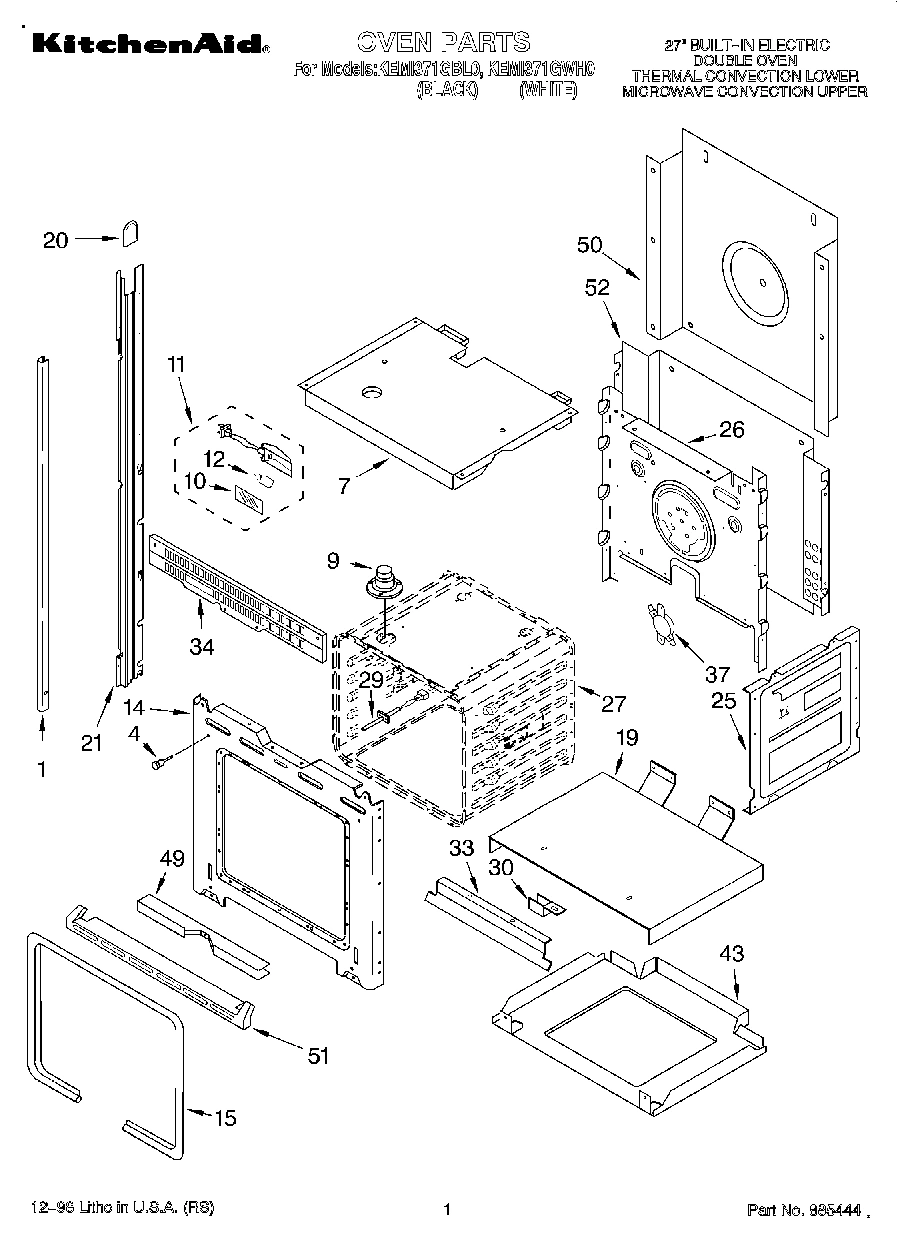

01 - OVEN

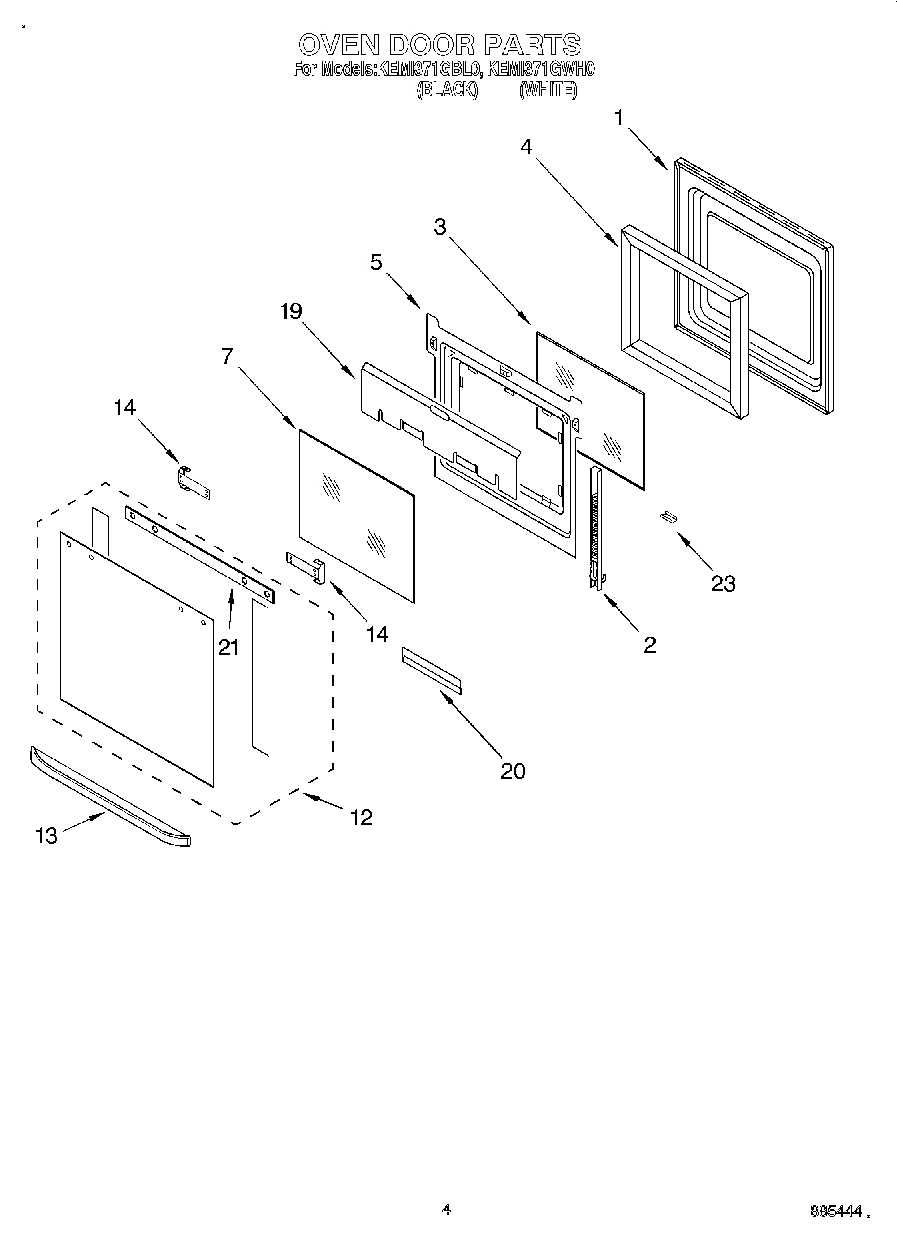

03 - OVEN DOOR
Common parts from model Whirlpool KEMI371GBL0
Safer Cooking Tips WPL LIT3191638 Contact Us For Availability
Cookbook, T/C Oven WPL LIT4449066 Contact Us For Availability
Easy Set Guide (Oven) WPL LIT4449264 Contact Us For Availability
Installation Instructions WPL LIT4450412 Contact Us For Availability
Cooking Guide (Label) WPL LIT4450786 Contact Us For Availability
Guide, Easy Use (Microwave) WPL LIT4451052 Contact Us For Availability
Tech Sheet (Oven) WPL LIT4452297 Contact Us For Availability
Use & Care Guide (Oven/Microwave) WPL LIT4452303 Contact Us For Availability
1
Trim, Side (Screw White) WPL 4449041 Contact Us For Availability
1
Trim, Side (RH Black) WPL 4450856 Contact Us For Availability
1
Trim, Side (RH White) WPL 4450857 Contact Us For Availability
1
Trim, Side (LH Black) WPL 4450859 Contact Us For Availability
1
Trim, Side (LH White) WPL 4450860 Contact Us For Availability
1
Door Liner WPL 4451718 Contact Us For Availability
3
Microcomputer WPL 4451653 Contact Us For Availability
4
Insulation, Door WPL 4451721 Contact Us For Availability
5
Retainer, Glass WPL 4451670 Contact Us For Availability
6
Rack, Oven WPL 4448715 Contact Us For Availability
7
Top, Chassis WPL 4452236 Contact Us For Availability
9
Glass, Middle WPL 4448937 Contact Us For Availability
10
Latch Assembly WPL 4451424 Contact Us For Availability
10
Lens, Light WPL 4452163 Contact Us For Availability
10
Control Panel Assy W/Membrane Switch (Black) WPL 4448449 Contact Us For Availability
10
Control Panel Assy W/Membrane Switch (White) WPL 4448450 Contact Us For Availability
10
Frame, Door WPL 4450945 Contact Us For Availability
12
Duct, Inlet WPL 4375260 Contact Us For Availability
12
Side, Combo WPL 4450401 Contact Us For Availability
12
Door Glass, Assy (Black Model) WPL 4452071 Contact Us For Availability
12
Door Glass, Assy (White Model) WPL 4452072 Contact Us For Availability
13
Vent, (Control Panel) WPL 4449764 Contact Us For Availability
13
Tape, Foam WPL 4450265 Contact Us For Availability
13
Door Handle (Black) WPL 4448411 Contact Us For Availability
13
Door Handle (White) WPL 4448412 Contact Us For Availability
14
Bracket, Mounting (Right Side) WPL 4449141 Contact Us For Availability
14
Bracket, Mounting (Left Side) WPL 4449142 Contact Us For Availability
14
Bracket, Handle WPL 4450813 Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
14
Screw WPL 4451040 Contact Us For Availability
14
Frame, Front WPL 4451739 Contact Us For Availability
15
Filler, Side WPL 4449083 Contact Us For Availability
15
Back, Control WPL 4452244 Contact Us For Availability
16
Cover, Top Rear WPL 4450550 Contact Us For Availability
17
Glass, Outer (Black Model) WPL 4449133 Contact Us For Availability
17
Glass, Outer (White Model) WPL 4449134 Contact Us For Availability
18
Cover, Top Front WPL 4450553 Contact Us For Availability
19
Plate, Cover WPL 4452247 Contact Us For Availability
19
Support, Insulation WPL 4451477 Contact Us For Availability
19
Shield, Heat WPL 4450361 Contact Us For Availability
20
Retainer, Glass WPL 4451668 Contact Us For Availability
20
Cap, Spacer WPL 4451605 Contact Us For Availability
21
Seal, Door Top WPL 4451673 Contact Us For Availability
23
Spacer WPL 4451055 Contact Us For Availability
23
RETAINER, GLASS CLIP (BLACK) WPL 4450863 Contact Us For Availability
23
RETAINER,GLASS CLIP (WHITE) WPL 4450864 Contact Us For Availability
24
Bracket, Handle WPL 4450960 Contact Us For Availability
25
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
25
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
25
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
25
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
25
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
25
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
25
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
25
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
25
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
25
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
25
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
25
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
25
Filler Kit (BL) WPL 4378950 Contact Us For Availability
25
Filler Kit (WH) WPL 4378951 Contact Us For Availability
25
Filler Kit (AL) WPL 4378952 Contact Us For Availability
25
Ground (M/W) WPL 4450831 Contact Us For Availability
25
Spacer, Harness WPL 4452222 Contact Us For Availability
25
Harness, Latch WPL 4452239 Contact Us For Availability
25
Harness, Main WPL 4452294 Contact Us For Availability
25
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
25
Side, Chassis (R.H. & L.H.) WPL 4454691 Contact Us For Availability
26
Back, Chassis WPL 4452233 Contact Us For Availability
27
Liner, Oven (Not a Serviceable Part) WPL ARI85895A4 Contact Us For Availability
29
Sensor WPL 4450026 Contact Us For Availability
30
Thermostat WPL 4375279 Contact Us For Availability
30
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
32
Thermostat WPL 4375281 Contact Us For Availability
33
Deflector, Vent WPL 4450280 Contact Us For Availability
34
Vent, Center WPL 4451666 Contact Us For Availability
40
Inlet WPL 4375329 Contact Us For Availability
43
Base, Chassis WPL 4451397 Contact Us For Availability
48
Cover Plate (Lower) WPL 4375338 Contact Us For Availability
50
Inner Frame WPL 4375340 Contact Us For Availability
51
Trim, Bottom (Screw) WPL 4159465 Contact Us For Availability
51
Trim, Bottom (Black) WPL 4448458 Contact Us For Availability
51
Trim, Bottom (White Model) WPL 4448459 Contact Us For Availability
52
Insulation, Wrap WPL 4449315 Contact Us For Availability
52
Insulation, Back WPL 4450364 Contact Us For Availability
52
Chassis, Back WPL 4451755 Contact Us For Availability
57
Cable WPL 4375350 Contact Us For Availability
× ![]()
