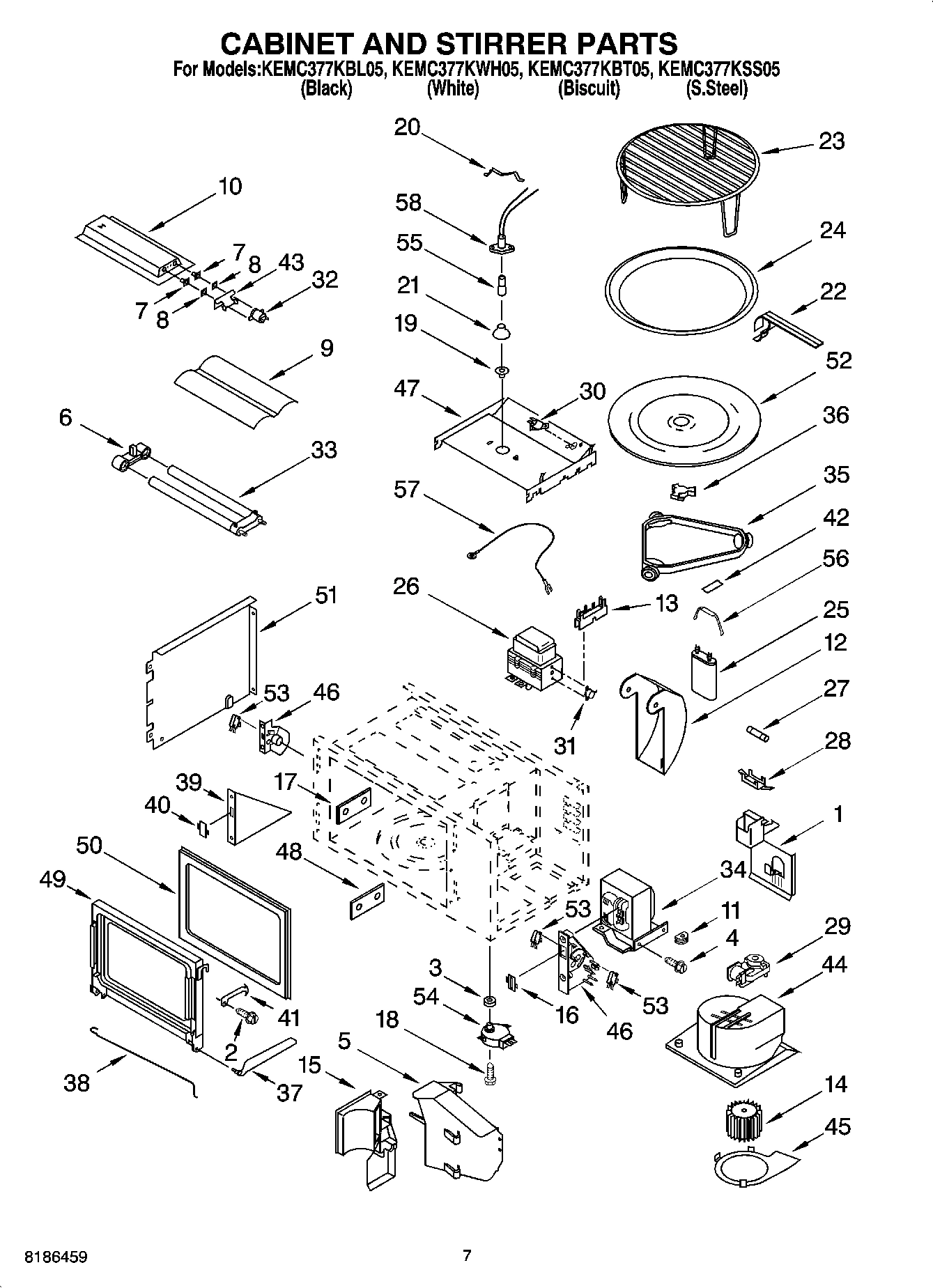

Model Whirlpool KEMC377KBT05 27`` BUILT-IN ELECTRIC DOUBLE OVEN THERMAL CONVECT – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

4450950 Whirlpool Oven Conduit Backorder WPL 4450950 $203.08

4452400 Whirlpool Microwave Wire Harness Backorder WPL 4452400 $30.90

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

814381 Whirlpool Pin In Stock WPL 814381 $4.82

WP261869 Whirlpool Microwave Paint Backorder WPL WP261869 $15.84

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $34.73

WPL 8301922 WPL 8301922 Contact Us For Availability

1

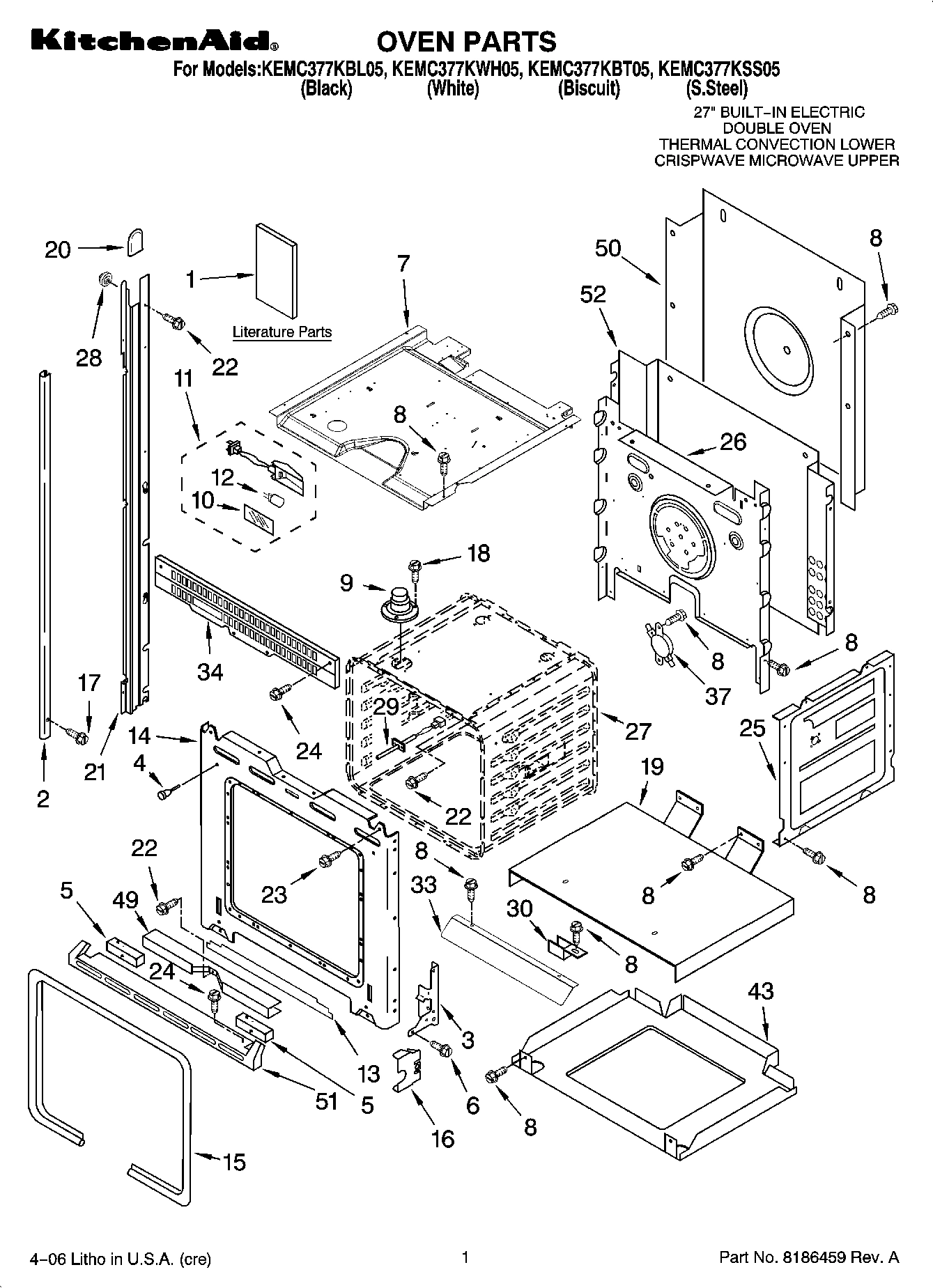

4451759 Whirlpool Oven Exhaust Vent Backorder WPL 4451759 $63.90

1

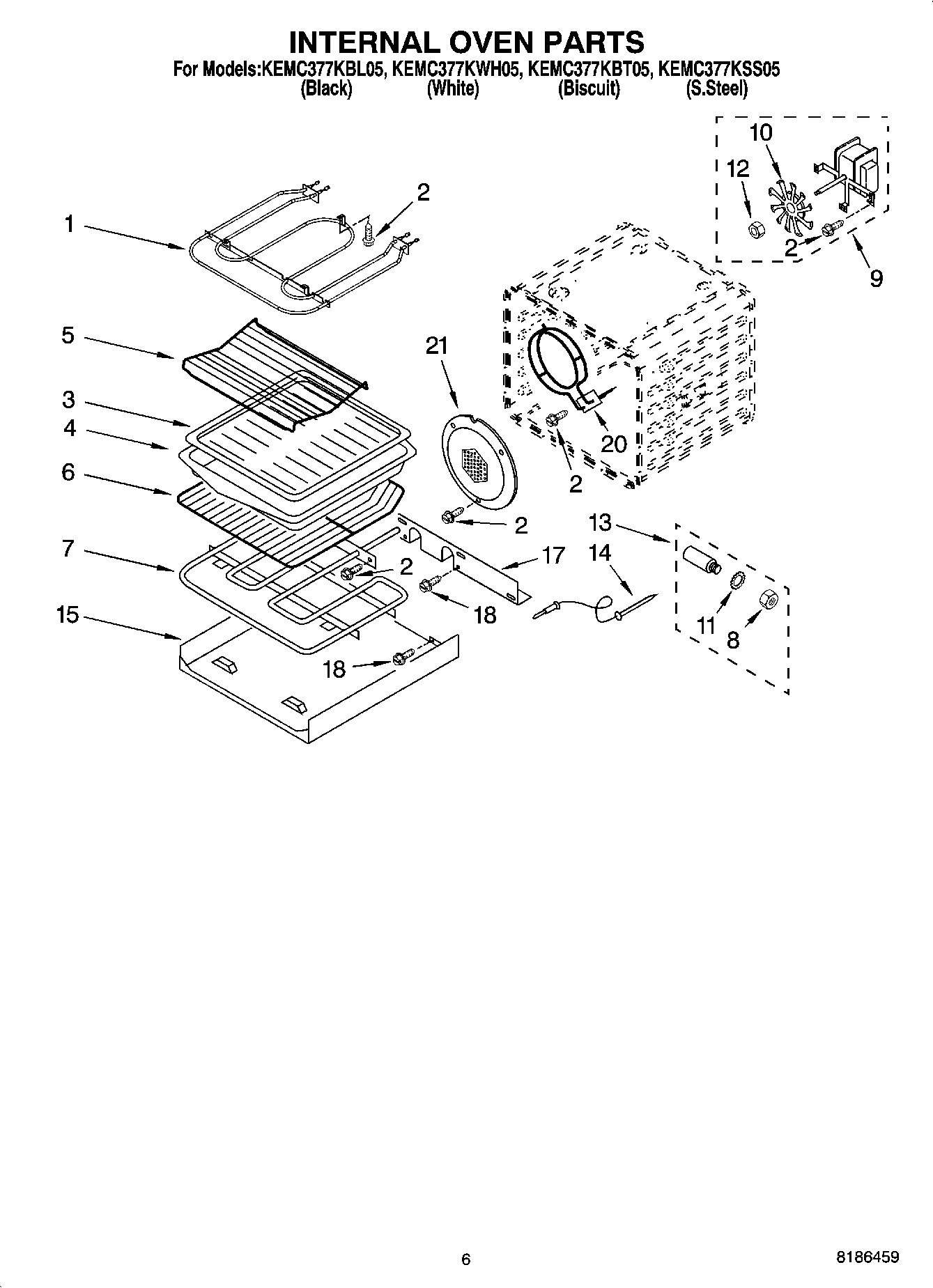

WPW10207400 Whirlpool Broil Element In Stock WPL WPW10207400 $218.99

1

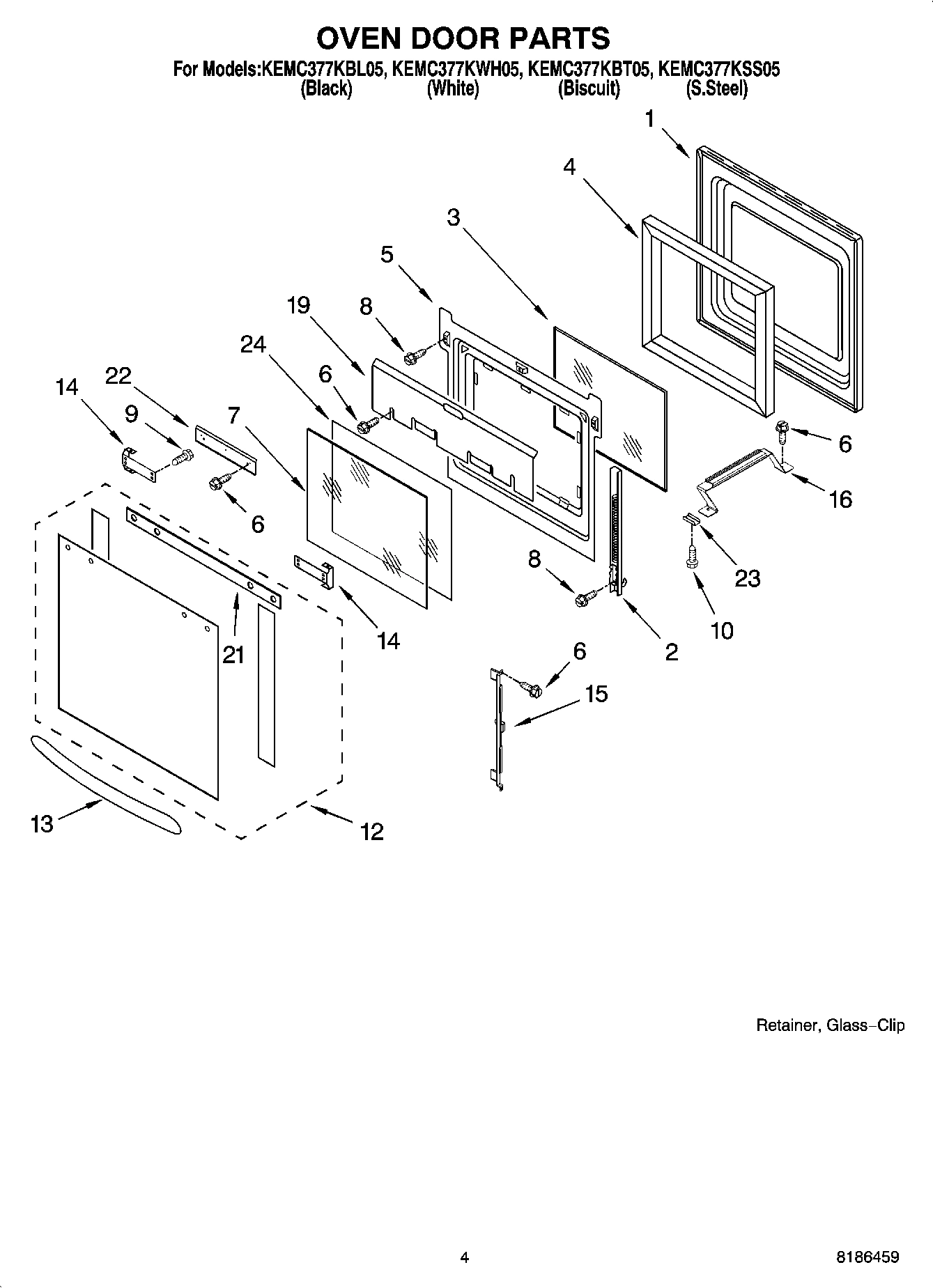

Door Liner WPL 8303699 Contact Us For Availability

1

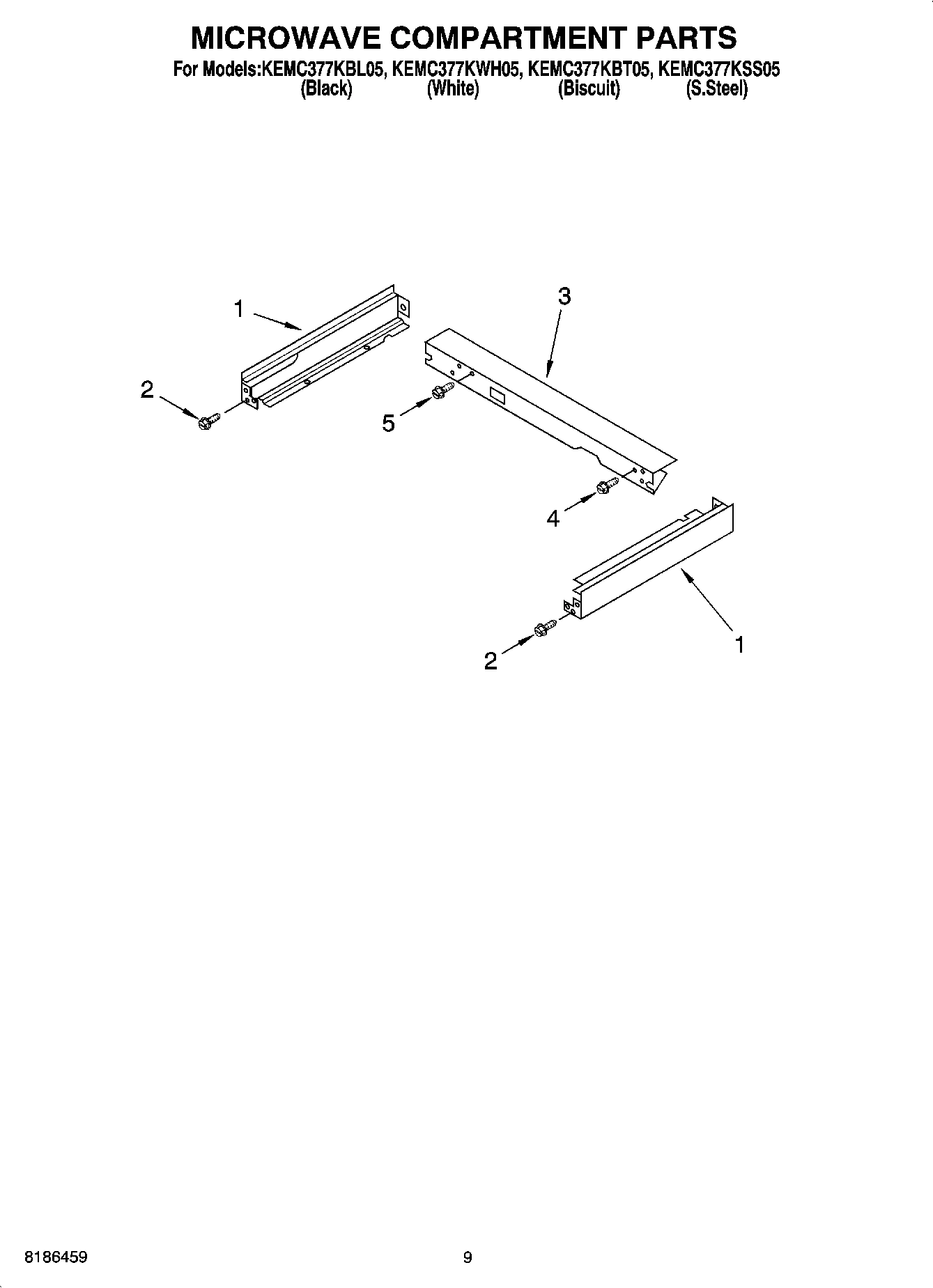

Support Rails (Right Side) WPL 4452551 Contact Us For Availability

1

Support Rails (Left Side) WPL 4452552 Contact Us For Availability

1

Filter WPL 4451592 Contact Us For Availability

1

Bracket, Capacitor WPL 4375299 Contact Us For Availability

2

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.06

2

WP9760571 Whirlpool Door Hinge In Stock WPL WP9760571 $76.77

2

WP9760572 Whirlpool Door Hinge Backorder WPL WP9760572 $73.59

2

Trim, Side (LH Black) WPL 4455431 Contact Us For Availability

2

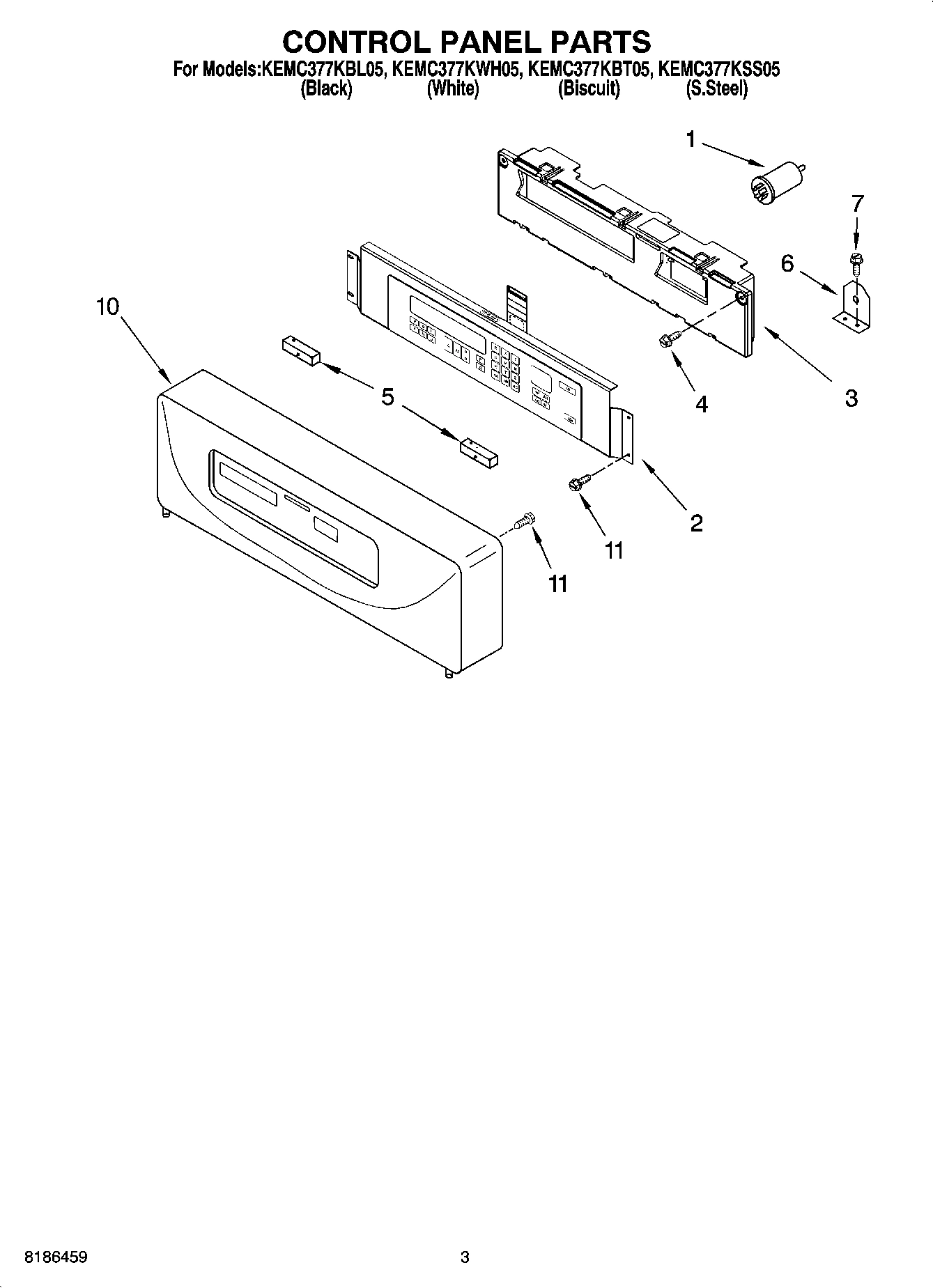

Switch, Membrane (Black) WPL 8302684 Contact Us For Availability

2

Switch, Membrane (White) WPL 8302685 Contact Us For Availability

2

Switch, Membrane (Biscuit) WPL 8302686 Contact Us For Availability

2

Switch, Membrane (S.Steel) WPL 8302687 Contact Us For Availability

2

Screw WPL 4375313 Contact Us For Availability

3

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $6.68

3

WP3195996 Whirlpool Pan Grid Backorder WPL WP3195996 $58.28

3

WP4449253 Whirlpool Glass Window In Stock WPL WP4449253 $126.99

3

WP4455605 Whirlpool Left Hand Hinge In Stock WPL WP4455605 $82.61

3

WP4455606 Whirlpool Right Hand Hinge In Stock WPL WP4455606 $82.61

3

Assy, Control WPL 8302346 Contact Us For Availability

3

Rear Channel WPL 4452547 Contact Us For Availability

3

Rubber Ring WPL 4375037 Contact Us For Availability

4

4448520 Whirlpool Oven Bumper In Stock WPL 4448520 $14.02

4

W10737569 Whirlpool Broil Pan Backorder WPL W10737569 $103.33

4

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $4.82

4

Insulation, Door WPL 4451721 Contact Us For Availability

4

Bracket, Combo Chassis WPL 8300791 Contact Us For Availability

4

Screw WPL 4375038 Contact Us For Availability

5

W10491987 Whirlpool Foam Seal Backorder WPL W10491987 $4.82

5

Retainer, Glass WPL 4457131 Contact Us For Availability

5

Rack, Roasting WPL 3181534 Contact Us For Availability

5

Spacer, Foam WPL 4452260 Contact Us For Availability

5

Air Duct, Magnetron WPL 4375314 Contact Us For Availability

6

Rack, Oven WPL 4448715 Contact Us For Availability

6

Bracket, Filter WPL 4451632 Contact Us For Availability

6

Support, Tube WPL 4375253 Contact Us For Availability

7

4451175 Whirlpool Bake Element In Stock WPL 4451175 $159.99

7

Glass, Inner WPL 9759224 Contact Us For Availability

7

Plug, Ceramic WPL 4375254 Contact Us For Availability

8

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $4.82

8

WP9755546 Whirlpool Locknut Backorder WPL WP9755546 $4.82

8

Baffle, Rear WPL 4450407 Contact Us For Availability

8

Bushing WPL 4375255 Contact Us For Availability

9

4454949 Whirlpool Oven Fuse Block Backorder WPL 4454949 $59.08

9

Convection Motor WPL 4451583 Contact Us For Availability

9

Glass, Middle WPL 4448937 Contact Us For Availability

9

Reflector WPL 4375256 Contact Us For Availability

WP4452226 Whirlpool Convection Fan Backorder WPL WP4452226 $49.31

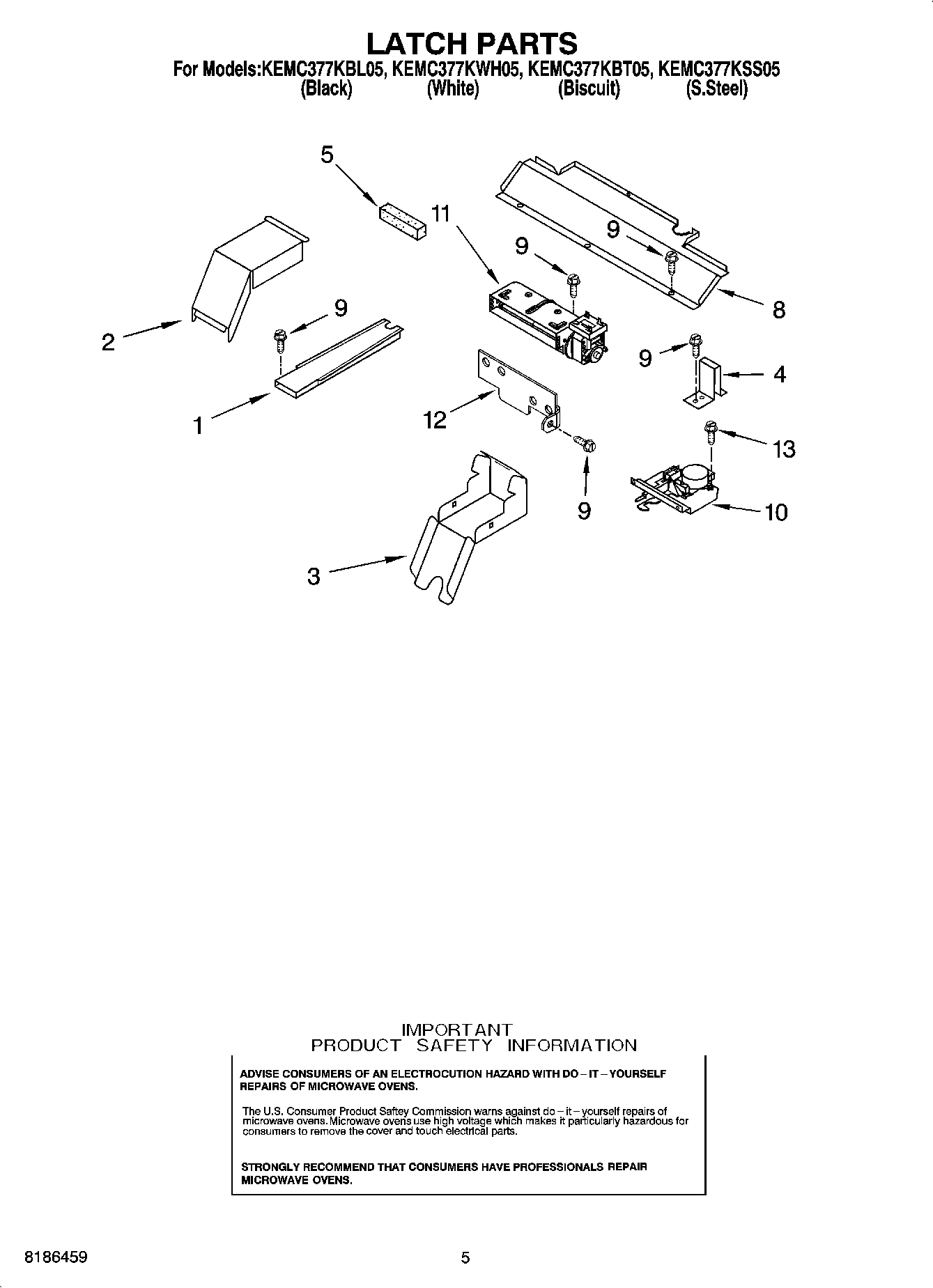

WP9760889 Whirlpool Door Latch In Stock WPL WP9760889 $258.76

Frame, Door WPL 8303555 Contact Us For Availability

Lens, Light WPL 4452163 Contact Us For Availability

Control Panel (Stainless Steel) WPL 4451790 Contact Us For Availability

Panel, Control (Black) WPL 4452602 Contact Us For Availability

Panel, Control (White) WPL 4452603 Contact Us For Availability

Panel, Control (Biscuit) WPL 4452973 Contact Us For Availability

Chamber, Reflector WPL 4375257 Contact Us For Availability

WP4448972 Whirlpool Oven Light In Stock WPL WP4448972 $75.50

WP9755547 Whirlpool Lockwasher Backorder WPL WP9755547 $4.55

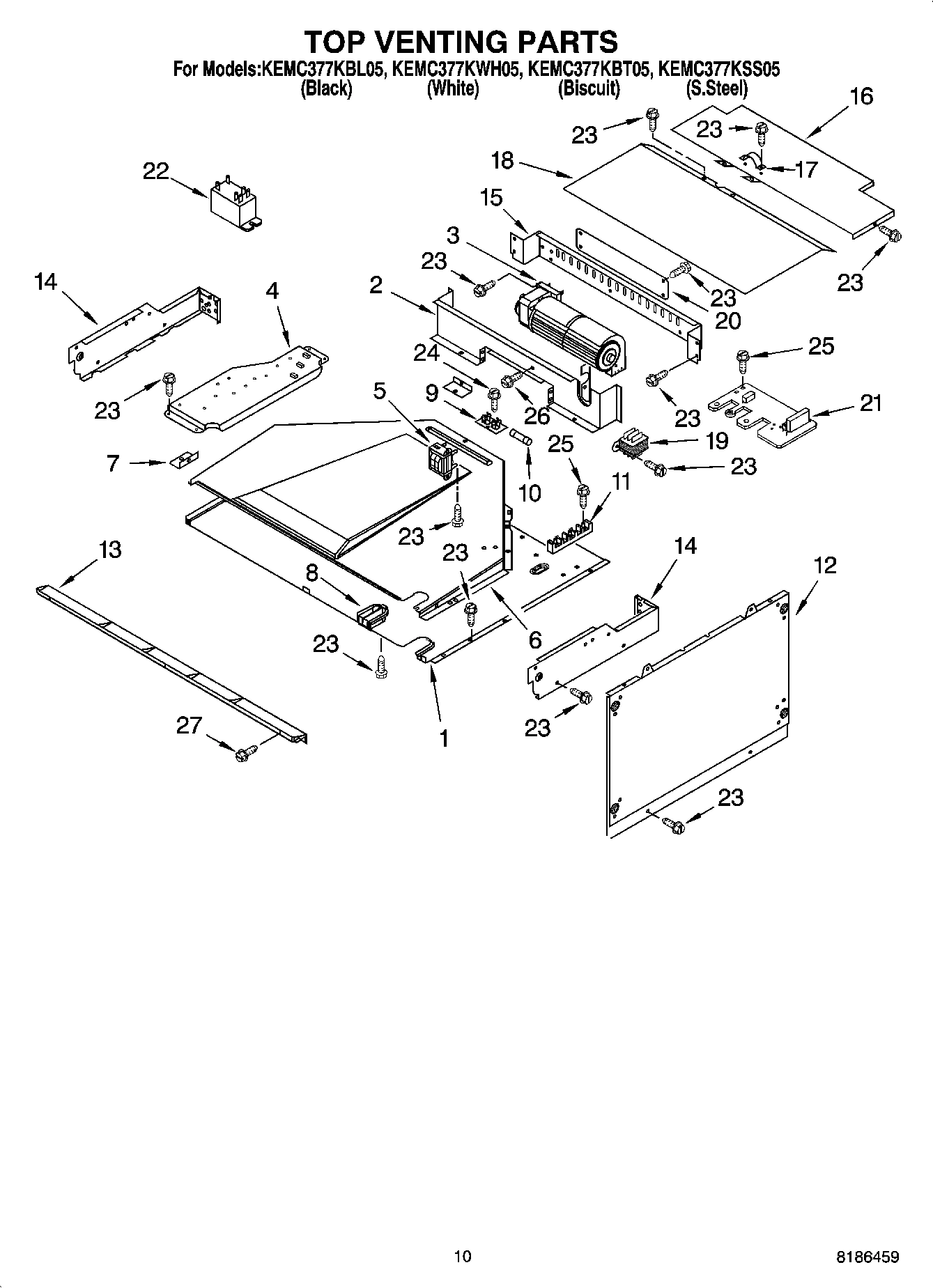

WPW10016550 Whirlpool Blower Cooling Fan In Stock WPL WPW10016550 $249.93

Damper WPL 4375315 Contact Us For Availability

4455191 Whirlpool Oven Mounting Plate In Stock WPL 4455191 $7.98

WP4452164 Whirlpool 12V 5W Halogen Light Bulb In Stock WPL WP4452164 $49.93

WP4452315 Whirlpool Door Glass In Stock WPL WP4452315 $271.99

Screw WPL 4449040 Contact Us For Availability

Duct, Inlet WPL 4375260 Contact Us For Availability

Nut WPL 4452227 Contact Us For Availability

13

8186589 Whirlpool Jack Probe Backorder WPL 8186589 $109.99

13

Insulation, Switch WPL 4375316 Contact Us For Availability

4455803 Whirlpool Oven Bracket Backorder WPL 4455803 $22.62

WP9755542 Whirlpool Oven Meat Probe In Stock WPL WP9755542 $68.99

Bracket, Mounting (Right Side) WPL 4449141 Contact Us For Availability

Bracket, Mounting (Left Side) WPL 4449142 Contact Us For Availability

Bracket, Handle (L.Hand) WPL 4455804 Contact Us For Availability

Fan Wheel WPL 4375322 Contact Us For Availability

WP4455381 Whirlpool Door Gasket In Stock WPL WP4455381 $122.62

WP9759229 Whirlpool Mounting Bracket Backorder WPL WP9759229 $121.47

Filler, Side WPL 4449083 Contact Us For Availability

Tray, Bake WPL 4455036 Contact Us For Availability

Duct, Air WPL 4375317 Contact Us For Availability

16

4452152 Whirlpool Oven Mounting Bracket Backorder WPL 4452152 $22.21

16

Block, Slide WPL 4375264 Contact Us For Availability

4450039 Whirlpool Oven Access Cover Backorder WPL 4450039 $58.50

WP8281236 Whirlpool Screw Backorder WPL WP8281236 $4.82

Glass, Outer (Black) WPL 4452210 Contact Us For Availability

Cover Plate, Upper WPL 4375248 Contact Us For Availability

18

8206180 Whirlpool Microwave Screw Backorder WPL 8206180 $8.89

19

W11193483 Whirlpool Microwave Lamp Lens In Stock WPL W11193483 $68.68

20

W10465869 Whirlpool Microwave Spring Backorder WPL W10465869 $65.38

20

WP9760769 Whirlpool Element Assembly Backorder WPL WP9760769 $228.85

423107022541 Whirlpool Microwave Reflector Backorder WPL 423107022541 $58.43

WPW10160821 Whirlpool Fan Cover Backorder WPL WPW10160821 $173.21

Suppressor WPL 4451934 Contact Us For Availability

Seal, Door Top WPL 4452325 Contact Us For Availability

22

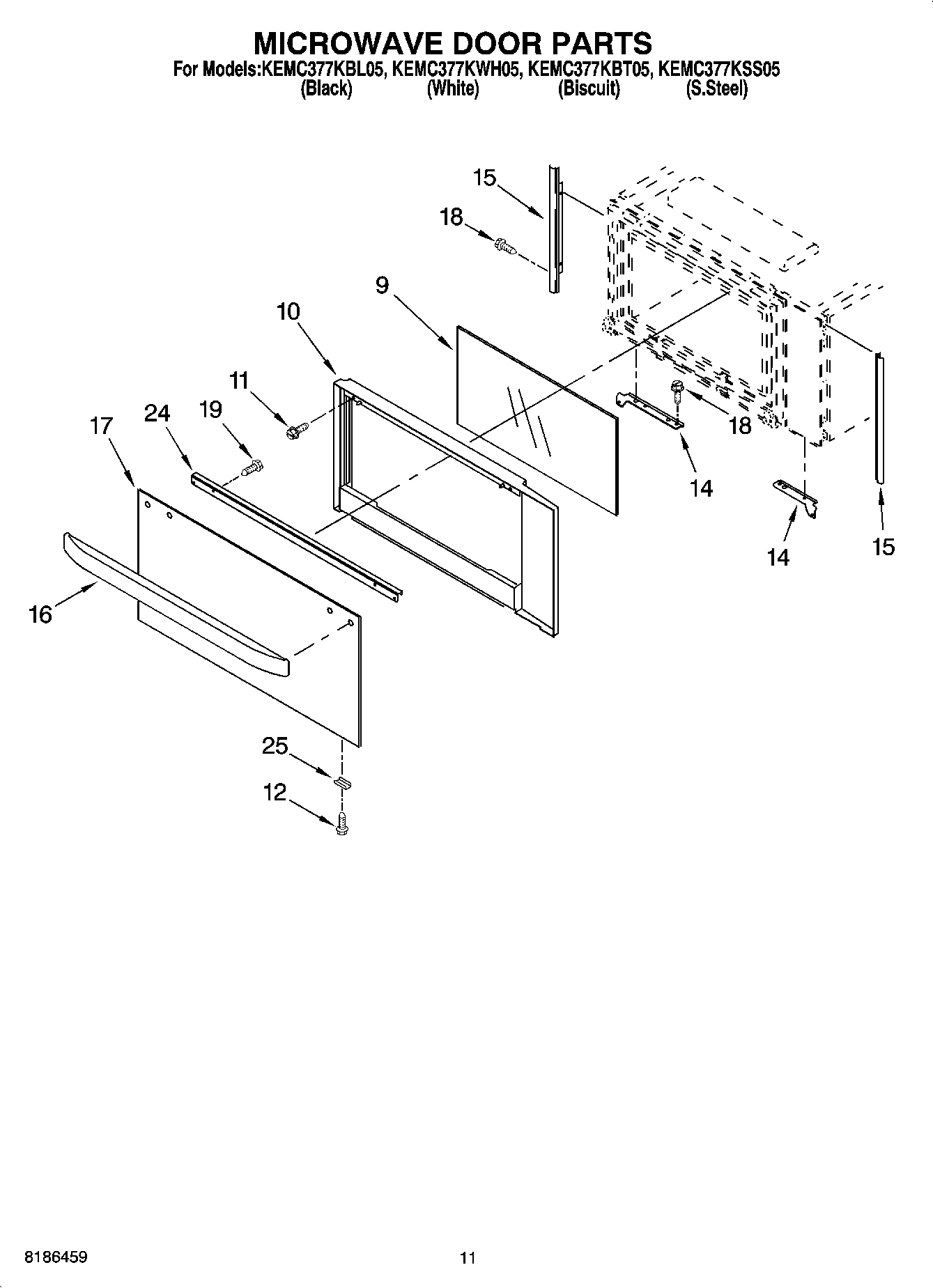

W10851464 Whirlpool Microwave Handle Panel In Stock WPL W10851464 $17.73

22

WP9752759 Whirlpool Relay In Stock WPL WP9752759 $141.99

23

4452220 Whirlpool Microwave Rack In Stock WPL 4452220 $83.99

23

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $7.99

23

Rack (Broiling (Tall)) WPL 4375276 Contact Us For Availability

COOKWARE In Stock WPL W11512490 $68.24

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $6.99

WP4449154 Whirlpool Screw In Stock WPL WP4449154 $4.82

Bracket, Handle WPL 4452330 Contact Us For Availability

25

WP4375020 Whirlpool High Voltage Capacitor In Stock WPL WP4375020 $155.99

25

Screw WPL 3400080 Contact Us For Availability

26

W10245183 Whirlpool Microwave Magnetron In Stock WPL W10245183 $208.53

27

WP4375321 Whirlpool Microwave Fuse In Stock WPL WP4375321 $16.58

27

WP4450038 Whirlpool Screw In Stock WPL WP4450038 $4.82

28

W10245194 Whirlpool Microwave Fuse Block Backorder WPL W10245194 $57.37

28

WP4448444 Whirlpool Grommet Backorder WPL WP4448444 $4.82

29

4375278 Whirlpool Microwave Primary Fan Motor Backorder WPL 4375278 $178.49

29

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $67.99

30

Thermostat WPL 4375279 Contact Us For Availability

30

BRACKET-SUPPORT WPL 4449845 Contact Us For Availability

31

WP4375079 Whirlpool Microwave Thermostat In Stock WPL WP4375079 $58.99

32

Thermostat WPL 4375281 Contact Us For Availability

33

Deflector, Vent WPL 9760676 Contact Us For Availability

33

Q Tube Assembly WPL 4375282 Contact Us For Availability

34

WP4375286 Whirlpool Microwave Transformer In Stock WPL WP4375286 $247.99

34

Vent, Center WPL 4451666 Contact Us For Availability

35

Ring Assembly WPL 4375344 Contact Us For Availability

36

WP8183788 Whirlpool Microwave Turn Shaft Backorder WPL WP8183788 $21.49

37

WP4375323 Whirlpool Microwave Door Hinge In Stock WPL WP4375323 $86.89

37

WP4375324 Whirlpool Microwave Door Hinge In Stock WPL WP4375324 $60.88

37

WP9759243 Whirlpool Thermostat In Stock WPL WP9759243 $40.99

38

WP4451008 Whirlpool Microwave Spring In Stock WPL WP4451008 $88.99

38

WP4452395 Whirlpool Spring Assembly In Stock WPL WP4452395 $97.52

38

WP4452398 Whirlpool Microwave Door Spring In Stock WPL WP4452398 $128.86

39

Bracket, Hinge (Left) WPL 4375327 Contact Us For Availability

39

Bracket, Hinge (Right) WPL 4375328 Contact Us For Availability

40

Inlet WPL 4375329 Contact Us For Availability

41

Door Strap WPL 4375330 Contact Us For Availability

42

Grill Plate WPL 4375331 Contact Us For Availability

43

Base, Chassis WPL 4455529 Contact Us For Availability

43

Bracket, Thermostat WPL 4375332 Contact Us For Availability

44

Fan Cap WPL 4375333 Contact Us For Availability

45

Fan Cap Bottom WPL 4375334 Contact Us For Availability

46

W10727408 Whirlpool Microwave Switch In Stock WPL W10727408 $145.75

47

Isolation Plate WPL 4375337 Contact Us For Availability

48

Cover Plate (Lower) WPL 4375338 Contact Us For Availability

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $4.82

49

Door, Plate WPL 4375339 Contact Us For Availability

50

WP4451747 Whirlpool Rear Cover Backorder WPL WP4451747 $90.20

50

Inner Frame WPL 4375340 Contact Us For Availability

Trim, Bottom (S.Steel) WPL 4455146 Contact Us For Availability

Trim, Bottom (Black) WPL 4455442 Contact Us For Availability

Trim, Bottom (White) WPL 4455444 Contact Us For Availability

Trim, Bottom (Biscuit) WPL 4455446 Contact Us For Availability

Plate, Side (Right) WPL 4375341 Contact Us For Availability

Plate, Side (Left) WPL 4375342 Contact Us For Availability

W11373838 Whirlpool Glass Tray In Stock WPL W11373838 $65.99

In WPL 4449315 Contact Us For Availability

WPL 4450364 WPL 4450364 Contact Us For Availability

WPL 4451755 WPL 4451755 Contact Us For Availability

WPL ARI85628A2 WPL ARI85628A2 Contact Us For Availability

53

W10211972 Whirlpool Microwave Switch In Stock WPL W10211972 $52.99

54

W10642989 Whirlpool Microwave Oven Turntable In Stock WPL W10642989 $88.84

55

WPW10440740 Whirlpool Microwave Light Bulb In Stock WPL WPW10440740 $17.99

56

WPW10687786 Whirlpool Microwave Diode In Stock WPL WPW10687786 $16.57

57

Cable WPL 4375350 Contact Us For Availability

58

Lamp Holder WPL 4375351 Contact Us For Availability
