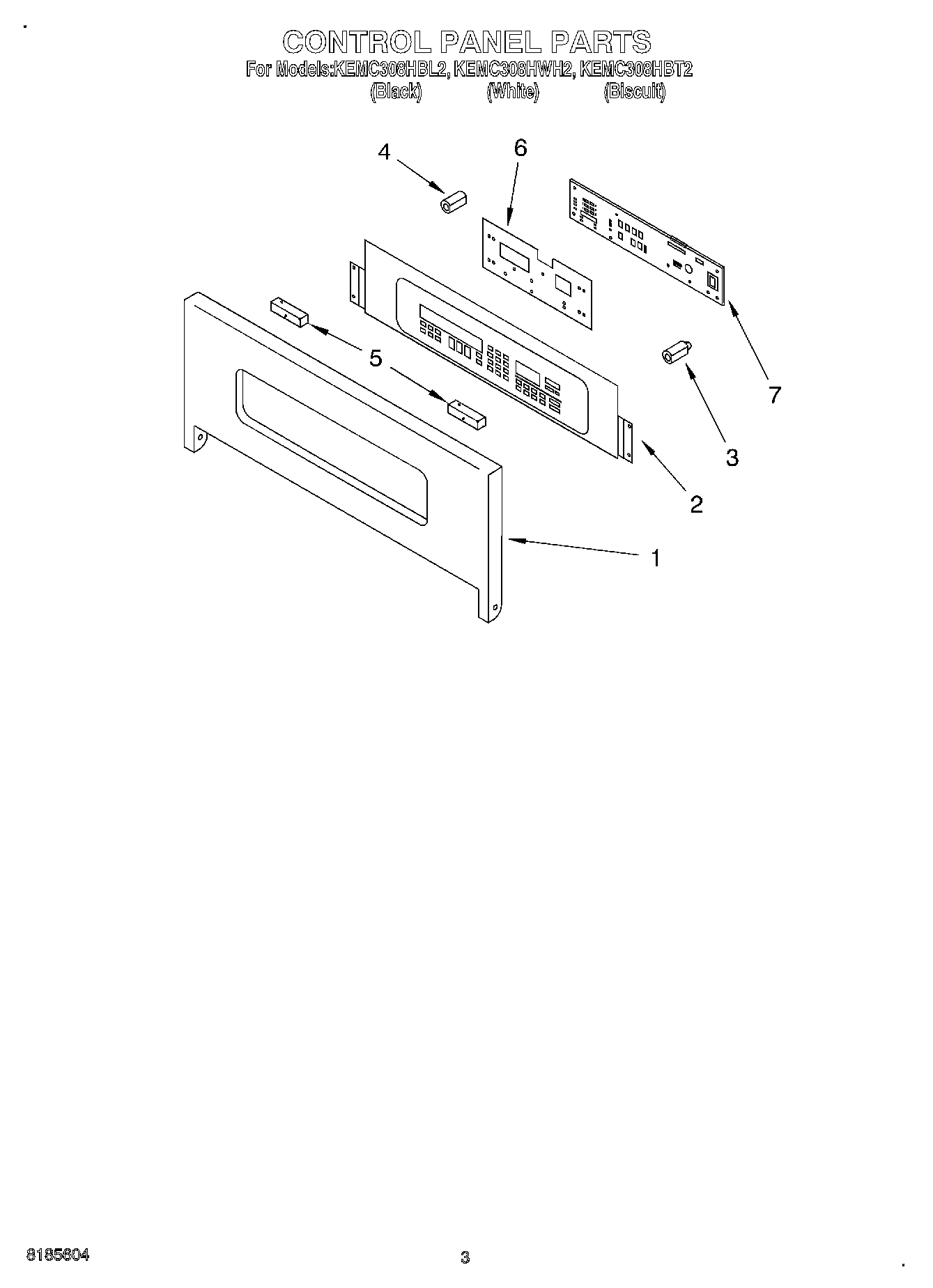

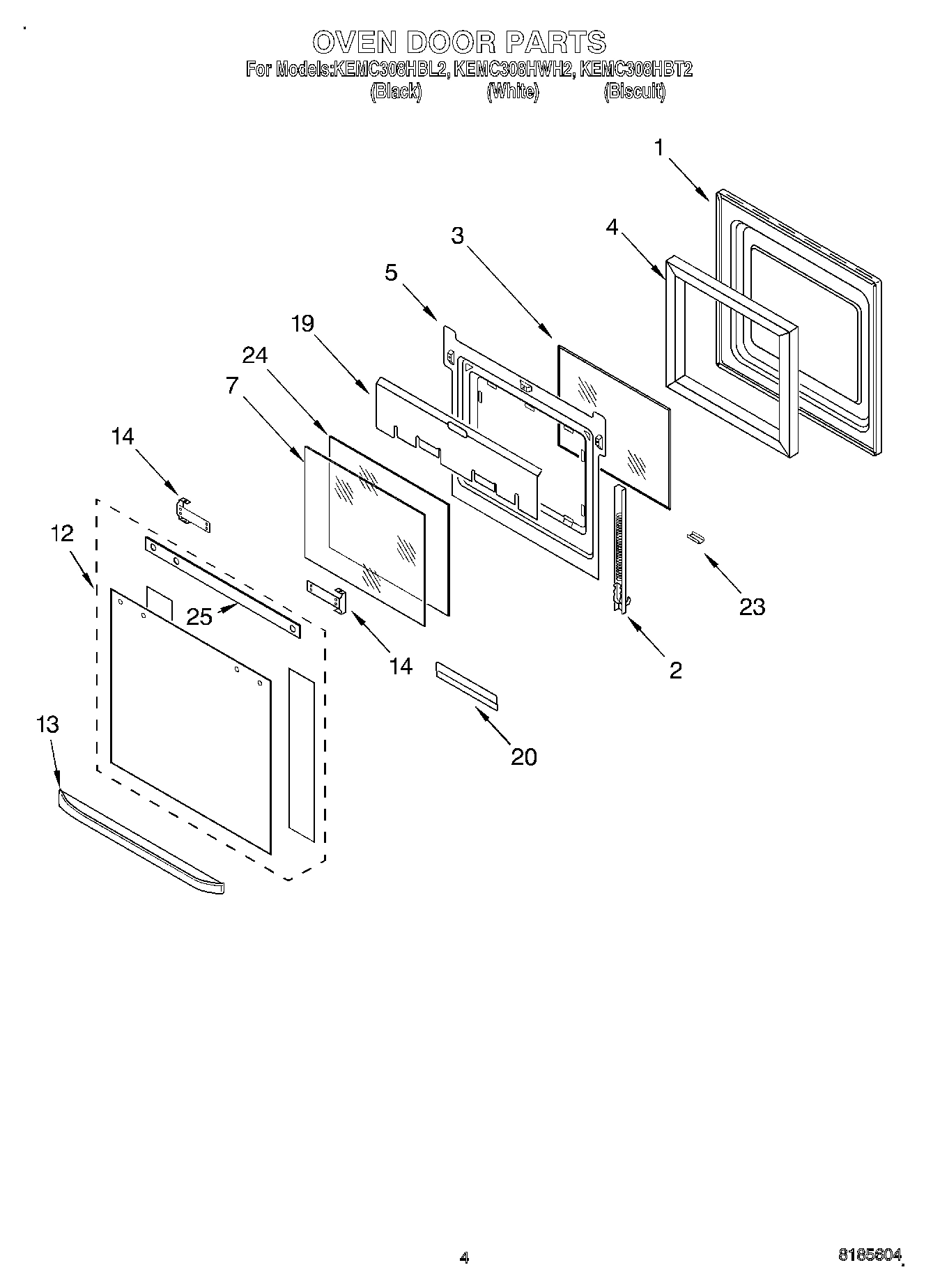

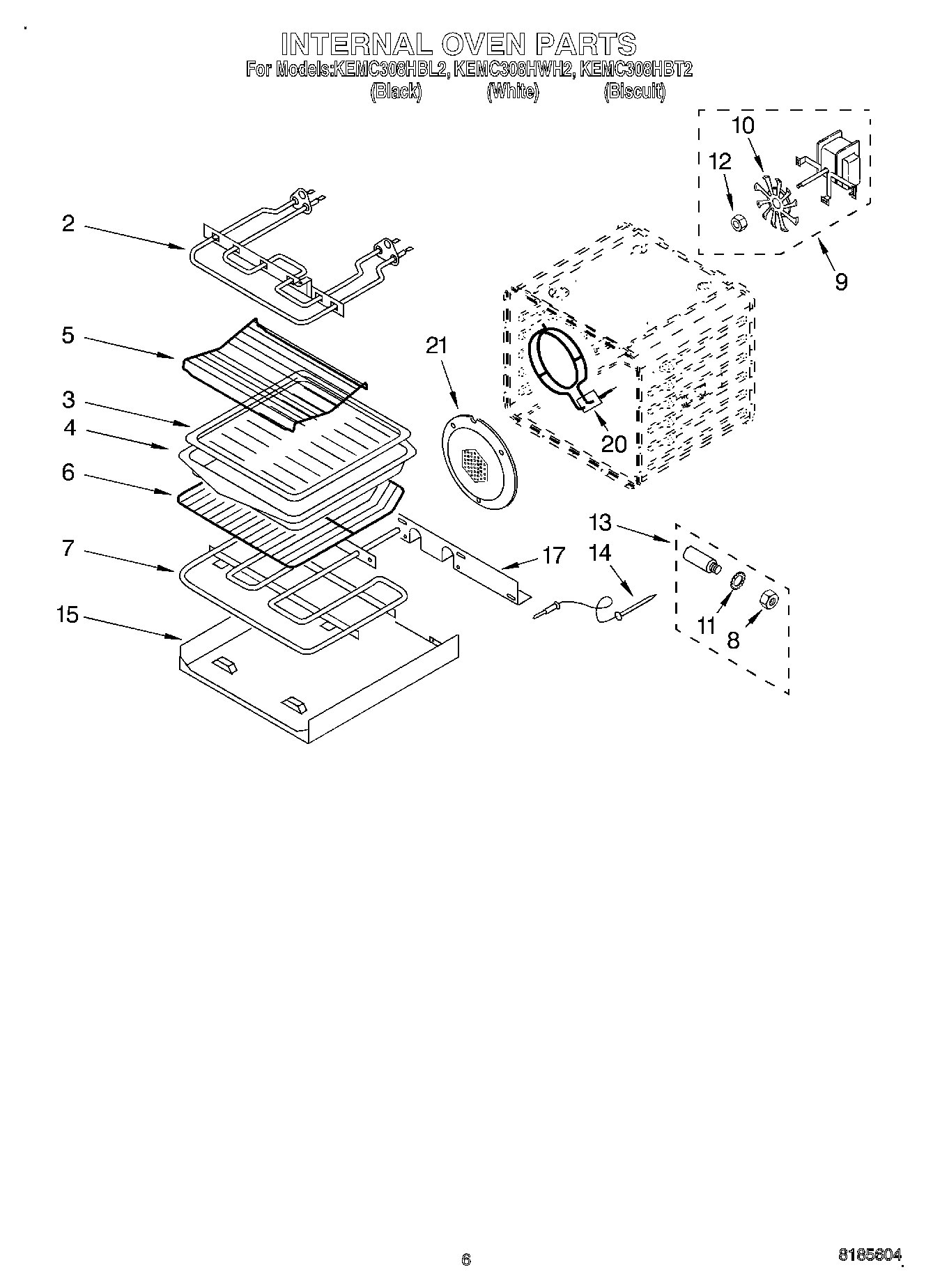

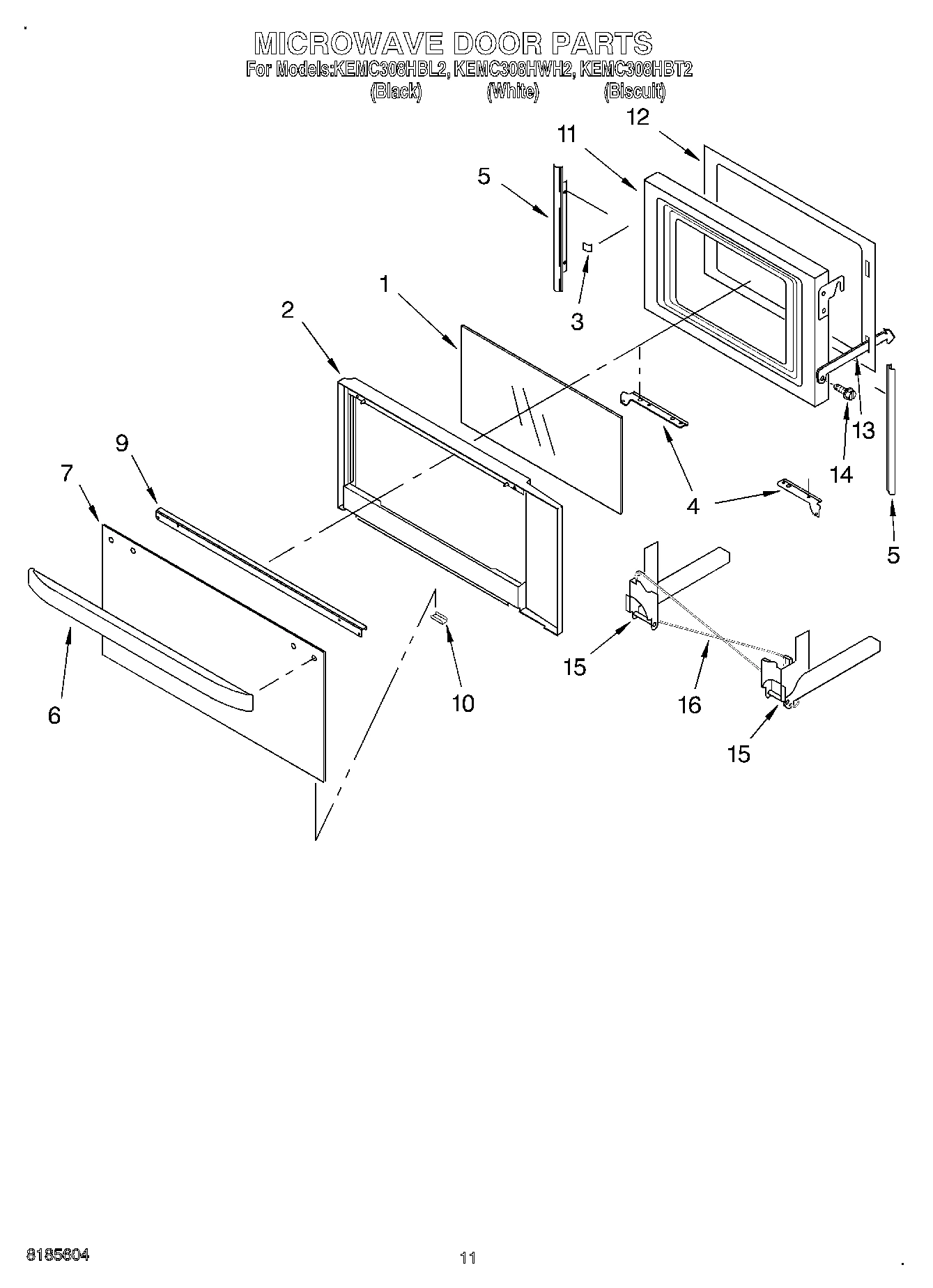

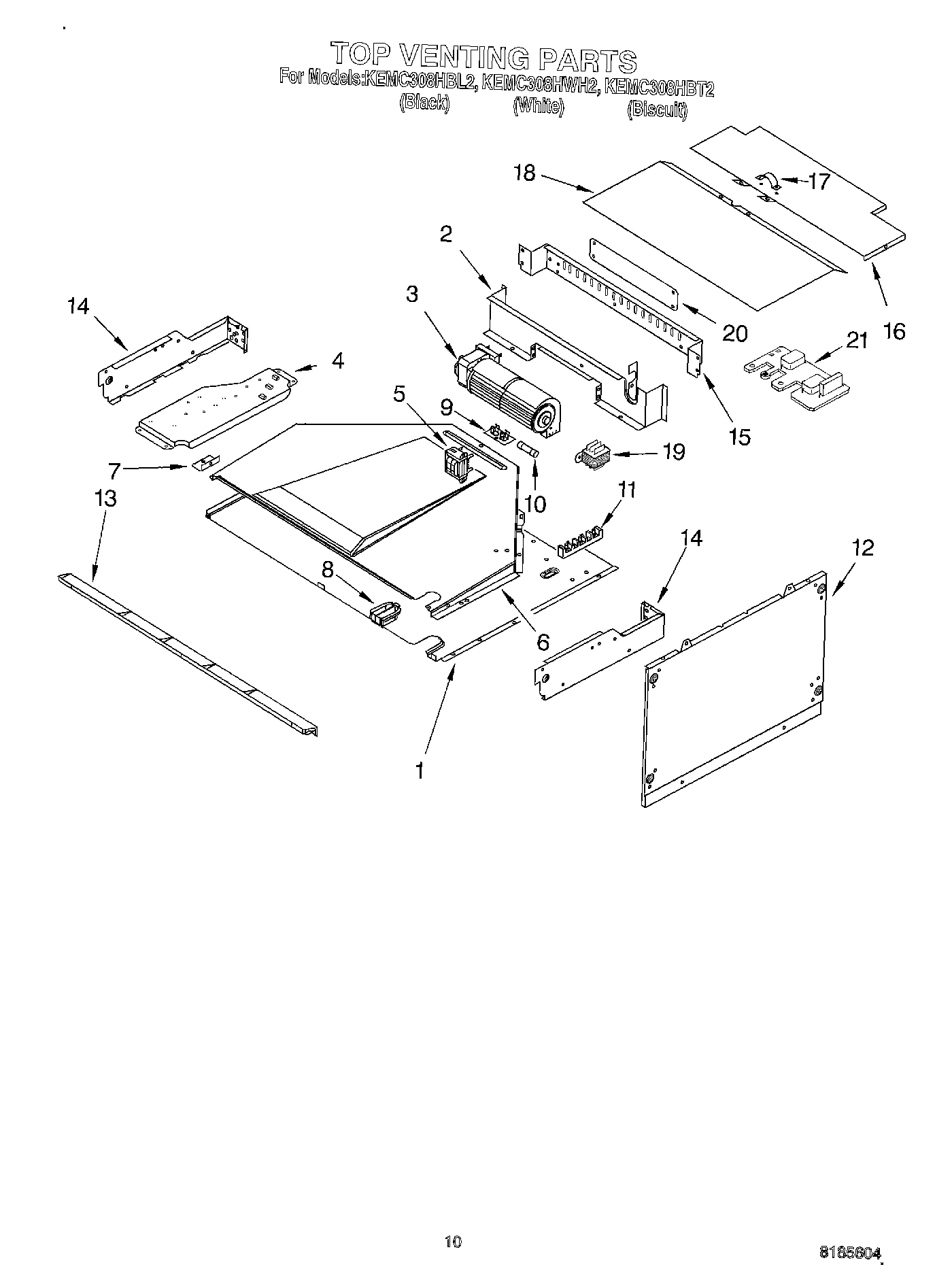

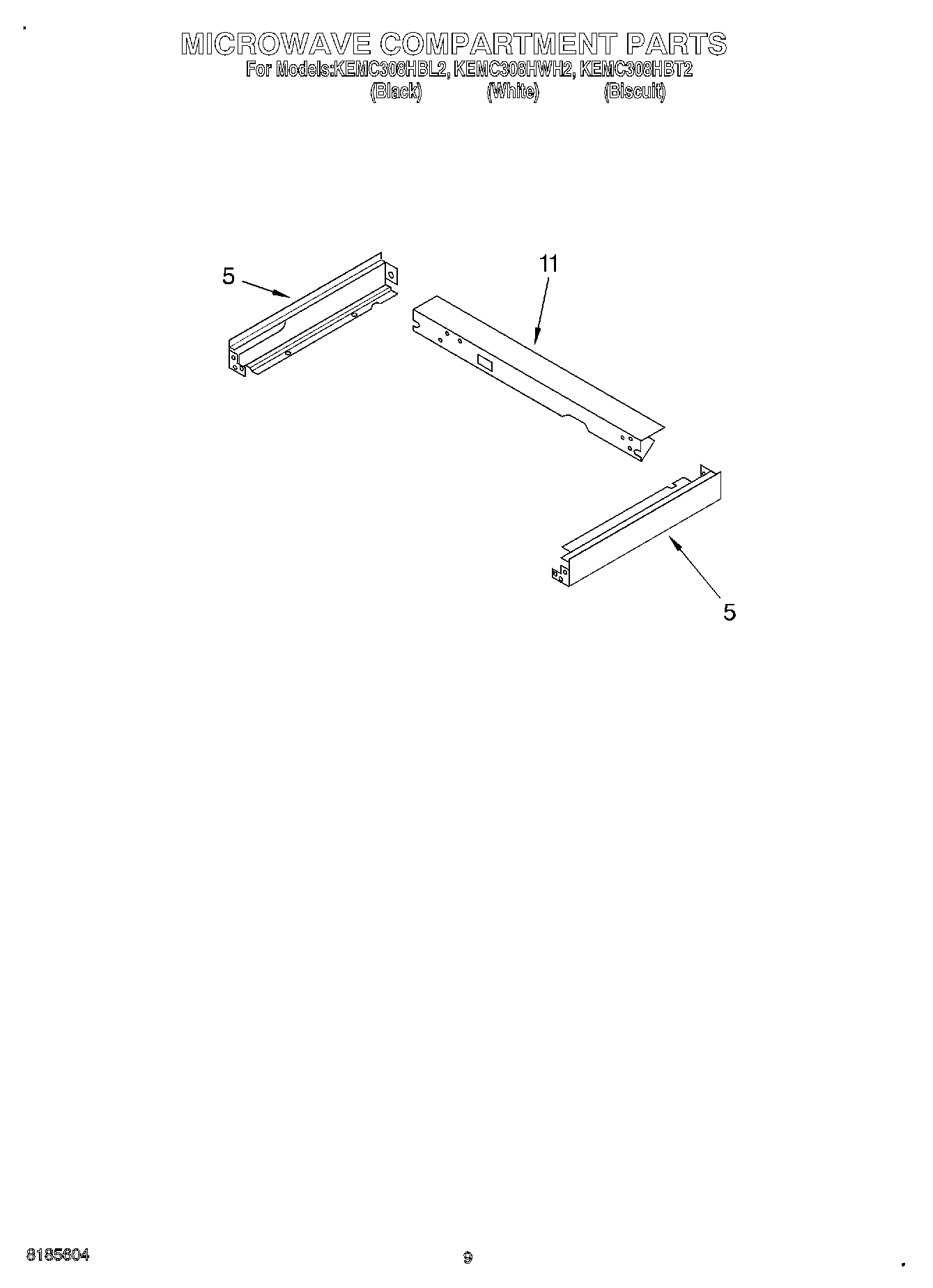

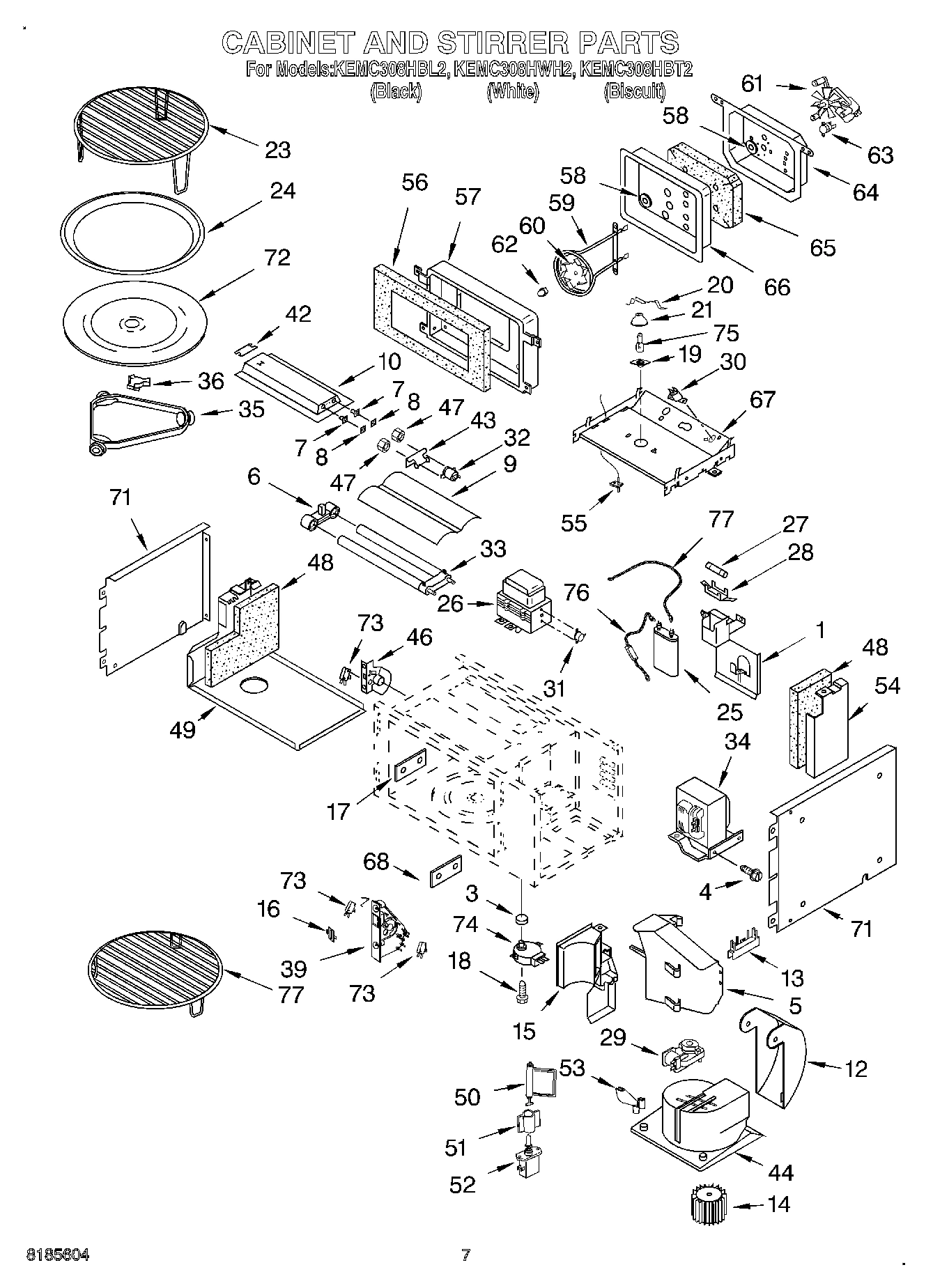

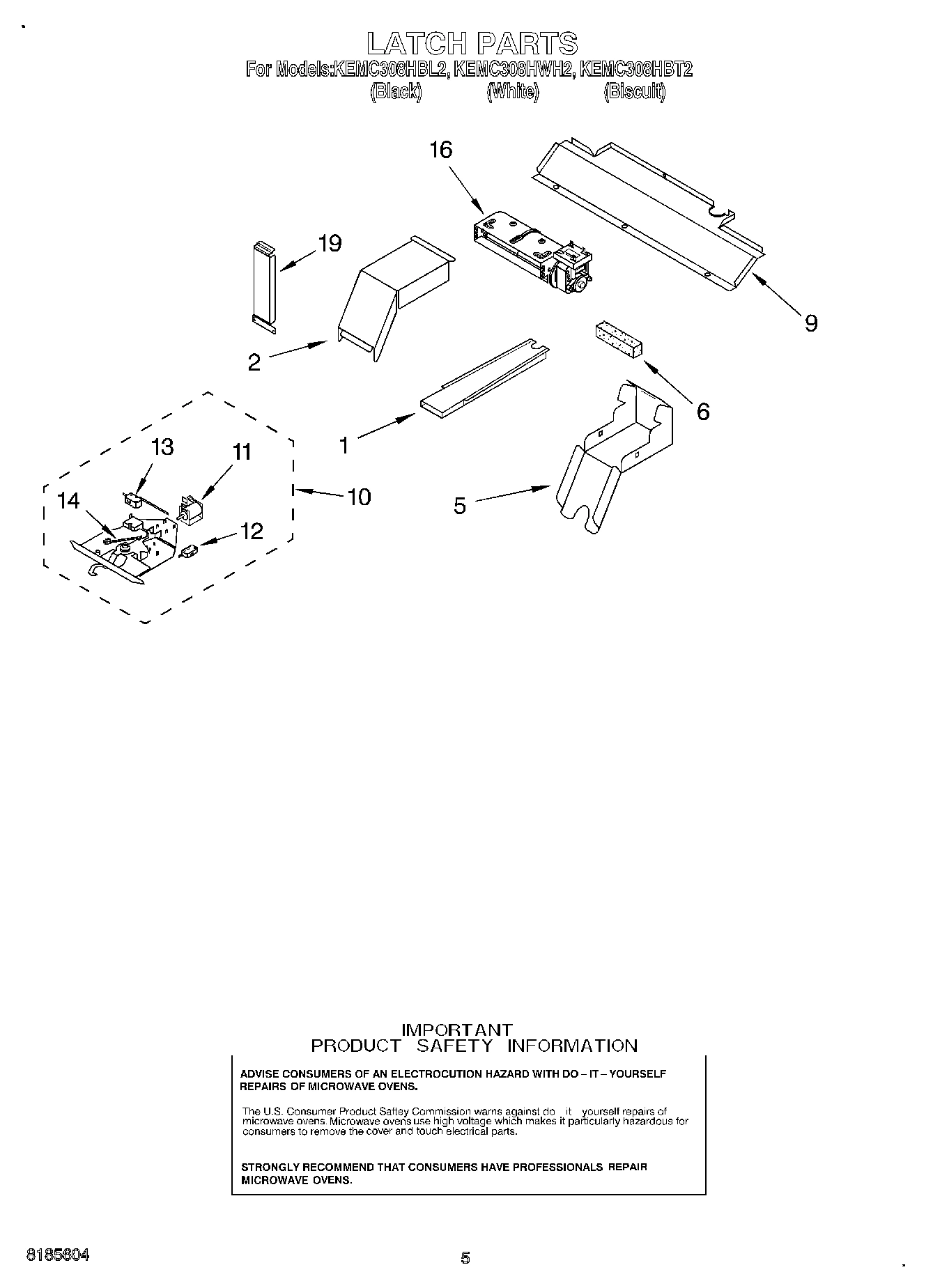

Model Whirlpool KEMC308HBT2 COOKTOP – Common Parts &amp; Diagrams

1

WP9759413 Whirlpool Door Liner Backorder WPL WP9759413 $214.40

1

Glass, Middle WPL 4448937 Contact Us For Availability

1

Cover, Top WPL 4450378 Contact Us For Availability

2

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.06

2

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $4.82

2

WP4455526 Whirlpool Door Hinge In Stock WPL WP4455526 $58.99

2

WP8303556 Whirlpool Microwave Door Frame In Stock WPL WP8303556 $153.95

2

WPW10207400 Whirlpool Broil Element In Stock WPL WPW10207400 $218.99

2

Baffle, Blower WPL 4448935 Contact Us For Availability

3

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $44.99

3

WP4449259 Whirlpool Glass Window In Stock WPL WP4449259 $139.99

3

Ring, Rubber WPL 4375252 Contact Us For Availability

3

Reciever, Hinge (Right Hand) WPL 4455723 Contact Us For Availability

3

Reciever, Hinge (Left Hand) WPL 4455722 Contact Us For Availability

3

Tape, Foam WPL 4450265 Contact Us For Availability

3

Blower WPL 4450920 Contact Us For Availability

4

4448520 Whirlpool Oven Bumper In Stock WPL 4448520 $14.02

4

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $6.99

4

WP4451722 Whirlpool Door Insulation Assembly Backorder WPL WP4451722 $117.06

4

Bracket, Mounting (Right Side) WPL 4449141 Contact Us For Availability

4

Bracket, Mounting (Left Side) WPL 4449142 Contact Us For Availability

4

Plate, Mounting WPL 4451789 Contact Us For Availability

5

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $6.68

5

WP9760588 Whirlpool Transformer In Stock WPL WP9760588 $196.56

5

Trim, Side (LH Black) WPL 4455431 Contact Us For Availability

5

Filler, Side (Right Side) WPL 4449083 Contact Us For Availability

5

Filler, Side (Left) WPL 4449086 Contact Us For Availability

5

Support Rails (Right Side) WPL 4452551 Contact Us For Availability

5

Support Rails (Left Side) WPL 4452552 Contact Us For Availability

5

Retainer, Glass WPL 4451671 Contact Us For Availability

5

Rack, Roasting WPL 3181534 Contact Us For Availability

6

W10491987 Whirlpool Foam Seal Backorder WPL W10491987 $4.82

6

WPW10179152 Whirlpool Rack Oven In Stock WPL WPW10179152 $110.69

6

Duct, Exhaust WPL 4451634 Contact Us For Availability

7

4451175 Whirlpool Bake Element In Stock WPL 4451175 $159.99

7

WP4449263 Whirlpool Inner Door Glass Backorder WPL WP4449263 $142.57

7

Glass, Outer (Black) WPL 4452211 Contact Us For Availability

7

Glass, Outer (White) WPL 4452789 Contact Us For Availability

7

Glass, Outer (Biscuit) WPL 4452995 Contact Us For Availability

7

Bracket, Duct WPL 4450027 Contact Us For Availability

8

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $4.82

8

WP9755546 Whirlpool Locknut Backorder WPL WP9755546 $4.82

8

Grommet WPL 4449964 Contact Us For Availability

9

4454949 Whirlpool Oven Fuse Block Backorder WPL 4454949 $59.08

9

Convection Motor WPL 4451583 Contact Us For Availability

9

Bracket, Handle WPL 4452331 Contact Us For Availability

9

Baffle, Rear WPL 4450408 Contact Us For Availability

WP4452226 Whirlpool Convection Fan Backorder WPL WP4452226 $49.31

WPW10017410 Whirlpool Fuse In Stock WPL WPW10017410 $14.70

Latch Assembly WPL 4451424 Contact Us For Availability

Lens, Light WPL 4452163 Contact Us For Availability

4449748 Whirlpool Oven Screw Backorder WPL 4449748 $9.02

WP4448972 Whirlpool Oven Light In Stock WPL WP4448972 $75.50

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $14.85

WP9755547 Whirlpool Lockwasher Backorder WPL WP9755547 $4.55

Screw WPL 3400080 Contact Us For Availability

Rear Channel WPL 4452548 Contact Us For Availability

Plate, Door WPL 4375339 Contact Us For Availability

Solenoid WPL 4451663 Contact Us For Availability

WP4452164 Whirlpool 12V 5W Halogen Light Bulb In Stock WPL WP4452164 $49.93

Microswitch N.C. WPL 4452312 Contact Us For Availability

Frame, Inner WPL 4375414 Contact Us For Availability

Side, Combo WPL 4452559 Contact Us For Availability

Door Glass, Assy (White Model) WPL 4455390 Contact Us For Availability

Door Glass, Assy (Black Model) WPL 4455391 Contact Us For Availability

Door Glass, Assy (Biscuit Model) WPL 4455395 Contact Us For Availability

Nut WPL 4452227 Contact Us For Availability

8186589 Whirlpool Jack Probe Backorder WPL 8186589 $109.99

Door Handle (Black) WPL 4452502 Contact Us For Availability

Door Handle (White) WPL 4452503 Contact Us For Availability

Door Handle (Biscuit) WPL 4452871 Contact Us For Availability

Strap, Door WPL 4375330 Contact Us For Availability

Vent, (Control Panel) WPL 4450791 Contact Us For Availability

Microswitch WPL 4451426 Contact Us For Availability

4455803 Whirlpool Oven Bracket Backorder WPL 4455803 $22.62

W10755214 Whirlpool Side Complete Backorder WPL W10755214 $49.39

W10790240 Whirlpool Side Assembly Complete Backorder WPL W10790240 $49.39

WP9755542 Whirlpool Oven Meat Probe In Stock WPL WP9755542 $68.99

Screw WPL 4449040 Contact Us For Availability

Bracket, Handle (Screw) WPL 4451040 Contact Us For Availability

Screw WPL 4375313 Contact Us For Availability

Spring, Latch WPL 4451537 Contact Us For Availability

Bracket, Handle (Left Hand) WPL 4452960 Contact Us For Availability

WP4375323 Whirlpool Microwave Door Hinge In Stock WPL WP4375323 $86.89

WP4375324 Whirlpool Microwave Door Hinge In Stock WPL WP4375324 $60.88

Tray, Bake WPL 4455037 Contact Us For Availability

Back, Control WPL 4452244 Contact Us For Availability

16515 Whirlpool Clip Backorder WPL 16515 $12.46

242831 Whirlpool Oven Wire Backorder WPL 242831 $249.73

261900 Whirlpool Microwave Spray Backorder WPL 261900 $30.44

285006 Whirlpool Spray In Stock WPL 285006 $31.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

4450800 Whirlpool Oven Screw Backorder WPL 4450800 $8.89

4450950 Whirlpool Oven Conduit Backorder WPL 4450950 $203.08

4452400 Whirlpool Microwave Wire Harness Backorder WPL 4452400 $30.90

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

814381 Whirlpool Pin In Stock WPL 814381 $4.82

WP261869 Whirlpool Microwave Paint Backorder WPL WP261869 $15.84

WP4448950 Whirlpool Screw Backorder WPL WP4448950 $4.82

WP4451009 Whirlpool Microwave Spring In Stock WPL WP4451009 $91.46

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $34.73

WPW10016550 Whirlpool Blower Cooling Fan In Stock WPL WPW10016550 $249.93

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability

Filler Kit (Bl) WPL 4378944 Contact Us For Availability

Filler Kit (Wh) WPL 4378945 Contact Us For Availability

Filler Kit (Al) WPL 4378946 Contact Us For Availability

Gro WPL 4450831 Contact Us For Availability

WPL 4452222 WPL 4452222 Contact Us For Availability

WPL 4452239 WPL 4452239 Contact Us For Availability

WPL 4455732 WPL 4455732 Contact Us For Availability

WPL 591014 WPL 591014 Contact Us For Availability

Cover, Top Rear WPL 4450551 Contact Us For Availability

17

4448664 Whirlpool Oven Mounting Bracket Backorder WPL 4448664 $13.22

17

4450039 Whirlpool Oven Access Cover Backorder WPL 4450039 $58.50

18

WP4452367 Whirlpool Top Cover Backorder WPL WP4452367 $48.97

4455191 Whirlpool Oven Mounting Plate In Stock WPL 4455191 $7.98

W11193483 Whirlpool Microwave Lamp Lens In Stock WPL W11193483 $68.68

Transformer, Control WPL 4455038 Contact Us For Availability

Extension Filler WPL 4449906 Contact Us For Availability

Shield, Heat WPL 4450362 Contact Us For Availability

20

WP9760769 Whirlpool Element Assembly Backorder WPL WP9760769 $228.85

20

Retainer, Glass WPL 4451668 Contact Us For Availability

20

Plate, Cover WPL 4452247 Contact Us For Availability

21

423107022541 Whirlpool Microwave Reflector Backorder WPL 423107022541 $58.43

21

WPW10160821 Whirlpool Fan Cover Backorder WPL WPW10160821 $173.21

21

Suppressor WPL 4451934 Contact Us For Availability

23

RETAINER, GLASS CLIP (BLACK) WPL 4450863 Contact Us For Availability

23

RETAINER,GLASS CLIP (WHITE) WPL 4450864 Contact Us For Availability

23

Retainer, Glass-Clip (Almond) WPL 4452119 Contact Us For Availability

24

Glass, Inner WPL 4455257 Contact Us For Availability

25

Seal, Pano WPL 4452326 Contact Us For Availability

26

WP4375424 Whirlpool Microwave Magnetron In Stock WPL WP4375424 $337.80

27

WP4375321 Whirlpool Microwave Fuse In Stock WPL WP4375321 $16.58

28

W10245194 Whirlpool Microwave Fuse Block Backorder WPL W10245194 $57.37

29

4375278 Whirlpool Microwave Primary Fan Motor Backorder WPL 4375278 $178.49

30

Thermostat WPL 4375279 Contact Us For Availability

32

Thermostat WPL 4375281 Contact Us For Availability

34

WP4450038 Whirlpool Screw In Stock WPL WP4450038 $4.82

48

Insulation (Right Side) WPL 4375410 Contact Us For Availability

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $4.82

49

WP4449154 Whirlpool Screw In Stock WPL WP4449154 $4.82

49

Plate, Side - Bottom WPL 4375411 Contact Us For Availability

50

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $7.99

50

Valve WPL 4375425 Contact Us For Availability

51

4452152 Whirlpool Oven Mounting Bracket Backorder WPL 4452152 $22.21

51

WP3400805 Whirlpool Screw Assembly Backorder WPL WP3400805 $4.82

51

Screw To Valve WPL 4375428 Contact Us For Availability

52

461967842541 Whirlpool Microwave Actuator Backorder WPL 461967842541 $49.17

53

Air Bleed WPL 4375426 Contact Us For Availability

54

Shield, Heat Right WPL 4375439 Contact Us For Availability

55

Sensor, Temp. WPL 4375422 Contact Us For Availability

56

Insulation WPL 4375420 Contact Us For Availability

57

Duct, Heater WPL 4375419 Contact Us For Availability

58

Washer WPL 4375416 Contact Us For Availability

59

Element, Heater WPL 4375417 Contact Us For Availability

60

W11512064 Whirlpool Microwave Fan In Stock WPL W11512064 $106.67

61

Motor, Fan WPL 4375429 Contact Us For Availability

62

Left-Threaded Nut (Serviced With Motor Item 6 WPL ARI85340A7 Contact Us For Availability

63

W11607085 Whirlpool Microwave Thermostat Fix In Stock WPL W11607085 $26.94

64

Shield, Heat WPL 4375431 Contact Us For Availability

65

Insulation WPL 4375432 Contact Us For Availability

66

Chamber, Heat Cabinet WPL 4375433 Contact Us For Availability

67

Isolation Plate WPL 4375437 Contact Us For Availability

68

Cover Plate WPL 4375338 Contact Us For Availability

71

Side Plate (Left) WPL 4375341 Contact Us For Availability

71

Side Plate (Right) WPL 4375342 Contact Us For Availability

72

W11373838 Whirlpool Glass Tray In Stock WPL W11373838 $65.99

73

W10211972 Whirlpool Microwave Switch In Stock WPL W10211972 $52.99

74

W10642989 Whirlpool Microwave Oven Turntable In Stock WPL W10642989 $88.84

75

WPW10440740 Whirlpool Microwave Light Bulb In Stock WPL WPW10440740 $17.99

76

WPW10687786 Whirlpool Microwave Diode In Stock WPL WPW10687786 $16.57

77

4452220 Whirlpool Microwave Rack In Stock WPL 4452220 $83.99
