Model Whirlpool KEHC379JWH3 COOKTOP – Common Parts &amp; Diagrams

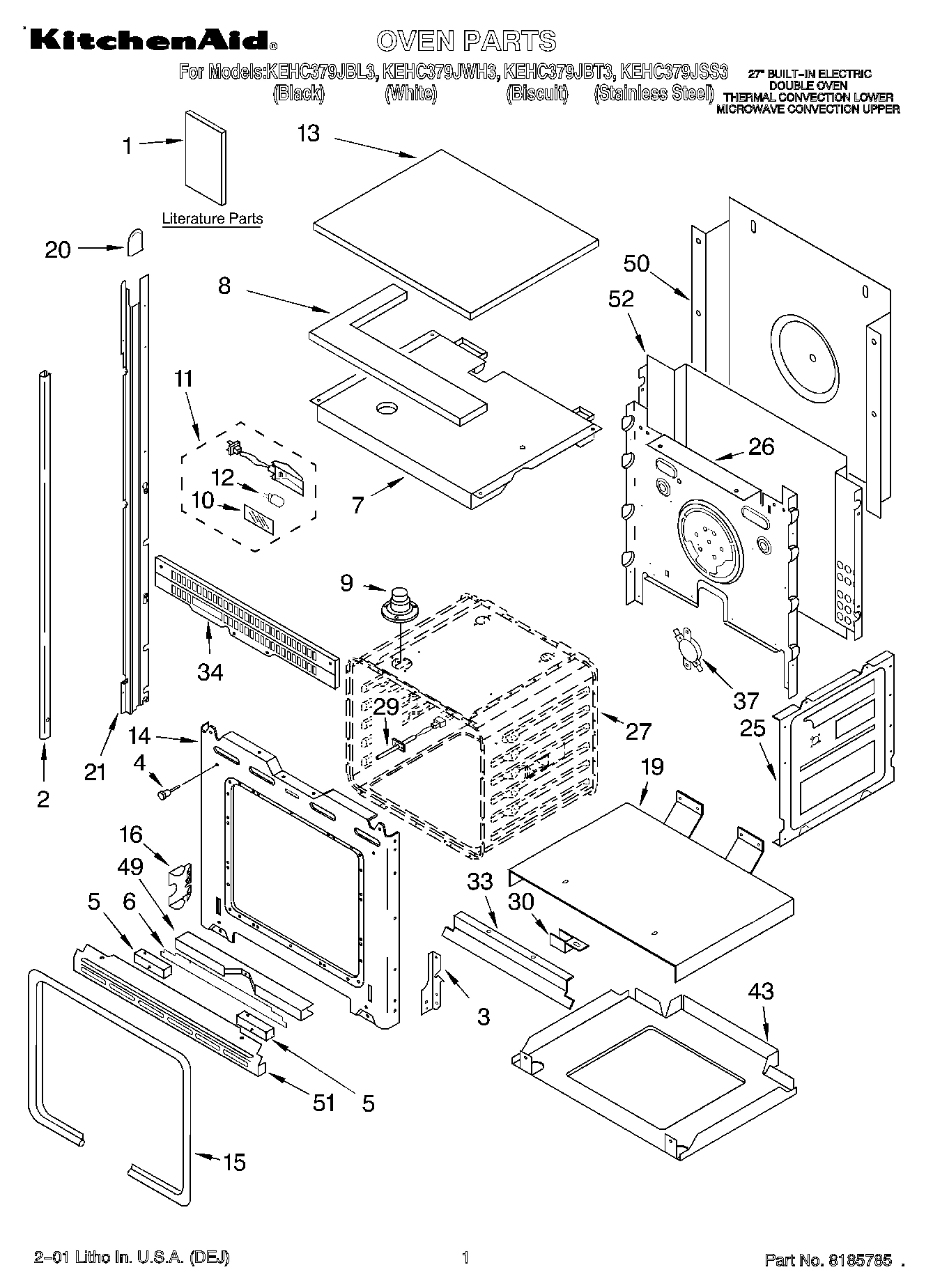

1

Glass, Middle WPL 4448937 Contact Us For Availability

1

Cover, Top WPL 4450377 Contact Us For Availability

1

Safer Cooking Tips WPL LIT3191638 Contact Us For Availability

1

Literature Parts (Easy Set Guide (Oven)) WPL LIT4449264 Contact Us For Availability

1

Literature Parts (Installation Instructions) WPL LIT4450412 Contact Us For Availability

1

Literature Parts (Chart, High Speed Cooking) WPL LIT4452967 Contact Us For Availability

1

Literature Parts (Use & Care Guide (Microwave WPL LIT4453217 Contact Us For Availability

1

Literature Parts (Use & Care Guide (Oven)) WPL LIT4453218 Contact Us For Availability

1

Literature Parts (Tech Sheet (Oven)) WPL LIT4453233 Contact Us For Availability

1

Literature Parts (Label, Cooking Guide) WPL LIT4453330 Contact Us For Availability

1

Literature Parts (Label, Cooking Guide) WPL LIT4453331 Contact Us For Availability

2

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.06

2

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $8.89

2

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $4.82

2

WP4455525 Whirlpool Oven Door Hinge In Stock WPL WP4455525 $56.99

2

WP694091 Whirlpool Screw Backorder WPL WP694091 $4.82

2

WP8281236 Whirlpool Screw Backorder WPL WP8281236 $4.82

2

(Trim, Side Left Hand) (Black) WPL 4455431 Contact Us For Availability

2

Baffle, Blower WPL 4448935 Contact Us For Availability

2

Trim, Side Right Hand (Screw) (White/Biscuit) WPL 4449041 Contact Us For Availability

2

Trim, Side Right Hand (Stainless Steel) WPL 4452083 Contact Us For Availability

2

(Trim, Side Left Hand) (Stainless Steel) WPL 4452084 Contact Us For Availability

2

Trim, Side Right Hand (Black) WPL 4455430 Contact Us For Availability

2

Trim, Side Right Hand (White) WPL 4455432 Contact Us For Availability

2

(Trim, Side Left Hand) (White) WPL 4455433 Contact Us For Availability

2

Trim, Side Right Hand (Biscuit) WPL 4455434 Contact Us For Availability

2

(Trim, Side Left Hand) (Biscuit) WPL 4455435 Contact Us For Availability

3

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $6.68

3

WP4449253 Whirlpool Glass Window In Stock WPL WP4449253 $126.99

3

Ring, Rubber WPL 4375252 Contact Us For Availability

3

Reciever, Hinge (Right Hand) WPL 4455521 Contact Us For Availability

3

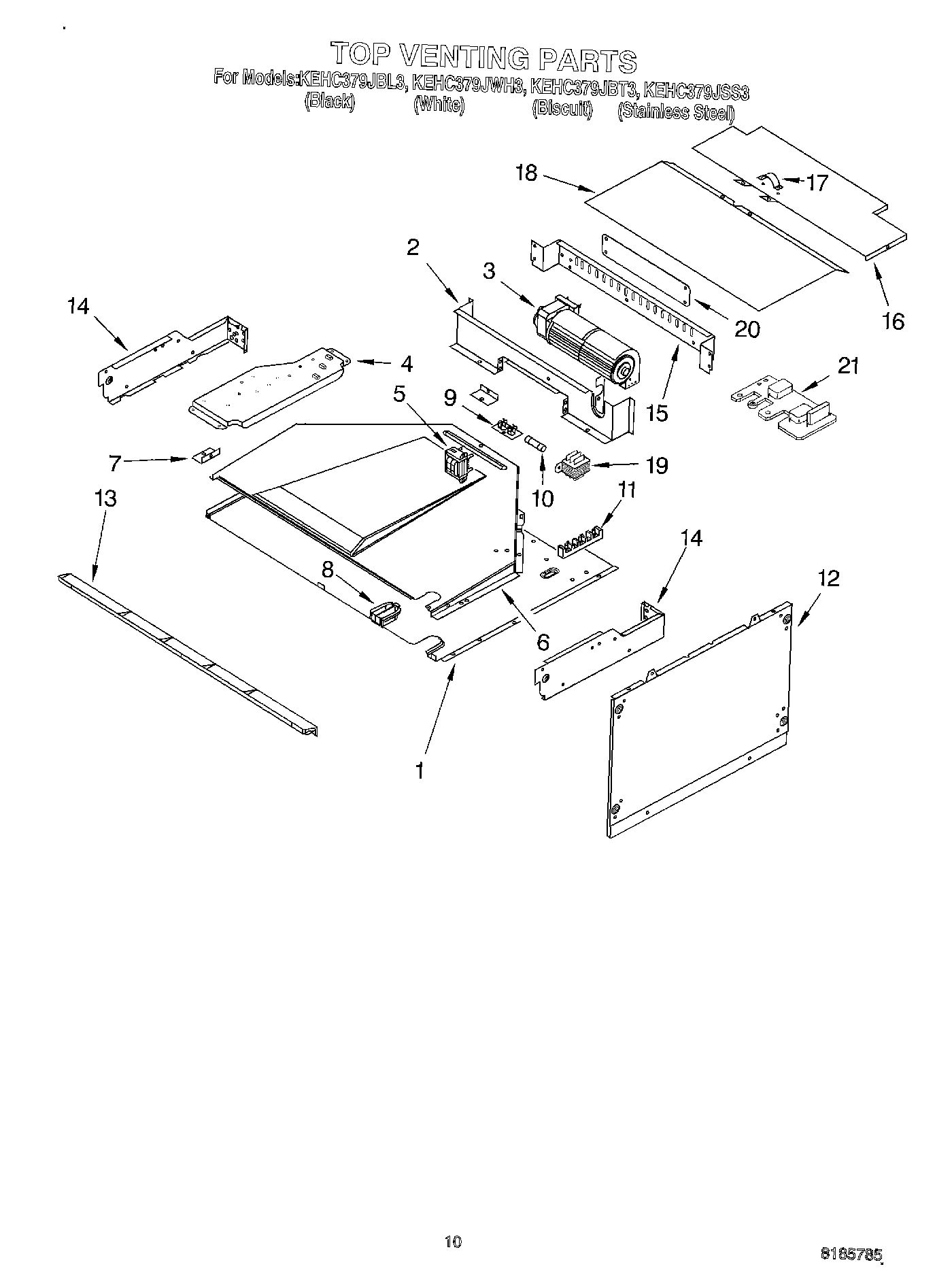

Blower WPL 4450920 Contact Us For Availability

3

Reciever, Hinge (Left Hand) WPL 4455520 Contact Us For Availability

4

4448520 Whirlpool Oven Bumper In Stock WPL 4448520 $14.02

4

Bracket, Mounting (Right Side) WPL 4449141 Contact Us For Availability

4

Bracket, Mounting (Left Side) WPL 4449142 Contact Us For Availability

4

Insulation, Door WPL 4451721 Contact Us For Availability

4

Screw WPL 4375038 Contact Us For Availability

4

Plate, Mounting Transformer WPL 4451789 Contact Us For Availability

5

W10491987 Whirlpool Foam Seal Backorder WPL W10491987 $4.82

5

WP9760588 Whirlpool Transformer In Stock WPL WP9760588 $196.56

5

Filler, Side WPL 4449083 Contact Us For Availability

5

Air Duct, Magnetron WPL 4375314 Contact Us For Availability

5

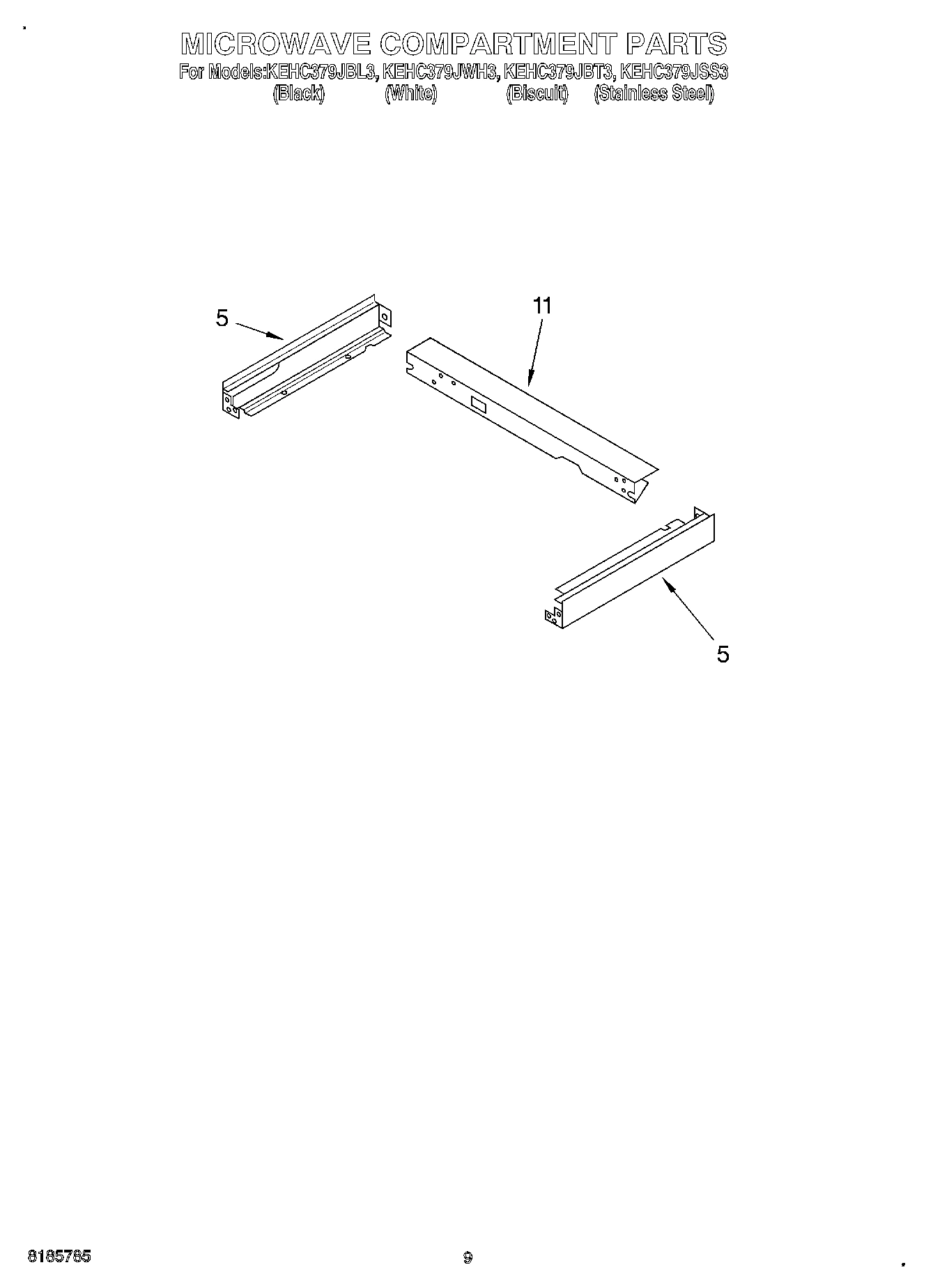

Support Rails (Right Side) WPL 4452551 Contact Us For Availability

5

Support Rails (Left Side) WPL 4452552 Contact Us For Availability

5

Spacer, Foam WPL 4452490 Contact Us For Availability

6

Rack, Oven WPL 4448715 Contact Us For Availability

6

Insulator, Dialectric WPL 4452345 Contact Us For Availability

6

Support, Tube WPL 4375253 Contact Us For Availability

6

Exhaust Duct WPL 4450366 Contact Us For Availability

6

Insulation, Bottom Vent WPL 4452336 Contact Us For Availability

7

WP4449257 Whirlpool Door Glass Backorder WPL WP4449257 $126.08

7

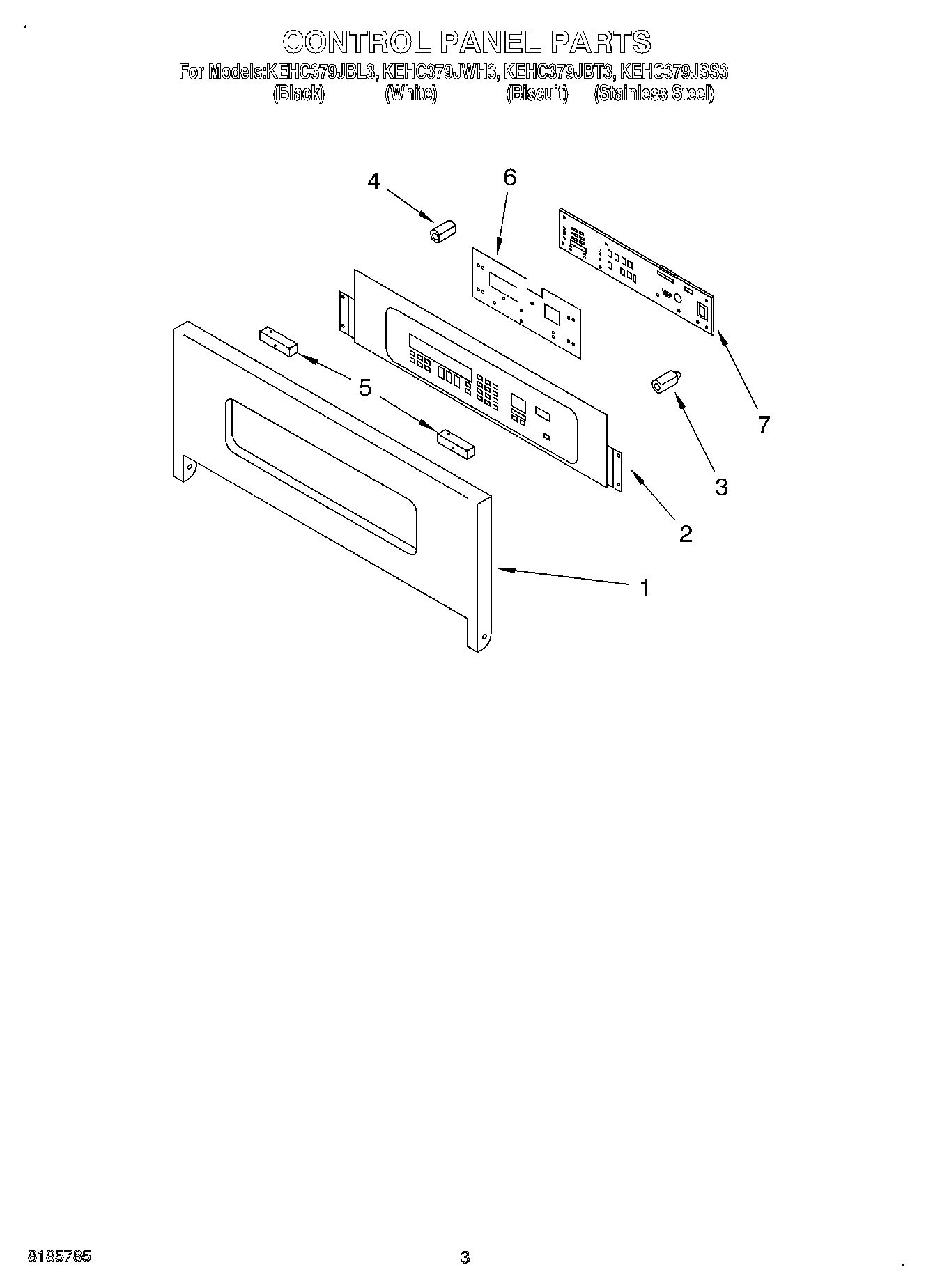

Microcomputer WPL 4452953 Contact Us For Availability

7

Glass, Outer (Black) WPL 4452210 Contact Us For Availability

7

Screw WPL 3400406 Contact Us For Availability

7

Plug, Ceramic WPL 4375421 Contact Us For Availability

7

Bracket, Duct WPL 4450027 Contact Us For Availability

7

Top, Chassis WPL 4455285 Contact Us For Availability

8

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $4.82

8

Bushing WPL 4375255 Contact Us For Availability

8

Grommet WPL 4449964 Contact Us For Availability

8

Insulation-Grill WPL 4452492 Contact Us For Availability

9

4454949 Whirlpool Oven Fuse Block Backorder WPL 4454949 $59.08

9

W10861715 Whirlpool Vent Tube Backorder WPL W10861715 $78.42

9

W11233072 Whirlpool Screw In Stock WPL W11233072 $19.85

9

Convection Motor WPL 4451583 Contact Us For Availability

9

Bracket, Handle WPL 4452330 Contact Us For Availability

9

Baffle, Rear WPL 4450407 Contact Us For Availability

9

Reflector WPL 4375256 Contact Us For Availability

WP4452226 Whirlpool Convection Fan Backorder WPL WP4452226 $49.31

WPW10017410 Whirlpool Fuse In Stock WPL WPW10017410 $14.70

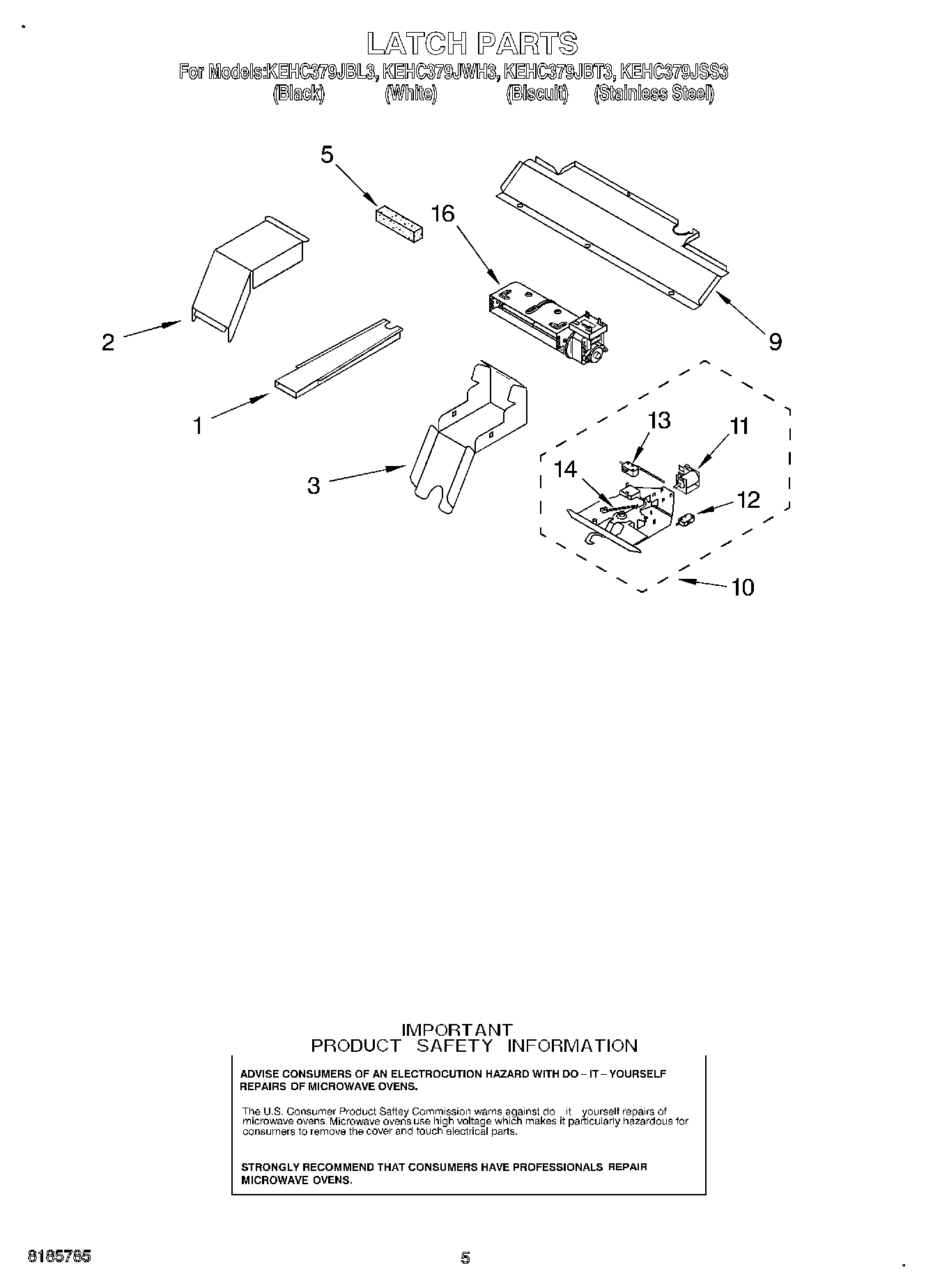

Latch Assembly WPL 4451424 Contact Us For Availability

Lens, Light WPL 4452163 Contact Us For Availability

Chamber, Reflector WPL 4375257 Contact Us For Availability

Damper WPL 4375315 Contact Us For Availability

4449748 Whirlpool Oven Screw Backorder WPL 4449748 $9.02

WP4448972 Whirlpool Oven Light In Stock WPL WP4448972 $75.50

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $14.85

Screw WPL 3400080 Contact Us For Availability

Solenoid WPL 4451663 Contact Us For Availability

Rear Channel WPL 4452547 Contact Us For Availability

WP4452164 Whirlpool 12V 5W Halogen Light Bulb In Stock WPL WP4452164 $49.93

WP4452315 Whirlpool Door Glass In Stock WPL WP4452315 $271.99

Microswitch N.C. WPL 4452312 Contact Us For Availability

Duct, Inlet WPL 4375450 Contact Us For Availability

Side, Combo WPL 4452559 Contact Us For Availability

Microswitch WPL 4451426 Contact Us For Availability

Insulation, Switch WPL 4375316 Contact Us For Availability

Vent, Control Panel WPL 4450787 Contact Us For Availability

Insulation-Top WPL 4452491 Contact Us For Availability

W10755214 Whirlpool Side Complete Backorder WPL W10755214 $49.39

W10790240 Whirlpool Side Assembly Complete Backorder WPL W10790240 $49.39

Screw WPL 4449040 Contact Us For Availability

Spring, Latch WPL 4451537 Contact Us For Availability

Fan Wheel WPL 4375322 Contact Us For Availability

Frame, Front WPL 4455611 Contact Us For Availability

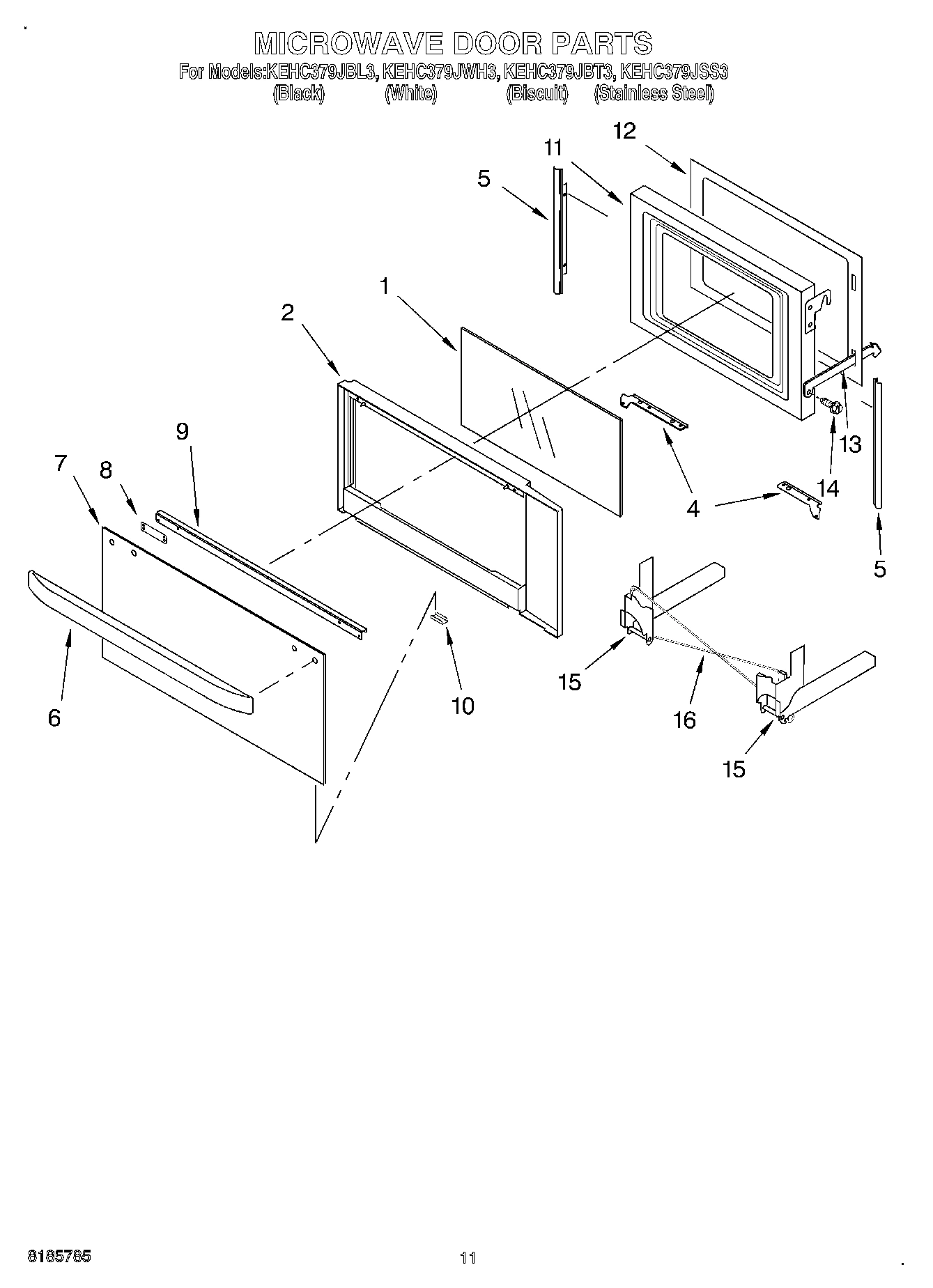

WP4375323 Whirlpool Microwave Door Hinge In Stock WPL WP4375323 $86.89

WP4375324 Whirlpool Microwave Door Hinge In Stock WPL WP4375324 $60.88

WP4455381 Whirlpool Door Gasket In Stock WPL WP4455381 $122.62

Duct, Air WPL 4375317 Contact Us For Availability

Back, Control WPL 4452244 Contact Us For Availability

261900 Whirlpool Microwave Spray Backorder WPL 261900 $30.44

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

4450950 Whirlpool Oven Conduit Backorder WPL 4450950 $203.08

4452152 Whirlpool Oven Mounting Bracket Backorder WPL 4452152 $22.21

4452400 Whirlpool Microwave Wire Harness Backorder WPL 4452400 $30.90

4455191 Whirlpool Oven Mounting Plate In Stock WPL 4455191 $7.98

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

814381 Whirlpool Pin In Stock WPL 814381 $4.82

WP261869 Whirlpool Microwave Paint Backorder WPL WP261869 $15.84

WP4451008 Whirlpool Microwave Spring In Stock WPL WP4451008 $88.99

WP4452398 Whirlpool Microwave Door Spring In Stock WPL WP4452398 $128.86

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $34.73

WPW10016550 Whirlpool Blower Cooling Fan In Stock WPL WPW10016550 $249.93

Spacer, Foam WPL 4452260 Contact Us For Availability

Block, Slide WPL 4375415 Contact Us For Availability

Cover, Top Rear WPL 4450550 Contact Us For Availability

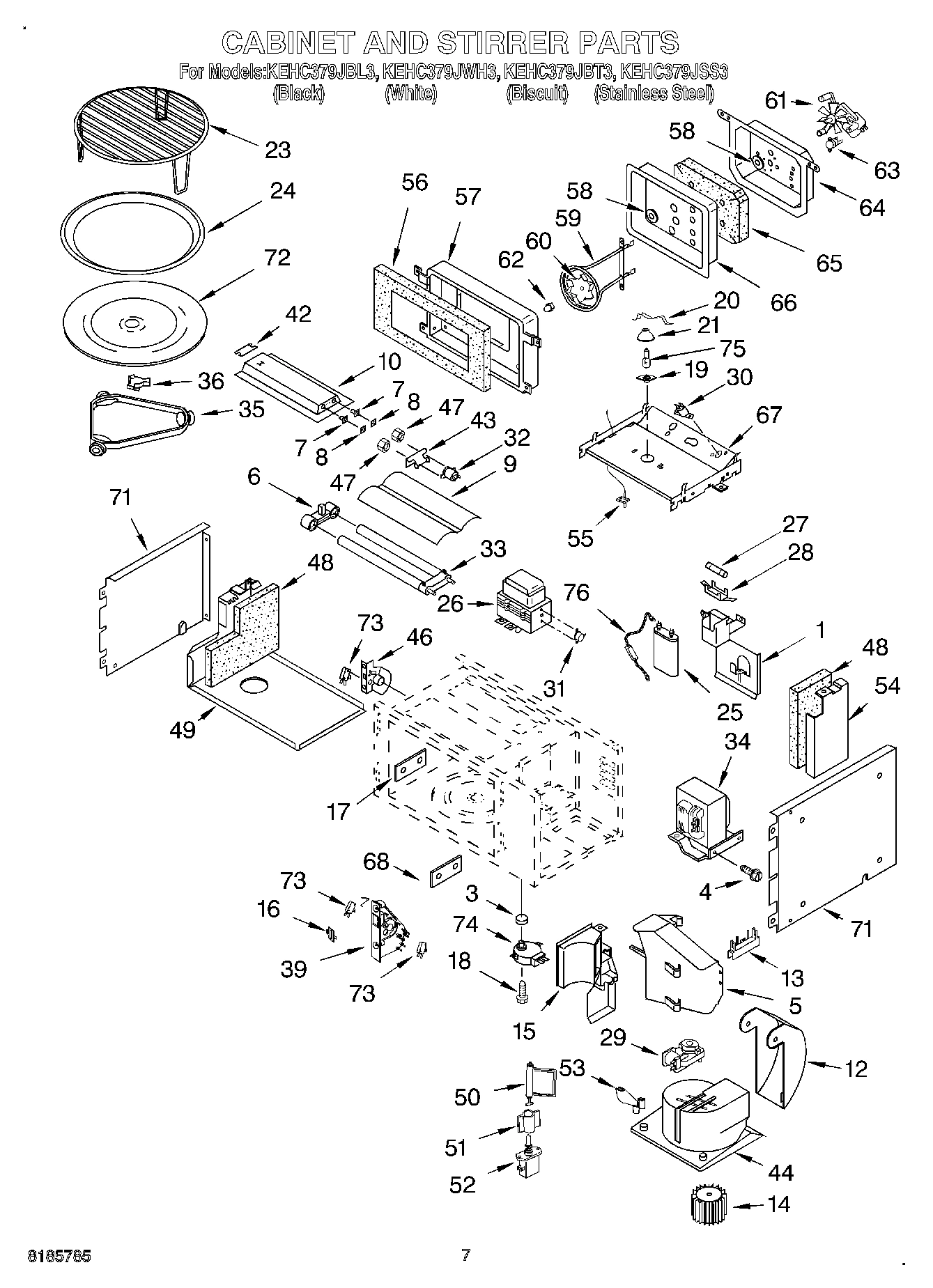

17

4448664 Whirlpool Oven Mounting Bracket Backorder WPL 4448664 $13.22

17

Cover Plate, Upper WPL 4375248 Contact Us For Availability

18

8206180 Whirlpool Microwave Screw Backorder WPL 8206180 $8.89

18

Cover, Top Front WPL 4452366 Contact Us For Availability

19

W11193483 Whirlpool Microwave Lamp Lens In Stock WPL W11193483 $68.68

19

Transformer, Control Panel WPL 4455038 Contact Us For Availability

19

Support, Insulation WPL 4451477 Contact Us For Availability

W10465869 Whirlpool Microwave Spring Backorder WPL W10465869 $65.38

Retainer, Glass WPL 4451668 Contact Us For Availability

Plate, Cover WPL 4452247 Contact Us For Availability

Cap, Spa WPL 4451605 Contact Us For Availability

423107022541 Whirlpool Microwave Reflector Backorder WPL 423107022541 $58.43

WP4448444 Whirlpool Grommet Backorder WPL WP4448444 $4.82

Suppressor WPL 4451934 Contact Us For Availability

Seal, Door Top WPL 4452325 Contact Us For Availability

Handle, Pan WPL 4393900 Contact Us For Availability

23

4452220 Whirlpool Microwave Rack In Stock WPL 4452220 $83.99

24

COOKWARE In Stock WPL W11512490 $68.24

25

W10782197 Whirlpool Side Panel Backorder WPL W10782197 $94.56

25

WP4375020 Whirlpool High Voltage Capacitor In Stock WPL WP4375020 $155.99

26

WP4375424 Whirlpool Microwave Magnetron In Stock WPL WP4375424 $337.80

26

WPL 4452233 WPL 4452233 Contact Us For Availability

27

WP4375321 Whirlpool Microwave Fuse In Stock WPL WP4375321 $16.58

27

WPL ARI85123A4 WPL ARI85123A4 Contact Us For Availability

28

W10245194 Whirlpool Microwave Fuse Block Backorder WPL W10245194 $57.37

29

4375278 Whirlpool Microwave Primary Fan Motor Backorder WPL 4375278 $178.49

29

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $67.99

30

Thermostat WPL 4375279 Contact Us For Availability

30

WPL 4449845 WPL 4449845 Contact Us For Availability

31

WP4375079 Whirlpool Microwave Thermostat In Stock WPL WP4375079 $58.99

32

Thermostat WPL 4375281 Contact Us For Availability

33

Q Tube Assembly WPL 4375408 Contact Us For Availability

33

WPL 4452495 WPL 4452495 Contact Us For Availability

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $6.99

WP4375286 Whirlpool Microwave Transformer In Stock WPL WP4375286 $247.99

WP4450038 Whirlpool Screw In Stock WPL WP4450038 $4.82

WPL 4451666 WPL 4451666 Contact Us For Availability

35

Ring, Turntable WPL 4375406 Contact Us For Availability

36

WP8183788 Whirlpool Microwave Turn Shaft Backorder WPL WP8183788 $21.49

37

WP9759243 Whirlpool Thermostat In Stock WPL WP9759243 $40.99

42

Plate, Grill WPL 4375331 Contact Us For Availability

43

WPL 4455529 WPL 4455529 Contact Us For Availability

43

Bracket WPL 4375332 Contact Us For Availability

44

Cap, Fan WPL 4375441 Contact Us For Availability

46

W10727408 Whirlpool Microwave Switch In Stock WPL W10727408 $145.75

47

Nut WPL 4375258 Contact Us For Availability

48

Insulation (Left Side) WPL 4375409 Contact Us For Availability

48

Insulation (Right Side) WPL 4375410 Contact Us For Availability

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $4.82

49

WP4449154 Whirlpool Screw In Stock WPL WP4449154 $4.82

49

Plate, Side - Bottom WPL 4375411 Contact Us For Availability

50

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $7.99

50

WP4451747 Whirlpool Rear Cover Backorder WPL WP4451747 $90.20

50

Valve WPL 4375425 Contact Us For Availability

Screw To Valve WPL 4375428 Contact Us For Availability

WPL 4450289 WPL 4450289 Contact Us For Availability

WPL 4455146 WPL 4455146 Contact Us For Availability

WPL 4455442 WPL 4455442 Contact Us For Availability

WPL 4455444 WPL 4455444 Contact Us For Availability

WPL 4455446 WPL 4455446 Contact Us For Availability

461967842541 Whirlpool Microwave Actuator Backorder WPL 461967842541 $49.17

WPL 4449315 WPL 4449315 Contact Us For Availability

WPL 4450364 WPL 4450364 Contact Us For Availability

WPL 4451755 WPL 4451755 Contact Us For Availability

53

Air Bleed WPL 4375426 Contact Us For Availability

54

Shield, Heat Right WPL 4375439 Contact Us For Availability

55

Sensor, Temp. WPL 4375422 Contact Us For Availability

56

Insulation WPL 4375420 Contact Us For Availability

57

Duct, Heater WPL 4375419 Contact Us For Availability

58

Washer WPL 4375416 Contact Us For Availability

59

Element, Heater WPL 4375417 Contact Us For Availability

60

W11512064 Whirlpool Microwave Fan In Stock WPL W11512064 $106.67

61

Motor, Fan WPL 4375429 Contact Us For Availability

62

Left-Threaded Nut (Serviced With Motor Item 6 WPL ARI85124A9 Contact Us For Availability

63

W11607085 Whirlpool Microwave Thermostat Fix In Stock WPL W11607085 $26.94

64

Shield, Heat WPL 4375431 Contact Us For Availability

65

Insulation WPL 4375432 Contact Us For Availability

66

Chamber, Heat Cabinet WPL 4375433 Contact Us For Availability

67

Isolation Plate WPL 4375437 Contact Us For Availability

68

Cover Plate WPL 4375338 Contact Us For Availability

71

Side Plate (Left) WPL 4375341 Contact Us For Availability

71

Side Plate (Right) WPL 4375342 Contact Us For Availability

72

W11373838 Whirlpool Glass Tray In Stock WPL W11373838 $65.99

73

W10211972 Whirlpool Microwave Switch In Stock WPL W10211972 $52.99

74

W10642989 Whirlpool Microwave Oven Turntable In Stock WPL W10642989 $88.84

75

WPW10440740 Whirlpool Microwave Light Bulb In Stock WPL WPW10440740 $17.99

76

WPW10687786 Whirlpool Microwave Diode In Stock WPL WPW10687786 $16.57
