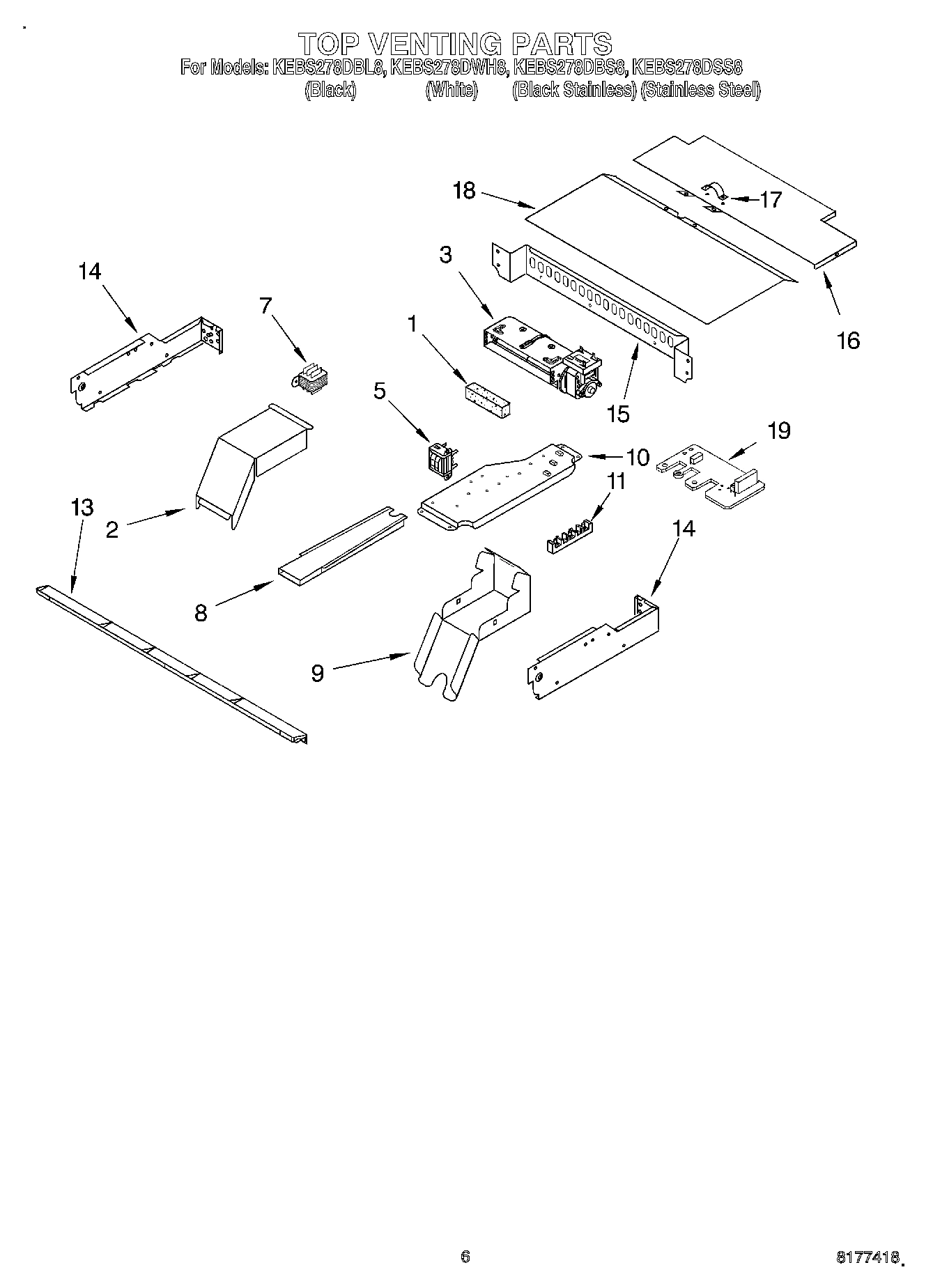

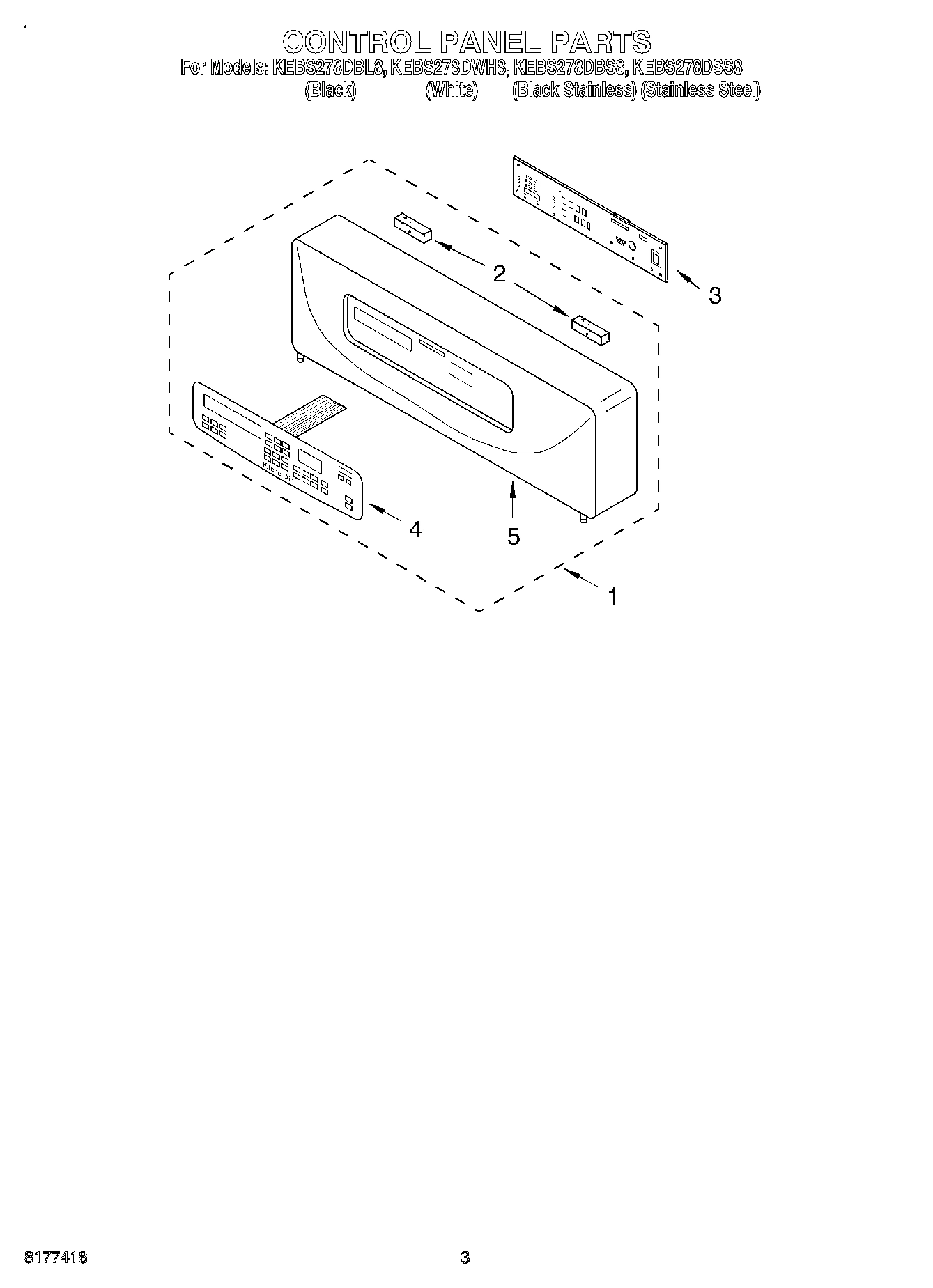

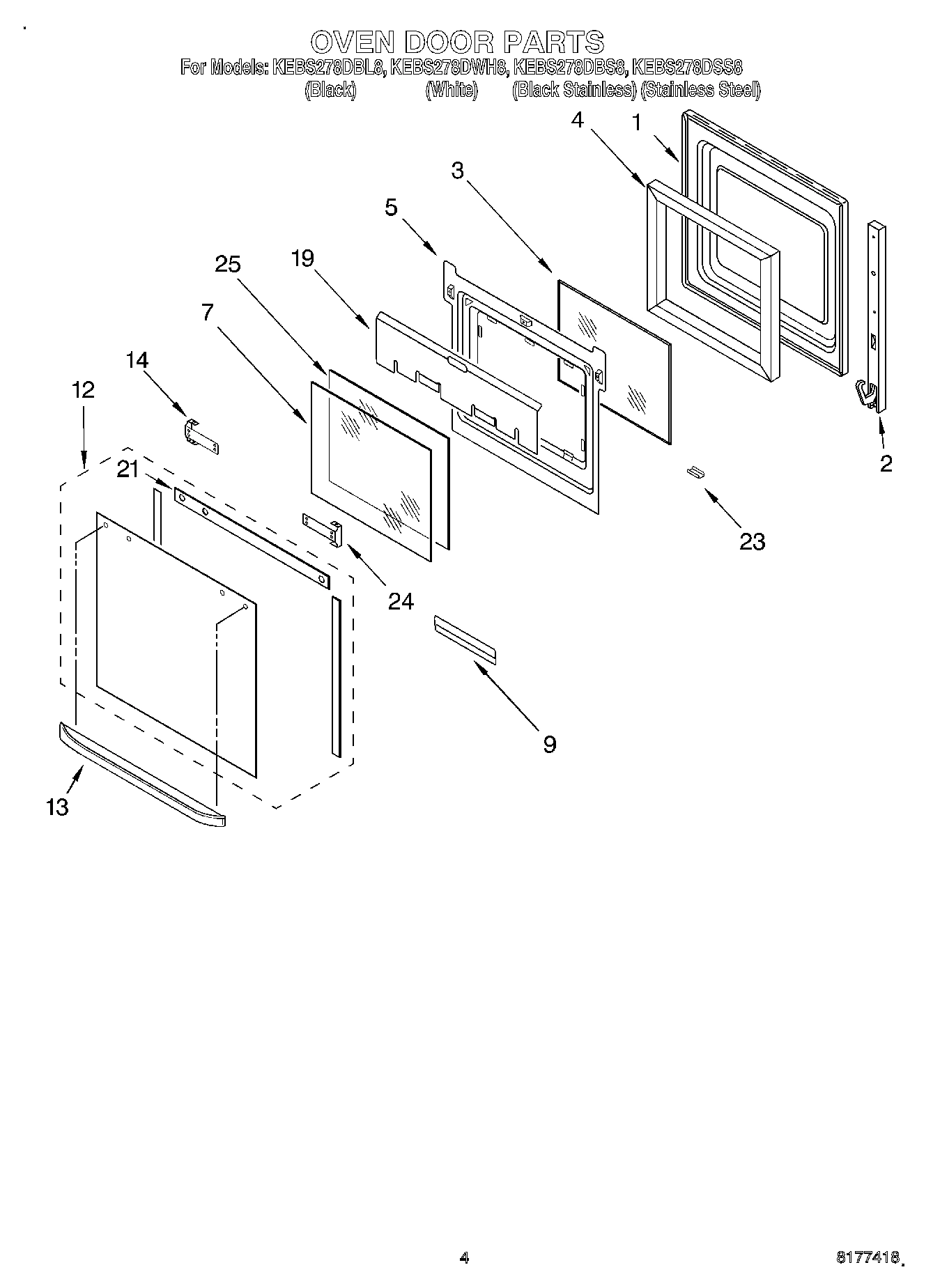

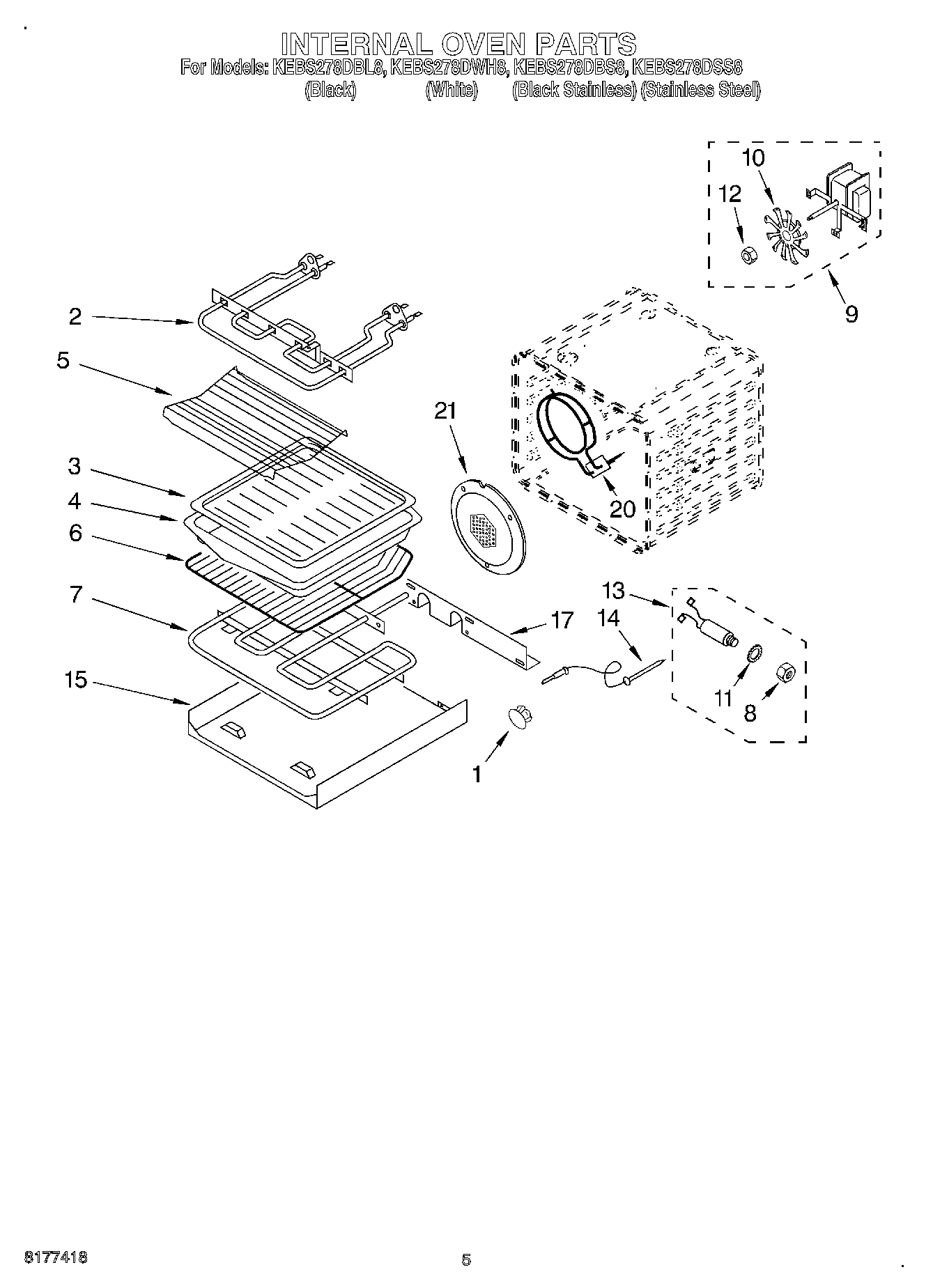

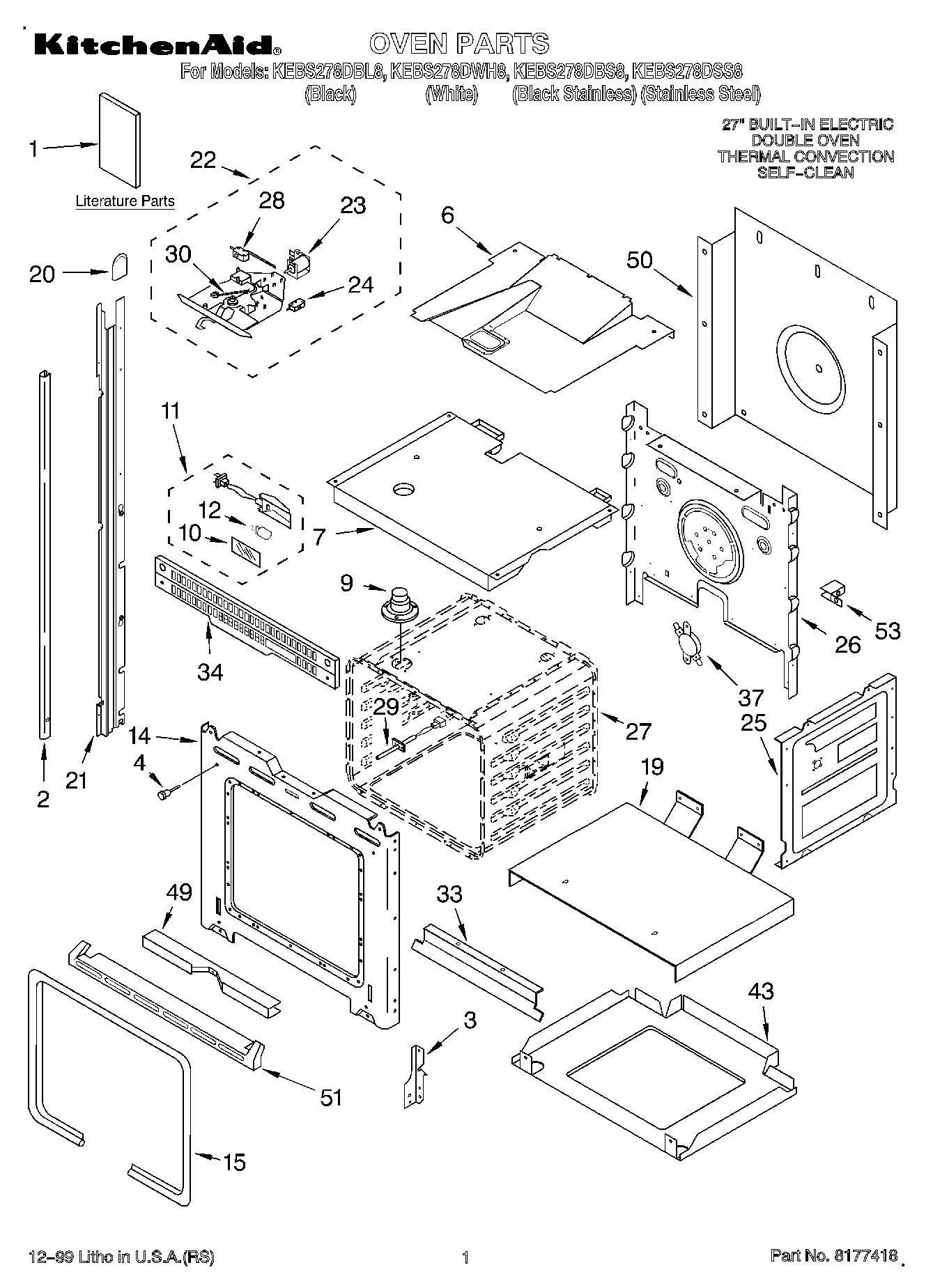

Model Whirlpool KEBS278DBS8 – Common Parts &amp; Diagrams

1

Control Panel Assy. W/Membrane Switch (Black WPL 4451942 Contact Us For Availability

1

Control Panel Assy. W/Membrane Switch (White WPL 4451943 Contact Us For Availability

2

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $14.76

2

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $4.77

2

Trim, Side (LH Stainless Steel Screw) WPL 4452082 Contact Us For Availability

2

Gasket, Control Panel WPL 4451033 Contact Us For Availability

3

4455191 Whirlpool Oven Mounting Plate In Stock WPL 4455191 $13.54

3

WP4449253 Whirlpool Glass Window In Stock WPL WP4449253 $85.88

3

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $4.77

3

WP4455352 Whirlpool Mounting Bracket Backorder WPL WP4455352 $22.34

3

WPW10016550 Whirlpool Blower Cooling Fan In Stock WPL WPW10016550 $176.38

3

Blower (60MM Upper Oven) WPL 4455334 Contact Us For Availability

3

Reciever, Hinge (Left Hand) WPL 4454664 Contact Us For Availability

3

Reciever, Hinge (Right Hand) WPL 4454665 Contact Us For Availability

3

Microcomputer WPL 4453165 Contact Us For Availability

4

4448520 Whirlpool Oven Bumper In Stock WPL 4448520 $16.76

4

Insulation, Door WPL 4451721 Contact Us For Availability

4

Membrane Switch Stainless Steel Model WPL 4452376 Contact Us For Availability

5

WP9760588 Whirlpool Transformer In Stock WPL WP9760588 $135.33

5

Panel, Control Stainless Steel Model WPL 4451790 Contact Us For Availability

6

Rack, Oven WPL 4448715 Contact Us For Availability

6

Divider, Vent WPL 4452200 Contact Us For Availability

7

WP4449257 Whirlpool Door Glass Backorder WPL WP4449257 $151.39

7

Top, Chassis WPL 4455189 Contact Us For Availability

7

Transformer WPL 4451929 Contact Us For Availability

8

4451759 Whirlpool Oven Exhaust Vent Backorder WPL 4451759 $63.29

9

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $10.97

9

W10861715 Whirlpool Vent Tube Backorder WPL W10861715 $77.68

9

Fan, Convection WPL 4451583 Contact Us For Availability

9

Retainer, Glass WPL 4451668 Contact Us For Availability

10

WP4452226 Whirlpool Convection Fan Backorder WPL WP4452226 $48.84

10

Lens, Light WPL 4452163 Contact Us For Availability

10

Plate, Mounting WPL 4451789 Contact Us For Availability

11

WP3400016 Whirlpool Screw Assembly Backorder WPL WP3400016 $4.77

11

WP4448972 Whirlpool Oven Light In Stock WPL WP4448972 $79.32

11

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $14.40

12

4449748 Whirlpool Oven Screw Backorder WPL 4449748 $10.92

12

WP4452164 Whirlpool 12V 5W Halogen Light Bulb In Stock WPL WP4452164 $56.86

12

WP4452315 Whirlpool Door Glass In Stock WPL WP4452315 $260.17

13

WP4450038 Whirlpool Screw Backorder WPL WP4450038 $4.77

13

Vent, (Control Panel) (Stainless Steel Model) WPL 4448548 Contact Us For Availability

13

Vent, Control Panel (Black, White & Black Sta WPL 4448551 Contact Us For Availability

W10755214 Whirlpool Side Complete Backorder WPL W10755214 $55.49

W10790240 Whirlpool Side Assembly Complete Backorder WPL W10790240 $48.92

WP4450118 Whirlpool Nut Backorder WPL WP4450118 $4.77

Bracket, Handle Black, White & Black Stainles WPL 4450813 Contact Us For Availability

Screw WPL 4449040 Contact Us For Availability

Frame, Front WPL 4451739 Contact Us For Availability

15

WP4455381 Whirlpool Door Gasket In Stock WPL WP4455381 $84.21

15

Back, Control WPL 4452244 Contact Us For Availability

16

Cover, Top Rear WPL 4450550 Contact Us For Availability

18

Spacer, Foam WPL 4452260 Contact Us For Availability

18

Cover, Top Front WPL 4452366 Contact Us For Availability

16515 Whirlpool Clip Backorder WPL 16515 $18.10

242831 Whirlpool Oven Wire Backorder WPL 242831 $423.65

261900 Whirlpool Microwave Spray Backorder WPL 261900 $42.75

285006 Whirlpool Spray In Stock WPL 285006 $31.20

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.72

4448664 Whirlpool Oven Mounting Bracket Backorder WPL 4448664 $15.96

4450800 Whirlpool Oven Screw Backorder WPL 4450800 $14.93

4451761 Whirlpool Oven Support Bracket Backorder WPL 4451761 $8.89

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.79

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $19.58

814381 Whirlpool Pin In Stock WPL 814381 $5.76

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $4.77

WP261869 Whirlpool Microwave Paint In Stock WPL WP261869 $15.39

WP4448950 Whirlpool Screw Backorder WPL WP4448950 $4.77

WP4451985 Whirlpool Noise Filter Board In Stock WPL WP4451985 $80.38

WP4456654 Whirlpool Thermal Fuse In Stock WPL WP4456654 $18.81

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $34.28

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.77

WPL 4450953 WPL 4450953 Contact Us For Availability

Support, Insulation WPL 4451477 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability

WPL 4451864 WPL 4451864 Contact Us For Availability

WPL 4451926 WPL 4451926 Contact Us For Availability

WPL 4452222 WPL 4452222 Contact Us For Availability

WPL 591014 WPL 591014 Contact Us For Availability

20

Cap, Spacer WPL 4451605 Contact Us For Availability

21

814373 Whirlpool Oven Rail Mount Backorder WPL 814373 $143.64

21

814374 Whirlpool Oven Rail Mount Backorder WPL 814374 $143.83

21

WP4448444 Whirlpool Grommet Backorder WPL WP4448444 $4.96

22

Latch Assembly WPL 4451896 Contact Us For Availability

23

Solenoid WPL 4452224 Contact Us For Availability

24

Microswitch N.C. WPL 4452312 Contact Us For Availability

25

Side, Chassis (R.H. & L.H.) WPL 4454691 Contact Us For Availability

26

Back, Chassis WPL 4452233 Contact Us For Availability

27

Liner, Oven (Not a Serviceable Part) WPL ARI83614A6 Contact Us For Availability

28

Microswitch WPL 4451426 Contact Us For Availability

29

Sensor WPL 4451665 Contact Us For Availability

30

Spring, Latch WPL 4451537 Contact Us For Availability

33

W10145009 Whirlpool Vent Deflector Backorder WPL W10145009 $52.61

33

Deflector, Vent (Black, White & Black Stainle WPL 4450280 Contact Us For Availability

34

WPL 4452266 WPL 4452266 Contact Us For Availability

37

WP9759242 Whirlpool Thermostat In Stock WPL WP9759242 $55.53

43

WPL 4451397 WPL 4451397 Contact Us For Availability

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $4.77

49

WP4449154 Whirlpool Screw In Stock WPL WP4449154 $4.77

50

WP4451747 Whirlpool Rear Cover Backorder WPL WP4451747 $89.34

4452152 Whirlpool Oven Mounting Bracket Backorder WPL 4452152 $22.00

WPL 4159465 WPL 4159465 Contact Us For Availability

WPL 4448475 WPL 4448475 Contact Us For Availability

WPL 4448476 WPL 4448476 Contact Us For Availability

WPL 4452480 WPL 4452480 Contact Us For Availability

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $4.77

WPL 4449315 WPL 4449315 Contact Us For Availability

WPL 4449845 WPL 4449845 Contact Us For Availability

WPL 4450364 WPL 4450364 Contact Us For Availability

WPL 4452336 WPL 4452336 Contact Us For Availability
