Model Whirlpool KEBS278DBS10 BUILT-IN ELECTRIC DOUBLE OVEN – Common Parts & Diagrams

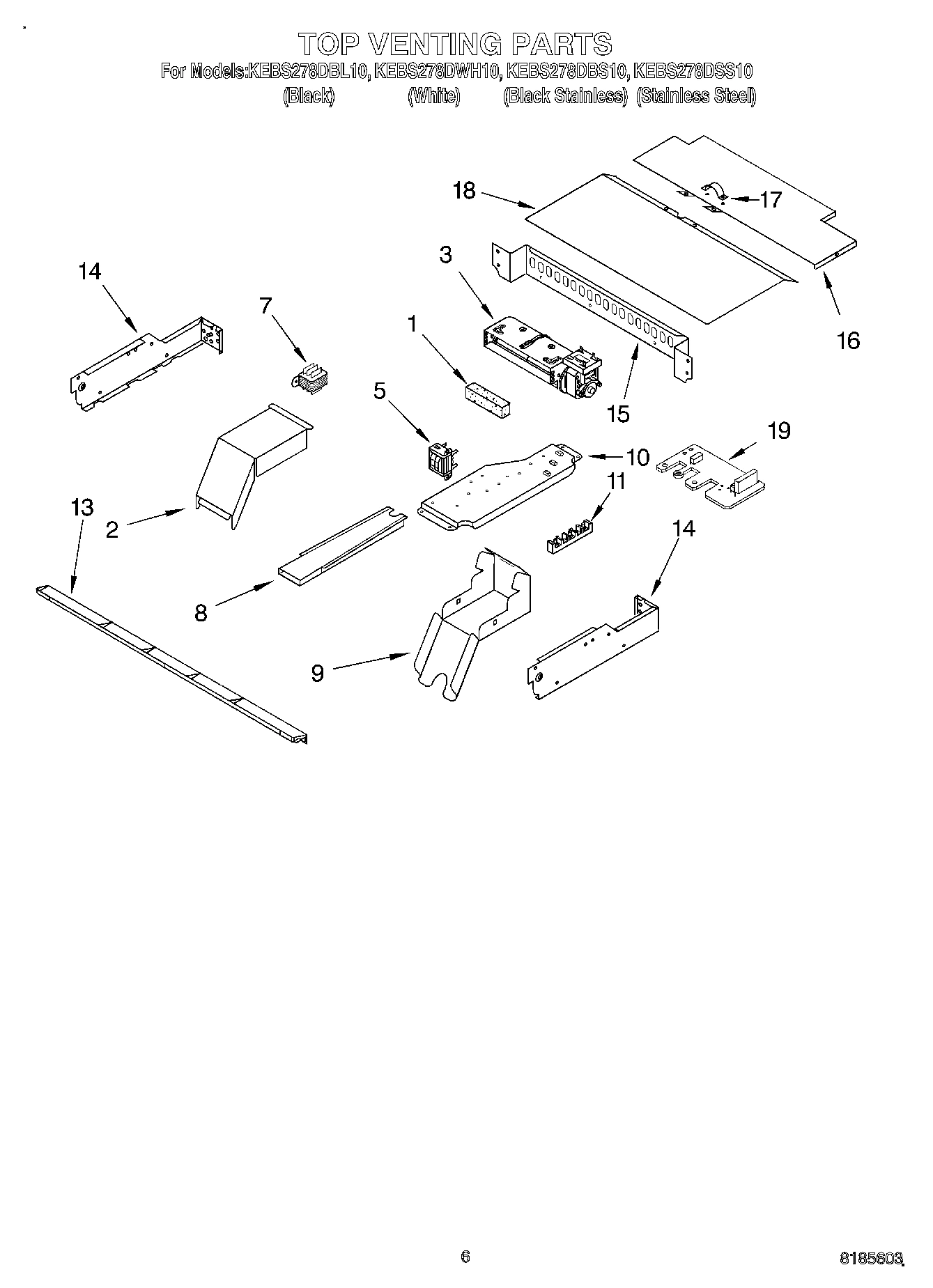

05 - TOP VENTING, OPTIONAL

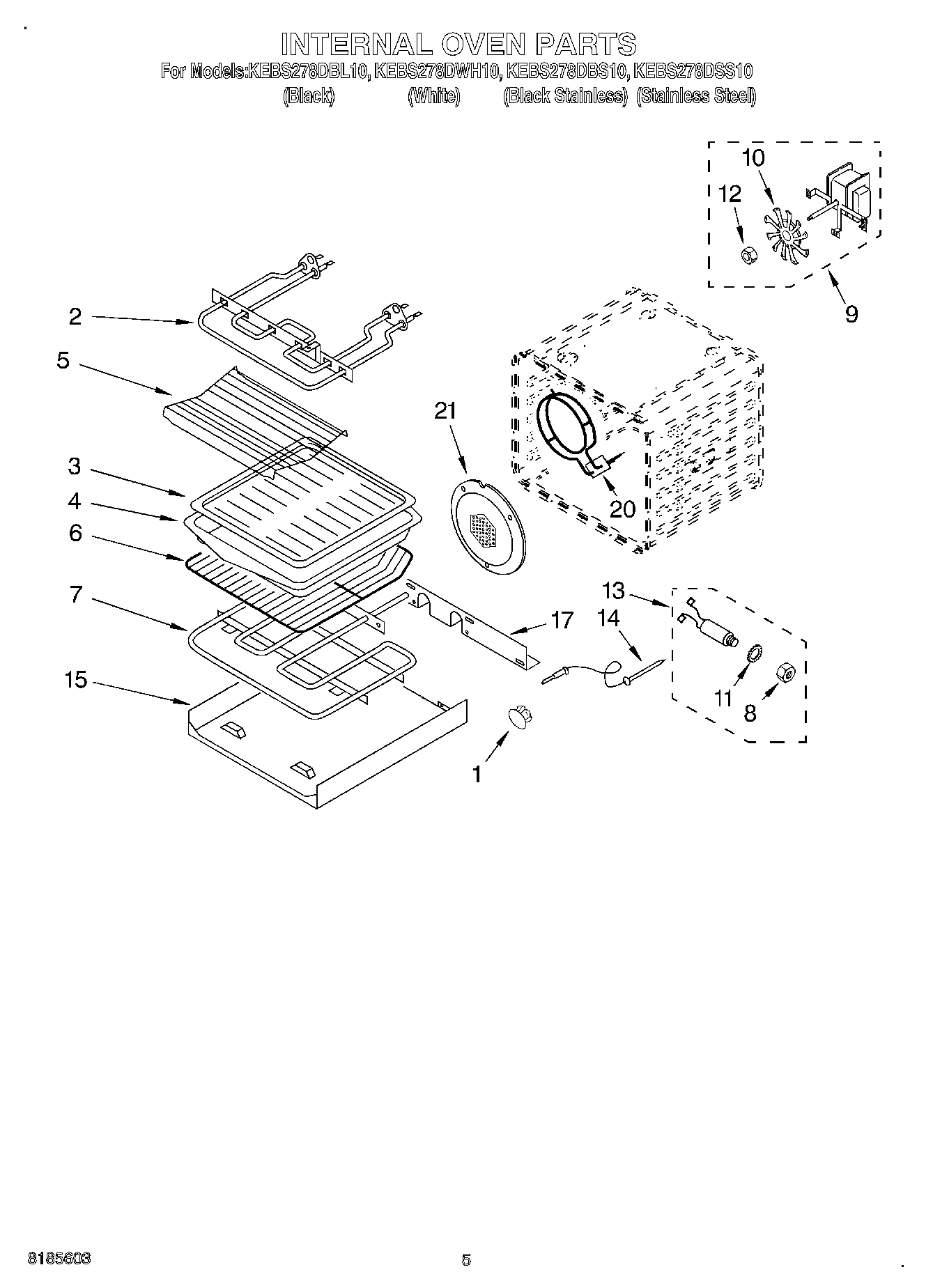

04 - INTERNAL OVEN

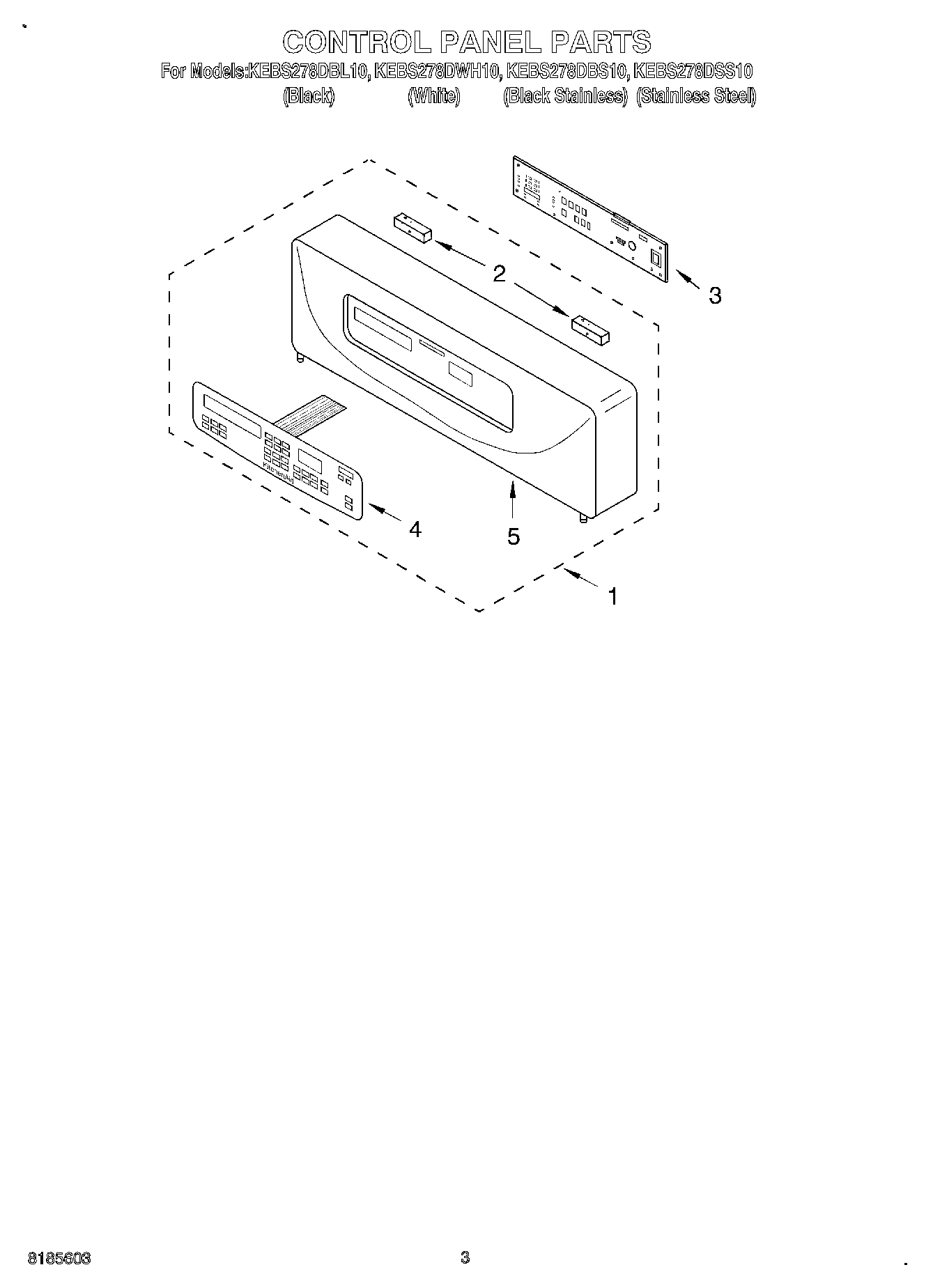

02 - CONTROL PANEL

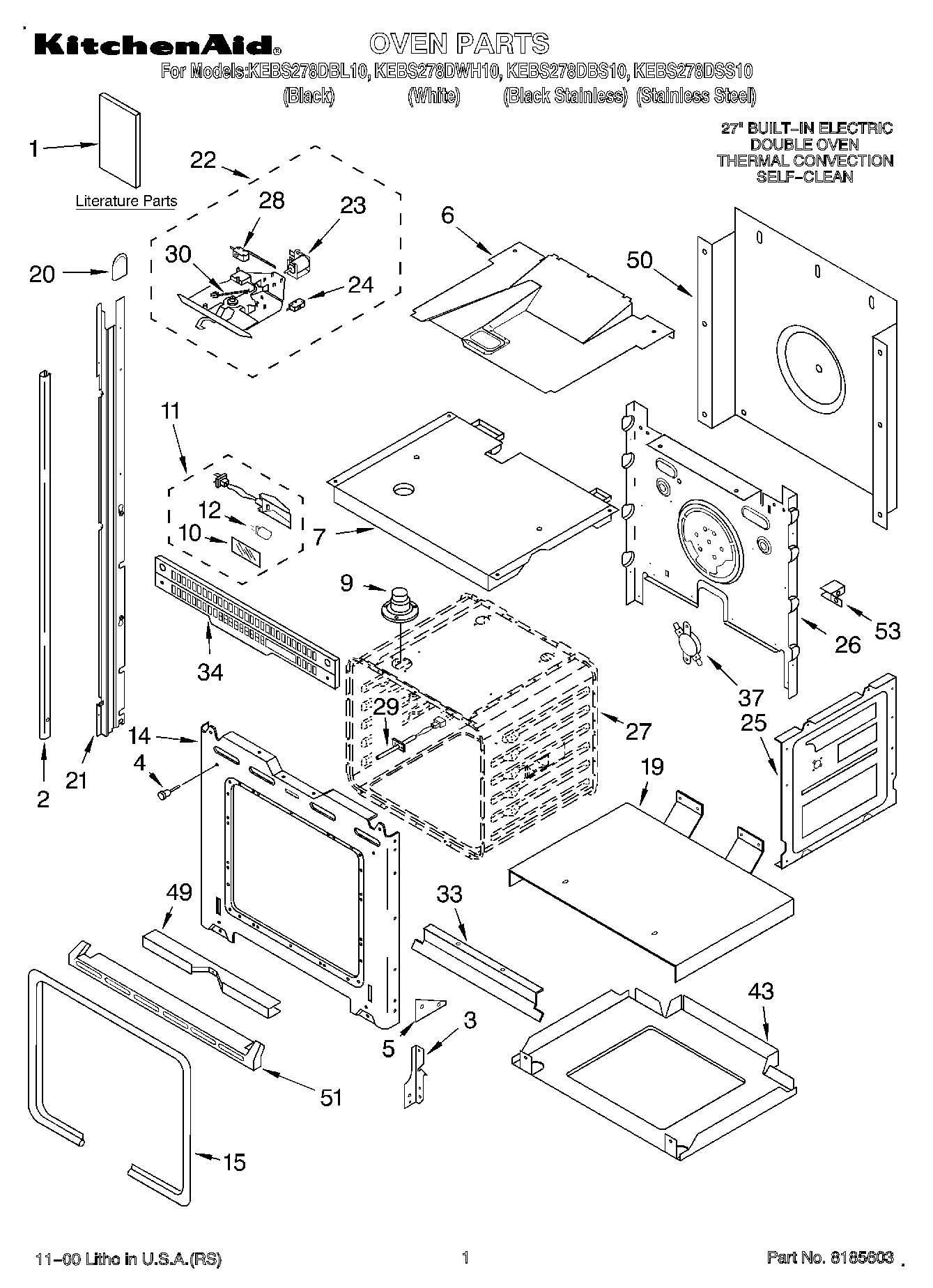

01 - OVEN

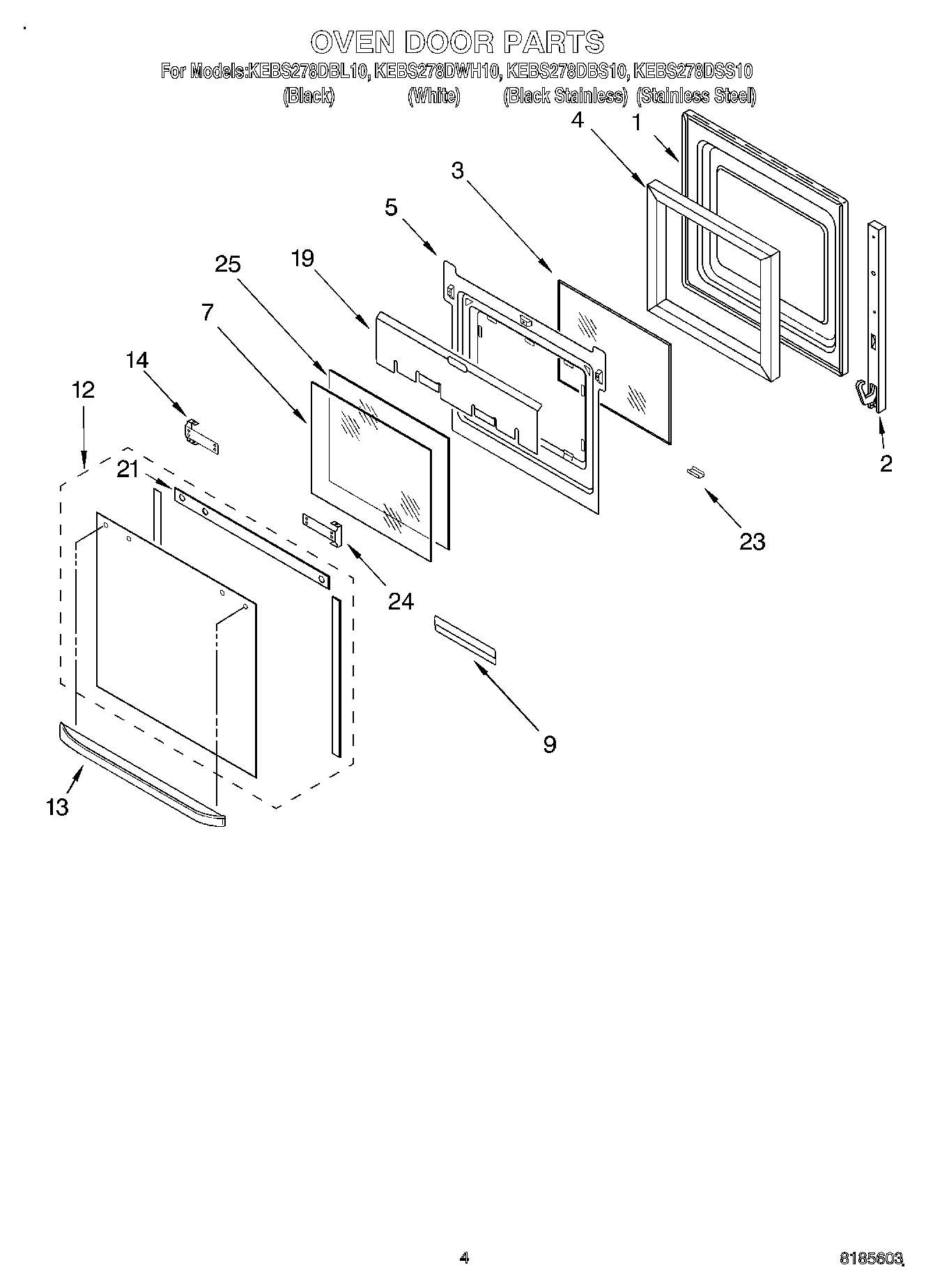

03 - OVEN DOOR
Common parts from model Whirlpool KEBS278DBS10 BUILT-IN ELECTRIC DOUBLE OVEN
1
Control Panel Assy. W/Membrane Switch (White WPL 8300379 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (Black WPL 8300380 Contact Us For Availability
1
Door Liner WPL 4451718 Contact Us For Availability
2
Gasket, Control Panel WPL 4451033 Contact Us For Availability
2
Trim, Side (White Model) WPL 4449041 Contact Us For Availability
2
Trim, Side (RH Black & BS Mdls) WPL 4450850 Contact Us For Availability
2
Trim, Side (Right Hand) (White Model) WPL 4450851 Contact Us For Availability
2
Trim, Side (LH Black & BS Mdls) WPL 4450853 Contact Us For Availability
2
Trim, Side (Left Hand)) (White Model) WPL 4450854 Contact Us For Availability
2
Trim, Side (RH Stainless Steel) WPL 4452081 Contact Us For Availability
2
Trim, Side (LH Stainless Steel) WPL 4452082 Contact Us For Availability
3
Blower (60MM Upper Oven) WPL 4455334 Contact Us For Availability
3
Reciever, Hinge (Right Hand) WPL 4455723 Contact Us For Availability
3
Reciever, Hinge (Left Hand) WPL 4455722 Contact Us For Availability
3
Microcomputer WPL 4453165 Contact Us For Availability
4
Insulation, Door WPL 4451721 Contact Us For Availability
4
Membrane Switch Stainless Steel Model WPL 4452376 Contact Us For Availability
5
Panel, Control Stainless Steel Model WPL 4451790 Contact Us For Availability
5
Retainer, Glass WPL 4451670 Contact Us For Availability
6
Rack, Oven WPL 4448715 Contact Us For Availability
6
Divider, Vent WPL 4452200 Contact Us For Availability
7
Top, Chassis WPL 4455285 Contact Us For Availability
9
Fan, Convection WPL 4451583 Contact Us For Availability
9
Retainer, Glass WPL 4451668 Contact Us For Availability
10
Lens, Light WPL 4452163 Contact Us For Availability
11
Screw WPL 3400080 Contact Us For Availability
12
Door Glass, Assy (Black Model) WPL 4452071 Contact Us For Availability
12
Door Glass, Assy (White Model) WPL 4452072 Contact Us For Availability
12
Door Glass, Assy (Black-Stainless) WPL 4452077 Contact Us For Availability
13
Door Handle (Black & BS Models) WPL 4448411 Contact Us For Availability
13
Door Handle (White Model) WPL 4448412 Contact Us For Availability
13
Door Handle (Stainless Steel Model) WPL 4452087 Contact Us For Availability
14
Bracket, Handle Black, White & Black Stainles WPL 4450813 Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
14
Frame, Front WPL 4451739 Contact Us For Availability
14
Screw WPL 4451040 Contact Us For Availability
15
Tray, Bake WPL 4455036 Contact Us For Availability
19
WPL 4450953 WPL 4450953 Contact Us For Availability
19
Support, Insulation WPL 4451477 Contact Us For Availability
19
Shield, Heat WPL 4450361 Contact Us For Availability
20
Cap, Spacer WPL 4451605 Contact Us For Availability
21
Seal, Door Top WPL 4451673 Contact Us For Availability
22
Latch Assembly WPL 4451896 Contact Us For Availability
23
Solenoid WPL 4452224 Contact Us For Availability
23
Retainer, Clip (Black & BS Models) WPL 4450863 Contact Us For Availability
23
Retainer, Clip (White Model) WPL 4450864 Contact Us For Availability
24
Microswitch N.C. WPL 4452312 Contact Us For Availability
24
Bracket, Handle Stainless Steel Model (Left H WPL 4452488 Contact Us For Availability
25
Side, Chassis (R.H. & L.H.) WPL 4454691 Contact Us For Availability
25
Glass, Inner WPL 4455256 Contact Us For Availability
26
Back, Chassis WPL 4452233 Contact Us For Availability
27
Liner, Oven (Not a Serviceable Part) WPL ARI83610A5 Contact Us For Availability
28
Microswitch WPL 4451426 Contact Us For Availability
30
Spring, Latch WPL 4451537 Contact Us For Availability
33
Deflector, Vent (Black, White & Black Stainle WPL 4450280 Contact Us For Availability
34
Vent, Center WPL 4452266 Contact Us For Availability
43
Base, Chassis WPL 4455529 Contact Us For Availability
51
Trim, Bottom (Screw) WPL 4159465 Contact Us For Availability
51
Trim, Bottom (Black & BS Models) WPL 4448475 Contact Us For Availability
51
Tr WPL 4448476 Contact Us For Availability
51
WPL 4452480 WPL 4452480 Contact Us For Availability
53
WPL 4449315 WPL 4449315 Contact Us For Availability
53
WPL 4449845 WPL 4449845 Contact Us For Availability
53
WPL 4450364 WPL 4450364 Contact Us For Availability
53
WPL 4452336 WPL 4452336 Contact Us For Availability
× ![]()
