Model Whirlpool KEBS277DSS7 – Common Parts & Diagrams
04 - INTERNAL OVEN
01 - OVEN

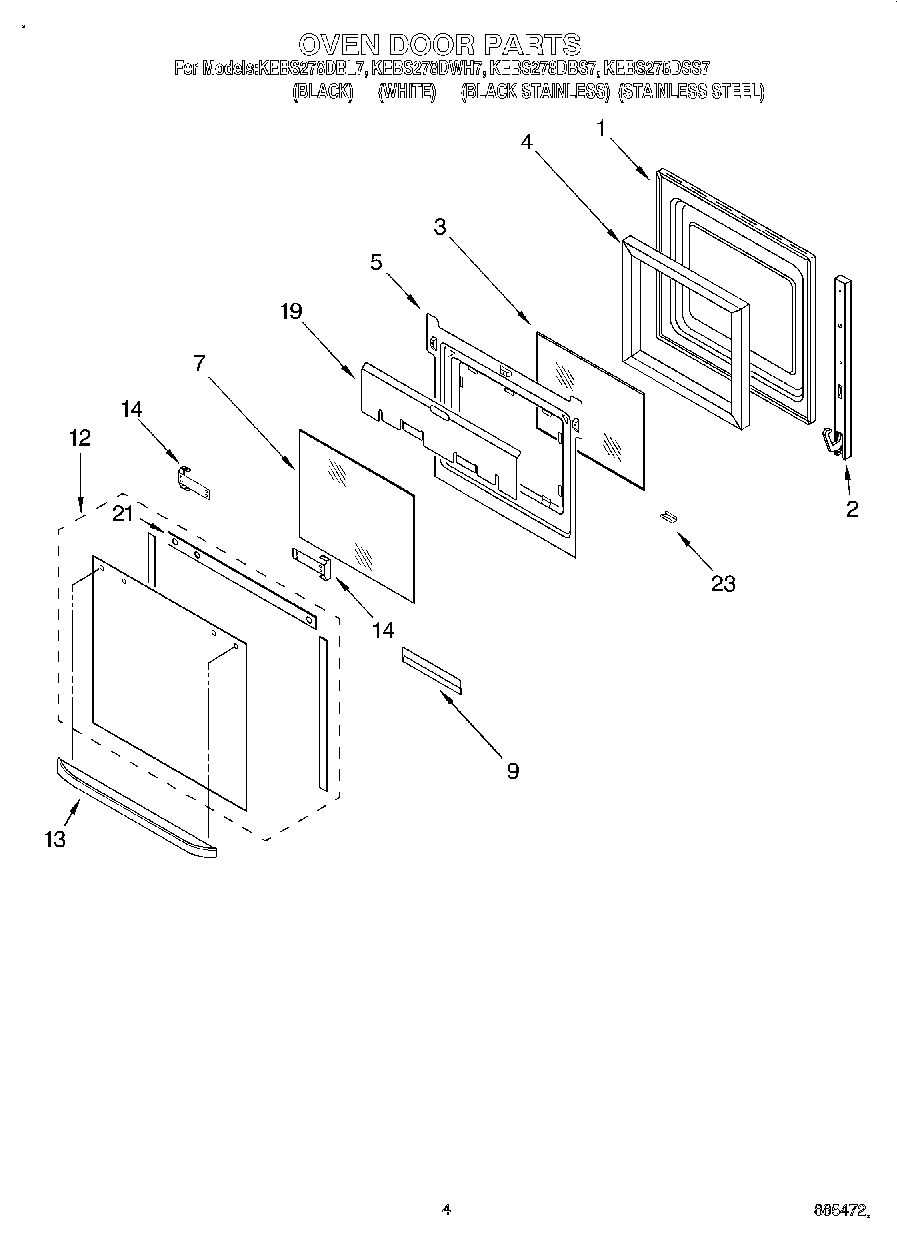

03 - OVEN DOOR

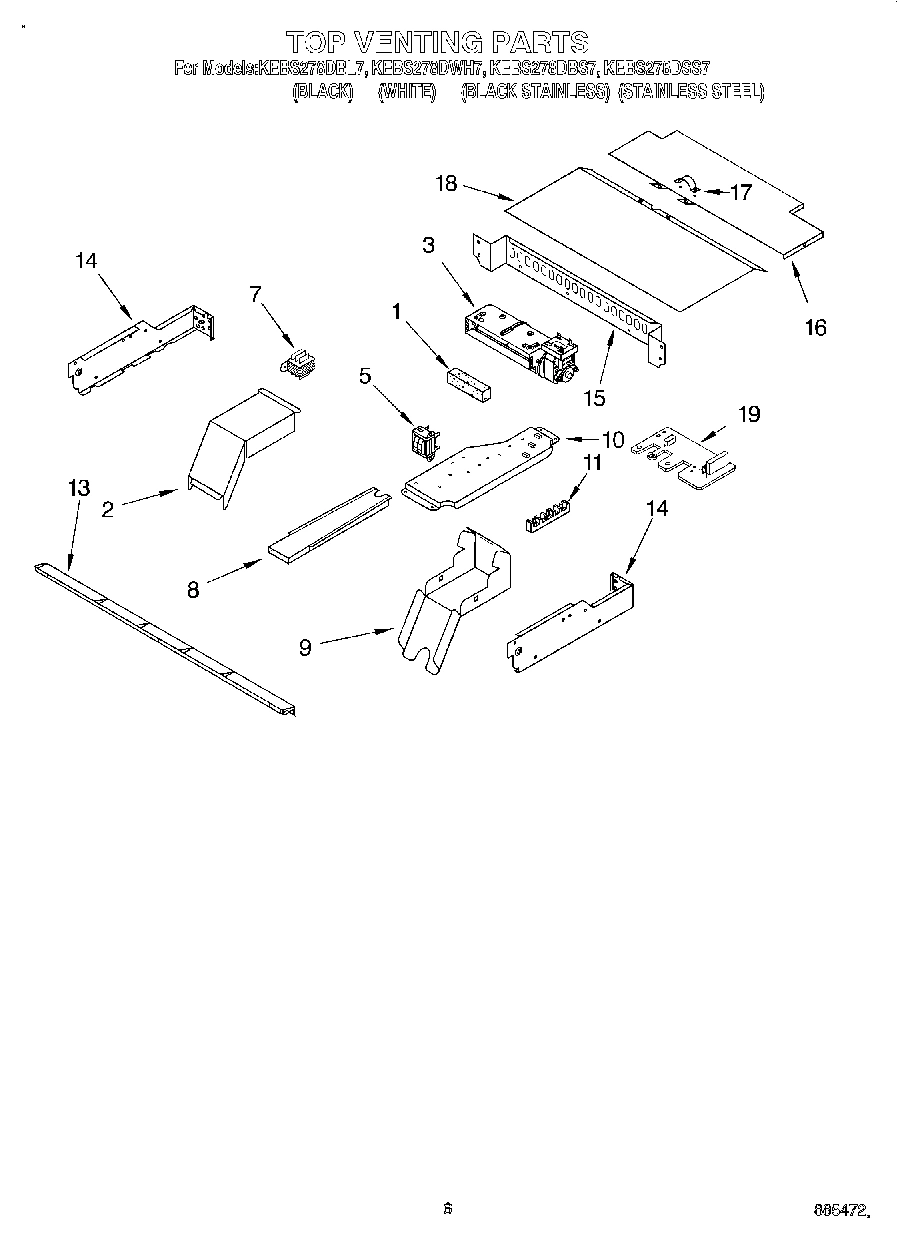

05 - TOP VENTING, OPTIONAL

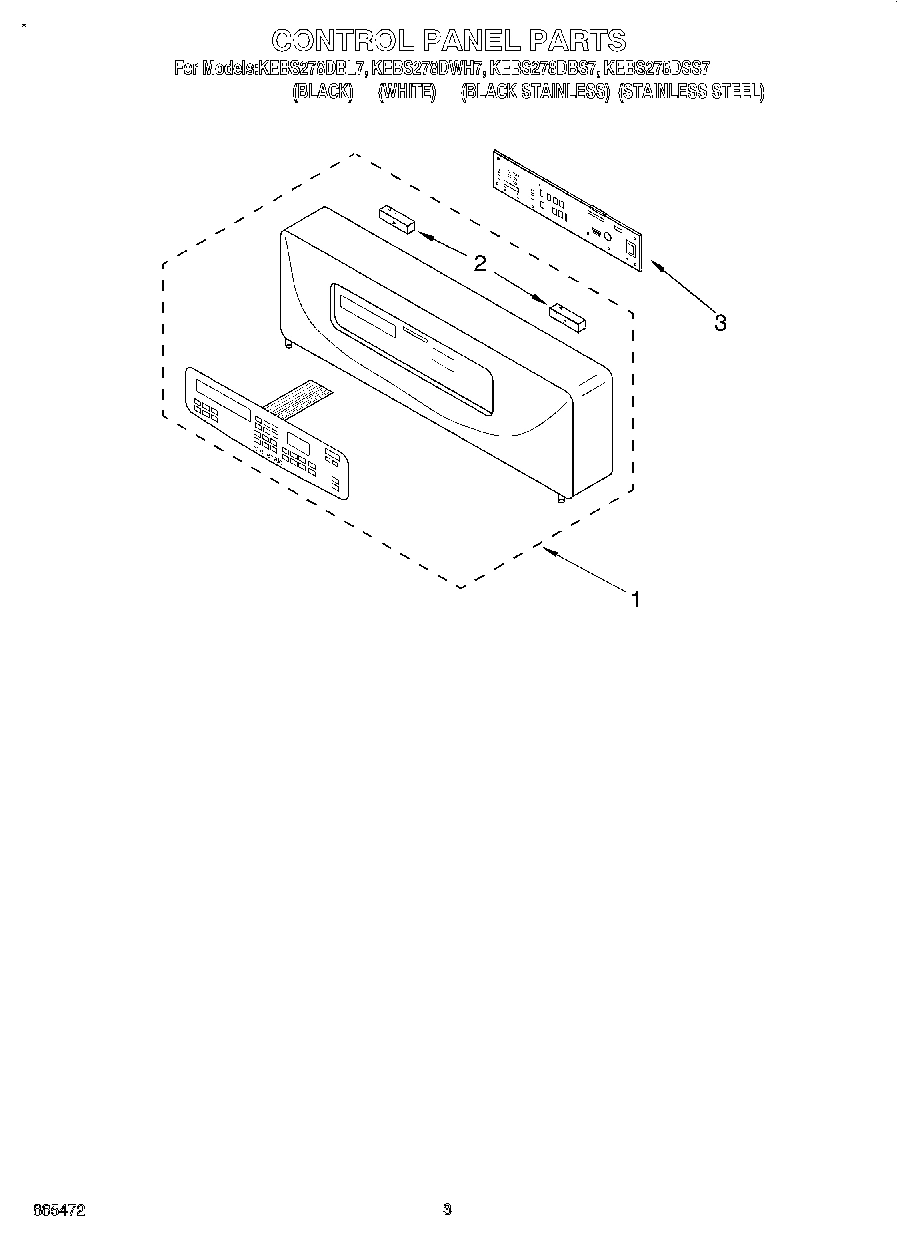

02 - CONTROL PANEL, LITERATURE
Common parts from model Whirlpool KEBS277DSS7
Safer Cooking Tips WPL LIT3191638 Contact Us For Availability
Cookbook, T/C Oven WPL LIT4449066 Contact Us For Availability
Easy Set Guide WPL LIT4449264 Contact Us For Availability
Installation Instructions WPL LIT4450410 Contact Us For Availability
Tech Sheet (Oven) WPL LIT4451879 Contact Us For Availability
Use & Care Guide WPL LIT4451952 Contact Us For Availability
1
Door Liner WPL 4451718 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (Stainl WPL 4451790 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (Black WPL 4451942 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (White WPL 4451943 Contact Us For Availability
2
Gasket, Control Panel WPL 4451033 Contact Us For Availability
3
Microcomputer WPL 4451986 Contact Us For Availability
4
Insulation, Door WPL 4451721 Contact Us For Availability
5
Retainer, Glass WPL 4451670 Contact Us For Availability
6
Rack, Oven WPL 4448715 Contact Us For Availability
7
Transformer WPL 4451929 Contact Us For Availability
9
Fan, Convection WPL 4451583 Contact Us For Availability
9
Retainer, Glass WPL 4451668 Contact Us For Availability
10
Lens, Light WPL 4452163 Contact Us For Availability
10
Plate, Mounting WPL 4451789 Contact Us For Availability
12
Door Glass, Assy (Black Model) WPL 4452071 Contact Us For Availability
12
Door Glass, Assy (White Model) WPL 4452072 Contact Us For Availability
12
Door Glass, Assy (Black-Stainless) WPL 4452077 Contact Us For Availability
13
Door Handle (Black & BS Models) WPL 4448411 Contact Us For Availability
13
Door Handle (White Model) WPL 4448412 Contact Us For Availability
13
Vent, (Control Panel) WPL 4448551 Contact Us For Availability
14
Bracket, Handle WPL 4450813 Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
14
Screw WPL 4451040 Contact Us For Availability
15
Back, Control WPL 4452244 Contact Us For Availability
16
Cover, Top Rear WPL 4450550 Contact Us For Availability
18
Cover, Top Front WPL 4450553 Contact Us For Availability
18
Spacer, Foam WPL 4452260 Contact Us For Availability
19
Conduit, Double WPL 4450953 Contact Us For Availability
19
Shield, Heat WPL 4450361 Contact Us For Availability
19
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
19
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
19
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
19
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
19
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
19
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
19
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
19
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
19
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
19
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
19
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
19
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
19
Harness, Wire (Main) WPL 4451864 Contact Us For Availability
19
Harness, Wire (Latch) WPL 4451926 Contact Us For Availability
19
Spacer, Harness WPL 4452222 Contact Us For Availability
19
ADHESIVE LOCTITE (1 WPL 591014 Contact Us For Availability
21
Seal, Door Top WPL 4451673 Contact Us For Availability
22
Latch Assembly WPL 4451896 Contact Us For Availability
23
Retainer, Clip (Black & BS Models) WPL 4450863 Contact Us For Availability
23
Retainer, Clip (White Model) WPL 4450864 Contact Us For Availability
29
Sensor WPL 4451665 Contact Us For Availability
33
Deflector, Vent WPL 4450280 Contact Us For Availability
34
Vent, Center WPL 4452266 Contact Us For Availability
43
Base, Chassis WPL 4451397 Contact Us For Availability
51
Trim, Bottom (Screw) WPL 4159465 Contact Us For Availability
51
Trim, Bottom (Black & BS Models) WPL 4448475 Contact Us For Availability
51
Trim, Bottom (White Model) WPL 4448476 Contact Us For Availability
53
Insulation, Wrap WPL 4449315 Contact Us For Availability
53
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
53
Insulation, Back WPL 4450364 Contact Us For Availability
× ![]()
