Model Whirlpool KEBS277DBL4 – Common Parts & Diagrams

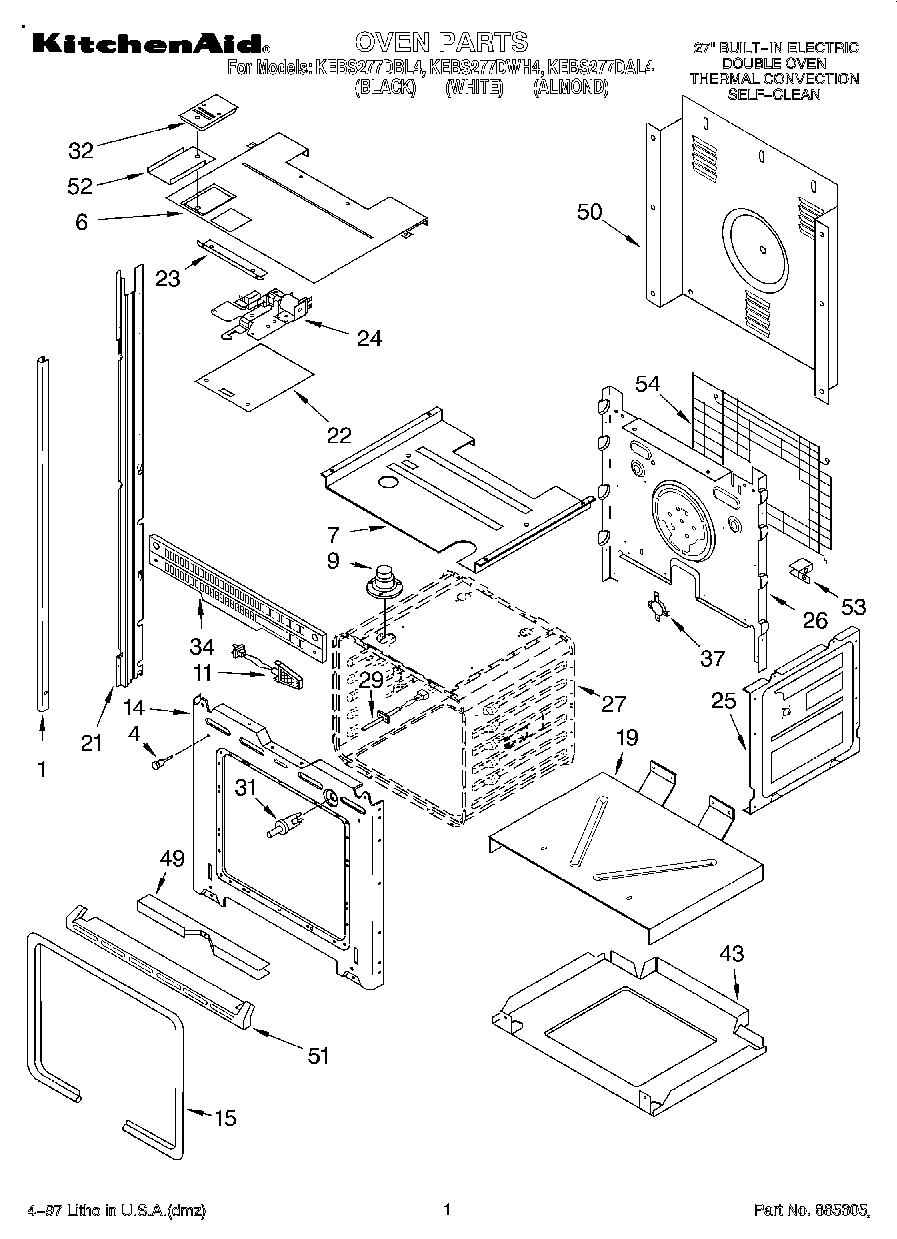

01 - OVEN

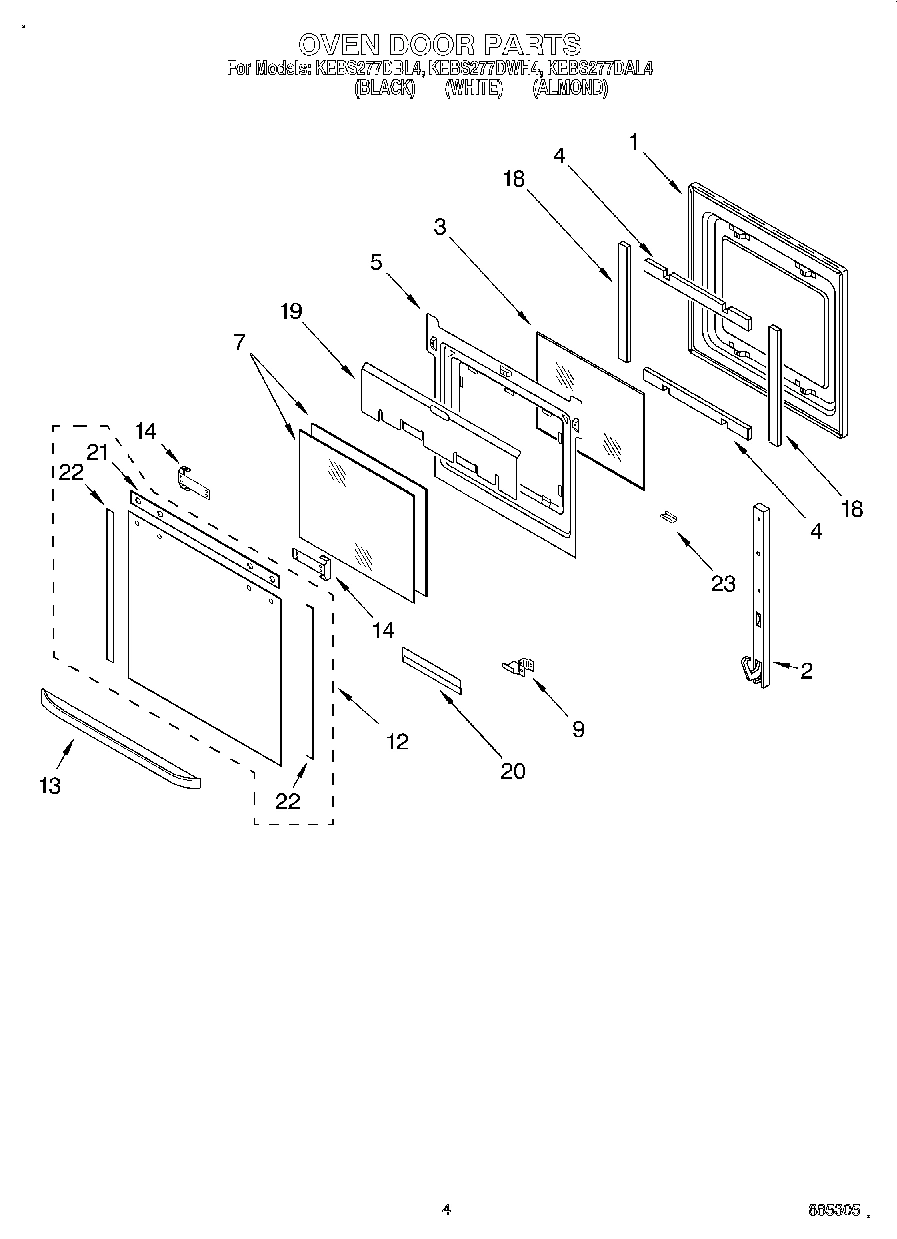

03 - OVEN DOOR

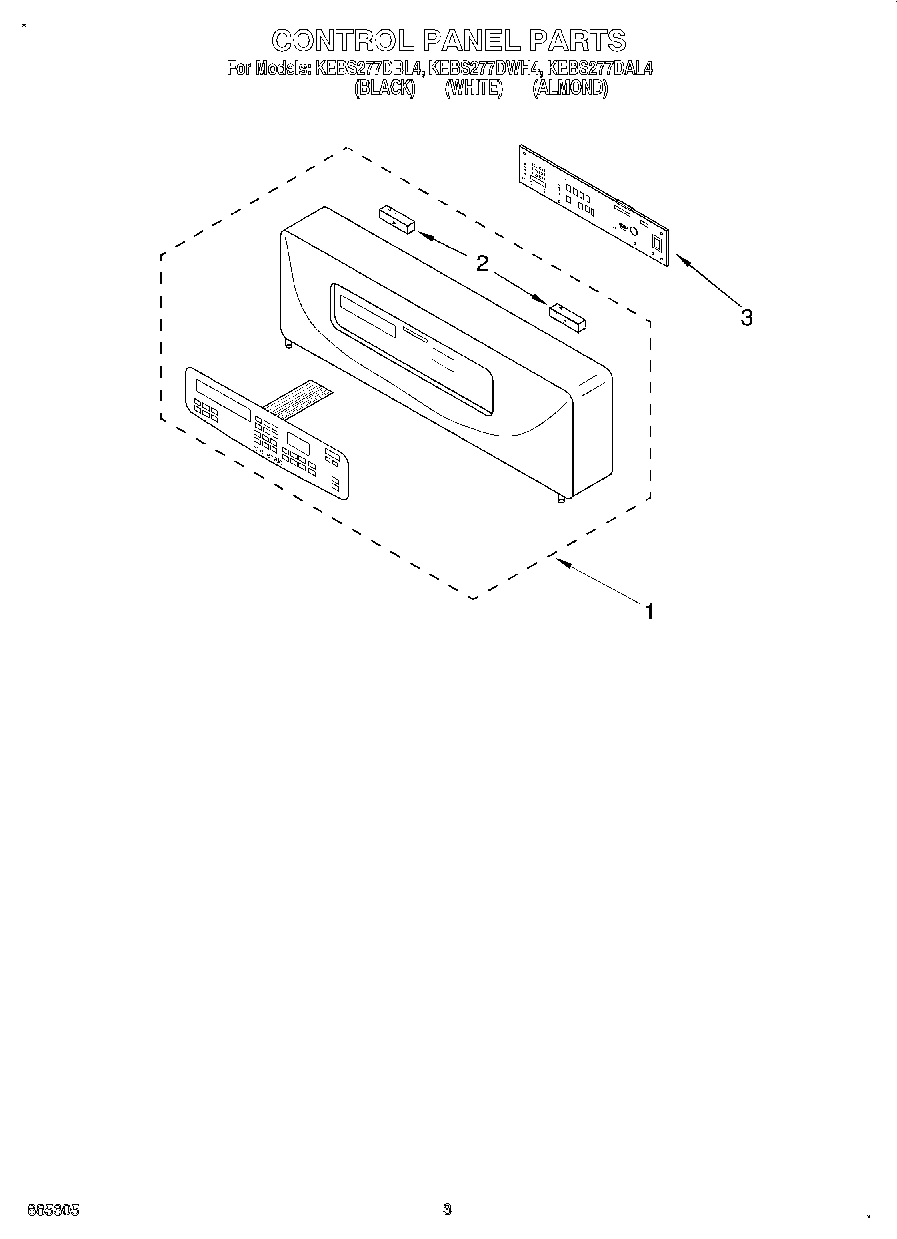

02 - CONTROL PANEL, LITERATURE

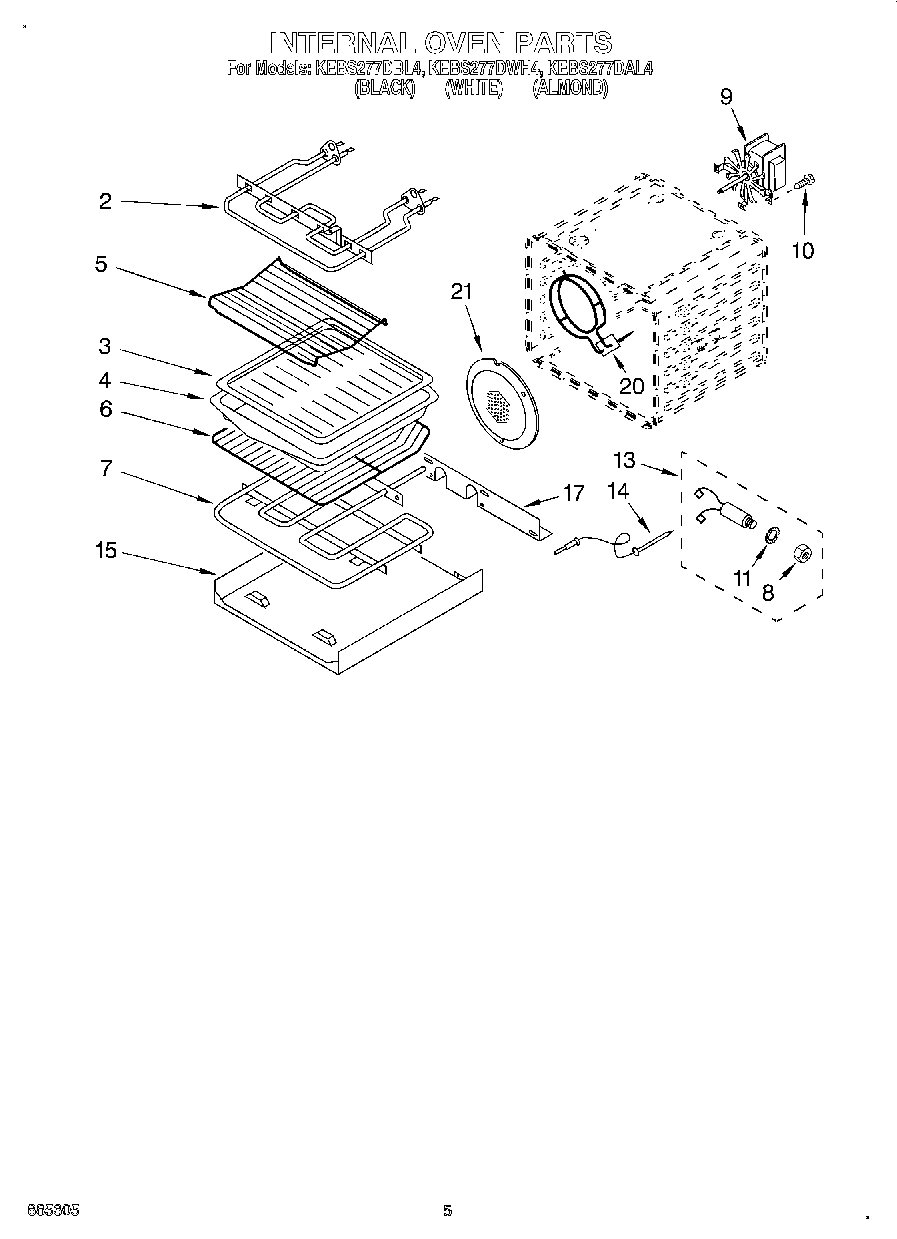

04 - INTERNAL OVEN

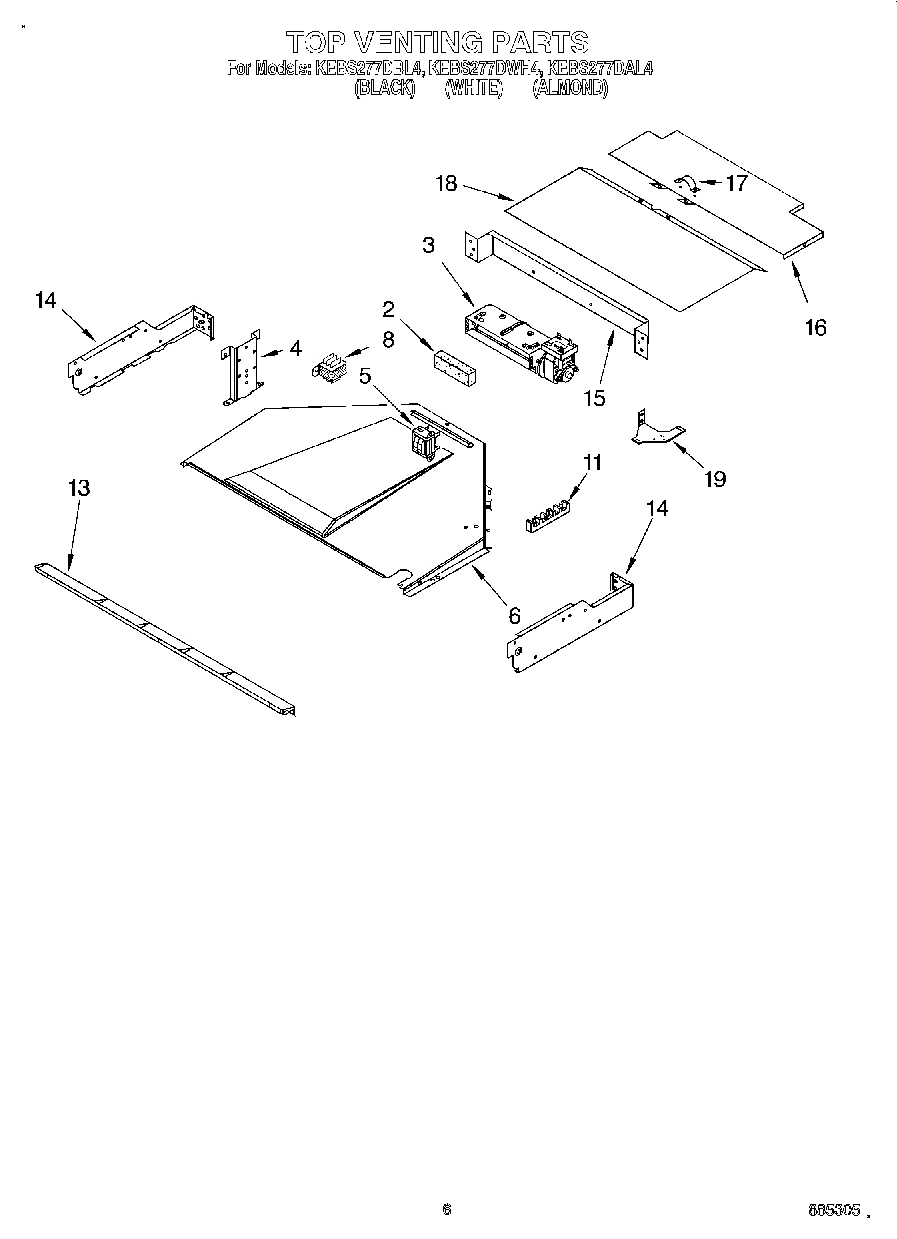

05 - TOP VENTING, OPTIONAL
Common parts from model Whirlpool KEBS277DBL4
Cookbook, T/C Oven WPL LIT4449066 Contact Us For Availability
Easy Set Guide WPL LIT4449264 Contact Us For Availability
Installation Instructions WPL LIT4450410 Contact Us For Availability
Use & Care Guide (Oven) WPL LIT4450571 Contact Us For Availability
Tech Sheet (Oven) WPL LIT4454771 Contact Us For Availability
1
Door Liner WPL 4450428 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (Black WPL 4451291 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (White WPL 4451292 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (Almond WPL 4451293 Contact Us For Availability
2
Screw WPL 4159465 Contact Us For Availability
2
Gasket, Control Panel WPL 4451033 Contact Us For Availability
2
Foam, Block WPL 3182384 Contact Us For Availability
3
Microcomputer WPL 4448871 Contact Us For Availability
3
Blower, Upper/Lower WPL 4450920 Contact Us For Availability
4
Insulation, Top and Bottom Door WPL 4448679 Contact Us For Availability
4
Bracket, Transformer WPL 4450066 Contact Us For Availability
5
Retainer, Glass WPL 4450422 Contact Us For Availability
5
Rack, Roasting WPL 3181534 Contact Us For Availability
6
Rack, Oven WPL 4448715 Contact Us For Availability
6
Exhaust Duct WPL 4450366 Contact Us For Availability
8
Transformer, Control WPL 4450291 Contact Us For Availability
9
Retainer, Glass WPL 4450470 Contact Us For Availability
9
Convection Motor WPL 4448952 Contact Us For Availability
12
Door Glass, Outer (Black Model) WPL 4450696 Contact Us For Availability
12
Door Glass, Outer (White Model) WPL 4450697 Contact Us For Availability
12
Door Glass, Outer (Almond Model) WPL 4450698 Contact Us For Availability
13
Door Handle (Black Model) WPL 4448411 Contact Us For Availability
13
Door Handle (White Model) WPL 4448412 Contact Us For Availability
13
Door Handle (Almond Model) WPL 4448413 Contact Us For Availability
13
Vent, (Control Panel) WPL 4448551 Contact Us For Availability
14
Bracket, Handle WPL 4450813 Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
14
Screw WPL 4451040 Contact Us For Availability
15
Tray, Bake WPL 4448722 Contact Us For Availability
15
Back, Control WPL 4450658 Contact Us For Availability
16
Cover, Top Rear WPL 4450550 Contact Us For Availability
18
Cover, Top Front WPL 4450553 Contact Us For Availability
19
Conduit WPL 4450953 Contact Us For Availability
19
Shield, Heat WPL 4450361 Contact Us For Availability
19
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
19
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
19
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
19
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
19
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
19
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
19
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
19
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
19
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
19
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
19
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
19
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
19
Bracket, Blower WPL 4450545 Contact Us For Availability
19
Harness, Wire (Latch) WPL 4454709 Contact Us For Availability
19
Harness, Wire (Main) (Also, order Door Switch WPL 4454861 Contact Us For Availability
19
Harness, Door Switch (Also, Order Main Harnes WPL 4454871 Contact Us For Availability
19
WPL 591014 WPL 591014 Contact Us For Availability
19
WPL 814387 WPL 814387 Contact Us For Availability
20
Retainer, Glass WPL 4449031 Contact Us For Availability
21
Seal, Door Top WPL 4450836 Contact Us For Availability
22
Seal, Side WPL 4450838 Contact Us For Availability
23
Retainer, Clip (Black Model) WPL 4450863 Contact Us For Availability
23
Retainer, Clip (White Model) WPL 4450864 Contact Us For Availability
23
Retainer, Clip (Almond Model) WPL 4450865 Contact Us For Availability
51
Trim, Bottom (Black Model) WPL 4448458 Contact Us For Availability
51
Trim, Bottom (White Model) WPL 4448459 Contact Us For Availability
51
Trim, Bottom (Almond Model) WPL 4448460 Contact Us For Availability
52
Extension, Vent (Upper Oven) WPL 4450795 Contact Us For Availability
52
Extension, Vent (Lower Oven) WPL 4450797 Contact Us For Availability
53
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
54
I WPL 4449315 Contact Us For Availability
54
WPL 4450364 WPL 4450364 Contact Us For Availability
54
WPL 4451002 WPL 4451002 Contact Us For Availability
× ![]()
