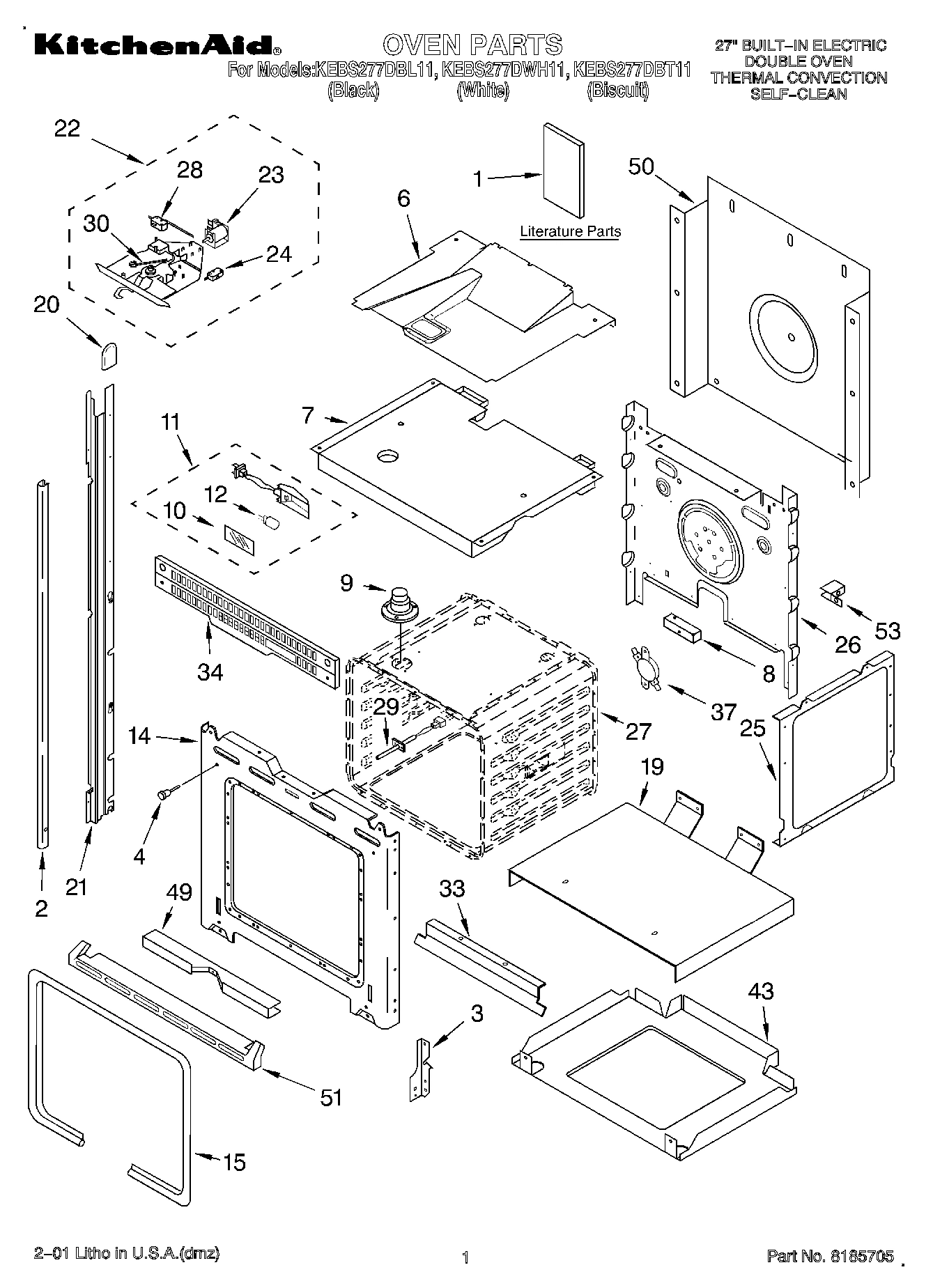

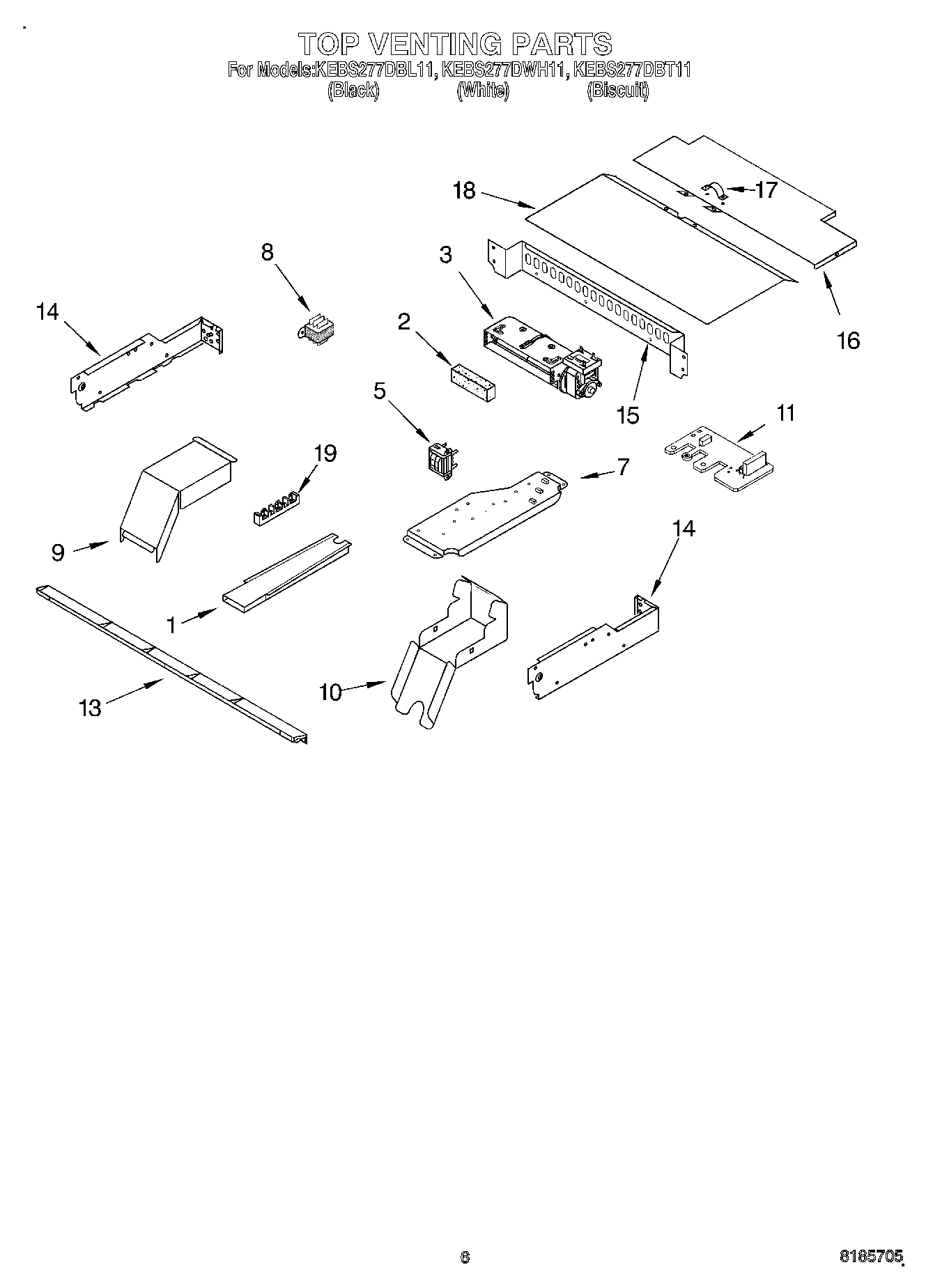

Model Whirlpool KEBS277DBL11 COOKTOP – Common Parts &amp; Diagrams

1

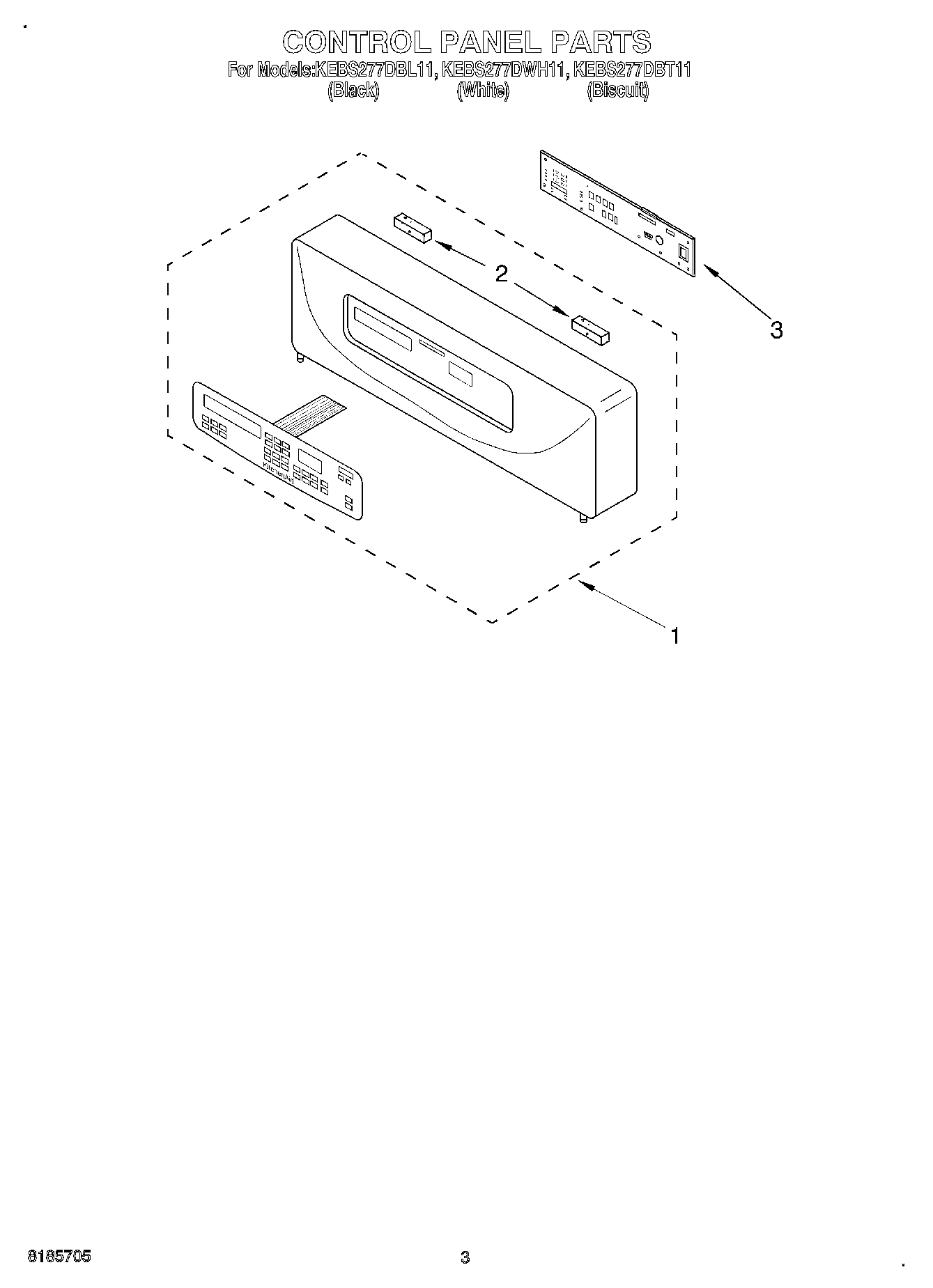

Control Panel Assy. W/Membrane Switch (Biscui WPL 8300381 Contact Us For Availability

1

Control Panel Assy. W/Membrane Switch (White) WPL 8300382 Contact Us For Availability

1

Control Panel Assy. W/Membrane Switch (Black) WPL 8300383 Contact Us For Availability

1

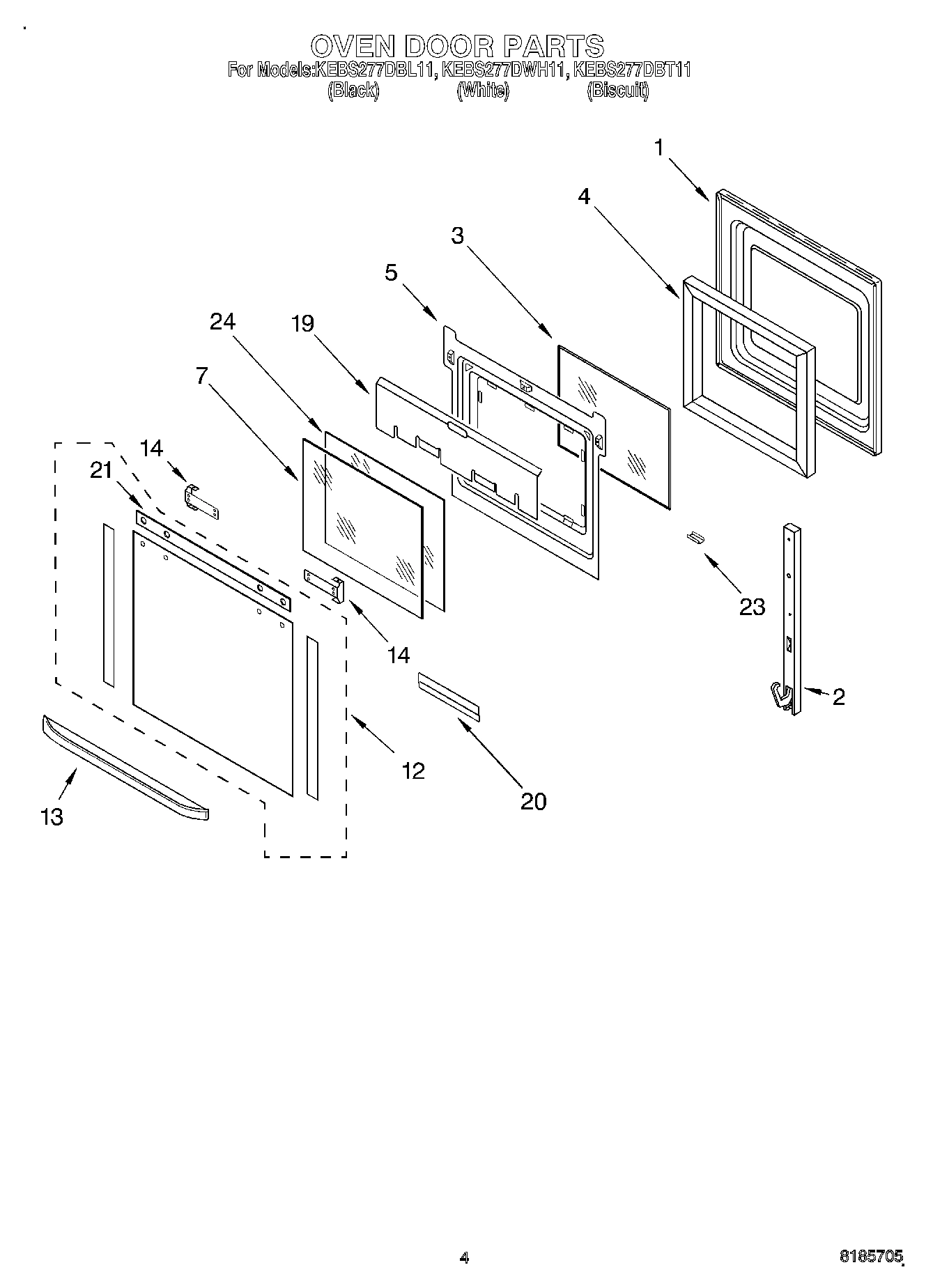

Door Liner WPL 4451718 Contact Us For Availability

2

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $4.82

2

WP4455524 Whirlpool Door Hinge In Stock WPL WP4455524 $41.71

2

WPW10207400 Whirlpool Broil Element In Stock WPL WPW10207400 $218.99

2

Trim, Side (Left Hand)) (White Model) WPL 4450854 Contact Us For Availability

2

Trim, Side (RH Biscuit) WPL 4452122 Contact Us For Availability

2

Trim, Side (LH Biscuit) WPL 4452123 Contact Us For Availability

2

Gasket, Control Panel WPL 4451033 Contact Us For Availability

3

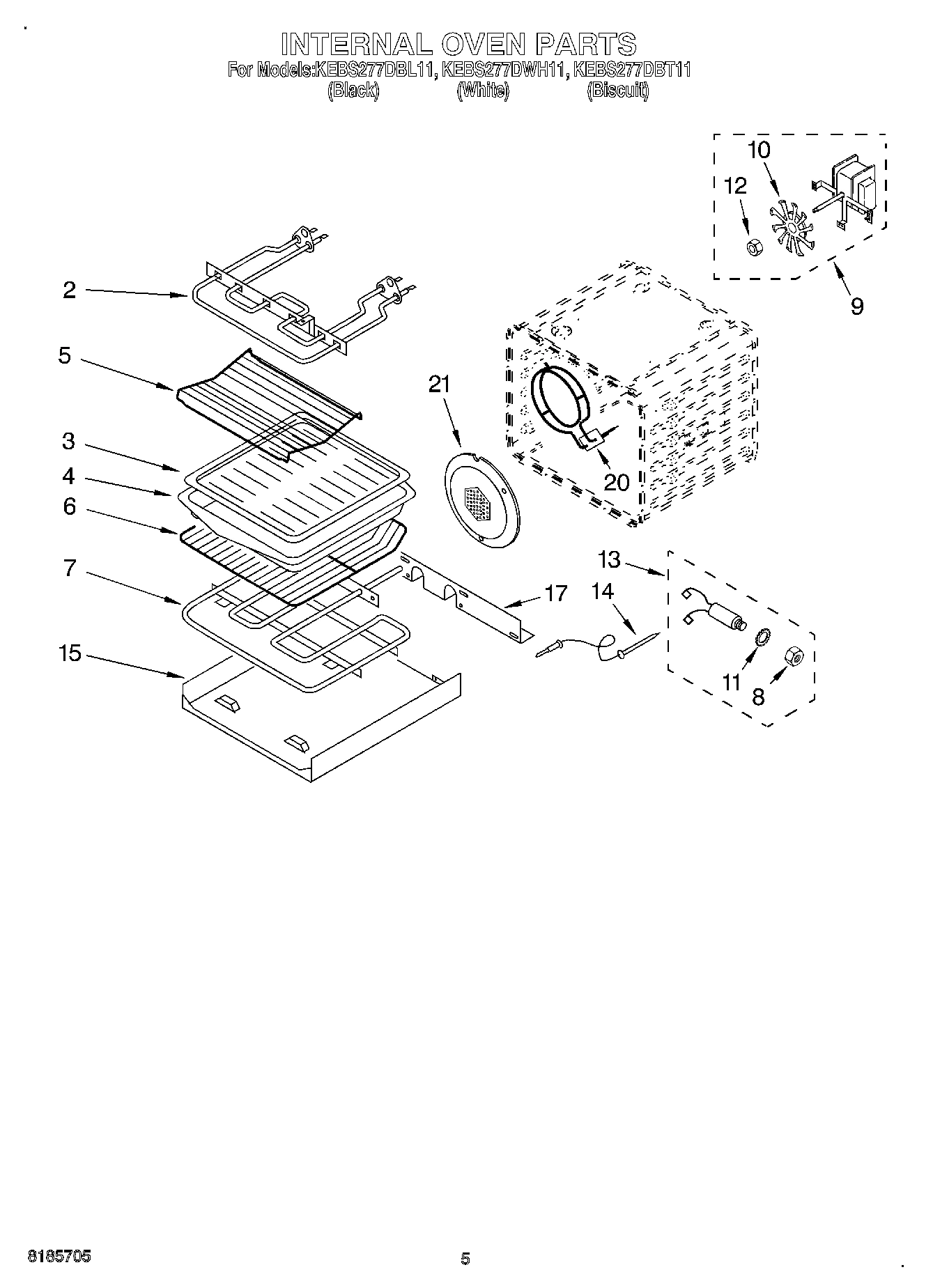

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $44.99

3

WP4449253 Whirlpool Glass Window In Stock WPL WP4449253 $126.99

3

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $4.82

3

Blower (Upper Oven) WPL 4455334 Contact Us For Availability

3

Reciever, Hinge (Right Hand) WPL 4455521 Contact Us For Availability

3

Reciever, Hinge (Left Hand) WPL 4455520 Contact Us For Availability

3

Microcomputer WPL 4453165 Contact Us For Availability

4

4448520 Whirlpool Oven Bumper In Stock WPL 4448520 $14.02

4

Insulation, Door WPL 4451721 Contact Us For Availability

5

Rack, Roasting WPL 3181534 Contact Us For Availability

5

Retainer, Glass WPL 4451670 Contact Us For Availability

6

Rack, Oven WPL 4448715 Contact Us For Availability

6

Divider, Vent WPL 4452200 Contact Us For Availability

7

4451175 Whirlpool Bake Element In Stock WPL 4451175 $159.99

7

WP4449257 Whirlpool Door Glass Backorder WPL WP4449257 $126.08

7

Top, Chassis WPL 4455285 Contact Us For Availability

8

WP9755546 Whirlpool Locknut Backorder WPL WP9755546 $4.82

8

Spacer, Foam WPL 4452260 Contact Us For Availability

9

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.06

9

W10861715 Whirlpool Vent Tube Backorder WPL W10861715 $78.42

9

Convection Motor WPL 4451583 Contact Us For Availability

10

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $6.68

10

WP4452226 Whirlpool Convection Fan Backorder WPL WP4452226 $49.31

10

Lens, Light WPL 4452163 Contact Us For Availability

4449748 Whirlpool Oven Screw Backorder WPL 4449748 $9.02

WP4448972 Whirlpool Oven Light In Stock WPL WP4448972 $75.50

WP4451985 Whirlpool Noise Filter Board In Stock WPL WP4451985 $103.99

WP9755547 Whirlpool Lockwasher Backorder WPL WP9755547 $4.55

WP4452164 Whirlpool 12V 5W Halogen Light Bulb In Stock WPL WP4452164 $49.93

Nut WPL 4452227 Contact Us For Availability

Door Glass, Assy (Black Model) WPL 4452071 Contact Us For Availability

Door Glass, Assy (White Model) WPL 4452072 Contact Us For Availability

Door Glass, Assy (Biscuit) WPL 4452146 Contact Us For Availability

8186589 Whirlpool Jack Probe Backorder WPL 8186589 $109.99

WP4450038 Whirlpool Screw In Stock WPL WP4450038 $4.82

Door Handle (Black) WPL 4448411 Contact Us For Availability

Door Handle (White) WPL 4448412 Contact Us For Availability

Door Handle (Biscuit) WPL 4452128 Contact Us For Availability

WP4450118 Whirlpool Nut Backorder WPL WP4450118 $4.82

WP9755542 Whirlpool Oven Meat Probe In Stock WPL WP9755542 $68.99

Bracket, Handle WPL 4450813 Contact Us For Availability

Screw WPL 4449040 Contact Us For Availability

Frame, Front WPL 4455611 Contact Us For Availability

Screw WPL 4451040 Contact Us For Availability

15

WP4455381 Whirlpool Door Gasket In Stock WPL WP4455381 $122.62

15

Tray, Bake WPL 4455036 Contact Us For Availability

17

4450039 Whirlpool Oven Access Cover Backorder WPL 4450039 $58.50

17

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $4.82

261900 Whirlpool Microwave Spray Backorder WPL 261900 $30.44

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

814381 Whirlpool Pin In Stock WPL 814381 $4.82

WP261869 Whirlpool Microwave Paint Backorder WPL WP261869 $15.84

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $34.73

Screw WPL 3400080 Contact Us For Availability

Conduit WPL 4450953 Contact Us For Availability

Support, Insulation WPL 4451477 Contact Us For Availability

Shield, Heat WPL 4450361 Contact Us For Availability

20

WP9760769 Whirlpool Element Assembly Backorder WPL WP9760769 $228.85

20

Retainer, Glass WPL 4451668 Contact Us For Availability

20

Cap, Spacer WPL 4451605 Contact Us For Availability

814373 Whirlpool Oven Rail Mount Backorder WPL 814373 $145.03

814374 Whirlpool Oven Rail Mount Backorder WPL 814374 $145.22

WP4448444 Whirlpool Grommet Backorder WPL WP4448444 $4.82

WPW10160821 Whirlpool Fan Cover Backorder WPL WPW10160821 $173.21

Seal, Door Top WPL 4451673 Contact Us For Availability

22

Latch Assembly WPL 4451896 Contact Us For Availability

Solenoid WPL 4452224 Contact Us For Availability

Retainer, Clip (Black) WPL 4450863 Contact Us For Availability

Retainer, Clip (White) WPL 4450864 Contact Us For Availability

Retainer, Clip (Biscuit) WPL 4452119 Contact Us For Availability

24

Microswitch N.C. WPL 4452312 Contact Us For Availability

24

Glass, Inner WPL 4455256 Contact Us For Availability

25

W10782197 Whirlpool Side Panel Backorder WPL W10782197 $94.56

26

Back, Chassis WPL 4452233 Contact Us For Availability

27

Liner, Oven (Not a Serviceable Part) WPL ARI83493A1 Contact Us For Availability

28

Switch, Micro WPL 4451426 Contact Us For Availability

29

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $67.99

30

Spring, Latch WPL 4451537 Contact Us For Availability

33

Deflector, Vent WPL 4450280 Contact Us For Availability

34

Vent, Center WPL 4452266 Contact Us For Availability

37

WP9759242 Whirlpool Thermostat In Stock WPL WP9759242 $55.98

43

Base, Chassis WPL 4455529 Contact Us For Availability

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $4.82

49

WP4449154 Whirlpool Screw In Stock WPL WP4449154 $4.82

50

WP4451747 Whirlpool Rear Cover Backorder WPL WP4451747 $90.20

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $6.99

WPL 4448475 WPL 4448475 Contact Us For Availability

WPL 4448476 WPL 4448476 Contact Us For Availability

WPL 4452414 WPL 4452414 Contact Us For Availability

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $7.99

WPL 4449315 WPL 4449315 Contact Us For Availability

WPL 4449845 WPL 4449845 Contact Us For Availability

WPL 4450364 WPL 4450364 Contact Us For Availability
