Model Whirlpool KEBS177DSS7 BUILT-IN ELECTRIC SINGLE OVEN – Common Parts & Diagrams
03 - OVEN DOOR

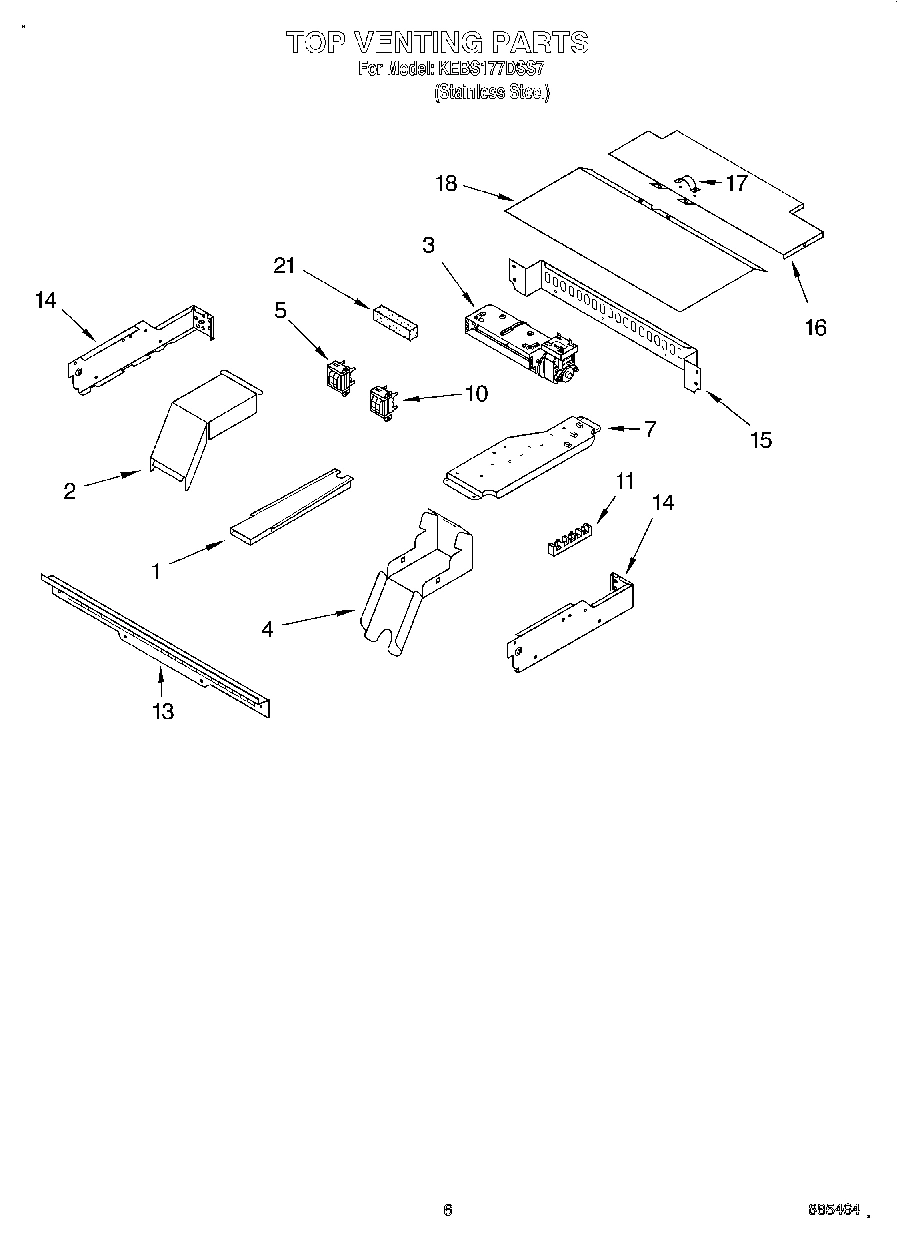

05 - TOP VENTING, OPTIONAL

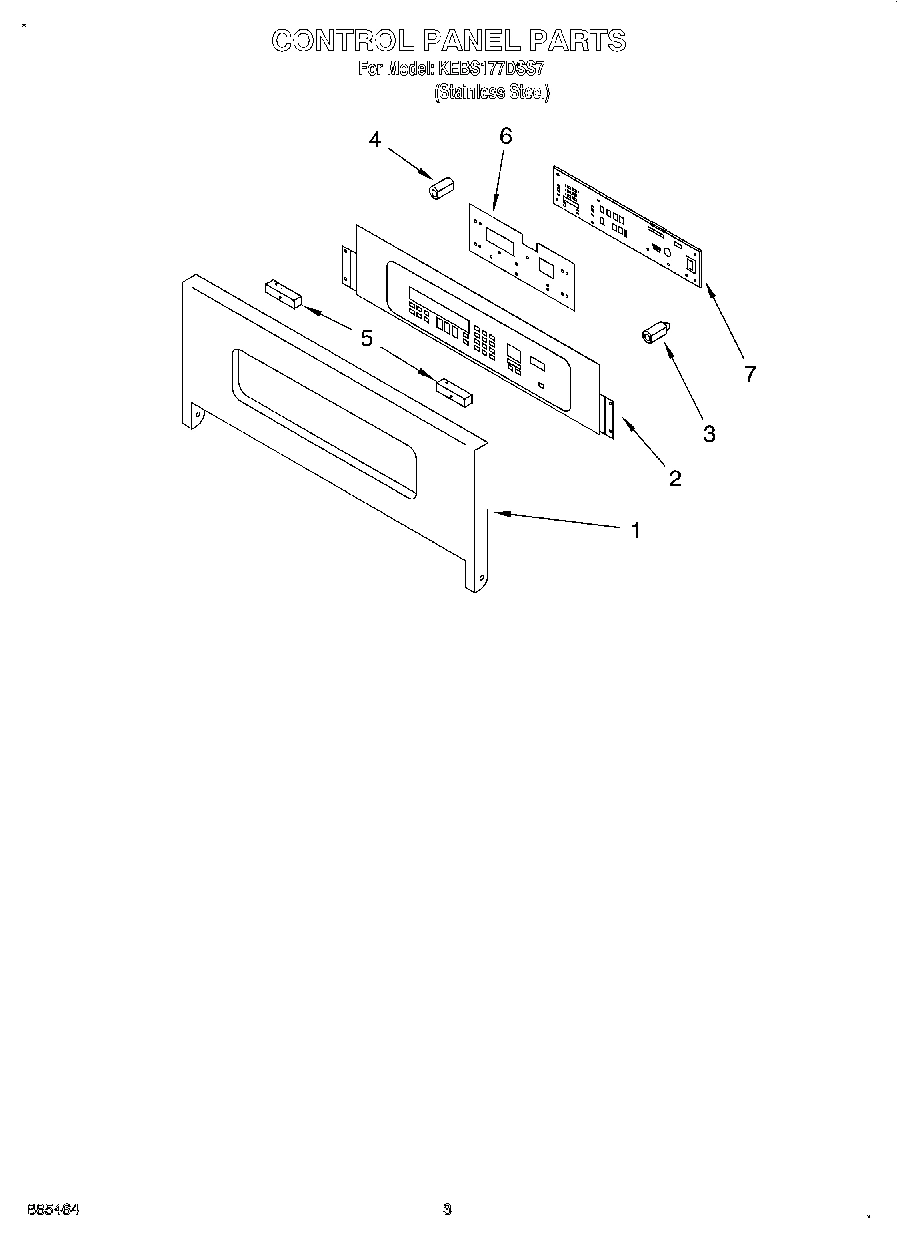

02 - CONTROL PANEL, LITERATURE

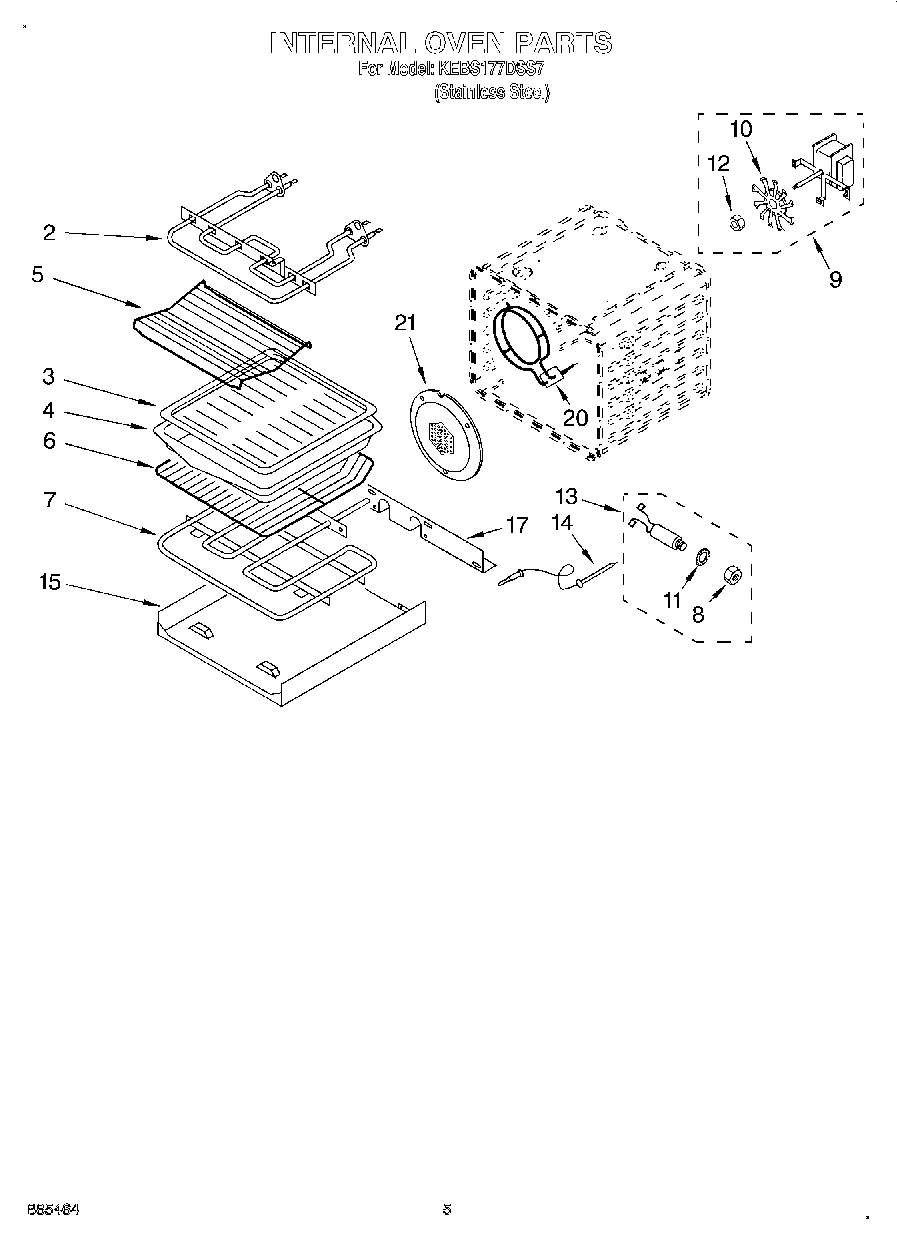

04 - INTERNAL OVEN

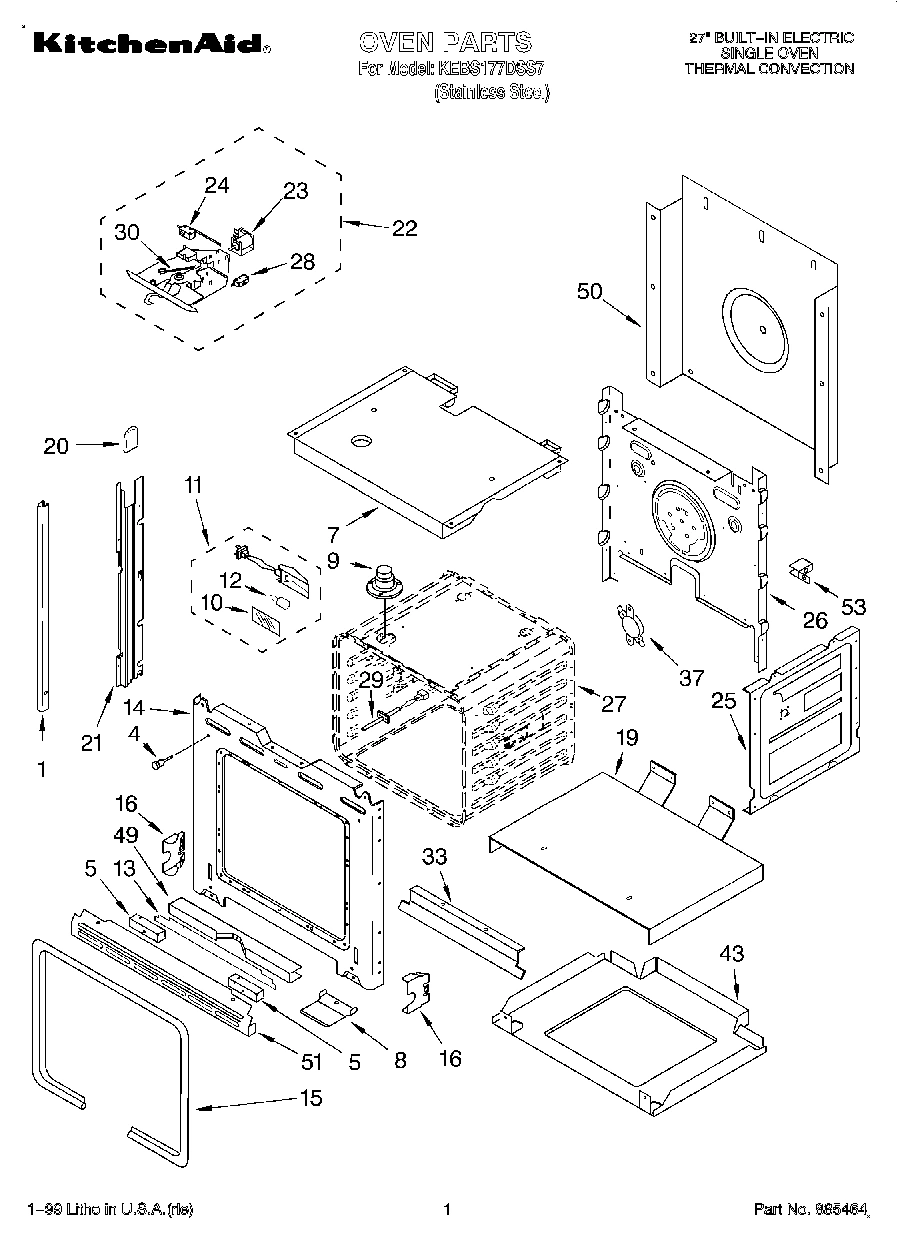

01 - OVEN
Common parts from model Whirlpool KEBS177DSS7 BUILT-IN ELECTRIC SINGLE OVEN
Safer Cooking Tips WPL LIT3191638 Contact Us For Availability
Installation/ Undercounter WPL LIT3192225 Contact Us For Availability
Cookbook T/C WPL LIT4449066 Contact Us For Availability
Guide, Easy Set WPL LIT4449264 Contact Us For Availability
Installation Instructions WPL LIT4450410 Contact Us For Availability
Use & Care Guide WPL LIT4450571 Contact Us For Availability
Installation, MWO Trim Kit WPL LIT4450841 Contact Us For Availability
Tech Sheet WPL LIT4451876 Contact Us For Availability
1
Control Panel Assy. WPL 4451790 Contact Us For Availability
1
Trim, Side (Screw) WPL 4449041 Contact Us For Availability
2
Switch, Membrane WPL 4452362 Contact Us For Availability
3
Insulation, Door WPL 4451721 Contact Us For Availability
3
Insulation, Board WPL 4452248 Contact Us For Availability
4
Screw WPL 4159465 Contact Us For Availability
4
Insulation, Board Support WPL 4452249 Contact Us For Availability
5
Spacer, Foam WPL 4452260 Contact Us For Availability
5
Rack, Roasting WPL 3181534 Contact Us For Availability
5
Spacer, Foam WPL 4452490 Contact Us For Availability
6
Rack, Oven WPL 4448715 Contact Us For Availability
6
Insulator, Dialectric WPL 4452345 Contact Us For Availability
7
Screw WPL 3400406 Contact Us For Availability
7
Microcomputer WPL 4451845 Contact Us For Availability
7
Top, Chassis WPL 4452236 Contact Us For Availability
9
Fan, Convect. Assy WPL 4451583 Contact Us For Availability
10
Lens, Light WPL 4452163 Contact Us For Availability
10
Seal, Top WPL 4452325 Contact Us For Availability
12
Nut WPL 4452227 Contact Us For Availability
13
Insulation, Bottom Vent WPL 4452336 Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
14
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
14
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
14
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
14
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
14
Harness, Wire (Main) WPL 4451861 Contact Us For Availability
14
Spacer, Harness WPL 4452222 Contact Us For Availability
14
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
14
Frame, Front WPL 4451739 Contact Us For Availability
15
Back, Control WPL 4452244 Contact Us For Availability
15
Tray, Bake WPL 4448722 Contact Us For Availability
16
Retainer, Glass (2) for BS Model WPL 4451668 Contact Us For Availability
16
Cover, Top Rear WPL 4450550 Contact Us For Availability
18
WPL 4452366 WPL 4452366 Contact Us For Availability
19
Support, Insulation WPL 4451477 Contact Us For Availability
20
Cap, Spacer WPL 4451605 Contact Us For Availability
22
Latch Assembly WPL 4451896 Contact Us For Availability
23
Solenoid WPL 4452224 Contact Us For Availability
24
Micro Switch N.C. WPL 4451422 Contact Us For Availability
25
Side, Chassis (R.H. & L.H.) WPL 4454691 Contact Us For Availability
26
Back, Chassis WPL 4452233 Contact Us For Availability
27
Liner, Oven (Not a Serviceable Part) WPL ARI83193A1 Contact Us For Availability
28
Microswitch WPL 4451426 Contact Us For Availability
29
Sensor WPL 4451665 Contact Us For Availability
30
Spring, Latch WPL 4451537 Contact Us For Availability
33
Deflector, Vent WPL 4450280 Contact Us For Availability
43
Base, Chassis WPL 4451397 Contact Us For Availability
51
Screw WPL 4450289 Contact Us For Availability
51
Trim, Bottom Vent WPL 4452480 Contact Us For Availability
53
Insulation, Wrap WPL 4449315 Contact Us For Availability
53
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
53
Insulation, Back WPL 4450364 Contact Us For Availability
× ![]()
