Model Whirlpool KEBS177DBT6 BUILT-IN ELECTRIC SINGLE OVEN – Common Parts & Diagrams
04 - INTERNAL OVEN

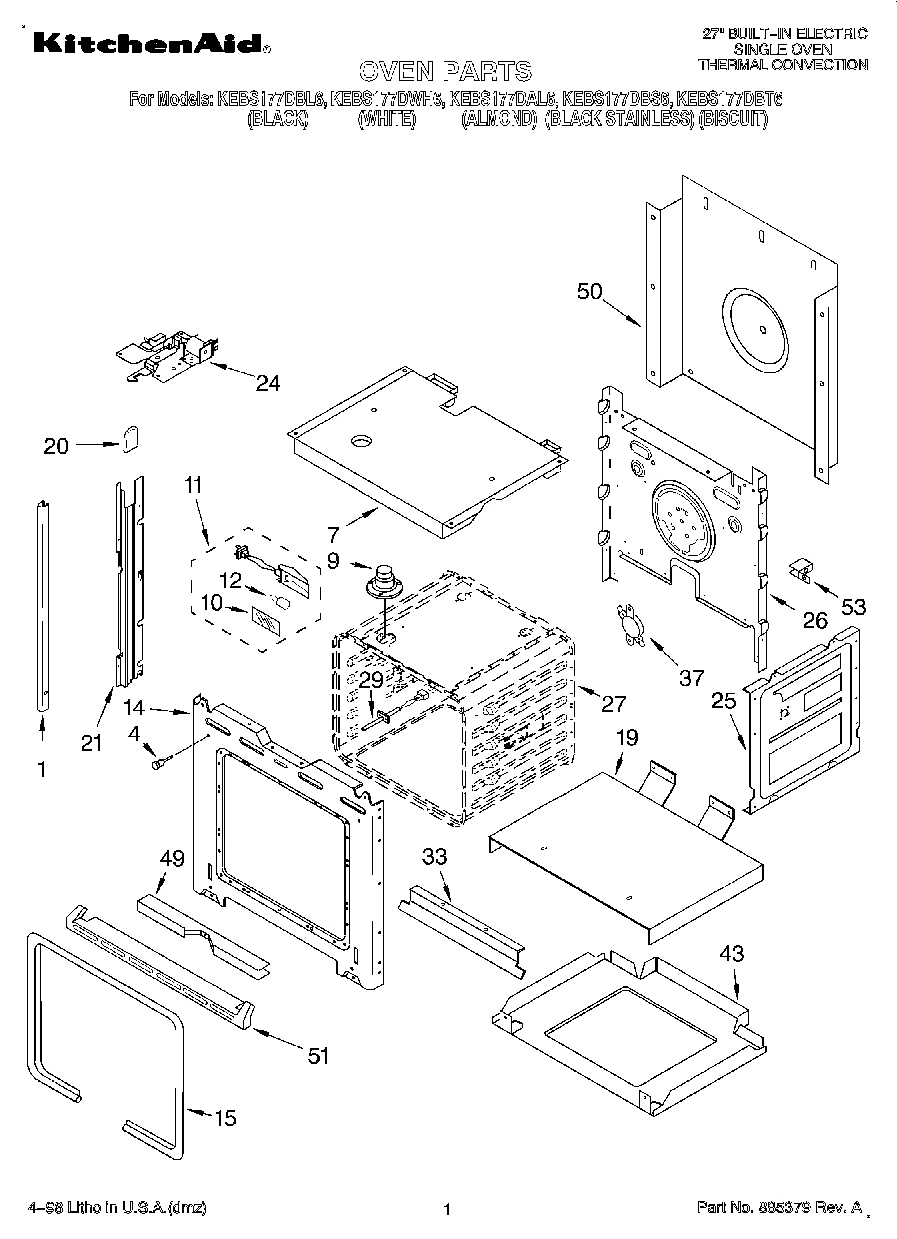

01 - OVEN

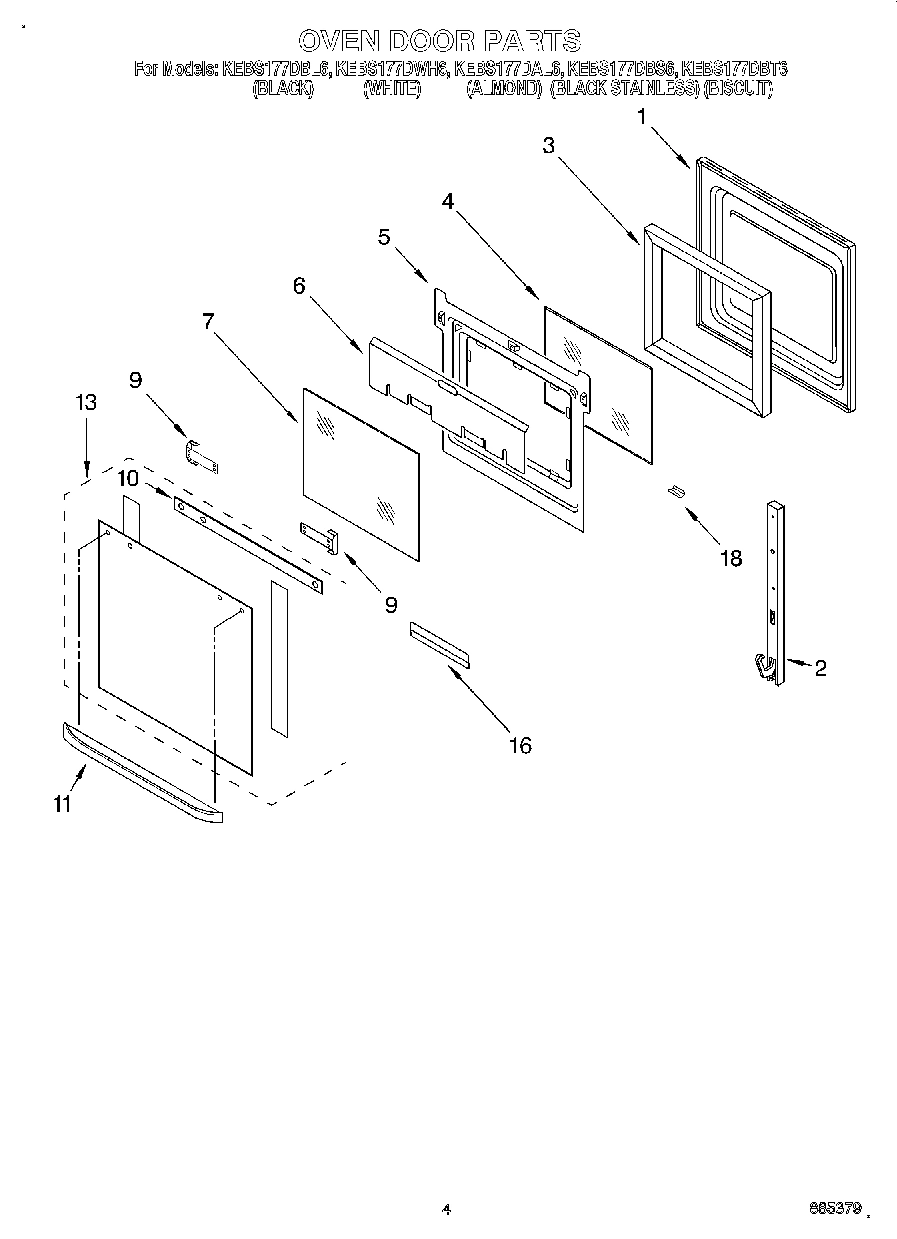

03 - OVEN DOOR

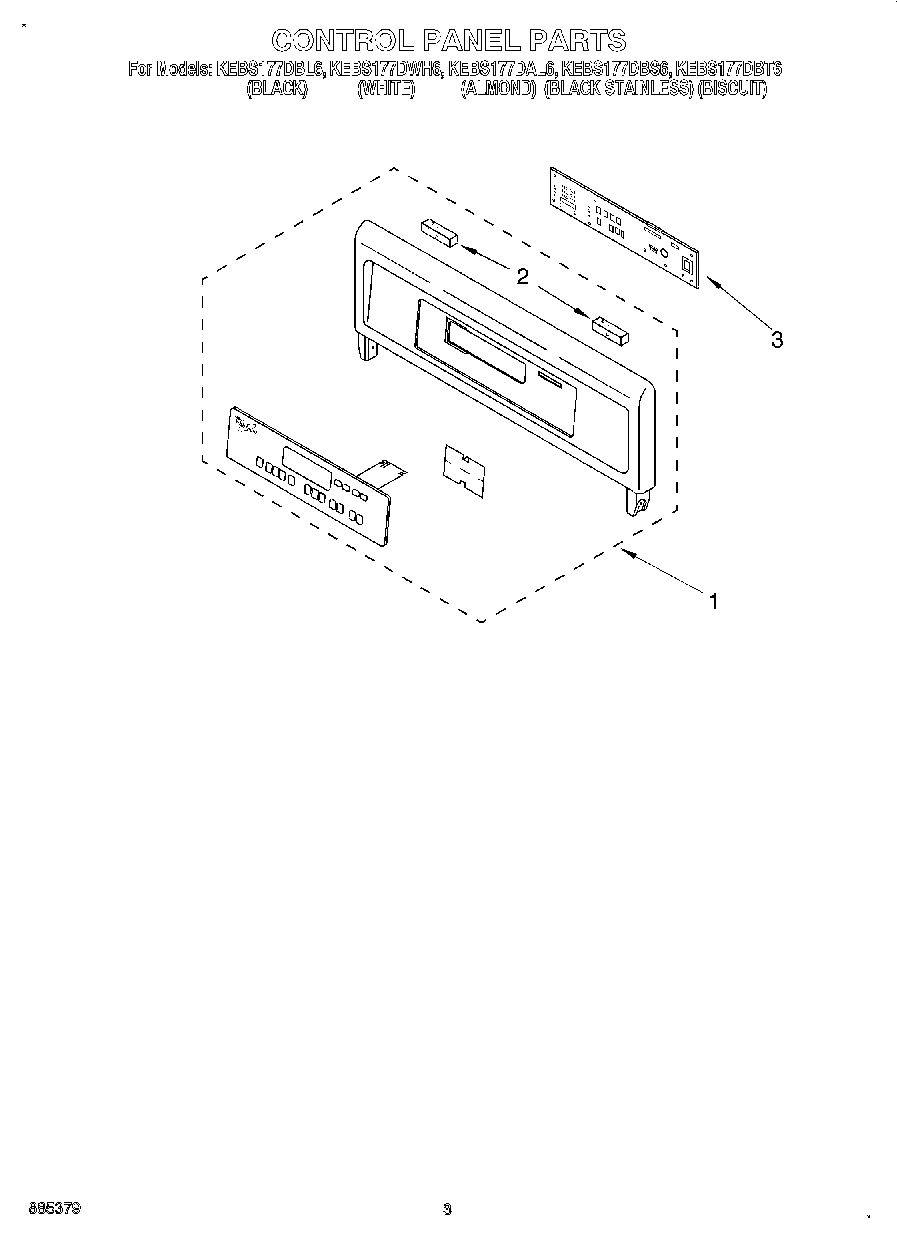

02 - CONTROL PANEL, LITERATURE

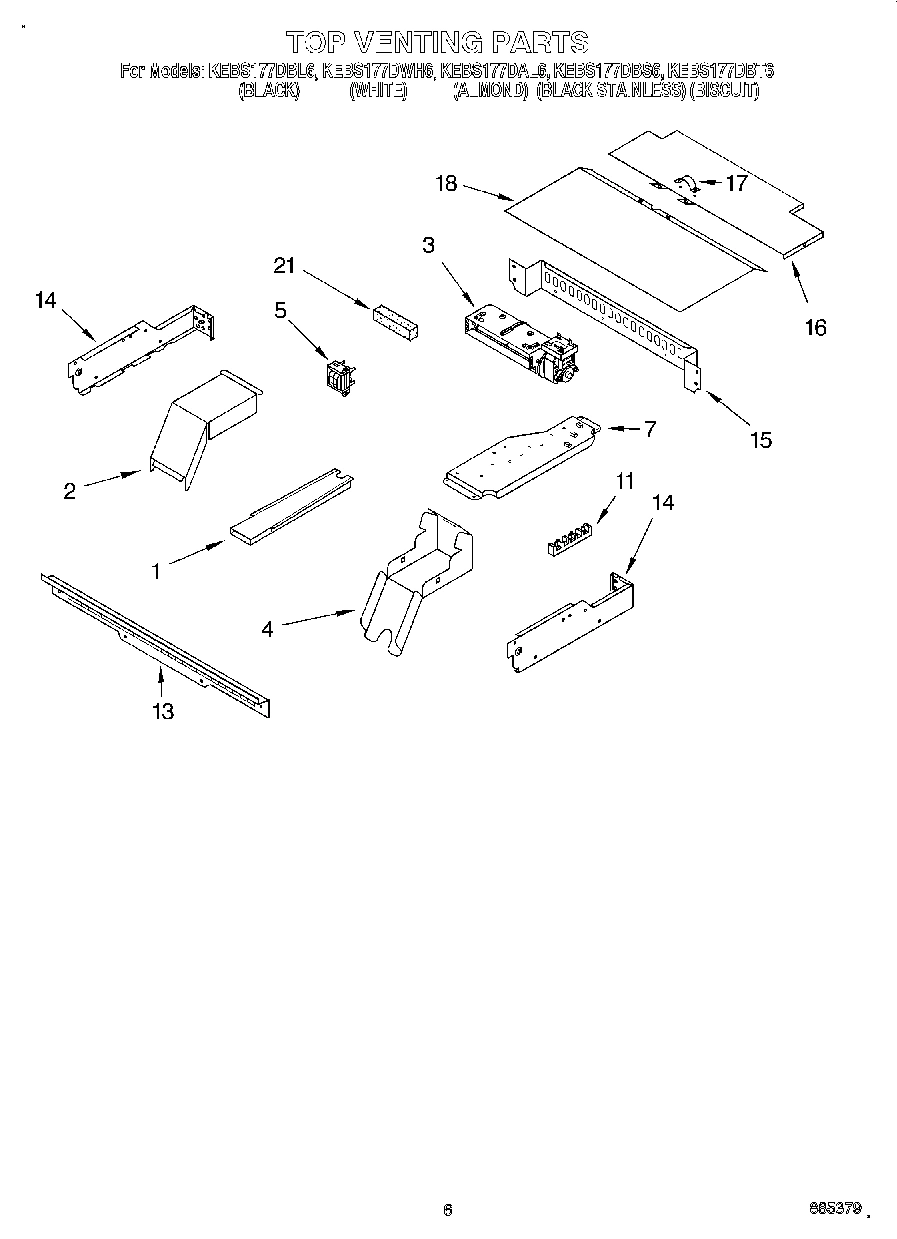

05 - TOP VENTING, OPTIONAL
Common parts from model Whirlpool KEBS177DBT6 BUILT-IN ELECTRIC SINGLE OVEN
Safer Cooking Tips WPL LIT3191638 Contact Us For Availability
Cookbook T/C WPL LIT4449066 Contact Us For Availability
Guide, Easy Set WPL LIT4449264 Contact Us For Availability
Installation Instructions WPL LIT4450410 Contact Us For Availability
Use & Care Guide WPL LIT4450571 Contact Us For Availability
Tech Sheet WPL LIT4452024 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (Screw) WPL 4159465 Contact Us For Availability
1
Door Liner WPL 4451718 Contact Us For Availability
1
Control Panel Assy W/Membrane Switch (Black M WPL 4451257 Contact Us For Availability
1
Control Panel Assy W/Membrane Switch (White M WPL 4451258 Contact Us For Availability
1
Control Panel Assy W/Membrane Switch (Almond WPL 4451259 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (Biscui WPL 4451266 Contact Us For Availability
2
Gasket, Control Panel WPL 4451033 Contact Us For Availability
3
Insulation, Door WPL 4451721 Contact Us For Availability
3
Microcomputer WPL 4448866 Contact Us For Availability
5
Retainer, Glass WPL 4451670 Contact Us For Availability
6
Rack, Oven WPL 4448715 Contact Us For Availability
6
Shield, Heat WPL 4450361 Contact Us For Availability
7
Plate, Mounting WPL 4451789 Contact Us For Availability
9
Fan, Convect. Assy WPL 4451583 Contact Us For Availability
9
Bracket, Handle WPL 4450813 Contact Us For Availability
9
Screw WPL 4451040 Contact Us For Availability
10
Lens, Light WPL 4452163 Contact Us For Availability
10
Seal, Top WPL 4451673 Contact Us For Availability
11
Handle (Black) WPL 4448411 Contact Us For Availability
11
Handle (White) WPL 4448412 Contact Us For Availability
11
Handle (Almond) WPL 4448413 Contact Us For Availability
11
Handle (Biscuit) WPL 4452128 Contact Us For Availability
13
Door Glass, Assy (Black Model) WPL 4452071 Contact Us For Availability
13
Door Glass, Assy (White Model) WPL 4452072 Contact Us For Availability
13
Door Glass, Assy (Almond) WPL 4452073 Contact Us For Availability
13
Door Glass, Assy (Black-Stainless) WPL 4452077 Contact Us For Availability
13
Door Glass, Assy (Biscuit) WPL 4452146 Contact Us For Availability
13
Vent, (Control Panel) WPL 4448551 Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
15
Back, Control WPL 4452244 Contact Us For Availability
16
Retainer, Glass (2) for BS Model WPL 4451668 Contact Us For Availability
16
Cover, Top Rear WPL 4450550 Contact Us For Availability
18
Clip, Retainer (Black) WPL 4450863 Contact Us For Availability
18
Clip, Retainer (White) WPL 4450864 Contact Us For Availability
18
Clip, Retainer (Almond) WPL 4450865 Contact Us For Availability
18
Clip, Retainer (Biscuit) WPL 4452119 Contact Us For Availability
18
Cover, Top Front WPL 4450553 Contact Us For Availability
21
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
21
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
21
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
21
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
21
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
21
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
21
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
21
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
21
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
21
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
21
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
21
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
21
Spacer, Harness WPL 4452222 Contact Us For Availability
21
Harness, Wire (Main) WPL 4454925 Contact Us For Availability
21
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
24
Latch Assembly WPL 4451424 Contact Us For Availability
24
Solenoid WPL 4451663 Contact Us For Availability
25
Side, Chassis (R.H. & L.H.) WPL 4454691 Contact Us For Availability
26
Back, Chassis WPL 4451545 Contact Us For Availability
27
Liner, Oven (Not a Serviceable Part) WPL ARI83177A1 Contact Us For Availability
29
Sensor WPL 4450026 Contact Us For Availability
33
Deflector, Vent WPL 4450280 Contact Us For Availability
43
Base, Chassis WPL 4451397 Contact Us For Availability
51
Trim, Bottom (Black) WPL 4448458 Contact Us For Availability
51
Trim, Bottom (White Model) WPL 4448459 Contact Us For Availability
51
Trim, Bottom (Almond Model) WPL 4448460 Contact Us For Availability
51
Trim, Bottom (Biscuit) WPL 4452126 Contact Us For Availability
53
Insulation, Wrap WPL 4449315 Contact Us For Availability
53
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
53
Insulation, Back WPL 4450364 Contact Us For Availability
× ![]()
