Model Whirlpool KEBS177DBL2 BUILT-IN ELECTRIC SINGLE OVEN – Common Parts & Diagrams

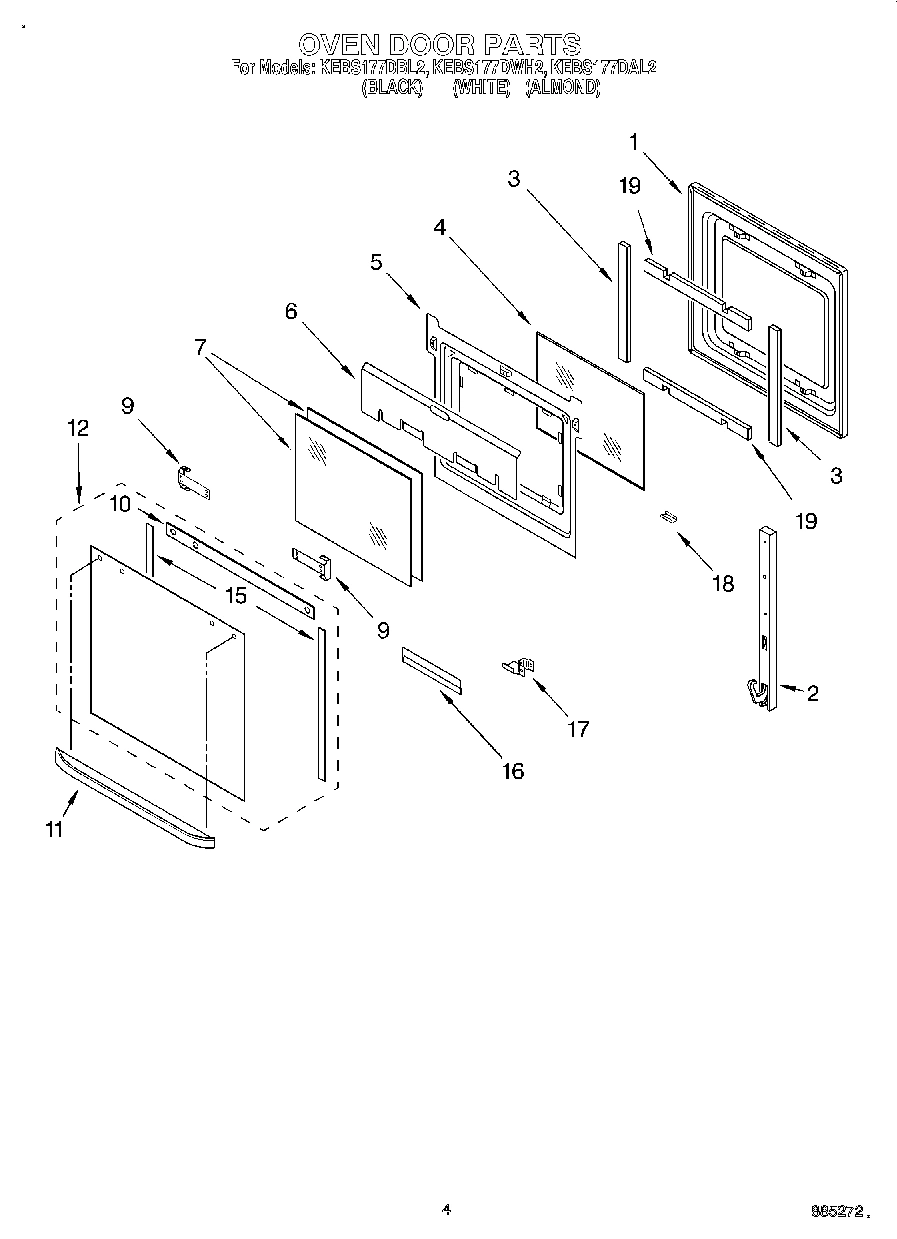

03 - OVEN DOOR

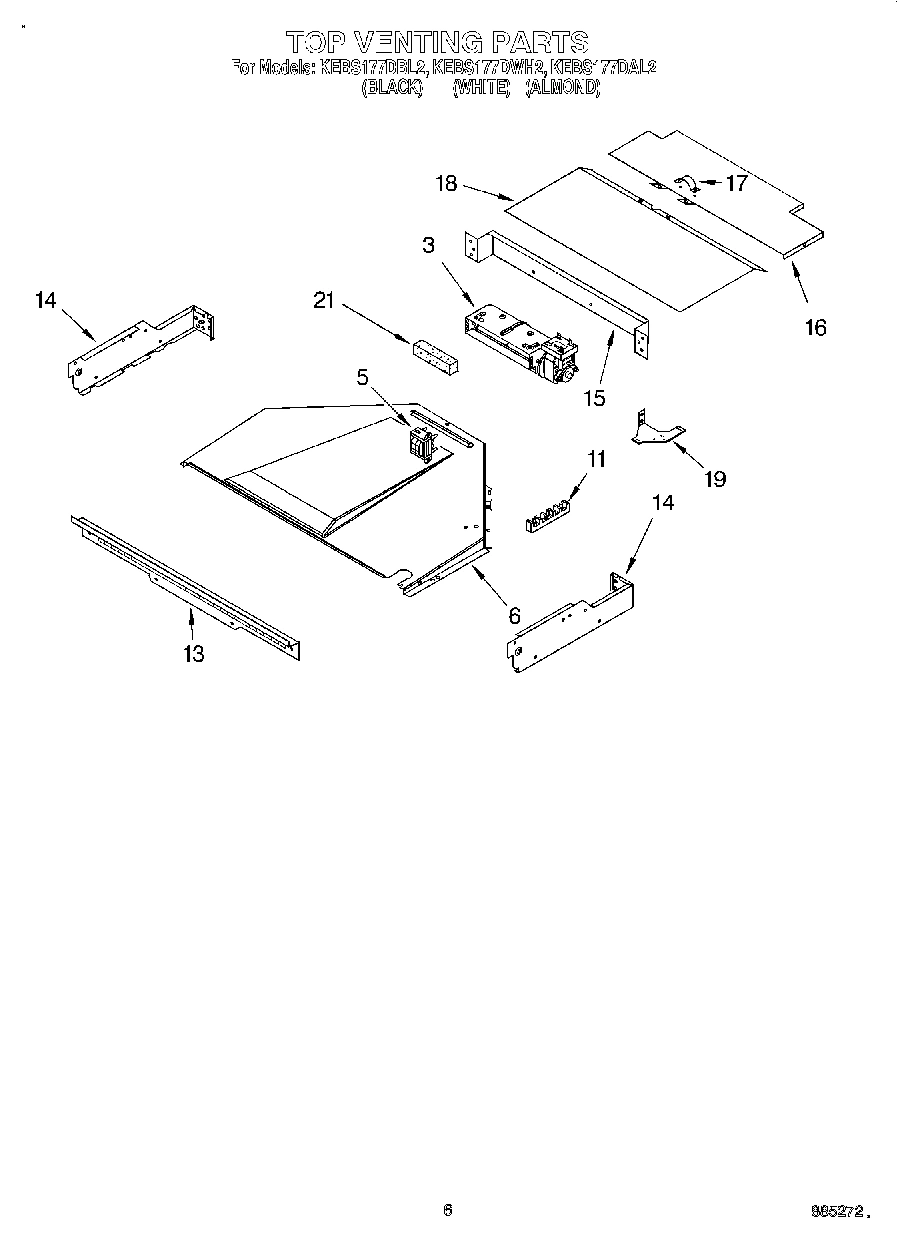

05 - TOP VENTING, OPTIONAL

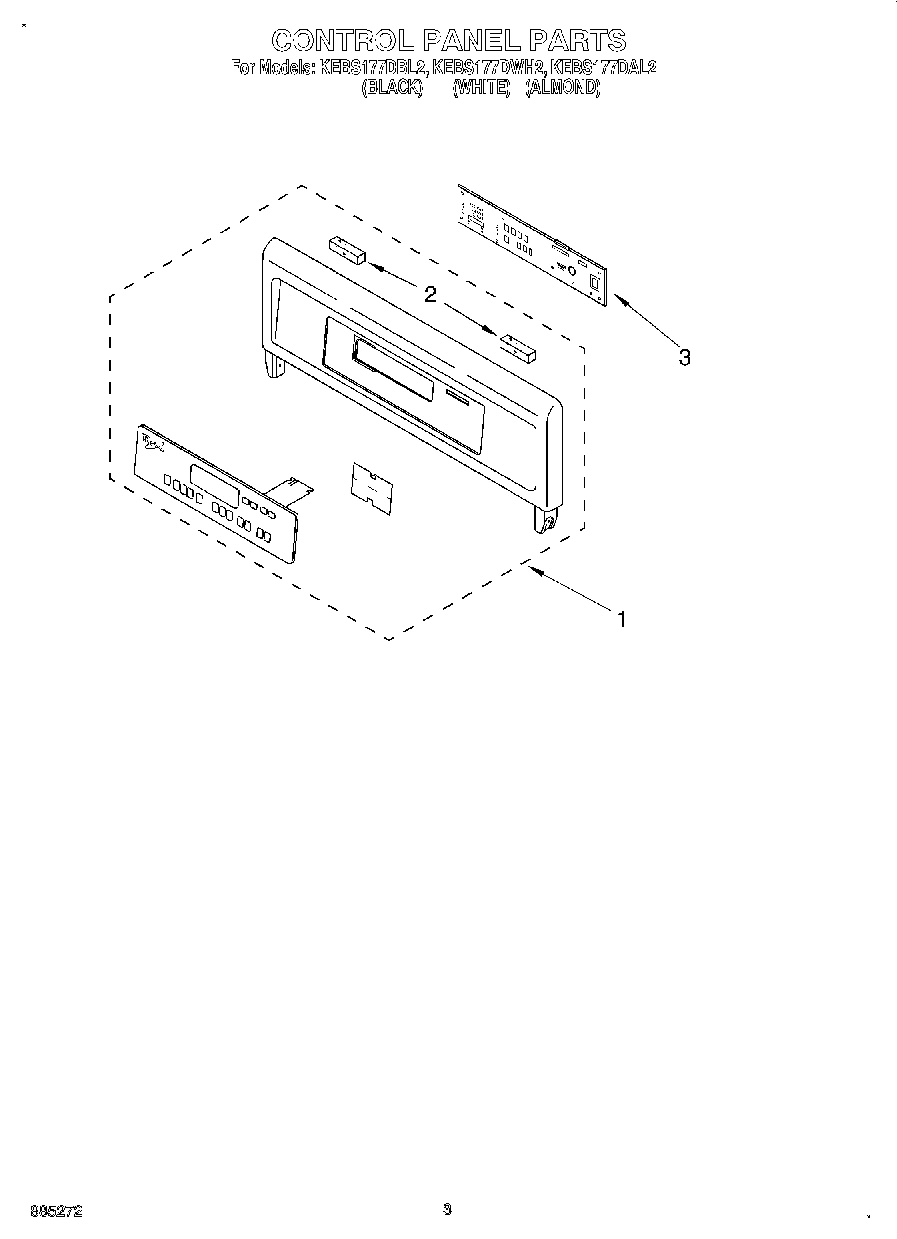

02 - CONTROL PANEL, LITERATURE

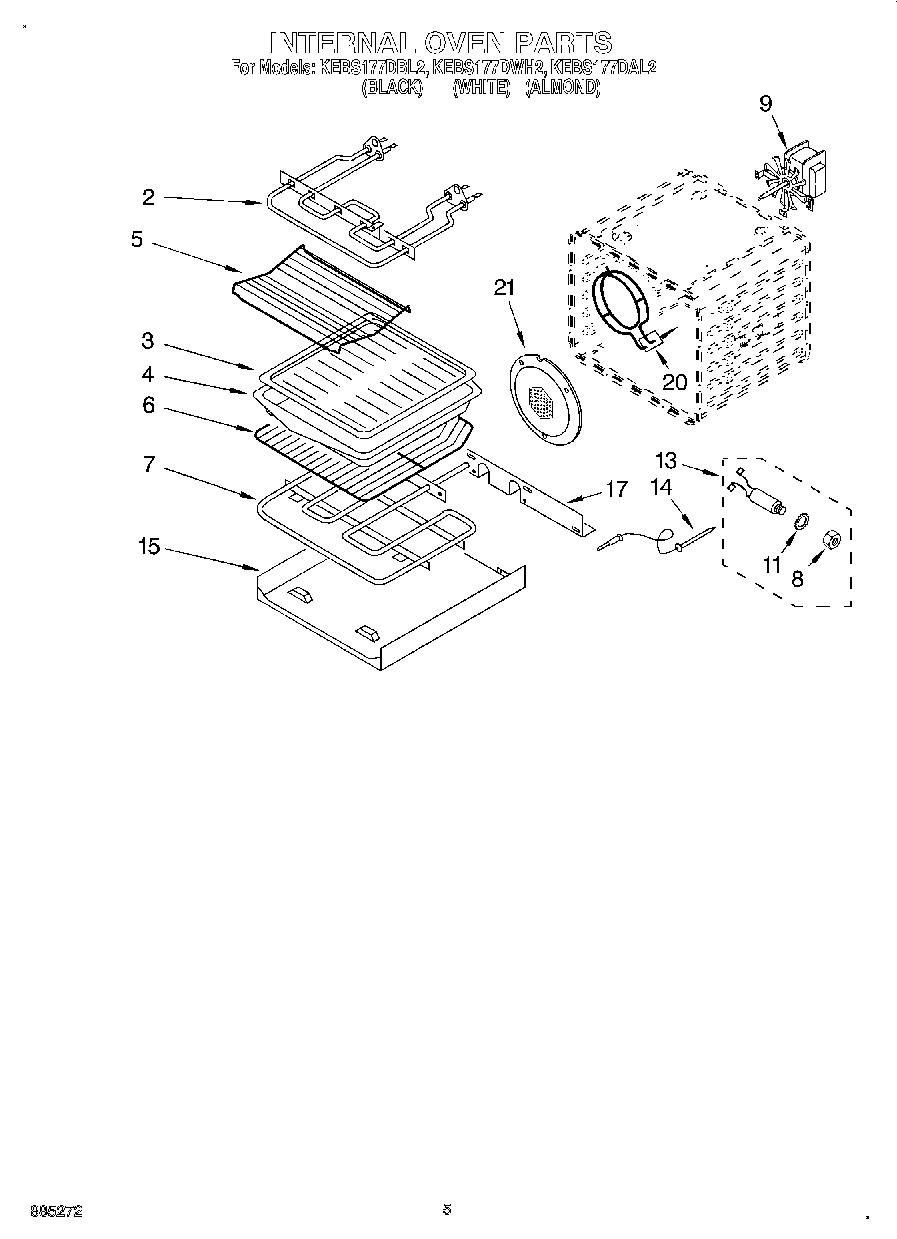

04 - INTERNAL OVEN

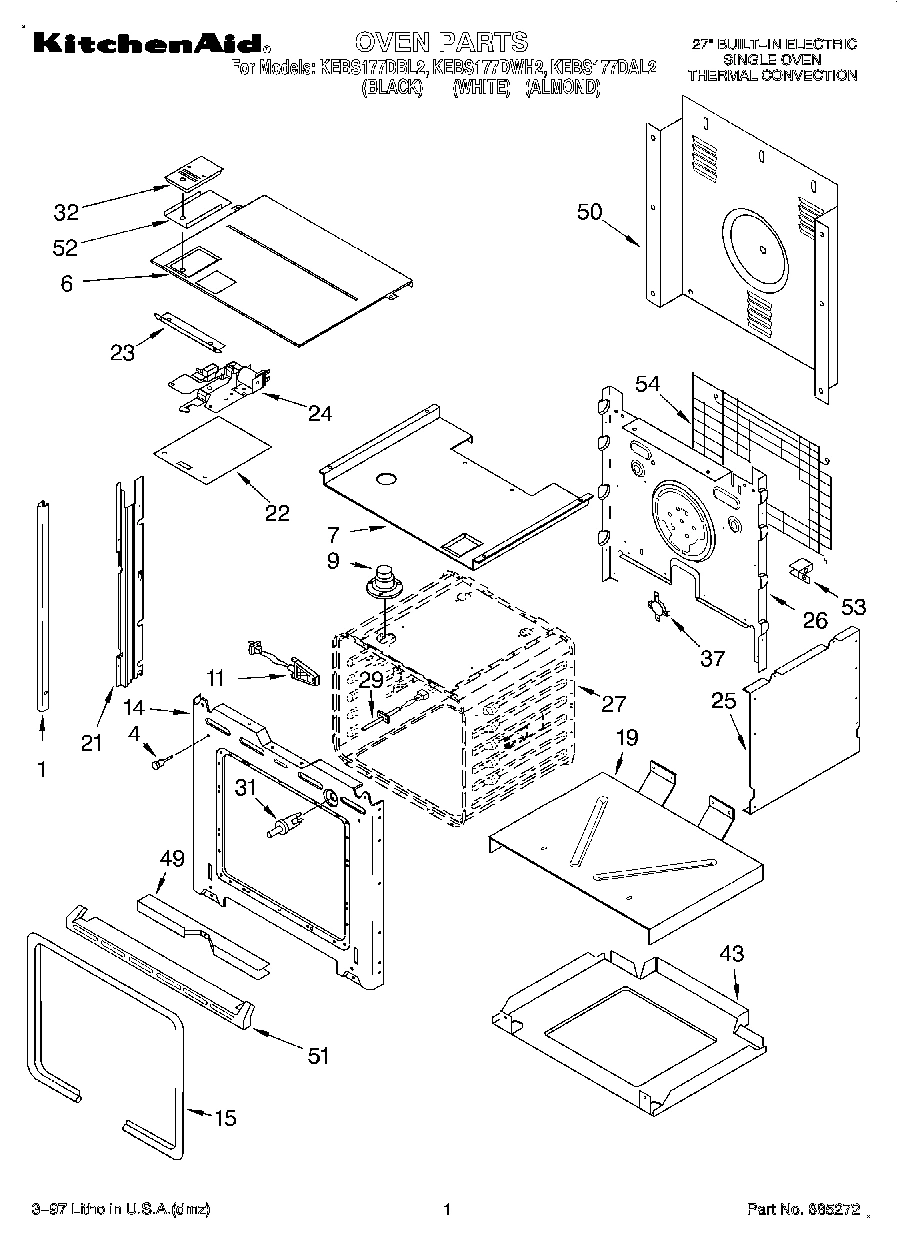

01 - OVEN
Common parts from model Whirlpool KEBS177DBL2 BUILT-IN ELECTRIC SINGLE OVEN
Cookbook T/C WPL LIT4449066 Contact Us For Availability
Guide, Easy Set WPL LIT4449264 Contact Us For Availability
Installation Instructions WPL LIT4450410 Contact Us For Availability
Use & Care Guide WPL LIT4450571 Contact Us For Availability
Installation/ Undercounter WPL LIT4450839 Contact Us For Availability
Tech Sheet WPL LIT4454769 Contact Us For Availability
1
Control Panel Assy W/Membrane Switch (Black M WPL 4451257 Contact Us For Availability
1
Control Panel Assy W/Membrane Switch (White M WPL 4451258 Contact Us For Availability
1
Control Panel Assy W/Membrane Switch (Almond WPL 4451259 Contact Us For Availability
1
Trim, Side (Screw) (White, Alm. Mdls.) WPL 4449041 Contact Us For Availability
1
Trim, Side (RH Black) WPL 4450844 Contact Us For Availability
1
Trim, Side (White, Right) WPL 4450845 Contact Us For Availability
1
Trim, Side (Right Hand) (Almond Model) WPL 4450846 Contact Us For Availability
1
Trim, Side (LH Black) WPL 4450847 Contact Us For Availability
1
Trim, Side (LH White) WPL 4450848 Contact Us For Availability
1
Trim, Side (LH Almond) WPL 4450849 Contact Us For Availability
2
Screw WPL 4159465 Contact Us For Availability
2
Gasket, Control Panel WPL 4451033 Contact Us For Availability
3
Microcomputer WPL 4448866 Contact Us For Availability
5
Rack, Roasting WPL 3181534 Contact Us For Availability
6
Rack, Oven WPL 4448715 Contact Us For Availability
6
Divider, Vent WPL 4451038 Contact Us For Availability
7
Partition WPL 4451165 Contact Us For Availability
9
Bracket, Handle WPL 4450813 Contact Us For Availability
9
Fan, Convection WPL 4448952 Contact Us For Availability
9
Tube, Vent WPL 4449009 Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
14
Frame, Front WPL 4450416 Contact Us For Availability
15
Tray, Bake WPL 4448722 Contact Us For Availability
16
Cover, Top Rear WPL 4450550 Contact Us For Availability
18
Cover, Top Front WPL 4450553 Contact Us For Availability
19
Bracket, Blower WPL 4450545 Contact Us For Availability
19
Support, Insulation WPL 4450541 Contact Us For Availability
21
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
21
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
21
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
21
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
21
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
21
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
21
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
21
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
21
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
21
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
21
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
21
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
21
Seal, Foam WPL 3182384 Contact Us For Availability
21
Harness, Wire (Door Switch) WPL 4450951 Contact Us For Availability
21
Harness, Wire (Latch) WPL 4454709 Contact Us For Availability
21
Harness, Wire (Main) WPL 4454798 Contact Us For Availability
21
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
21
Roll Tape, Exhau WPL 814387 Contact Us For Availability
22
Shield, Latch WPL 4451036 Contact Us For Availability
23
Deflector, Latch WPL 4450051 Contact Us For Availability
24
Latch Assy WPL 4454710 Contact Us For Availability
25
Side, Chassis (R.H. & L.H.) WPL 4450528 Contact Us For Availability
26
Back, Chassis WPL 4454728 Contact Us For Availability
27
Liner, Oven (Not a Serviceable Part) WPL ARI83143A3 Contact Us For Availability
29
Sensor WPL 4450026 Contact Us For Availability
31
Switch, Door WPL 4450819 Contact Us For Availability
32
Vent Box Assy WPL 4449369 Contact Us For Availability
43
Base, Chassis WPL 4450526 Contact Us For Availability
50
Cover, Back WPL 4450544 Contact Us For Availability
51
Trim, Bottom (Screw) WPL 4450289 Contact Us For Availability
51
Trim, Bottom (Black Model) WPL 4448458 Contact Us For Availability
51
Trim, Bottom (White Model) WPL 4448459 Contact Us For Availability
51
Trim, Bottom (Almond Model) WPL 4448460 Contact Us For Availability
52
Vent Extension WPL 4450795 Contact Us For Availability
53
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
54
Insulation, Wrap WPL 4449315 Contact Us For Availability
54
Insulation, Back WPL 4450364 Contact Us For Availability
54
Spacer, Harness WPL 4451002 Contact Us For Availability
× ![]()
