Model Whirlpool KEBS147DWH2 BUILT-IN ELECTRIC SINGLE OVEN – Common Parts & Diagrams

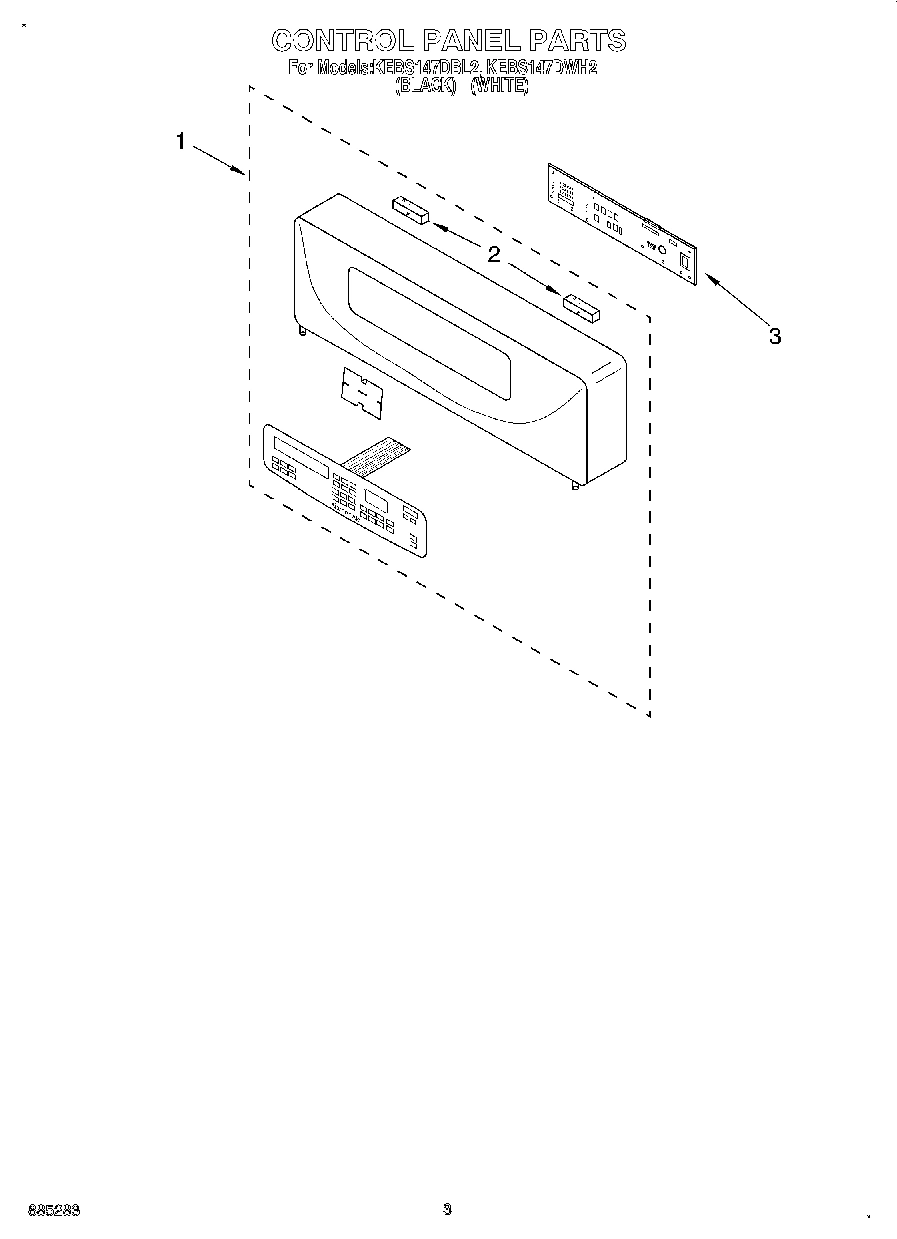

02 - CONTROL PANEL, LITERATURE
01 - OVEN
03 - OVEN DOOR
05 - TOP VENTING, OPTIONAL
04 - INTERNAL OVEN
Common parts from model Whirlpool KEBS147DWH2 BUILT-IN ELECTRIC SINGLE OVEN
1
Liner, Door WPL 4450427 Contact Us For Availability
3
Blower WPL 4450920 Contact Us For Availability
4
Insulation, Top and Bottom Door WPL 4448678 Contact Us For Availability
4
Foam, Block WPL 3182384 Contact Us For Availability
5
Retainer, Glass WPL 4450470 Contact Us For Availability
5
Rack, Roasting WPL 3181534 Contact Us For Availability
6
Exhaust Duct WPL 4450546 Contact Us For Availability
7
Glass, Inner (2) WPL 4449251 Contact Us For Availability
9
Retainer, Glass WPL 4449031 Contact Us For Availability
9
Fan, Convection WPL 4448952 Contact Us For Availability
12
Door Glass (Black Model) WPL 4450693 Contact Us For Availability
12
Door Glass (White Model) WPL 4450694 Contact Us For Availability
13
Door Handle (Black Model) WPL 4448408 Contact Us For Availability
13
Door Handle (White Model) WPL 4448409 Contact Us For Availability
13
Vent, (Control Panel) WPL 4448550 Contact Us For Availability
14
Bracket, Handle WPL 4450813 Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
14
Screw WPL 4451040 Contact Us For Availability
15
Back, Control WPL 4450658 Contact Us For Availability
18
Cover, Top Front WPL 4450552 Contact Us For Availability
19
Shield, Heat WPL 4450360 Contact Us For Availability
19
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
19
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
19
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
19
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
19
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
19
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
19
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
19
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
19
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
19
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
19
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
19
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
19
Bracket, Blower WPL 4450545 Contact Us For Availability
19
Harness, Wire (Door Switch) WPL 4450951 Contact Us For Availability
19
Harness, Wire (Main) WPL 4454704 Contact Us For Availability
19
Harness, Wire (Latch) WPL 4454709 Contact Us For Availability
19
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
19
Roll Tape, Exhaust Duct WPL 814387 Contact Us For Availability
20
Retainer, Glass WPL 4450421 Contact Us For Availability
21
Seal, Door Top WPL 4450835 Contact Us For Availability
22
Seal, Side WPL 4450838 Contact Us For Availability
23
Retainer, Clip (Black Model) WPL 4450863 Contact Us For Availability
23
Retainer, Clip (White Model) WPL 4450864 Contact Us For Availability
27
Liner, Oven (Not a Serviceable Part) WPL ARI83106A1 Contact Us For Availability
29
Sensor WPL 4450026 Contact Us For Availability
31
Switch, Door WPL 4450819 Contact Us For Availability
32
Vent Box Assy WPL 4449369 Contact Us For Availability
50
Cover, Back WPL 4450544 Contact Us For Availability
51
Trim, Bottom (Screw) WPL 4450289 Contact Us For Availability
51
Trim, Bottom (Black Model) WPL 4448455 Contact Us For Availability
51
Trim, Bottom (White Model) WPL 4448456 Contact Us For Availability
52
Extention, Vent WPL 4450795 Contact Us For Availability
53
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
54
Spacer, Harness WPL 4451002 Contact Us For Availability
× ![]()
