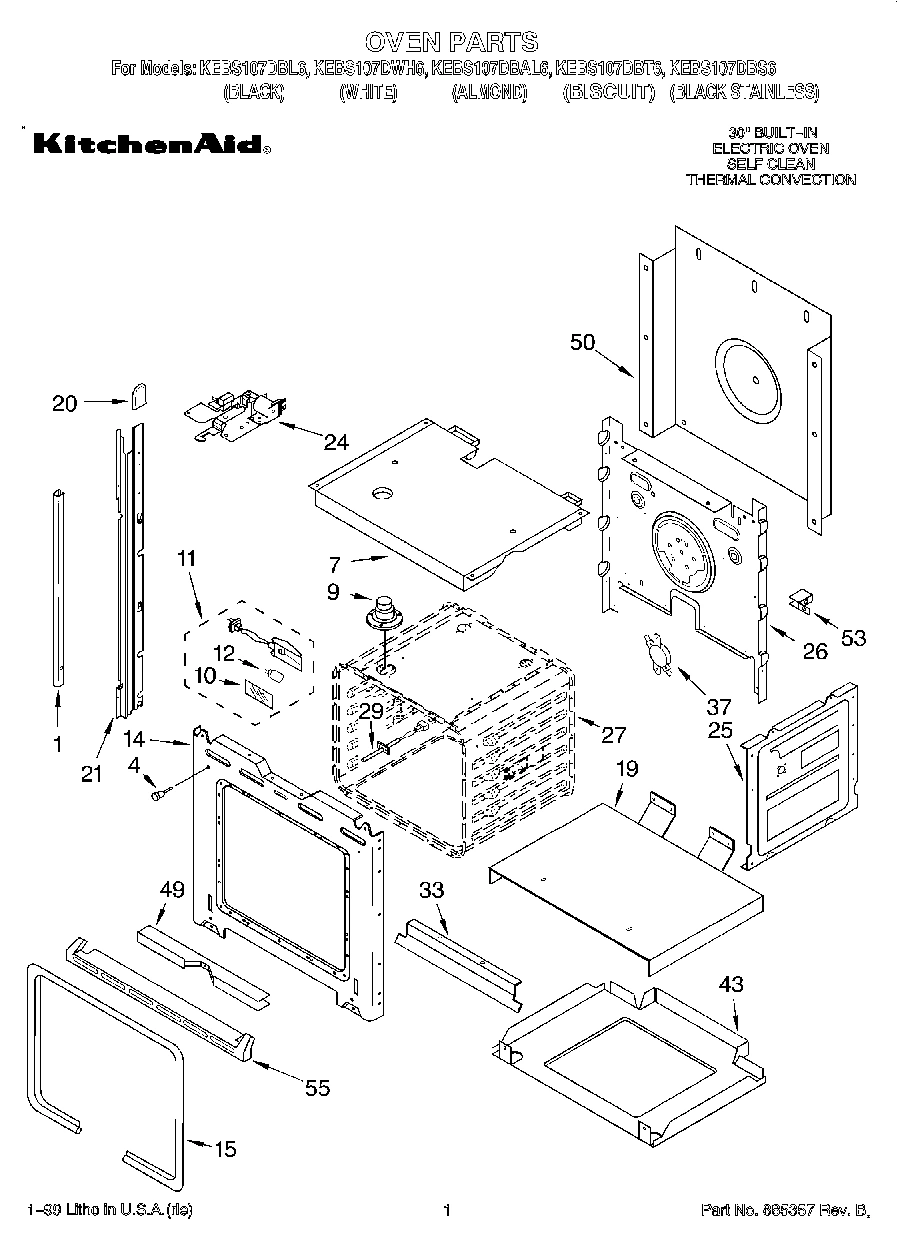

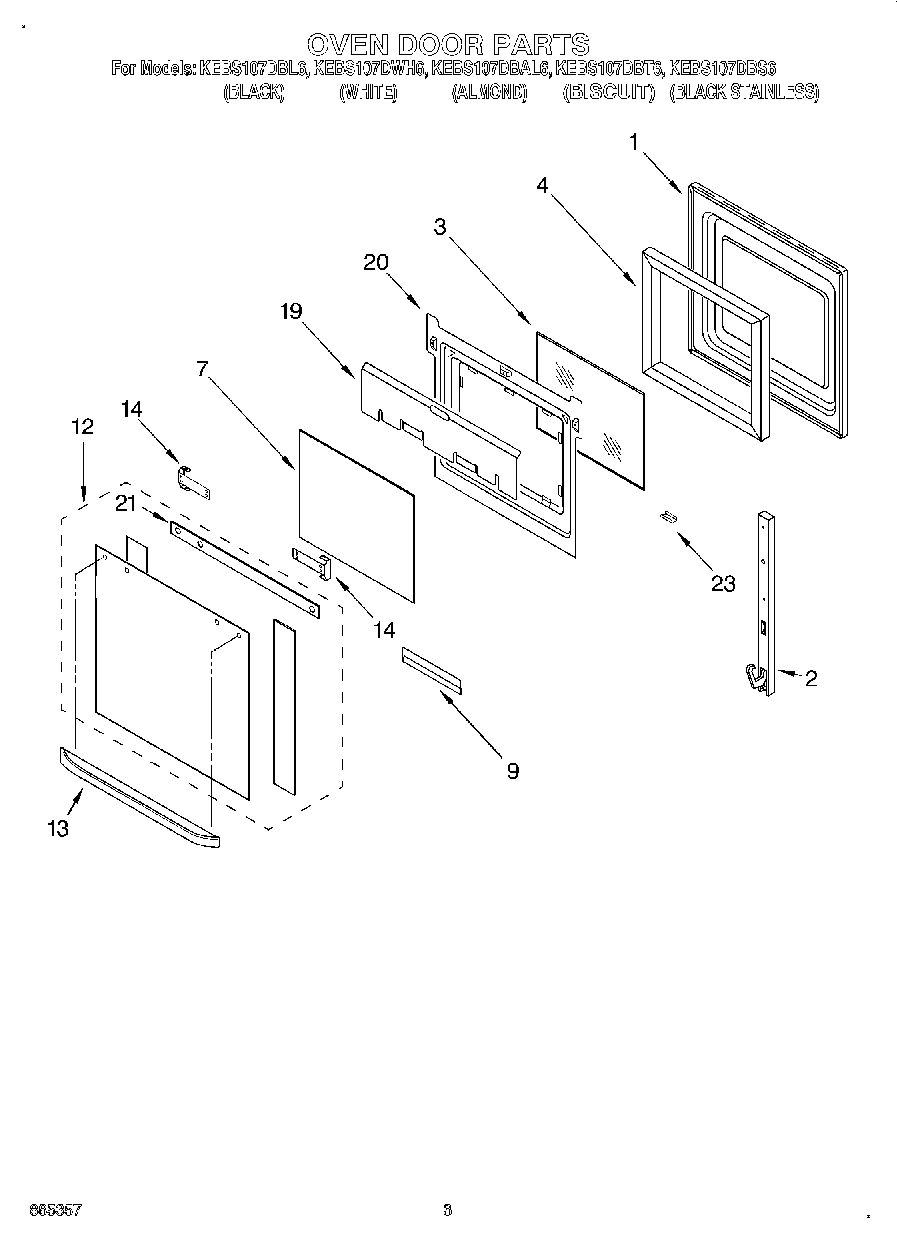

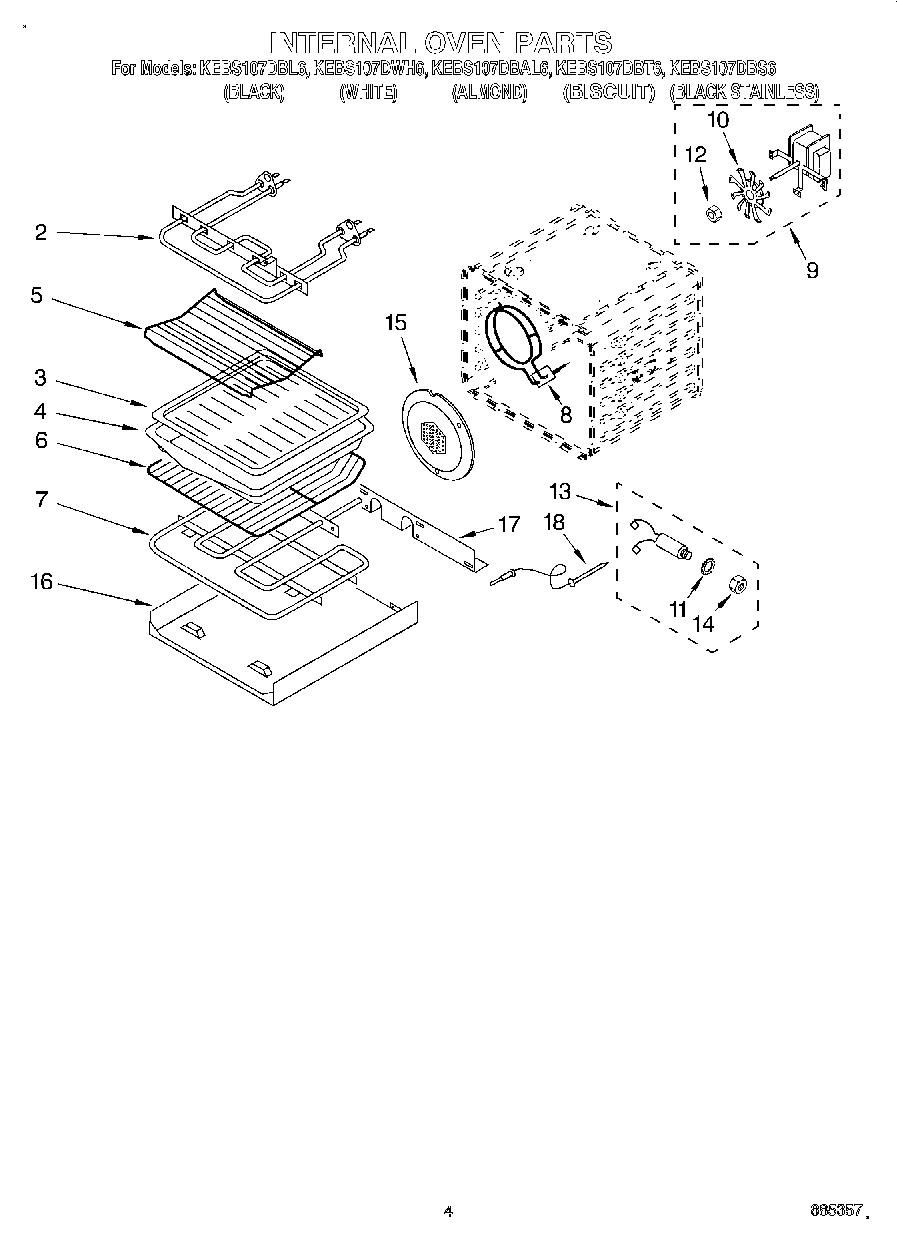

Model Whirlpool KEBS107DAL6 BUILT-IN ELECTRIC SINGLE OVEN – Common Parts & Diagrams

Safer Cooking Tips
Safer Cooking Tips WPL LIT3191638 Contact Us For Availability
View on Model
Installation/ Undercounter
Installation/ Undercounter WPL LIT3192225 Contact Us For Availability
View on Model
Cookbook T/C
Cookbook T/C WPL LIT4449066 Contact Us For Availability
View on Model
Easy Set Guide
Easy Set Guide WPL LIT4449264 Contact Us For Availability
View on Model
Installation Instructions
Installation Instructions WPL LIT4450411 Contact Us For Availability
View on Model
Use & Care Guide (Oven)
Use & Care Guide (Oven) WPL LIT4450571 Contact Us For Availability
View on Model
Installation, MWO Trim Kit
Installation, MWO Trim Kit WPL LIT4450841 Contact Us For Availability
View on Model
Tech Sheet
Tech Sheet WPL LIT4452024 Contact Us For Availability
View on Model

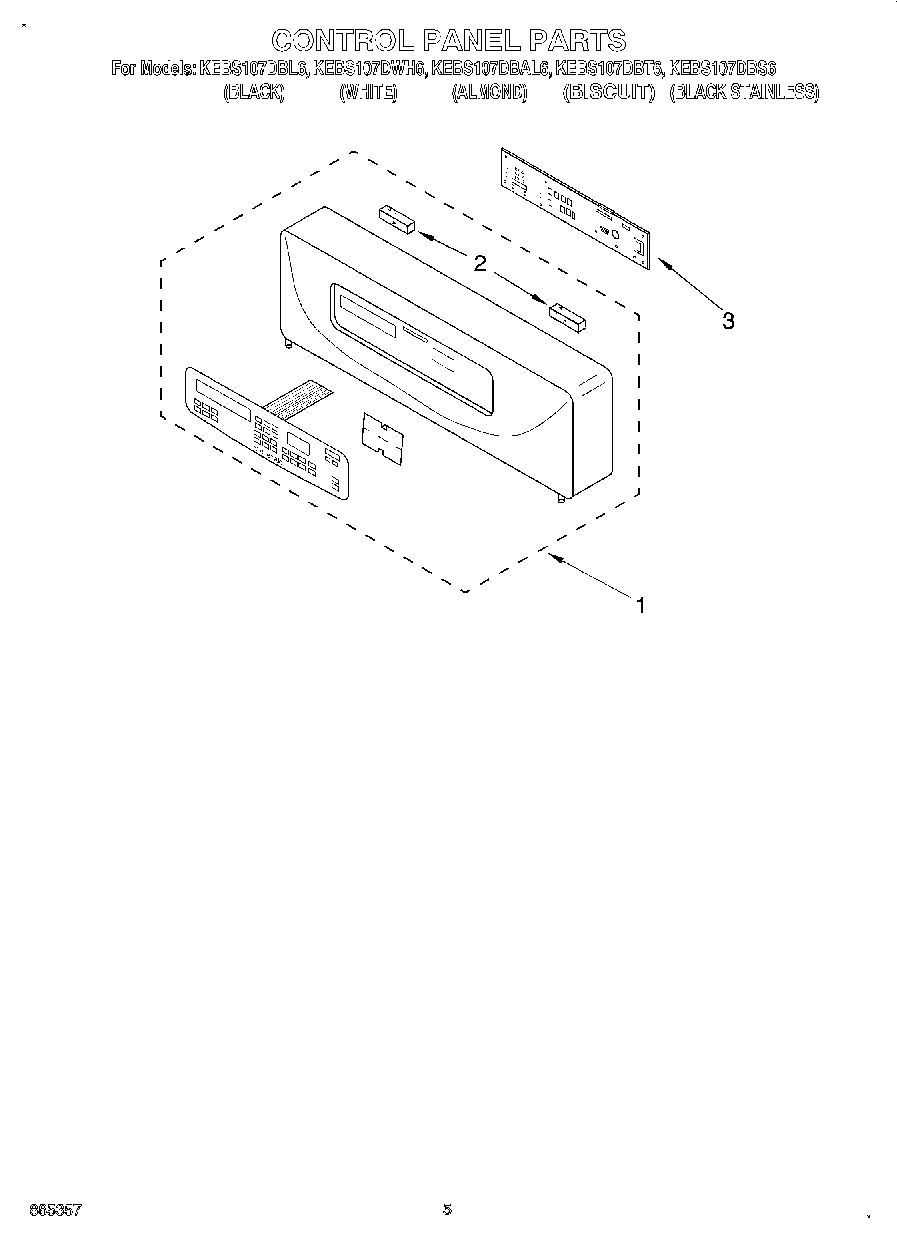

1
Control Panel Assy. W/Membrane Switch (Screw)
Control Panel Assy. W/Membrane Switch (Screw) WPL 4159465 Contact Us For Availability
View on Model
1
Control Panel Assy. W/Membrane Switch (Black
Control Panel Assy. W/Membrane Switch (Black WPL 4451263 Contact Us For Availability
View on Model
1
Control Panel Assy W/Membrane Switch (White M
Control Panel Assy W/Membrane Switch (White M WPL 4451264 Contact Us For Availability
View on Model
1
Control Panel Assy W/Membrane Switch (Almond
Control Panel Assy W/Membrane Switch (Almond WPL 4451265 Contact Us For Availability
View on Model
1
Control Panel Assy. W/Membrane Switch (Biscui
Control Panel Assy. W/Membrane Switch (Biscui WPL 4451267 Contact Us For Availability
View on Model
1
Trim, Side (Right Hand) (Screw)
Trim, Side (Right Hand) (Screw) WPL 4449041 Contact Us For Availability
View on Model
1
Trim, Side (Right Hand) (Black & BS Models)
Trim, Side (Right Hand) (Black & BS Models) WPL 4450844 Contact Us For Availability
View on Model
1
Trim, Side (White, Right)
Trim, Side (White, Right) WPL 4450845 Contact Us For Availability
View on Model
1
Trim, Side (Right Hand) (Almond Model)
Trim, Side (Right Hand) (Almond Model) WPL 4450846 Contact Us For Availability
View on Model
1
Trim, Side ((Left Hand)) (Black & BS Models)
Trim, Side ((Left Hand)) (Black & BS Models) WPL 4450847 Contact Us For Availability
View on Model
1
Trim, Side (Left Hand) (White Model)
Trim, Side (Left Hand) (White Model) WPL 4450848 Contact Us For Availability
View on Model
1
(Trim, Side (Left Hand)) (Almond Model)
(Trim, Side (Left Hand)) (Almond Model) WPL 4450849 Contact Us For Availability
View on Model
1
Trim, Side (Right Hand) (Biscuit Model)
Trim, Side (Right Hand) (Biscuit Model) WPL 4452120 Contact Us For Availability
View on Model
1
Trim, Side (Left Hand) (Biscuit Model)
Trim, Side (Left Hand) (Biscuit Model) WPL 4452121 Contact Us For Availability
View on Model
2
Gasket, Control Panel
Gasket, Control Panel WPL 4451034 Contact Us For Availability
View on Model
3
Microcomputer
Microcomputer WPL 4448866 Contact Us For Availability
View on Model
5
Rack, Roasting
Rack, Roasting WPL 3181534 Contact Us For Availability
View on Model
7
Top, Chassis
Top, Chassis WPL 4452237 Contact Us For Availability
View on Model
9
Motor Convection
Motor Convection WPL 4451583 Contact Us For Availability
View on Model
9
Retainer, Glass
Retainer, Glass WPL 4451668 Contact Us For Availability
View on Model
10
Lens, Light
Lens, Light WPL 4452163 Contact Us For Availability
View on Model
12
Nut
Nut WPL 4452227 Contact Us For Availability
View on Model
12
Door Glass, Assy (White Model)
Door Glass, Assy (White Model) WPL 4452075 Contact Us For Availability
View on Model
12
Door Glass, Assy (Almond Model)
Door Glass, Assy (Almond Model) WPL 4452076 Contact Us For Availability
View on Model
12
Door Glass, Assy (Black-Stainless)
Door Glass, Assy (Black-Stainless) WPL 4452078 Contact Us For Availability
View on Model
12
Door Glass, Assy (Biscuit Model)
Door Glass, Assy (Biscuit Model) WPL 4452147 Contact Us For Availability
View on Model
13
Door Handle (Black & BS Model)
Door Handle (Black & BS Model) WPL 4448414 Contact Us For Availability
View on Model
13
Handle, Door (White Model)
Handle, Door (White Model) WPL 4448415 Contact Us For Availability
View on Model
13
Handle, Door (Almond Model)
Handle, Door (Almond Model) WPL 4448416 Contact Us For Availability
View on Model
13
Handle, Door (Biscuit)
Handle, Door (Biscuit) WPL 4452129 Contact Us For Availability
View on Model
14
Bracket, Handle
Bracket, Handle WPL 4450813 Contact Us For Availability
View on Model
14
Screw
Screw WPL 4449040 Contact Us For Availability
View on Model
14
Frame, Front
Frame, Front WPL 4451740 Contact Us For Availability
View on Model
14
Screw
Screw WPL 4451040 Contact Us For Availability
View on Model
19
Support, Insulation
Support, Insulation WPL 4451478 Contact Us For Availability
View on Model
19
Shield, Heat
Shield, Heat WPL 4450362 Contact Us For Availability
View on Model
20
Cap, Spacer
Cap, Spacer WPL 4451605 Contact Us For Availability
View on Model
20
Retainer, Glass
Retainer, Glass WPL 4451671 Contact Us For Availability
View on Model
21
Seal, Door Top
Seal, Door Top WPL 4451674 Contact Us For Availability
View on Model
23
Retainer, Clip (Black & BS Models)
Retainer, Clip (Black & BS Models) WPL 4450863 Contact Us For Availability
View on Model
23
Retainer, Clip (White Model)
Retainer, Clip (White Model) WPL 4450864 Contact Us For Availability
View on Model
23
Retainer, Clip (Almond Model)
Retainer, Clip (Almond Model) WPL 4450865 Contact Us For Availability
View on Model
23
Retainer, Clip (Biscuit Model)
Retainer, Clip (Biscuit Model) WPL 4452119 Contact Us For Availability
View on Model
24
Latch Assembly
Latch Assembly WPL 4451424 Contact Us For Availability
View on Model
24
Micro Switch N.C.
Micro Switch N.C. WPL 4451422 Contact Us For Availability
View on Model
24
Microswitch
Microswitch WPL 4451426 Contact Us For Availability
View on Model
24
Solenoid
Solenoid WPL 4451663 Contact Us For Availability
View on Model
25
Side, Chassis (R.H. & L.H.)
Side, Chassis (R.H. & L.H.) WPL 4454691 Contact Us For Availability
View on Model
26
Back, Chassis
Back, Chassis WPL 4452234 Contact Us For Availability
View on Model
27
Liner, Oven (Not a Serviceable Part)
Liner, Oven (Not a Serviceable Part) WPL ARI82996A9 Contact Us For Availability
View on Model
29
Sensor
Sensor WPL 4451665 Contact Us For Availability
View on Model
33
Deflector, Vent
Deflector, Vent WPL 4451619 Contact Us For Availability
View on Model
43
Base, Chassis
Base, Chassis WPL 4451398 Contact Us For Availability
View on Model
53
BRACKET-SUPPORT
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
View on Model
55
Trim, Bottom (Black & BS Models)
Trim, Bottom (Black & BS Models) WPL 4448477 Contact Us For Availability
View on Model
55
Trim, Bottom (White Mo
Trim, Bottom (White Mo WPL 4448478 Contact Us For Availability
View on Model
55
WPL 4448862
WPL 4448862 WPL 4448862 Contact Us For Availability
View on Model
55
WPL 4450365
WPL 4450365 WPL 4450365 Contact Us For Availability
View on Model
55
WPL 4452415
WPL 4452415 WPL 4452415 Contact Us For Availability
View on Model
