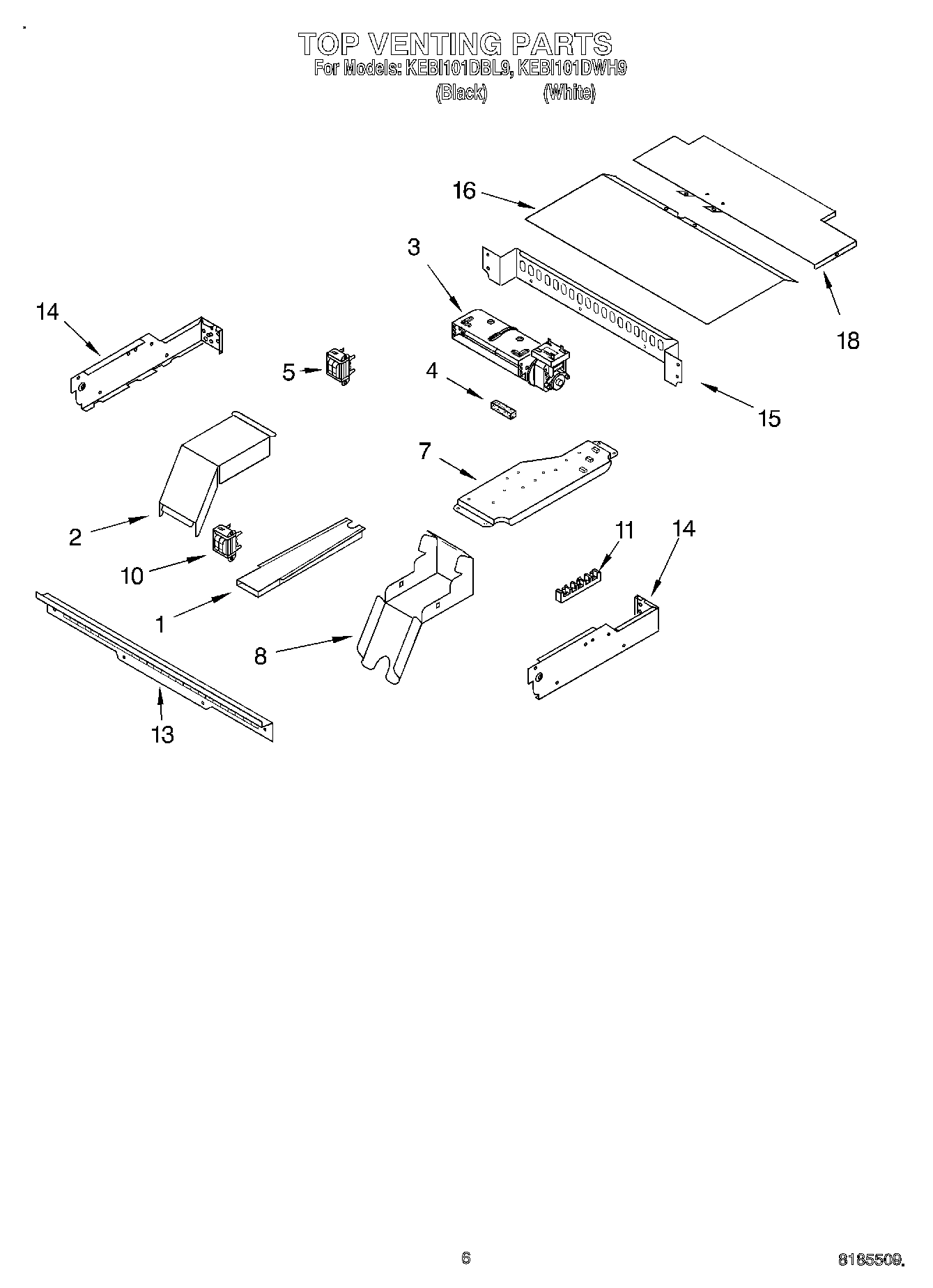

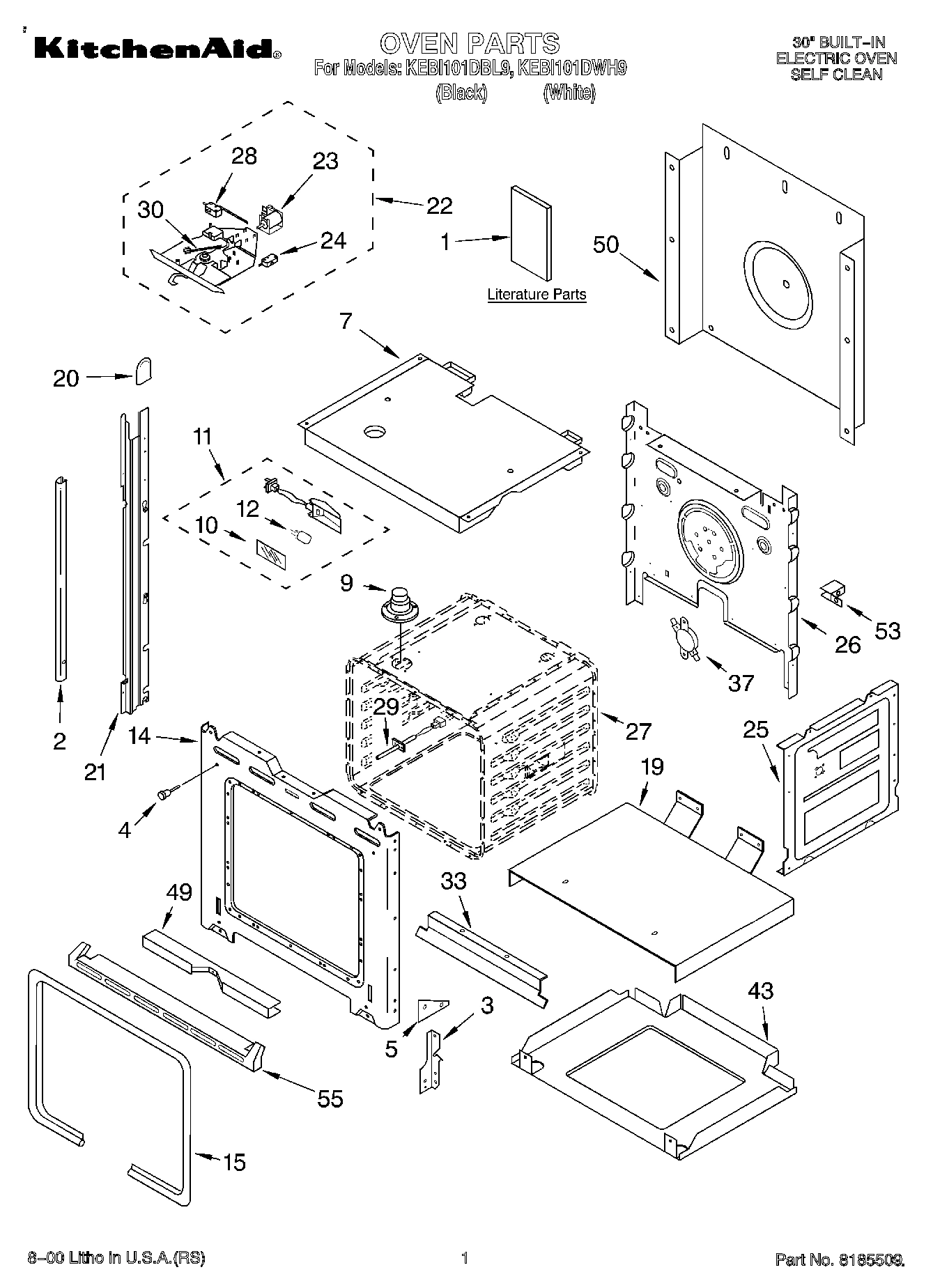

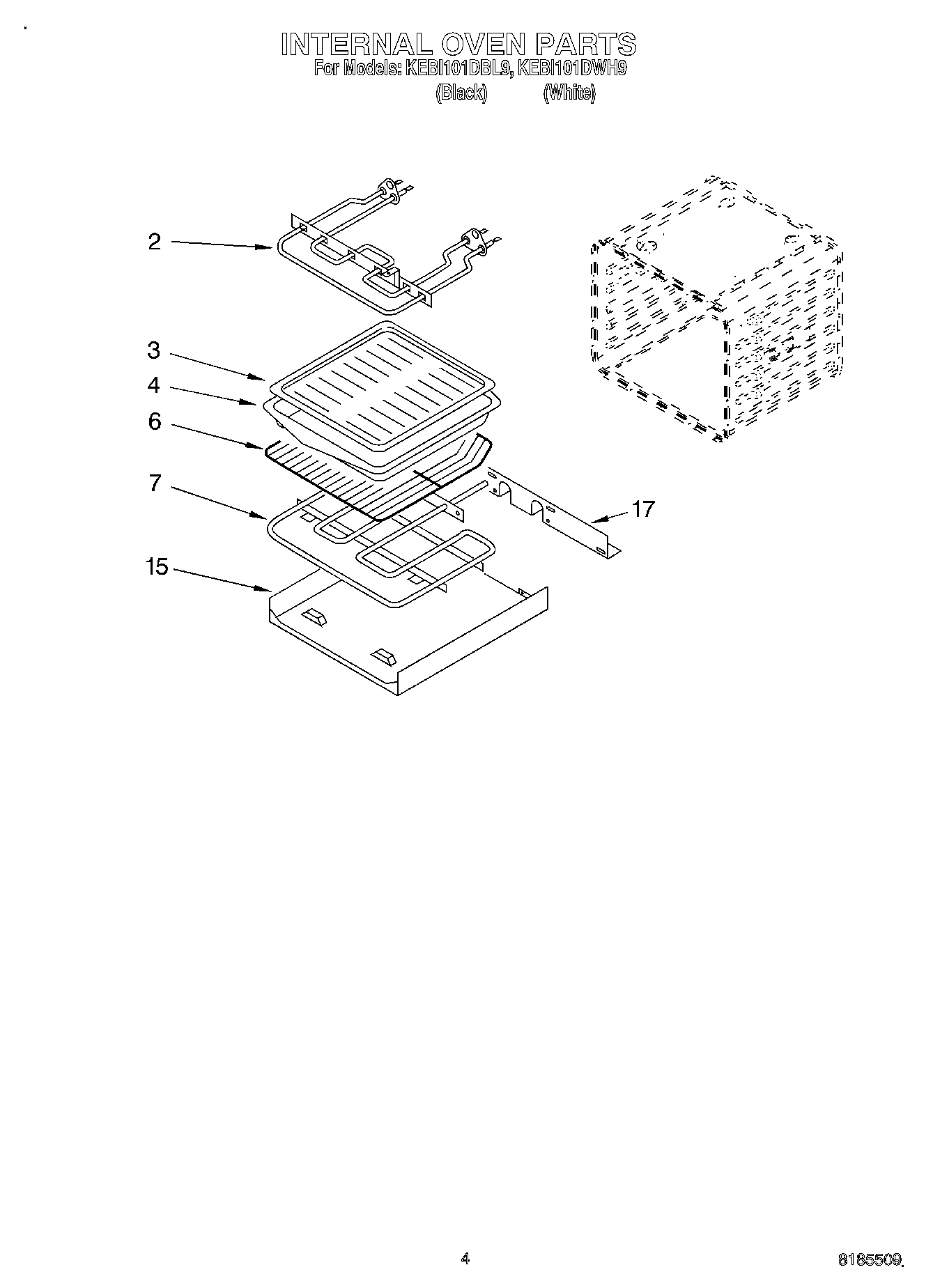

Model Whirlpool KEBI101DWH9 – Common Parts &amp; Diagrams

2

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.06

2

WPW10207400 Whirlpool Broil Element In Stock WPL WPW10207400 $218.99

3

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $44.99

3

WP4449259 Whirlpool Glass Window In Stock WPL WP4449259 $139.99

3

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $4.82

3

WP4455352 Whirlpool Mounting Bracket Backorder WPL WP4455352 $22.55

3

Blower 60MM WPL 4455334 Contact Us For Availability

4

4448520 Whirlpool Oven Bumper In Stock WPL 4448520 $14.02

4

W10491987 Whirlpool Foam Seal Backorder WPL W10491987 $4.82

4

WP4451722 Whirlpool Door Insulation Assembly Backorder WPL WP4451722 $117.06

5

WP9760588 Whirlpool Transformer In Stock WPL WP9760588 $196.56

6

WPW10179152 Whirlpool Rack Oven In Stock WPL WPW10179152 $110.69

7

4451175 Whirlpool Bake Element In Stock WPL 4451175 $159.99

7

WP4449263 Whirlpool Inner Door Glass Backorder WPL WP4449263 $142.57

7

Plate, Mounting WPL 4451789 Contact Us For Availability

8

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $6.68

9

Retainer, Glass WPL 4451668 Contact Us For Availability

10

Lens, Light WPL 4452163 Contact Us For Availability

10

Transformer, Control WPL 4451891 Contact Us For Availability

4449748 Whirlpool Oven Screw Backorder WPL 4449748 $9.02

WP3400016 Whirlpool Screw Assembly Backorder WPL WP3400016 $4.82

WP4448972 Whirlpool Oven Light In Stock WPL WP4448972 $75.50

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $14.85

12

WP4452164 Whirlpool 12V 5W Halogen Light Bulb In Stock WPL WP4452164 $49.93

13

WP4450038 Whirlpool Screw In Stock WPL WP4450038 $4.82

13

Vent, (Control Panel) WPL 4448552 Contact Us For Availability

W10755214 Whirlpool Side Complete Backorder WPL W10755214 $49.39

W10790240 Whirlpool Side Assembly Complete Backorder WPL W10790240 $49.39

Bracket, Handle WPL 4450813 Contact Us For Availability

Screw WPL 4449040 Contact Us For Availability

15

W11675844 Whirlpool Oven Gasket In Stock WPL W11675844 $42.99

15

Tray, Bake WPL 4455037 Contact Us For Availability

15

Back, Control WPL 4452244 Contact Us For Availability

16

Cover, Top Rear WPL 4450551 Contact Us For Availability

17

4450039 Whirlpool Oven Access Cover Backorder WPL 4450039 $58.50

242831 Whirlpool Oven Wire Backorder WPL 242831 $249.73

261900 Whirlpool Microwave Spray Backorder WPL 261900 $30.44

285006 Whirlpool Spray In Stock WPL 285006 $31.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

4448664 Whirlpool Oven Mounting Bracket Backorder WPL 4448664 $13.22

4450800 Whirlpool Oven Screw Backorder WPL 4450800 $8.89

4451761 Whirlpool Oven Support Bracket Backorder WPL 4451761 $5.46

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

814381 Whirlpool Pin In Stock WPL 814381 $4.82

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $4.82

WP261869 Whirlpool Microwave Paint Backorder WPL WP261869 $15.84

WP4448950 Whirlpool Screw Backorder WPL WP4448950 $4.82

WP4450952 Whirlpool Conduit Backorder WPL WP4450952 $158.38

WP4452367 Whirlpool Top Cover Backorder WPL WP4452367 $48.97

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $34.73

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability

Spacer, Harness WPL 4452222 Contact Us For Availability

Harness, Wire (Main) WPL 4455623 Contact Us For Availability

ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability

19

Support, Insulation WPL 4451478 Contact Us For Availability

20

Cap, Spacer WPL 4451605 Contact Us For Availability

21

814371 Whirlpool Oven Rail Mount Backorder WPL 814371 $74.47

21

814372 Whirlpool Oven Rail Mount Backorder WPL 814372 $74.29

21

WP4448444 Whirlpool Grommet Backorder WPL WP4448444 $4.82

22

Latch Assembly WPL 4451896 Contact Us For Availability

23

Solenoid WPL 4452224 Contact Us For Availability

24

Glass, Inner WPL 4455257 Contact Us For Availability

24

Microswitch N.C. WPL 4452312 Contact Us For Availability

25

Side, Chassis (R.H. & L.H.) WPL 4454691 Contact Us For Availability

26

Back, Chassis WPL 4452234 Contact Us For Availability

27

Liner, Oven (Not a Serviceable Part) WPL ARI82699A3 Contact Us For Availability

28

Microswitch WPL 4451426 Contact Us For Availability

29

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $67.99

30

WPL 4451537 WPL 4451537 Contact Us For Availability

33

WPL 4451619 WPL 4451619 Contact Us For Availability

37

WP9759242 Whirlpool Thermostat In Stock WPL WP9759242 $55.98

43

WPL 4455530 WPL 4455530 Contact Us For Availability

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $4.82

49

WP4449154 Whirlpool Screw In Stock WPL WP4449154 $4.82

50

WP4451747 Whirlpool Rear Cover Backorder WPL WP4451747 $90.20

53

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $7.99

53

WPL 4449845 WPL 4449845 Contact Us For Availability

W11684730 Whirlpool Insulation Backorder WPL W11684730 $76.41

WPL 4448477 WPL 4448477 Contact Us For Availability

WPL 4159465 WPL 4159465 Contact Us For Availability

WPL 4448478 WPL 4448478 Contact Us For Availability

WPL 4450365 WPL 4450365 Contact Us For Availability
