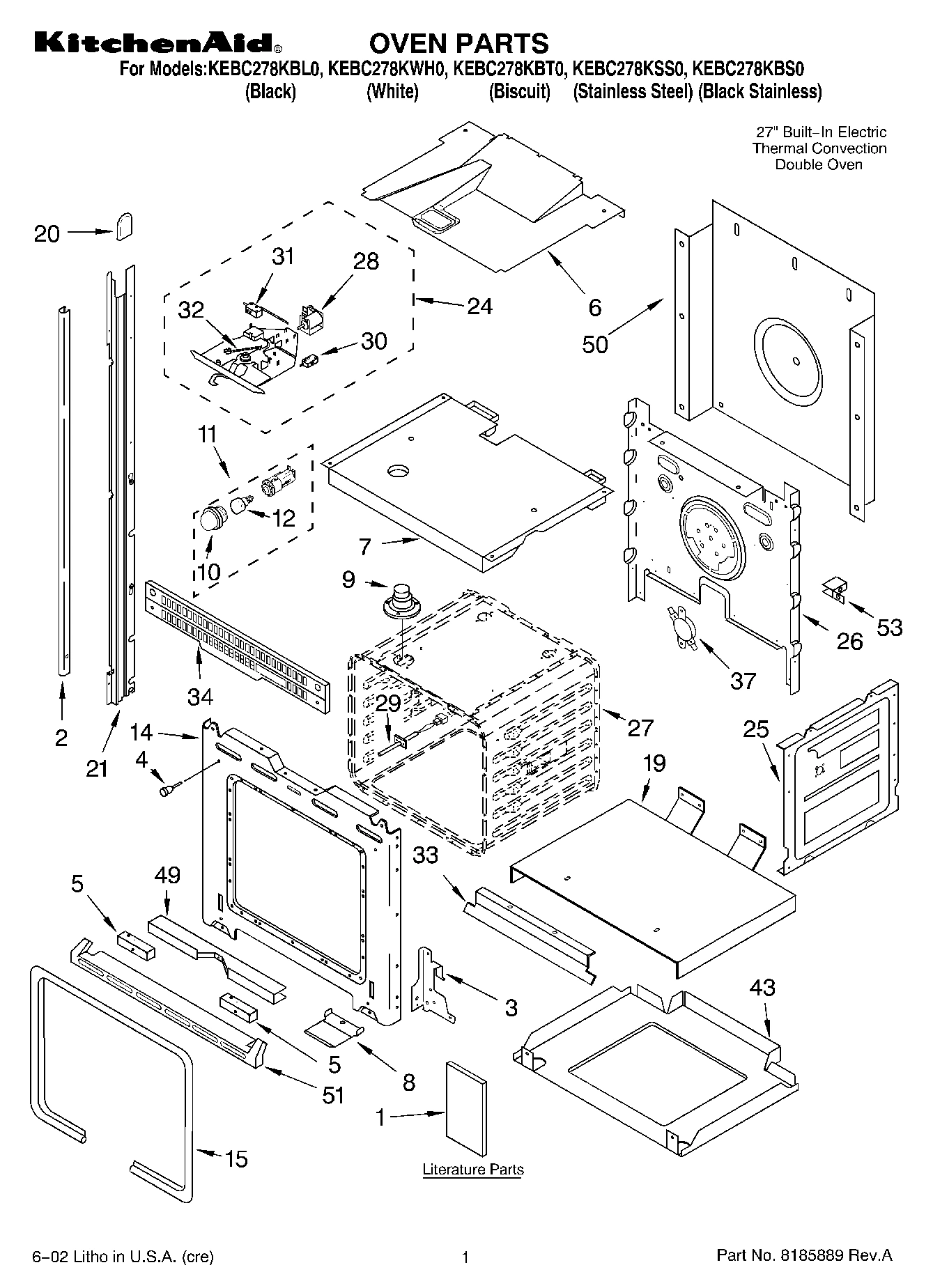

Model Whirlpool KEBC278KBS0 BUILT-IN ELECTRIC DOUBLE OVEN – Common Parts &amp; Diagrams

1

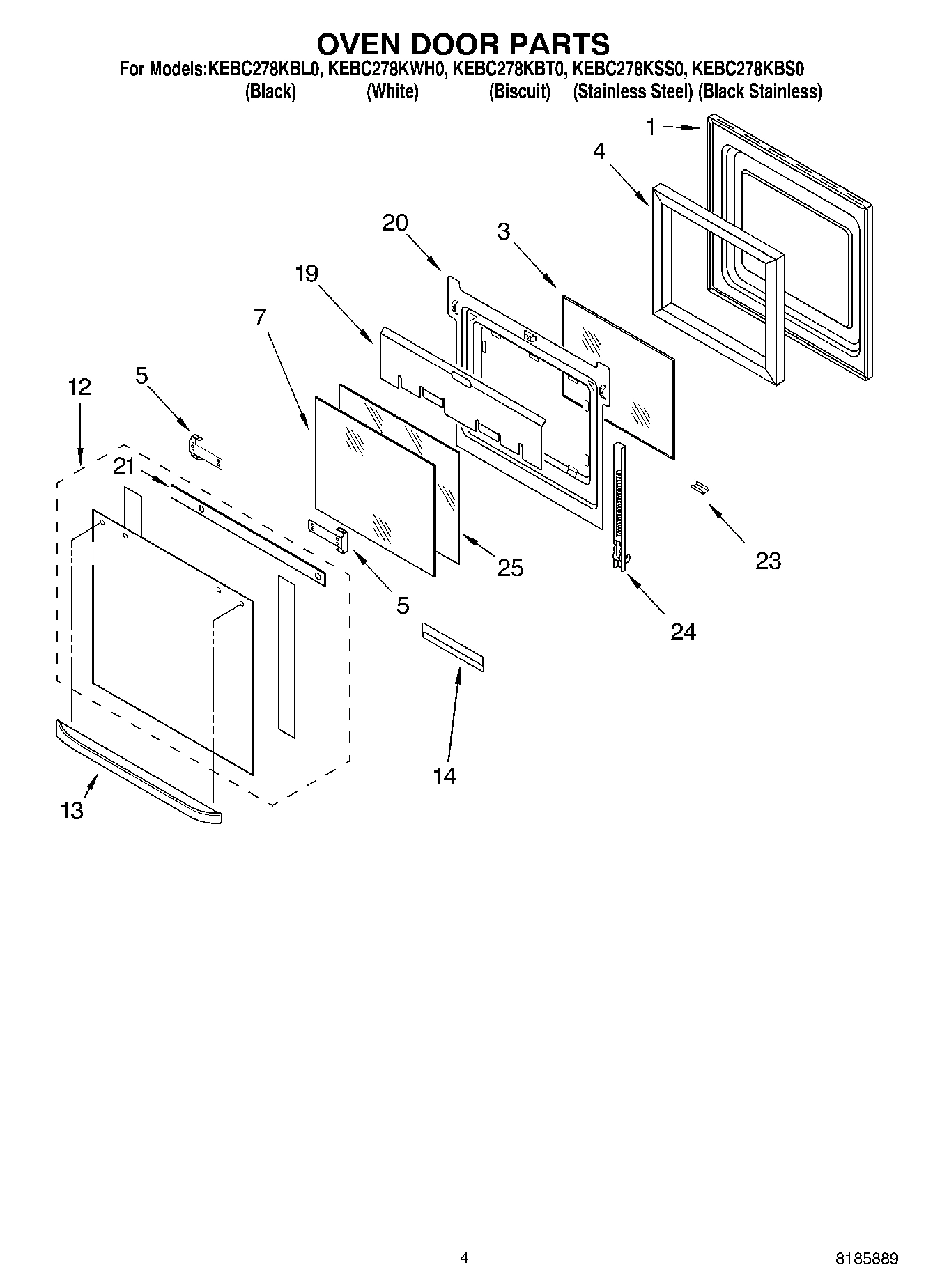

Door Liner WPL 4455617 Contact Us For Availability

1

Tray, Hidden Bake WPL 4455036 Contact Us For Availability

2

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.06

2

WP8281236 Whirlpool Screw Backorder WPL WP8281236 $4.82

2

WPW10207400 Whirlpool Broil Element In Stock WPL WPW10207400 $218.99

2

Switch, Membrane (White) WPL 4455409 Contact Us For Availability

2

Switch, Membrane (Biscuit) WPL 4455415 Contact Us For Availability

3

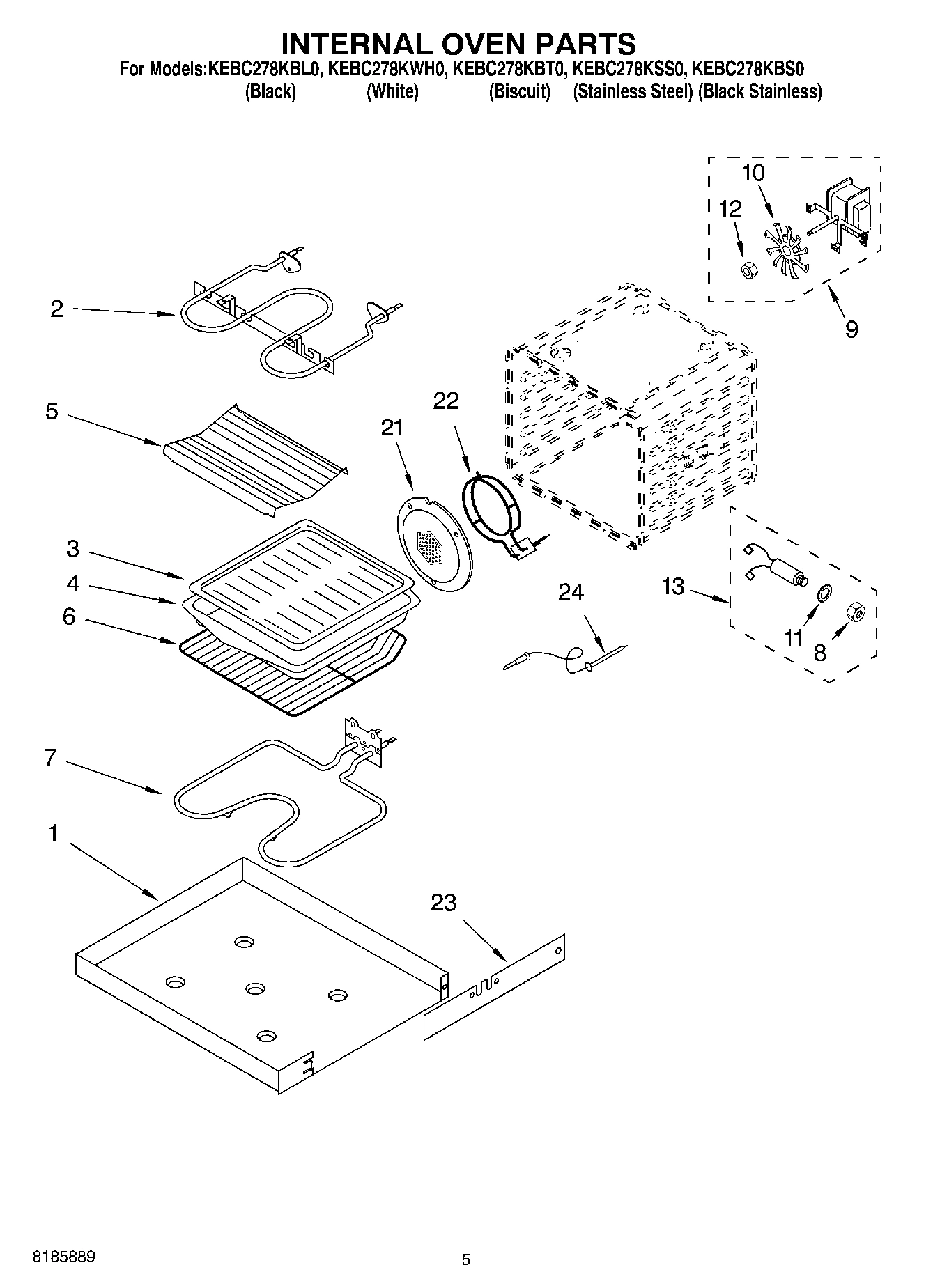

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $44.99

3

WP4449253 Whirlpool Glass Window In Stock WPL WP4449253 $126.99

3

WP4455352 Whirlpool Mounting Bracket Backorder WPL WP4455352 $22.55

3

WP4455605 Whirlpool Left Hand Hinge In Stock WPL WP4455605 $82.61

3

WP4455606 Whirlpool Right Hand Hinge In Stock WPL WP4455606 $82.61

3

WPW10016550 Whirlpool Blower Cooling Fan In Stock WPL WPW10016550 $249.93

3

Blower (60MM Upper Oven) WPL 4455334 Contact Us For Availability

3

Insulator, Board WPL 4452248 Contact Us For Availability

4

4448520 Whirlpool Oven Bumper In Stock WPL 4448520 $14.02

4

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $6.68

4

Insulation, Door WPL 4451721 Contact Us For Availability

4

Insulator, Board Support WPL 4452249 Contact Us For Availability

5

4455803 Whirlpool Oven Bracket Backorder WPL 4455803 $22.62

5

Bracket, Handle (L.Side) WPL 4455804 Contact Us For Availability

5

Bracket, Handle (Screw) WPL 4451040 Contact Us For Availability

5

Bracket, Handle (Left Hand Stainless Steel) WPL 4452960 Contact Us For Availability

5

Transformer, KAD Power WPL 8300642 Contact Us For Availability

5

Rack, Roasting WPL 3181534 Contact Us For Availability

6

Rack, Oven WPL 4448715 Contact Us For Availability

6

Plate, Mounting WPL 4451789 Contact Us For Availability

7

4451175 Whirlpool Bake Element In Stock WPL 4451175 $159.99

7

WP4449257 Whirlpool Door Glass Backorder WPL WP4449257 $126.08

7

WP9760588 Whirlpool Transformer In Stock WPL WP9760588 $196.56

7

Screw WPL 3400406 Contact Us For Availability

7

Microcomputer WPL 4453379 Contact Us For Availability

8

WP9755546 Whirlpool Locknut Backorder WPL WP9755546 $4.82

9

Motor Convection WPL 4451583 Contact Us For Availability

10

WP4452226 Whirlpool Convection Fan Backorder WPL WP4452226 $49.31

10

Lens, Light WPL 4452163 Contact Us For Availability

4449748 Whirlpool Oven Screw Backorder WPL 4449748 $9.02

WP4448972 Whirlpool Oven Light In Stock WPL WP4448972 $75.50

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $14.85

WP9755547 Whirlpool Lockwasher Backorder WPL WP9755547 $4.55

Screw WPL 3400080 Contact Us For Availability

WP4452164 Whirlpool 12V 5W Halogen Light Bulb In Stock WPL WP4452164 $49.93

WP4452315 Whirlpool Door Glass In Stock WPL WP4452315 $271.99

Door Glass, Assy (White) WPL 4455392 Contact Us For Availability

Door Glass, Assy (Black) WPL 4455393 Contact Us For Availability

Door Glass, Assy (Biscuit) WPL 4455394 Contact Us For Availability

Nut WPL 4452227 Contact Us For Availability

8186589 Whirlpool Jack Probe Backorder WPL 8186589 $109.99

Door Handle (Stainless Steel) WPL 4452087 Contact Us For Availability

Door Handle (Black Model) WPL 4452500 Contact Us For Availability

Door Handle (White Model) WPL 4452501 Contact Us For Availability

Door Handle (Biscuit) WPL 4452870 Contact Us For Availability

Vent, (Control Panel) WPL 4448548 Contact Us For Availability

W10755214 Whirlpool Side Complete Backorder WPL W10755214 $49.39

W10790240 Whirlpool Side Assembly Complete Backorder WPL W10790240 $49.39

Retainer, Glass WPL 4451668 Contact Us For Availability

Screw WPL 4449040 Contact Us For Availability

15

WP4455381 Whirlpool Door Gasket In Stock WPL WP4455381 $122.62

15

Back, Control WPL 4452244 Contact Us For Availability

16

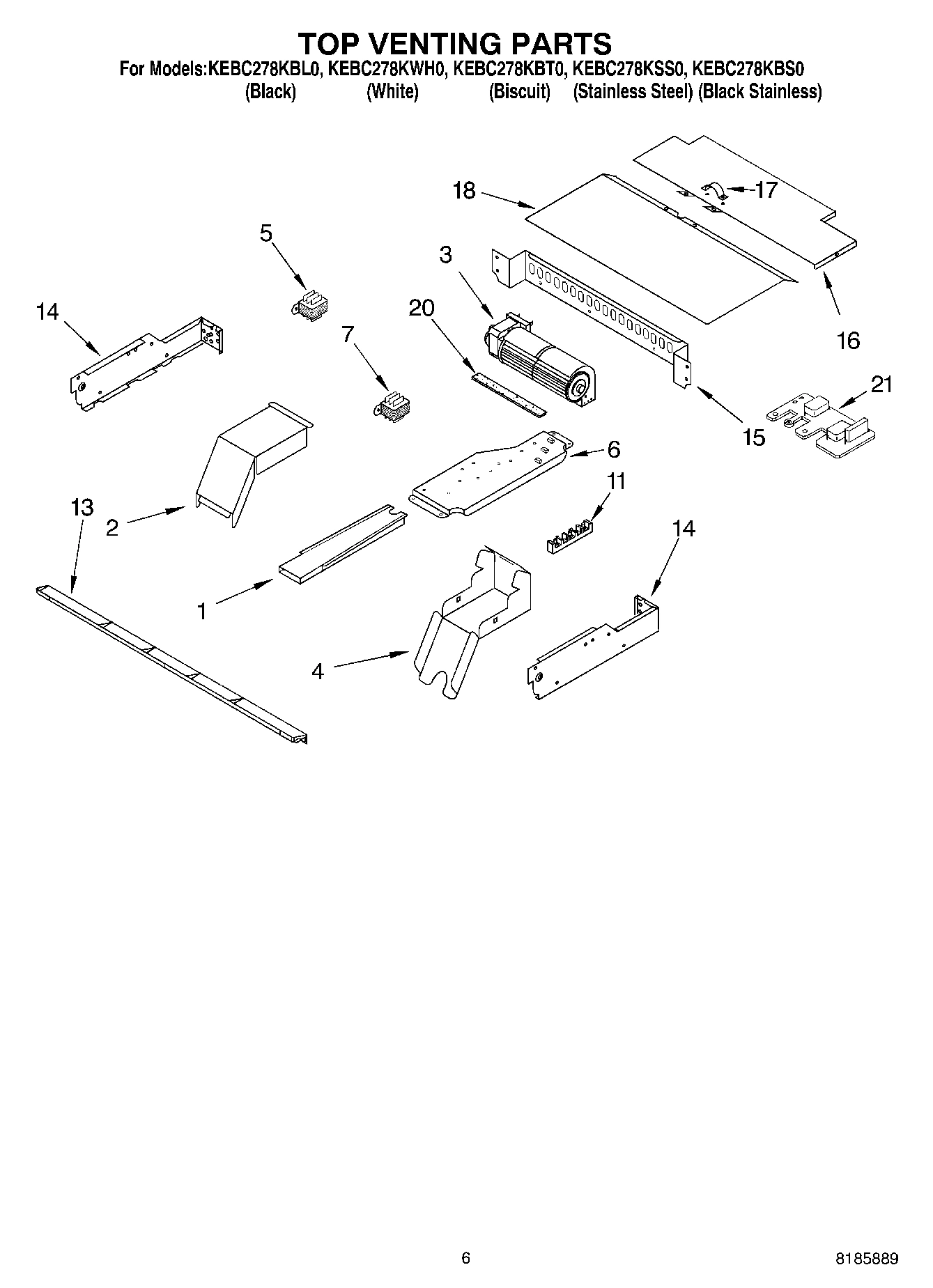

Cover, Top Rear WPL 4450550 Contact Us For Availability

18

Cover, Top Front WPL 4452366 Contact Us For Availability

19

Shield, Heat WPL 4450361 Contact Us For Availability

20

W10491987 Whirlpool Foam Seal Backorder WPL W10491987 $4.82

20

Retainer, Glass WPL 8300777 Contact Us For Availability

242831 Whirlpool Oven Wire Backorder WPL 242831 $249.73

261900 Whirlpool Microwave Spray Backorder WPL 261900 $30.44

285006 Whirlpool Spray In Stock WPL 285006 $31.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

4448664 Whirlpool Oven Mounting Bracket Backorder WPL 4448664 $13.22

4450800 Whirlpool Oven Screw Backorder WPL 4450800 $8.89

4451761 Whirlpool Oven Support Bracket Backorder WPL 4451761 $5.46

4452400 Whirlpool Microwave Wire Harness Backorder WPL 4452400 $30.90

4455191 Whirlpool Oven Mounting Plate In Stock WPL 4455191 $7.98

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

814381 Whirlpool Pin In Stock WPL 814381 $4.82

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $4.82

WP261869 Whirlpool Microwave Paint Backorder WPL WP261869 $15.84

WP4448950 Whirlpool Screw Backorder WPL WP4448950 $4.82

WP4451985 Whirlpool Noise Filter Board In Stock WPL WP4451985 $103.99

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $34.73

WPW10160821 Whirlpool Fan Cover Backorder WPL WPW10160821 $173.21

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

Conduit, Double WPL 4450953 Contact Us For Availability

Seal, Door Top WPL 4452325 Contact Us For Availability

Spacer, Foam WPL 4452260 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability

Harness, Wire (Latch) WPL 4451926 Contact Us For Availability

Spacer, Harness WPL 4452222 Contact Us For Availability

WPL 4455727 WPL 4455727 Contact Us For Availability

WPL 591014 WPL 591014 Contact Us For Availability

22

WP9760769 Whirlpool Element Assembly Backorder WPL WP9760769 $228.85

22

Plug, Button WPL 4448982 Contact Us For Availability

4450039 Whirlpool Oven Access Cover Backorder WPL 4450039 $58.50

Retainer, Clip (Black) WPL 4450863 Contact Us For Availability

Retainer, Clip (White) WPL 4450864 Contact Us For Availability

Retainer, Clip (Stainless Steel) WPL 4451432 Contact Us For Availability

Retainer, Clip (Biscuit) WPL 4452119 Contact Us For Availability

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $4.82

WP9755542 Whirlpool Oven Meat Probe In Stock WPL WP9755542 $68.99

WP9760571 Whirlpool Door Hinge In Stock WPL WP9760571 $76.77

WP9760572 Whirlpool Door Hinge Backorder WPL WP9760572 $73.59

WP9760574 Whirlpool Door Hinge (Left Hand) In Stock WPL WP9760574 $70.99

WP9760575 Whirlpool Door Hinge (Right) In Stock WPL WP9760575 $75.93

Latch Assy WPL 4451896 Contact Us For Availability

25

Glass, Inner WPL 4455256 Contact Us For Availability

30

Switch, Micro N.C. WPL 4452312 Contact Us For Availability

43

Bas WPL 4455529 Contact Us For Availability

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $4.82

49

WP4449154 Whirlpool Screw In Stock WPL WP4449154 $4.82

51

4452152 Whirlpool Oven Mounting Bracket Backorder WPL 4452152 $22.21

51

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $6.99

53

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $7.99
