Model Whirlpool KEBC208HBL0 BUILT-IN ELECTRIC DOUBLE OVEN – Common Parts & Diagrams

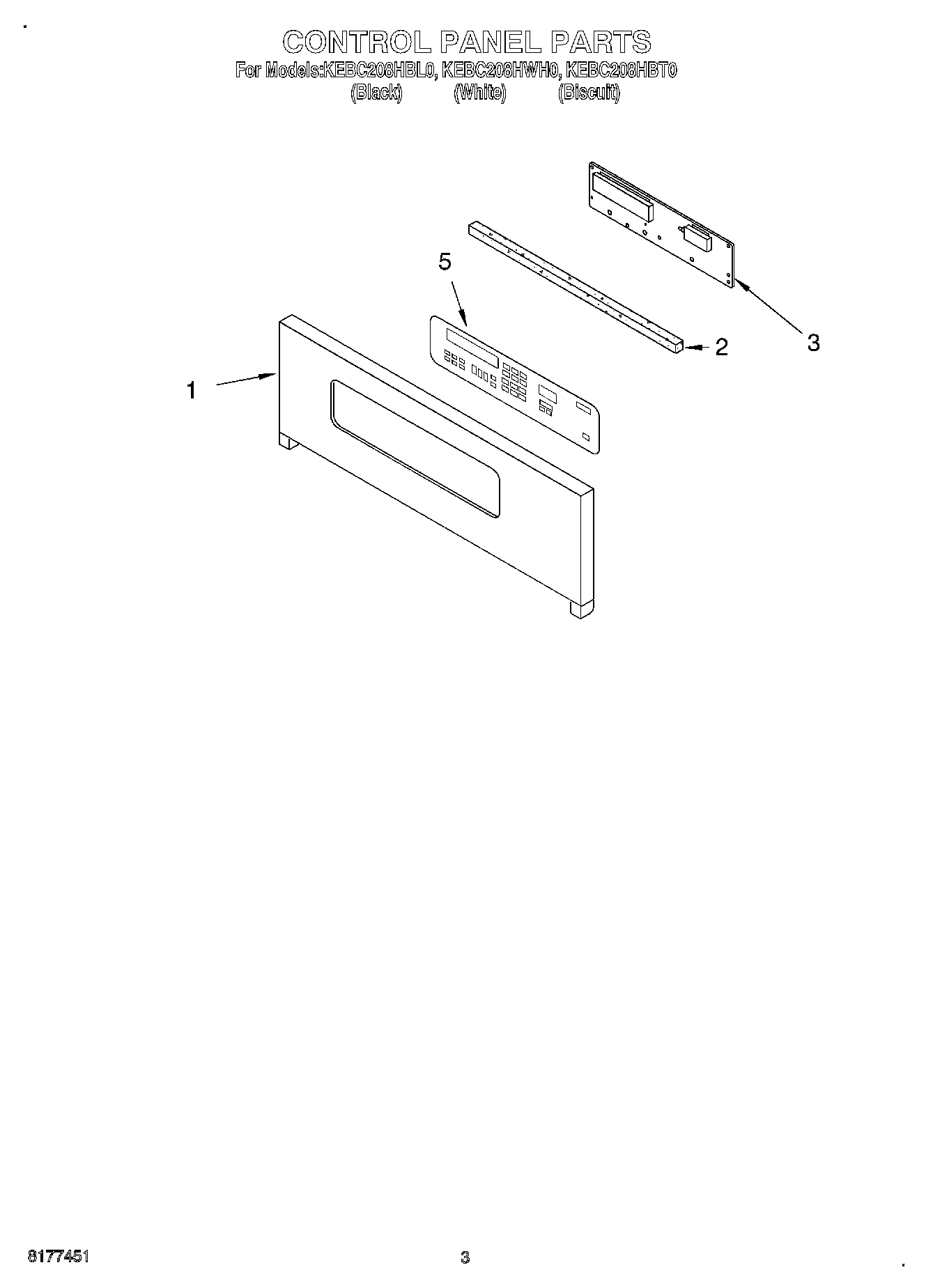

02 - CONTROL PANEL

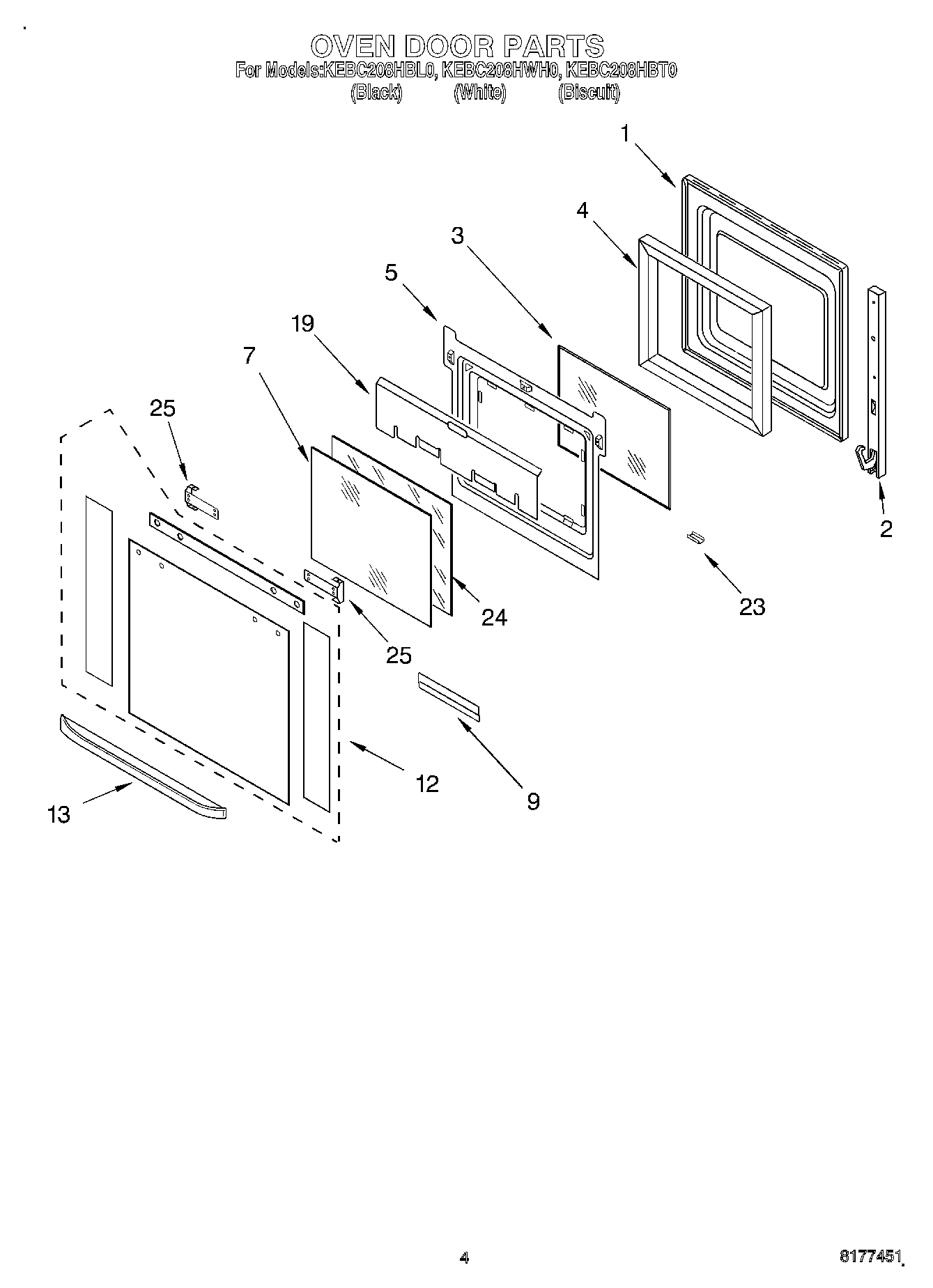

03 - OVEN DOOR

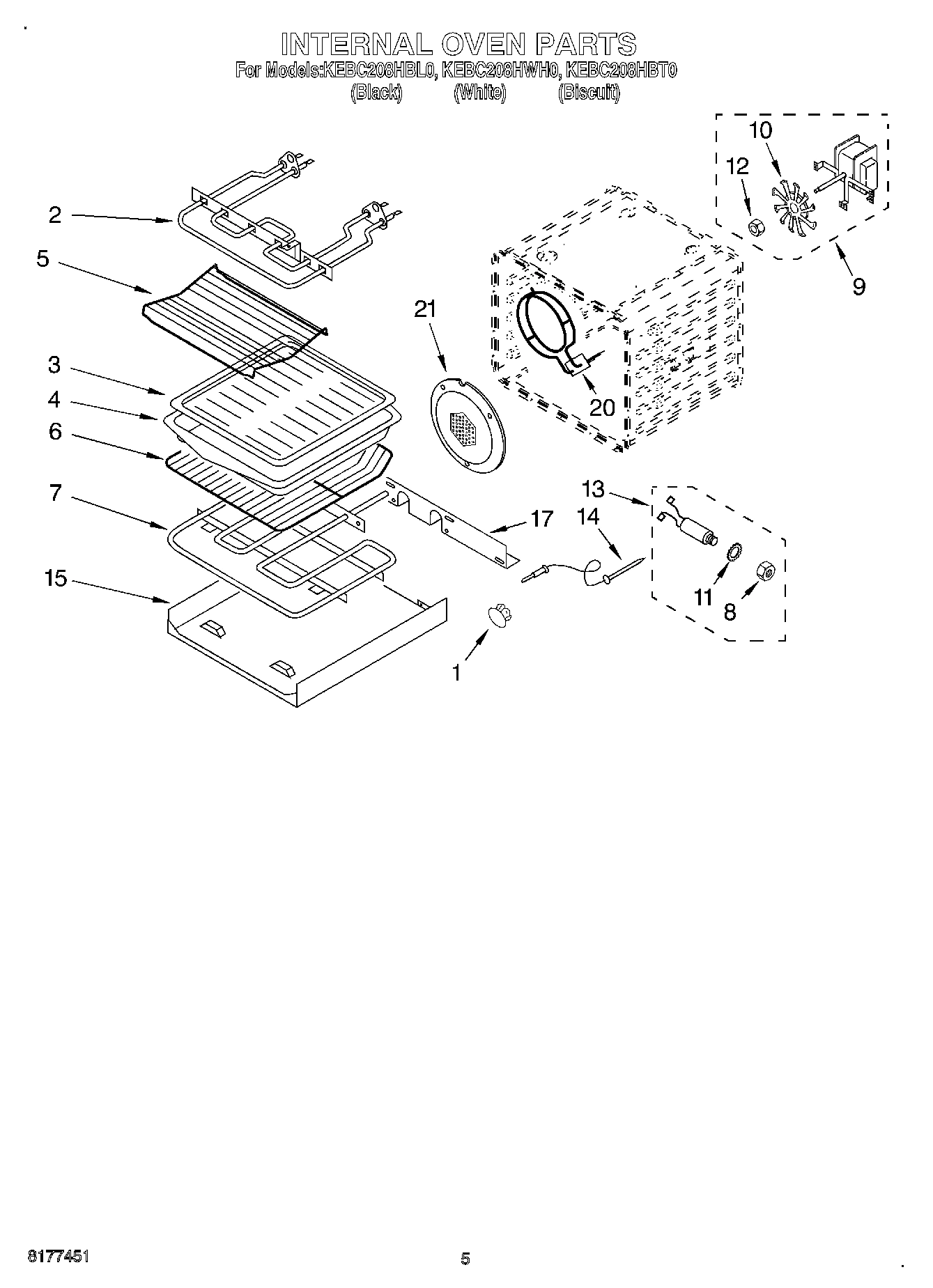

04 - INTERNAL OVEN

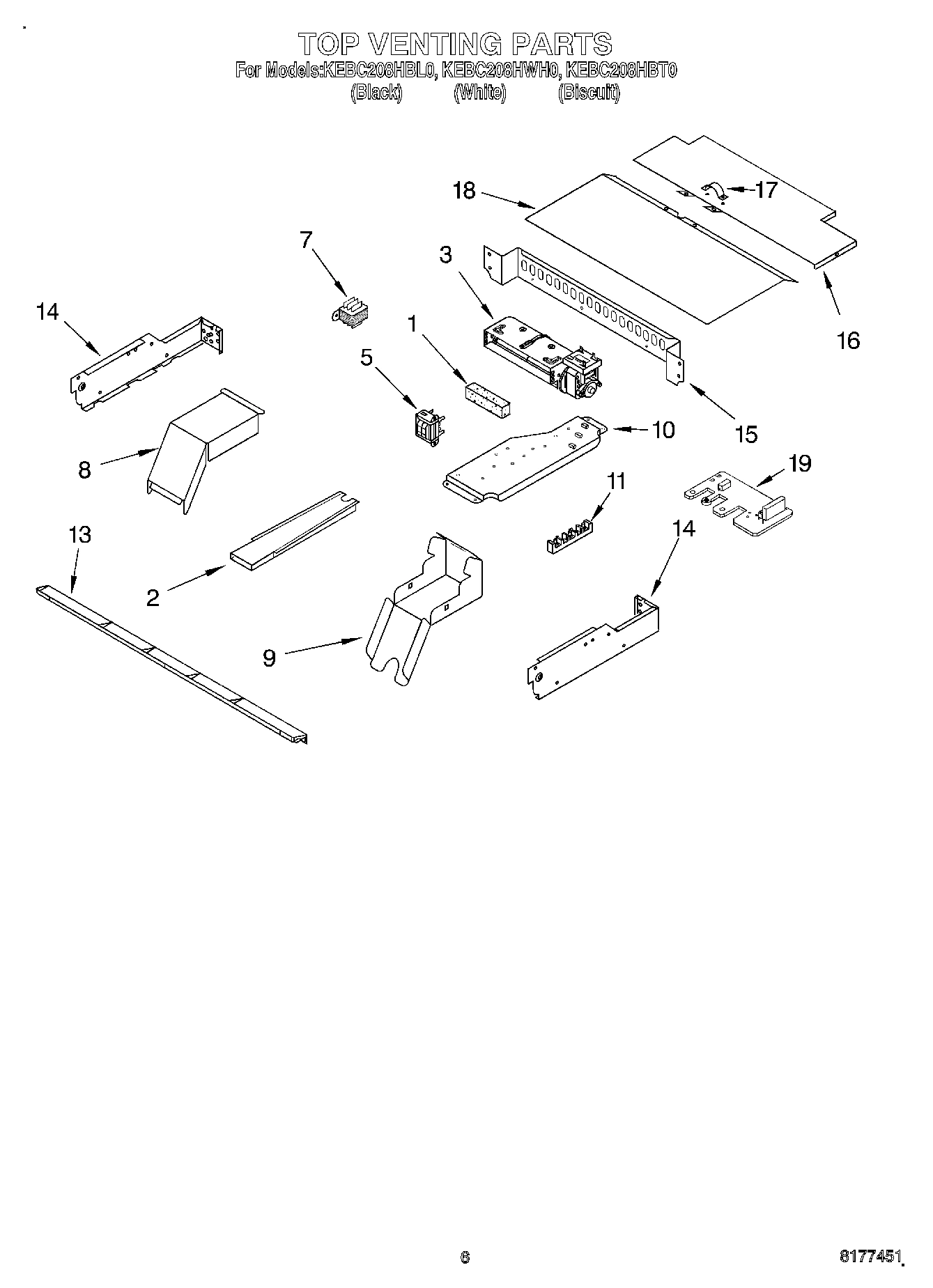

05 - TOP VENTING, OPTIONAL

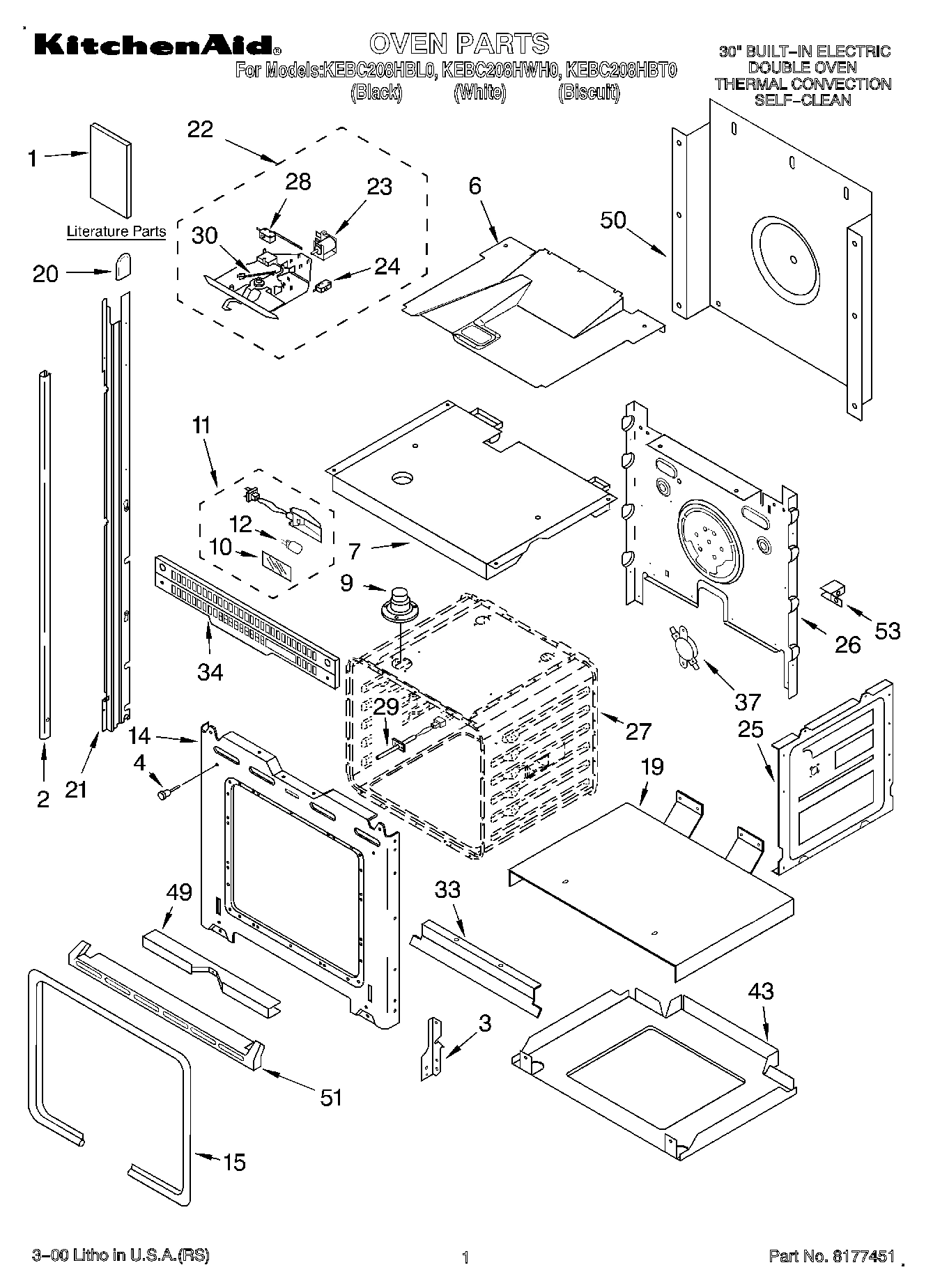

01 - OVEN, LITERATURE
Common parts from model Whirlpool KEBC208HBL0 BUILT-IN ELECTRIC DOUBLE OVEN
1
Safer Cooking Tips WPL LIT3191638 Contact Us For Availability
1
Literature Parts (Cookbook (T/C Oven)) WPL LIT4449066 Contact Us For Availability
1
Literature Parts (Easy Set Guide) WPL LIT4449264 Contact Us For Availability
1
Literature Parts (Installation Instructions) WPL LIT4450411 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT4451879 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT4451952 Contact Us For Availability
2
Trim, Side (Screw) (White Model) WPL 4449041 Contact Us For Availability
2
Trim, Side Left (White) WPL 4455374 Contact Us For Availability
2
Trim, Side Right (White) WPL 4455375 Contact Us For Availability
2
Trim, Side (RH Biscuit) WPL 4455379 Contact Us For Availability
2
Trim, Side (LH Biscuit) WPL 4455425 Contact Us For Availability
2
Trim, Side (RH Black) WPL 4455426 Contact Us For Availability
2
Trim, Side (LH Black) WPL 4455427 Contact Us For Availability
3
Blower (Upper Oven 60MM) WPL 4455334 Contact Us For Availability
3
Reciever, Hinge (Left Hand) WPL 4454664 Contact Us For Availability
3
Reciever, Hinge (Right Hand) WPL 4454665 Contact Us For Availability
6
Divider, Vent WPL 4452201 Contact Us For Availability
7
Transformer WPL 4451929 Contact Us For Availability
7
Top, Chassis WPL 4455286 Contact Us For Availability
9
Fan, Convection WPL 4451583 Contact Us For Availability
9
Retainer, Glass WPL 4451668 Contact Us For Availability
10
Lens, Light WPL 4452163 Contact Us For Availability
10
Plate, Mounting WPL 4451789 Contact Us For Availability
13
Vent, Control Panel WPL 4448549 Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
14
Frame, Front WPL 4451740 Contact Us For Availability
15
Tray, Bake WPL 4455037 Contact Us For Availability
15
Back, Control WPL 4452244 Contact Us For Availability
16
Cover, Top Rear WPL 4450551 Contact Us For Availability
18
Spacer, Foam WPL 4452260 Contact Us For Availability
19
Conduit, Double WPL 4450953 Contact Us For Availability
19
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
19
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
19
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
19
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
19
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
19
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
19
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
19
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
19
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
19
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
19
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
19
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
19
Harness, Wire (Main) WPL 4451864 Contact Us For Availability
19
Harness WPL 4451926 Contact Us For Availability
19
WPL 4452222 WPL 4452222 Contact Us For Availability
19
WPL 591014 WPL 591014 Contact Us For Availability
19
Support, Insulation WPL 4451478 Contact Us For Availability
20
Cap, Spacer WPL 4451605 Contact Us For Availability
22
Latch Assembly WPL 4451896 Contact Us For Availability
23
Solenoid WPL 4452224 Contact Us For Availability
24
Glass, Inner WPL 4455257 Contact Us For Availability
24
Microswitch N.C. WPL 4452312 Contact Us For Availability
25
Side, Chassis (R.H. & L.H.) WPL 4454691 Contact Us For Availability
26
Back, Chassis WPL 4452234 Contact Us For Availability
27
Liner, Oven (Not a Serviceable Part) WPL ARI82035A8 Contact Us For Availability
28
Microswitch WPL 4451426 Contact Us For Availability
29
Sensor WPL 4451665 Contact Us For Availability
30
Spring, Latch WPL 4451537 Contact Us For Availability
33
Deflector, Vent WPL 4452496 Contact Us For Availability
34
Vent, Center WPL 4452267 Contact Us For Availability
43
Base, Chassis WPL 4451398 Contact Us For Availability
51
Trim, Bot WPL 4455443 Contact Us For Availability
51
WPL 4455445 WPL 4455445 Contact Us For Availability
51
WPL 4455447 WPL 4455447 Contact Us For Availability
53
WPL 4449845 WPL 4449845 Contact Us For Availability
53
WPL 4450365 WPL 4450365 Contact Us For Availability
× ![]()
