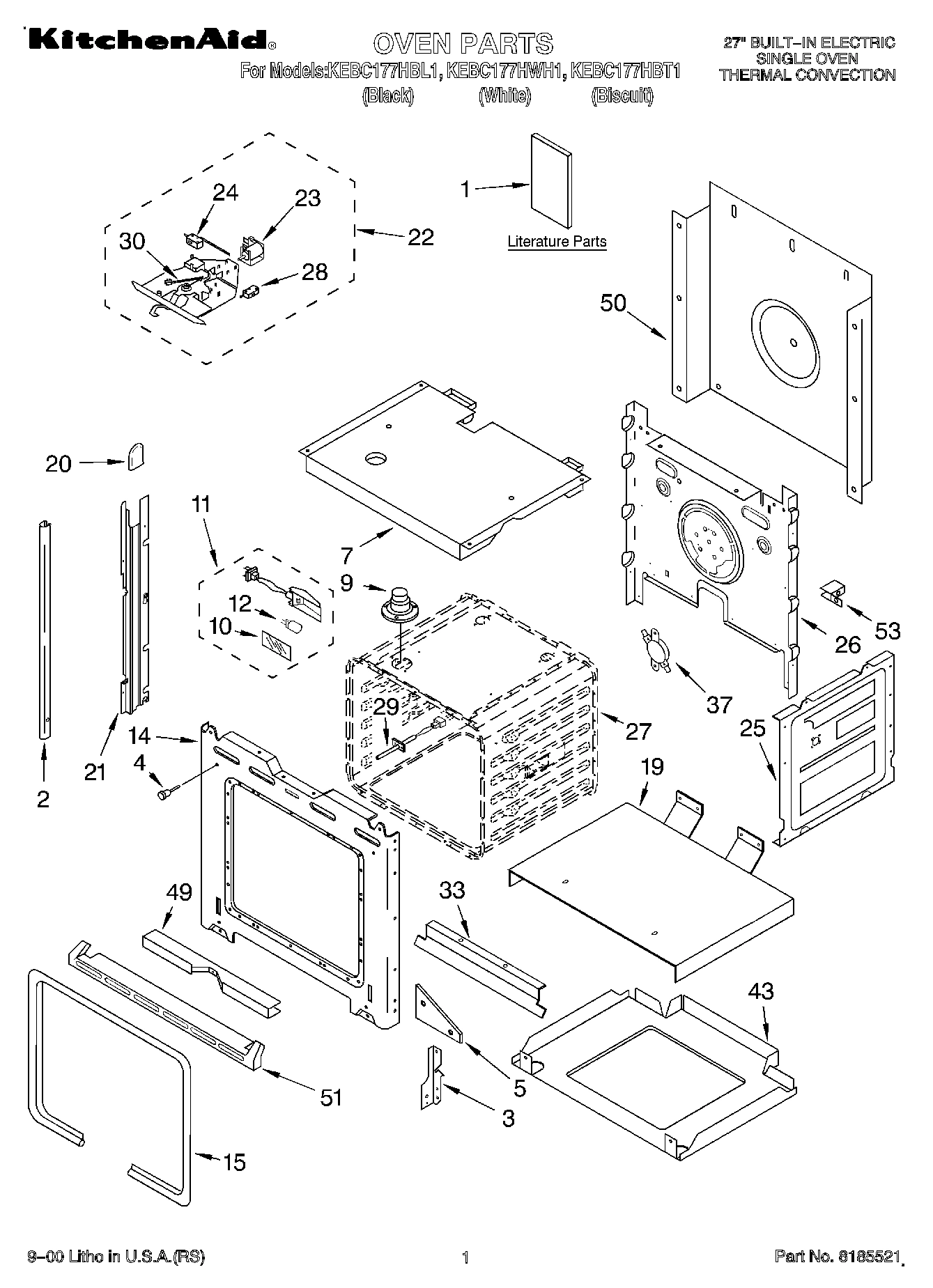

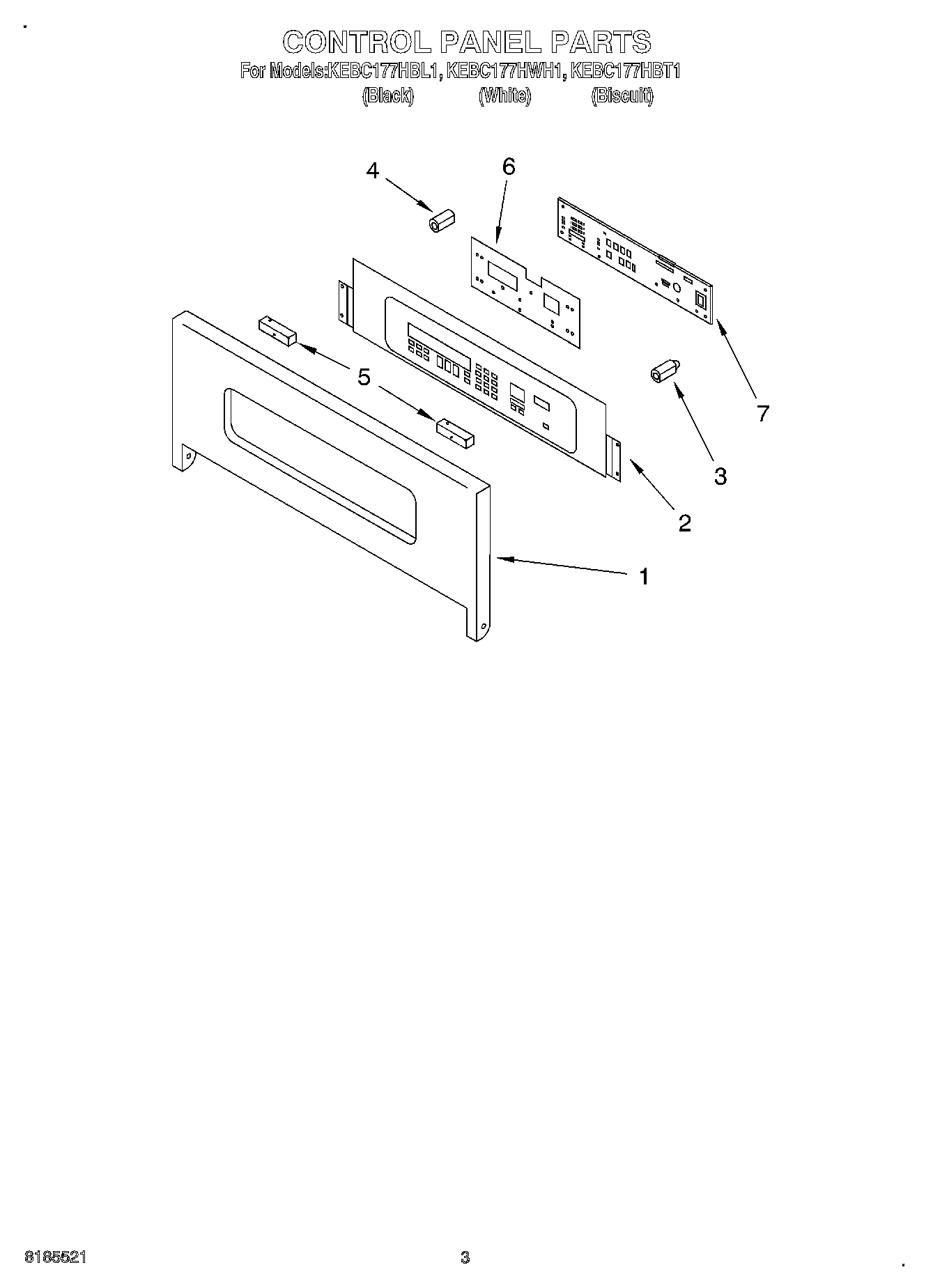

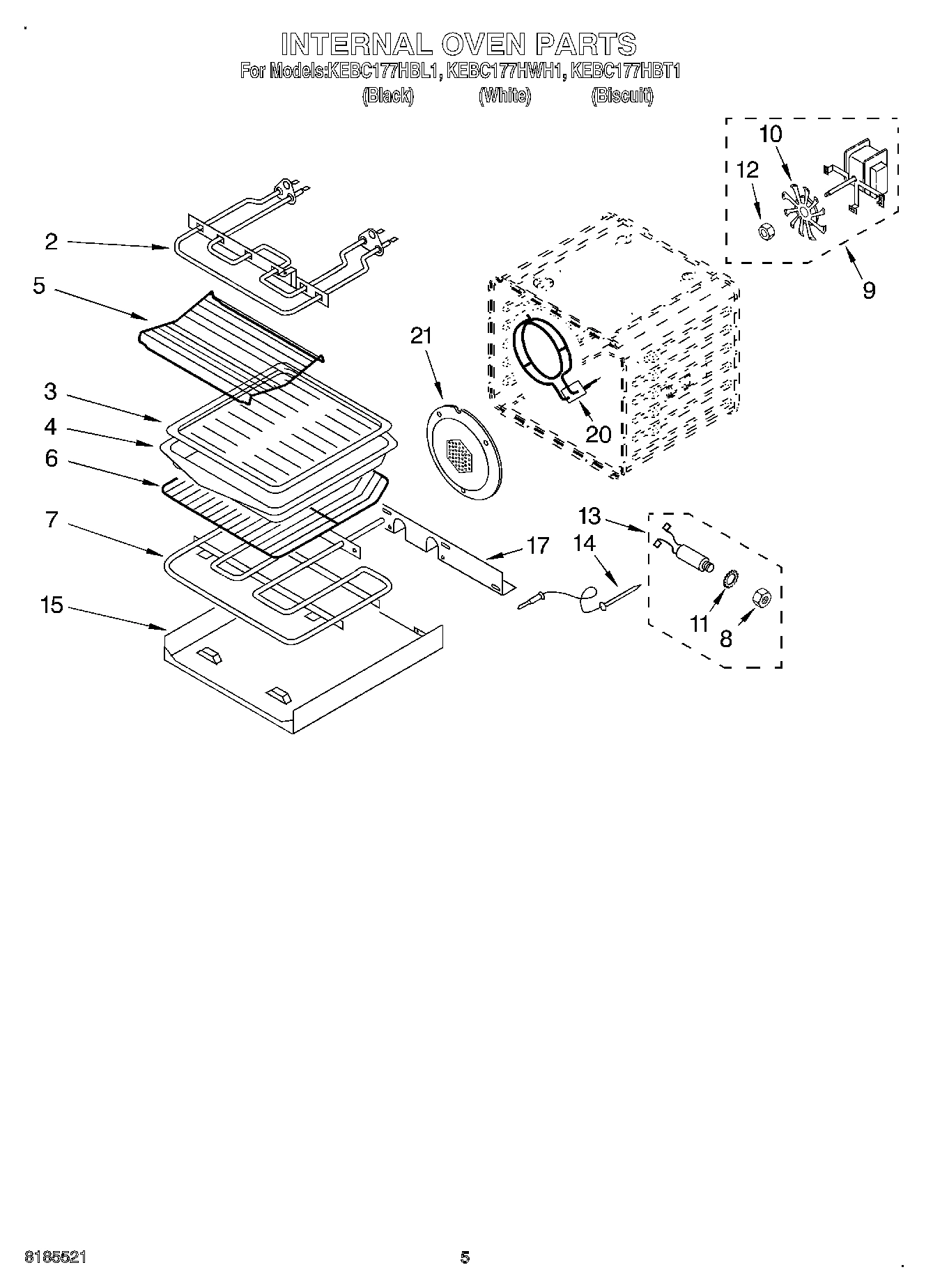

Model Whirlpool KEBC177HBT1 BUILT-IN ELECTRIC SINGLE OVEN – Common Parts &amp; Diagrams

1

Screw WPL 4449040 Contact Us For Availability

1

Panel, Control (Black) WPL 4452602 Contact Us For Availability

1

Panel, Control (White) WPL 4452603 Contact Us For Availability

1

Panel, Control (Biscuit) WPL 4452973 Contact Us For Availability

1

Safer Cooking Tips WPL LIT3191638 Contact Us For Availability

1

Literature Parts (Installation/ Undercounter) WPL LIT3192225 Contact Us For Availability

1

Literature Parts (Cookbook T/C) WPL LIT4449066 Contact Us For Availability

1

Literature Parts (Guide, Easy Set) WPL LIT4449264 Contact Us For Availability

1

Literature Parts (Installation Instructions) WPL LIT4450410 Contact Us For Availability

1

Literature Parts (Installation/ MWO Trim Kit) WPL LIT4450841 Contact Us For Availability

1

Literature Parts (Tech Sheet) WPL LIT4451876 Contact Us For Availability

1

Literature Parts (Use & Care Guide) WPL LIT4451952 Contact Us For Availability

2

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.06

2

4455377 Whirlpool Oven Trim Backorder WPL 4455377 $167.25

2

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $4.82

2

WP8281236 Whirlpool Screw Backorder WPL WP8281236 $4.82

2

WPW10207400 Whirlpool Broil Element In Stock WPL WPW10207400 $218.99

2

Switch, Membrane (Black) WPL 4455402 Contact Us For Availability

2

Switch, Membrane (White) WPL 4455408 Contact Us For Availability

2

Switch, Membrane (Biscuit) WPL 4455414 Contact Us For Availability

2

Trim, Side (Screw White) WPL 4449041 Contact Us For Availability

2

Trim, Side Left (Black) WPL 4455376 Contact Us For Availability

2

Trim, Side (Left Hand) (Biscuit) WPL 4455378 Contact Us For Availability

2

Trim, Side (Right Hand) (Biscuit) WPL 4455424 Contact Us For Availability

2

Trim, Side (RH White) WPL 4455428 Contact Us For Availability

2

Trim, Side (LH White) WPL 4455429 Contact Us For Availability

3

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $44.99

3

Blower 60MM WPL 4455334 Contact Us For Availability

3

Insulation, Door WPL 4451721 Contact Us For Availability

3

Insulation, Board WPL 4452248 Contact Us For Availability

3

Reciever, Hinge (Left Hand) WPL 4455594 Contact Us For Availability

3

Reciever, Hinge (Right Hand) WPL 4455595 Contact Us For Availability

4

4448520 Whirlpool Oven Bumper In Stock WPL 4448520 $14.02

4

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $6.68

4

WP4449253 Whirlpool Glass Window In Stock WPL WP4449253 $126.99

4

Insulation, Board Support WPL 4452249 Contact Us For Availability

5

WP4455509 Whirlpool Support Bracket Backorder WPL WP4455509 $60.74

5

Rack, Roasting WPL 3181534 Contact Us For Availability

5

Spacer, Foam WPL 4452260 Contact Us For Availability

6

Rack, Oven WPL 4448715 Contact Us For Availability

6

Insulator, Dialectric WPL 4452324 Contact Us For Availability

7

4451175 Whirlpool Bake Element In Stock WPL 4451175 $159.99

7

WP4449257 Whirlpool Door Glass Backorder WPL WP4449257 $126.08

7

Screw WPL 3400406 Contact Us For Availability

7

Microcomputer WPL 4453163 Contact Us For Availability

7

Top, Chassis WPL 4455285 Contact Us For Availability

8

WP9755546 Whirlpool Locknut Backorder WPL WP9755546 $4.82

9

W10861715 Whirlpool Vent Tube Backorder WPL W10861715 $78.42

9

Fan, Convect. Assy WPL 4451583 Contact Us For Availability

10

WP4452226 Whirlpool Convection Fan Backorder WPL WP4452226 $49.31

10

Lens, Light WPL 4452163 Contact Us For Availability

10

Seal, Top WPL 4452325 Contact Us For Availability

4449748 Whirlpool Oven Screw Backorder WPL 4449748 $9.02

WP3400016 Whirlpool Screw Assembly Backorder WPL WP3400016 $4.82

WP4448972 Whirlpool Oven Light In Stock WPL WP4448972 $75.50

WP9755547 Whirlpool Lockwasher Backorder WPL WP9755547 $4.55

12

WP4452164 Whirlpool 12V 5W Halogen Light Bulb In Stock WPL WP4452164 $49.93

12

Nut WPL 4452227 Contact Us For Availability

13

8186589 Whirlpool Jack Probe Backorder WPL 8186589 $109.99

13

WP4450038 Whirlpool Screw In Stock WPL WP4450038 $4.82

14

WP4450118 Whirlpool Nut Backorder WPL WP4450118 $4.82

14

WP9755542 Whirlpool Oven Meat Probe In Stock WPL WP9755542 $68.99

14

Frame, Front WPL 4451739 Contact Us For Availability

15

WP4455381 Whirlpool Door Gasket In Stock WPL WP4455381 $122.62

15

Tray, Bake WPL 4455036 Contact Us For Availability

16

Retainer, Glass WPL 4451668 Contact Us For Availability

17

4450039 Whirlpool Oven Access Cover Backorder WPL 4450039 $58.50

19

Support, Insulation WPL 4451477 Contact Us For Availability

20

WP9760769 Whirlpool Element Assembly Backorder WPL WP9760769 $228.85

20

Cap, Spacer WPL 4451605 Contact Us For Availability

261900 Whirlpool Microwave Spray Backorder WPL 261900 $30.44

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

814371 Whirlpool Oven Rail Mount Backorder WPL 814371 $74.47

814372 Whirlpool Oven Rail Mount Backorder WPL 814372 $74.29

814381 Whirlpool Pin In Stock WPL 814381 $4.82

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $4.82

WP261869 Whirlpool Microwave Paint Backorder WPL WP261869 $15.84

WP4448444 Whirlpool Grommet Backorder WPL WP4448444 $4.82

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $34.73

WPW10160821 Whirlpool Fan Cover Backorder WPL WPW10160821 $173.21

Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability

Spacer, Harness WPL 4452222 Contact Us For Availability

Harness, Wire (Main) WPL 4455622 Contact Us For Availability

ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability

22

Latch Assembly WPL 4451896 Contact Us For Availability

23

Solenoid WPL 4452224 Contact Us For Availability

24

Microswitch N.C. WPL 4452312 Contact Us For Availability

25

Side, Chassis (R.H. & L.H.) WPL 4454691 Contact Us For Availability

26

Back, Chassis WPL 4452233 Contact Us For Availability

27

Liner, Oven (Not a Serviceable Part) WPL ARI81754A2 Contact Us For Availability

28

Microswitch WPL 4451426 Contact Us For Availability

29

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $67.99

30

Spring, Latch WPL 4451537 Contact Us For Availability

33

W10145009 Whirlpool Vent Deflector Backorder WPL W10145009 $53.12

33

WPL 4452495 WPL 4452495 Contact Us For Availability

37

WP9759242 Whirlpool Thermostat In Stock WPL WP9759242 $55.98

43

WPL 4455529 WPL 4455529 Contact Us For Availability

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $4.82

49

WP4449154 Whirlpool Screw In Stock WPL WP4449154 $4.82

50

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $7.99

50

WP4451747 Whirlpool Rear Cover Backorder WPL WP4451747 $90.20

4452152 Whirlpool Oven Mounting Bracket Backorder WPL 4452152 $22.21

WPL 4159465 WPL 4159465 Contact Us For Availability

WPL 4455442 WPL 4455442 Contact Us For Availability

WPL 4455444 WPL 4455444 Contact Us For Availability

WPL 4455446 WPL 4455446 Contact Us For Availability

53

WPL 4449315 WPL 4449315 Contact Us For Availability

53

WPL 4449845 WPL 4449845 Contact Us For Availability

53

WPL 4450364 WPL 4450364 Contact Us For Availability
