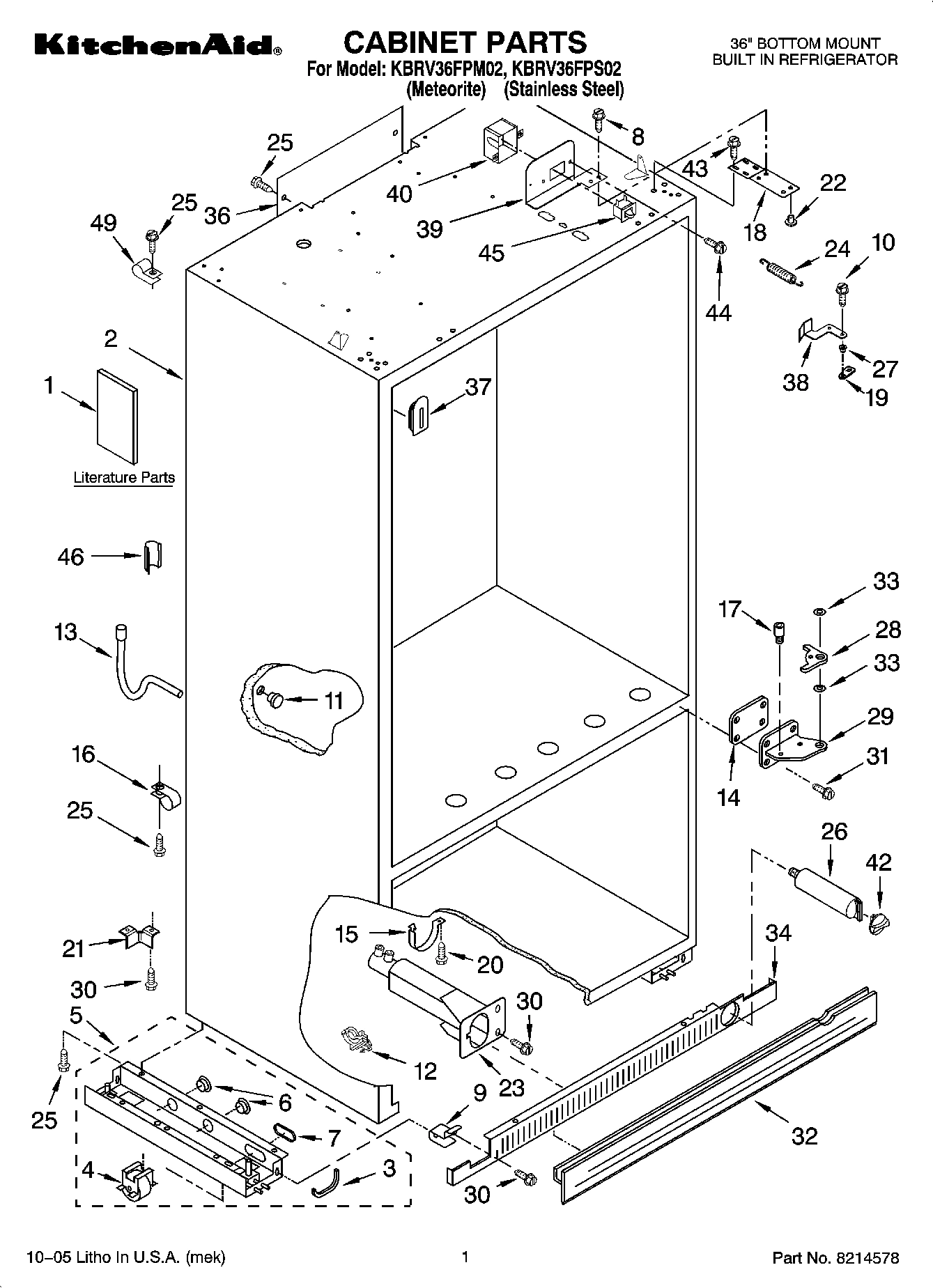

Model Whirlpool KBRV36FPS02 36`` BOTTOM MOUNT BUILT IN REFRIGERATOR – Common Parts &amp; Diagrams

1

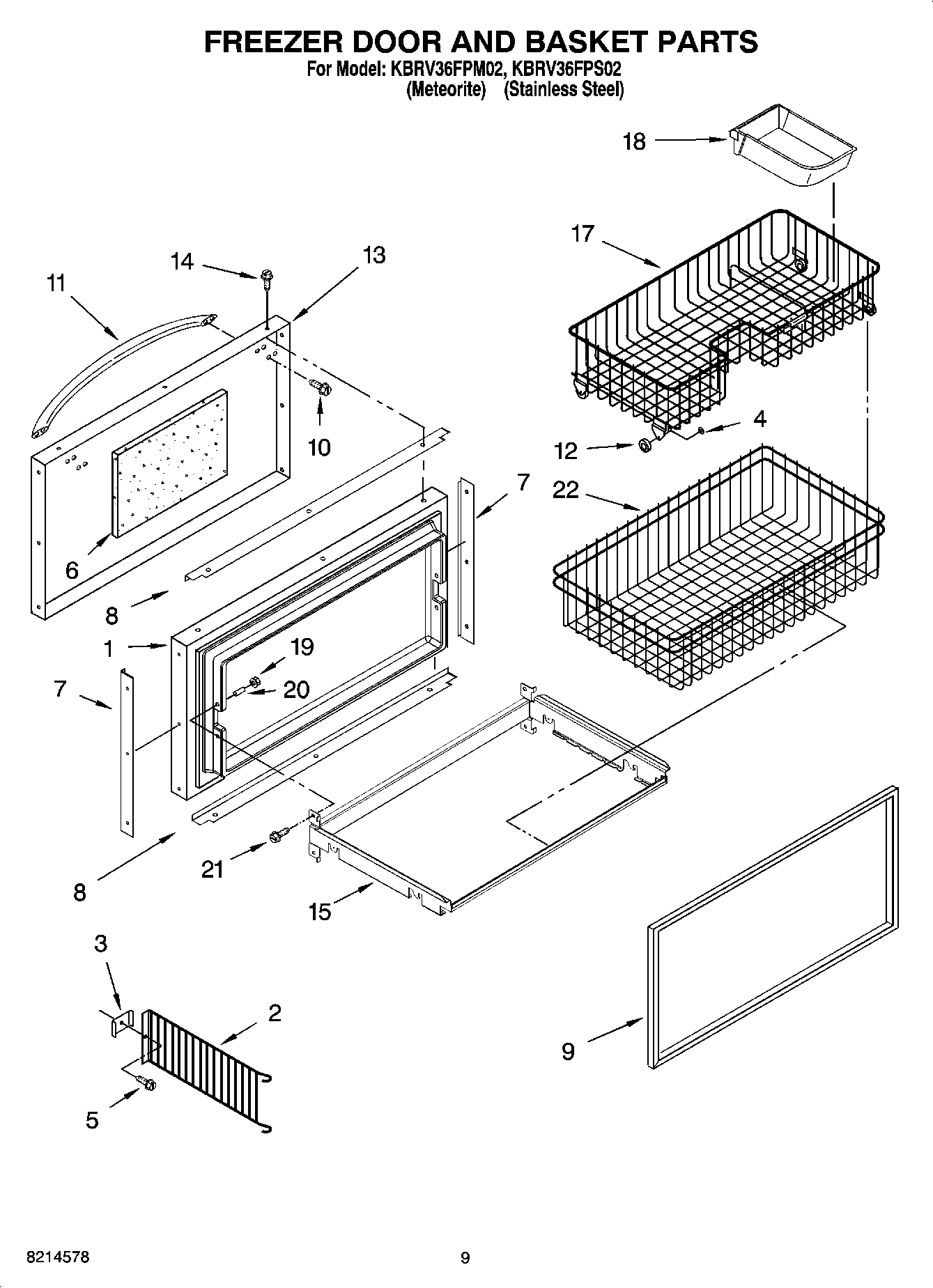

Slide, Freezer Basket (Left Side) WPL 2307977 Contact Us For Availability

1

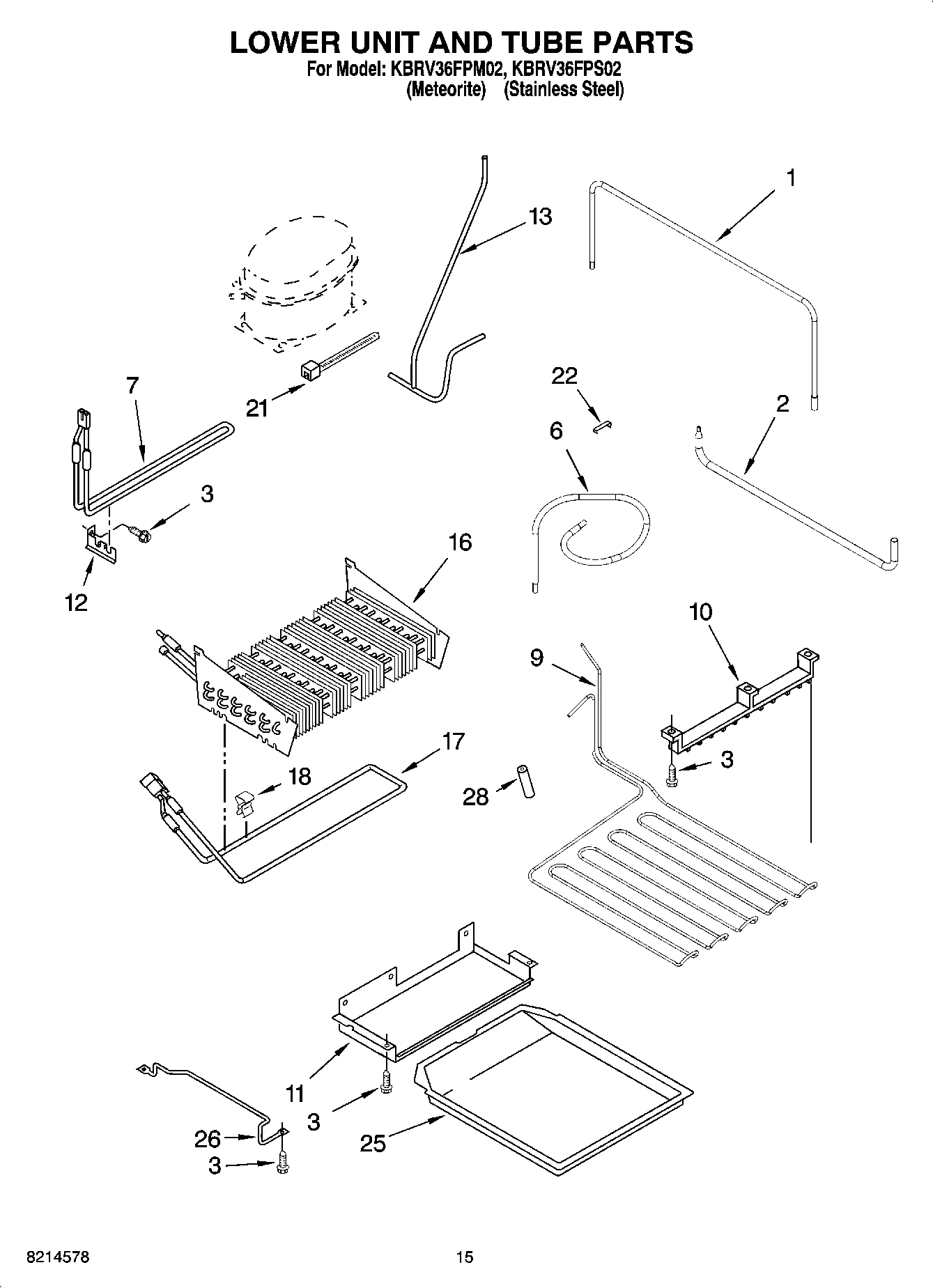

Tube, Transition (Condenser) WPL 2313922 Contact Us For Availability

1

Slide, Freezer Basket (Right Side) WPL 2307978 Contact Us For Availability

1

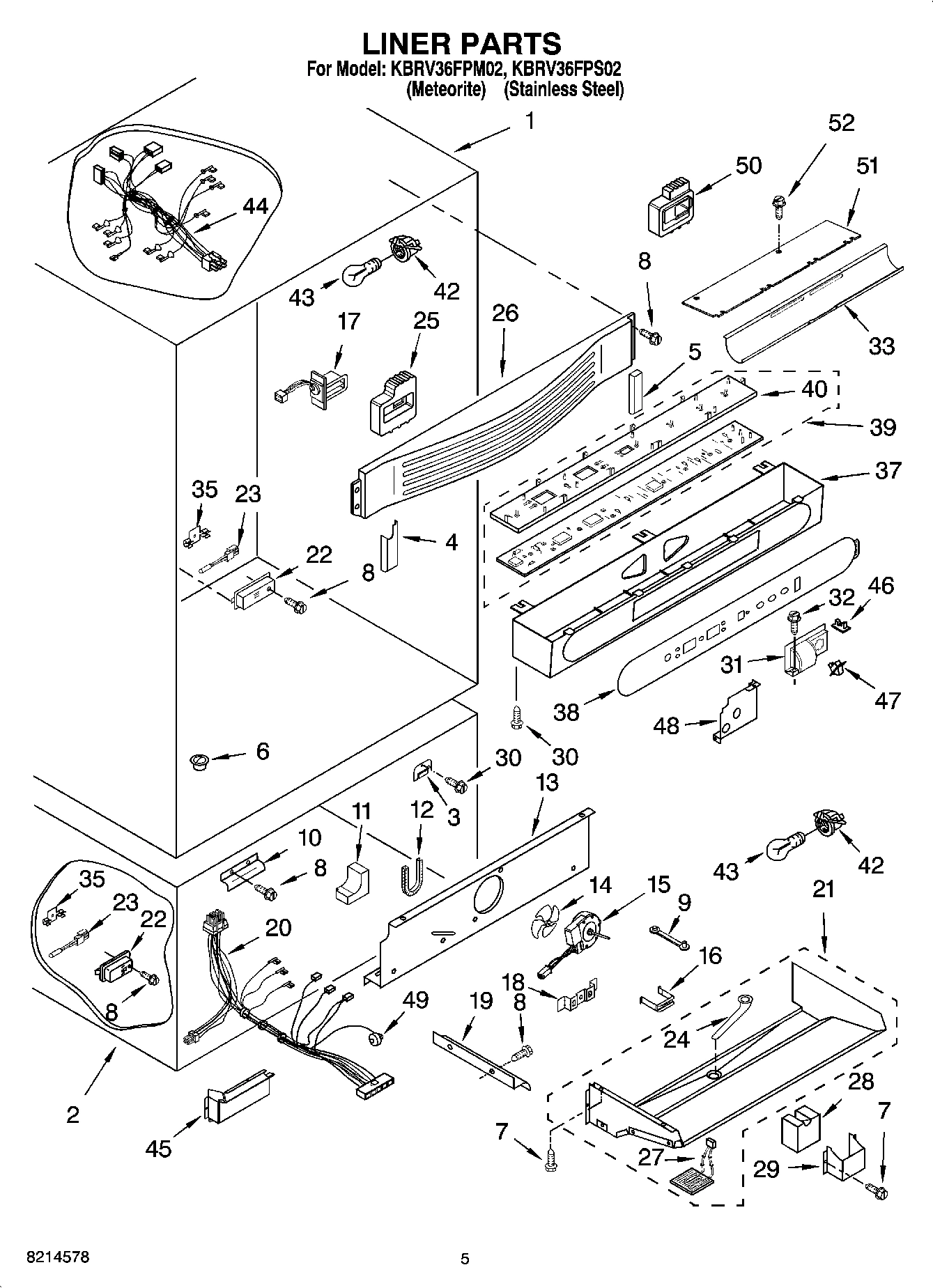

Liner, Refrigerator (Not Servicable) WPL ARI80406A3 Contact Us For Availability

1

Freezer Door Panel (Includes Item 9) WPL 2300085 Contact Us For Availability

1

Tube, Valve WPL 2204597 Contact Us For Availability

2

WP2221240 Whirlpool Refrigerator Heater In Stock WPL WP2221240 $125.60

2

Tube, Transition (Drier/Restrictor) WPL 2259304 Contact Us For Availability

2

Liner, Freezer (Not Servicable) WPL ARI80407A1 Contact Us For Availability

2

Divider, Basket WPL 2204525 Contact Us For Availability

3

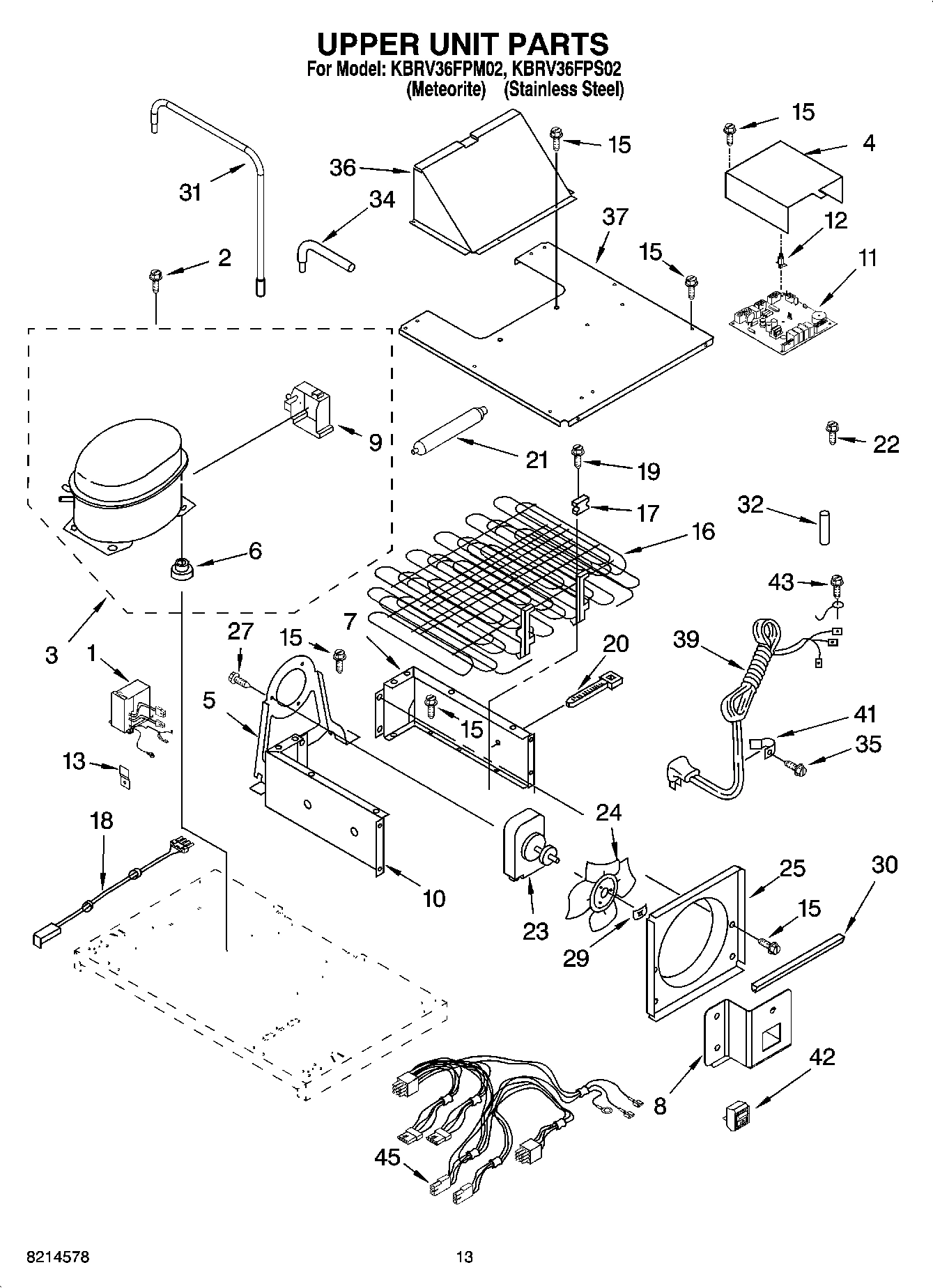

W10841139 Whirlpool Refrigerator Compressor In Stock WPL W10841139 $413.99

3

WP1163283 Whirlpool Air Conditioner Screw Backorder WPL WP1163283 $4.82

3

WP489115 Whirlpool Refrigerator Rivet Backorder WPL WP489115 $4.82

3

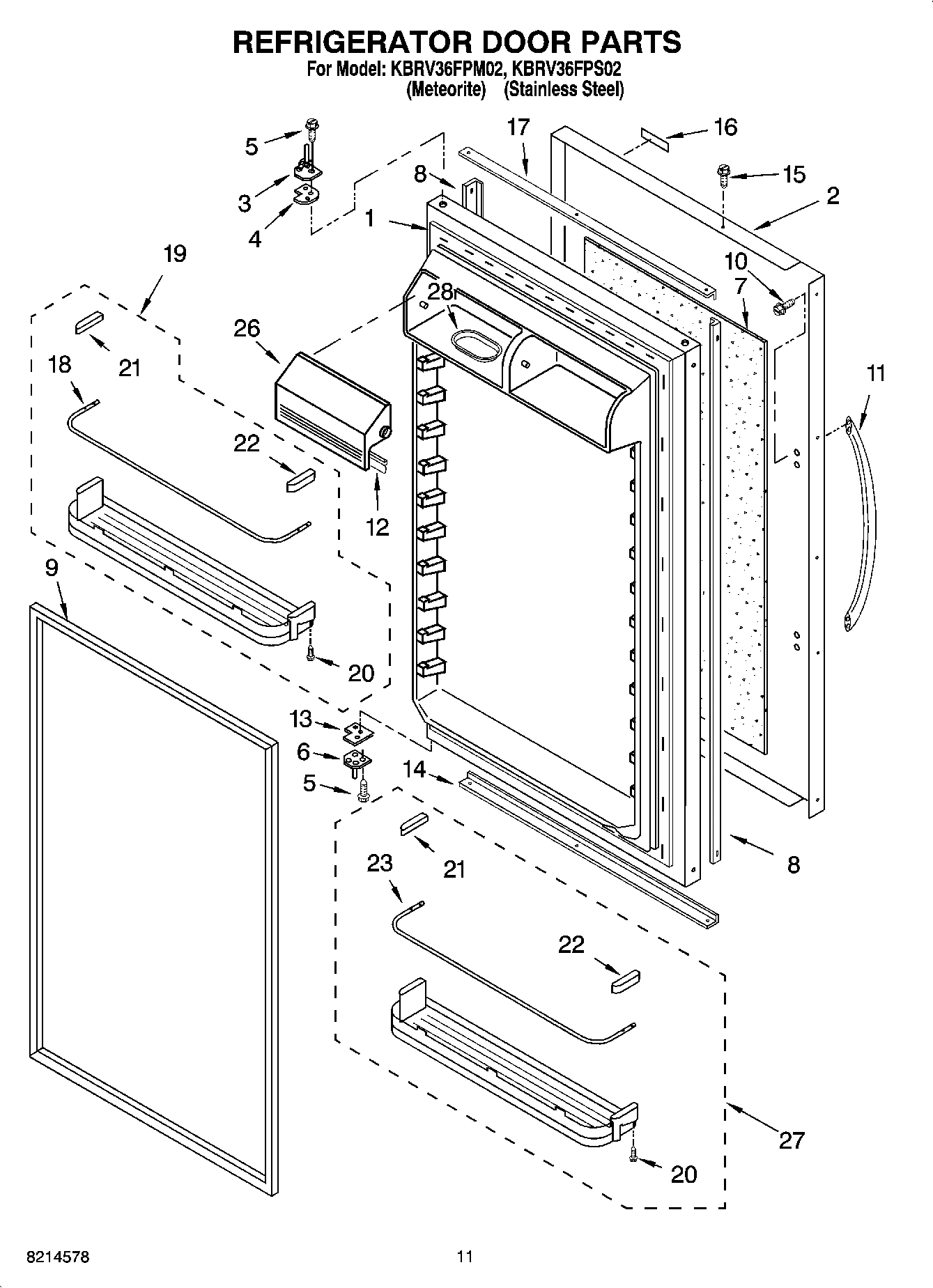

Hinge Assembly, Top WPL 2266912 Contact Us For Availability

3

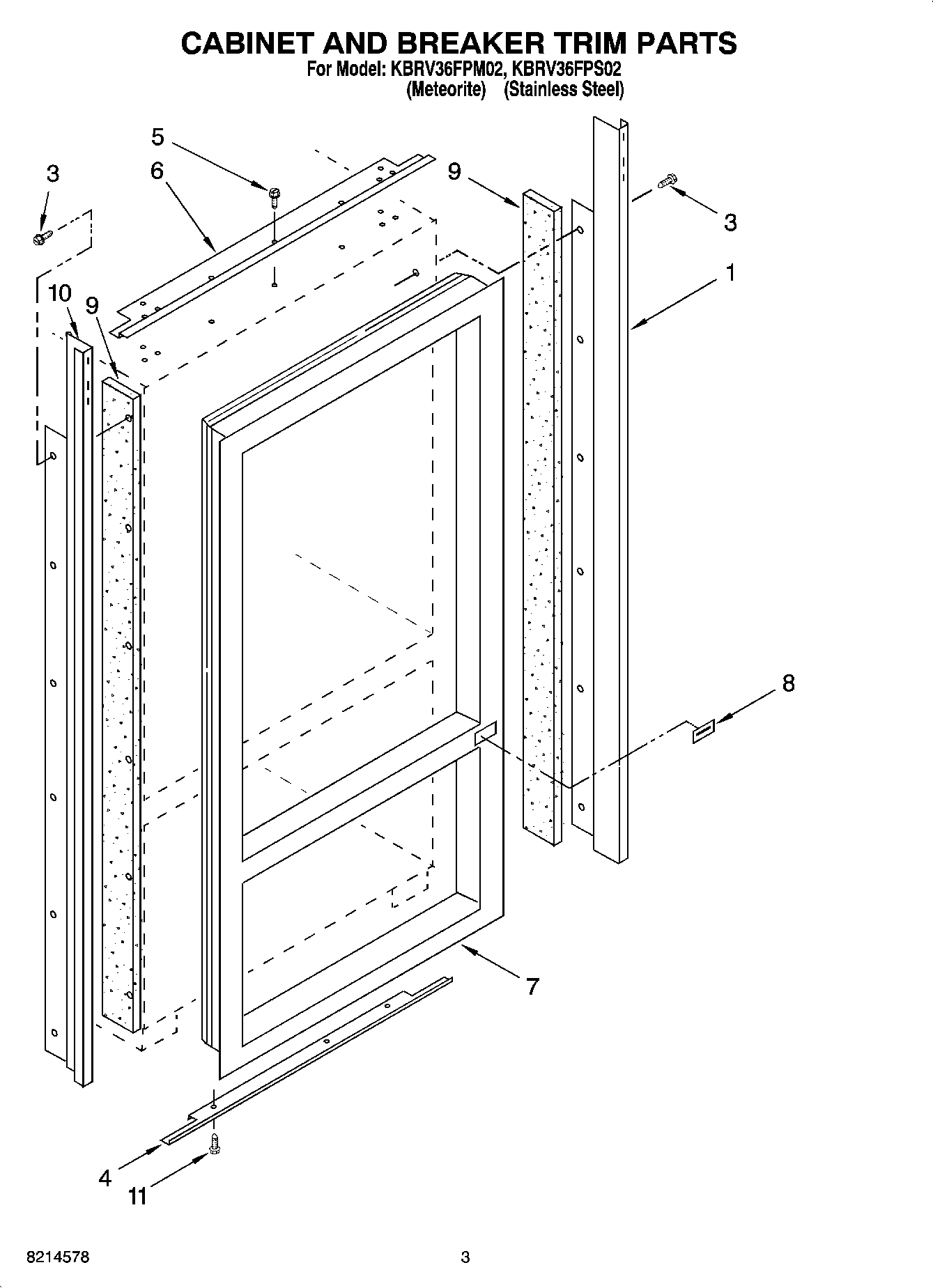

Trim-Glass, Rear WPL 2302796 Contact Us For Availability

3

Cover, Heat Exchanger WPL 2215610 Contact Us For Availability

3

Clamp, Divider WPL 2207429 Contact Us For Availability

4

2207415 Whirlpool Refrigerator Nut In Stock WPL 2207415 $8.89

4

Spacer-Hinge, Top WPL 2256381 Contact Us For Availability

4

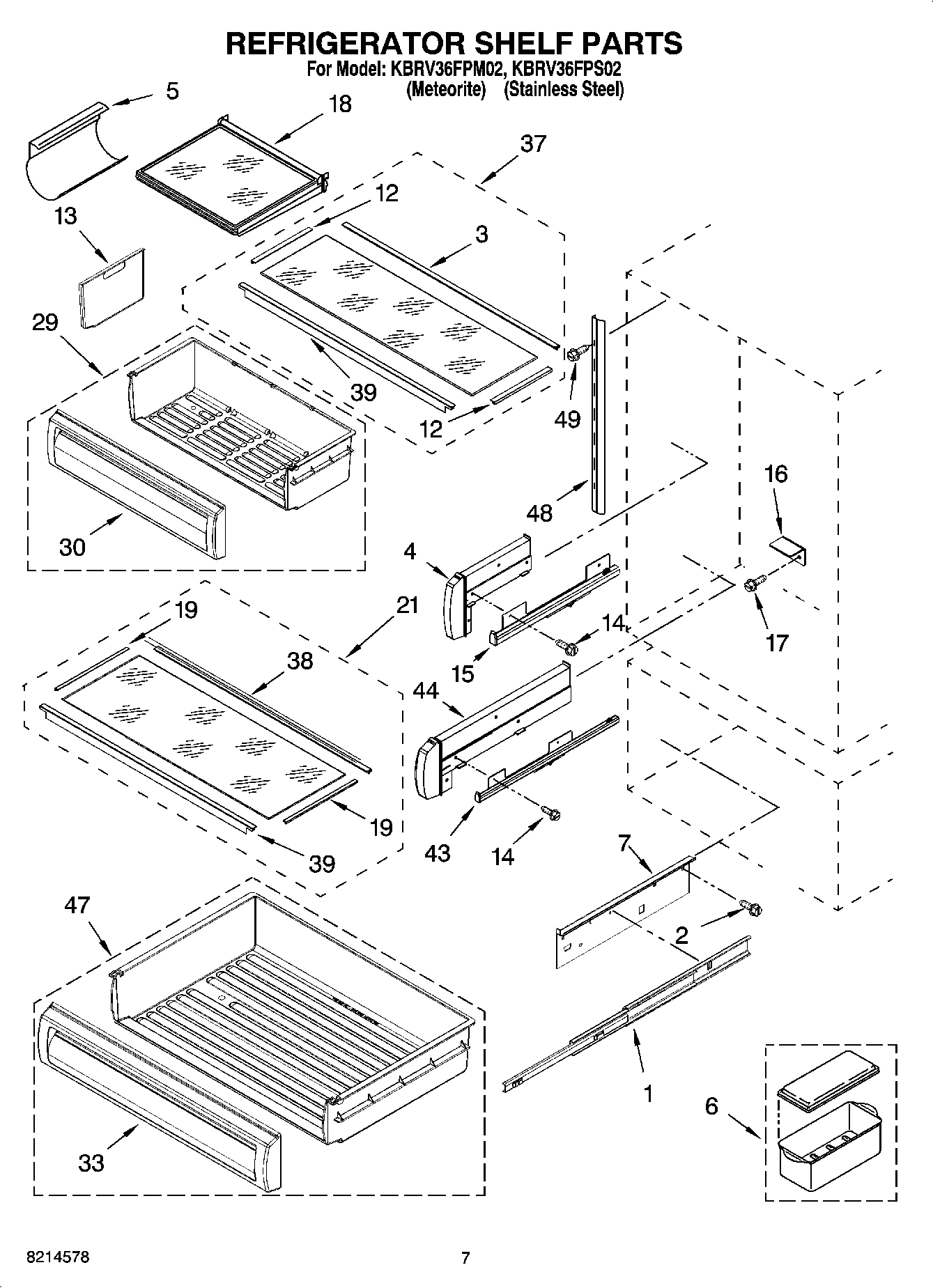

Spacer, Crisper (Left Side) WPL 2256442 Contact Us For Availability

4

Spacer, Crisper (Right Side) WPL 2256443 Contact Us For Availability

4

Diffuser Cap, Left Side WPL 2215827 Contact Us For Availability

4

Housing, Control Board WPL 2257354 Contact Us For Availability

4

Jumper, Heater Fill Tube WPL 2187683 Contact Us For Availability

5

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $14.29

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

5

Diffuser Cap, Right Side WPL 2005931 Contact Us For Availability

5

Screw WPL 3190699 Contact Us For Availability

5

Bracket, Fan Motor WPL 2215641 Contact Us For Availability

6

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $14.02

6

876811 Whirlpool Grommet Backorder WPL 876811 $4.82

6

Suction Tube WPL 2259303 Contact Us For Availability

6

Hinge Assembly, Bottom WPL 2302927 Contact Us For Availability

6

Egg Bin WPL 2221071 Contact Us For Availability

6

Filler, Foam WPL 2307899 Contact Us For Availability

6

Tube, Filter Inlet WPL 2214613 Contact Us For Availability

7

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.91

7

Bracket, Freezer Basket (Left Side) WPL 2257326 Contact Us For Availability

7

Bracket, Freezer Basket (Right Side) WPL 2257327 Contact Us For Availability

7

SPACER, DOOR EDGE (SIDE) WPL 2300025 Contact Us For Availability

7

Shroud, Condenser (Right) WPL 2266803 Contact Us For Availability

7

Water Inlet Tube Assembly WPL 2317093 Contact Us For Availability

8

2300027 Whirlpool Spacer Backorder WPL 2300027 $64.90

8

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $6.17

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $3.91

8

Bracket, Switch WPL 2302969 Contact Us For Availability

9

2215676 Whirlpool Refrigerator Terminal Cover Backorder WPL 2215676 $61.35

9

2302710 Whirlpool Refrigerator Door Gasket In Stock WPL 2302710 $257.93

9

W11533506 Whirlpool Refrigerator Water Tube In Stock WPL W11533506 $18.97

9

W11669856 Whirlpool Grommet Backorder WPL W11669856 $9.12

9

Seal, Side Trim WPL 2005925 Contact Us For Availability

WP2313917 Whirlpool Refrigerator Inlet Valve In Stock WPL WP2313917 $166.59

WP308544 Whirlpool Screw In Stock WPL WP308544 $4.82

Screw WPL 2005921 Contact Us For Availability

Wiring Channel, Freezer Rear WPL 2006148 Contact Us For Availability

Shroud, Condenser (Left) WPL 2302973 Contact Us For Availability

W10219463-includeCORE Whirlpool W10219463 Con Backorder WPL W10219463-includeCORE $284.04

Foam, Fan Shroud WPL 2215844 Contact Us For Availability

Handle, Door (Stainless Steel) WPL 2252311 Contact Us For Availability

Cover, Bottom WPL 2300104 Contact Us For Availability

2215910 Whirlpool Refrigerator Grommet Backorder WPL 2215910 $61.61

W11214482 Whirlpool Refrigerator Roller In Stock WPL W11214482 $62.40

WP2203075 Whirlpool Refrigerator Spacer Backorder WPL WP2203075 $11.67

Trim-Glass, Side WPL 2257562 Contact Us For Availability

2256328 Whirlpool Bracket Assembly Backorder WPL 2256328 $46.45

WP2221231 Whirlpool Refrigerator Shield In Stock WPL WP2221231 $60.77

Divider, Crisper Pan WPL 2256474 Contact Us For Availability

Shroud, Evaporator Fan WPL 2215606 Contact Us For Availability

Skin, Door (Meteorite) WPL 2307889M Contact Us For Availability

Skin, Door (Stainless Steel) WPL 2307889S Contact Us For Availability

2207470 Whirlpool Refrigerator Hinge Shim Backorder WPL 2207470 $34.01

W10851443 Whirlpool Refrigerator Screw In Stock WPL W10851443 $6.99

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $30.99

WP3400886 Whirlpool Refrigerator Screw Backorder WPL WP3400886 $4.82

2302952 Whirlpool Refrigerator Slide Backorder WPL 2302952 $216.38

2302953 Whirlpool Refrigerator Slide Backorder WPL 2302953 $216.62

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.51

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $4.99

WP8281250 Whirlpool Refrigerator Screw In Stock WPL WP8281250 $8.99

Motor, Fan WPL 2259385 Contact Us For Availability

Bracket Assembly, Freezer Basket WPL 2257426 Contact Us For Availability

488946 Whirlpool Air Conditioner Clamp Backorder WPL 488946 $13.22

8201663 Whirlpool Refrigerator Primary Fan Bl Backorder WPL 8201663 $102.33

CONDENSER WPL 2259307 Contact Us For Availability

Evaporator WPL 2306095 Contact Us For Availability

Screw WPL 487522 Contact Us For Availability

Support, Crisper Cover WPL 2302788 Contact Us For Availability

2005433 Whirlpool Refrigerator Spacer Backorder WPL 2005433 $14.81

WP2221296 Whirlpool Air Baffle In Stock WPL WP2221296 $268.89

WP8533928 Whirlpool Refrigerator Screw In Stock WPL WP8533928 $6.99

Heater, Defrost (Front) WPL 2207485 Contact Us For Availability

Screw, Door Stop WPL 2001295 Contact Us For Availability

Basket, Upper WPL 2257442 Contact Us For Availability

Grommet (4) WPL 943447 Contact Us For Availability

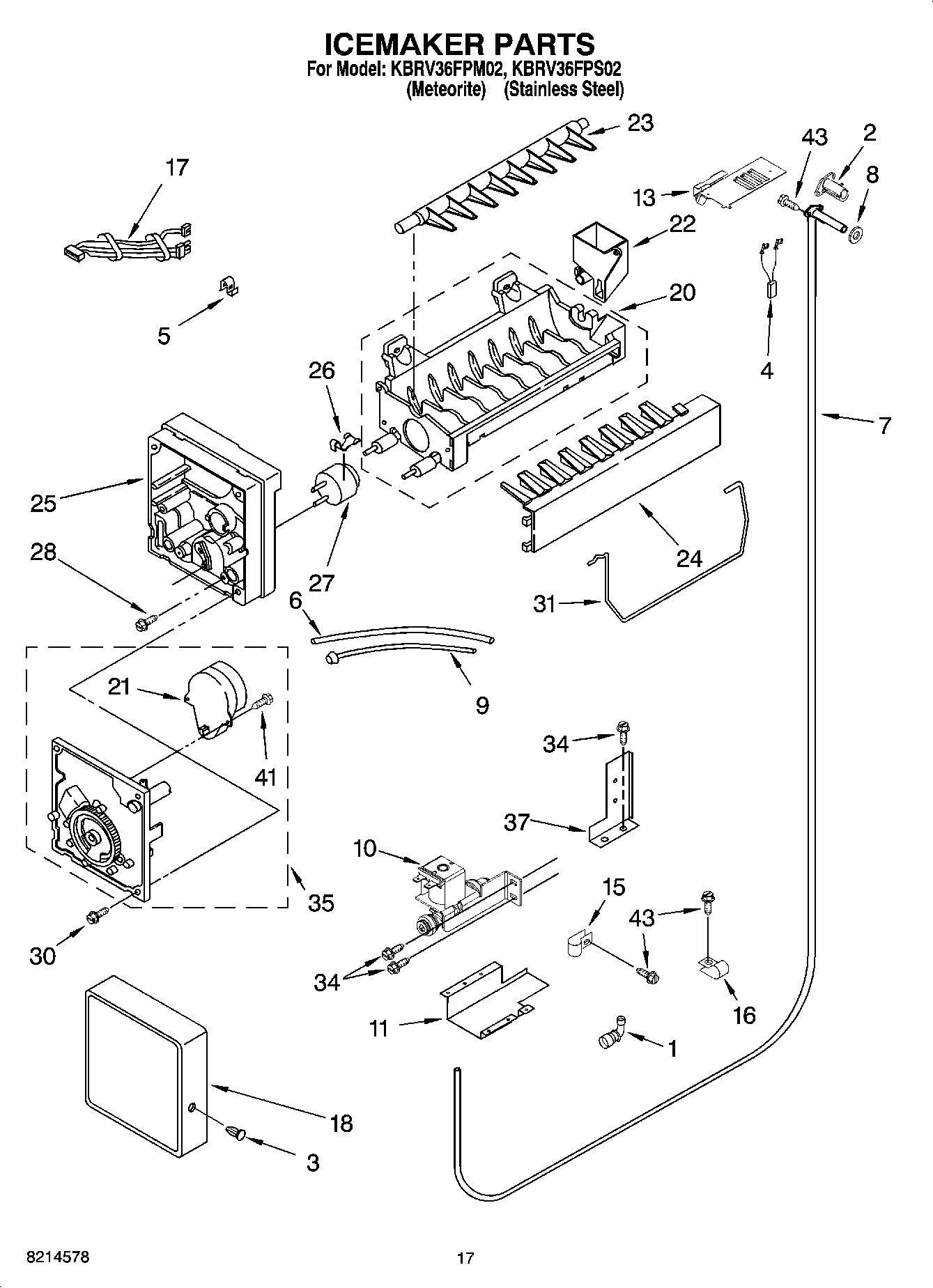

Wire Harness, Icemaker WPL 2187715 Contact Us For Availability

2257644 Whirlpool Refrigerator Door Hinge Backorder WPL 2257644 $115.07

WP2187629 Whirlpool Refrigerator Wire Jumper Backorder WPL WP2187629 $90.20

Shelf (4) WPL 2258973 Contact Us For Availability

Bracket WPL 2215503 Contact Us For Availability

Pan, Ice Cube WPL 2174124 Contact Us For Availability

Cover WPL 2257538 Contact Us For Availability

WP2207454 Whirlpool Refrigerator Nut Backorder WPL WP2207454 $6.84

Cam-Closer, Door WPL 2005783 Contact Us For Availability

Trim-Glass, Side WPL 2257563 Contact Us For Availability

Wiring Channel WPL 8201595 Contact Us For Availability

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $176.99

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

Wiring Harness, Freezer (Includes Item 49) WPL 2309303 Contact Us For Availability

Bushing WPL 2207471 Contact Us For Availability

2006617 Whirlpool Refrigerator Bracket Backorder WPL 2006617 $59.25

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $71.99

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $37.99

End Cap, Left WPL 2005542 Contact Us For Availability

Deli Shelf Assy. WPL 2302839 Contact Us For Availability

Cover, Evaporator Assembly WPL 2306391 Contact Us For Availability

Screw WPL 3400507 Contact Us For Availability

1116793 Whirlpool Refrigerator Cover Backorder WPL 1116793 $9.15

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

Bushing WPL 2300082 Contact Us For Availability

End Cap, Right WPL 2005541 Contact Us For Availability

Basket, Freezer Lower WPL 2257331 Contact Us For Availability

W10181323 Whirlpool Refrigerator Condenser Fa In Stock WPL W10181323 $220.99

WP2188820 Whirlpool Refrigerator Thermistor In Stock WPL WP2188820 $25.99

WP2209022 Whirlpool Refrigerator Housing In Stock WPL WP2209022 $165.50

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $59.71

Tube, Door Shelf (Gallon) WPL 2006152 Contact Us For Availability

WP2004517 Whirlpool Refrigerator Spring In Stock WPL WP2004517 $60.46

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $55.70

Blade, Fan WPL 2190685 Contact Us For Availability

Drain Tube, Condensate WPL 2209208 Contact Us For Availability

WP2001264 Whirlpool Refrigerator Drip Pan In Stock WPL WP2001264 $170.91

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $68.41

Insulation, Baffle WPL 2215530 Contact Us For Availability

Orifice, Fan WPL 2003169 Contact Us For Availability

26

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $6.88

26

Door, Utility Bin (2) (Includes Item 12) WPL 2005983 Contact Us For Availability

26

Cover, Air Diffuser WPL 2215531 Contact Us For Availability

8281160 Whirlpool Screw Backorder WPL 8281160 $5.46

WP2316859 Whirlpool Refrigerator Bushing In Stock WPL WP2316859 $35.70

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $71.99

Door Shelf, Gallon WPL 2006154 Contact Us For Availability

Heater-Tube, Drain WPL 2306386 Contact Us For Availability

2215648 Whirlpool Refrigerator Dampener Backorder WPL 2215648 $8.35

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $14.99

Butter Tray WPL 2165792 Contact Us For Availability

Insulation, Tube Drain WPL 2204538 Contact Us For Availability

2005101 Whirlpool Refrigerator Bottom Hinge In Stock WPL 2005101 $58.73

WP2256375 Whirlpool Refrigerator Crisper Pan Backorder WPL WP2256375 $233.73

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

Cover, Tube Drain WPL 2204537 Contact Us For Availability

30

2256374 Whirlpool Front Pan Backorder WPL 2256374 $182.14

30

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.91

30

Grommet, Edge WPL 2307907 Contact Us For Availability

W11474472 Whirlpool Screw In Stock WPL W11474472 $3.91

Shut Off Arm WPL 2314015 Contact Us For Availability

Housing, Switch WPL 2215835 Contact Us For Availability

Tube, Transition (Condenser/Drier) WPL 2259302 Contact Us For Availability

32

WP2209024B Whirlpool Refrigerator Front Grill Backorder WPL WP2209024B $107.67

32

Sleeve, Condenser WPL 2000645 Contact Us For Availability

33

2257548 Whirlpool Refrigerator Front Pan Backorder WPL 2257548 $105.60

33

WP2006346 Whirlpool Refrigerator Washer Backorder WPL WP2006346 $7.60

33

Shield, Light WPL 2302715 Contact Us For Availability

34

W10528578 Whirlpool Refrigerator Tube Backorder WPL W10528578 $25.40

34

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

35

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $115.71

35

Clip, Thermistor WPL 2209204 Contact Us For Availability

36

Cover, Fan WPL 2209495 Contact Us For Availability

Crisper Shelf Assembly WPL 2302837 Contact Us For Availability

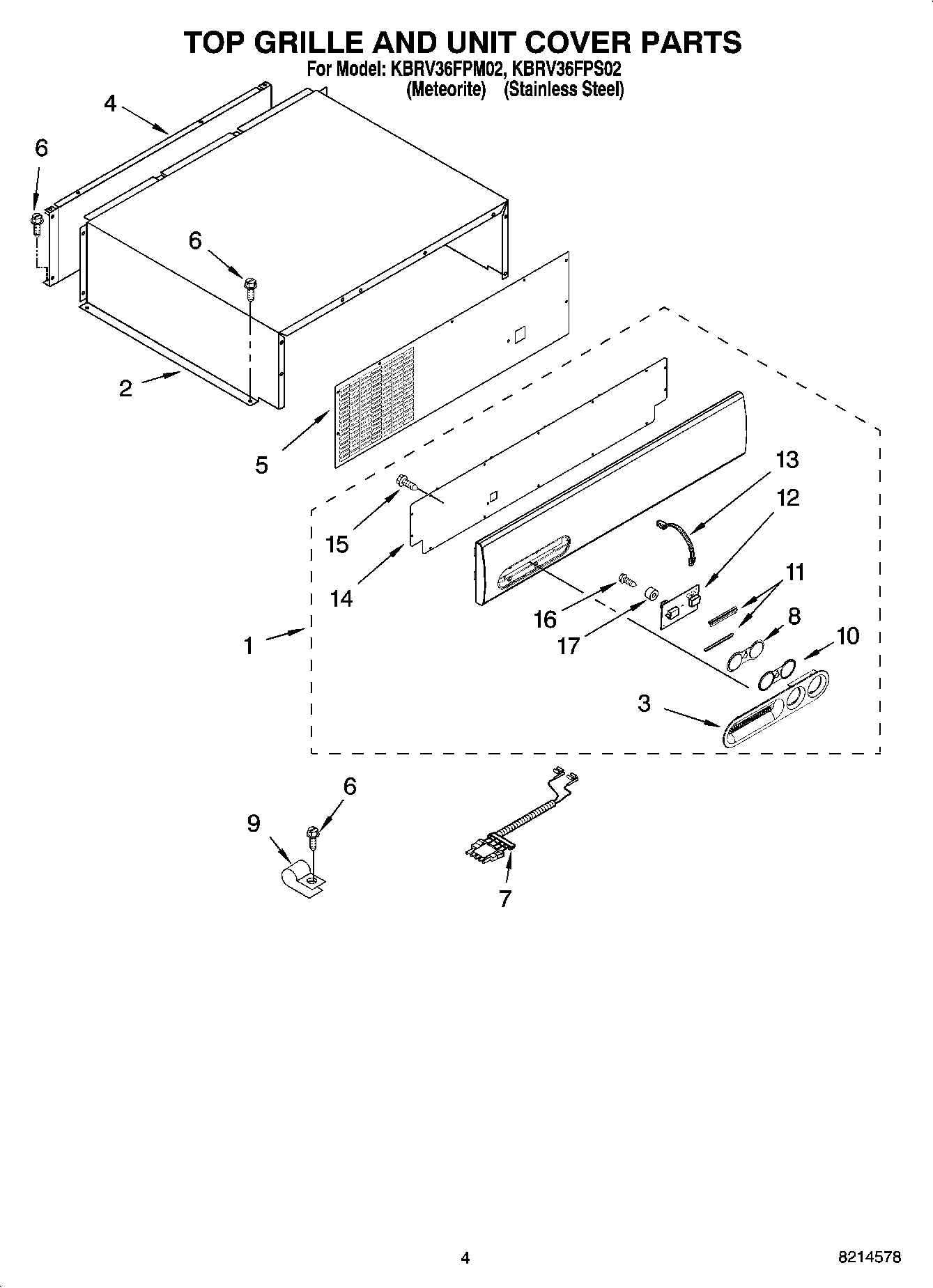

Control Panel WPL 2302774 Contact Us For Availability

Cover, Condenser WPL 2259092 Contact Us For Availability

Water Valve Mounting Bracket WPL 2306151 Contact Us For Availability

38

W10847927 Whirlpool Refrigerator Extension In Stock WPL W10847927 $50.90

38

Trim-Glass, Rear WPL 2257564 Contact Us For Availability

38

Overlay, Control Panel WPL 2257521 Contact Us For Availability

39

Trim, Glass Front (Not Serviceable) WPL ARI80408A9 Contact Us For Availability

39

Circuit Board (User Interface) WPL 2252138 Contact Us For Availability

39

Service Cord WPL 2259197 Contact Us For Availability

40

Insert, Control Box (User Interface) WPL 2215670 Contact Us For Availability

41

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

41

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $8.91

42

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $67.99

42

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $42.99

42

WP2266802 Whirlpool Refrigerator Switch In Stock WPL WP2266802 $62.93

W10887190 Whirlpool Refrigerator Light Bulb In Stock WPL W10887190 $11.45

W11624204 Whirlpool Screw Backorder WPL W11624204 $8.89

W11721628 Whirlpool Screw Assembly Backorder WPL W11721628 $8.89

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

Slide, Deli (Left Side) WPL 2302950 Contact Us For Availability

Slide, Deli (Right Side) WPL 2302951 Contact Us For Availability

44

Spacer, Deli (Left Side) WPL 2257531 Contact Us For Availability

44

Spacer, Deli (Right Side) WPL 2257532 Contact Us For Availability

44

Harness, Control Box WPL 2187424 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $17.77

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Cover, Wiring Freezer Light WPL 8201534 Contact Us For Availability

Wiring Harness, Unit Compartment WPL 2187902 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI80409A9 Contact Us For Availability

REFRIGERANT CHARGE 5.75 oz. (R-134A) WPL ARI80410A6 Contact Us For Availability

46

CLIP, WIRING WPL 1115375 Contact Us For Availability

47

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $17.77

47

Deli Pan Assembly (Includes 33) WPL 2257535 Contact Us For Availability

48

Ladder, Shelf (4) WPL 2005410 Contact Us For Availability

48

Wiring Cover, Icemaker WPL 2005792 Contact Us For Availability

49

2006475 Whirlpool Refrigerator Screw Backorder WPL 2006475 $8.39

49

Defrost Bi-Metal WPL 2309301 Contact Us For Availability

50

Diffuser Assembly WPL 2215829 Contact Us For Availability

51

Support, Control Box WPL 2221121 Contact Us For Availability

52

WP488920 Whirlpool Refrigerator Screw In Stock WPL WP488920 $4.82

100

WPW10277450 Whirlpool Refrigerator Icemaker In Stock WPL WPW10277450 $205.79

100

Cleaner (Stainless Steel) WPL 2261590 Contact Us For Availability

100

Following Parts Not Illustrated (Optional Par WPL ARI80411A7 Contact Us For Availability
