Model Whirlpool KBNU367TSS00 36`` BUILT-IN GRILL – Common Parts & Diagrams

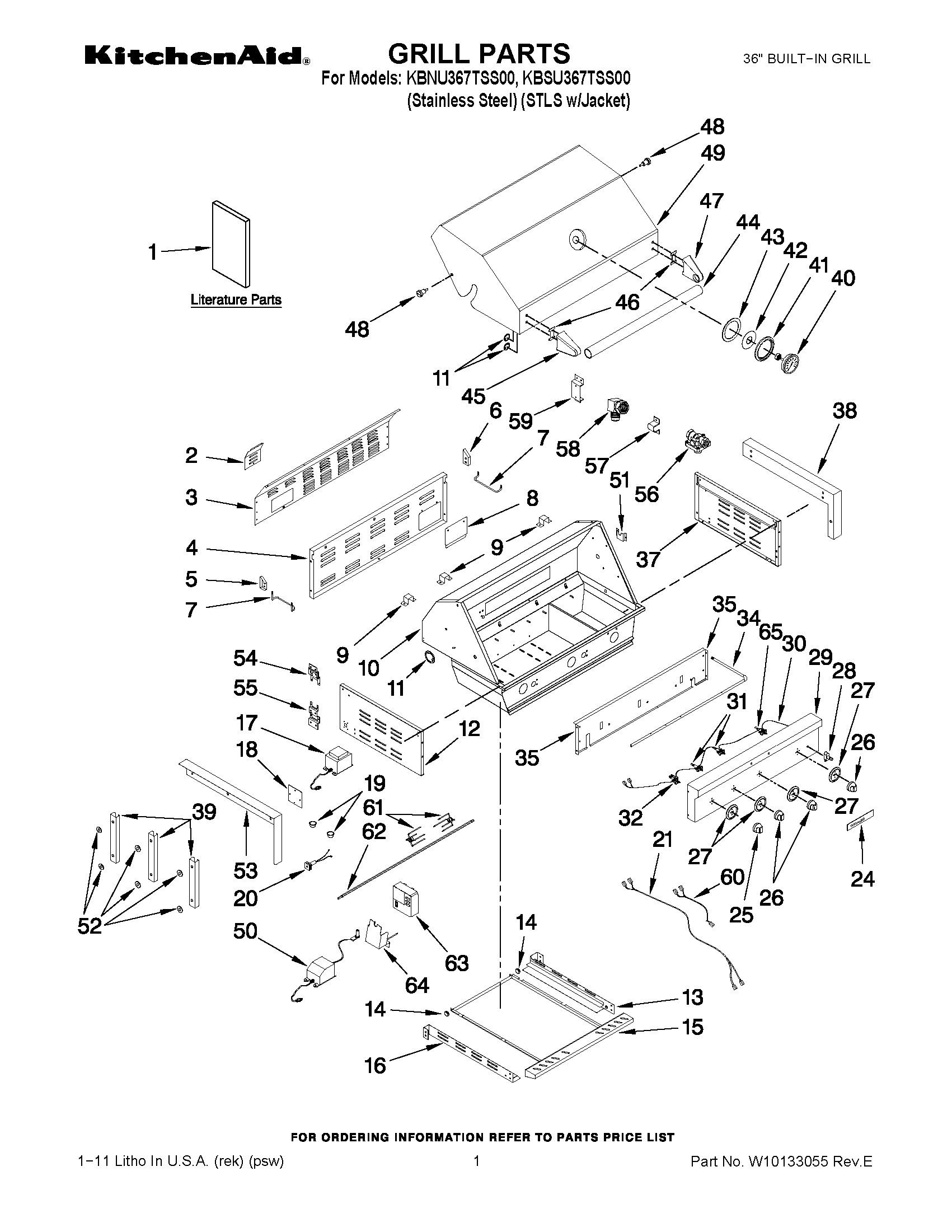

01 - GRILL PARTS
03 - OPTIONAL PARTS

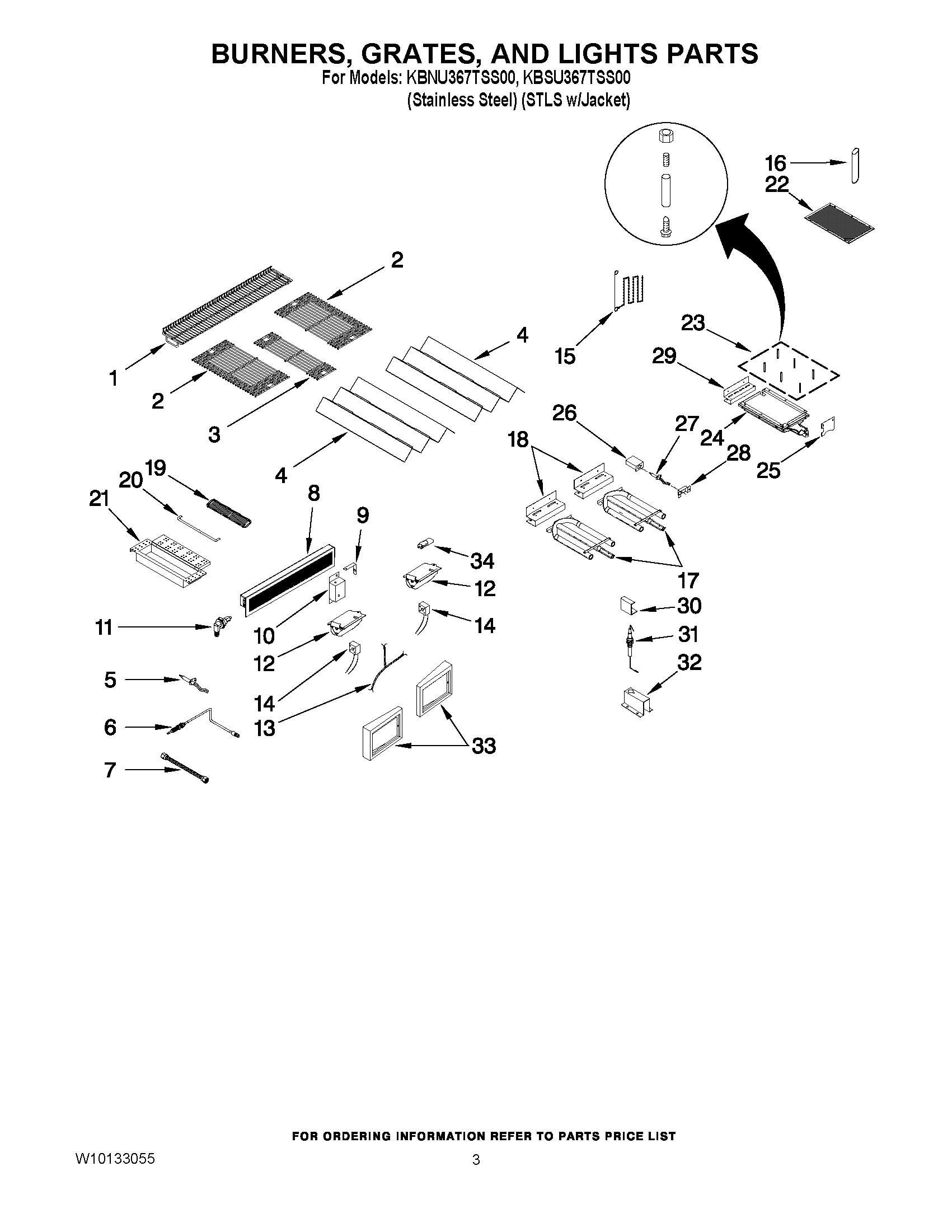

02 - BURNERS, GRATES, AND LIGHTS PARTS
Common parts from model Whirlpool KBNU367TSS00 36`` BUILT-IN GRILL
1
Rack, Warming WPL W10133859 Contact Us For Availability
2
Rack, Large WPL W10133860 Contact Us For Availability
3
Rack, Small WPL W10133862 Contact Us For Availability
4
Plate, Sear WPL W10128618 Contact Us For Availability
5
Electrode Kit, Rotisserie WPL W10134804 Contact Us For Availability
6
Thermocouple, Rear Burner WPL W10128622 Contact Us For Availability
7
Flex Tube, Rear Burner WPL W10128623 Contact Us For Availability
8
Burner, Rear WPL W10133864 Contact Us For Availability
9
Bracket, Rear Thermocouple WPL W10134805 Contact Us For Availability
10
Cover, Rear Thermocouple WPL W10134806 Contact Us For Availability
11
Orifice, Rear Burner WPL W10128627 Contact Us For Availability
12
Light, Grill WPL W10140242 Contact Us For Availability
13
HARNESS, WIRE LIGHTS WPL W10133866 Contact Us For Availability
14
Socket, Light WPL W10128631 Contact Us For Availability
15
Rod, Lighting WPL W10128704 Contact Us For Availability
16
Bag, Lighting Rod WPL W10128703 Contact Us For Availability
17
Burner, Main WPL W10128775 Contact Us For Availability
18
Bracket, Main Brnr WPL W10128776 Contact Us For Availability
19
Grate, Smoke Box WPL W10134790 Contact Us For Availability
20
Handle, Smoke Box WPL W10134791 Contact Us For Availability
21
Box, Smoke WPL W10134792 Contact Us For Availability
22
Screen, Sear Brnr WPL W10134793 Contact Us For Availability
23
ROD, KIT WPL W10303326 Contact Us For Availability
25
Panel, Sear Brnr WPL W10134796 Contact Us For Availability
26
Ignitor, Gas Coll. WPL W10134826 Contact Us For Availability
27
Ignitor, Sear Brnr WPL W10134797 Contact Us For Availability
27
Bezel, Knob WPL W10134820 Contact Us For Availability
28
Switch, Light WPL W10128761 Contact Us For Availability
28
Bracket, Sear Ign. WPL W10134798 Contact Us For Availability
29
Panel, Control WPL W10134819 Contact Us For Availability
29
Bracket, Sear Brnr WPL W10134799 Contact Us For Availability
30
IGNITOR, GAS COLL. WPL W10134800 Contact Us For Availability
30
Harness, Wire Control WPL W10134817 Contact Us For Availability
31
IGNITOR,HOT SURFCE WPL W10134801 Contact Us For Availability
32
Valve, Rear Brnr WPL W10128766 Contact Us For Availability
32
Bracket, Main Brnr WPL W10134802 Contact Us For Availability
33
Light Set WPL W10134808 Contact Us For Availability
34
Manifold WPL W10133871 Contact Us For Availability
35
Baffle, Front WPL W10134815 Contact Us For Availability
37
Side Panel, Right WPL W10132700 Contact Us For Availability
38
Flange (RT) WPL W10132701 Contact Us For Availability
39
Bracket, Flange WPL W10132697 Contact Us For Availability
40
Thermometer WPL W10128777 Contact Us For Availability
41
Bezel, Thermometer WPL W10128779 Contact Us For Availability
42
Insulator, Thermometer (Small) WPL W10128780 Contact Us For Availability
43
Insulator, Thermometer (Large) WPL W10128782 Contact Us For Availability
44
Handle, Hood WPL W10133877 Contact Us For Availability
45
Endcap, Handle (Left) WPL W10128785 Contact Us For Availability
46
Spacer, Handle WPL W10128786 Contact Us For Availability
47
Endcap, Handle (Right) WPL W10128787 Contact Us For Availability
48
Hinge, Lid WPL W10128788 Contact Us For Availability
49
Hood WPL W10134789 Contact Us For Availability
51
Bracket, Spit WPL W10134988 Contact Us For Availability
52
WASHER WPL W10132698 Contact Us For Availability
53
Flange (LF) WPL W10132696 Contact Us For Availability
54
Brkt, Trnsfrmr (Top) WPL W10132694 Contact Us For Availability
55
Brkt, Trnsfrmr (Btm) WPL W10132695 Contact Us For Availability
57
Fixture, Manifold WPL W10128747 Contact Us For Availability
58
Connector (Brass) WPL W10128748 Contact Us For Availability
59
Base, WPL W10128749 Contact Us For Availability
60
WPL W10134818 WPL W10134818 Contact Us For Availability
61
WPL W10134981 WPL W10134981 Contact Us For Availability
62
WPL W10134982 WPL W10134982 Contact Us For Availability
64
WPL W10134986 WPL W10134986 Contact Us For Availability
NI
Conv. Kit (NG-LP) WPL W10118099 Contact Us For Availability
NI
COVER, GRILL WPL 8212705 Contact Us For Availability
NI
CONV.KIT(LP-NG) WPL W10118098 Contact Us For Availability
NI
Smoker Box WPL KBDU271TSS Contact Us For Availability
NI
36`` Rotiss. Kit WPL KFKU361TSS Contact Us For Availability
NI
ALTITUDE 2K-5K LP WPL W10118101 Contact Us For Availability
NI
ALTITUDE 5K-8K LP WPL W10118102 Contact Us For Availability
NI
ALTITUDE 8K-10K LP WPL W10118104 Contact Us For Availability
NI
ALTITUDE 2K-5K NG WPL W10118105 Contact Us For Availability
NI
ALTITUDE 5K-8K NG WPL W10118106 Contact Us For Availability
NI
ALTITUDE 8K-10K NG WPL W10118107 Contact Us For Availability
NI
36`` Insulated Jacket WPL W10136977 Contact Us For Availability
× ![]()
