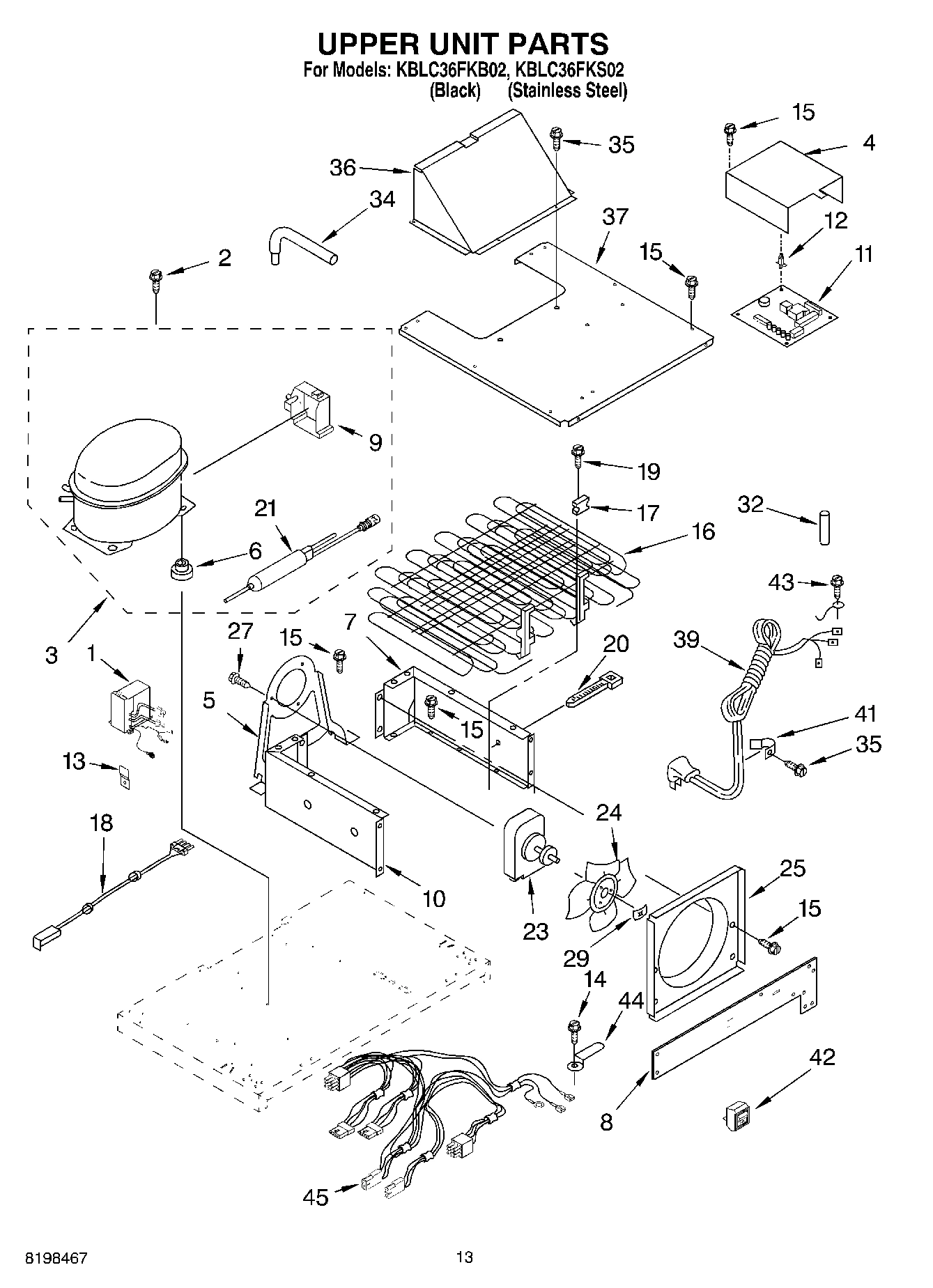

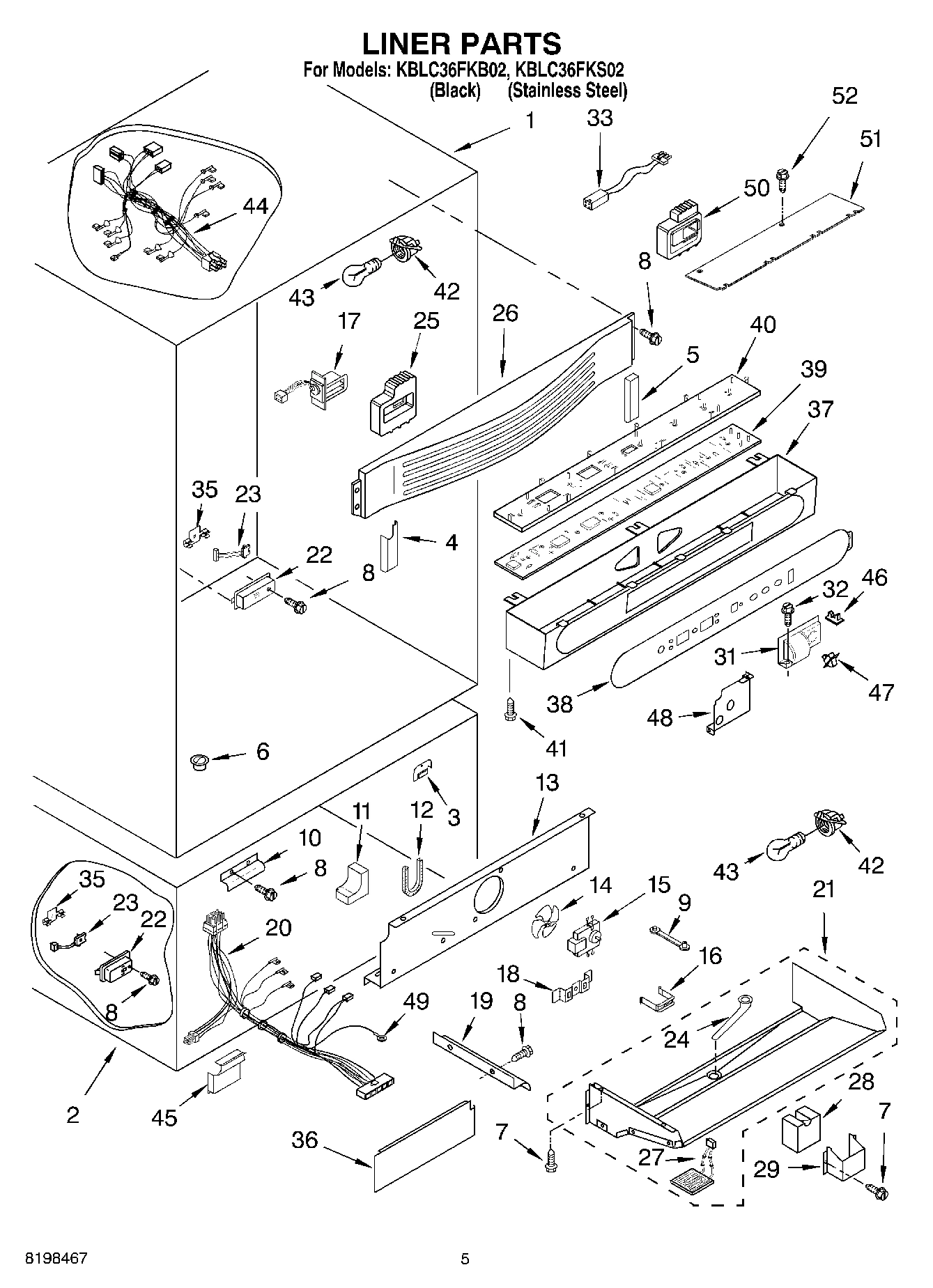

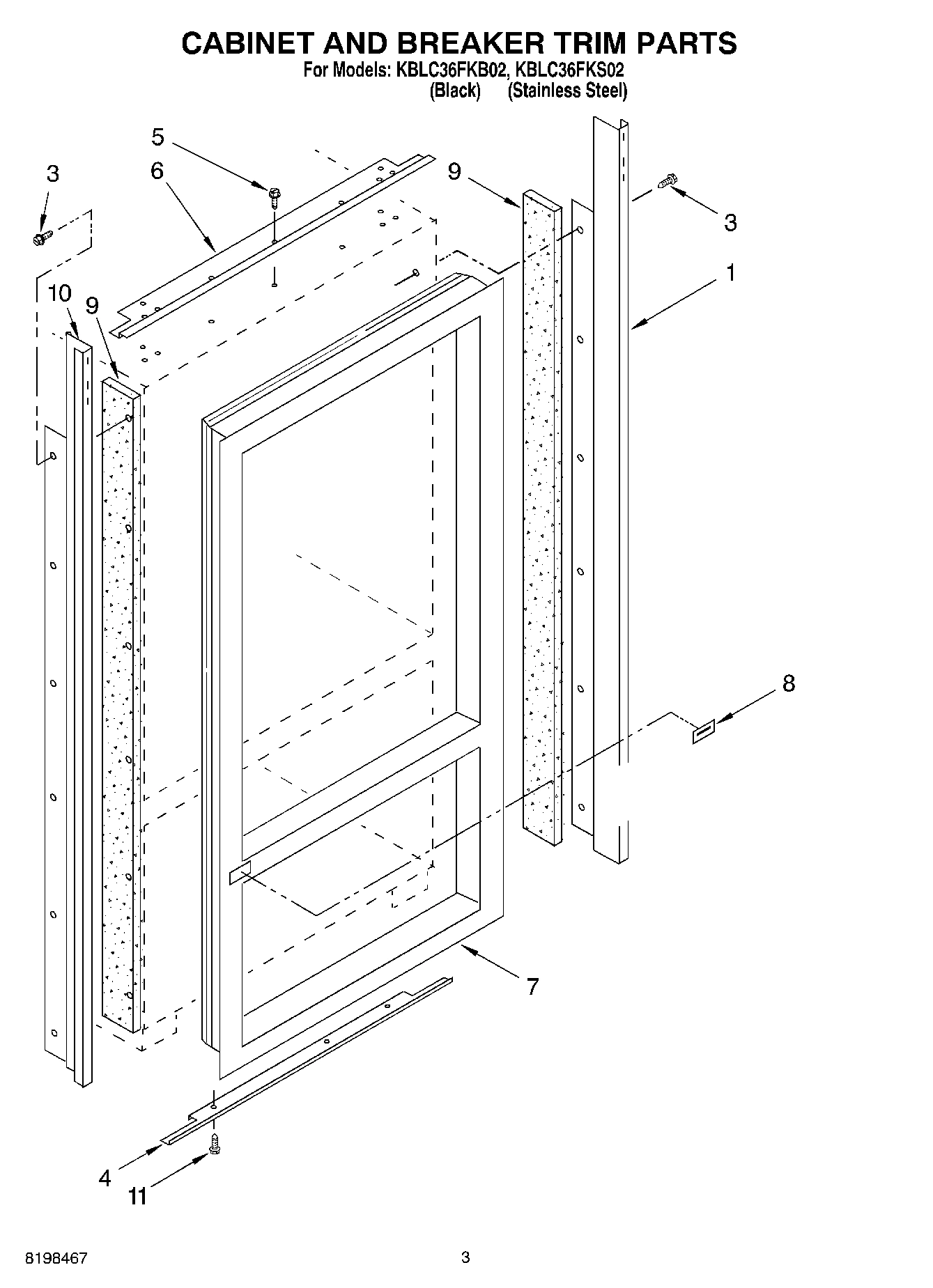

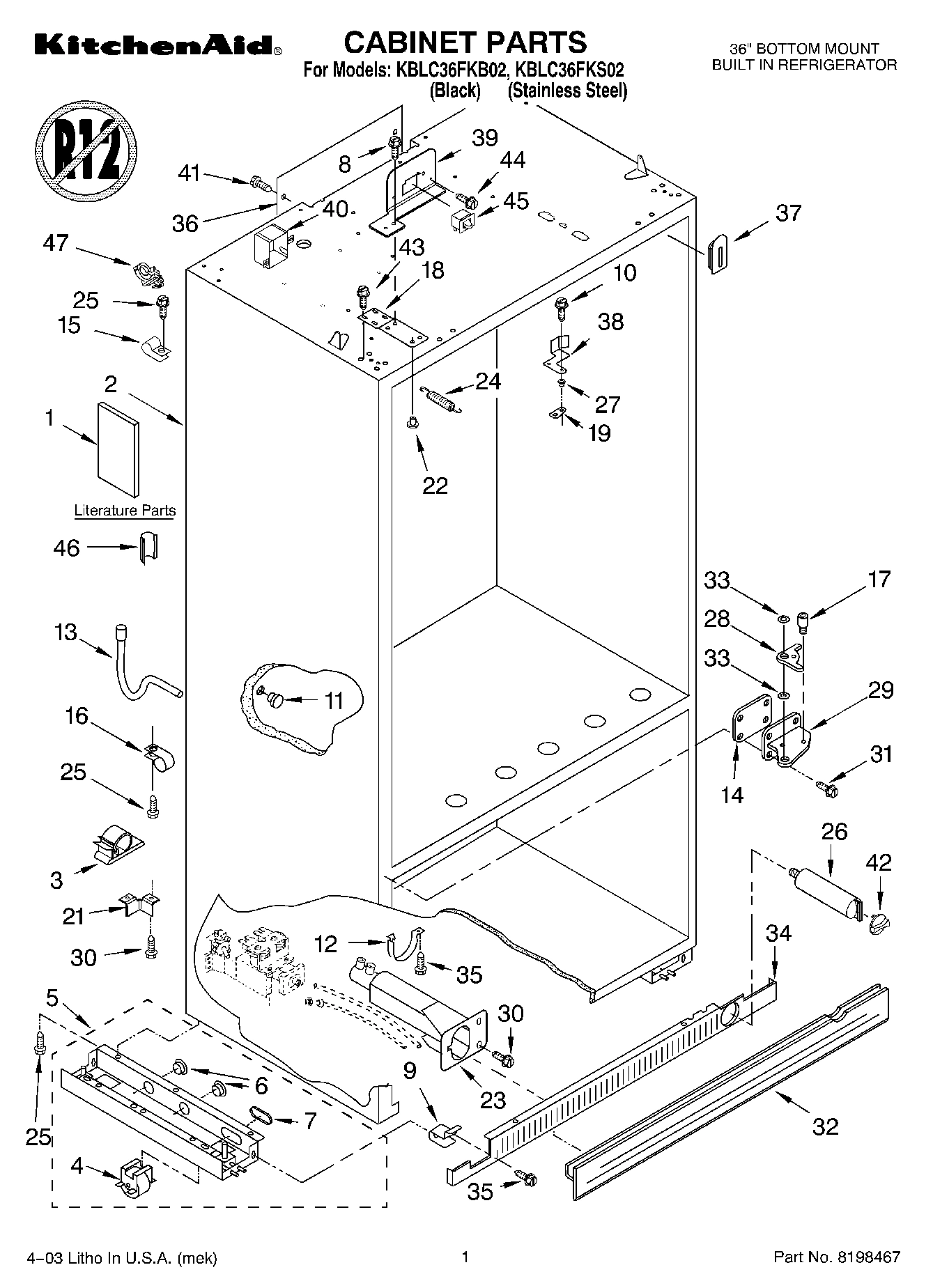

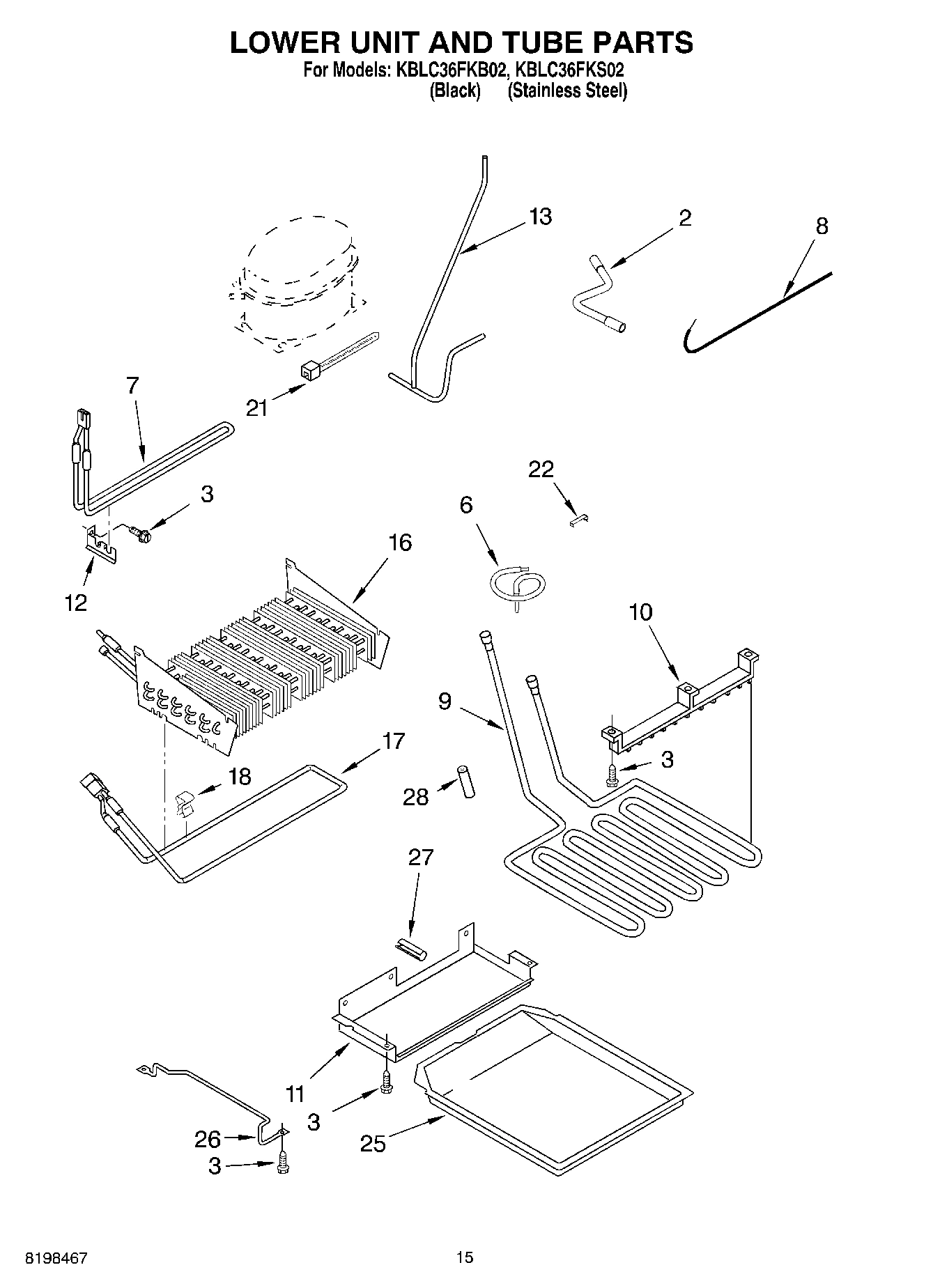

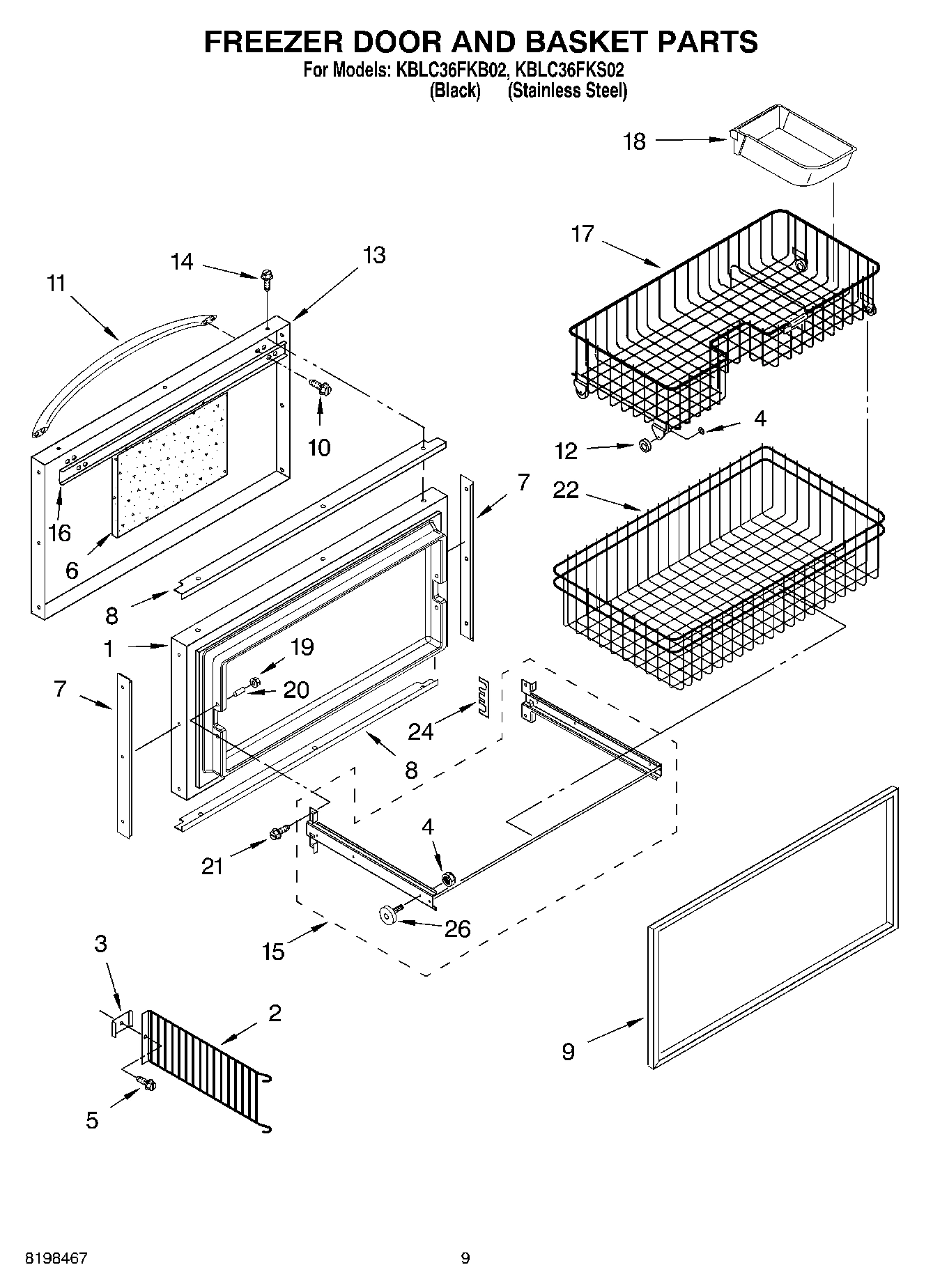

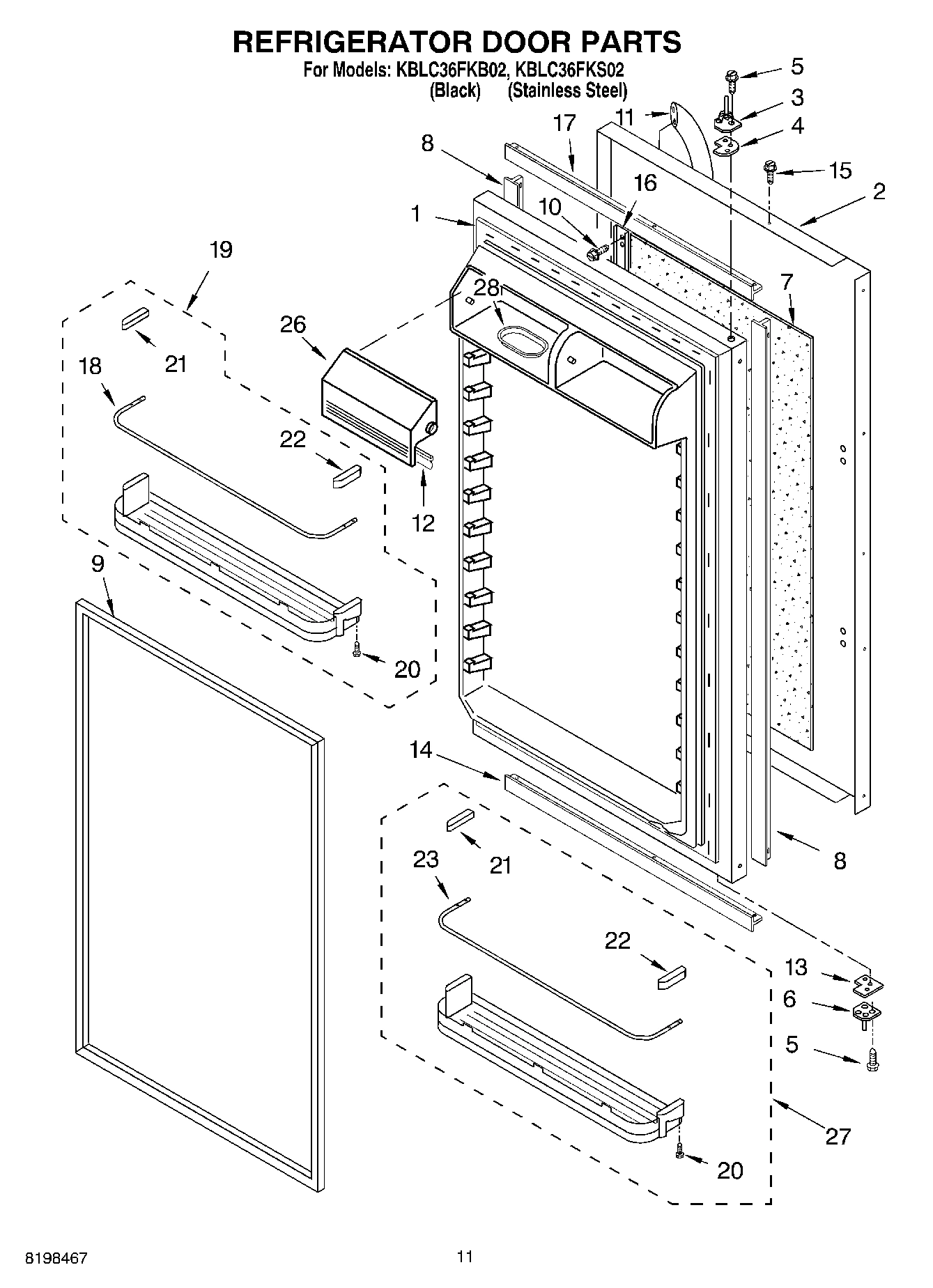

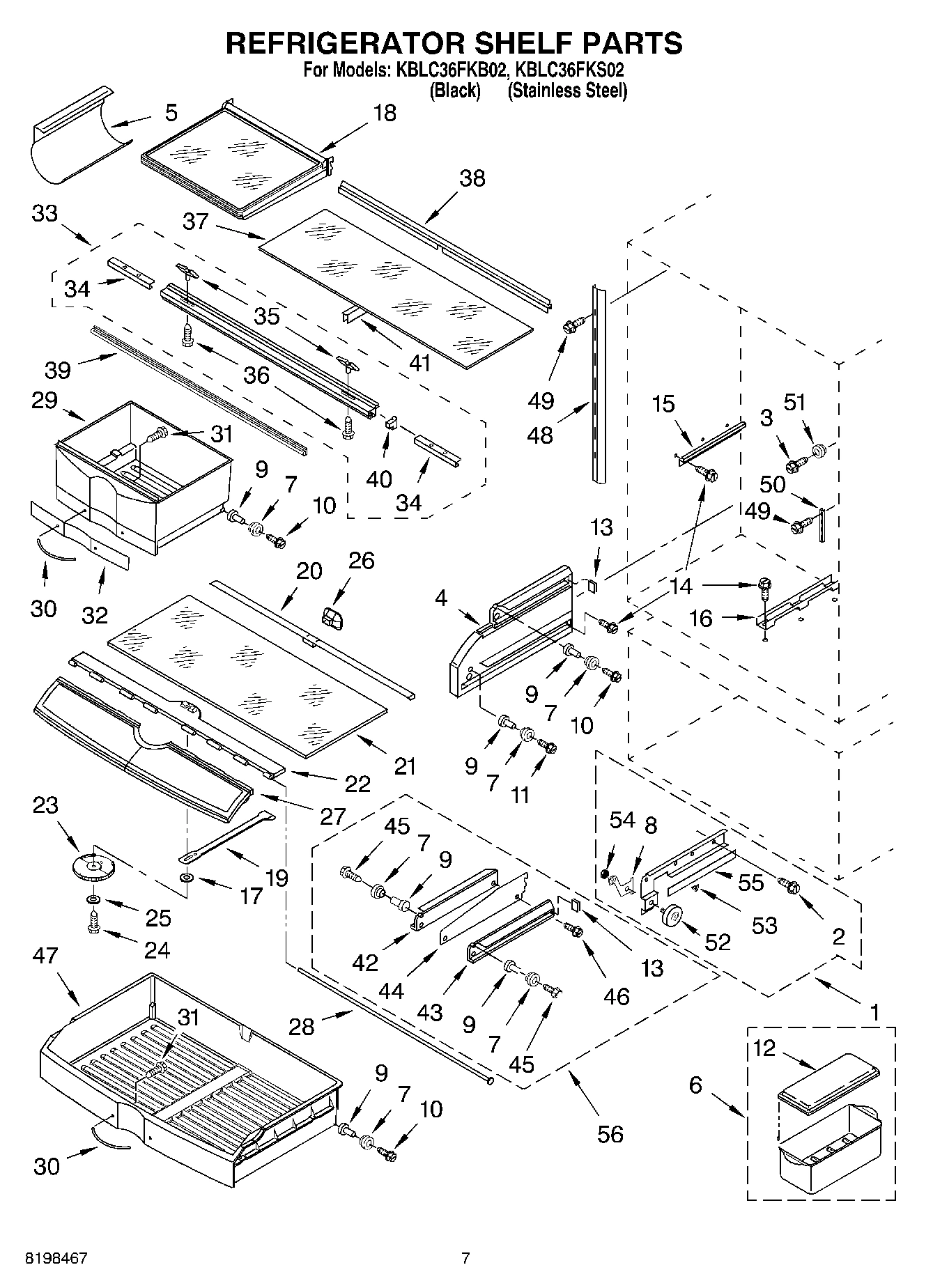

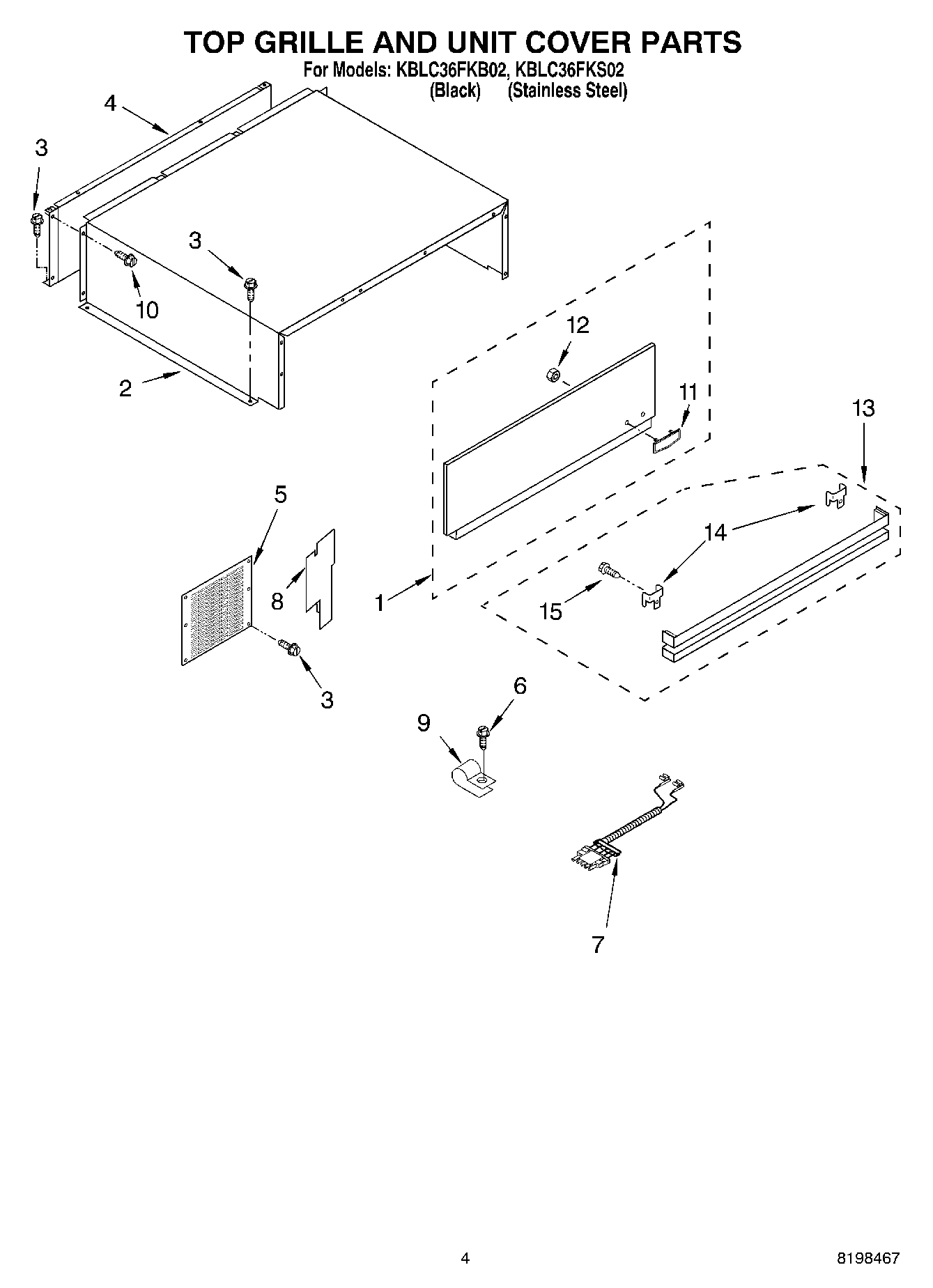

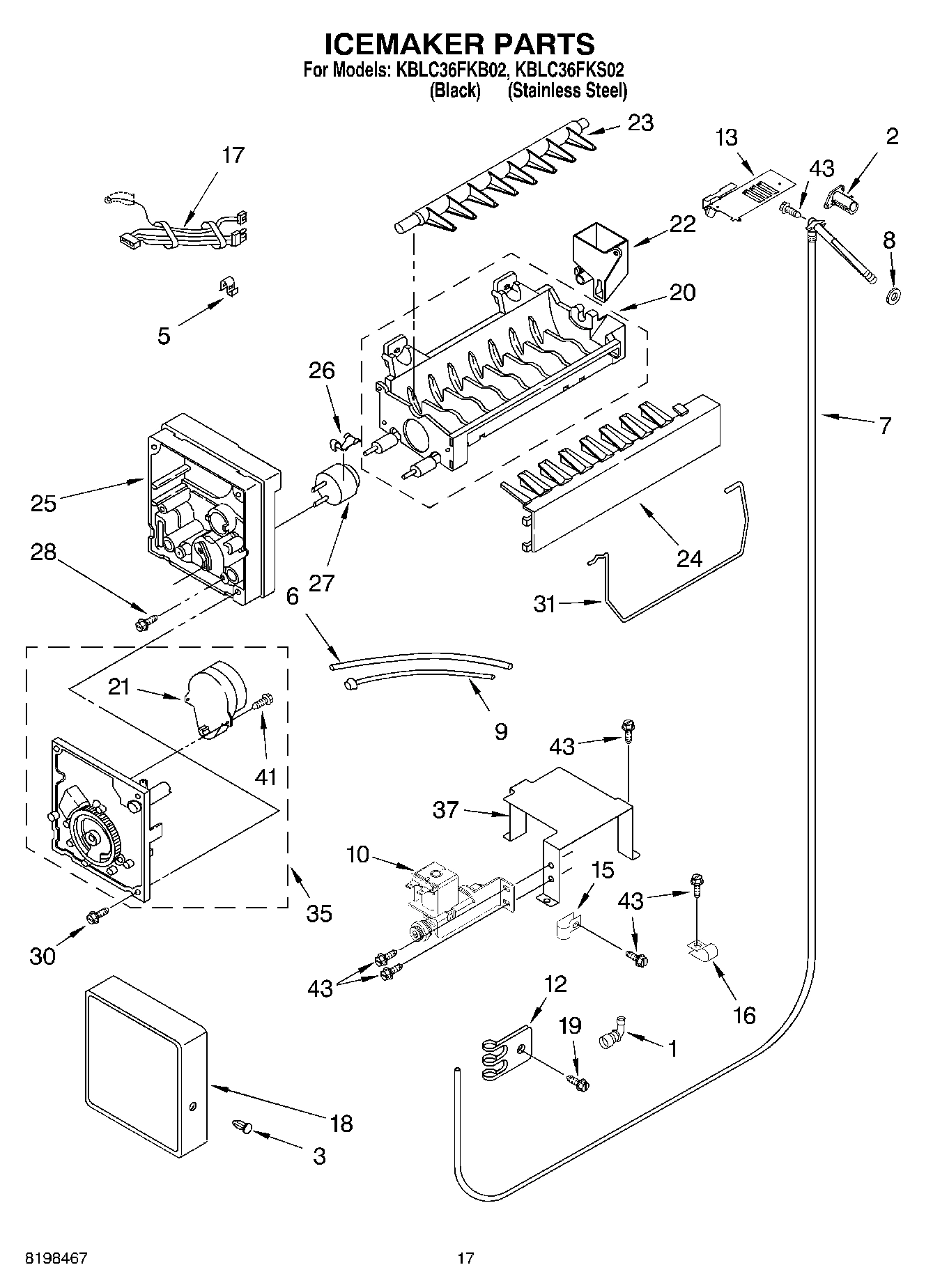

Model Whirlpool KBLC36FKB02 36`` BOTTOM MOUNT BUILT IN REFRIGERATOR – Common Parts &amp; Diagrams

1

Cabinet, Trim (Right Side) (Black) WPL 2215919B Contact Us For Availability

1

Cabinet, Trim (Right Side) (Stainless Steel) WPL 2215919S Contact Us For Availability

1

Liner, Refrigerator (Not Servicable) WPL ARI78683A8 Contact Us For Availability

1

Freezer Door Panel (Includes Item 9) WPL 2188599 Contact Us For Availability

1

Tube, Valve WPL 2204597 Contact Us For Availability

1

Refrigerator Door (Includes Item 9) WPL 2259186 Contact Us For Availability

2

WP2221240 Whirlpool Refrigerator Heater In Stock WPL WP2221240 $125.60

2

Liner, Freezer (Not Servicable) WPL ARI78684A4 Contact Us For Availability

2

Divider, Basket WPL 2204525 Contact Us For Availability

2

Skin, Door (Stainless Steel) WPL 2005396 Contact Us For Availability

2

Skin, Door (Black) WPL 2257416B Contact Us For Availability

2

Tube, Transition WPL 2257364 Contact Us For Availability

3

W10841139 Whirlpool Refrigerator Compressor In Stock WPL W10841139 $413.99

3

W11624204 Whirlpool Screw Backorder WPL W11624204 $8.89

3

WP489115 Whirlpool Refrigerator Rivet Backorder WPL WP489115 $4.82

3

Hinge Assembly, Top WPL 2266912 Contact Us For Availability

3

Clamp, Tube WPL 2004514 Contact Us For Availability

3

Cover, Heat Exchanger WPL 2215610 Contact Us For Availability

3

Clamp, Divider WPL 2207429 Contact Us For Availability

4

WPW10138054 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10138054 $20.98

4

Spacer-Hinge, Top WPL 2256381 Contact Us For Availability

4

Housing, Control Board WPL 2257354 Contact Us For Availability

4

Cabinet, Trim (Bottom) WPL 2254724 Contact Us For Availability

4

Diffuser Cap, Left Side WPL 2215827 Contact Us For Availability

5

W10860229 Whirlpool Refrigerator Support Backorder WPL W10860229 $219.93

5

W10860448 Whirlpool Refrigerator Support Backorder WPL W10860448 $216.57

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

5

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

5

Bracket, Fan Motor WPL 2215641 Contact Us For Availability

5

Diffuser Cap, Right Side WPL 2005931 Contact Us For Availability

6

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $14.02

6

876811 Whirlpool Grommet Backorder WPL 876811 $4.82

6

Grommet, Wiring WPL 2005006 Contact Us For Availability

6

Cabinet, Trim Top WPL 2003645 Contact Us For Availability

6

Filler, Foam WPL 2005400 Contact Us For Availability

6

Tube, Filter Inlet WPL 2214613 Contact Us For Availability

6

Hinge Assembly, Bottom WPL 2257607 Contact Us For Availability

6

Suction Tube WPL 2209035 Contact Us For Availability

7

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.91

7

Grommet, Flexible WPL 2005007 Contact Us For Availability

7

Shroud, Condenser (Right) WPL 2257350 Contact Us For Availability

7

Breaker Trim (Not Serviced) WPL ARI78682A2 Contact Us For Availability

7

Spacer, Door Edge - Side WPL 2221031 Contact Us For Availability

7

Water Inlet Tube Assembly WPL 2221140 Contact Us For Availability

7

Filler, Foam WPL 2005397 Contact Us For Availability

7

Heater, Defrost (Rear) WPL 2207486 Contact Us For Availability

8

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $6.17

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $3.91

8

Panel, Condenser Front WPL 2215665 Contact Us For Availability

8

Cover, Hinge WPL 2005782 Contact Us For Availability

8

Spacer, Door Edge Top & Bottom WPL 2221033 Contact Us For Availability

8

Spacer, Door Edge - Side (2) WPL 2221032 Contact Us For Availability

8

Tube, Connect (Drier) WPL 2209454 Contact Us For Availability

9

2215676 Whirlpool Refrigerator Terminal Cover Backorder WPL 2215676 $61.35

9

8201663 Whirlpool Refrigerator Primary Fan Bl Backorder WPL 8201663 $102.33

9

Heater, Drain Pan WPL 2209451 Contact Us For Availability

9

Seal, Side Trim WPL 2005925 Contact Us For Availability

9

Eyelet, Roller WPL 2174478 Contact Us For Availability

9

Mounting Bracket, Grill WPL 2006442 Contact Us For Availability

9

Door Gasket, Magnetic WPL 2188533 Contact Us For Availability

9

Tube, Filter Outlet WPL 2254800 Contact Us For Availability

9

Door Gasket, Magnetic WPL 2188532 Contact Us For Availability

WP2313917 Whirlpool Refrigerator Inlet Valve In Stock WPL WP2313917 $166.59

WP308544 Whirlpool Screw In Stock WPL WP308544 $4.82

Screw WPL 2005921 Contact Us For Availability

Shroud, Condenser (Left) WPL 2209037 Contact Us For Availability

Cabinet Trim (Left Side) (Black) WPL 2215936B Contact Us For Availability

Cabinet Trim (Left Side) (Stainless Steel) WPL 2215936S Contact Us For Availability

Wiring Channel, Freezer Rear WPL 2006148 Contact Us For Availability

Hanger, Heater WPL 2209450 Contact Us For Availability

Cap, Grommet WPL 1112849 Contact Us For Availability

Control Board WPL 2254740 Contact Us For Availability

Foam, Fan Shroud WPL 2215844 Contact Us For Availability

Handle, Door (Stainless Steel) WPL 2005290 Contact Us For Availability

Handle, Door (Black) WPL 2209095B Contact Us For Availability

Shield, Drain Pan WPL 2005908 Contact Us For Availability

2215910 Whirlpool Refrigerator Grommet Backorder WPL 2215910 $61.61

W11214482 Whirlpool Refrigerator Roller In Stock WPL W11214482 $62.40

WP2203075 Whirlpool Refrigerator Spacer Backorder WPL WP2203075 $11.67

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $7.20

Clamp, Filter Housing WPL 2209090 Contact Us For Availability

Gasket (2) WPL 2005982 Contact Us For Availability

Support, Heater WPL 2204543 Contact Us For Availability

2256328 Whirlpool Bracket Assembly Backorder WPL 2256328 $46.45

WP2221231 Whirlpool Refrigerator Shield In Stock WPL WP2221231 $60.77

Roller Stop WPL 1113169 Contact Us For Availability

Tube, Drain Condensate WPL 2204516 Contact Us For Availability

Shroud, Evaporator Fan WPL 2215606 Contact Us For Availability

Skin, Door (Stainless Steel) WPL 2005399 Contact Us For Availability

Skin, Door (Black) WPL 2257417B Contact Us For Availability

SPACER, HINGE (BOTTOM) WPL 2257647 Contact Us For Availability

Tube, Discharge WPL 2209036 Contact Us For Availability

2207470 Whirlpool Refrigerator Hinge Shim Backorder WPL 2207470 $34.01

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $30.99

Screw WPL 486899 Contact Us For Availability

Spacer, Door Edge - Bottom WPL 2221029 Contact Us For Availability

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.51

8201589 Whirlpool Refrigerator Evaporator Mot In Stock WPL 8201589 $224.99

W10833902 Whirlpool Refrigerator Clamp In Stock WPL W10833902 $7.06

W10851443 Whirlpool Refrigerator Screw In Stock WPL W10851443 $6.99

WP8281250 Whirlpool Refrigerator Screw In Stock WPL WP8281250 $8.99

Bracket, Assembly Freezer Basket WPL 2207533 Contact Us For Availability

488946 Whirlpool Air Conditioner Clamp Backorder WPL 488946 $13.22

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

Condenser WPL 2209062 Contact Us For Availability

Plate, Handle WPL 2209202 Contact Us For Availability

Evaporator WPL 2209465 Contact Us For Availability

WP2221296 Whirlpool Air Baffle In Stock WPL WP2221296 $268.89

Heater, Defrost (Front) WPL 2207485 Contact Us For Availability

Screw, Door Stop WPL 2001295 Contact Us For Availability

Grommet (4) WPL 943447 Contact Us For Availability

Basket, Upper WPL 2005376 Contact Us For Availability

Wire Assembly, Icemaker WPL 2254792 Contact Us For Availability

Spacer, Door Edge - Top WPL 2221030 Contact Us For Availability

2257644 Whirlpool Refrigerator Door Hinge Backorder WPL 2257644 $115.07

Wire, Jumper WPL 2187422 Contact Us For Availability

Bracket WPL 2215503 Contact Us For Availability

Pan, Ice Cube WPL 2174124 Contact Us For Availability

Cover WPL 2257538 Contact Us For Availability

Tube, Door Shelf WPL 2005482 Contact Us For Availability

Clamp, Heater (2) WPL 2204510 Contact Us For Availability

WP2207454 Whirlpool Refrigerator Nut Backorder WPL WP2207454 $6.84

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $4.82

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $4.99

Cam-Closer, Door WPL 2005783 Contact Us For Availability

Wiring Channel WPL 8201595 Contact Us For Availability

Shelf, Door (2) WPL 2005417 Contact Us For Availability

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.91

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $176.99

Wiring Harness, Freezer WPL 2221261 Contact Us For Availability

Bushing WPL 2207471 Contact Us For Availability

2006617 Whirlpool Refrigerator Bracket Backorder WPL 2006617 $59.25

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $71.99

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $37.99

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

Cover, Evaporator Assembly WPL 2215833 Contact Us For Availability

Screw WPL 3400507 Contact Us For Availability

End Cap, Left WPL 2005542 Contact Us For Availability

1116793 Whirlpool Refrigerator Cover Backorder WPL 1116793 $9.15

W10169509 Whirlpool Refrigerator Clip Backorder WPL W10169509 $58.36

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $29.99

Bushing WPL 2002903 Contact Us For Availability

Basket, Freezer Lower WPL 2006244 Contact Us For Availability

End Cap, Right WPL 2005541 Contact Us For Availability

W10181323 Whirlpool Refrigerator Condenser Fa In Stock WPL W10181323 $220.99

WP2188820 Whirlpool Refrigerator Thermistor In Stock WPL WP2188820 $25.99

WP2209022 Whirlpool Refrigerator Housing In Stock WPL WP2209022 $165.50

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $59.71

Tube, Door Shelf (Gallon) WPL 2006152 Contact Us For Availability

WP2004517 Whirlpool Refrigerator Spring In Stock WPL WP2004517 $60.46

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $55.70

Blade, Fan WPL 2190685 Contact Us For Availability

Drain Tube, Condensate WPL 2209208 Contact Us For Availability

Spacer WPL 2207576 Contact Us For Availability

WP2001264 Whirlpool Refrigerator Drip Pan In Stock WPL WP2001264 $170.91

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $68.41

Orifice, Fan WPL 2003169 Contact Us For Availability

Insulation, Baffle WPL 2215530 Contact Us For Availability

EDR5RXD1 Whirlpool Refrigerator Ice and Water In Stock WPL EDR5RXD1 $61.83

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $6.88

Cover, Air Diffuser WPL 2215531 Contact Us For Availability

Roller WPL 2207550 Contact Us For Availability

Door, Utility Bin (2) (Includes Item 12) WPL 2005983 Contact Us For Availability

Bracket, Drain Pan (Left) WPL 1113206 Contact Us For Availability

Bracket, Drain Pan (Right) WPL 1113207 Contact Us For Availability

8281160 Whirlpool Screw Backorder WPL 8281160 $5.46

WP2158826 Whirlpool Refrigerator Dampener In Stock WPL WP2158826 $0.91

WP2316859 Whirlpool Refrigerator Bushing In Stock WPL WP2316859 $35.70

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $71.99

Heater-Tube, Drain WPL 2204595 Contact Us For Availability

Door Shelf, Gallon WPL 2006154 Contact Us For Availability

2215648 Whirlpool Refrigerator Dampener Backorder WPL 2215648 $8.35

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $14.99

W10188434 Whirlpool Refrigerator Hinge Gap Backorder WPL W10188434 $43.88

Insulation, Tube Drain WPL 2204538 Contact Us For Availability

Butter Tray WPL 2165792 Contact Us For Availability

29

2005101 Whirlpool Refrigerator Bottom Hinge Backorder WPL 2005101 $58.73

29

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

29

Cover, Tube Drain WPL 2204537 Contact Us For Availability

2006253 Whirlpool Refrigerator Screw Backorder WPL 2006253 $8.89

W11474472 Whirlpool Screw In Stock WPL W11474472 $3.91

Housing, Switch WPL 2215835 Contact Us For Availability

Shut Off Arm WPL 2221172 Contact Us For Availability

32

WP2209024B Whirlpool Refrigerator Front Grill Backorder WPL WP2209024B $107.67

32

Sleeve, Condenser WPL 2000645 Contact Us For Availability

33

WP2006346 Whirlpool Refrigerator Washer Backorder WPL WP2006346 $7.60

33

Wire, Jumper WPL 2187377 Contact Us For Availability

34

W10528578 Whirlpool Refrigerator Tube Backorder WPL W10528578 $25.40

34

Grille Base, Front WPL 2215889B Contact Us For Availability

35

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $115.71

35

Clip, Thermistor WPL 2209204 Contact Us For Availability

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.68

2215612 Whirlpool Refrigerator Duct Cover Backorder WPL 2215612 $65.16

Cover, Rear WPL 2209133 Contact Us For Availability

Cover, Fan WPL 2209495 Contact Us For Availability

Grommet, Wiring WPL 1113122 Contact Us For Availability

Cover, Condenser WPL 2257351 Contact Us For Availability

Control Panel WPL 2215816 Contact Us For Availability

Water Valve Mounting Bracket WPL 2221282 Contact Us For Availability

38

WPW10121046 Whirlpool Refrigerator Extension In Stock WPL WPW10121046 $50.58

38

Overlay, Control Panel WPL 2221064 Contact Us For Availability

39

2221096 Whirlpool Refrigerator Bracket Backorder WPL 2221096 $63.54

39

Service Cord WPL 2003381 Contact Us For Availability

39

Circuit Board (User Interface) WPL 2209159 Contact Us For Availability

40

2215938 Whirlpool Refrigerator Switch Cover In Stock WPL 2215938 $59.36

40

Slide, Control Box WPL 2215670 Contact Us For Availability

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $8.91

WP1163283 Whirlpool Air Conditioner Screw Backorder WPL WP1163283 $4.82

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

42

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $67.99

42

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $42.99

42

WP2266802 Whirlpool Refrigerator Switch In Stock WPL WP2266802 $62.93

43

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $6.92

43

W10887190 Whirlpool Refrigerator Light Bulb In Stock WPL W10887190 $11.45

43

W11721628 Whirlpool Screw Assembly Backorder WPL W11721628 $8.89

44

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $6.51

44

Clip, Cord Plug WPL 653035 Contact Us For Availability

44

Harness, Control Box WPL 2187424 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $17.77

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Wiring Harness, Unit Compartment WPL 2187663 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI78685A4 Contact Us For Availability

REFRIGERANT CHARGE 6.75 oz. (R-134A) WPL ARI78686A2 Contact Us For Availability

Channel, Wiring Freezer Light WPL 8201534 Contact Us For Availability

46

9791833 Whirlpool Refrigerator Clip Backorder WPL 9791833 $6.49

46

CLIP, WIRING WPL 1115375 Contact Us For Availability

47

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $17.77

47

Clip, Snap-In (2) WPL 2207578 Contact Us For Availability

48

Wiring Cover, Icemaker WPL 2005792 Contact Us For Availability

49

Defrost Bi-Metal WPL 2187378 Contact Us For Availability

50

Diffuser Assembly WPL 2215829 Contact Us For Availability

51

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $6.50

51

Support, Control Box WPL 2221121 Contact Us For Availability

52

WP488920 Whirlpool Refrigerator Screw In Stock WPL WP488920 $4.82

54

2207415 Whirlpool Refrigerator Nut In Stock WPL 2207415 $8.89

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $130.99
