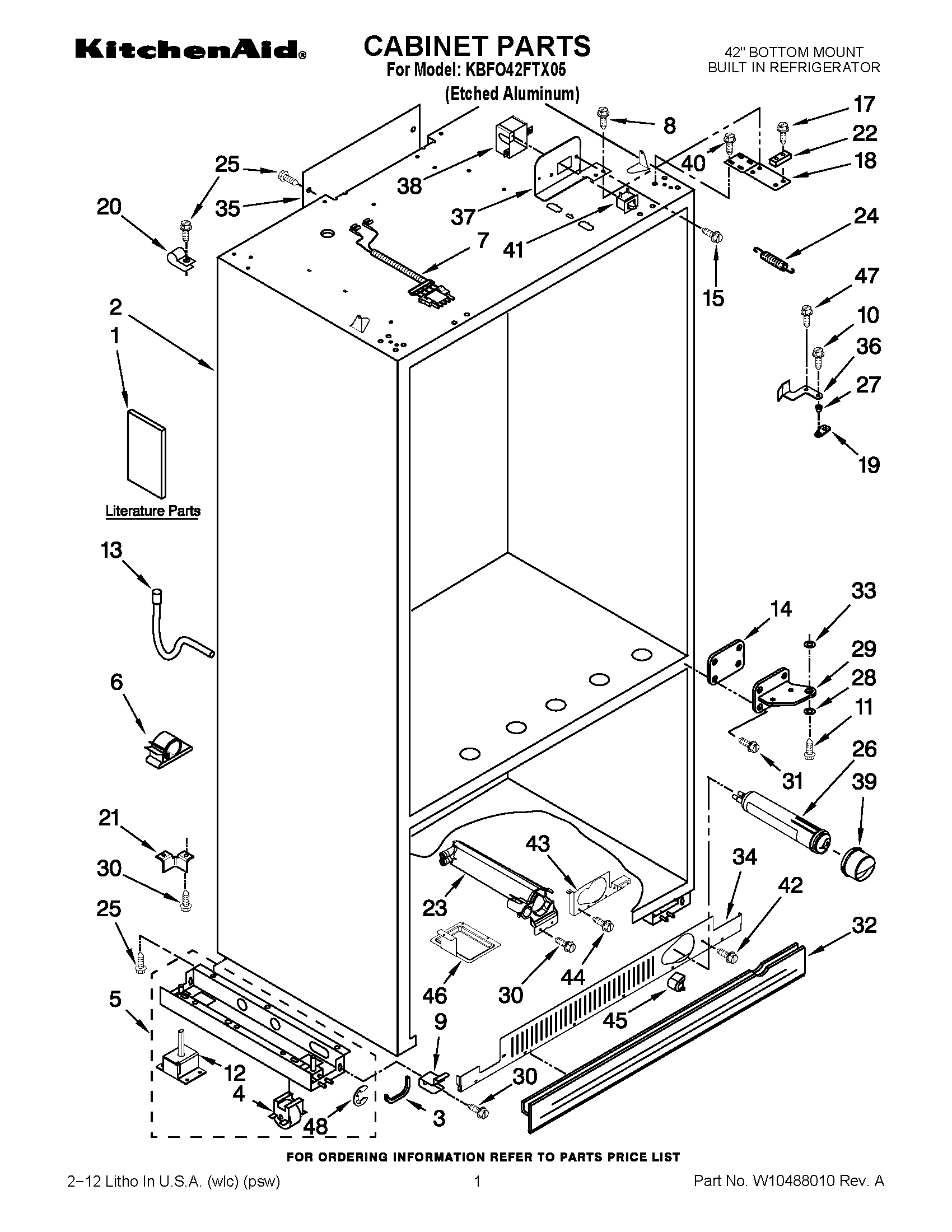

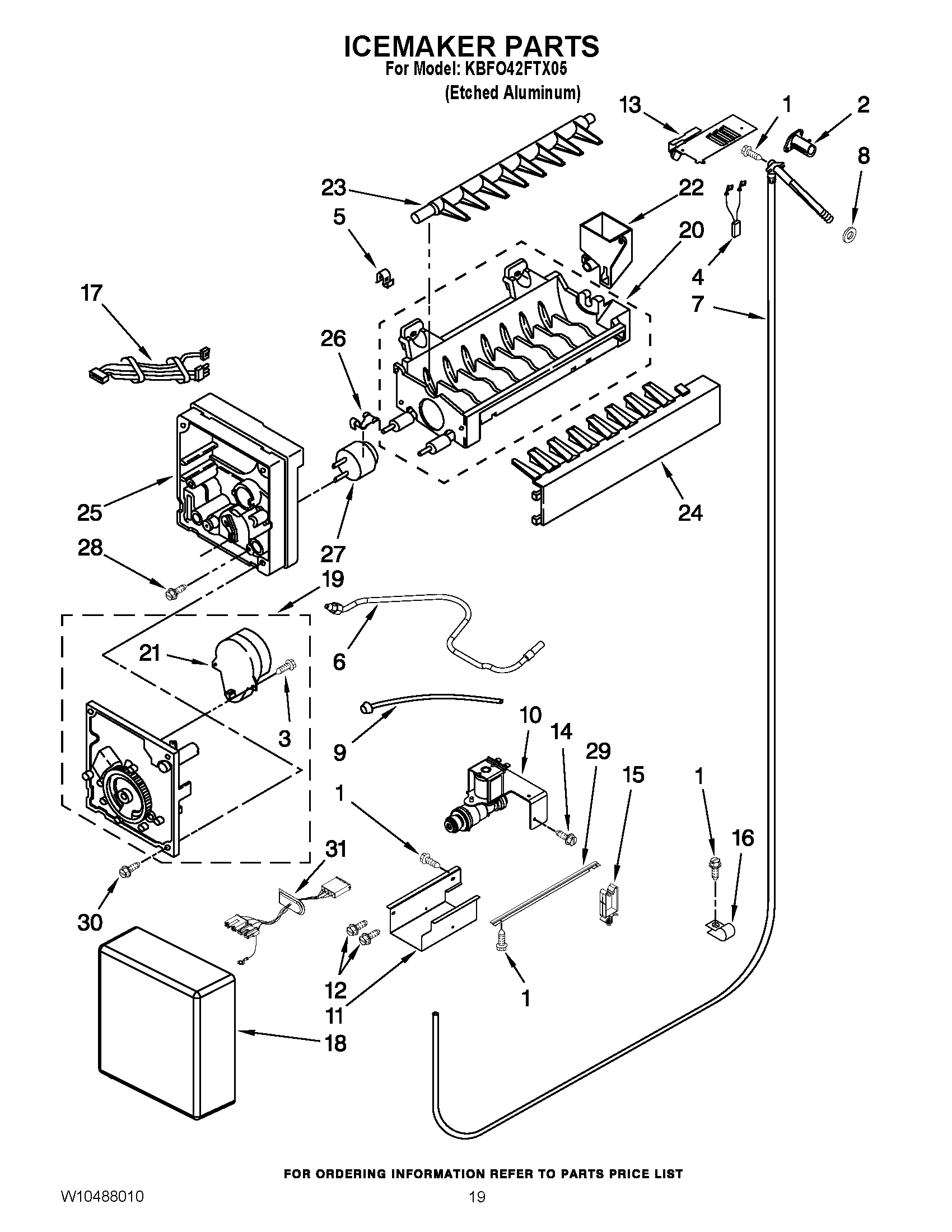

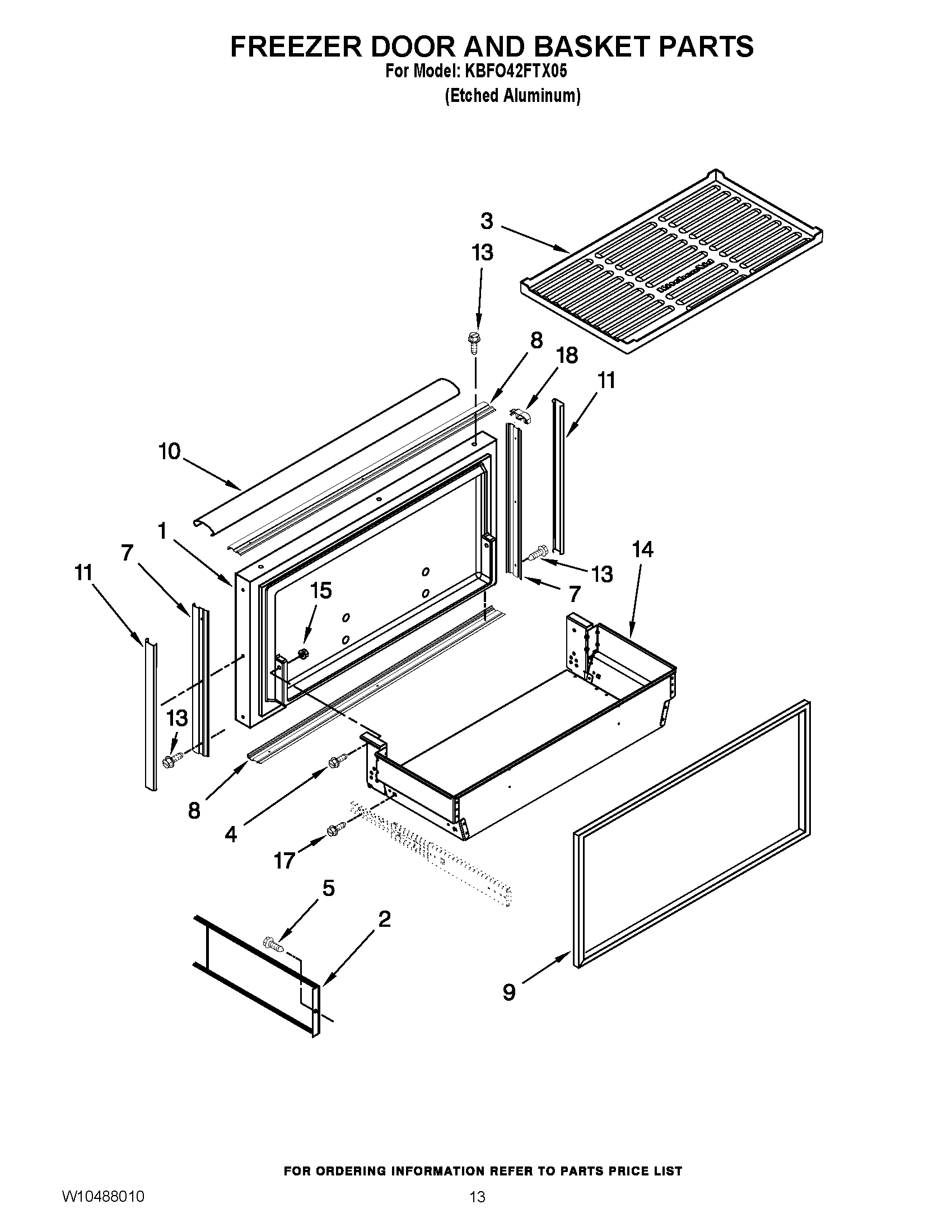

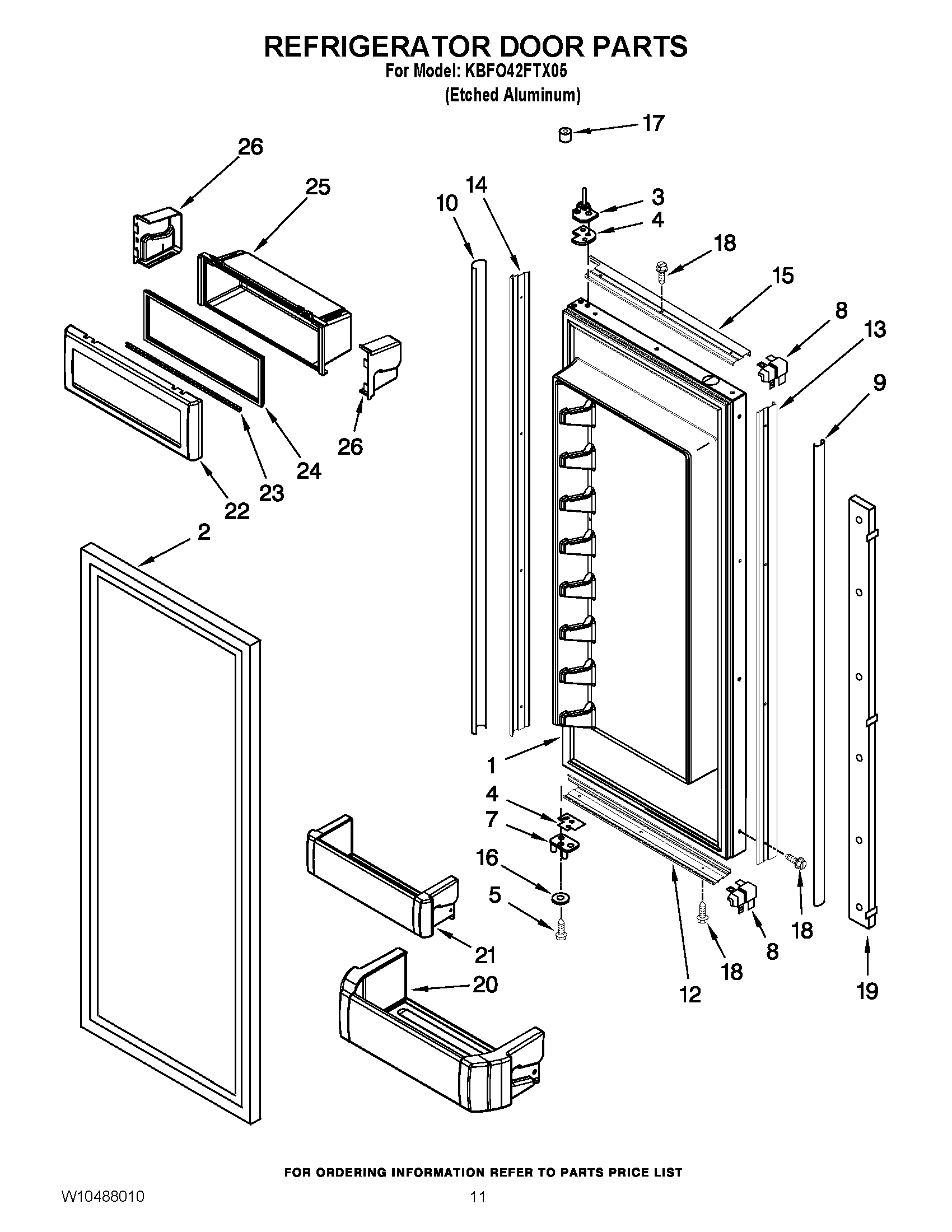

Model Whirlpool KBFO42FTX05 42`` BOTTOM MOUNT BUILT IN REFRIGERATOR – Common Parts & Diagrams

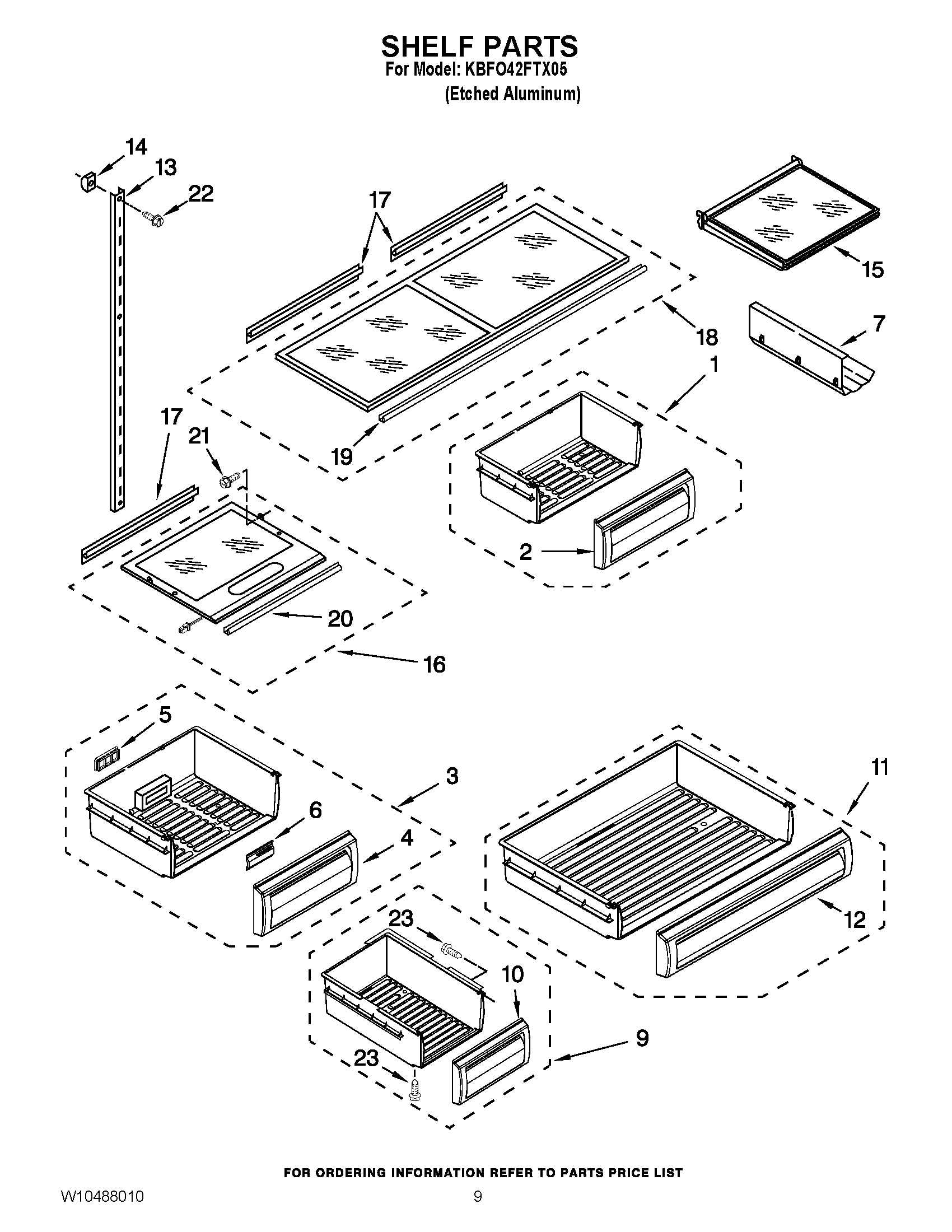

1
CRISPER PAN ASSEMBLY (INCLUDES ITEM 2) (RIGHT
CRISPER PAN ASSEMBLY (INCLUDES ITEM 2) (RIGHT WPL W10407630 Contact Us For Availability
View on Model

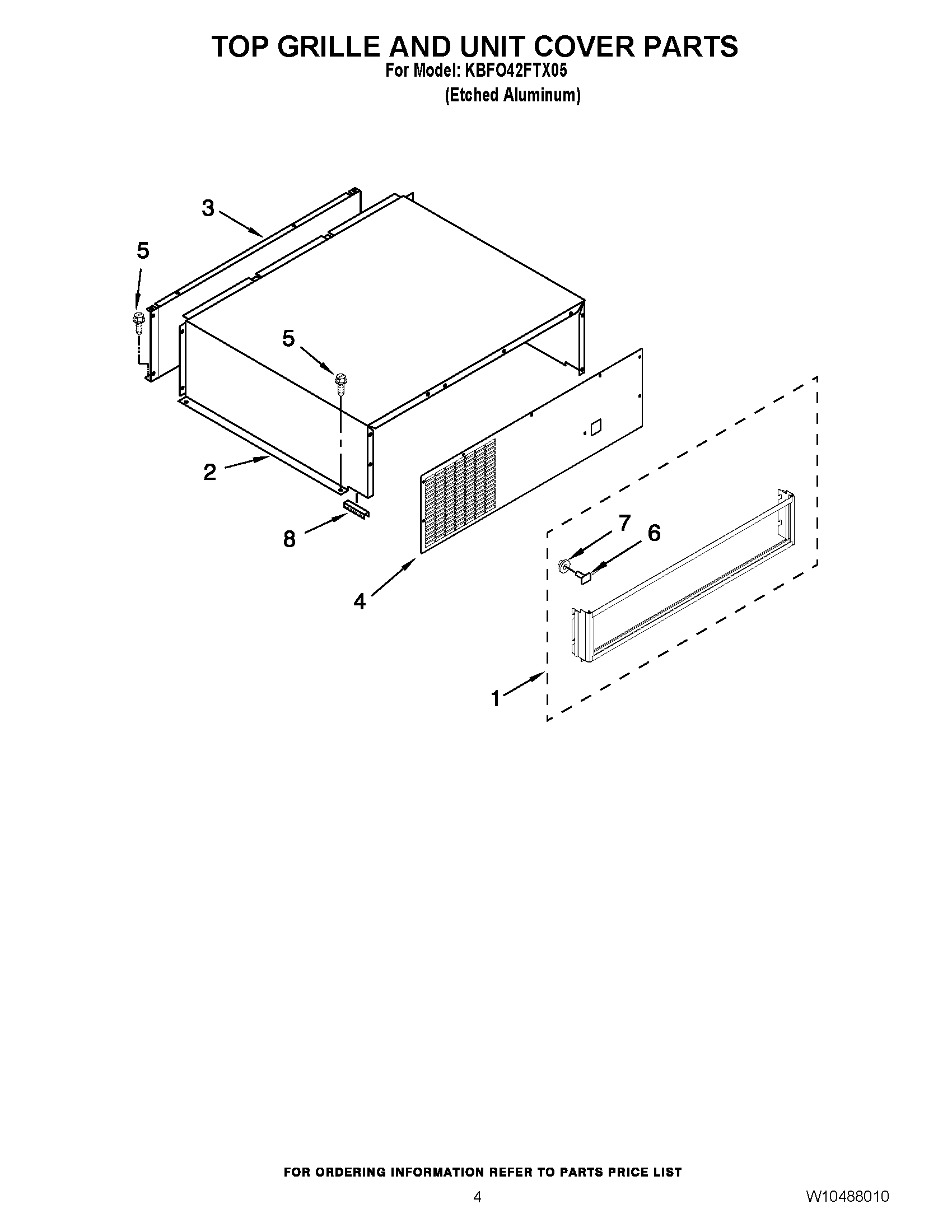

4
FRONT, UNIT COVER
FRONT, UNIT COVER WPL W10185625 Contact Us For Availability
View on Model
5
SCREW 10-32 X 1/2
SCREW 10-32 X 1/2 WPL W10061370 Contact Us For Availability
View on Model

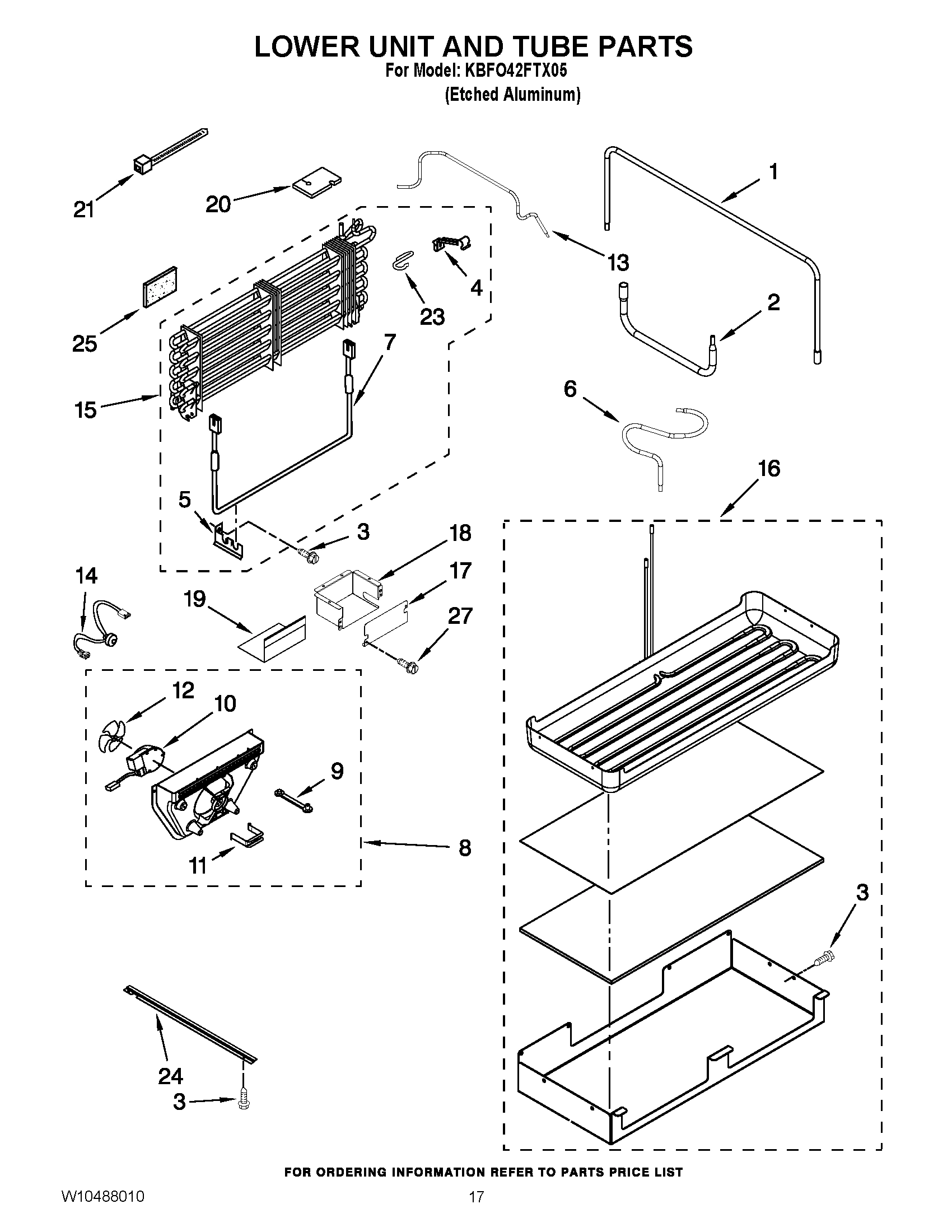

6
TUBE, SUCTION
TUBE, SUCTION WPL W10431124 Contact Us For Availability
View on Model
7
Cam, Mullion (Bottom)
Cam, Mullion (Bottom) WPL 2316858 Contact Us For Availability
View on Model
7
Cam, Mullion (Top)
Cam, Mullion (Top) WPL 2316857 Contact Us For Availability
View on Model

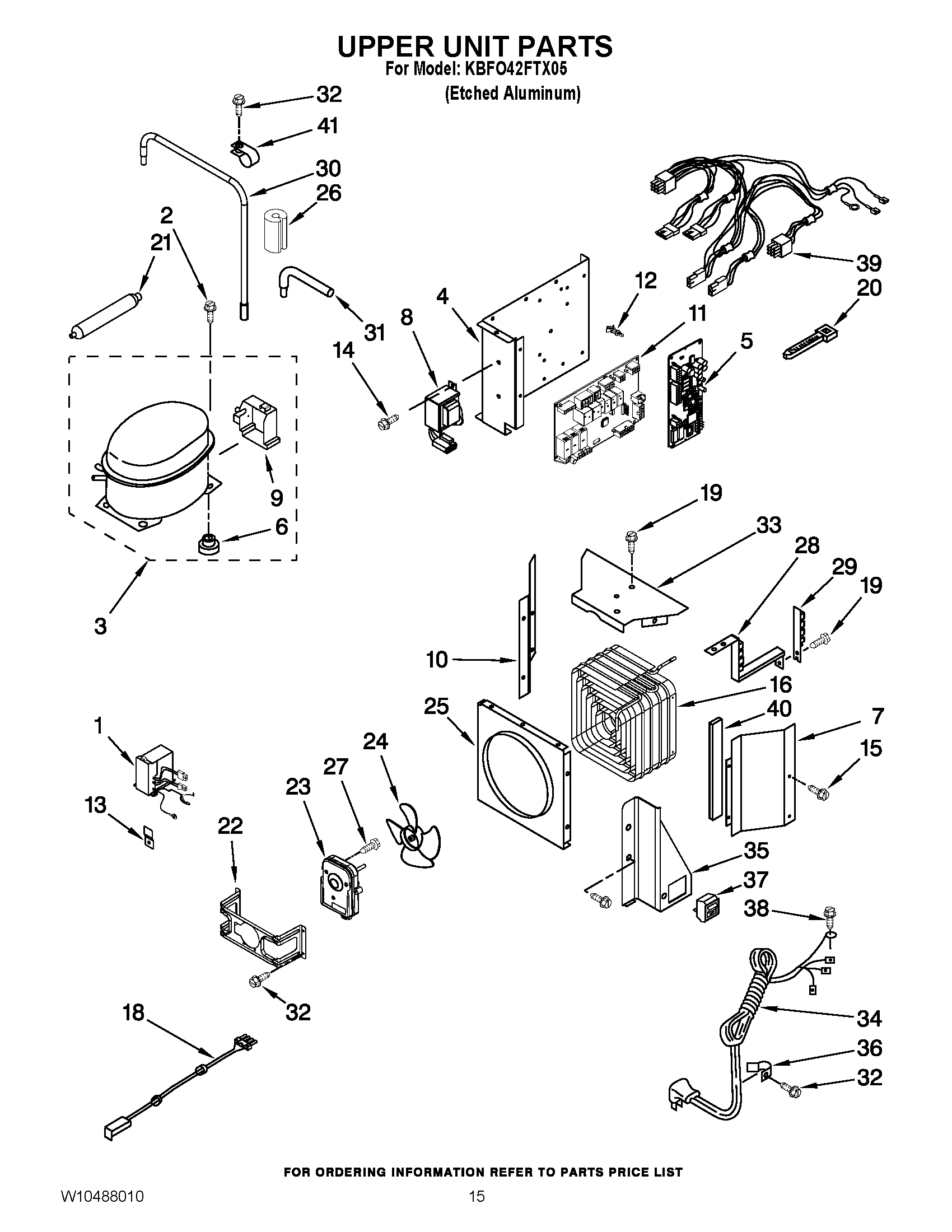

8
Transformer
Transformer WPL 2303033 Contact Us For Availability
View on Model
8
SCROLL ASSEMBLY (INCLUDES ITEMS 9, 10, 11 & 1
SCROLL ASSEMBLY (INCLUDES ITEMS 9, 10, 11 & 1 WPL 2306178 Contact Us For Availability
View on Model

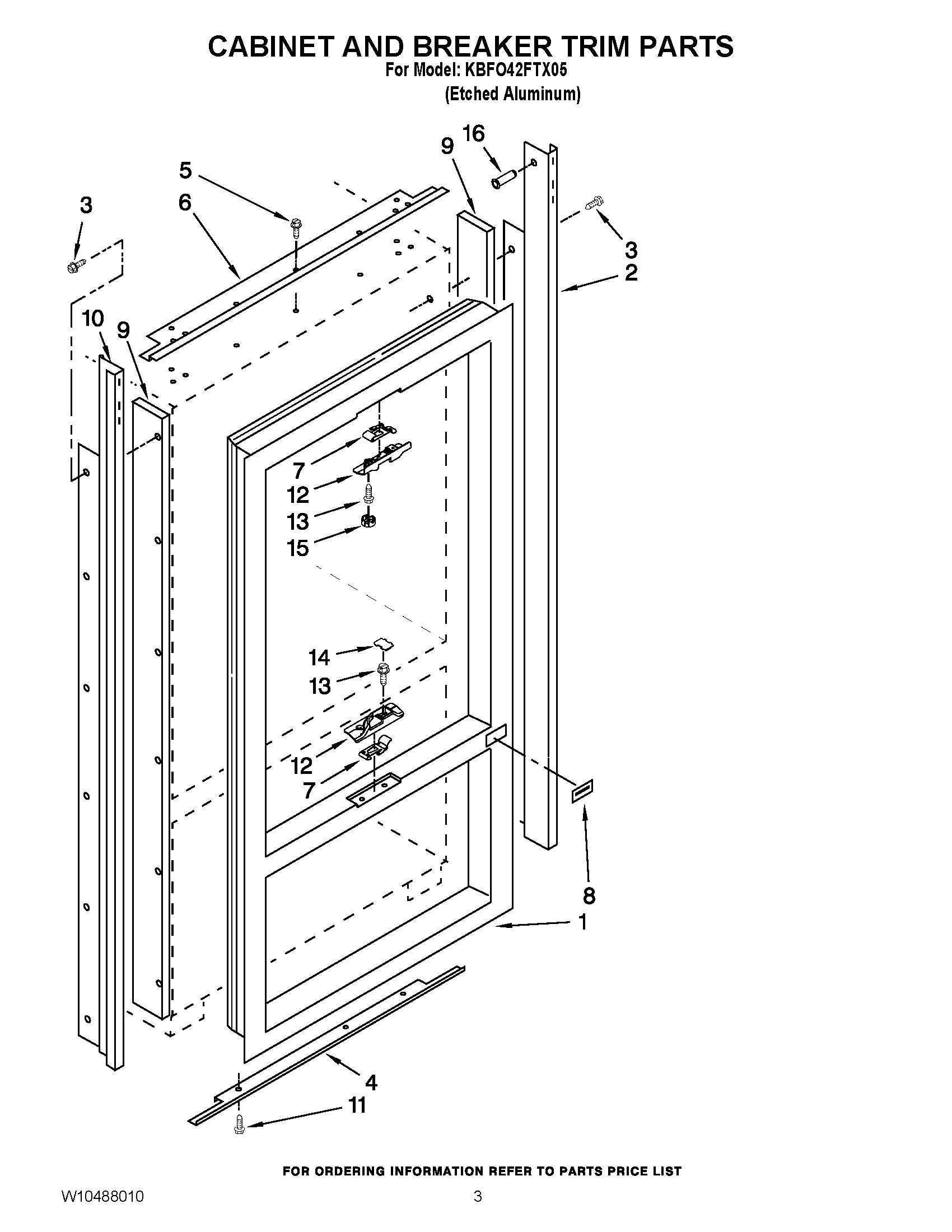

9
SEAL TRIM, SIDE
SEAL TRIM, SIDE WPL 2005925 Contact Us For Availability
View on Model
9
ICE PAN ASSEMBLY (INCLUDES ITEMS 10 & 23)
ICE PAN ASSEMBLY (INCLUDES ITEMS 10 & 23) WPL 2306174 Contact Us For Availability
View on Model
10
Cover-Trim, Top
Cover-Trim, Top WPL 2309033S No Longer Available
View on Model
10
SCREW 10-32 X .564
SCREW 10-32 X .564 WPL W10004850 Contact Us For Availability
View on Model
10
Motor, Fan
Motor, Fan WPL 2259385 Contact Us For Availability
View on Model

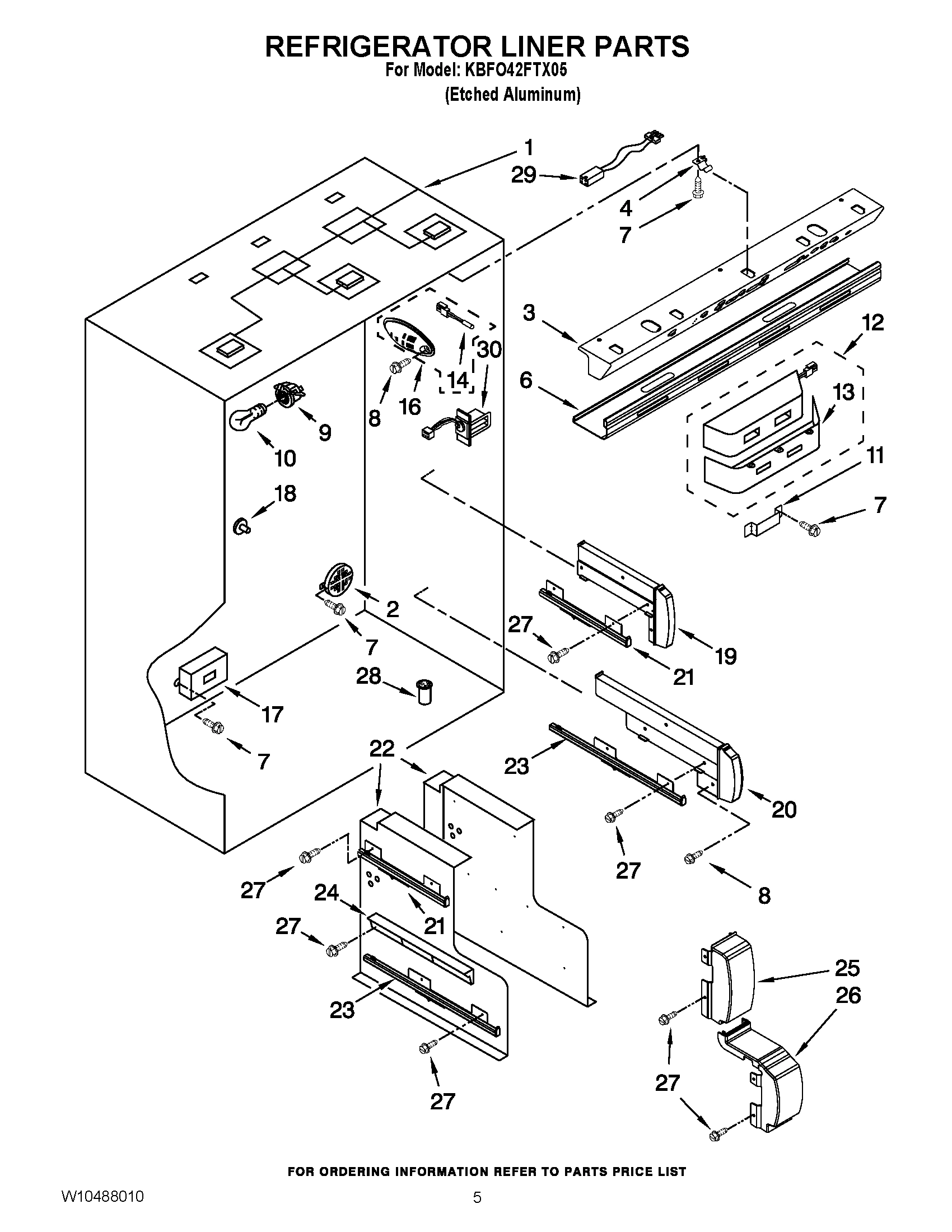

12
Diffuser Assembly
Diffuser Assembly WPL 2320523 Contact Us For Availability
View on Model
14
Defrost Bi-Metal
Defrost Bi-Metal WPL W10139165 Contact Us For Availability
View on Model
17
DIFFUSER, CRISPER (COMPLETE)
DIFFUSER, CRISPER (COMPLETE) WPL 2268249 Contact Us For Availability
View on Model
17
SCREW 8-32 X 1/2
SCREW 8-32 X 1/2 WPL W10005070 Contact Us For Availability
View on Model
17
COVER-BOX, WIRE
COVER-BOX, WIRE WPL W10321048 Contact Us For Availability
View on Model
18
COVER-WIRING, BTM
COVER-WIRING, BTM WPL W10316077 Contact Us For Availability
View on Model
19
MULLION ASSEMBLY (LEFT SIDE DOOR)
MULLION ASSEMBLY (LEFT SIDE DOOR) WPL 2307938 Contact Us For Availability
View on Model
20
DIVIDER, FREEZER BINS (INCLUDES RECEIVER)
DIVIDER, FREEZER BINS (INCLUDES RECEIVER) WPL W10290822 Contact Us For Availability
View on Model
20
Block, Evaporator Water Filter
Block, Evaporator Water Filter WPL 2306180 Contact Us For Availability
View on Model
22
SHIELD
SHIELD WPL 2317927 Contact Us For Availability
View on Model
23
SUPPORT, SLIDE LEFT
SUPPORT, SLIDE LEFT WPL 2306105 Contact Us For Availability
View on Model
23
Clip, Defrost
Clip, Defrost WPL 2317920 Contact Us For Availability
View on Model
32
SKIRT, GRILLE (BOTTOM)
SKIRT, GRILLE (BOTTOM) WPL 2209025B Contact Us For Availability
View on Model
34
Grille Base, Front
Grille Base, Front WPL 2325188B Contact Us For Availability
View on Model
NI
AFFRESH STAINLESS STEEL CLEANER
AFFRESH STAINLESS STEEL CLEANER WPL W10355016 Contact Us For Availability
View on Model
NI
AFFRESH STAINLESS STEEL WIPES
AFFRESH STAINLESS STEEL WIPES WPL W10355049 Contact Us For Availability
View on Model
NI
AFFRESH KITCHEN APPLIANCE CLEANER
AFFRESH KITCHEN APPLIANCE CLEANER WPL W10355010 Contact Us For Availability
View on Model
NI
VALVE, ACCESS (5/8``)
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
View on Model
