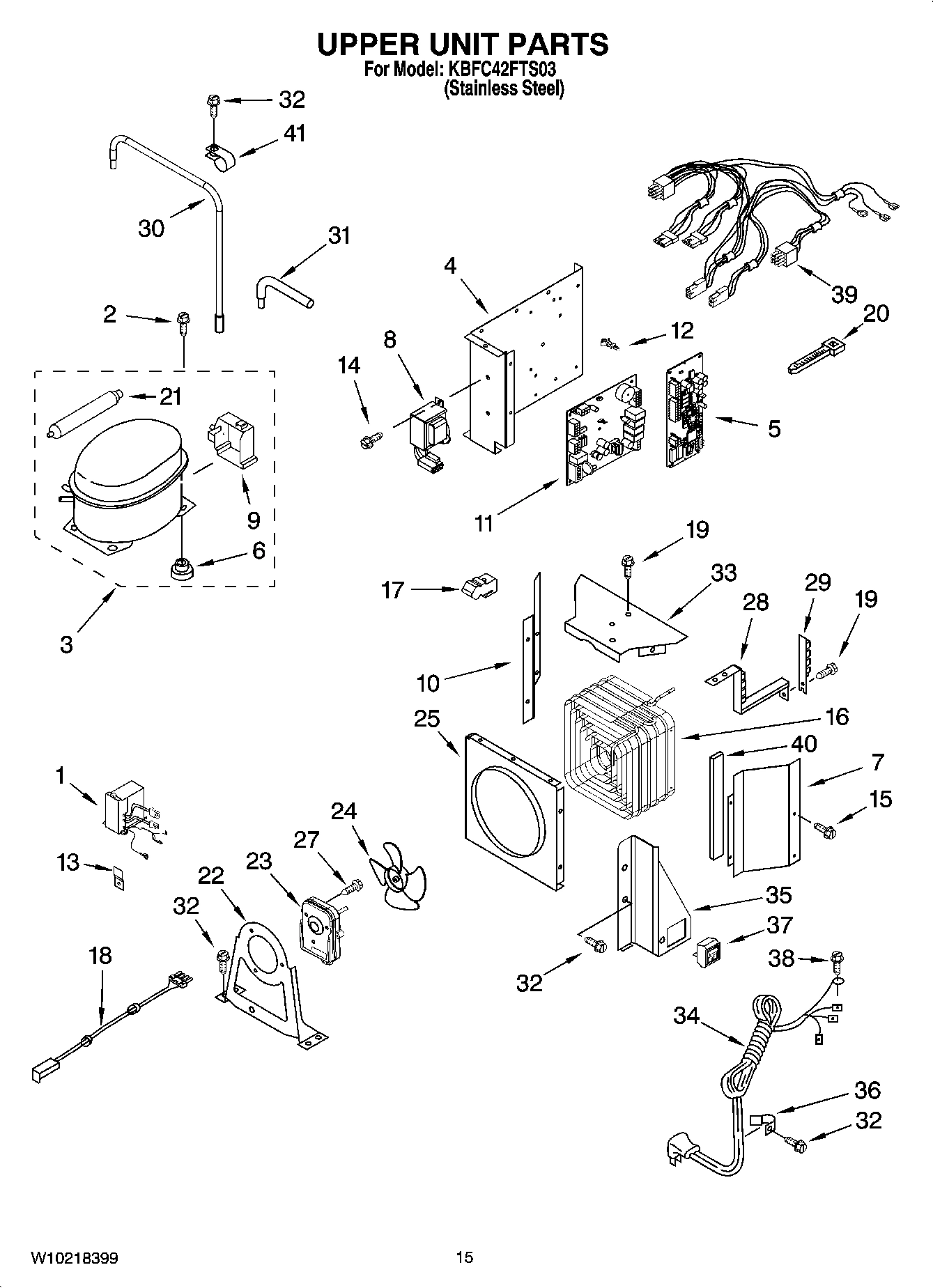

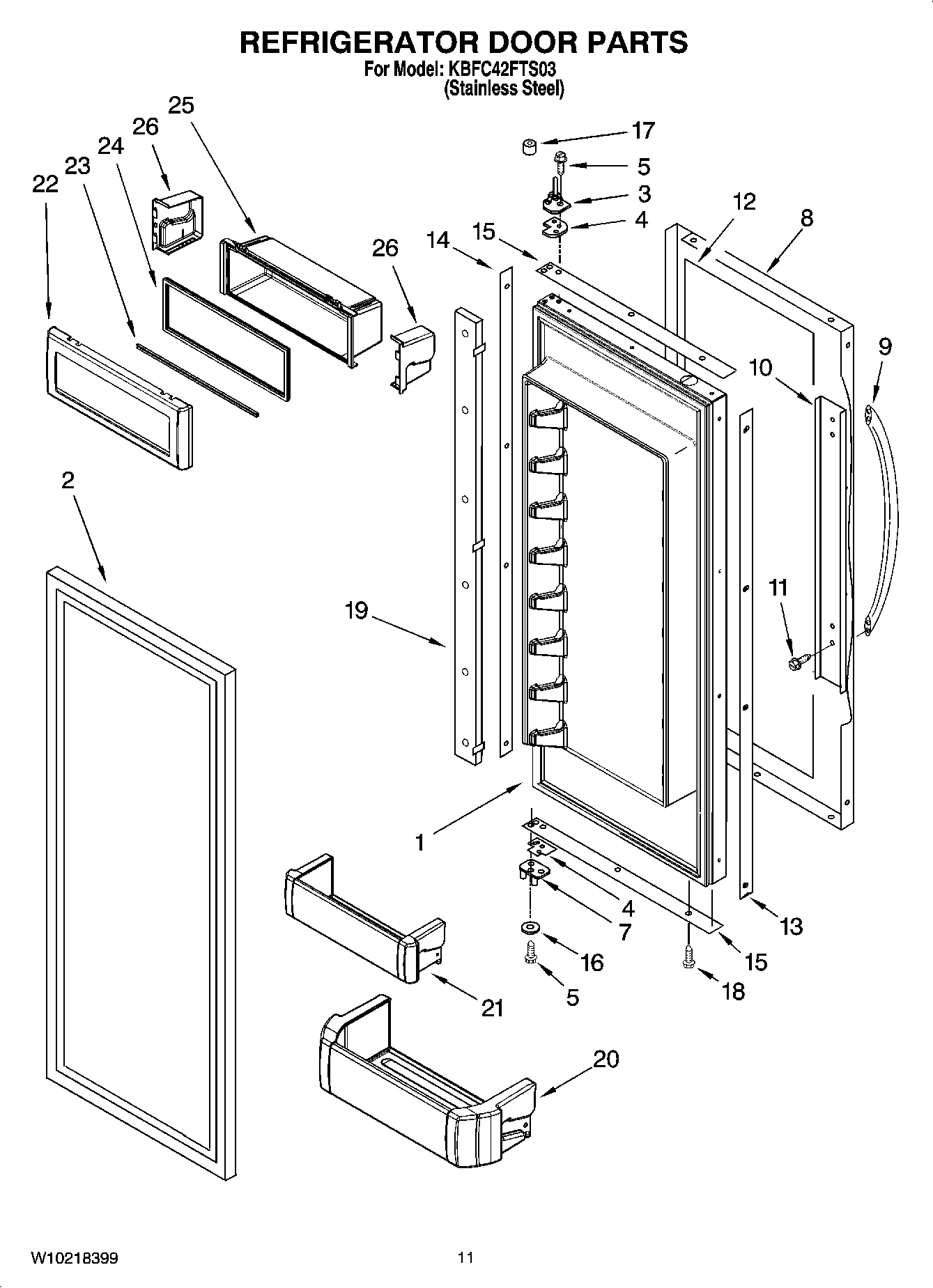

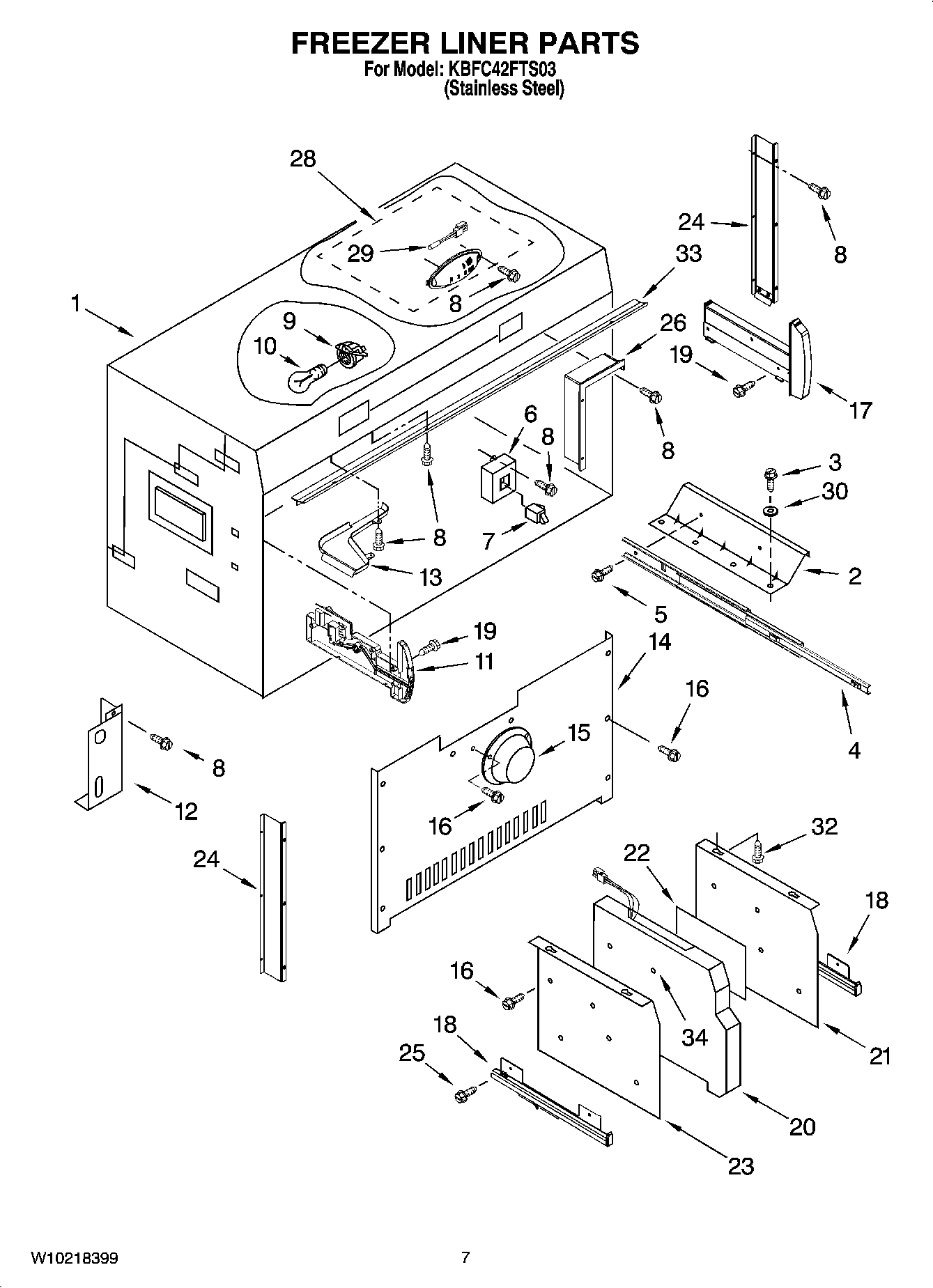

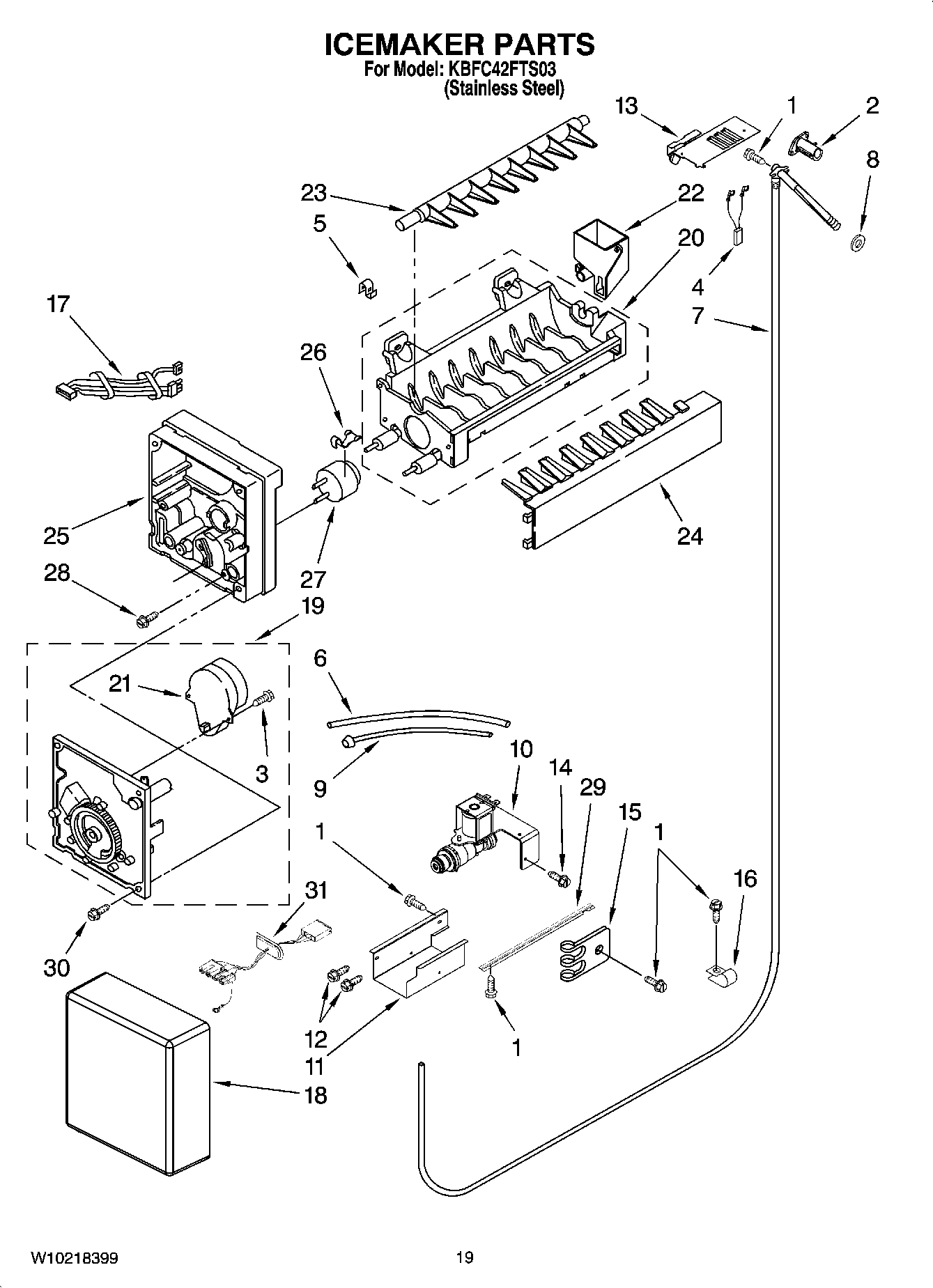

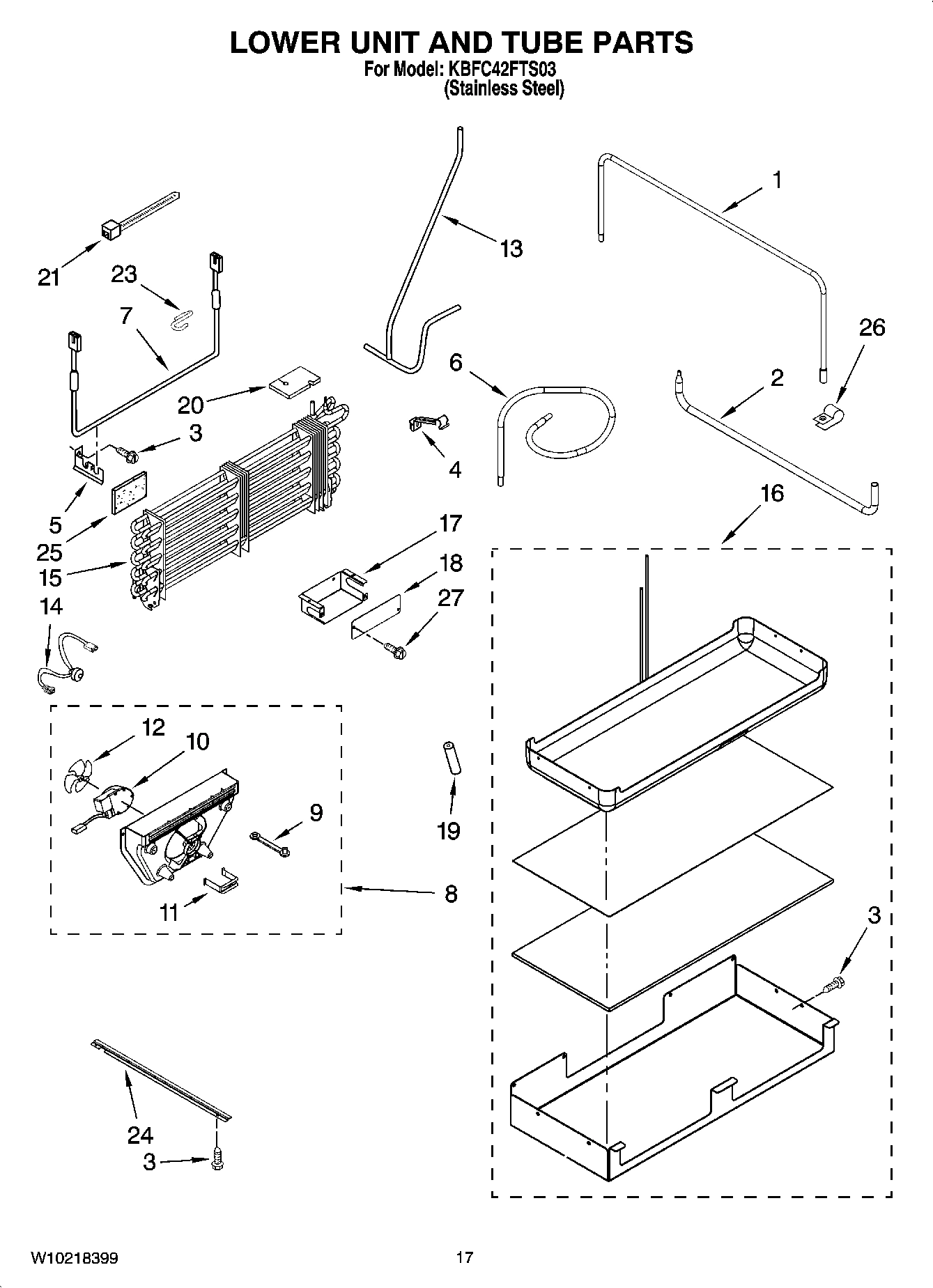

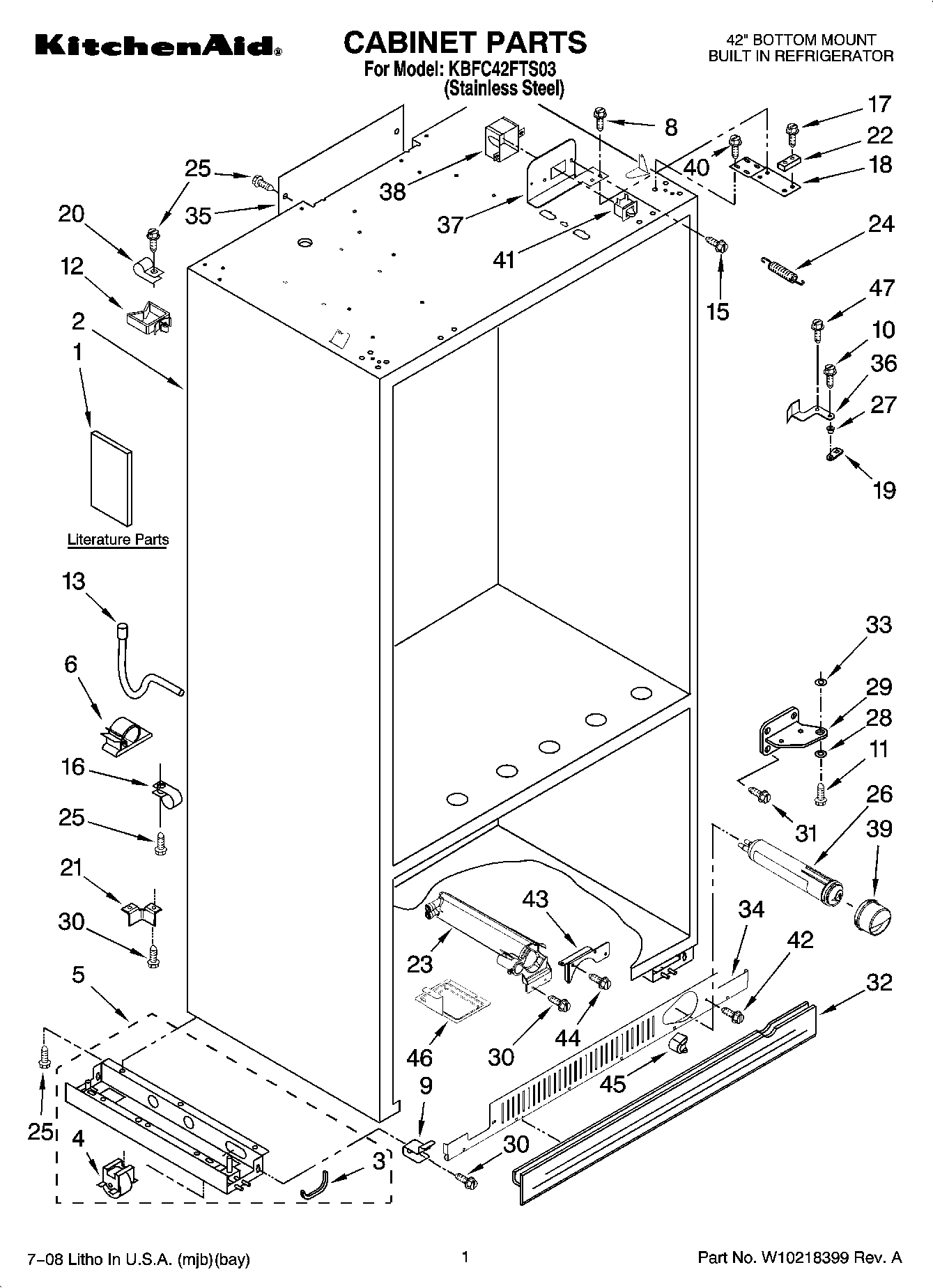

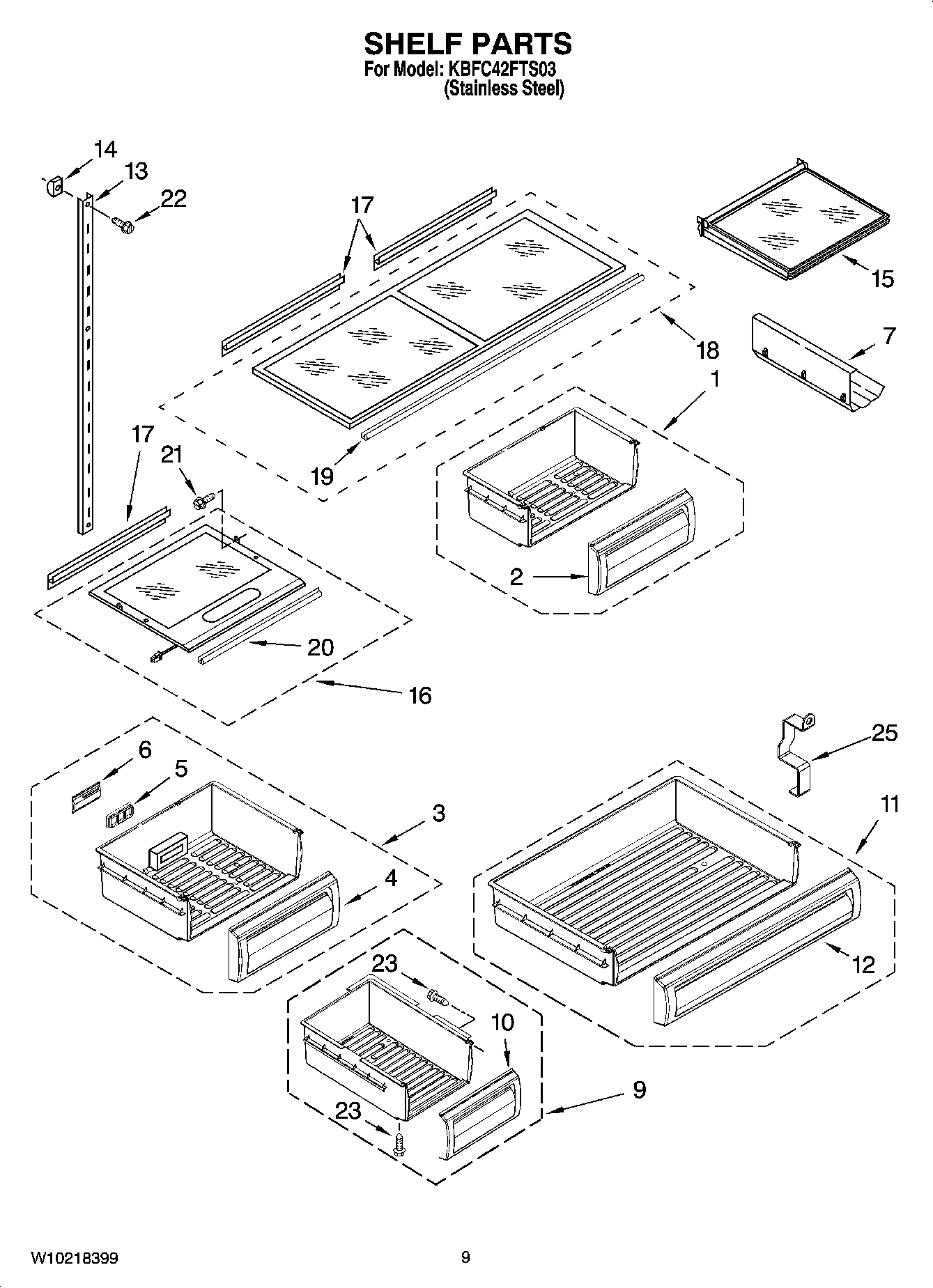

Model Whirlpool KBFC42FTS03 42`` BOTTOM MOUNT BUILT IN REFRIGERATOR – Common Parts &amp; Diagrams

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

W10129081 Whirlpool Refrigerator Handle Backorder WPL W10129081 $211.11

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI78122A9 Contact Us For Availability

REFRIGERANT CHARGE 6.25 oz. (R-134A) WPL ARI78123A6 Contact Us For Availability

1

W10629033 Whirlpool Refrigerator Inverter Con In Stock WPL W10629033 $293.54

1

Crisper Pan Assembly (Includes 2) (Right) WPL 2268171 Contact Us For Availability

1

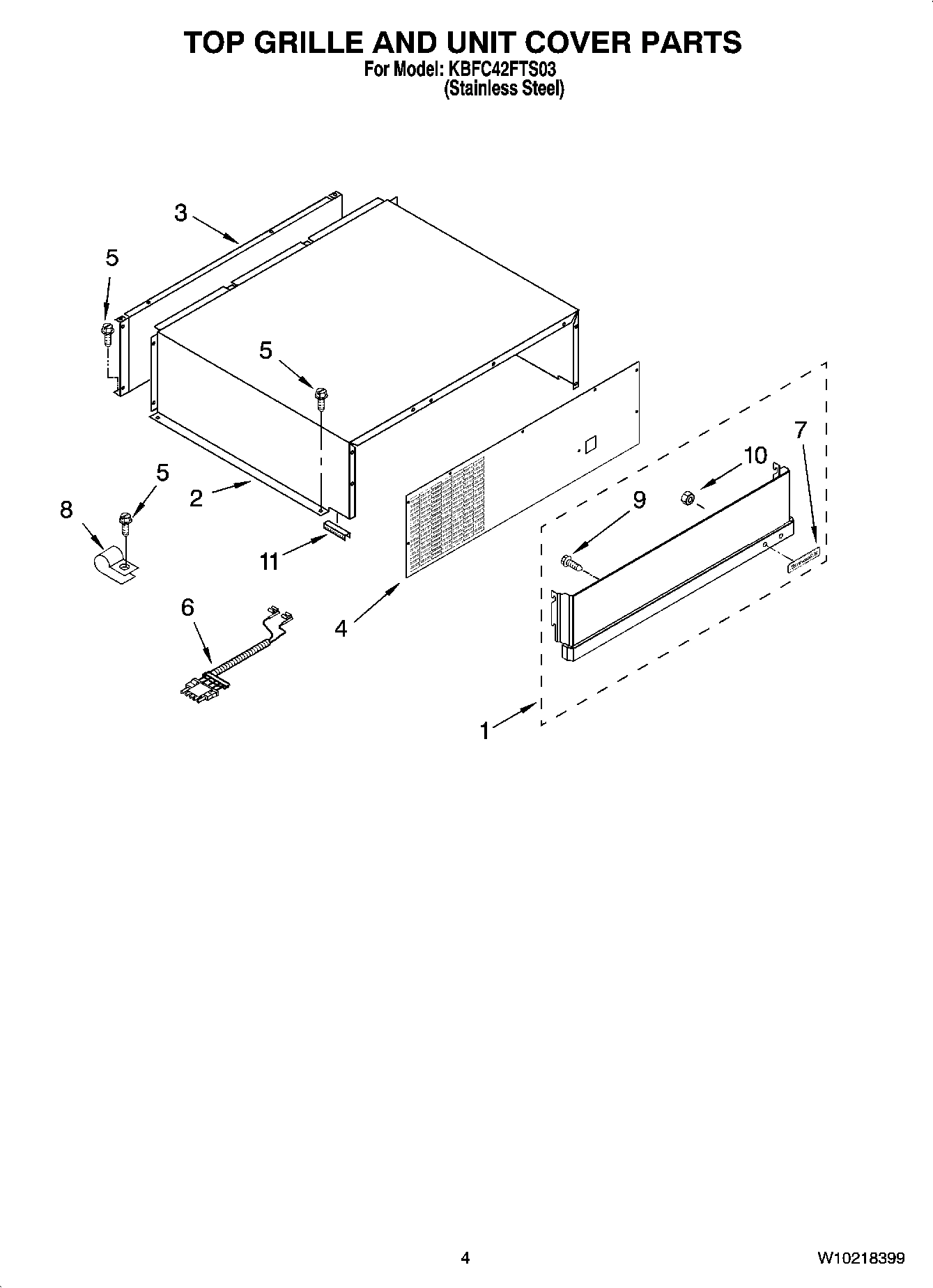

Top Grille Assembly WPL 2316737S Contact Us For Availability

1

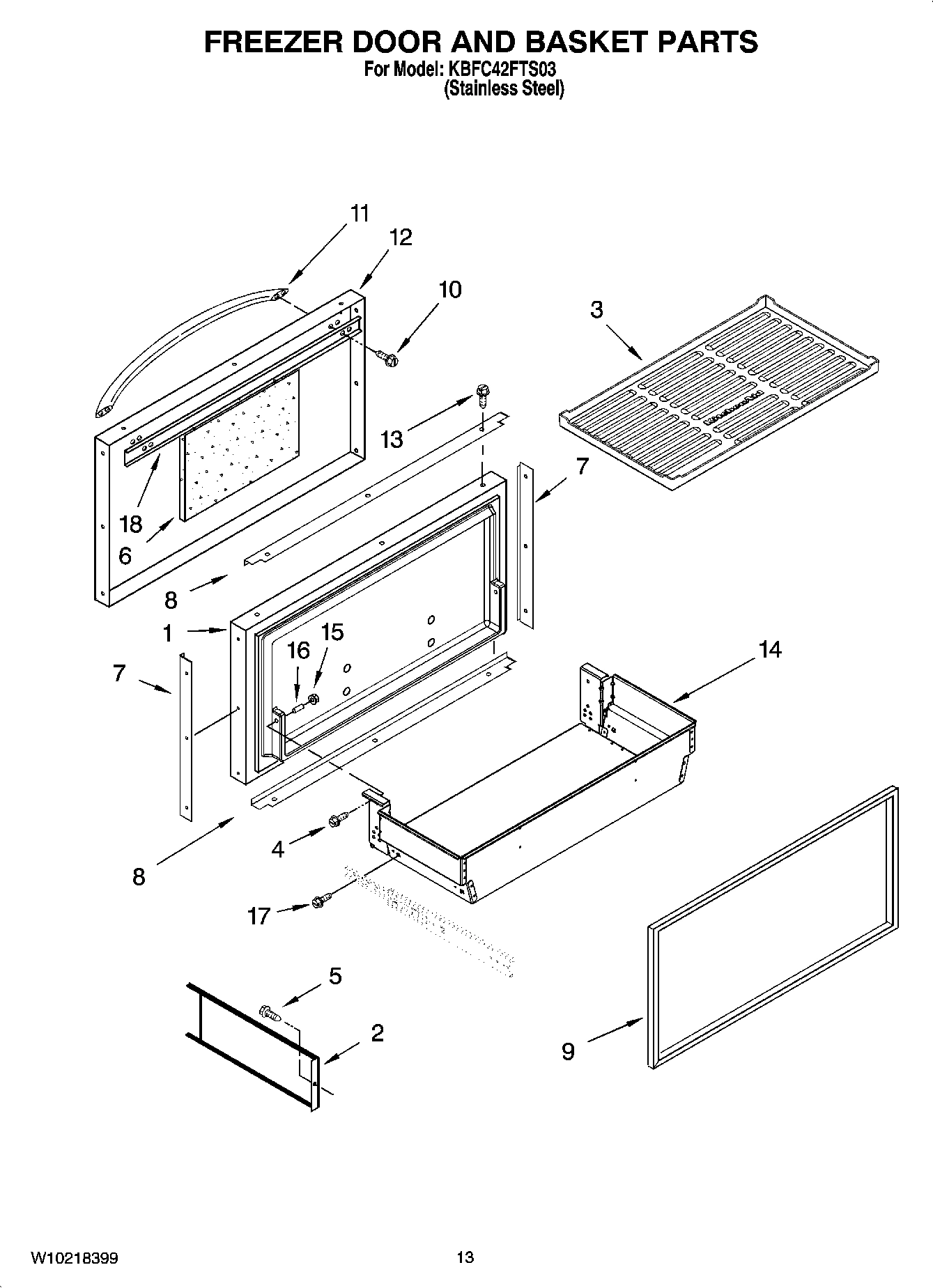

Freezer Door (Includes 9) WPL W10192032 Contact Us For Availability

2

W10744329 Whirlpool Refrigerator Support In Stock WPL W10744329 $218.85

2

WP2221240 Whirlpool Refrigerator Heater In Stock WPL WP2221240 $125.60

2

Cover, Unit WPL W10161693 Contact Us For Availability

2

Divider, Basket (2) WPL 2317101 Contact Us For Availability

3

2256466 Whirlpool Refrigerator Unit Cover Backorder WPL 2256466 $210.17

3

2307584 Whirlpool Refrigerator Grommet Backorder WPL 2307584 $13.64

3

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

3

W10665413 Whirlpool Refrigerator Mat Backorder WPL W10665413 $178.59

3

W10841139 Whirlpool Refrigerator Compressor In Stock WPL W10841139 $413.99

3

WP1163283 Whirlpool Air Conditioner Screw Backorder WPL WP1163283 $4.82

4

W10135775 Whirlpool Refrigerator Screw Backorder WPL W10135775 $9.35

4

W11673500 Whirlpool Door Hinge In Stock WPL W11673500 $86.99

4

WP2320616 Whirlpool Refrigerator Slide In Stock WPL WP2320616 $209.74

4

WPW10138054 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10138054 $20.98

4

Front, Unit Cover WPL 2307682 Contact Us For Availability

4

Housing, Control Board WPL 2307683 Contact Us For Availability

5

WP2303091 Whirlpool Refrigerator Electronic C Backorder WPL WP2303091 $248.93

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

5

WPW10001160 Whirlpool Refrigerator Screw Backorder WPL WPW10001160 $6.83

5

Screw WPL W10061370 Contact Us For Availability

6

2187946 Whirlpool Refrigerator Wire Jumper Backorder WPL 2187946 $61.78

6

2309219 Whirlpool Refrigerator Filler Backorder WPL 2309219 $178.44

6

876811 Whirlpool Grommet Backorder WPL 876811 $4.82

6

Tube, Suction WPL 2309076 Contact Us For Availability

7

2316752 Whirlpool Refrigerator Door Hinge Backorder WPL 2316752 $139.91

7

Cam, Mullion (Bottom) WPL 2316858 Contact Us For Availability

7

Bottom Hinge Assembly (Right) WPL 2316751 Contact Us For Availability

7

Cam, Mullion (Top) WPL 2316857 Contact Us For Availability

7

NAMEPLATE WPL 2317923S Contact Us For Availability

7

Spacer, Door Edge - Side WPL 2316788 Contact Us For Availability

7

Support, Condenser (Right) WPL 2309002 Contact Us For Availability

8

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $6.17

8

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $6.74

8

Transformer WPL 2303033 Contact Us For Availability

8

SPACER, DOOR EDGE TOP & BOTTOM WPL 2309221 Contact Us For Availability

9

2215676 Whirlpool Refrigerator Terminal Cover Backorder WPL 2215676 $61.35

9

2309216 Whirlpool Refrigerator Door Gasket In Stock WPL 2309216 $201.99

9

W11533506 Whirlpool Refrigerator Water Tube In Stock WPL W11533506 $18.97

9

SEAL TRIM, SIDE WPL 2005925 Contact Us For Availability

9

Ice Pan Assembly (Includes 10) WPL 2306174 Contact Us For Availability

WP2004333 Whirlpool Refrigerator Nut Backorder WPL WP2004333 $6.88

WP2307650 Whirlpool Refrigerator Inlet Valve In Stock WPL WP2307650 $169.55

WPA3073101 Whirlpool Light Bulb In Stock WPL WPA3073101 $14.95

SCREW WPL W10004850 Contact Us For Availability

Support, Condenser (Left) WPL 2309001 Contact Us For Availability

2215910 Whirlpool Refrigerator Grommet Backorder WPL 2215910 $61.61

2327511 Whirlpool Refrigerator Pan Backorder WPL 2327511 $205.65

W10219462 Whirlpool Refrigerator Electronic C Backorder WPL W10219462 $248.93

WP2316868 Whirlpool Refrigerator Handle Backorder WPL WP2316868 $191.46

WP308544 Whirlpool Screw In Stock WPL WP308544 $4.82

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $4.67

2309230 Whirlpool Refrigerator Clip Backorder WPL 2309230 $10.02

2309231 Whirlpool Refrigerator Clip Backorder WPL 2309231 $35.25

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $30.99

WP2203075 Whirlpool Refrigerator Spacer Backorder WPL WP2203075 $11.67

Diffuser Assembly WPL 2320523 Contact Us For Availability

Clip (6) WPL W10129069 Contact Us For Availability

Skin, Door WPL 2316733 Contact Us For Availability

13

2256328 Whirlpool Bracket Assembly Backorder WPL 2256328 $46.45

13

2314064 Whirlpool Refrigerator Drain Tube Backorder WPL 2314064 $60.74

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $19.90

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $6.51

Defrost Bi-Metal WPL W10139165 Contact Us For Availability

Basket Assembly, Freezer WPL 2327532 Contact Us For Availability

2317829 Whirlpool Refrigerator Cover Backorder WPL 2317829 $13.24

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.51

W10195924 Whirlpool Refrigerator Evaporator Backorder WPL W10195924 $220.98

WP2207454 Whirlpool Refrigerator Nut Backorder WPL WP2207454 $6.84

WP2221296 Whirlpool Air Baffle In Stock WPL WP2221296 $268.89

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $4.99

2307998 Whirlpool Refrigerator Condenser Backorder WPL 2307998 $322.99

W10757973-includeCORE Whirlpool W10757973 Ref Backorder WPL W10757973-includeCORE $462.17

WP2006346 Whirlpool Refrigerator Washer Backorder WPL WP2006346 $7.60

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $7.20

WPW10121451 Whirlpool Refrigerator Insert Backorder WPL WPW10121451 $4.82

WASHER WPL W10001190 Contact Us For Availability

2309431 Whirlpool Grommet Backorder WPL 2309431 $8.90

2310136 Whirlpool Refrigerator Wire Harness In Stock WPL 2310136 $115.87

W10109030 Whirlpool Refrigerator Screw Backorder WPL W10109030 $9.35

W11500952 Whirlpool Refrigerator Hinge Bushin Backorder WPL W11500952 $20.37

DIFFUSER, CRISPER (COMPLETE)(2) WPL 2268249 Contact Us For Availability

Screw, Door Stop WPL W10005070 Contact Us For Availability

2306116 Whirlpool Refrigerator Slide Backorder WPL 2306116 $210.17

2306117 Whirlpool Refrigerator Slide Backorder WPL 2306117 $189.57

2310207 Whirlpool Wire Harness Backorder WPL 2310207 $60.57

W10127710 Whirlpool Refrigerator Plate Backorder WPL W10127710 $15.88

W11218690 Whirlpool Refrigerator Door Hinge In Stock WPL W11218690 $47.39

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $6.50

WP8281250 Whirlpool Refrigerator Screw In Stock WPL WP8281250 $8.99

2215648 Whirlpool Refrigerator Dampener Backorder WPL 2215648 $8.35

WP2320509 Whirlpool Refrigerator Door Cam Backorder WPL WP2320509 $19.11

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $3.91

Mullion Assembly WPL 2307938 Contact Us For Availability

20

W10833902 Whirlpool Refrigerator Clamp In Stock WPL W10833902 $7.06

20

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

2006617 Whirlpool Refrigerator Bracket Backorder WPL 2006617 $59.25

2302952 Whirlpool Refrigerator Slide Backorder WPL 2302952 $216.38

2302953 Whirlpool Refrigerator Slide Backorder WPL 2302953 $216.62

W10716209 Whirlpool Refrigerator Support In Stock WPL W10716209 $34.52

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $17.56

W11403572 Whirlpool Refrigerator Bracket Backorder WPL W11403572 $42.99

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $29.99

WPW10131132 Whirlpool Refrigerator Door Compr Backorder WPL WPW10131132 $45.01

WPW10136614 Whirlpool Refrigerator Bracket Backorder WPL WPW10136614 $52.62

SHIELD WPL 2317927 Contact Us For Availability

2222795 Whirlpool Refrigerator Rail Backorder WPL 2222795 $54.62

2302956 Whirlpool Refrigerator Slide Backorder WPL 2302956 $203.21

2302957 Whirlpool Refrigerator Slide Backorder WPL 2302957 $155.33

W11578915 Whirlpool Condenser Motor In Stock WPL W11578915 $54.75

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $59.71

WPW10121140 Whirlpool Refrigerator Housing In Stock WPL WPW10121140 $193.47

SUPPORT, SLIDE LEFT WPL 2306105 Contact Us For Availability

WP2004517 Whirlpool Refrigerator Spring In Stock WPL WP2004517 $60.46

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $55.70

WP2222981 Whirlpool Refrigerator Gasket In Stock WPL WP2222981 $140.92

WPW10139483 Whirlpool Refrigerator Condenser In Stock WPL WPW10139483 $54.88

25

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $68.41

25

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $4.82

25

Orifice, Fan WPL 2003169 Contact Us For Availability

26

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $65.79

27

WP2316859 Whirlpool Refrigerator Bushing In Stock WPL WP2316859 $35.70

27

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $71.99

27

WP8533993 Whirlpool Refrigerator Screw Backorder WPL WP8533993 $6.83

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $14.99

WP2004994 Whirlpool Refrigerator Hinge Bushin Backorder WPL WP2004994 $4.82

WP2317844 Whirlpool Refrigerator Cover Backorder WPL WP2317844 $7.52

BRACKET, VIBRATION (CONDENSER) WPL 2317031 Contact Us For Availability

2310164 Whirlpool Refrigerator Wire Harness In Stock WPL 2310164 $81.25

W10337505 Whirlpool Refrigerator Door Hinge Backorder WPL W10337505 $85.24

WP2188820 Whirlpool Refrigerator Thermistor In Stock WPL WP2188820 $25.99

ARM, VIBRATION (CONDENSER) WPL 2317030 Contact Us For Availability

30

2307566 Whirlpool Refrigerator Tube Backorder WPL 2307566 $10.91

30

W10075920 Whirlpool Refrigerator Washer Backorder WPL W10075920 $5.51

30

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

31

W10528578 Whirlpool Refrigerator Tube Backorder WPL W10528578 $25.40

31

W11474472 Whirlpool Screw In Stock WPL W11474472 $3.91

32

W11624204 Whirlpool Screw Backorder WPL W11624204 $8.89

32

WP8533928 Whirlpool Refrigerator Screw In Stock WPL WP8533928 $6.99

32

SKIRT, GRILLE (BOTTOM) WPL 2209025B Contact Us For Availability

33

2314023 Whirlpool Bushing Backorder WPL 2314023 $31.08

33

Cover, Condenser WPL 2309000 Contact Us For Availability

34

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $4.99

34

WP2310251 Whirlpool Refrigerator Power Cord Backorder WPL WP2310251 $60.50

34

Grille Base, Front WPL 2325188B Contact Us For Availability

35

2215612 Whirlpool Refrigerator Duct Cover Backorder WPL 2215612 $65.16

35

W10185556 Whirlpool Refrigerator Bracket Backorder WPL W10185556 $41.58

36

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $8.91

36

W10847927 Whirlpool Refrigerator Extension In Stock WPL W10847927 $50.90

36

W11298172 Whirlpool Refrigerator Extension Backorder WPL W11298172 $54.25

37

2221096 Whirlpool Refrigerator Bracket Backorder WPL 2221096 $63.54

37

2221097 Whirlpool Refrigerator Bracket Backorder WPL 2221097 $63.54

37

WP2266802 Whirlpool Refrigerator Switch In Stock WPL WP2266802 $62.93

38

2215938 Whirlpool Refrigerator Switch Cover In Stock WPL 2215938 $59.36

38

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

39

WP2260518B Whirlpool Water Filter Cap In Stock WPL WP2260518B $22.99

39

Wiring Harness, Unit Compartment WPL W10123227 Contact Us For Availability

40

2309432 Whirlpool Seal Strip Backorder WPL 2309432 $56.45

40

W11721628 Whirlpool Screw Assembly Backorder WPL W11721628 $8.89

41

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $17.77

41

Clamp, Tube WPL 488937 Contact Us For Availability

43

BRACKET Backorder WPL W11755873 $47.10

44

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $6.83

45

WP2260503B Whirlpool Refrigerator Button Backorder WPL WP2260503B $51.99

46

2318189 Whirlpool Refrigerator Drip Pan Backorder WPL 2318189 $96.75

47

WP8533980 Whirlpool Refrigerator Screw Backorder WPL WP8533980 $56.94
