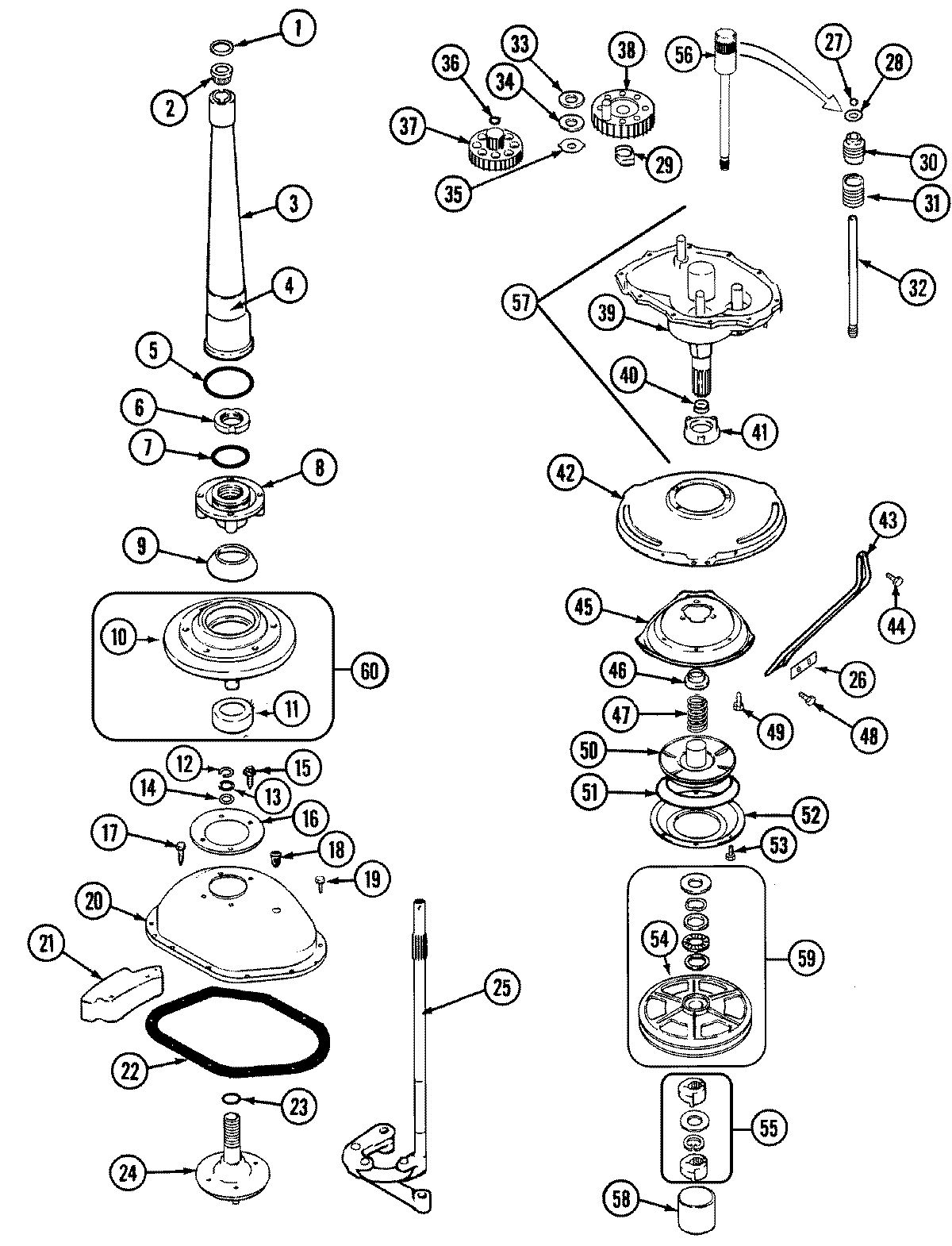

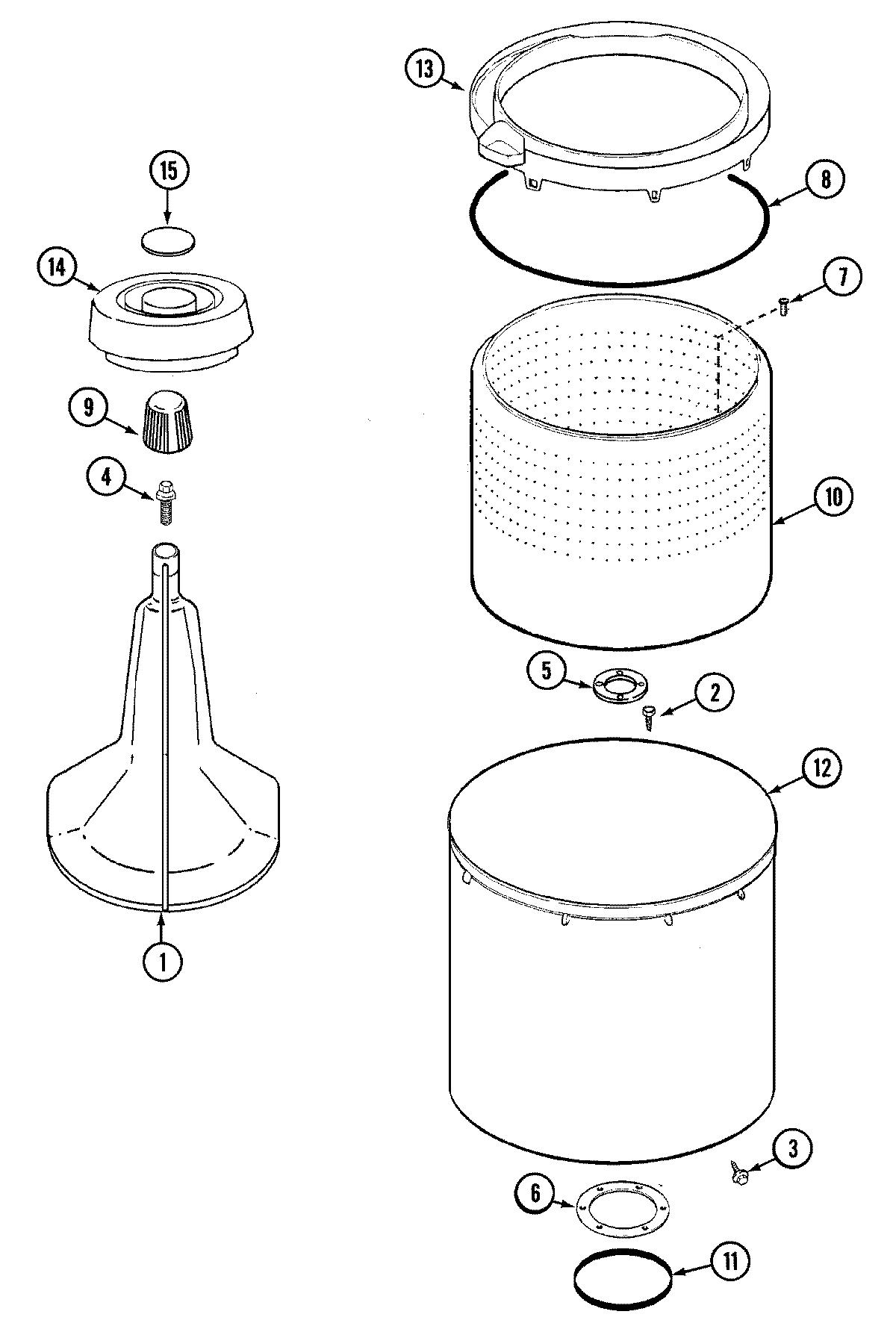

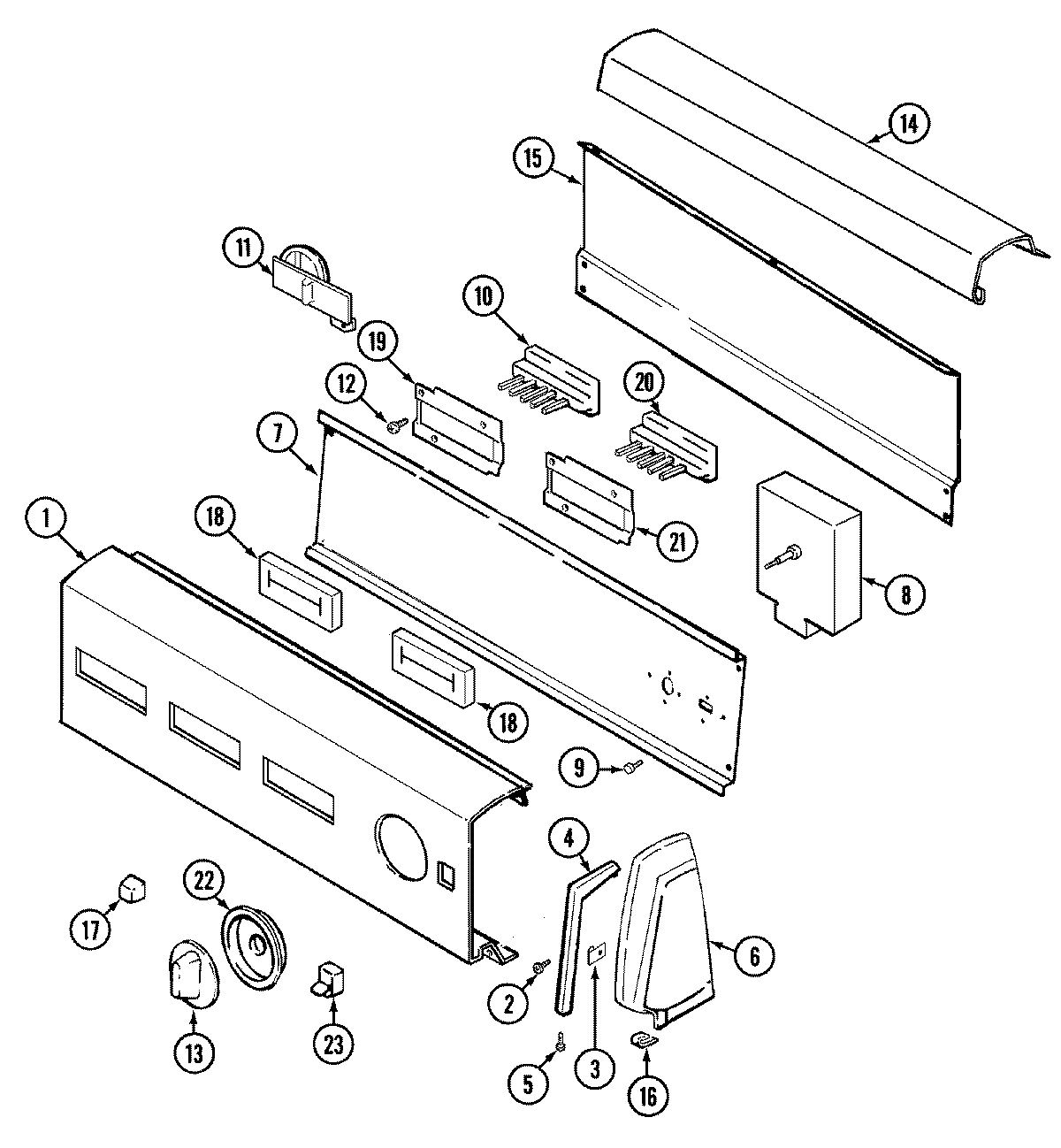

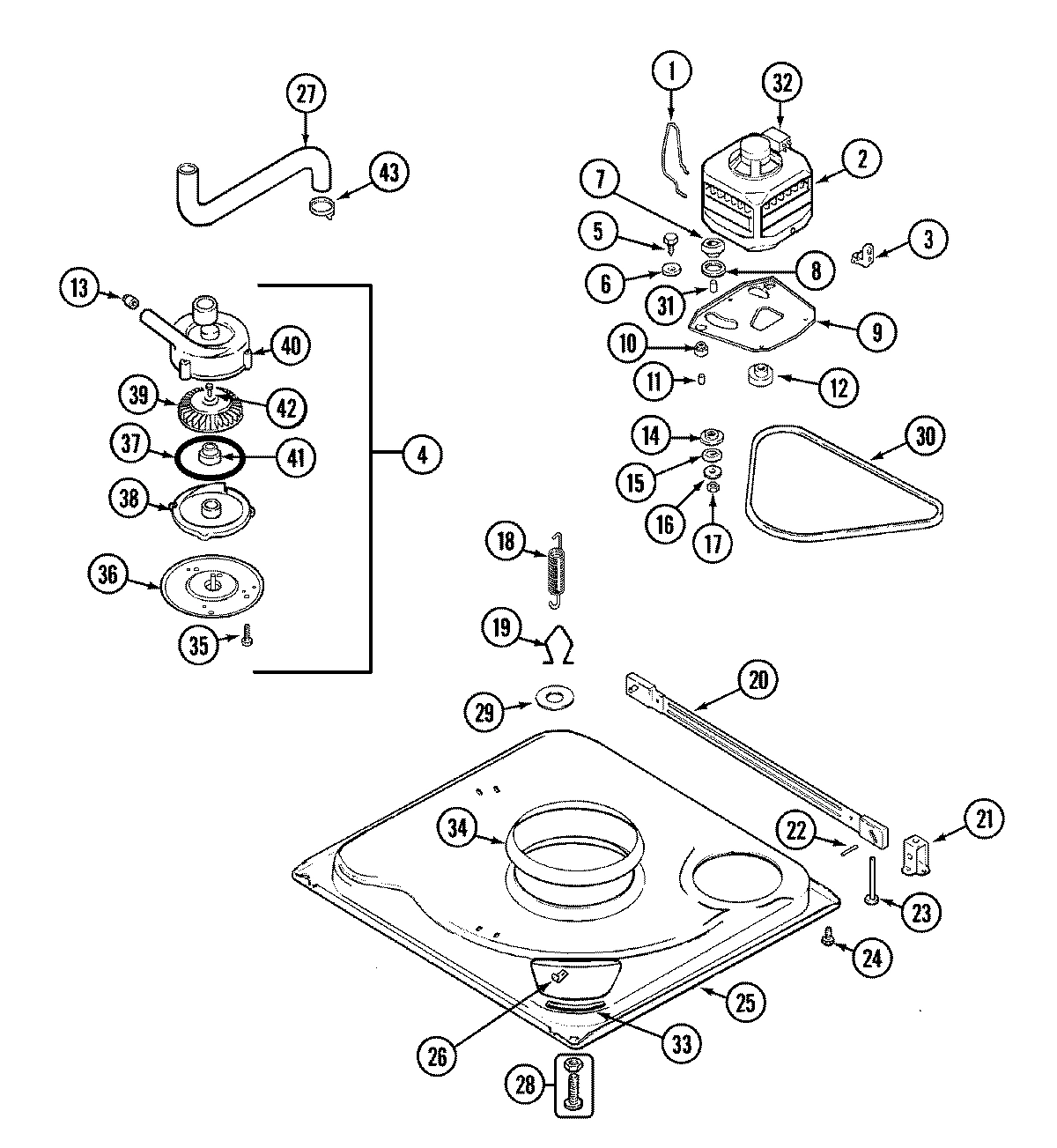

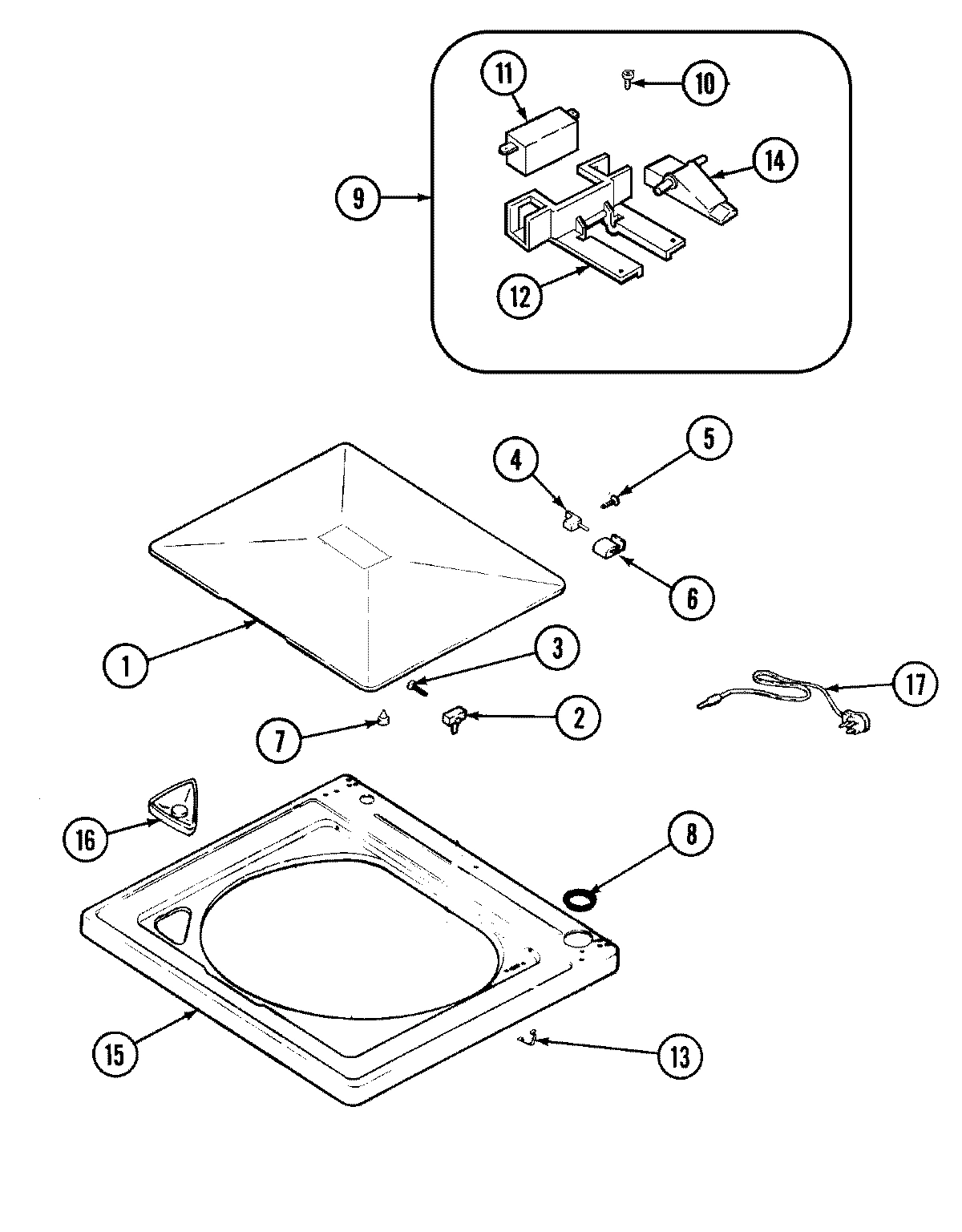

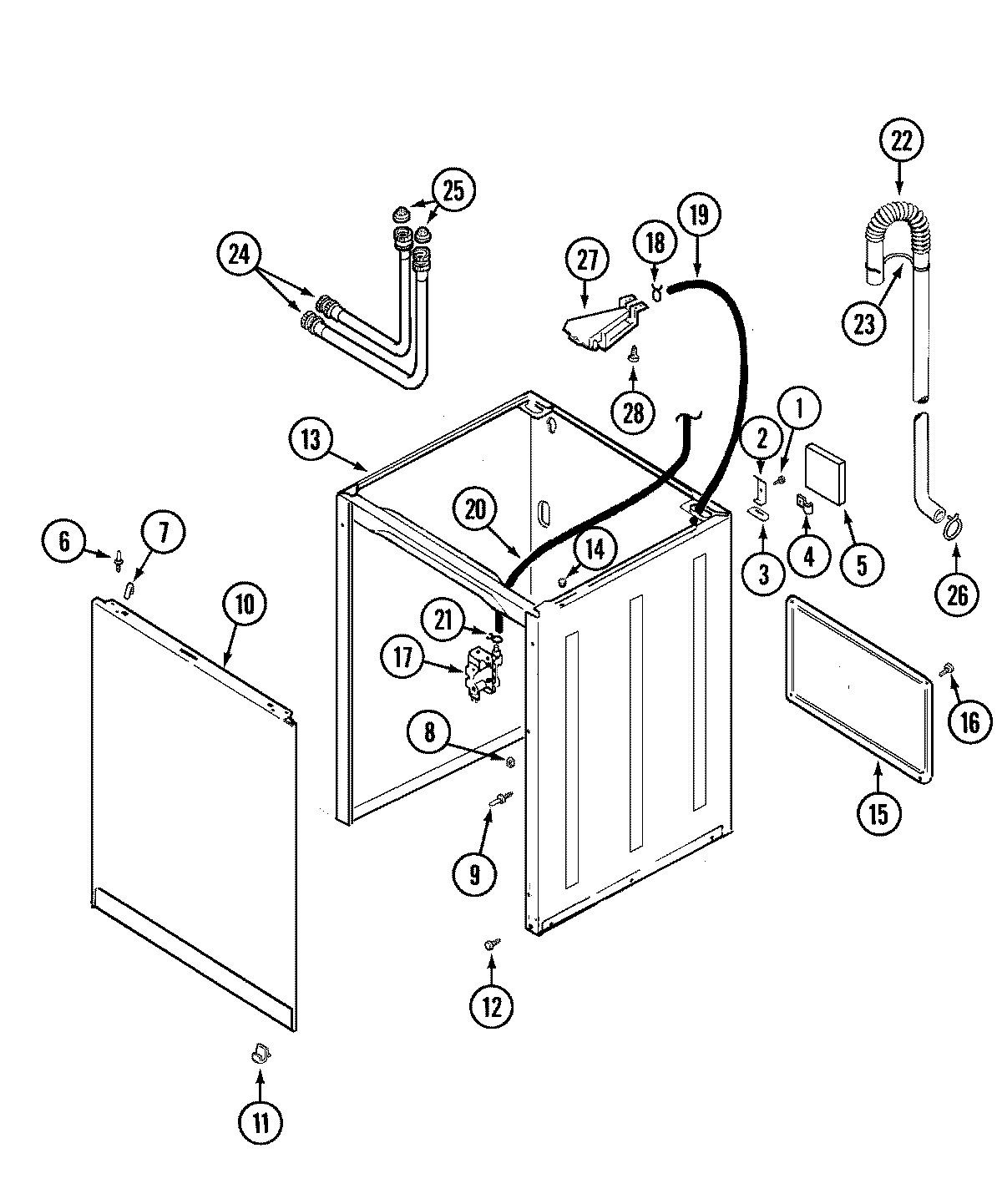

Model Whirlpool JW2000W WASHER – Common Parts &amp; Diagrams

1

PANEL, CONTROL (WHT) WPL 21001255 Contact Us For Availability

1

``O`` RING WPL 257941 Contact Us For Availability

1

AGITATOR WPL 353580 Contact Us For Availability

1

LID (WHT) (DOOR) WPL 352026 Contact Us For Availability

1

SCREW WPL 257893 Contact Us For Availability

2

SCREW WPL 257649 Contact Us For Availability

2

BEARING, CENTERPOST WPL 21001066 Contact Us For Availability

2

SCREW SHOULDER WPL 257947 Contact Us For Availability

2

MOTOR & PULLEY/PLATE ASSY. WPL 21001170 Contact Us For Availability

2

MOTOR/PLATE ASSEMBLY (COMPLETE WPL 21001400 Contact Us For Availability

2

ACTUATOR, DOOR SWITCH WPL 430057 Contact Us For Availability

2

HINGE, CABINET TOP WPL 352846 Contact Us For Availability

3

SPEEDCLIP, END CAP TO CTRL PNL WPL 257702 Contact Us For Availability

3

CENTERPOST WPL 352792 Contact Us For Availability

3

CENTERPOST ASSY. WPL 352983 Contact Us For Availability

3

SCREW WPL 257953 Contact Us For Availability

3

SLIDE, FOOT WPL 21001109 Contact Us For Availability

3

SCREW WPL 257438 Contact Us For Availability

3

PAD, HINGE WPL 354128 Contact Us For Availability

4

TRIM, ENDCAP (RT) (WHT) WPL 21001245 Contact Us For Availability

4

TRIM, ENDCAP (LT) (WHT) WPL 21001246 Contact Us For Availability

4

BEARING, AGITATOR WPL 336790 Contact Us For Availability

4

SCREW, AGITATOR RETENTION WPL 257948 Contact Us For Availability

4

PUMP ASSY (COMPLETE) WPL 353834 Contact Us For Availability

4

PIN, HINGE WPL 352045 Contact Us For Availability

4

CLIP, WIRING WPL 257027 Contact Us For Availability

5

SEAL, CENTERPOST BOTTOM WPL 352906 Contact Us For Availability

5

SCREW WPL 257760 Contact Us For Availability

5

GASKET, BASKET TO CENTERPOST WPL 353685 Contact Us For Availability

5

SCREW WPL 257833 Contact Us For Availability

5

PAD, FOAM WPL 350706 Contact Us For Availability

6

NUT, SPIN TUBE WPL 352791 Contact Us For Availability

6

CAP, END (RT)(WHT) WPL 352668 Contact Us For Availability

6

CAP, END (LT)(WHT) WPL 352669 Contact Us For Availability

6

GASKET, TUB TO HOUSING WPL 353686 Contact Us For Availability

6

WASHER WPL 257834 Contact Us For Availability

6

HINGE, LID WPL 352044 Contact Us For Availability

7

``O`` RING, BASKET DRIVE HUB WPL 257938 Contact Us For Availability

7

SHIELD, CONTROL WPL 21001266 Contact Us For Availability

7

PAD, SHIELD WPL 31001193 Contact Us For Availability

7

SCREW WPL 257965 Contact Us For Availability

7

ISOLATOR, MOTOR WPL 339946 Contact Us For Availability

7

BUMPER, DOOR (LID) WPL 350581 Contact Us For Availability

7

CLIP, CABINET TOP WPL 257220 Contact Us For Availability

8

HUB, BASKET DRIVE WPL 353647 Contact Us For Availability

8

TIMER WPL 21001325 Contact Us For Availability

8

TIMER WPL 353843 Contact Us For Availability

8

SEAL, TUB TOP WPL 352328 Contact Us For Availability

8

WASHER, MOTOR PIVOT WPL 353570 Contact Us For Availability

8

BUSHING, INSULATOR WPL 352063 Contact Us For Availability

8

NUT, LOCATOR PIN WPL 250224 Contact Us For Availability

9

WP3400094 Whirlpool Screw Backorder WPL WP3400094 $4.82

9

TUB SEAL/HUB ASSY (HT TRANS) WPL 352974 Contact Us For Availability

9

CAP, AGITATOR WPL 352733 Contact Us For Availability

9

PLATE, MOTOR WPL 21001111 Contact Us For Availability

9

LID SWITCH ASSY.-W/LEADS WPL 21001137 Contact Us For Availability

9

PIN, LOCATOR WPL 530643 Contact Us For Availability

9

SLEEVE, LOCATOR PIN WPL 530200 Contact Us For Availability

WP3400872 Whirlpool Screw Backorder WPL WP3400872 $4.82

BEARING & SEAL HOUSING ASSY. WPL 12001561 Contact Us For Availability

HOUSING, BEARING & SEAL WPL 352716 Contact Us For Availability

SWITCH, 4 PUSHBUTTON WPL 353862 Contact Us For Availability

BASKET, SPIN WPL 353687 Contact Us For Availability

ISOLATOR, MOTOR PLATE WPL 353646 Contact Us For Availability

DAMPER, SOUND PAD WPL 21001281 Contact Us For Availability

PANEL, FRONT (WHT) WPL 352084 Contact Us For Availability

SEAL, TUB/HOUSING WPL 352978 Contact Us For Availability

BEARING, SPIN WPL 352205 Contact Us For Availability

SWITCH, WATER LEVEL (WHT) WPL 21001257 Contact Us For Availability

BRACKET, SWITCH WPL 21001286 Contact Us For Availability

SPACER WPL 257831 Contact Us For Availability

SWITCH, LID/DOOR SAFETY SPIN WPL 21001148 Contact Us For Availability

CLIP, FRONT PANEL WPL 530120 Contact Us For Availability

WP21001108 Whirlpool Motor Pulley In Stock WPL WP21001108 $15.70

WP21001135 Whirlpool Housing Backorder WPL WP21001135 $2.34

BEARING ASSEMBLY (LWR) WPL 12001562 Contact Us For Availability

SCREW WPL 257712 Contact Us For Availability

RING, RETAINING (AG. SHAFT) WPL 257949 Contact Us For Availability

TUB ASSEMBLY (PLASTIC) WPL 353700 Contact Us For Availability

BUMPER, CABINET WPL 354129 Contact Us For Availability

KNOB, TIMER (WHT) WPL 21001251 Contact Us For Availability

TOP, TUB WPL 353578 Contact Us For Availability

RESTRICTOR, FLOW WPL 352344 Contact Us For Availability

CLIP WPL 257878 Contact Us For Availability

CABINET ASSY. (WHT) WPL 352106 Contact Us For Availability

LEVER, LID SWITCH WPL 21001134 Contact Us For Availability

COVER, CONTROL PANEL (WHT) WPL 21001243 Contact Us For Availability

DISPENSER, RINSE WPL 352550 Contact Us For Availability

SLIDE, MOTOR PIVOT WPL 353571 Contact Us For Availability

BUMPER, CABINET WPL 332653 Contact Us For Availability

SCREW, SEMS WPL 253457 Contact Us For Availability

SHIELD, CONTROL PANEL (REAR) WPL 352688 Contact Us For Availability

INSERT, RINSE DISPENSER WPL 21001269 Contact Us For Availability

WASHER, MOTOR ISOLATOR WPL 339967 Contact Us For Availability

TOP, CABINET (WHT) WPL 352739 Contact Us For Availability

SHIELD,REAR(NLA,ORDER CAB KIT) WPL 352108 Contact Us For Availability

SPEEDCLIP, END CAP TO TOP WPL 257851 Contact Us For Availability

COVER, REINFORCEMENT WPL 352981 Contact Us For Availability

WASHER, FLAT WPL 257047 Contact Us For Availability

DISPENSER, BLEACH WPL 21001167 Contact Us For Availability

SCREW WPL 257732 Contact Us For Availability

35-2374N Whirlpool Water Mixing Valve Backorder WPL 35-2374N $205.09

PUSHBUTTON (WHT) WPL 353191 Contact Us For Availability

NUT, MOTOR PLATE ASY TO MOTOR WPL 257325 Contact Us For Availability

CORD, POWER WPL 350680 Contact Us For Availability

VALVE, WATER WPL 352374N Contact Us For Availability

PAD, SWITCH WPL 353515 Contact Us For Availability

PLUG, OIL FILL WPL 352621 Contact Us For Availability

TOOL, 6 POINT SPRING WPL 21001138 Contact Us For Availability

SPRING, SUSPENSION WPL 21001165 Contact Us For Availability

CLAMP WPL 257867 Contact Us For Availability

WP21001166 Whirlpool Hook Backorder WPL WP21001166 $4.82

SCREW 5/16-18X3/4 WPL 257930 Contact Us For Availability

BRACKET, SWITCH WPL 336621 Contact Us For Availability

SCREW WPL 257758 Contact Us For Availability

HOSE, FLUME/DIVERTER (RUBBER) WPL 352378 Contact Us For Availability

20

SWITCH, PUSHBUTTON WPL 21001259 Contact Us For Availability

20

COVER, TRANSMISSION WPL 352620 Contact Us For Availability

20

BAR, STABILIZER (WITH GUIDE) WPL 352049 Contact Us For Availability

BRACKET WPL 338186 Contact Us For Availability

COUNTERWEIGHT WPL 353706 Contact Us For Availability

BRACKET, STABILIZER WPL 352046 Contact Us For Availability

CLAMP, PRESSURE SWITCH HOSE WPL 257796 Contact Us For Availability

SKIRT, TIMER (WHT) WPL 21001249 Contact Us For Availability

GASKET, TRANSMISSION HOUSING WPL 350542 Contact Us For Availability

PIN, STABILIZER WPL 352052 Contact Us For Availability

HOSE, DRAIN WPL 353538 Contact Us For Availability

SWITCH, ROCKER (WHITE) WPL 353898 Contact Us For Availability

GASKET KIT WPL 334293N Contact Us For Availability

FOOT PAD ASSY. (REAR) WPL 353020 Contact Us For Availability

RETAINER WPL 339537 Contact Us For Availability

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $5.30

GUIDE, QUICK REF - JENN-AIR WPL 16000326 Contact Us For Availability

MANUAL, USE & CARE WPL 21001289 Contact Us For Availability

DRIVE TUBE ASSY. WPL 353702 Contact Us For Availability

HOSE, 4` INLET WPL 337891 Contact Us For Availability

HOSE, INLET WPL 350873 Contact Us For Availability

25

LINKAGE ASSY. WPL 353804 Contact Us For Availability

25

BASE WPL 21001169 Contact Us For Availability

25

STRAINER & WASHER KIT WPL 334264N Contact Us For Availability

26

PLATE, REINFORCEMENT WPL 352025 Contact Us For Availability

26

SPEEDNUT WPL 257845 Contact Us For Availability

26

CLAMP, DISCHARGE HOSE WPL 257080 Contact Us For Availability

WASHER,1.25ODX.530IDX.062 WPL 352082 Contact Us For Availability

WASHER,1.25ODX.530IDX.032 WPL 352132 Contact Us For Availability

RING, RETAINING (CLUTCH ASSY.) WPL 257847 Contact Us For Availability

HOSE, TUB TO PUMP WPL 353584 Contact Us For Availability

FLUME, WATER INLET WPL 352051 Contact Us For Availability

RING, RETAINING WPL 257854 Contact Us For Availability

SCREW WPL 253092 Contact Us For Availability

WASHER, FLAT WPL 257415 Contact Us For Availability

FOOT & PAD ASSY WPL 353507 Contact Us For Availability

29

STOP, ANTIBACKUP CAM WPL 353384 Contact Us For Availability

29

WASHER, SUSPENSION HOOK WPL Y257951 Contact Us For Availability

30

WP21352320 Whirlpool Washer Drive Belt In Stock WPL WP21352320 $17.32

30

PINION, DRIVE WPL 352001 Contact Us For Availability

31

TRANSMISSION ASSY., DUAL DRIVE WPL 21001394 Contact Us For Availability

31

SPRING, CLUTCH WPL 353608 Contact Us For Availability

31

SPACER WPL 257830 Contact Us For Availability

32

DRIVE SHAFT & HUB ASSY. WPL 352692 Contact Us For Availability

32

SWITCH, MOTOR WPL 339765 Contact Us For Availability

33

WASHER, STEEL WPL 257274 Contact Us For Availability

33

PAD, MOTOR PLATE WPL 352065 Contact Us For Availability

34

SNUBBER WPL 21001161 Contact Us For Availability

34

WASHER, NYLON WPL 353825 Contact Us For Availability

35

WASHER, STEEL W/TABS WPL 352070 Contact Us For Availability

35

SCREW WPL 257419 Contact Us For Availability

36

RING, RETAINING WPL 257933 Contact Us For Availability

36

PLATE & PULLEY ASSY. WPL 336035 Contact Us For Availability

37

GEAR, CLUSTER WPL 352527 Contact Us For Availability

37

GASKET WPL 336032 Contact Us For Availability

38

GEAR, CRANK WPL 21001067 Contact Us For Availability

38

BASE, PUMP WPL 352058 Contact Us For Availability

39

HOUSING, TRANSMISSION WPL 352812 Contact Us For Availability

39

IMPELLER WPL 352057 Contact Us For Availability

40

SEAL,TRANSMISSION HOUSING(LIP) WPL 352010 Contact Us For Availability

40

HOUSING, PUMP WPL 352056 Contact Us For Availability

41

BEARING ASSY. (LOWER) WPL 352730 Contact Us For Availability

41

SEAL, SEAT & ``O`` RING WPL 350707 Contact Us For Availability

42

SUPPORT, TUB WPL 21001162 Contact Us For Availability

42

SCREW, No.10 TORQ LIMITING WPL 257828 Contact Us For Availability

43

BRACE, TUB WPL 21001164 Contact Us For Availability

43

CLAMP, HOSE WPL 256068 Contact Us For Availability

45

HOUSING, SUSPENSION WPL 21001163 Contact Us For Availability

46

RETAINER, BRAKE SPRING WPL 352017 Contact Us For Availability

47

SPRING, BRAKE WPL 352112 Contact Us For Availability

49

SCREW, SUSP HSG TO LWR BRG ASY WPL 257895 Contact Us For Availability

50

BRAKE ROTOR & LINING ASSY WPL 352948 Contact Us For Availability

52

STATOR, BRAKE WPL 352018 Contact Us For Availability

54

WPL 353829 WPL 353829 Contact Us For Availability

55

WPL LA2007 WPL LA2007 Contact Us For Availability

56

WPL LA2176 WPL LA2176 Contact Us For Availability

57

WPL 352973 WPL 352973 Contact Us For Availability

58

WPL 352007 WPL 352007 Contact Us For Availability

59

12002213 Whirlpool Washer Pulley and Thrust B In Stock WPL 12002213 $34.02

60

WPL 352972 WPL 352972 Contact Us For Availability

61

WPL 21001168 WPL 21001168 Contact Us For Availability

NI

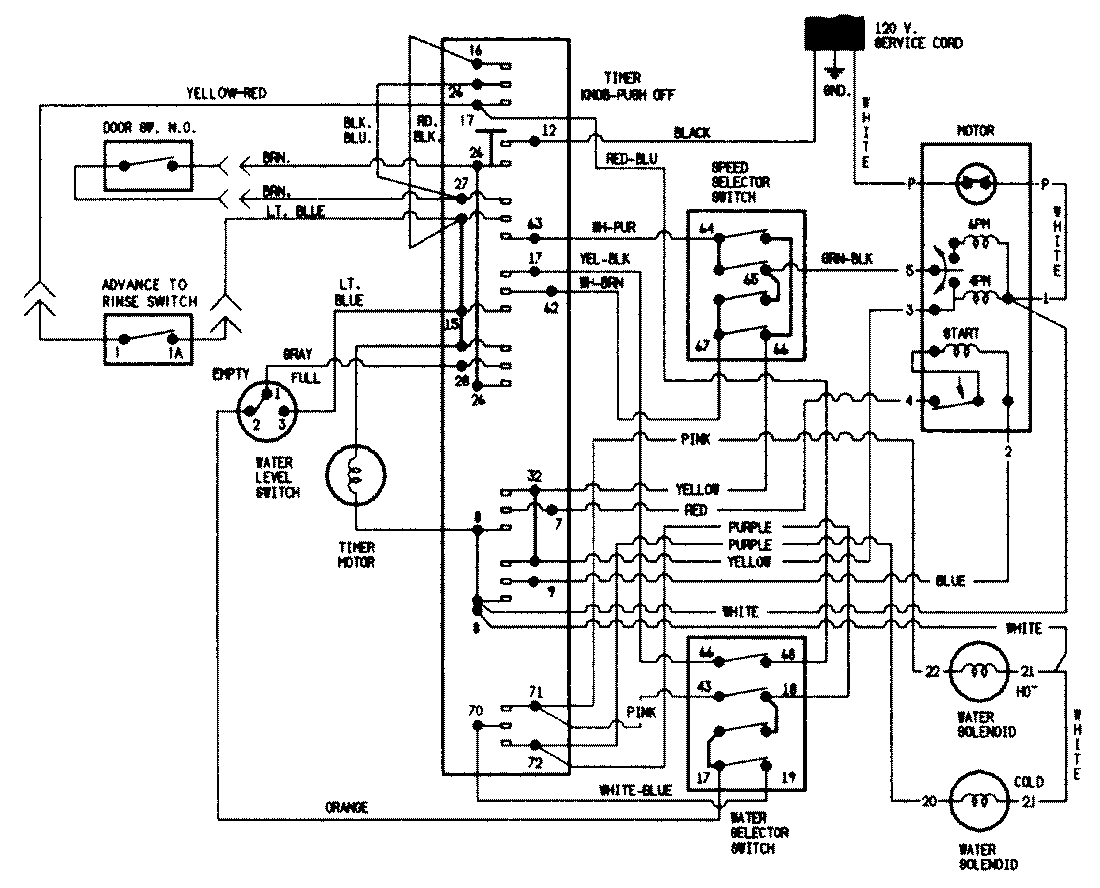

WIRING INFORMATION WPL 15001725 Contact Us For Availability

NI

WIRING INFORMATION WPL 15001792 Contact Us For Availability

NI

WIRING INFORMATION WPL 15001902 Contact Us For Availability
