Model LG JVM1630CH – Common Parts & Diagrams
Diagram 0

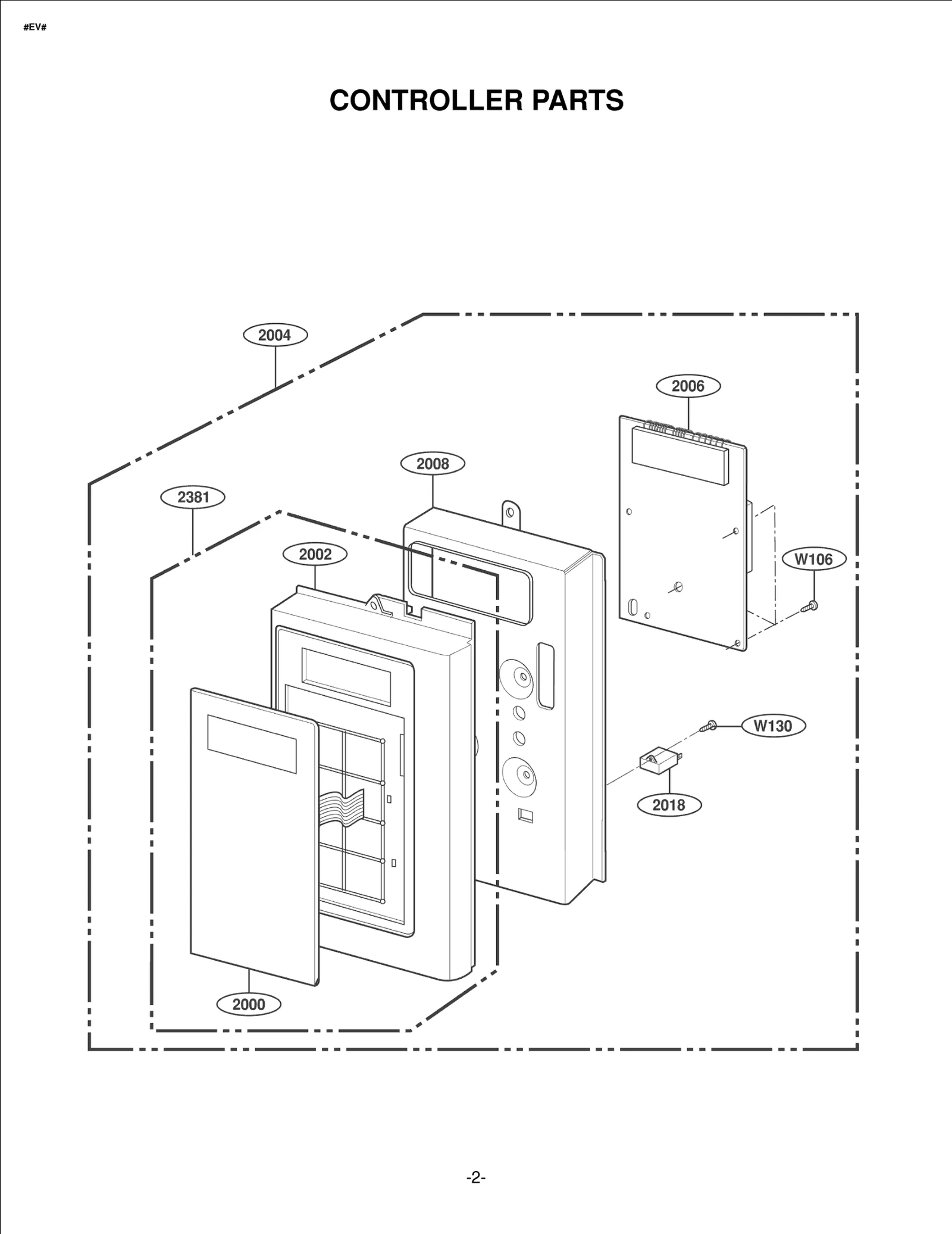

Diagram 1

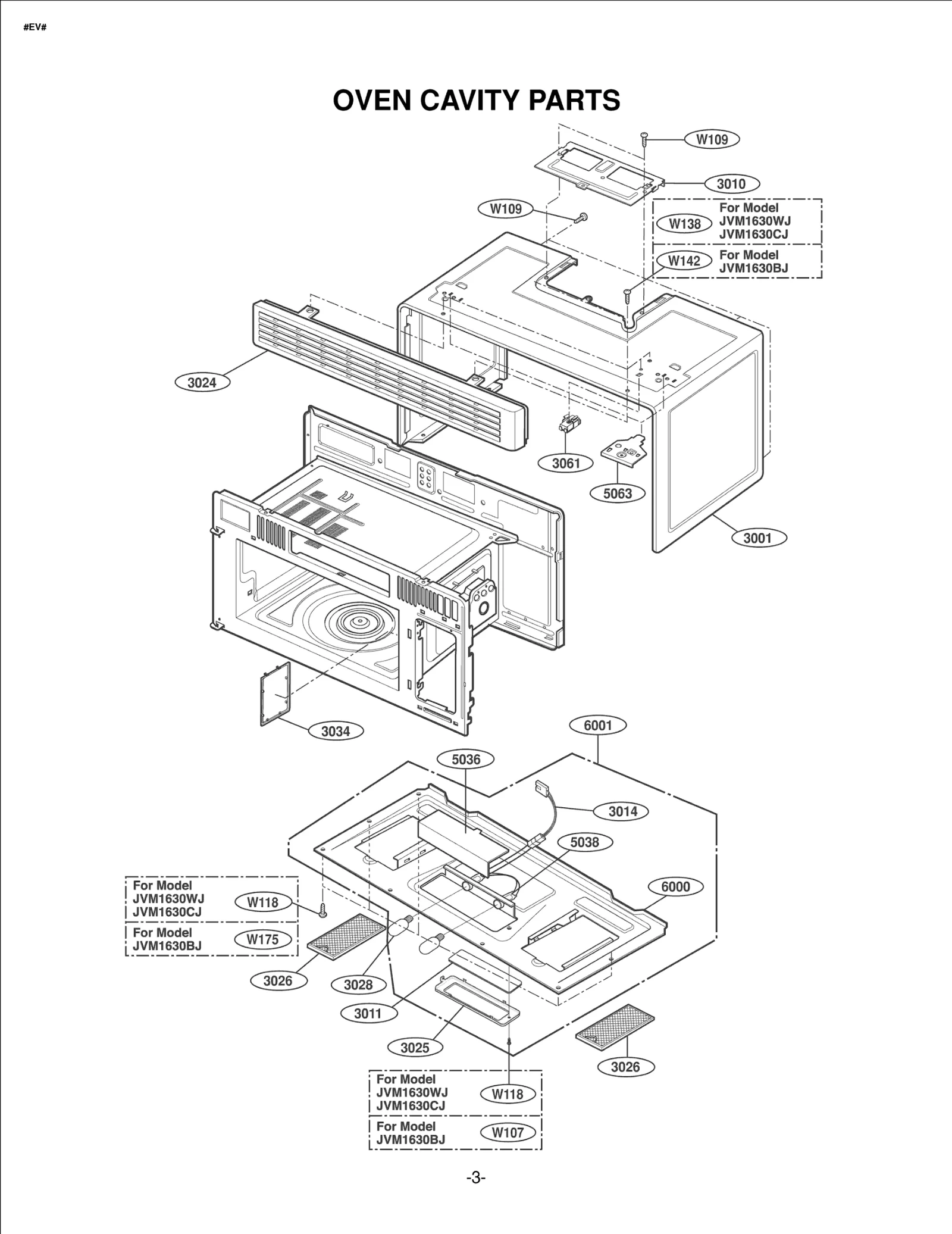

Diagram 2

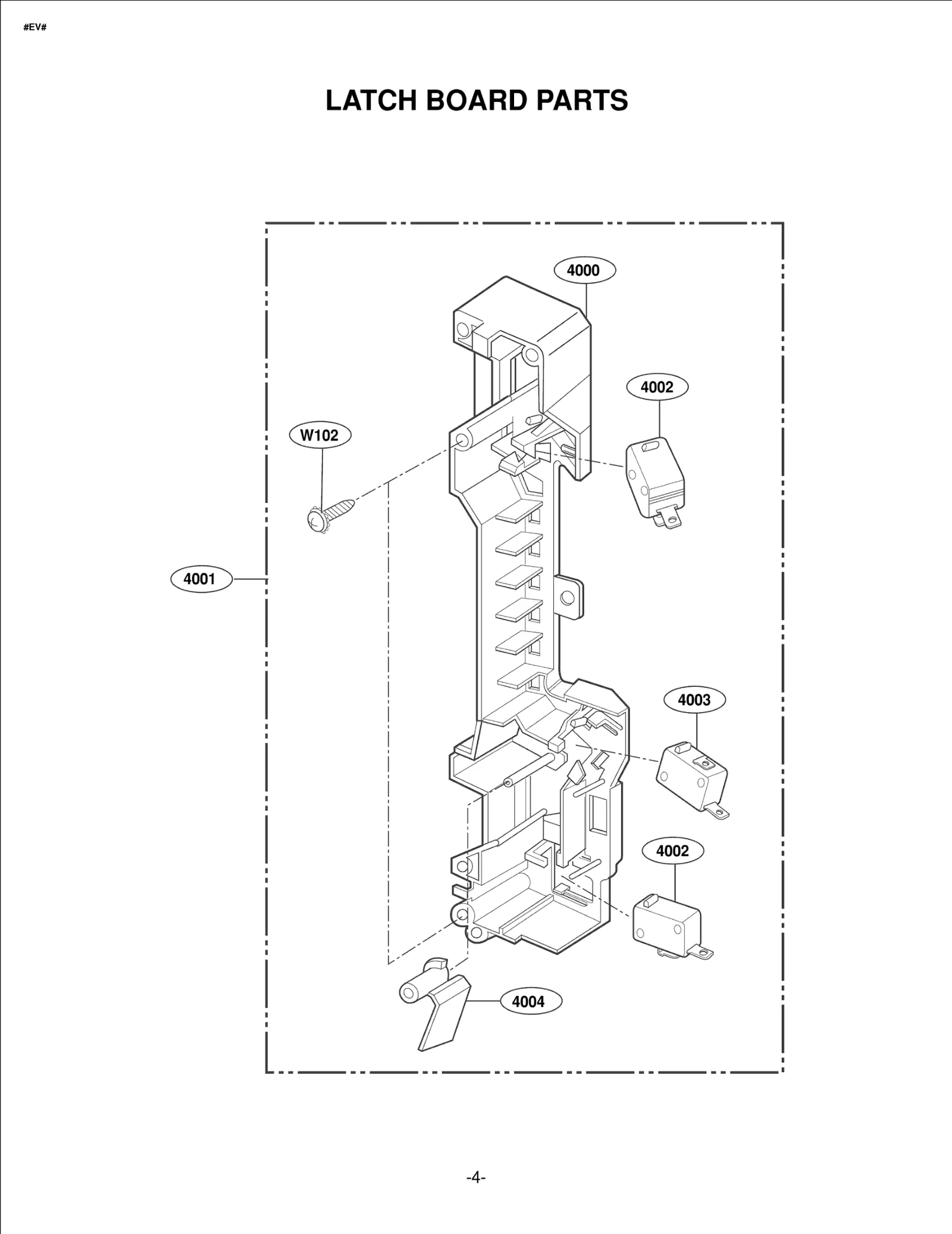

Diagram 3

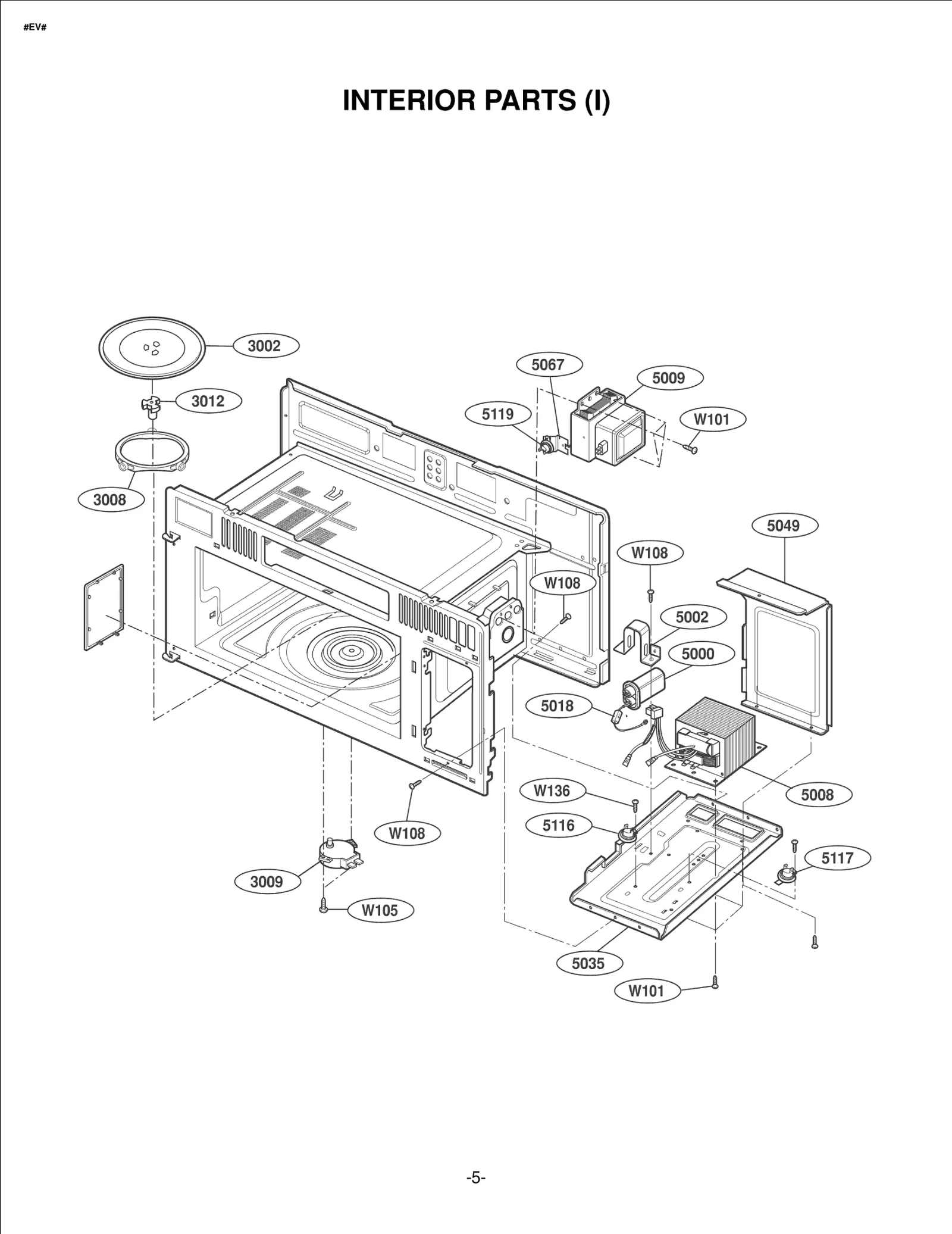

Diagram 4

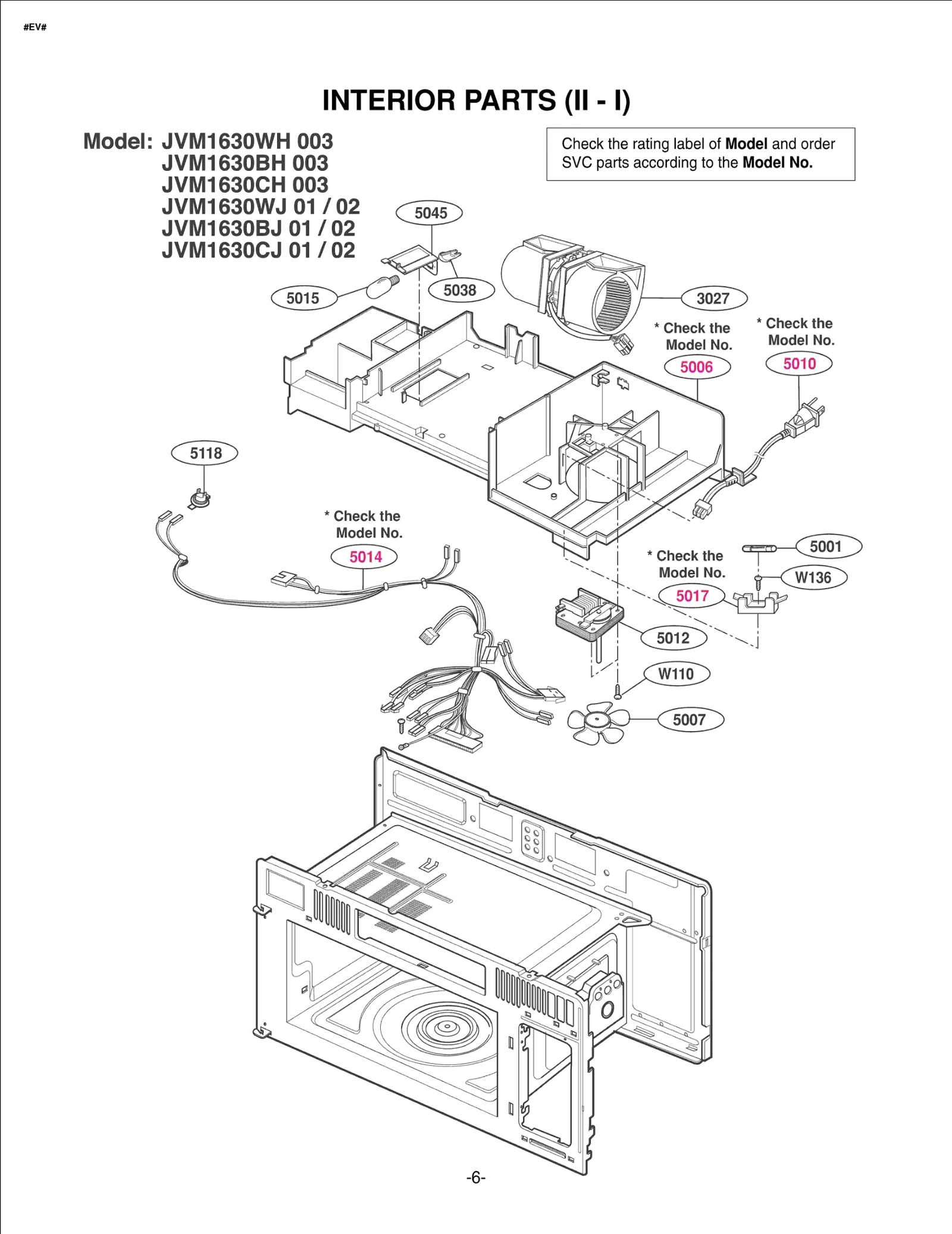

Diagram 5

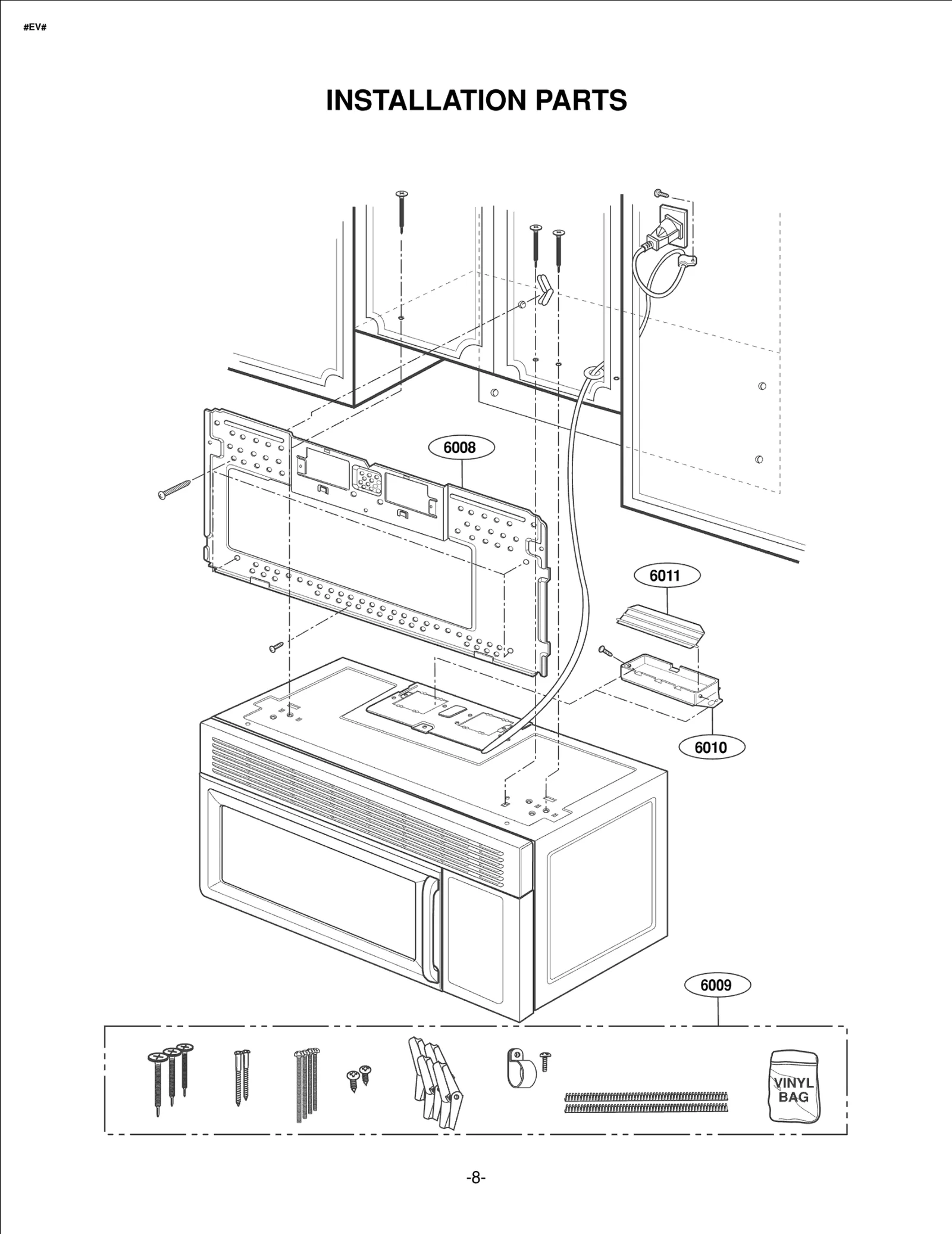

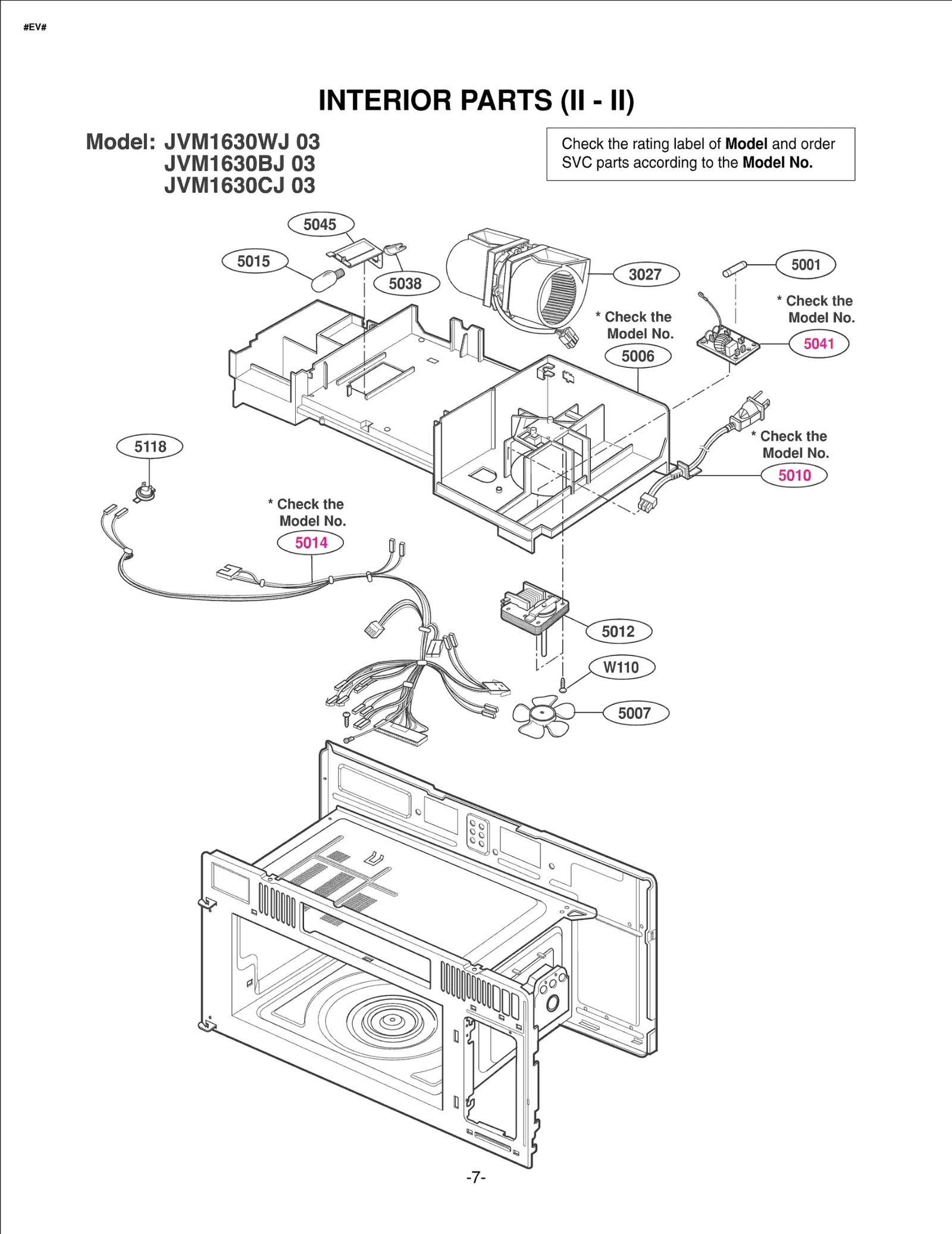

Diagram 6
Diagram 7
Diagram 8
Common parts from model LG JVM1630CH
3002
TRAY,GLASS LGE 3390W1A019B Contact Us For Availability
3009
Motor, AC Synchronous LGE 6549W1S015B Contact Us For Availability
3011
GLASS ALL MV-1320M MV-1325S W/ LGE 4890W4A001B Contact Us For Availability
3029
BRACKET,[MOUNT] LGE 4810W1A015A Contact Us For Availability
4001
BOARD ASSY,[LATCH] LGE 3501W1A019A Contact Us For Availability
4002
MICRO SWITCH(PRIMARY) VP-533A LGE 3B73362E Contact Us For Availability
4002
SWITCH,MICRO LGE 6600W1K004C Contact Us For Availability
4003
SWITCH,MICRO LGE 6600W1K004B Contact Us For Availability
4003
MICRO SWITCH(MONITOR) VP-532A LGE 3B73361D Contact Us For Availability
4004
LEVER-SWITCH MH6110XBBO W/POOL LGE 4510W4A005A Contact Us For Availability
5002
BRACKET HVC MV-1320,SECC 0.5T LGE 4810W3C002A Contact Us For Availability
5006
Duct LGE 5208W0A008A Contact Us For Availability
5007
FAN LGE 5900W1A027B Contact Us For Availability
5008
TRANSFORMER,HIGH VOLTAGE LGE 6170W1D052F Contact Us For Availability
5010
POWER CORD ASSEMBLY LGE 6411W1A014X Contact Us For Availability
5010
POWER CORD ASSEMBLY LGE 6411W1A014T Contact Us For Availability
5014
Harness,Single LGE 6877W1A457B Contact Us For Availability
5015
LAMP[OVEN/BASELESS] LGE 6912W3Q001D Contact Us For Availability
5017
FUSE HOLDER LGE 4930W3B025B Contact Us For Availability
5035
Plate,Bottom LGE 3300W1A035A Contact Us For Availability
5038
LAMP HOLDER - ALL LGE 6804W3A001A Contact Us For Availability
5045
COVER ALL MV-1320,OVEN LAMP,SE LGE 3550W3A082A Contact Us For Availability
5049
Guide,Air LGE 4974W1A015B Contact Us For Availability
5118
THERMOSTAT (110/0 PW-2N VERT) LGE 6930WRT003C Contact Us For Availability
5118
THERMOSTAT,BIMETAL LGE 6930W1A002D Contact Us For Availability
6001
BASE PLATE ASSEMBLY LGE 3303W1A041W Contact Us For Availability
6008
PLATE,[MOUNTING PLATE] LGE 3300W0M003A Contact Us For Availability
6009
KIT ASSY LGE 3861W2A006A Contact Us For Availability
6011
EXHAUST DAMPER ER-841PV CBESE LGE 3B71432A Contact Us For Availability
MAY1
Box LGE 3890W3Y605A Contact Us For Availability
MBM2
Card,Technical LGE 3840W1T011B Contact Us For Availability
MBM3
TEMPLATE LGE 4922W5A028A Contact Us For Availability
MEZ1
Label,Cooking Guide LGE 3850W1D094B Contact Us For Availability
MFL1
Manual,Owners LGE 3828W5A3559 Contact Us For Availability
MFL3
Manual,Installation LGE 3828W5U0243 Contact Us For Availability
× ![]()
