Model Whirlpool JUC2450ARS WINE CELLAR – Common Parts & Diagrams

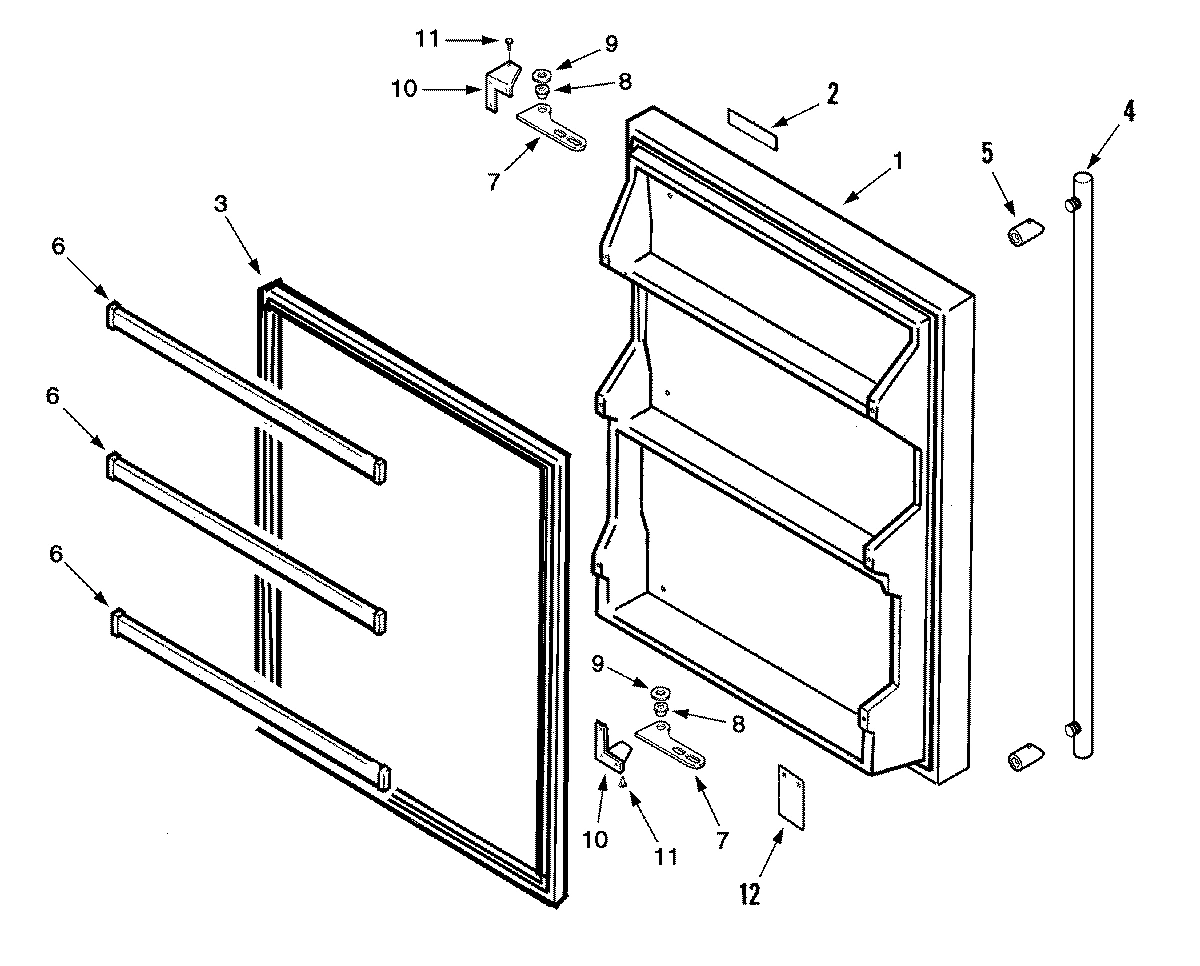

01 - DOOR

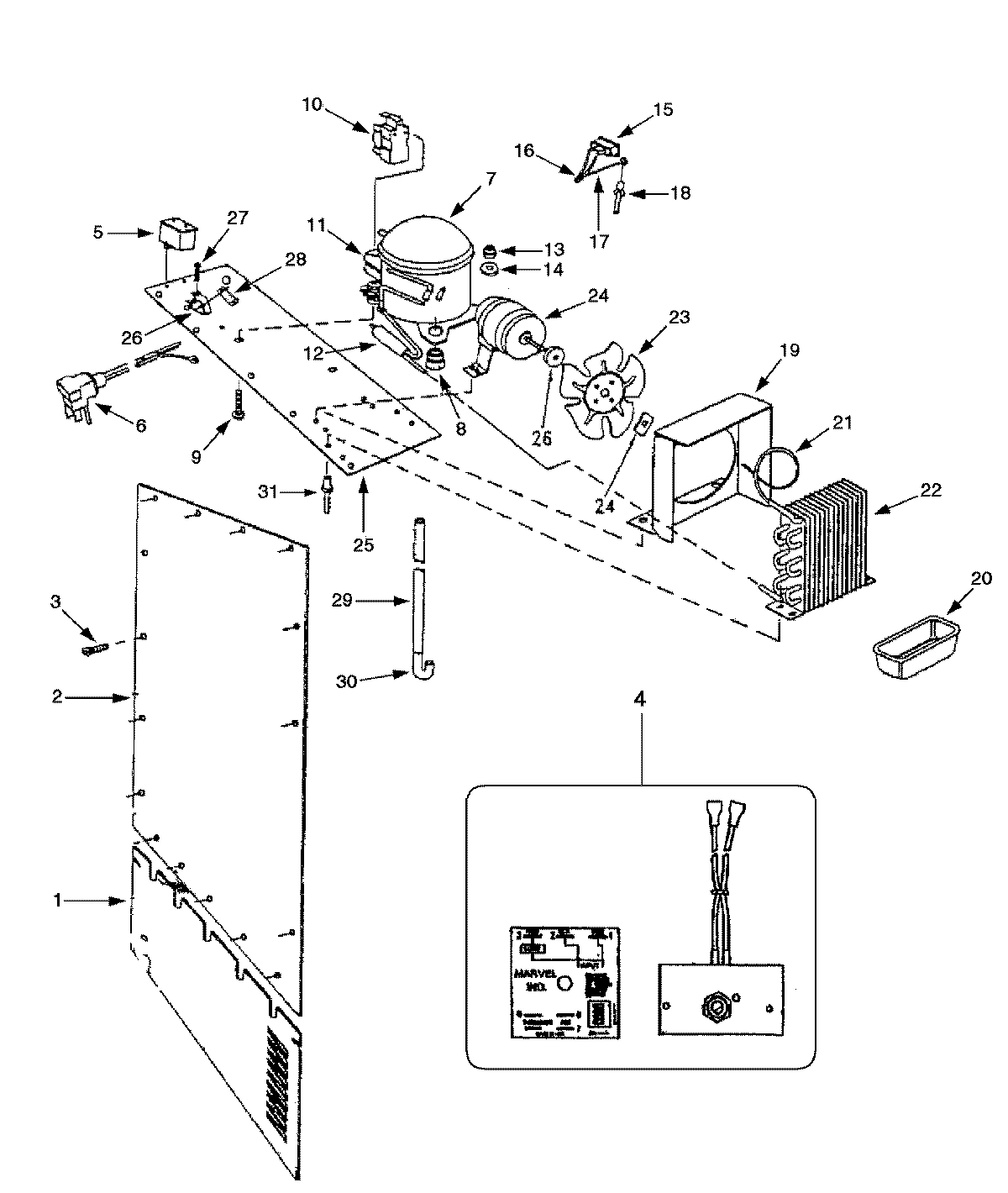

03 - MECHANICAL PARTS

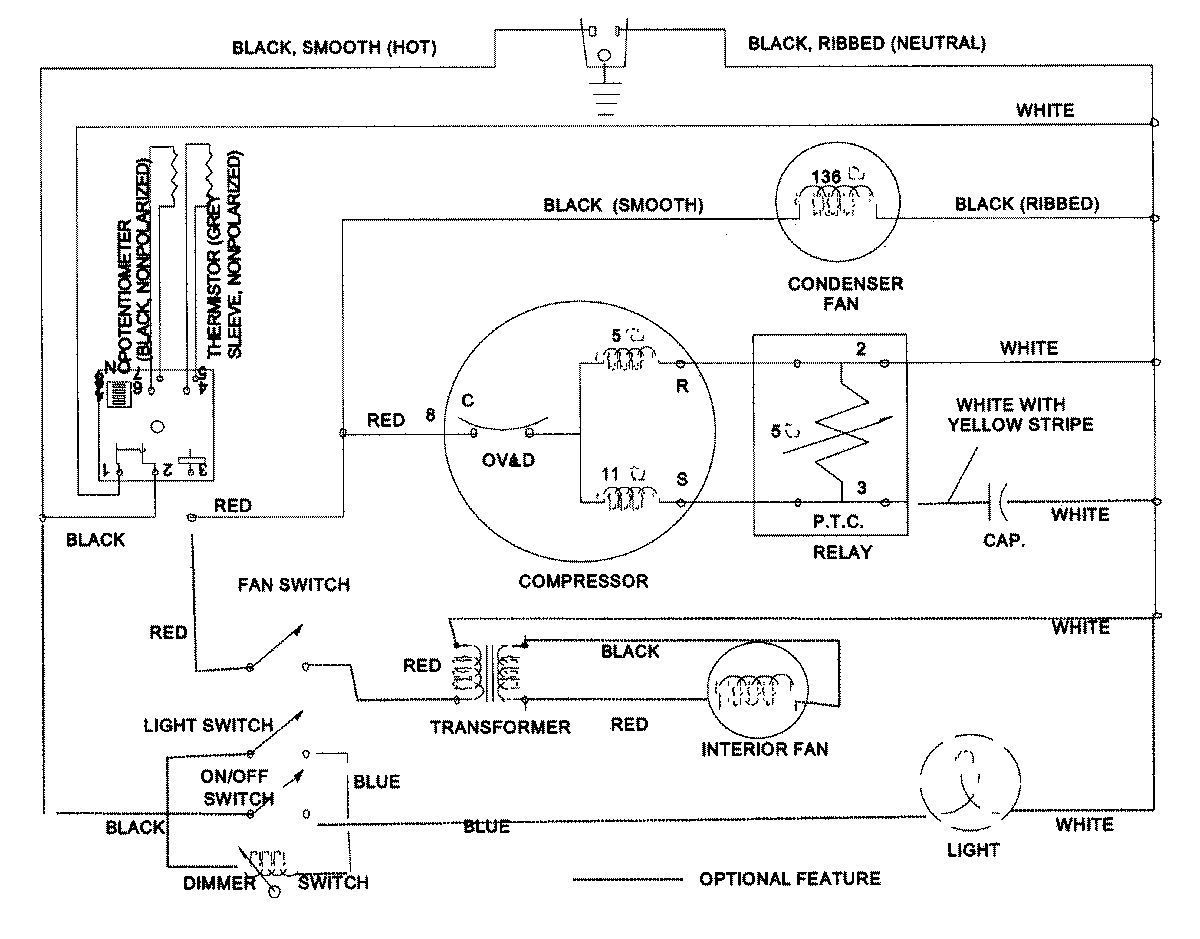

05 - WIRING INFORMATION

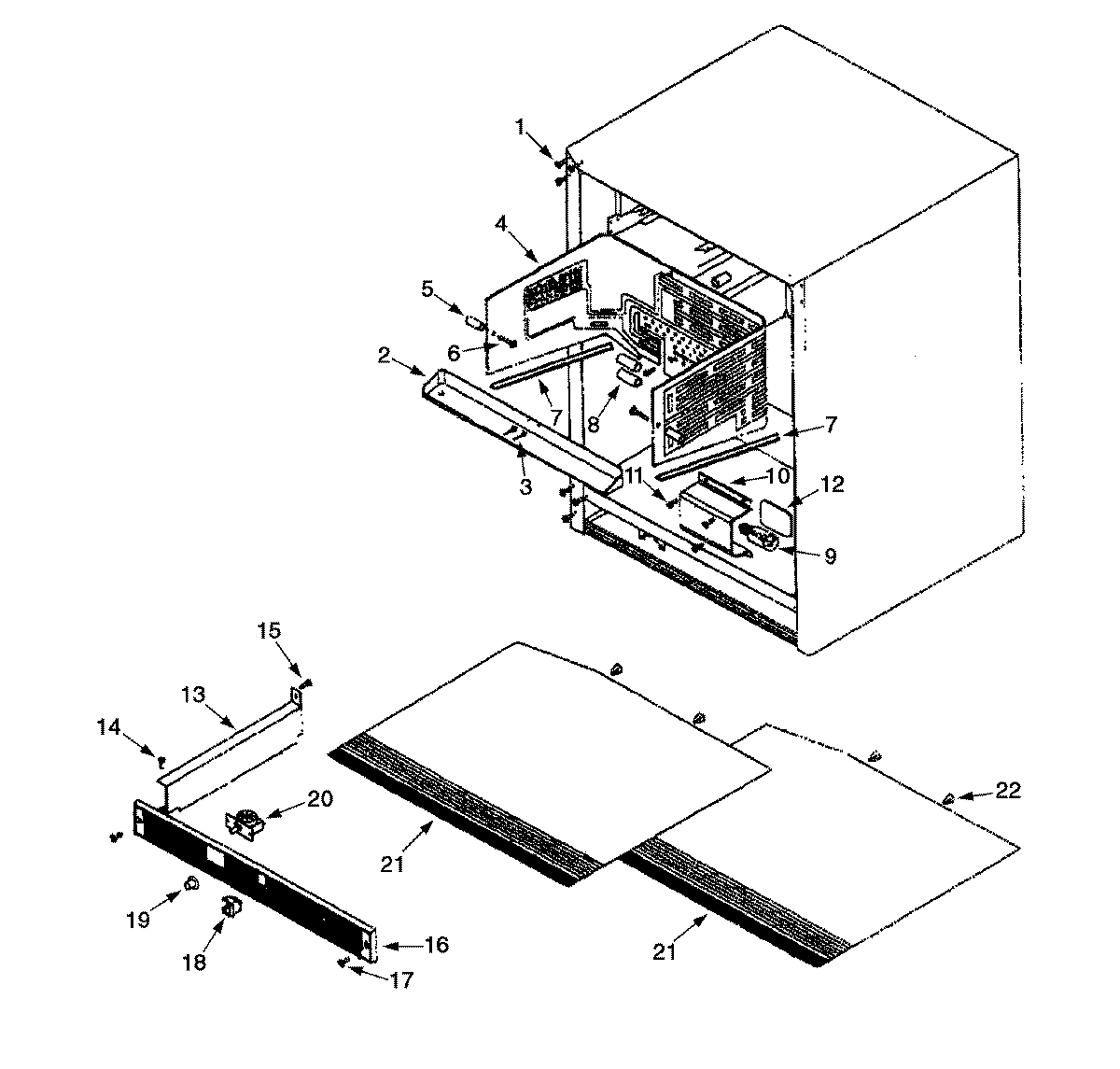

02 - INTERIOR PARTS
04 - SUPPLEMENTAL INFORMATION
Common parts from model Whirlpool JUC2450ARS WINE CELLAR
1
DOOR ASSY. (STNLS) WPL 60001156 Contact Us For Availability
1
BACK, SHROUD FIBER BOARD WPL 60001095 Contact Us For Availability
1
PLUG, HOLE (WHT) WPL 60001045 Contact Us For Availability
1
MANUAL, USE & CARE WPL 41007710 Contact Us For Availability
2
NAMEPLATE WPL 60001135 Contact Us For Availability
2
PANEL, CABINET BACK WPL 60001096 Contact Us For Availability
2
TRAY, DRIP (WHT) WPL 60001121 Contact Us For Availability
2
SVC MAN, WINECELLAR/UNDERCOUNT WPL 16022323 Contact Us For Availability
3
GASKET, DOOR (WHT) WPL 60001157 Contact Us For Availability
3
RIVET, POP WPL 60001093 Contact Us For Availability
4
HANDLE ASSY. WPL 60001158 Contact Us For Availability
4
EVAPORATOR ASSY. (WHT) WPL 60001063 Contact Us For Availability
5
STANDOFF, HANDLE WPL 60001139 Contact Us For Availability
5
SCREW, SET (STANDOFF-HANDLE) WPL 60001181 Contact Us For Availability
5
SPACER WPL 60001126 Contact Us For Availability
6
BAR ASSY., DOOR WPL 60001159 Contact Us For Availability
6
CORD, POWER WPL 60001098 Contact Us For Availability
6
SCREW WPL 60001087 Contact Us For Availability
7
ADAPTER, DOOR HINGE WPL 60001140 Contact Us For Availability
7
SCREW WPL 60001141 Contact Us For Availability
7
COMPRESSOR ASSY. WPL 60001099 Contact Us For Availability
7
TRIM, EVAPORATOR (WHT) WPL 60001065 Contact Us For Availability
8
BUSHING, HINGE WPL 60001142 Contact Us For Availability
8
GROMMET, COMPRESSOR WPL 60001012 Contact Us For Availability
8
CAP WPL 60001086 Contact Us For Availability
9
SPACERS, HINGE WPL 60001143 Contact Us For Availability
9
BOLT, CARRIAGE WPL 60001115 Contact Us For Availability
9
RECEPTACLE, LIGHT WPL 60001104 Contact Us For Availability
10
HINGE ASSY. (INCL. 2 HINGES) WPL 60001149 Contact Us For Availability
10
SCREW WPL 60001151 Contact Us For Availability
10
STARTER, PTC WPL 60001017 Contact Us For Availability
10
LENS WPL 60001061 Contact Us For Availability
11
PIN, HINGE WPL 60001150 Contact Us For Availability
11
COVER, COMPRESSOR RELAY WPL 60001101 Contact Us For Availability
12
PLATE, STRIKE (BLK) WPL 60001174 Contact Us For Availability
12
SPACER, STRIKE PLATE (BLK) WPL 60001176 Contact Us For Availability
12
DRIER WPL 139001 Contact Us For Availability
12
SHIELD, LIGHT WPL 60001058 Contact Us For Availability
13
LOCKNUT WPL 60001102 Contact Us For Availability
13
SHROUD, FRONT WPL 60001082 Contact Us For Availability
14
WASHER WPL 60001103 Contact Us For Availability
15
CLIP, TINNERMAN WPL 60001083 Contact Us For Availability
16
WIRE HARNESS, LIGHT WPL 60001106 Contact Us For Availability
16
GRILLE (BLK) WPL 60001071 Contact Us For Availability
17
WIRE, GROUND WPL 60001108 Contact Us For Availability
17
SCREW (FOR BLK GRILLE) WPL 60001073 Contact Us For Availability
18
RIVET, POP WPL 60001002 Contact Us For Availability
18
SWITCH, PLUNGER (BLK) WPL 60001075 Contact Us For Availability
19
SHROUD, FAN WPL 60001109 Contact Us For Availability
19
KNOB, THERMOSTAT WPL 60001069 Contact Us For Availability
20
CONTROL ASSY., SSAC ELECTRONIC WPL 60001120 Contact Us For Availability
20
PAN ASSY., DRIP WPL 60001110 Contact Us For Availability
21
TUBE, COPPER WPL 60001111 Contact Us For Availability
21
SHELF, GLASS WPL 60001124 Contact Us For Availability
22
CONDENSER WPL 60001112 Contact Us For Availability
22
BUMPER, RUBBER WPL 60001125 Contact Us For Availability
23
BLADE, FAN (W/SPEEDNUT) WPL 60001007 Contact Us For Availability
24
MOTOR ASSY., FAN WPL 60001113 Contact Us For Availability
25
PLATE, BASE WPL 60001116 Contact Us For Availability
26
CLAMP, CORD WPL 60001117 Contact Us For Availability
28
BLOCK, TERMINAL WPL 60001118 Contact Us For Availability
29
TUBE, DRAIN (WHT) WPL 60001084 Contact Us For Availability
30
J-TRAP WPL 60001119 Contact Us For Availability
NI
WIRING INFORMATION WPL 15003312 Contact Us For Availability
× ![]()
