Model Whirlpool JS48FWFXDA REFRIGERATOR – Common Parts & Diagrams

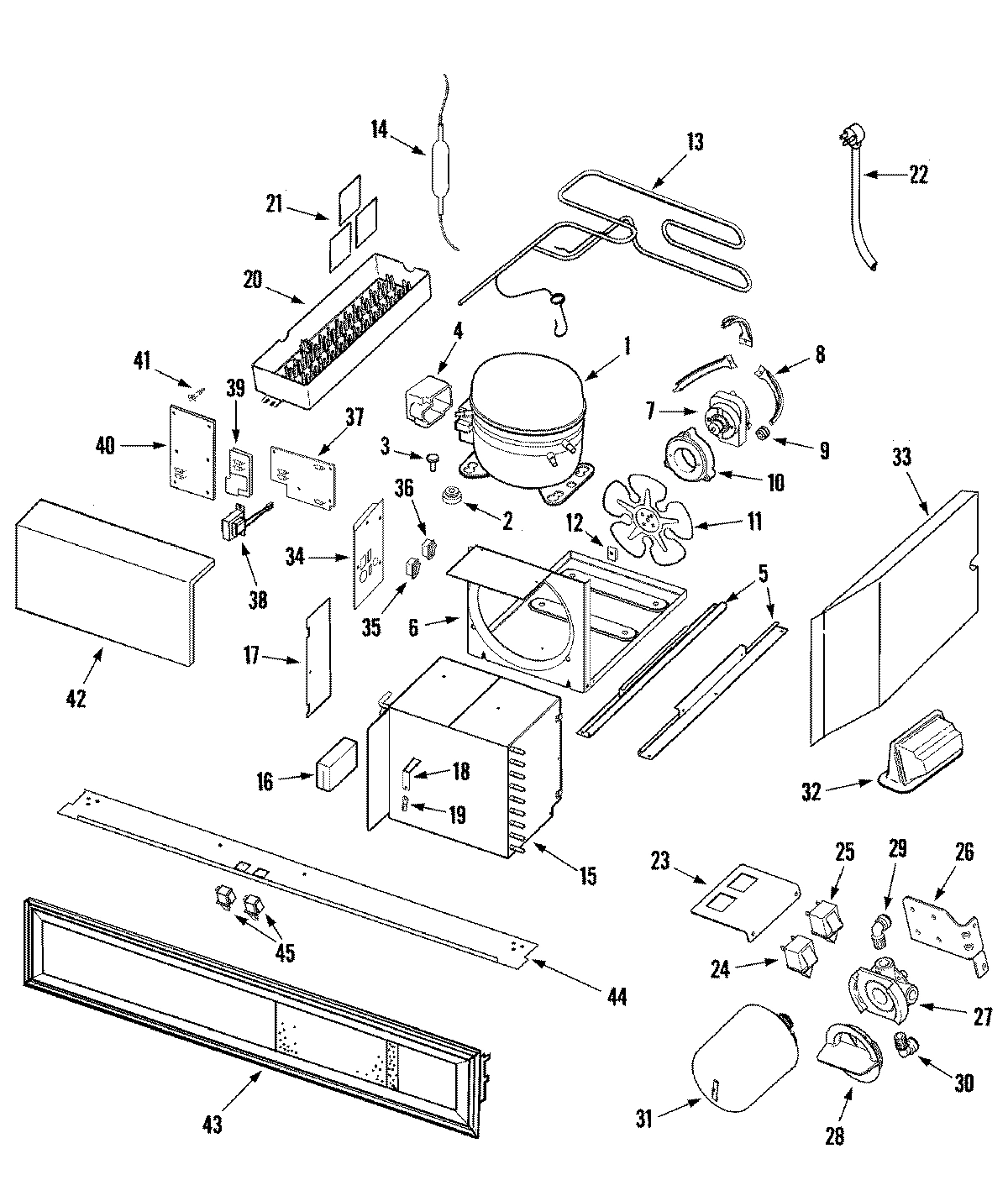

03 - COMPRESSOR

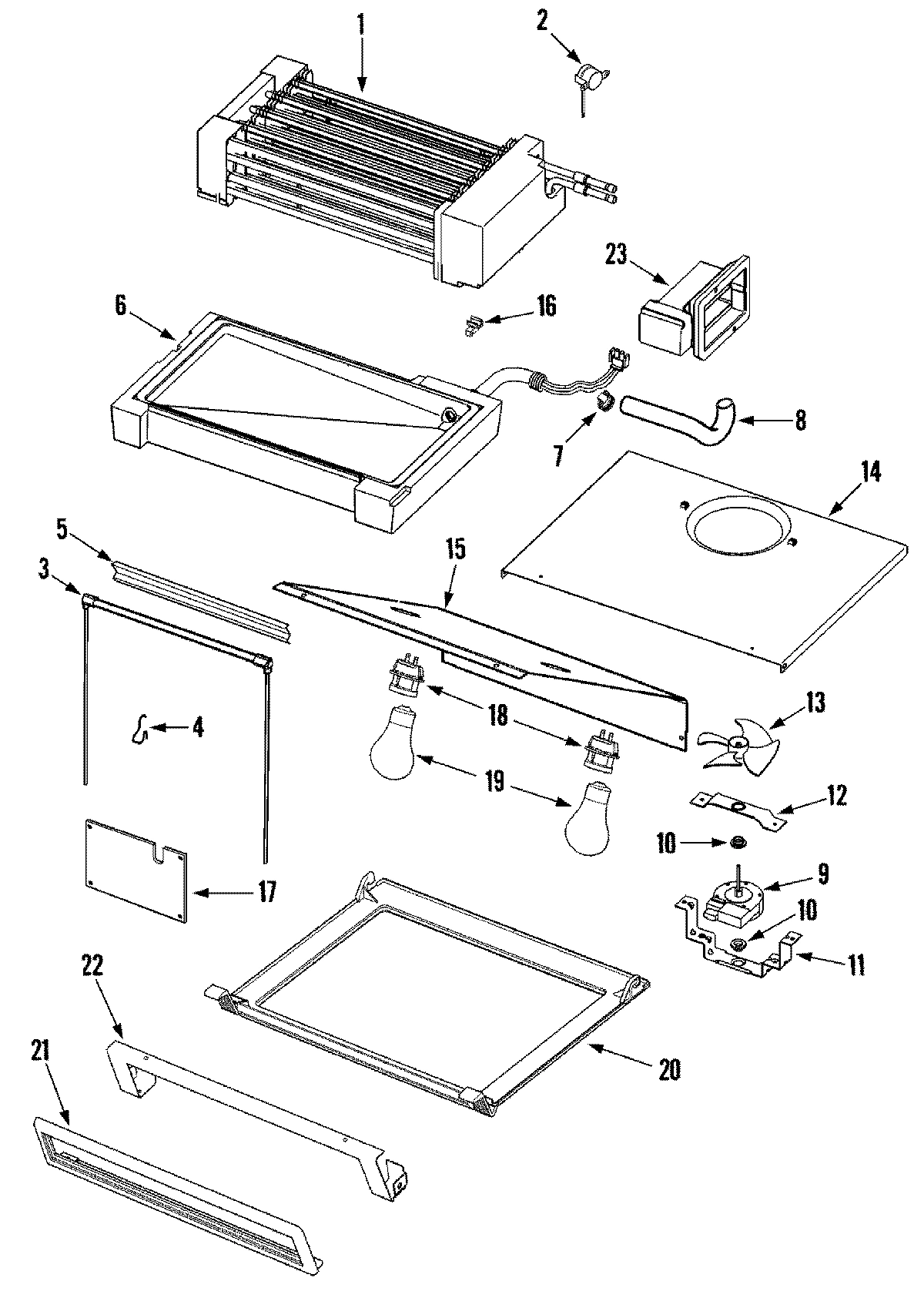

05 - EVAPORATOR COMPARTMENT

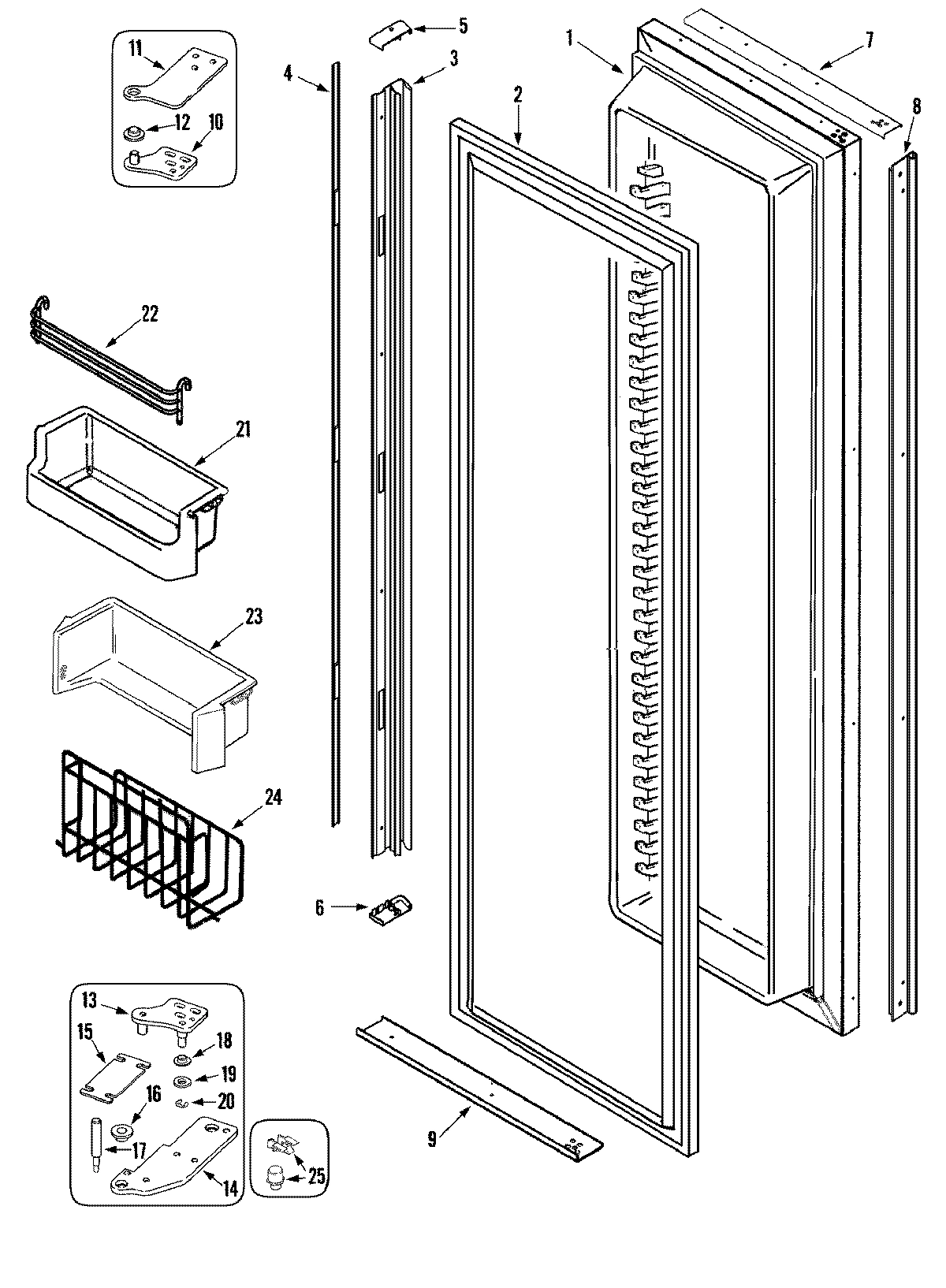

06 - FREEZER DOOR

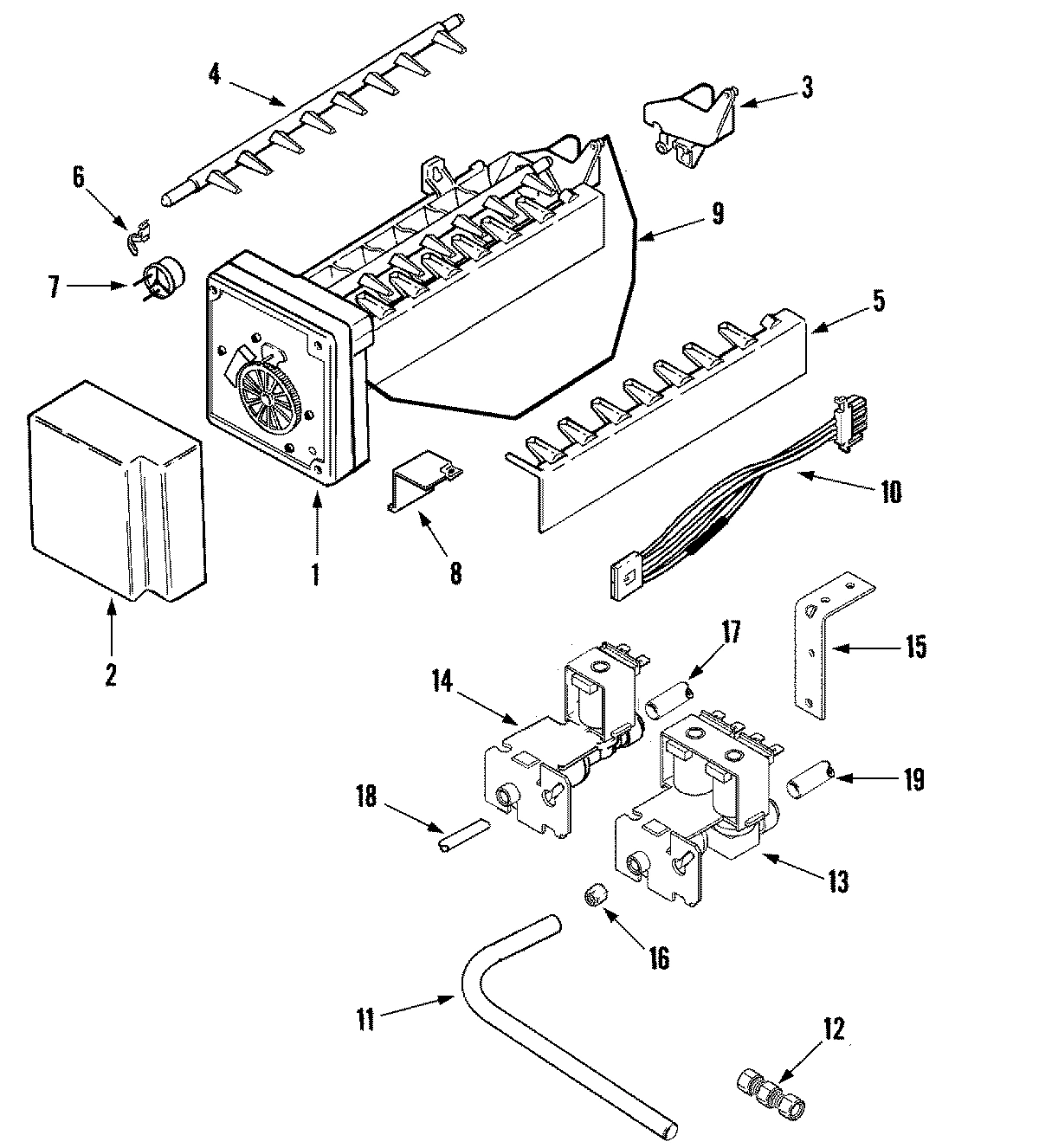

08 - ICE MAKER

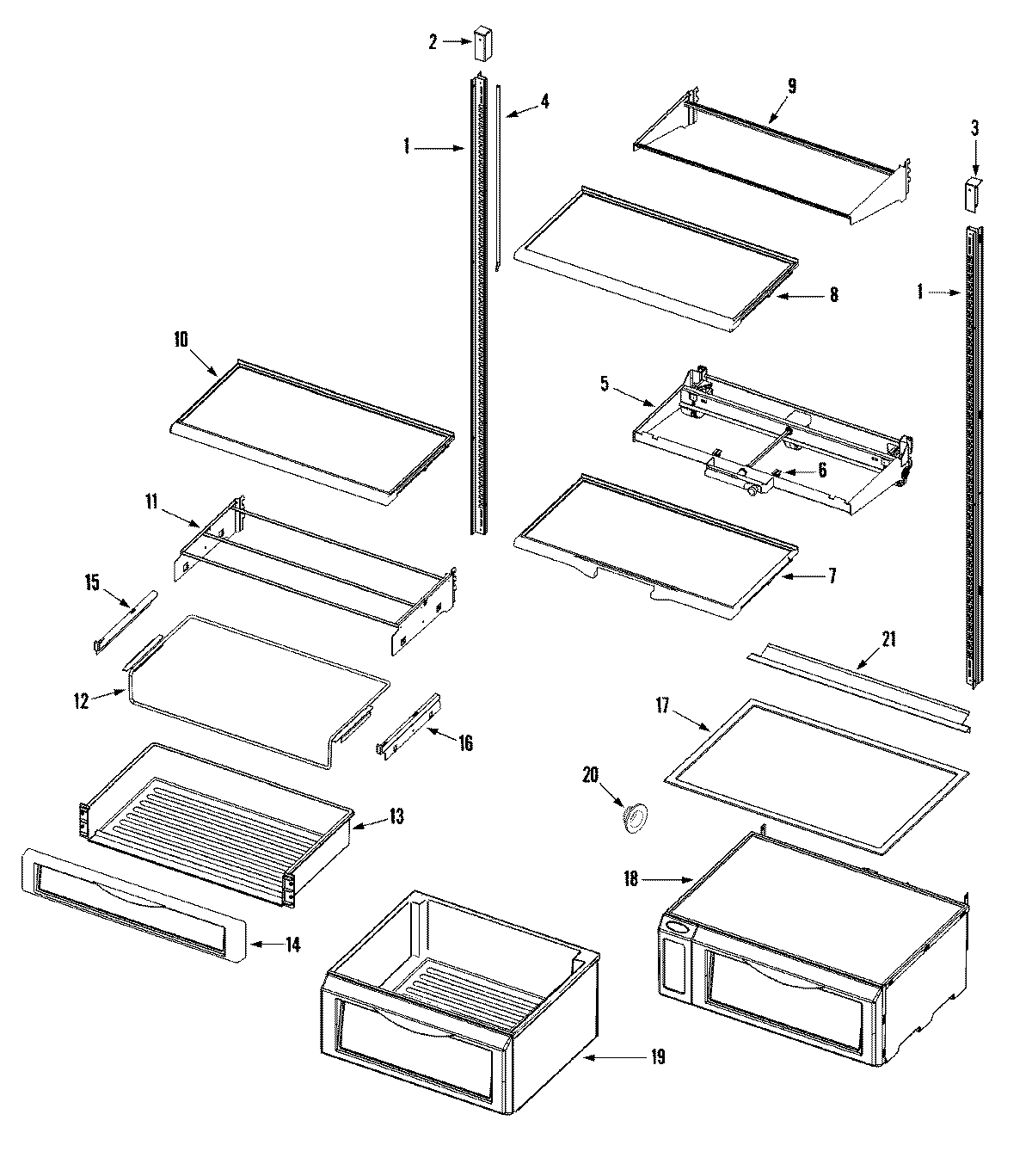

10 - SHELVES & ACCESSORIES (FRESH FOOD)
11 - SUPPLEMENTAL INFORMATION

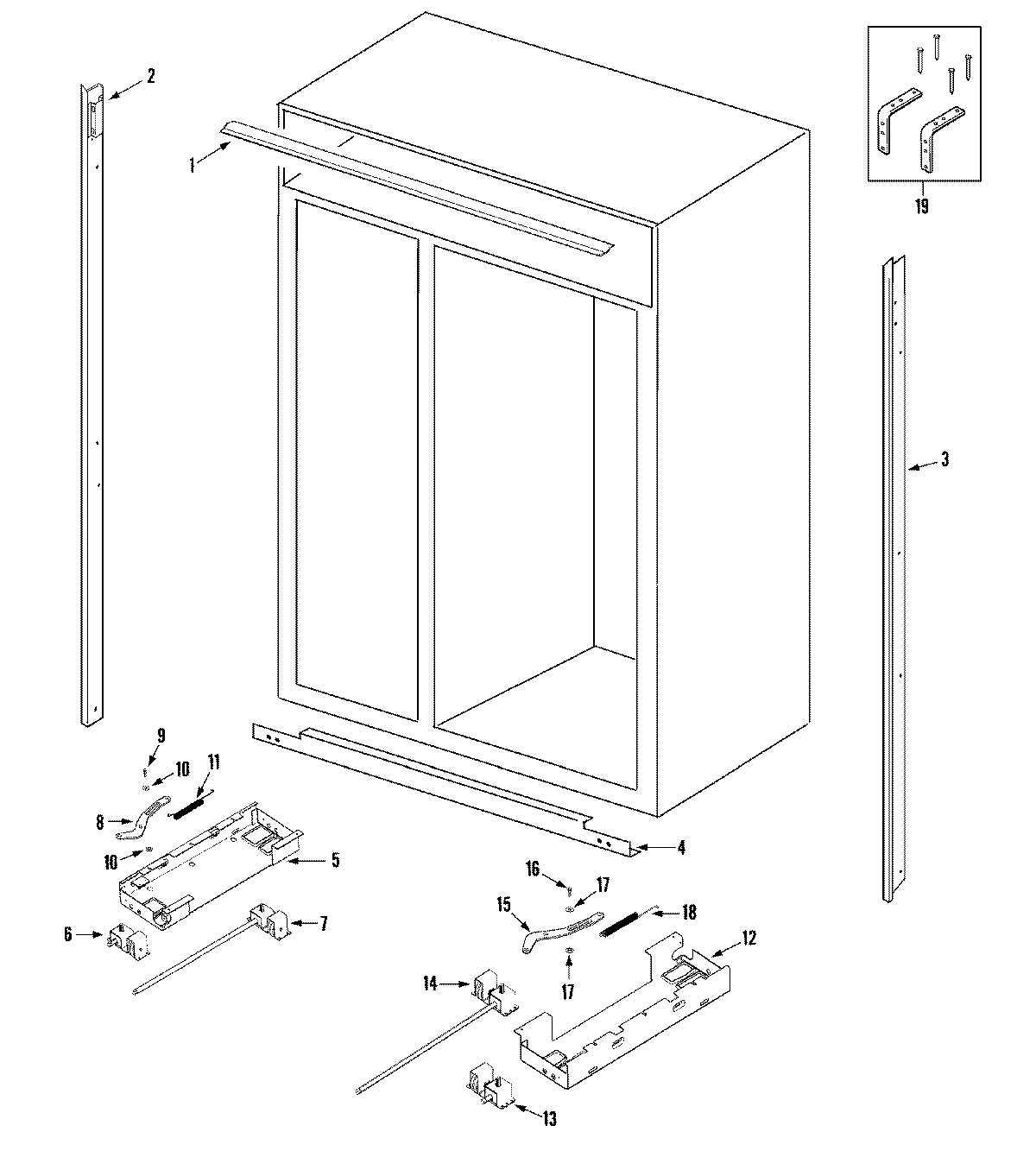

02 - CABINET

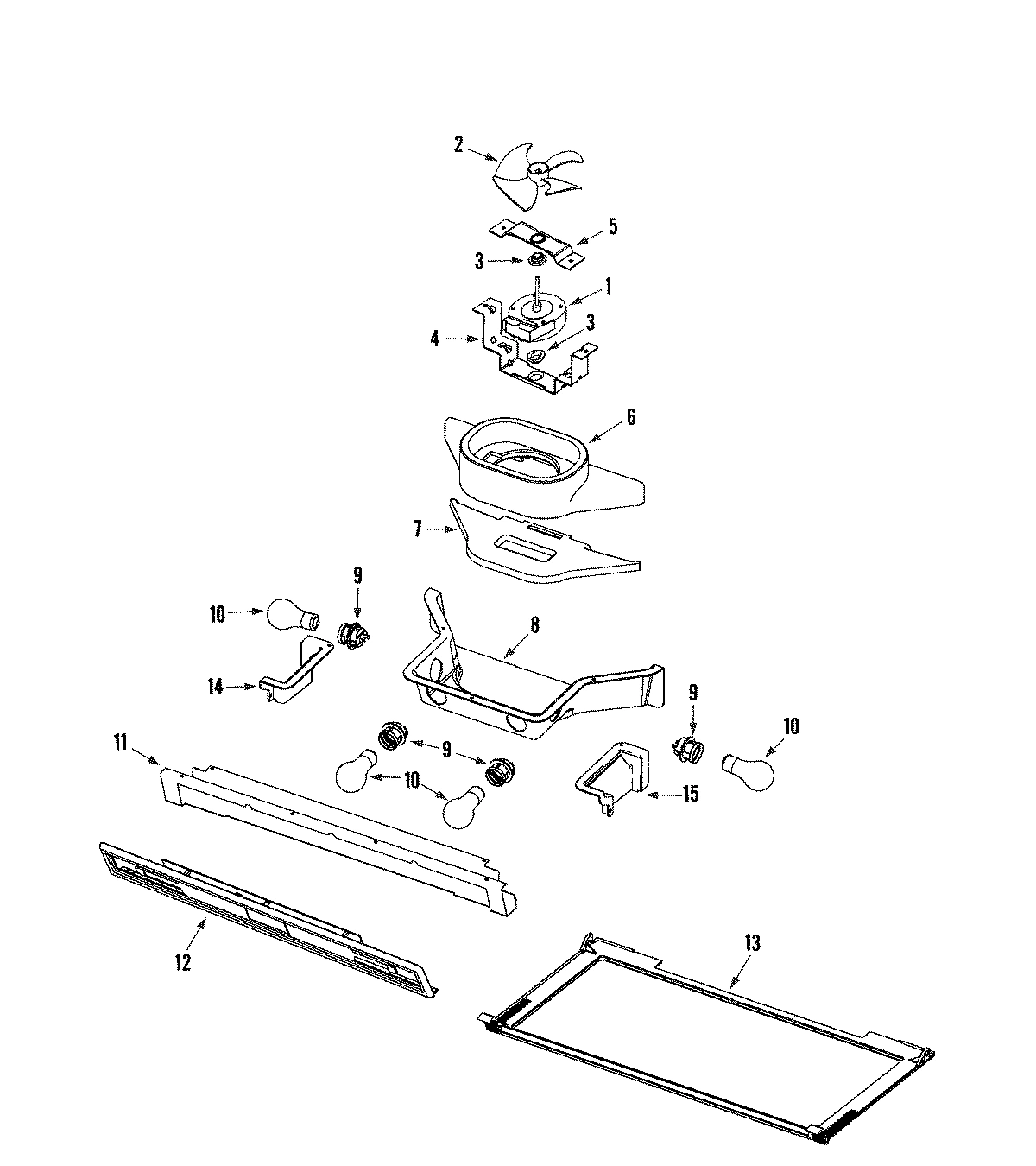

04 - CONTROLS

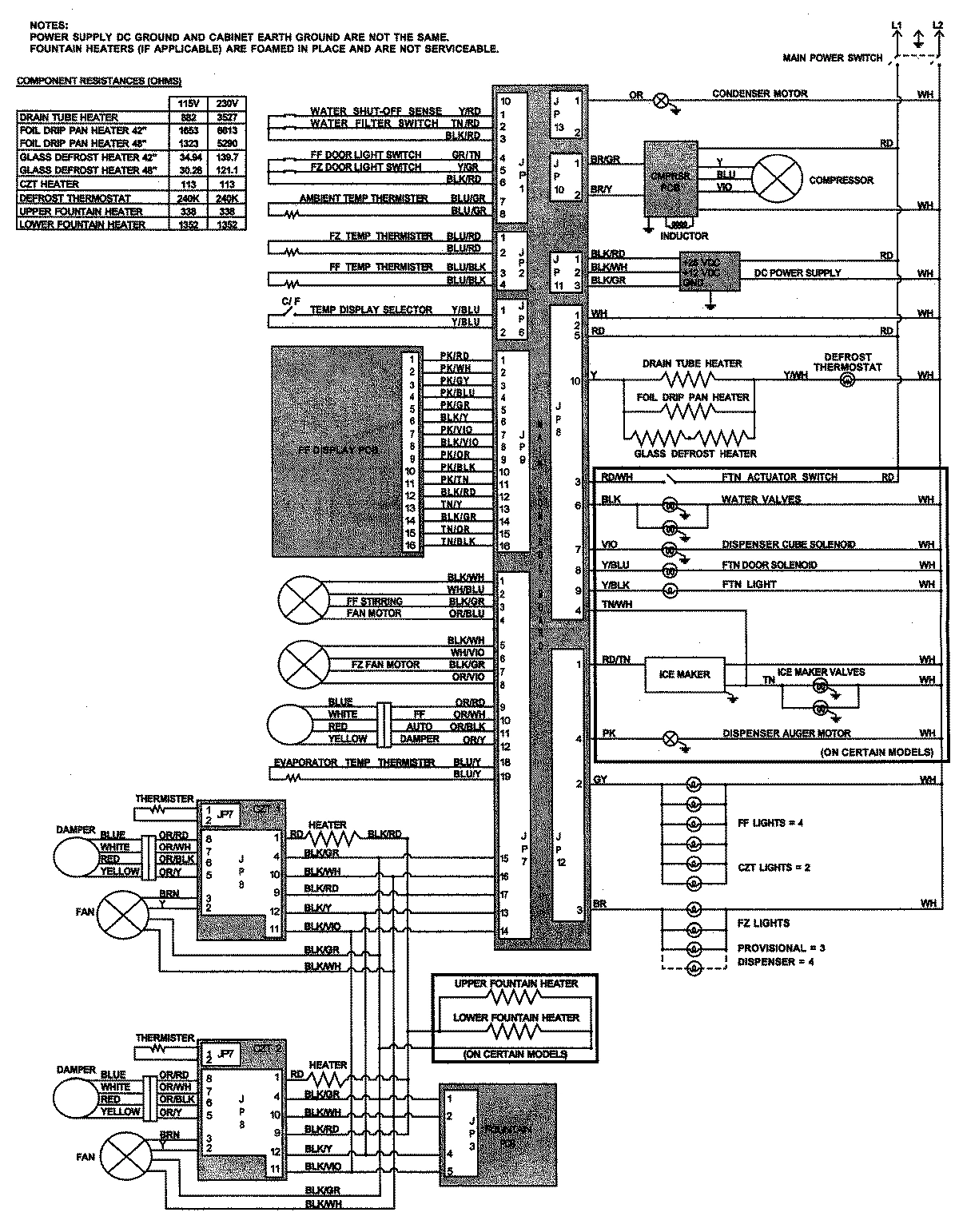

12 - WIRING INFORMATION
01 - ACCESSORIES

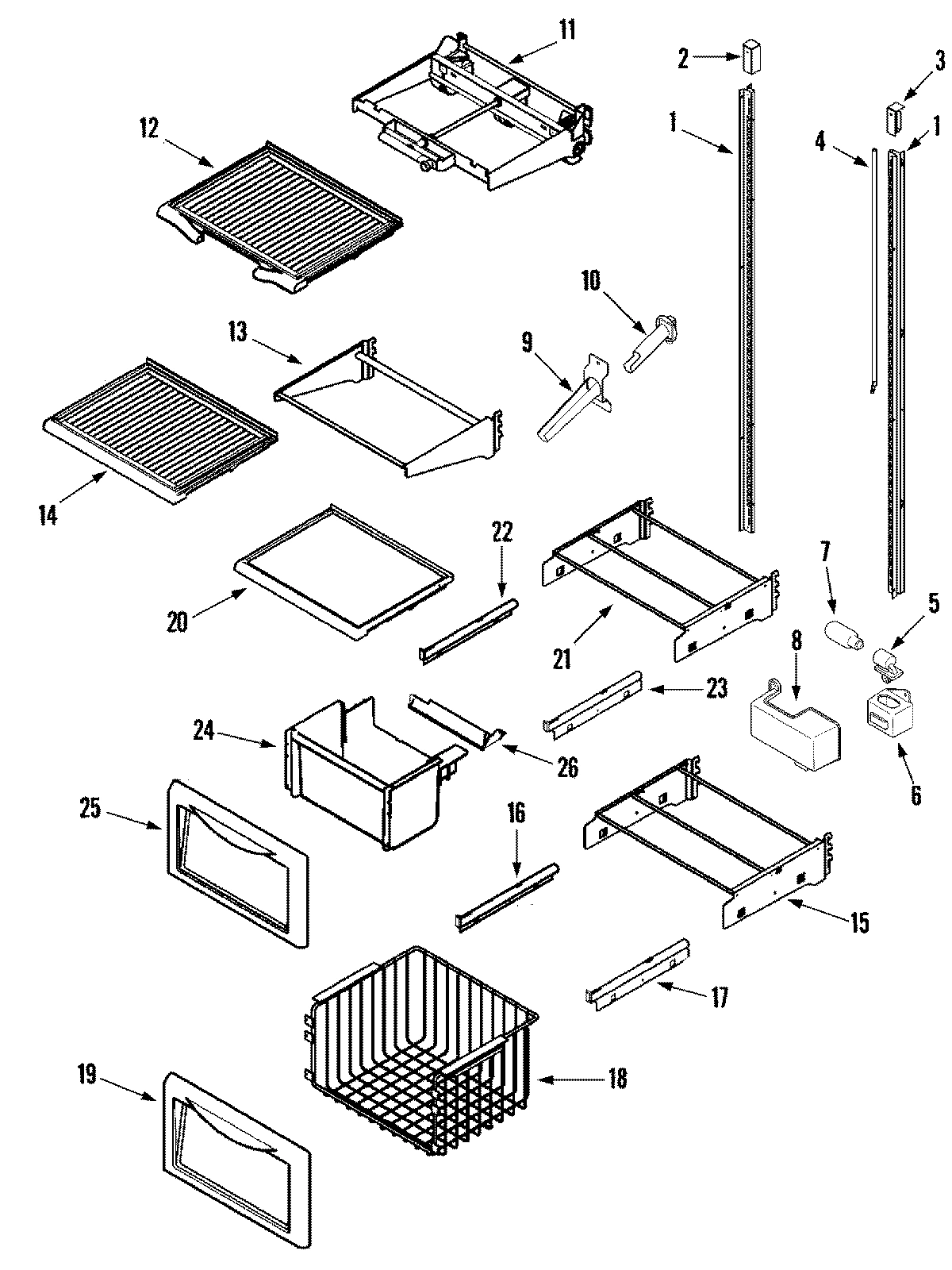

09 - SHELVES & ACCESSORIES (FREEZER)

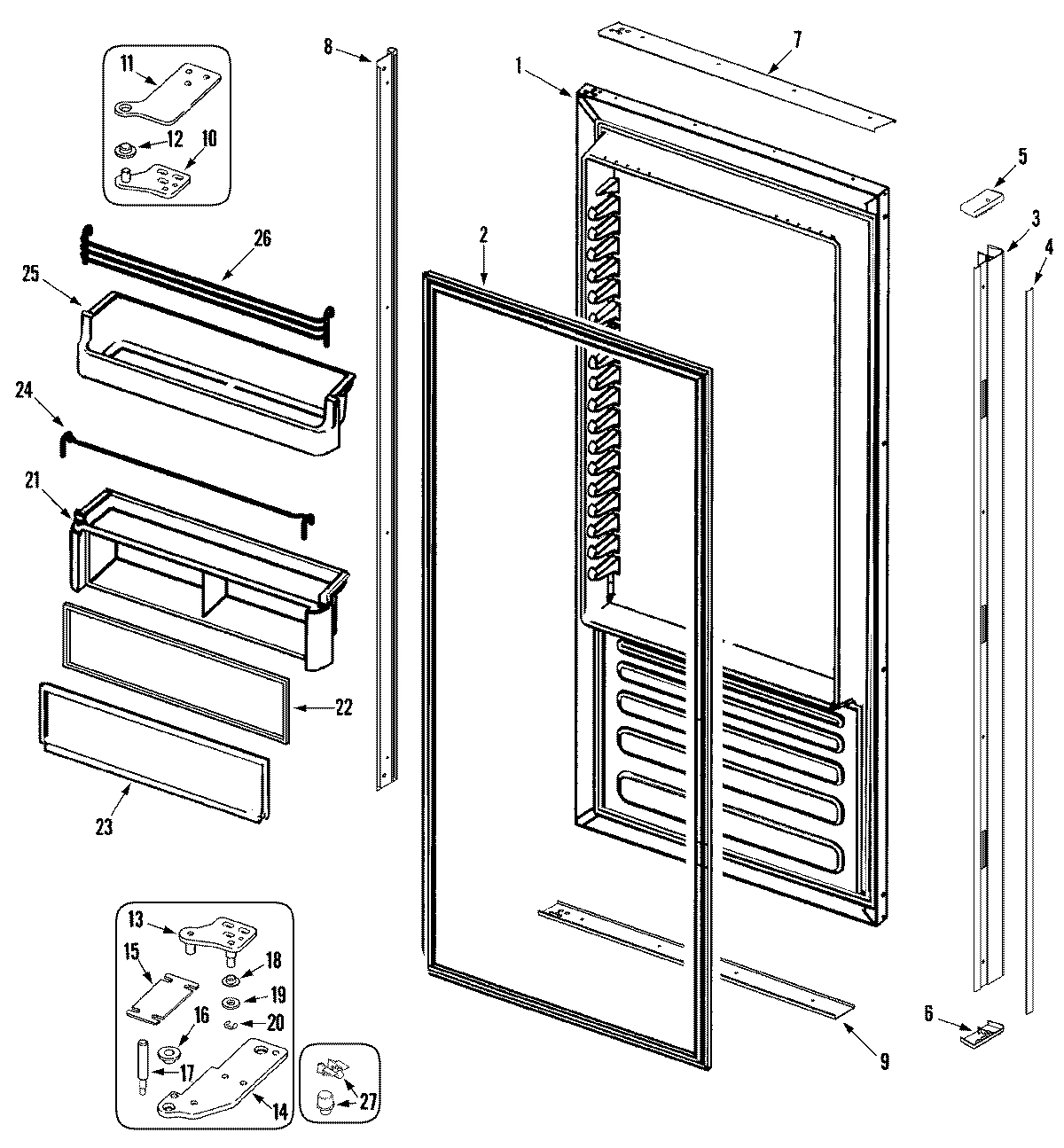

07 - FRESH FOOD DOOR
Common parts from model Whirlpool JS48FWFXDA REFRIGERATOR
1
EVAPORATOR ASSY. WPL 67001895 Contact Us For Availability
1
MOTOR, FAN WPL 67001369 Contact Us For Availability
1
DOOR ASSY., FREEZER WPL 67001467 Contact Us For Availability
1
ICE MAKER ASSY. (115V) WPL 67001557 Contact Us For Availability
1
RAIL, SHELF SUPPORT WPL 67001385 Contact Us For Availability
1
MANUAL, USE & CARE WPL 61005583 Contact Us For Availability
1
SCREW WPL 67001330 Contact Us For Availability
1
TRIM, CABINET UPPER (WHT) WPL 67001873 Contact Us For Availability
1
SHELF, F.F. GLASS WPL CJS483SSWA Contact Us For Availability
1
DOOR ASSY., FRESH FOOD (WHT) WPL 67001437 Contact Us For Availability
2
BLADE, FAN WPL 67001370 Contact Us For Availability
2
THERMOSTAT, DEFROST WPL 67001404 Contact Us For Availability
2
SEAL, FRZ. DOOR WPL 67001468 Contact Us For Availability
2
COVER, ICE MAKER WPL 67001486 Contact Us For Availability
2
END CAP, RAIL (LT) WPL 67001387 Contact Us For Availability
2
DVD, USE & CARE WPL 61005867 Contact Us For Availability
2
TRIM ASSY., CABINET SIDE WPL 67001989 Contact Us For Availability
2
SHELF, F.F. ELEVATOR WPL CJS483ESWA Contact Us For Availability
2
SEAL, F.F. DOOR WPL 67001457 Contact Us For Availability
3
HEATER, DEFROST WPL 67001422 Contact Us For Availability
3
SCREW (No.8 PHILHEAD) WPL 61004346 Contact Us For Availability
3
HANDLE, DOOR (WHT) WPL 67001939 Contact Us For Availability
3
INLET, WATER WPL 951001 Contact Us For Availability
3
END CAP, RAIL (RT) WPL 67001389 Contact Us For Availability
3
LABEL, DUAL ENERGY GUIDE WPL 67001968 Contact Us For Availability
3
SCREW WPL 67001328 Contact Us For Availability
3
TRIM ASSY., CABINET SIDE WPL 67001990 Contact Us For Availability
3
DRAWER, ALA CARTE STORAGE WPL CJS483STWA Contact Us For Availability
4
BRACKET, FAN WPL 67001371 Contact Us For Availability
4
COVER ASSY., SCREW (WHT) WPL 67001936 Contact Us For Availability
4
EJECTOR, ICE WPL 951011 Contact Us For Availability
4
THERMISTOR WPL 67001390 Contact Us For Availability
4
MANUAL, SERVICE WPL 16021730 Contact Us For Availability
4
KICKPLATE WPL 67001331 Contact Us For Availability
4
SCREW WPL 67001540 Contact Us For Availability
4
COMPARTMENT, DAIRY WPL CJS484PDSA Contact Us For Availability
5
SHIELD, DEFROST HEATER WPL 67001405 Contact Us For Availability
5
RETAINER, EVAPORATOR FAN WPL 61005340 Contact Us For Availability
5
END CAP, HANDLE (WHT) WPL 67001864 Contact Us For Availability
5
STRIPPER, ICE WPL 951021 Contact Us For Availability
5
FRAME ASSY., ELEVATOR SHELF WPL 67001391 Contact Us For Availability
5
WHEEL ASSY. (LT) WPL 67001515 Contact Us For Availability
5
BIN, F.F. DOOR WPL CJS484POSA Contact Us For Availability
5
RECEPTACLE, BULB WPL 61003237 Contact Us For Availability
6
SEAL, TRAY ASSY. WPL 67001407 Contact Us For Availability
6
END CAP, HANDLE (WHT) WPL 67001863 Contact Us For Availability
6
SCREW WPL 67001441 Contact Us For Availability
6
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
6
GLIDE, SHELF WPL 61004480 Contact Us For Availability
6
GEAR ASSY., WHEEL (FRT) WPL 67001516 Contact Us For Availability
6
DIVERTER, DISCHARGE (TOP) WPL 67001372 Contact Us For Availability
6
SEAL WPL 67001375 Contact Us For Availability
6
SHELF, FRZ. STORAGE WPL CJS482SSWA Contact Us For Availability
6
ADAPTER, RECEPTACLE WPL 67001419 Contact Us For Availability
7
TRIM, PERIMETER (TOP-WHT) WPL 67001941 Contact Us For Availability
7
THERMOSTAT WPL 950921 Contact Us For Availability
7
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
7
SHELF, ELEVATOR WPL 67001392 Contact Us For Availability
7
GEAR ASSY., WHEEL (REAR) WPL 67001517 Contact Us For Availability
7
DIVERTER, DISCHARGE (BTM) WPL 67001373 Contact Us For Availability
7
SHELF, FRZ. ELEVATOR WPL CJS482ESWA Contact Us For Availability
7
TRIM, PERIMETER (TOP-WHT) WPL 67001932 Contact Us For Availability
8
TUBE, DRAIN WPL 67001409 Contact Us For Availability
8
TRIM, PERIMETER (SIDE-WHT) WPL 67001839 Contact Us For Availability
8
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
8
SCREW, BRACKET WPL 951081 Contact Us For Availability
8
HOUSING, CONTROL WPL 67001374 Contact Us For Availability
8
BASKET, FRZ. ALA CARTE WPL CJS482BKWA Contact Us For Availability
8
SHIELD, LIGHT WPL 67001420 Contact Us For Availability
9
SCREW WPL 67001974 Contact Us For Availability
9
TRIM, PERIMETER (BTM-WHT) WPL 67001944 Contact Us For Availability
9
ARM, SENSOR WPL 701421 Contact Us For Availability
9
FRAME, SHELF WPL 67001394 Contact Us For Availability
9
BIN, FRZ. DOOR WPL CJS481POSA Contact Us For Availability
9
TROUGH, FILL TUBE WPL 67001421 Contact Us For Availability
9
TRIM, PERIMETER (BTM-WHT) WPL 67001934 Contact Us For Availability
10
BUSHING, EVAPORATOR FAN WPL 61005341 Contact Us For Availability
10
HINGE, UPPER WPL 67001471 Contact Us For Availability
10
WIRE HARNESS, ICE MAKER WPL 67001487 Contact Us For Availability
10
SHELF, SPILLPROOF WPL 67001393 Contact Us For Availability
10
BASKET, FRZ. TILT & STORE WPL CJS481TOSA Contact Us For Availability
11
SPRING W/DAMPNER, DOOR CLOSER WPL 67001521 Contact Us For Availability
11
FILTER, WATER WPL UKF7002AXX Contact Us For Availability
11
SCREW WPL 4000221 Contact Us For Availability
11
SCREW WPL 67001377 Contact Us For Availability
11
PLATE, UPPER HINGE WPL 67001448 Contact Us For Availability
11
SCREW WPL 67001449 Contact Us For Availability
11
TUBE, COPPER INLET WPL 67001484 Contact Us For Availability
11
FRAME, DELI SHELF WPL 67001398 Contact Us For Availability
11
BRACKET, DISPLAY WPL 67001376 Contact Us For Availability
11
FRAME ASSY., ELEVATOR SHELF WPL 67001423 Contact Us For Availability
12
BUSHING, UPPER HINGE WPL 67001450 Contact Us For Availability
12
SEAL (LT) WPL 67001987 Contact Us For Availability
12
SEAL (RT) WPL 67001988 Contact Us For Availability
12
UNION, COMPRESSION WPL 542671 Contact Us For Availability
12
CRADLE, DELI PAN WPL 67001397 Contact Us For Availability
12
WHEEL ASSY. (RT) WPL 67001523 Contact Us For Availability
12
DISPLAY ASSY., MAIN WPL 67001378 Contact Us For Availability
12
HANDLE, EXTENDED DOOR (WHT) WPL CJSF15EHWA Contact Us For Availability
12
SHELF, ELEVATOR WPL 67001424 Contact Us For Availability
13
SCREW WPL 67001466 Contact Us For Availability
13
VALVE, WATER (FILTER) WPL 67001478 Contact Us For Availability
13
PAN, DELI (SNACK TRAY) WPL 67001395 Contact Us For Availability
13
GEAR ASSY., WHEEL (FRT) WPL 67001524 Contact Us For Availability
13
SHIELD, LIGHT WPL 67001379 Contact Us For Availability
13
FRAME, SHELF WPL 67001425 Contact Us For Availability
13
HINGE, LOWER WPL 67001451 Contact Us For Availability
14
VALVE, WATER (ICE MAKER) WPL 67001479 Contact Us For Availability
14
COVER ASSY., EVAPORATOR WPL 67001896 Contact Us For Availability
14
PLATE, LOWER HINGE WPL 67001473 Contact Us For Availability
14
SCREW WPL 67001531 Contact Us For Availability
14
FRONT, DELI PAN WPL 67001396 Contact Us For Availability
14
GEAR ASSY., WHEEL (REAR) WPL 67001525 Contact Us For Availability
14
DIVERTER, AIR RETURN WPL 67001381 Contact Us For Availability
14
SHELF, FREEZER WPL 67001426 Contact Us For Availability
14
PLATE, LOWER HINGE WPL 67001452 Contact Us For Availability
15
DIFFUSER, AIR WPL 67001411 Contact Us For Availability
15
GASKET, DIFFUSER WPL 67001412 Contact Us For Availability
15
SHIM, LOWER HINGE WPL 67001453 Contact Us For Availability
15
BRACKET, WATER VALVE WPL 67001480 Contact Us For Availability
15
ARM, DOOR CLOSER WPL 67001518 Contact Us For Availability
15
CLIP WPL 67001382 Contact Us For Availability
15
DIVERTER, AIR INLET WPL 67001383 Contact Us For Availability
15
FRAME, BASKET WPL 67001427 Contact Us For Availability
16
THERMISTER WPL 67001995 Contact Us For Availability
16
BUSHING, LOWER HINGE WPL 67001454 Contact Us For Availability
16
GLIDE (LT) WPL 67001399 Contact Us For Availability
16
SCREW WPL 67001519 Contact Us For Availability
16
WIRE HARNESS, CONTROL HSG. WPL 67001384 Contact Us For Availability
17
RETAINER, CONTROL ROD WPL 61003316 Contact Us For Availability
17
INSULATION, VELORA WPL 67001414 Contact Us For Availability
17
STUD, LOWER HINGE WPL 67001456 Contact Us For Availability
17
TUBING WPL 67001481 Contact Us For Availability
17
GLIDE (RT) WPL 67001400 Contact Us For Availability
17
SHELF, SPILLPROOF WPL 67001401 Contact Us For Availability
17
BUSHING, CLOSER ARM WPL 67001520 Contact Us For Availability
18
BUSHING, CLOSER WPL 67001458 Contact Us For Availability
18
CLIP, THERMISTER WPL 67001341 Contact Us For Availability
18
TUBING WPL 67001482 Contact Us For Availability
18
BLANKET WPL 67001492 Contact Us For Availability
18
CRISPER ASSY. (LWR-4 BUTTON) WPL 67002149 Contact Us For Availability
18
CRISPER ASSY. (UPR-3 BUTTON) WPL 67002150 Contact Us For Availability
18
DAMPNER, SPRING WPL 67001522 Contact Us For Availability
18
SPRING W/DAMPNER, DOOR CLOSER WPL 67001526 Contact Us For Availability
18
BASKET, FREEZER WPL 67001428 Contact Us For Availability
19
THERMISTER WPL 67001342 Contact Us For Availability
19
SPACER, CLOSER WPL 67001459 Contact Us For Availability
19
SCREW WPL 6527533 Contact Us For Availability
19
TUBING WPL 67001483 Contact Us For Availability
19
PAN ASSY., CRISPER WPL 67001488 Contact Us For Availability
19
BRACKET ASSY., ANTI TIP WPL 67001527 Contact Us For Availability
20
PAN, DRAIN WPL 67001343 Contact Us For Availability
20
SCREW WPL 67001344 Contact Us For Availability
20
SHIELD, LIGHT WPL 67001416 Contact Us For Availability
20
RETAINER, CLOSER EXTENSION WPL 67001460 Contact Us For Availability
20
RETAINER, DUCT WPL 61003725 Contact Us For Availability
20
SHELF, FREEZER WPL 67001430 Contact Us For Availability
21
WICKS, CONDENSATION WPL 67001345 Contact Us For Availability
21
FACADE WPL 67001417 Contact Us For Availability
21
SHELF, PICK OFF WPL 67001474 Contact Us For Availability
21
DIVERTER, AIR (UPR CRISPER) WPL 67001905 Contact Us For Availability
21
FRAME, SHELF WPL 67001431 Contact Us For Availability
21
COMPARTMENT, DAIRY WPL 67001461 Contact Us For Availability
22
CORD, POWER (W/HARNESS) WPL 67001346 Contact Us For Availability
22
BRACKET, FACADE WPL 67001418 Contact Us For Availability
22
WIRE, PICK OFF SHELF WPL 67001475 Contact Us For Availability
22
GLIDE, ICE BIN (LT) WPL 67001432 Contact Us For Availability
22
SEAL, DAIRY DOOR WPL 67001462 Contact Us For Availability
23
DAMPER ASSY., AUTO WPL 67001900 Contact Us For Availability
23
BRACKET, FILTER SWITCH WPL 67001347 Contact Us For Availability
23
SCREW WPL 67001388 Contact Us For Availability
23
SCREW, HANDLE TO FRAME WPL 61003351 Contact Us For Availability
23
FRAME, BASKET WPL 67001476 Contact Us For Availability
23
GLIDE, ICE BIN (RT) WPL 67001433 Contact Us For Availability
23
DOOR ASSY., DAIRY WPL 67001901 Contact Us For Availability
24
WIRE HARNESS, FREEZER WPL 67001415 Contact Us For Availability
24
BASKET, TILT WPL 67001477 Contact Us For Availability
24
BIN, ICE WPL 67001434 Contact Us For Availability
24
WIRE, DAIRY COMPARTMENT WPL 67001463 Contact Us For Availability
25
SWITCH WPL 67001348 Contact Us For Availability
25
FRONT, BASKET WPL 67001429 Contact Us For Availability
25
SHELF, PICK OFF WPL 67001464 Contact Us For Availability
26
BRACKET, WATER FILTER WPL 67001349 Contact Us For Availability
26
SCREW WPL 67001350 Contact Us For Availability
26
SCREW WPL 40001735 Contact Us For Availability
26
SLIDE, ICE MAKER WPL 67001436 Contact Us For Availability
26
WIRE, PICK OFF SHELF WPL 67001465 Contact Us For Availability
27
HEAD, WATER FILTER WPL 67001352 Contact Us For Availability
27
STOP ASSY., DOOR WPL 67001626 Contact Us For Availability
28
PLUG, FILTER BYPASS WPL 61003791 Contact Us For Availability
29
FITTING, WATER FILTER WPL 67001351 Contact Us For Availability
30
FITTING ASSY., WATER FILTER WPL 61003705 Contact Us For Availability
32
VALVE ASSY., PRESSURE RELIEF WPL 67001353 Contact Us For Availability
32
SCREEN WPL 67001904 Contact Us For Availability
33
DIVIDER, MACHINE COMPARTMENT WPL 67001354 Contact Us For Availability
34
BRACKET, ELECTRICAL WPL 67001355 Contact Us For Availability
35
SWITCH, MAIN SHUT OFF WPL 67001356 Contact Us For Availability
36
SWITCH, C/F TEMP. DISPLAY WPL 67001357 Contact Us For Availability
38
INDUCTOR, COMPRESSOR WPL 67001359 Contact Us For Availability
40
BOARD, MAIN DISPLAY WPL 67001361 Contact Us For Availability
41
STANDOFFS, CIRCUIT BOARD WPL 67001528 Contact Us For Availability
42
COVER, CIRCUIT BOARD WPL 67001362 Contact Us For Availability
43
FRAME ASSY., MACHINE COMPT. WPL 67001993 Contact Us For Availability
44
TRIM, CABINET TOP (WHT) WPL 67001930 Contact Us For Availability
45
SWITCH, LIGHT WPL 67001368 Contact Us For Availability
46
WIRE HARNESS, COMPRESSOR WPL 67001363 Contact Us For Availability
46
WIRE HARNESS, COMP. BOARD WPL 67001364 Contact Us For Availability
46
WIRE HARNESS, POWER WPL 67001365 Contact Us For Availability
46
WPL 67001366 WPL 67001366 Contact Us For Availability
46
WPL 67001541 WPL 67001541 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002999 Contact Us For Availability
× ![]()
Login and Registration Form
