Model Whirlpool JS20Y8DW REFRIGERATOR – Common Parts & Diagrams

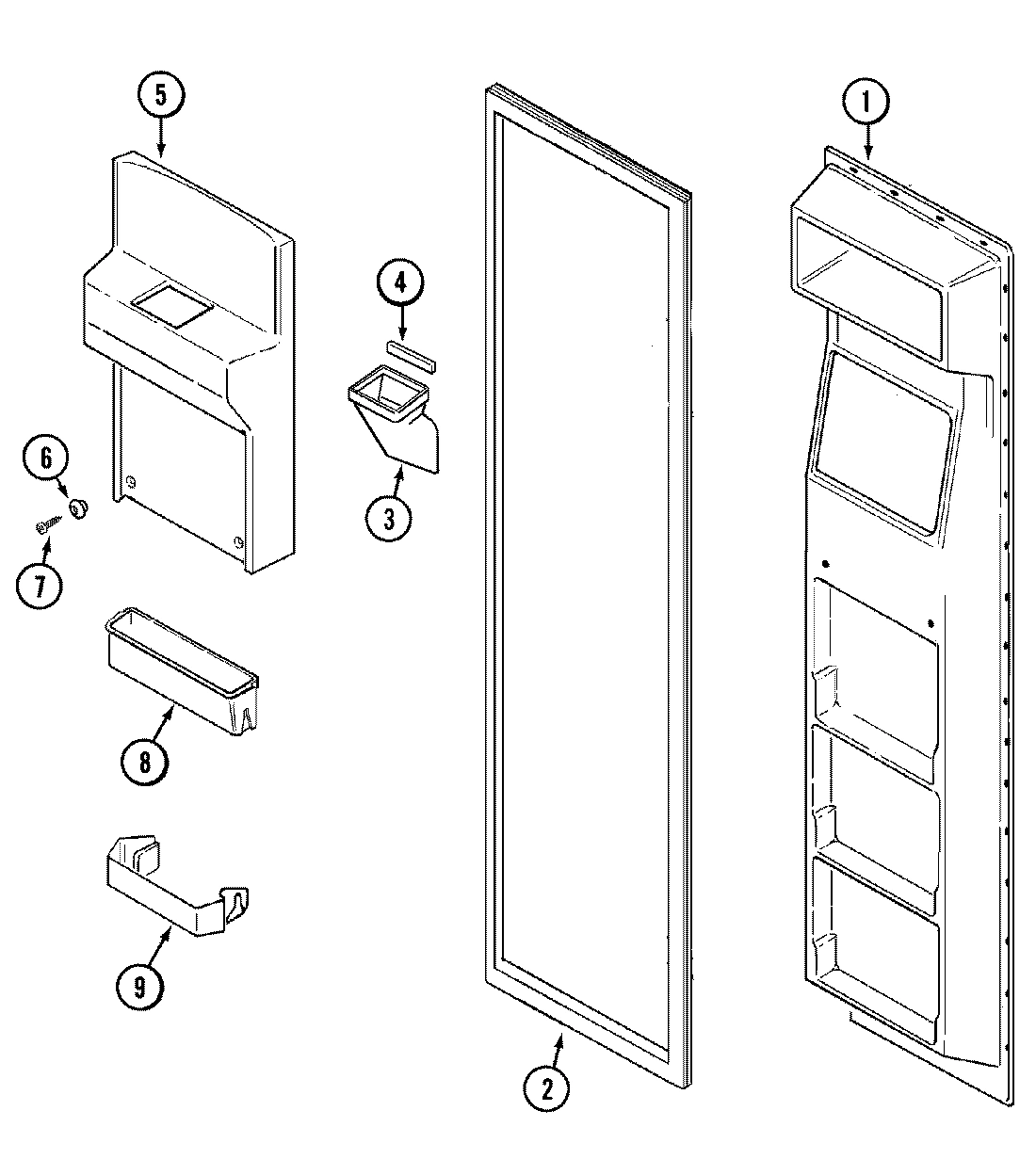

02 - FREEZER INNER DOOR

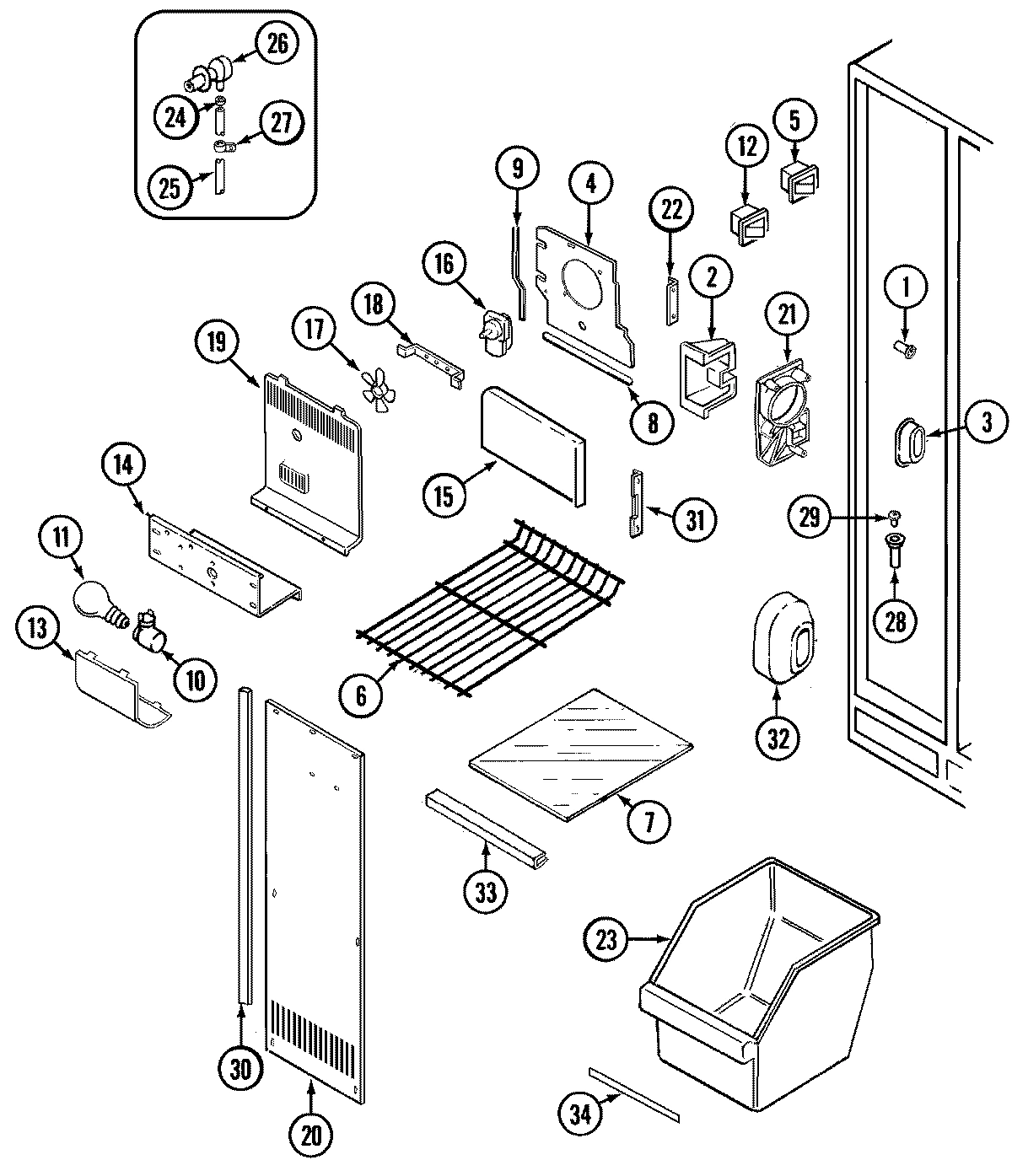

01 - FREEZER COMPARTMENT

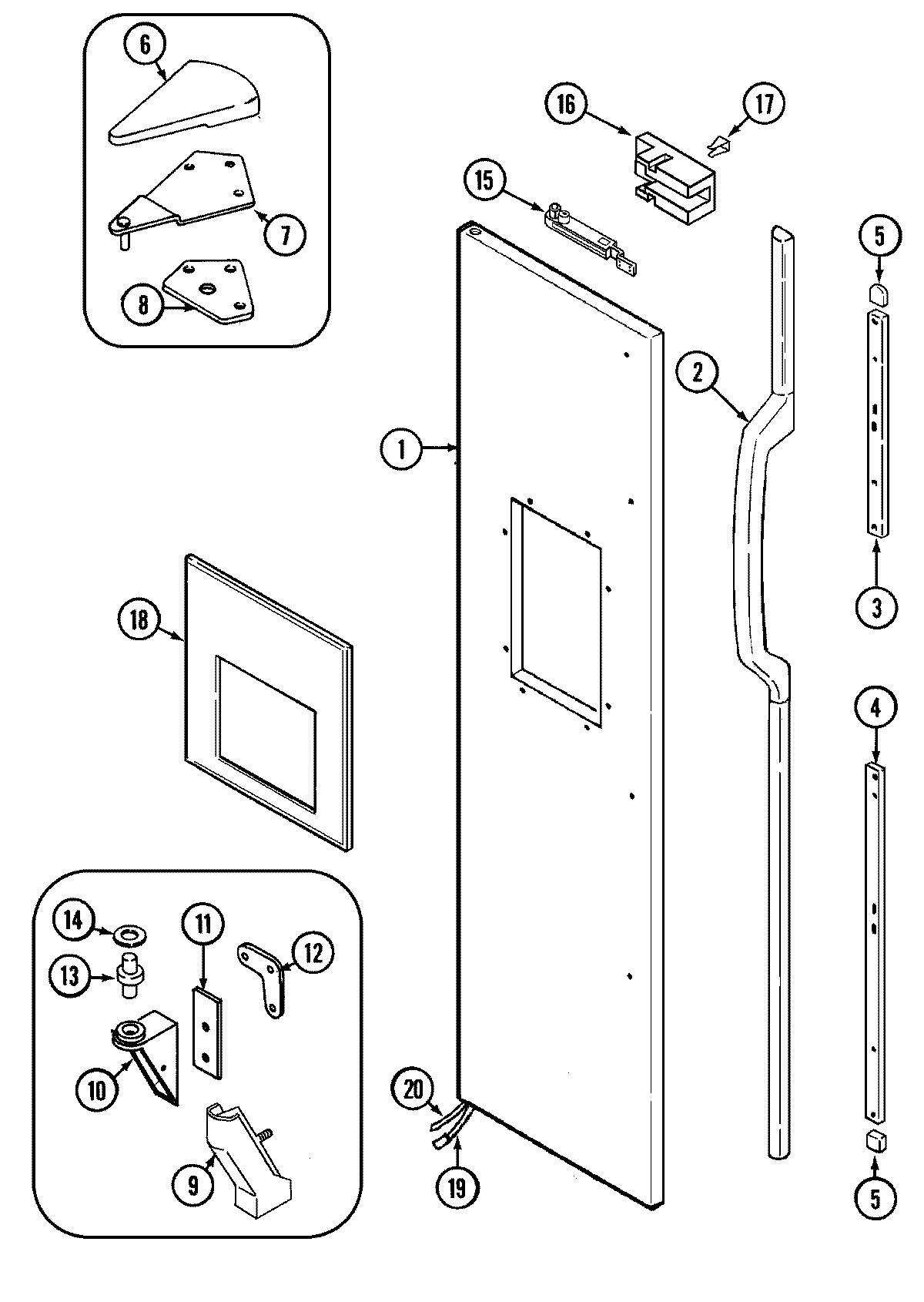

03 - FREEZER OUTER DOOR

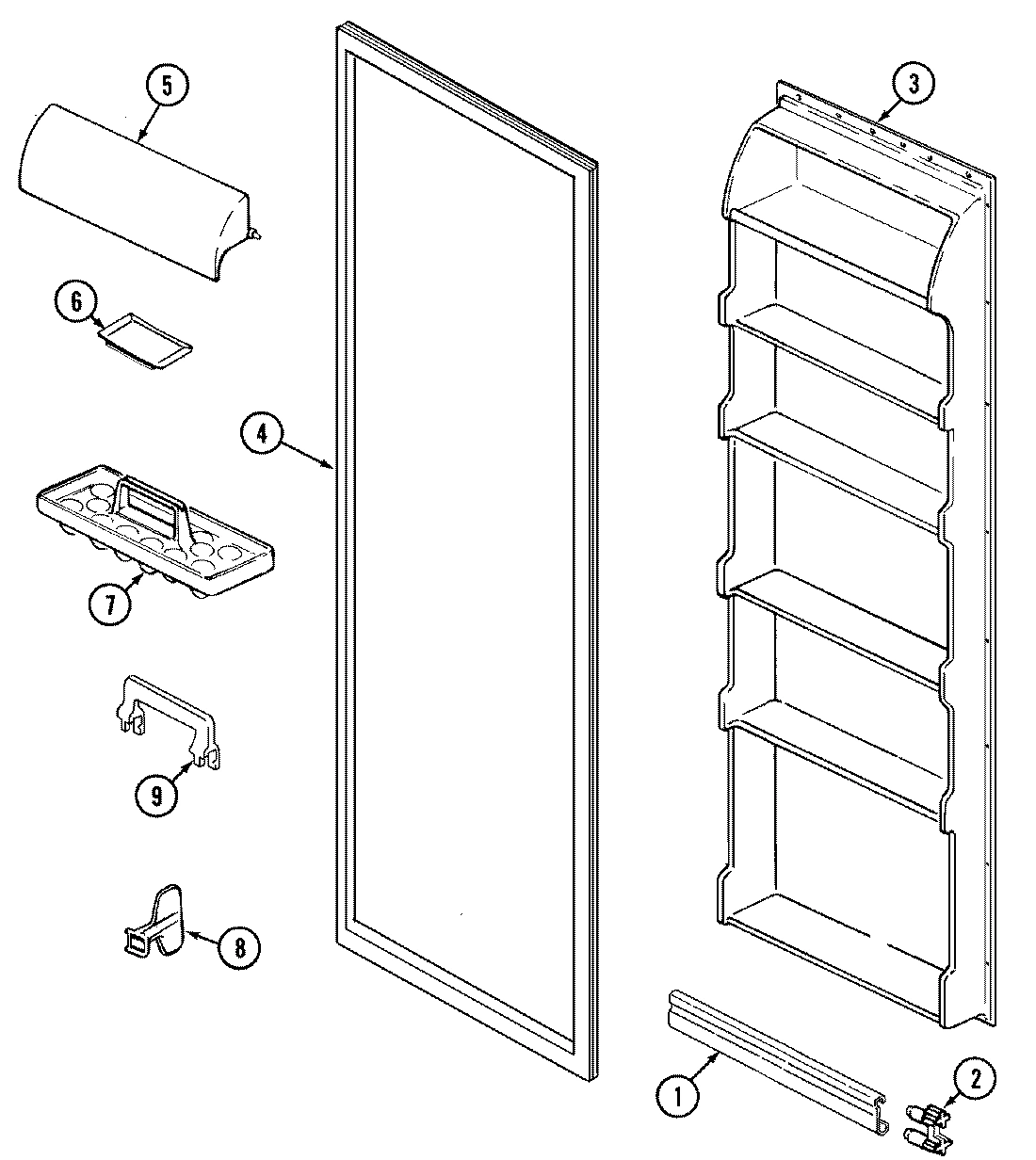

05 - FRESH FOOD INNER DOOR

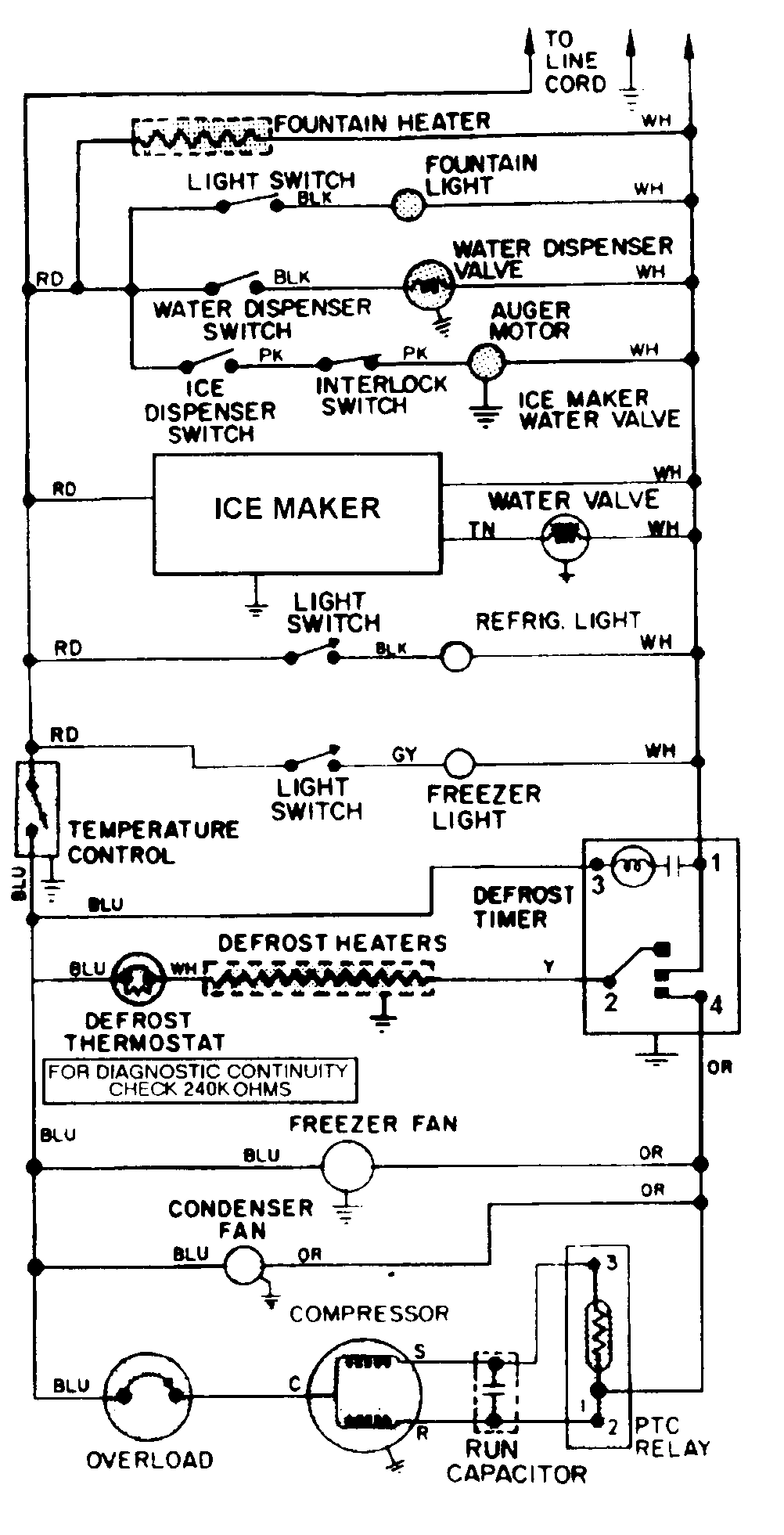

12 - WIRING INFORMATION

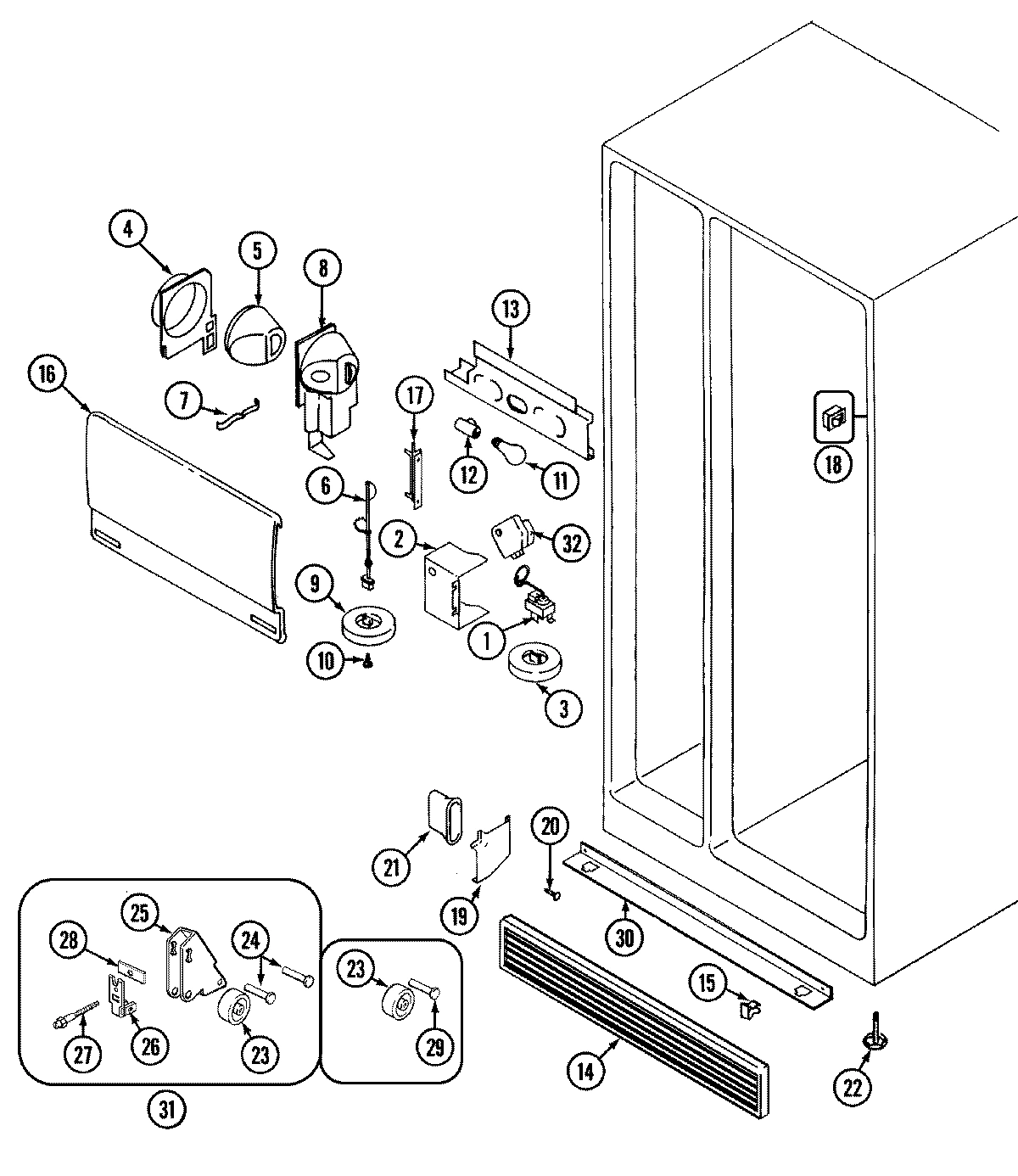

04 - FRESH FOOD COMPARTMENT

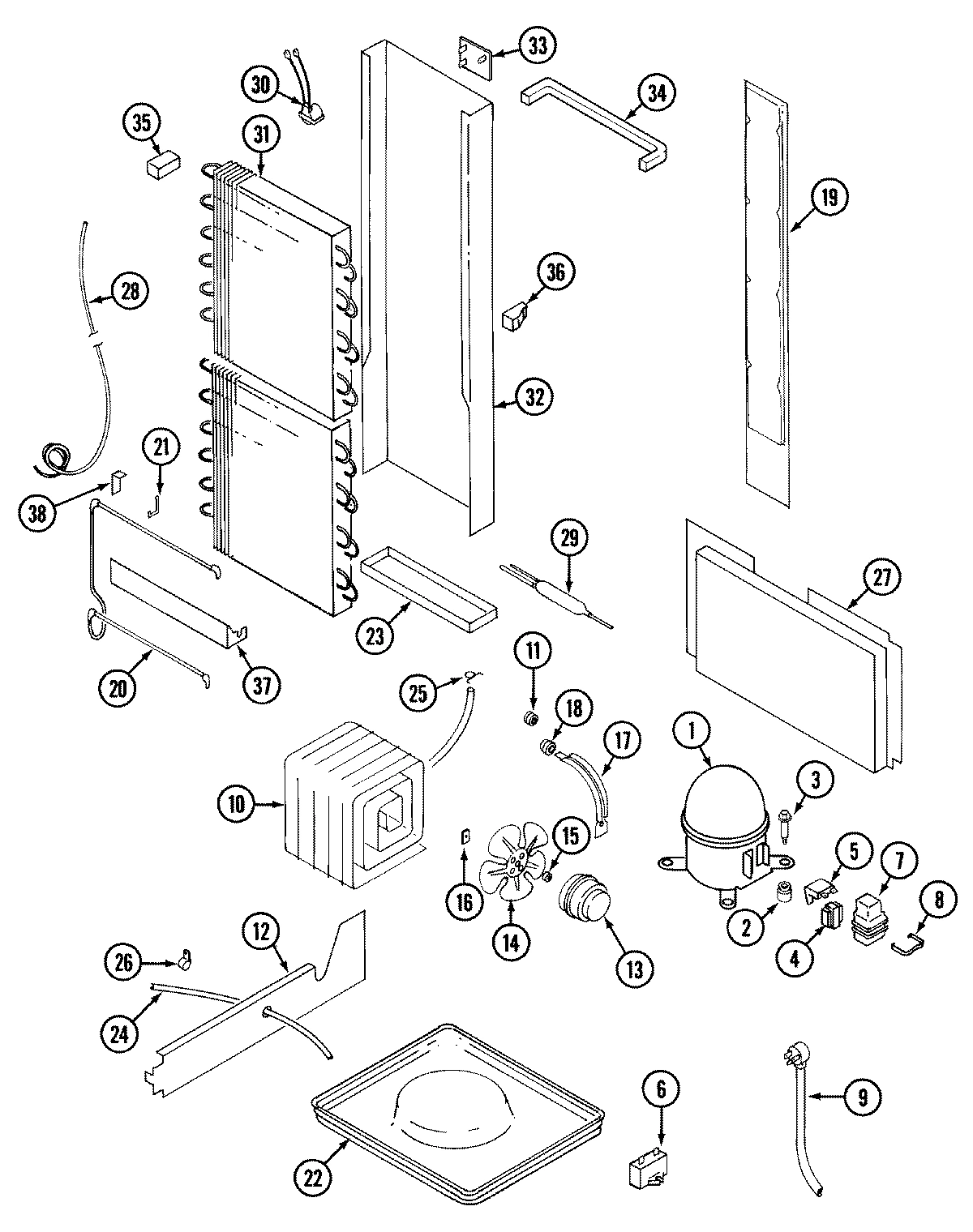

11 - UNIT COMPARTMENT & SYSTEM

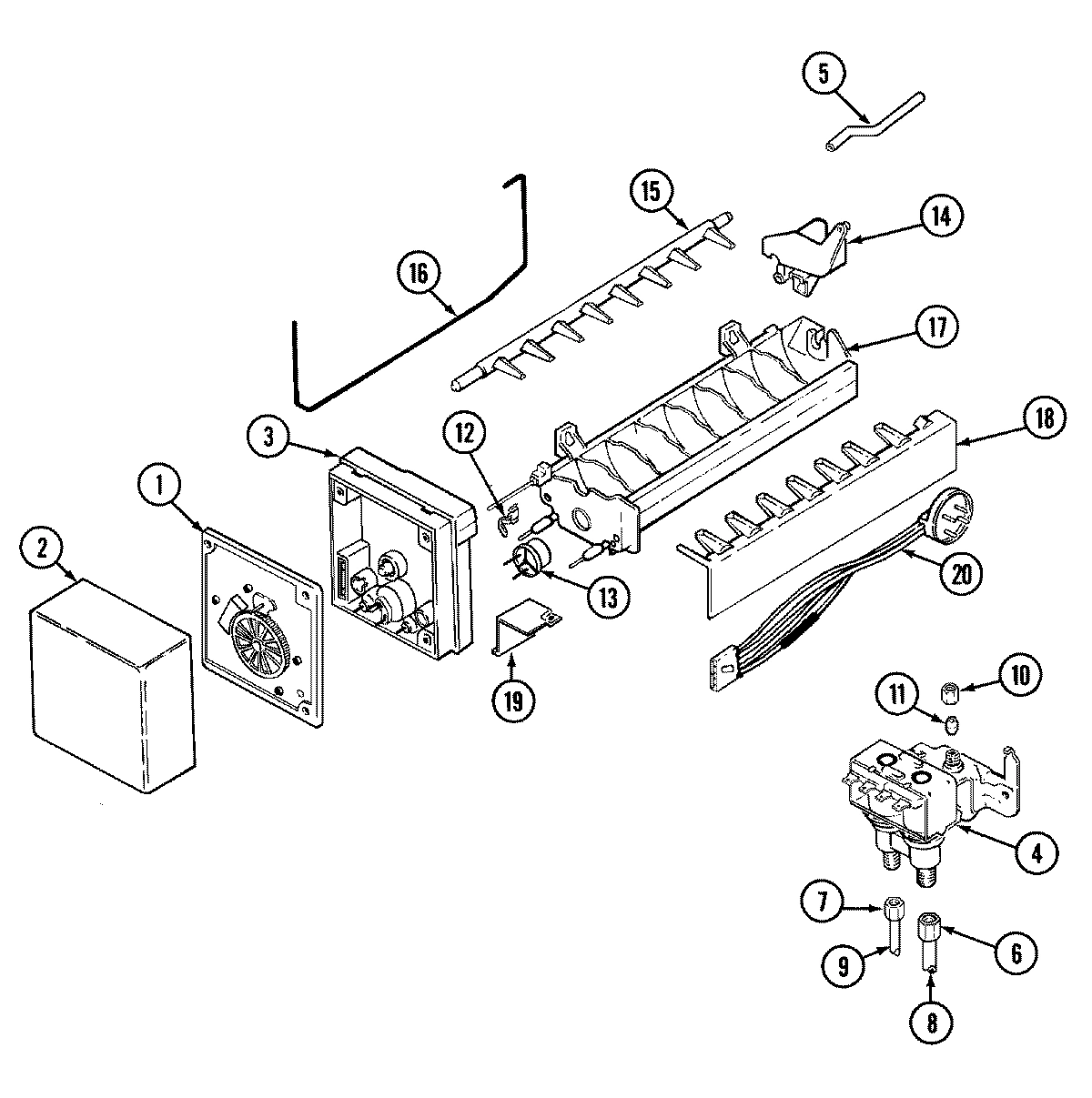

09 - ICE MAKER

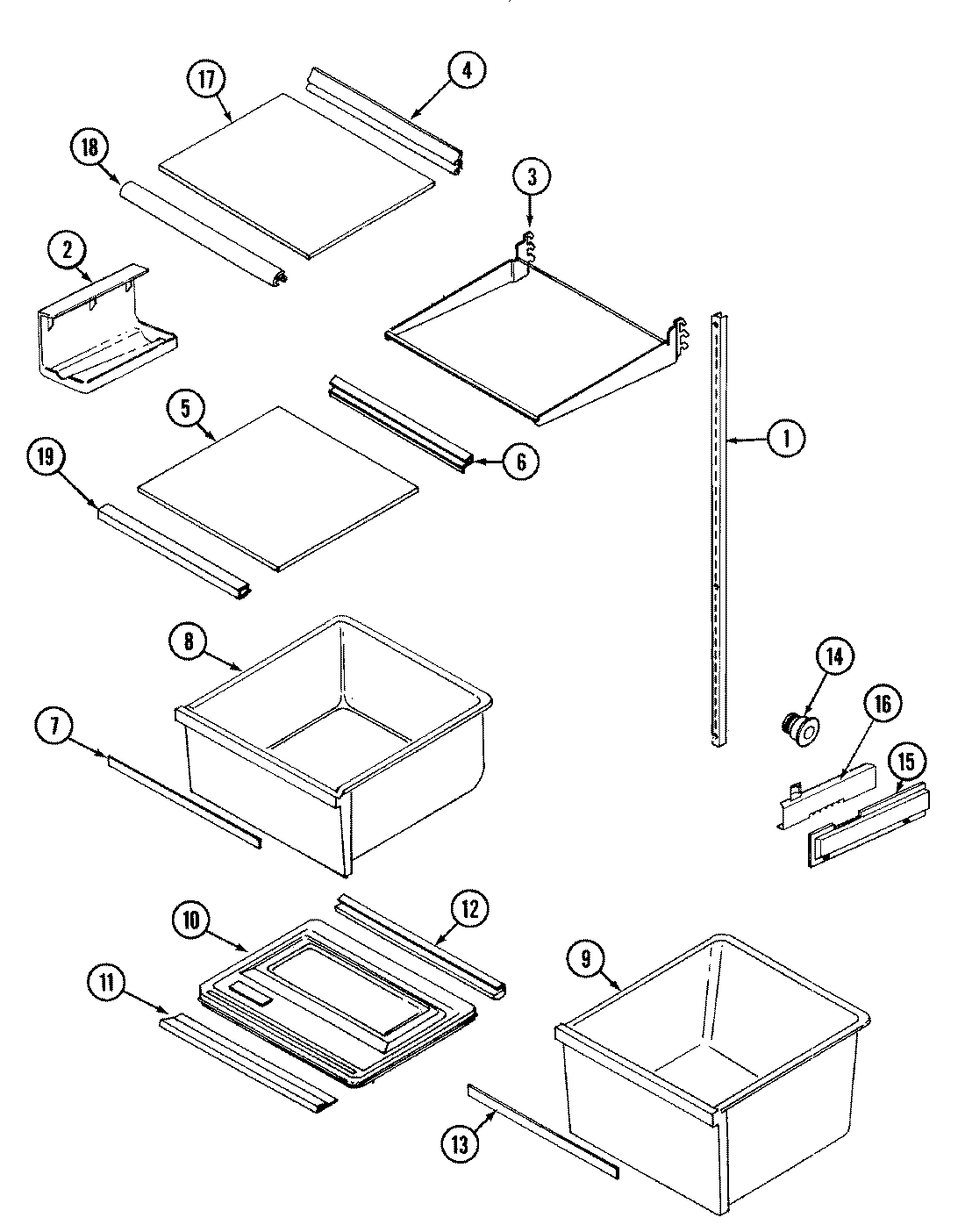

10 - SHELVES & ACCESSORIES

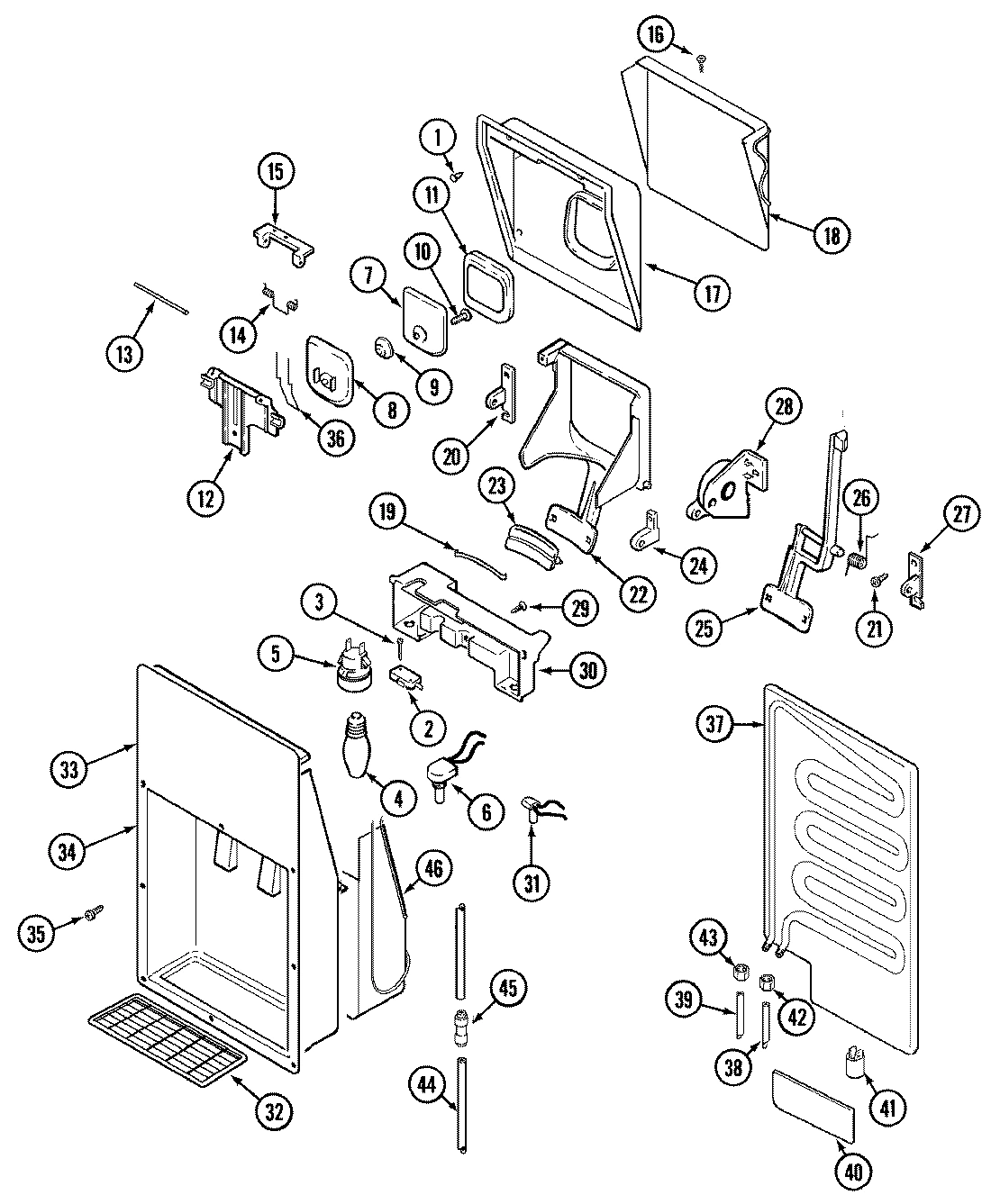

07 - ICE & WATER DISPENSER

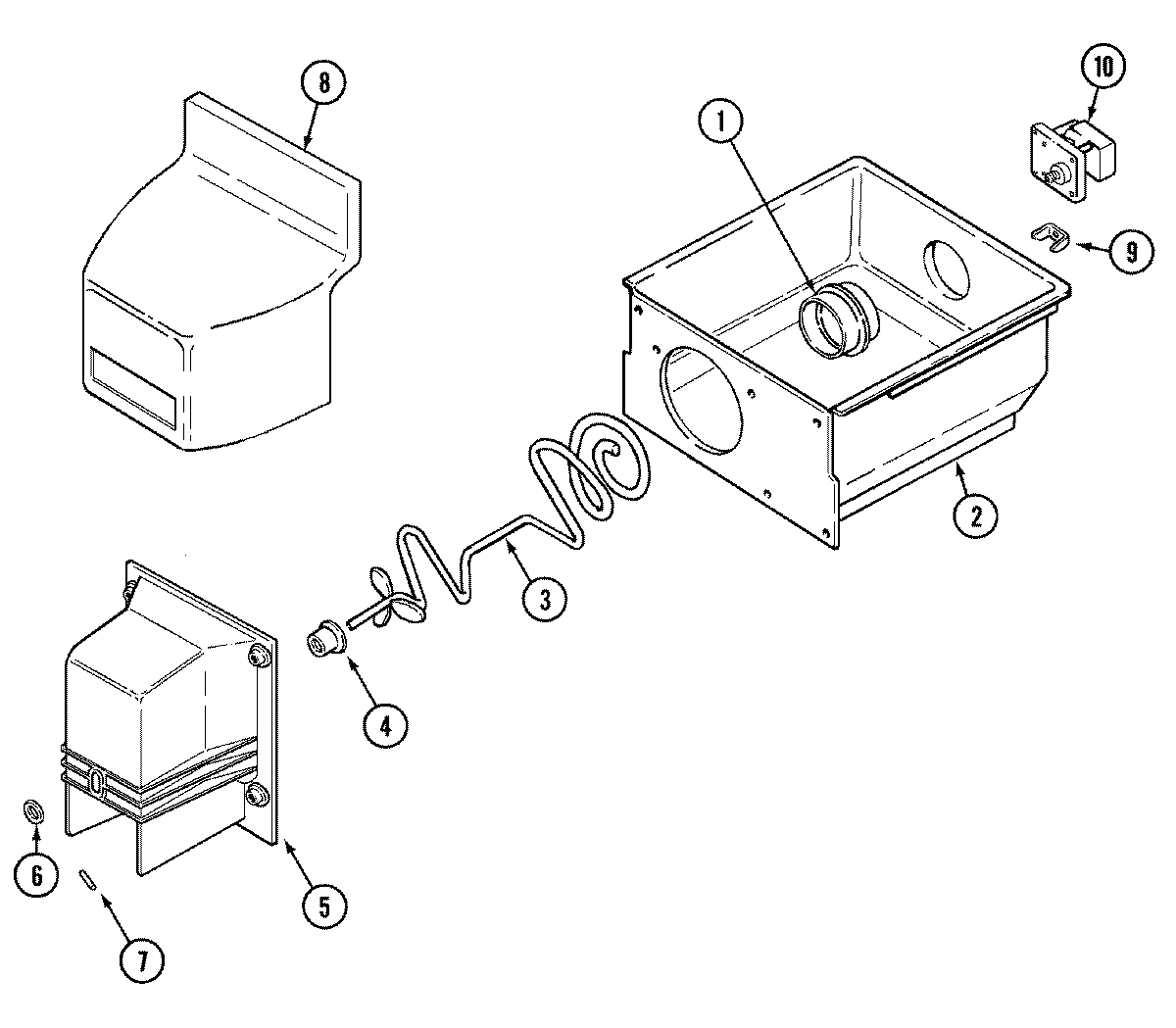

08 - ICE BIN

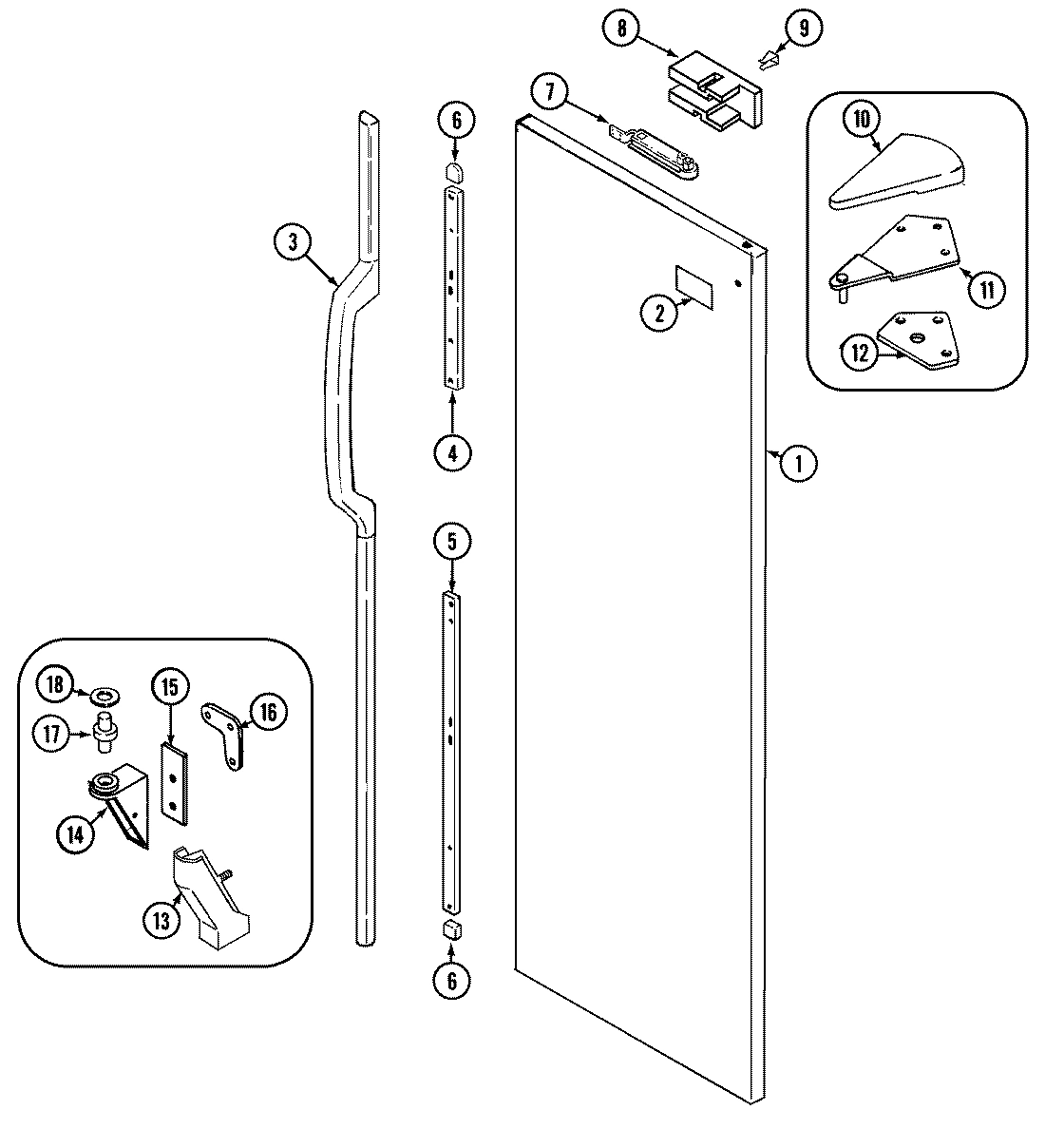

06 - FRESH FOOD OUTER DOOR
Common parts from model Whirlpool JS20Y8DW REFRIGERATOR
1
LINER, FRZ. DOOR WPL 692531 Contact Us For Availability
1
CUP, SHELF WPL 603131 Contact Us For Availability
1
CUP, SHELF WPL 674661 Contact Us For Availability
1
SCREW WPL 4000171 Contact Us For Availability
1
PLUG BUTTON, DOOR WPL 495034900 Contact Us For Availability
1
PANEL, FRZ. DOOR (WHT) WPL 7234628WW Contact Us For Availability
1
TRIM, SHELF WPL 7011162 Contact Us For Availability
1
SCREW WPL 4010241 Contact Us For Availability
1
CONTROL, TEMPERATURE WPL 696945 Contact Us For Availability
1
WIRE HARNESS, COMPRESSOR WPL 61001017 Contact Us For Availability
1
SCREW WPL 4000311 Contact Us For Availability
1
ICEMAKER WPL 951091 Contact Us For Availability
1
SCREW WPL 40003728 Contact Us For Availability
1
RAIL, SHELF SUPPORT WPL 673111 Contact Us For Availability
1
BUMPER, DOOR WPL 282726 Contact Us For Availability
1
RING, DRIVE WPL 700272 Contact Us For Availability
1
PANEL, OUTER DOOR (WHT) WPL 723411WW Contact Us For Availability
2
GASKET WPL 700241 Contact Us For Availability
2
SHIELD, AIR DIRECTIONAL WPL 673531 Contact Us For Availability
2
RETAINER, SHELF TRIM WPL 701971 Contact Us For Availability
2
HOUSING, TEMPERATURE CONTROL WPL 701781 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
COVER, ICE MAKER WPL 61001239 Contact Us For Availability
2
HOLDER, BEVERAGE WPL 696151 Contact Us For Availability
2
SWITCH, ICE & WATER WPL 554402 Contact Us For Availability
2
BIN WPL 678261 Contact Us For Availability
2
NAMEPLATE WPL 680613 Contact Us For Availability
3
CHUTE, ICE WPL 692201 Contact Us For Availability
3
RETAINER, AIR TUNNEL WPL 537271 Contact Us For Availability
3
RETAINER, AIR RETURN WPL 700341 Contact Us For Availability
3
KIT, HANDLE ASSY. (WHT) WPL 12000039 Contact Us For Availability
3
LINER, F.F. DOOR WPL 692381 Contact Us For Availability
3
KNOB, TEMP. CONTROL WPL 298937 Contact Us For Availability
3
SCREW, COMPRESSOR MOUNTING WPL 652759 Contact Us For Availability
3
SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability
3
SCREW WPL 951061 Contact Us For Availability
3
FRAME, SHELF WPL 701066 Contact Us For Availability
3
SCREW WPL 4050711 Contact Us For Availability
3
AUGER WPL 678331 Contact Us For Availability
4
SEAL WPL 5207726 Contact Us For Availability
4
COVER, COIL (UPPER) WPL 672975 Contact Us For Availability
4
TRIM, HANDLE EXT. (UPPER) WPL 695863 Contact Us For Availability
4
GASKET WPL 700243 Contact Us For Availability
4
ORIFICE, FRZ. CONTROL (INLET) WPL 61001230 Contact Us For Availability
4
SCREW WPL 4010181 Contact Us For Availability
4
VALVE, WATER (120V) WPL 61001021 Contact Us For Availability
4
TRIM, SHELF WPL 701104 Contact Us For Availability
4
BULB, LIGHT WPL 631791 Contact Us For Availability
4
BEARING WPL 671722 Contact Us For Availability
5
INSULATION WPL 687681 Contact Us For Availability
5
INSULATION WPL 687721 Contact Us For Availability
5
PANEL, ACCESS WPL 692231 Contact Us For Availability
5
SWITCH, INTERLOCK WPL 680581 Contact Us For Availability
5
TRIM, HANDLE EXT. (LOWER) WPL 695864 Contact Us For Availability
5
DOOR, DAIRY WPL 66184393 Contact Us For Availability
5
INSULATION, HOUSING WPL 587671 Contact Us For Availability
5
OVERLOAD WPL 61001627 Contact Us For Availability
5
TUBE, FILL WPL 676761 Contact Us For Availability
5
SHELF, CRISPER (GLASS) WPL 6813931 Contact Us For Availability
5
RECEPTACLE, BULB WPL 701191 Contact Us For Availability
5
ICE DAM WPL 678291 Contact Us For Availability
6
STUD WPL 687862 Contact Us For Availability
6
SHELF, DISPENSER WPL 686305 Contact Us For Availability
6
END CAP, HANDLE WPL 695901 Contact Us For Availability
6
TRAY, BUTTER WPL 299362 Contact Us For Availability
6
DAMPER, FRZ. CONTROL WPL 673551 Contact Us For Availability
6
CAPACITOR, RUN WPL 658898 Contact Us For Availability
6
SEAL, CRISPER PAN (REAR) WPL 681571 Contact Us For Availability
6
NUT, WIRE WPL 271165 Contact Us For Availability
6
WIRE HARNESS, SWITCH WPL 684911 Contact Us For Availability
6
SWITCH, LIGHT WPL 698325 Contact Us For Availability
6
WASHER, THRUST WPL 678342 Contact Us For Availability
7
SCREW WPL 40002135 Contact Us For Availability
7
GROMMET, PICK-OFF WPL 671441 Contact Us For Availability
7
SHELF, 2,3 & 4 FREEZER (GLASS) WPL 6813924 Contact Us For Availability
7
CLOSER, DOOR WPL 692581 Contact Us For Availability
7
SCREW WPL 41400435 Contact Us For Availability
7
TRAY, EGG WPL 600661 Contact Us For Availability
7
SPRING, BAFFLE WPL 526481 Contact Us For Availability
7
COVER, TERMINAL WPL 665892 Contact Us For Availability
7
INSERT, CRISPER PAN HANDLE WPL 68124103 Contact Us For Availability
7
INSULATION, ICE DOOR WPL 685571 Contact Us For Availability
7
PIN, COTTER WPL 492007703 Contact Us For Availability
8
SHELF, PICK-OFF WPL 698737 Contact Us For Availability
8
SEAL WPL 689464 Contact Us For Availability
8
INSULATION, CLOSER WPL 526131 Contact Us For Availability
8
ELEMENT WPL 700491 Contact Us For Availability
8
ORGANIZER, SHELF WPL 701141 Contact Us For Availability
8
SCREW WPL 4150171 Contact Us For Availability
8
HOUSING, FRZ. CONTROL WPL 673541 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
8
PAN, CRISPER LOWER WPL 6650925 Contact Us For Availability
8
SCREW WPL 40502335 Contact Us For Availability
8
DOOR, ICE WPL 689572 Contact Us For Availability
8
SCREW WPL 41501335 Contact Us For Availability
8
FRONT ASSY, ICE DISP WPL 6987511 Contact Us For Availability
9
FRONT, PICK-OFF WPL 698707 Contact Us For Availability
9
SEAL (44``) WPL 6632521 Contact Us For Availability
9
SCREW WPL 6527556 Contact Us For Availability
9
BRACKET, CLOSER WPL 692611 Contact Us For Availability
9
RETAINER, BOTTLE WPL 701121 Contact Us For Availability
9
KNOB WPL 2989312 Contact Us For Availability
9
CORD, POWER WPL 528903 Contact Us For Availability
9
PAN, MEAT WPL 6651025 Contact Us For Availability
9
RETAINER WPL 685661 Contact Us For Availability
9
YOKE, ICE DISPENSER WPL 630522 Contact Us For Availability
10
COVER, UPPER HINGE (WHT) WPL 701214 Contact Us For Availability
10
HINGE, LOWER WPL 61001629 Contact Us For Availability
10
SCREW WPL 4000011 Contact Us For Availability
10
SCREW WPL 4140011 Contact Us For Availability
10
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
10
CONDENSER WPL 649981 Contact Us For Availability
10
COVER, MEAT PAN WPL 656085 Contact Us For Availability
10
SCREW WPL 40511635 Contact Us For Availability
10
SCREW WPL 406026103 Contact Us For Availability
10
MOTOR, AUGER WPL 651861 Contact Us For Availability
10
WIRE HARNESS, AUGER MOTOR WPL 690481 Contact Us For Availability
11
BULB, LIGHT WPL 319561 Contact Us For Availability
11
HINGE UPPER WPL 5370926 Contact Us For Availability
11
SCREW, UPPER HINGE WPL 6527586 Contact Us For Availability
11
BULB, LIGHT (60W) WPL 557712 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
11
SLEEVE, BRASS WPL 694311 Contact Us For Availability
11
SEAL, MEAT PAN (FRONT) WPL 656481 Contact Us For Availability
11
SEAL, ICE DOOR WPL 698671 Contact Us For Availability
12
RECEPTACLE, BULB WPL 689743 Contact Us For Availability
12
SCREW WPL 998645 Contact Us For Availability
12
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
12
BAFFLE, AIR DIVIDER WPL 61001533 Contact Us For Availability
12
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
12
SEAL, MEAT PAN (REAR) WPL 656491 Contact Us For Availability
12
STRIKE, ICE DOOR WPL 685632 Contact Us For Availability
13
SHIELD, LIGHT WPL 672921 Contact Us For Availability
13
COVER, LOWER HINGE (WHT) WPL 61001611 Contact Us For Availability
13
PIN, HINGE WPL 700601 Contact Us For Availability
13
HOUSING, LITE & WIRE WPL 691931 Contact Us For Availability
13
SCREW WPL 6527533 Contact Us For Availability
13
THERMOSTAT WPL 950921 Contact Us For Availability
13
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
13
INSERT, MEAT FRONT HANDLE WPL 68124102 Contact Us For Availability
13
SHAFT WPL 685641 Contact Us For Availability
14
BOX, AUGER MOTOR WPL 672962 Contact Us For Availability
14
SCREW, LOWER HINGE WPL 6527551 Contact Us For Availability
14
WASHER, DOOR SPACER WPL 674833 Contact Us For Availability
14
KICKPLATE WPL 689817 Contact Us For Availability
14
BLADE, CONDENSER FAN WPL 699582 Contact Us For Availability
14
INLET, WATER WPL 951001 Contact Us For Availability
14
TUNNEL, AIR (MEAT) WPL 537262 Contact Us For Availability
14
SPRING WPL 687651 Contact Us For Availability
14
HINGE, LOWER WPL 61001587 Contact Us For Availability
15
FRONT ASSY, I/M SXS WPL 698745 Contact Us For Availability
15
SHIM, LOWER HINGE WPL 695101 Contact Us For Availability
15
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
15
WASHER, FAN BLADE WPL 61001686 Contact Us For Availability
15
EJECTOR, ICE WPL 951011 Contact Us For Availability
15
CLIP, SECONDARY SEAL WPL 566865 Contact Us For Availability
15
CONTROL HOUSING WPL 657372 Contact Us For Availability
15
BRACKET, PIVOT WPL 689581 Contact Us For Availability
16
SCREW WPL 4030671 Contact Us For Availability
16
SCREW WPL 6527559 Contact Us For Availability
16
TAPPING PLATE, LOWER HINGE WPL 678741 Contact Us For Availability
16
SHIELD, LIGHT REF WPL 691941 Contact Us For Availability
16
ARM, SENSOR WPL 701421 Contact Us For Availability
16
SLIDE CONTROL, (MEAT) WPL 657361 Contact Us For Availability
17
BLADE, EVAPORATOR FAN WPL 61001770 Contact Us For Availability
17
SUPPORT, LIGHT SHIELD WPL 671251 Contact Us For Availability
17
BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability
17
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
17
GLASS, CANTILEVER SHELF WPL 6813930 Contact Us For Availability
17
SCREW WPL 41501435 Contact Us For Availability
17
BACK, FOUNTAIN (WHT) WPL 685672 Contact Us For Availability
17
PIN, LOWER HINGE WPL 698451 Contact Us For Availability
18
SWITCH, LIGHT WPL 669871 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
18
ESCUTCHEON (WHT) WPL 6859438 Contact Us For Availability
18
GROMMET, BRACKET WPL 569331 Contact Us For Availability
18
STRIPPER, ICE WPL 951021 Contact Us For Availability
18
TRIM, SHELF WPL 61001638 Contact Us For Availability
18
HEATER, FOUNTAIN BACK WPL 689371 Contact Us For Availability
18
WASHER, LOWER HINGE WPL 674832 Contact Us For Availability
19
SHIELD, FAN WPL 61001756 Contact Us For Availability
19
WIRE HARNESS, DOOR WPL 698659 Contact Us For Availability
19
COVER, AIR RETURN WPL 699821 Contact Us For Availability
19
COVER WPL 663811 Contact Us For Availability
19
WIRE HARNESS, MAIN WPL 702662 Contact Us For Availability
19
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
19
SCREW, BRACKET WPL 951081 Contact Us For Availability
19
TRIM WPL 666501 Contact Us For Availability
19
TRIM, PADDLE PAD WPL 687631 Contact Us For Availability
20
SCREW WPL 40001536 Contact Us For Availability
20
COVER, COIL (LOWER) WPL 673354 Contact Us For Availability
20
WIRE HARNESS, ICE MAKER WPL 700761 Contact Us For Availability
20
PIVOT, ACTUATOR (LT) WPL 686271 Contact Us For Availability
21
ORIFICE, FRZ. CONTROL (OUTLET) WPL 673521 Contact Us For Availability
21
TUNNEL, AIR RETURN WPL 676841 Contact Us For Availability
21
CLIP, DEFROST HEATER WPL 520671 Contact Us For Availability
22
BRACKET, MOUNTING WPL 672881 Contact Us For Availability
22
LEG, LEVELING WPL 686641 Contact Us For Availability
22
PAN, DRAIN WPL 682361 Contact Us For Availability
22
PADDLE, ICE (WHT) WPL 691122 Contact Us For Availability
23
DRAWER, FRZ. WPL 6651225 Contact Us For Availability
23
WHEEL WPL 698121 Contact Us For Availability
23
TROUGH, DRAIN WPL 535231 Contact Us For Availability
23
PAD, PADDLE (WHT) WPL 691742 Contact Us For Availability
24
PIN, WHEEL WPL 649651 Contact Us For Availability
24
HOSE, DRAIN WPL 2691118 Contact Us For Availability
24
PIVOT, ACTUATOR (CENTER) WPL 687641 Contact Us For Availability
25
BRACKET, WHEEL WPL 627941 Contact Us For Availability
25
SCREW WPL 652751 Contact Us For Availability
25
CLAMP, DRAIN HOSE WPL 96023 Contact Us For Availability
25
PADDLE, WATER (WHT) WPL 685582 Contact Us For Availability
26
GROMMET WPL 692191 Contact Us For Availability
26
FACEPLATE, BRACKET WPL 672801 Contact Us For Availability
26
CLAMP, DRAIN HOSE WPL 535165 Contact Us For Availability
26
SPRING, PADDLE RETURN WPL 687671 Contact Us For Availability
27
SCREW WPL 652755 Contact Us For Availability
27
CLAMP, FEEDER TUBE WPL 231978 Contact Us For Availability
27
SCREW, WHEEL ADJUSTMENT WPL 564875 Contact Us For Availability
27
COVER, UNIT COMPARTMENT WPL 61001228 Contact Us For Availability
27
PIVOT, ACTUATOR (RT)---NA WPL 686281 Contact Us For Availability
28
TUBE, DRAIN WPL 2652711 Contact Us For Availability
28
TAPPING PLATE, WHEEL WPL 591011 Contact Us For Availability
28
COVER, HEAT EXCHANGER WPL 2608822 Contact Us For Availability
28
HEAT EXCHANGER WPL 6501325 Contact Us For Availability
28
WIRE TIE WPL 662231 Contact Us For Availability
28
MOTOR, INTERIA----NA WPL 692751 Contact Us For Availability
29
GROMMET WPL 525261 Contact Us For Availability
29
PIN, WHEEL (REAR) WPL 649653 Contact Us For Availability
29
DRIER WPL 139001 Contact Us For Availability
30
GASKET, LOWER COVER WPL 61001771 Contact Us For Availability
30
RAIL, HORIZONTAL SUPPORT WPL 61001030 Contact Us For Availability
30
SCREW WPL 6527542 Contact Us For Availability
30
THERMOSTAT, DEFROST WPL 5208529 Contact Us For Availability
30
BRACKET, SWITCH WPL 61001685 Contact Us For Availability
30
NUT WPL 701761 Contact Us For Availability
31
SCREW WPL 4000161 Contact Us For Availability
31
LATCH WPL 685721 Contact Us For Availability
31
WHEEL ASSY. WPL 628307 Contact Us For Availability
31
EVAPORATOR WPL 5255121 Contact Us For Availability
31
PLUNGER WPL 685682 Contact Us For Availability
32
INSULATION, AIR RETURN WPL 678371 Contact Us For Availability
32
SCREW WPL 4050071 Contact Us For Availability
32
TIMER, DEFROST WPL 682333 Contact Us For Availability
32
HOUSING, EVAPORATOR WPL 688341 Contact Us For Availability
32
GRILL WPL 686311 Contact Us For Availability
33
TRIM, SHELF WPL 701371 Contact Us For Availability
33
BOARD, TERMINAL WPL 558781 Contact Us For Availability
33
FRONT, FOUNTAIN WPL 689551 Contact Us For Availability
34
INSERT, DRAWER WPL 68124100 Contact Us For Availability
34
SEAL WPL 6632517 Contact Us For Availability
35
SEAL, STYROFOAM-(LEFT) WPL 650631 Contact Us For Availability
36
SEAL, STYROFOAM-(RIGHT) WPL 650641 Contact Us For Availability
36
SPRING, ICE DOOR WPL 698681 Contact Us For Availability
37
REFLECTOR WPL 2991512 Contact Us For Availability
37
SCREW WPL 40004828 Contact Us For Availability
37
TANK, WATER WPL 690657 Contact Us For Availability
38
BRACKET, HEATER SHIELD WPL 525611 Contact Us For Availability
39
MANUAL, USE & CARE WPL 1084293 Contact Us For Availability
40
GUIDE, QUICK REF - JENN-AIR WPL 16000326 Contact Us For Availability
40
RETAINER, NAMEPLATE WPL 293561 Contact Us For Availability
40
COVER, WATER LINE CONN. WPL 685221 Contact Us For Availability
41
NYLON NUT WPL 1953036 Contact Us For Availability
42
NUT, COMPRESSION (5/16``) WPL 695832 Contact Us For Availability
43
NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability
44
TUBING, DOOR WPL 671878 Contact Us For Availability
46
HEATER, FOUNTAIN WPL 689361 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001880 Contact Us For Availability
× ![]()
Login and Registration Form
