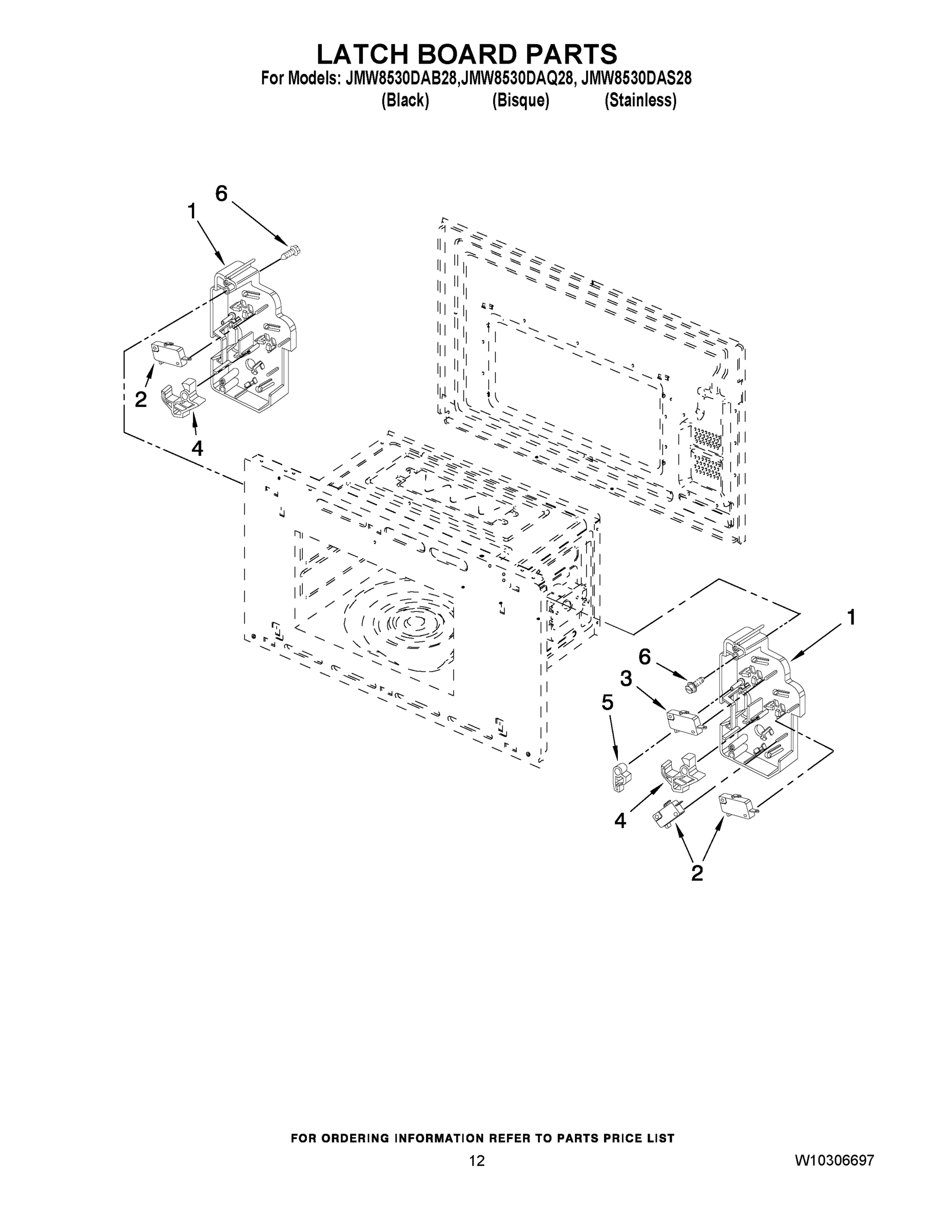

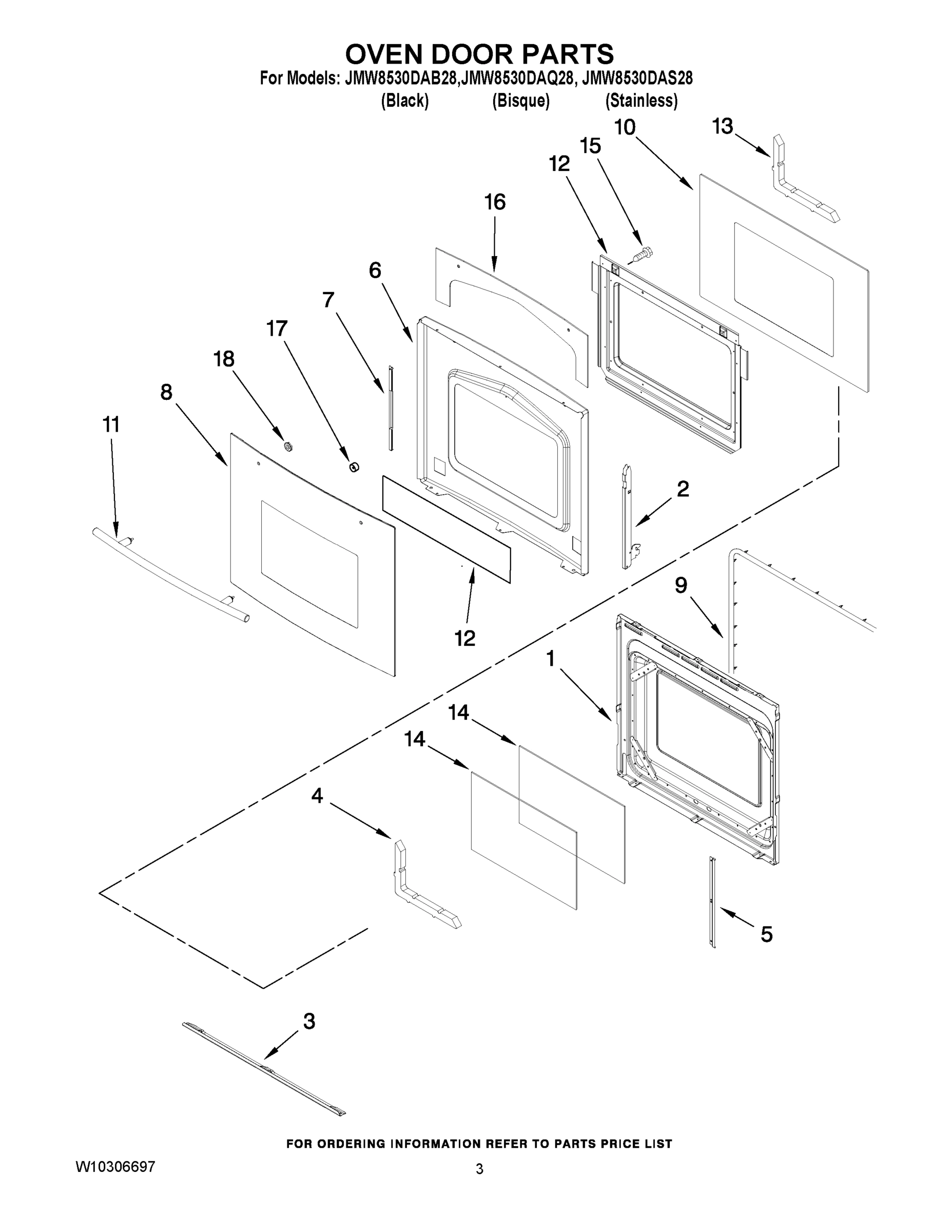

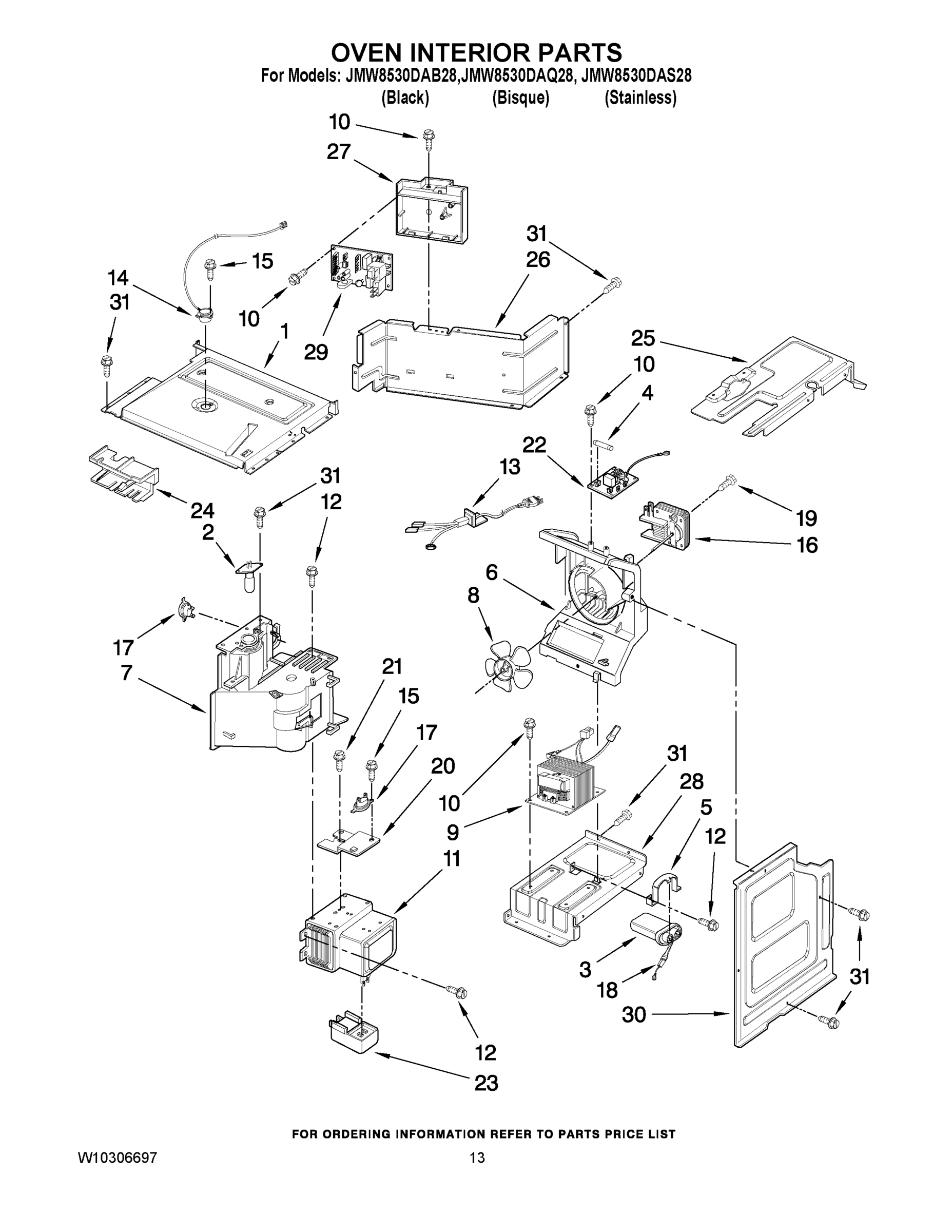

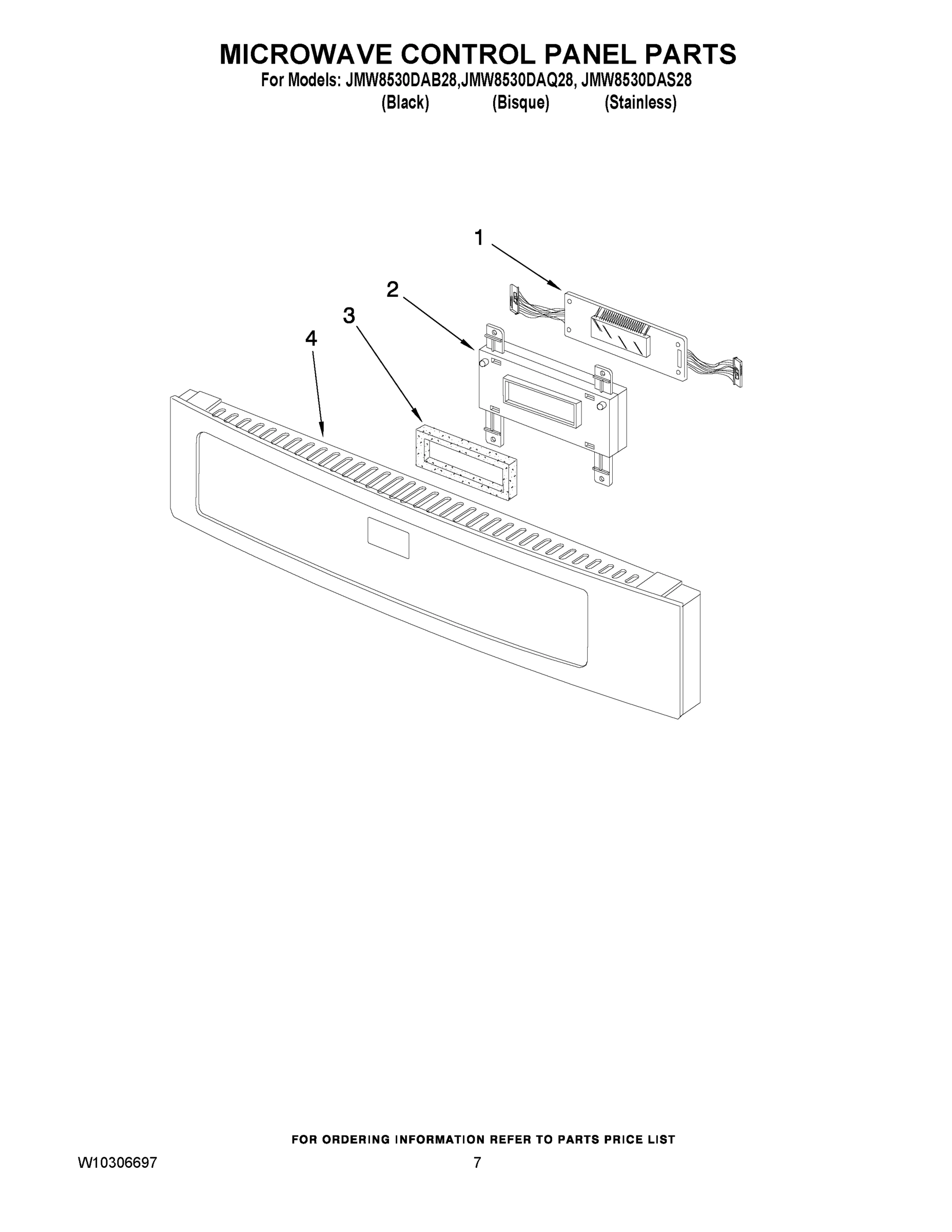

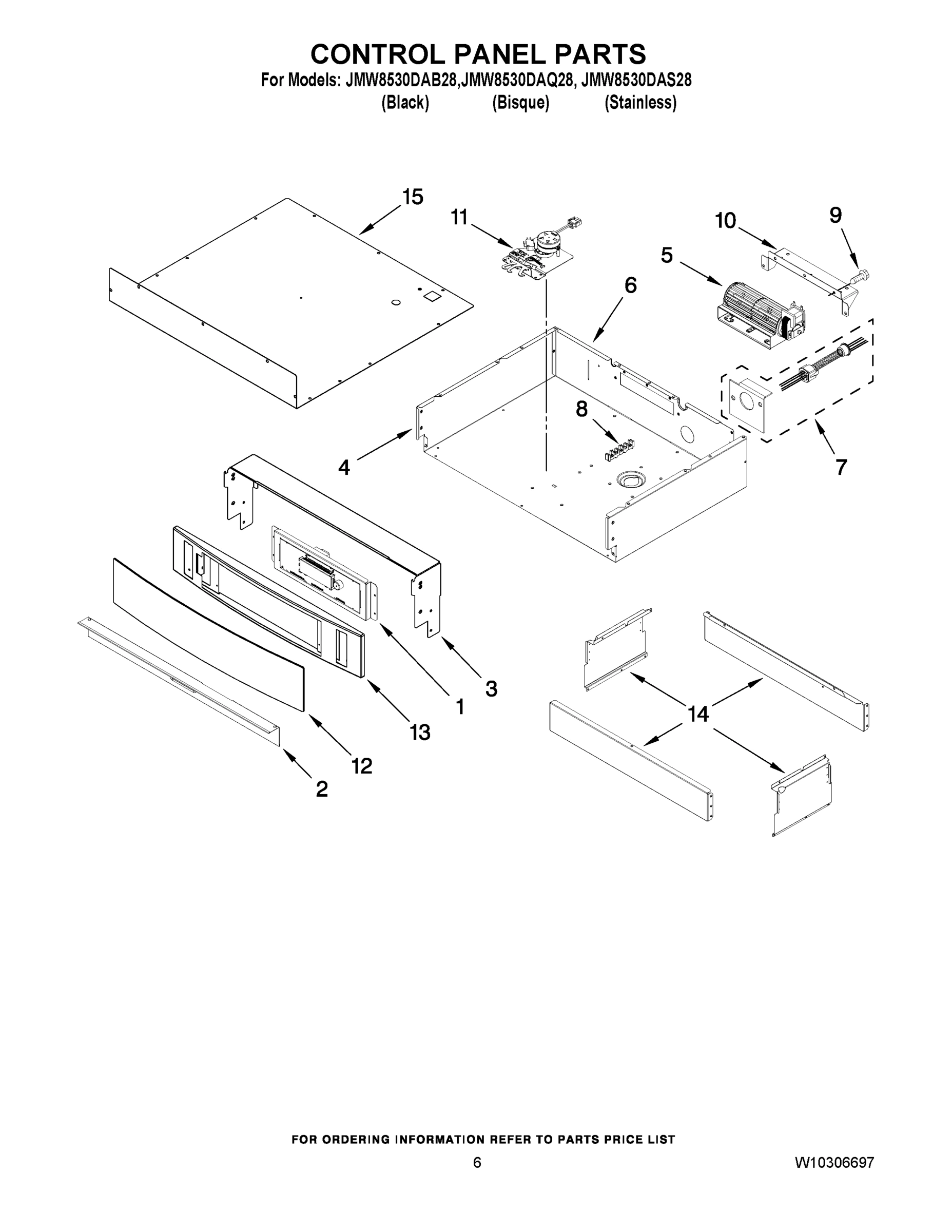

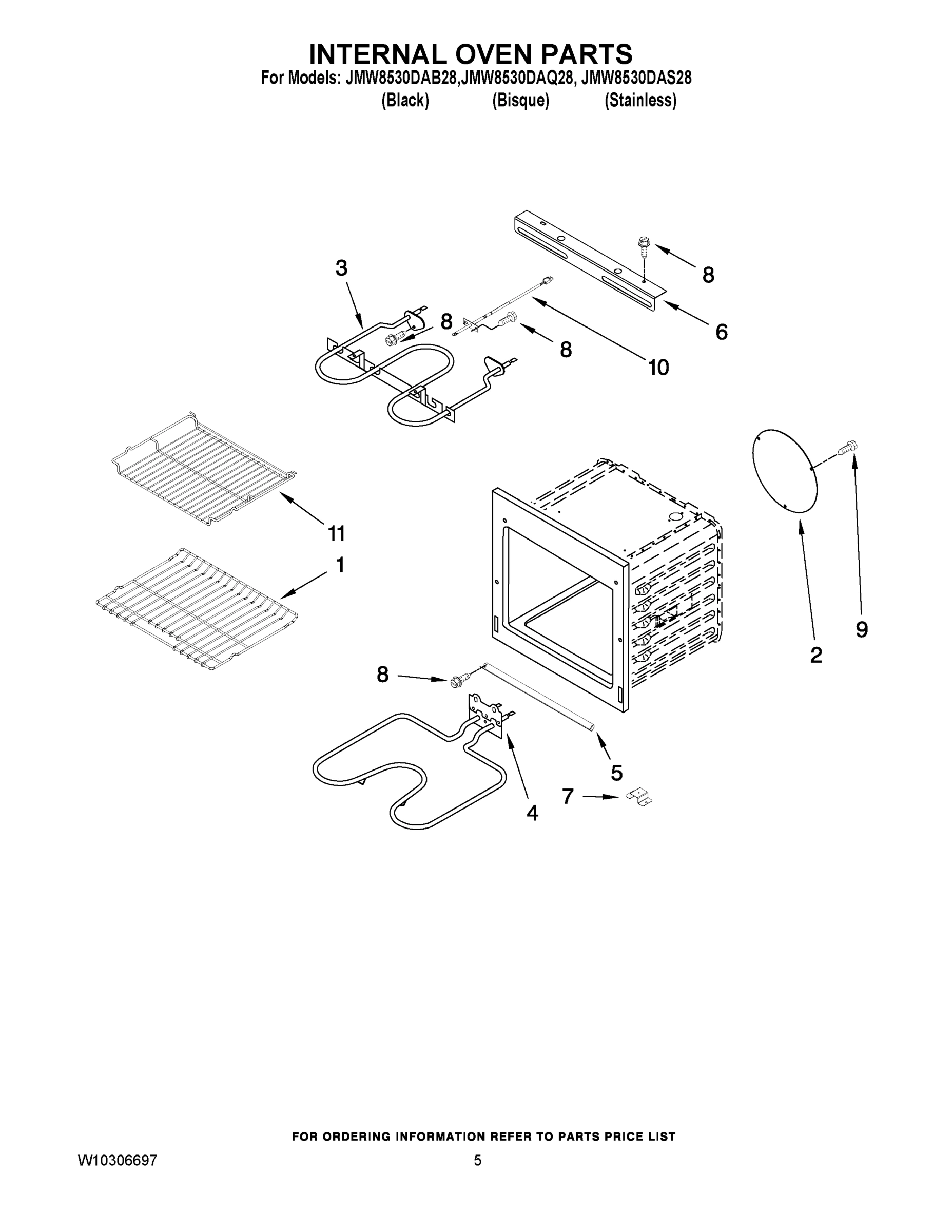

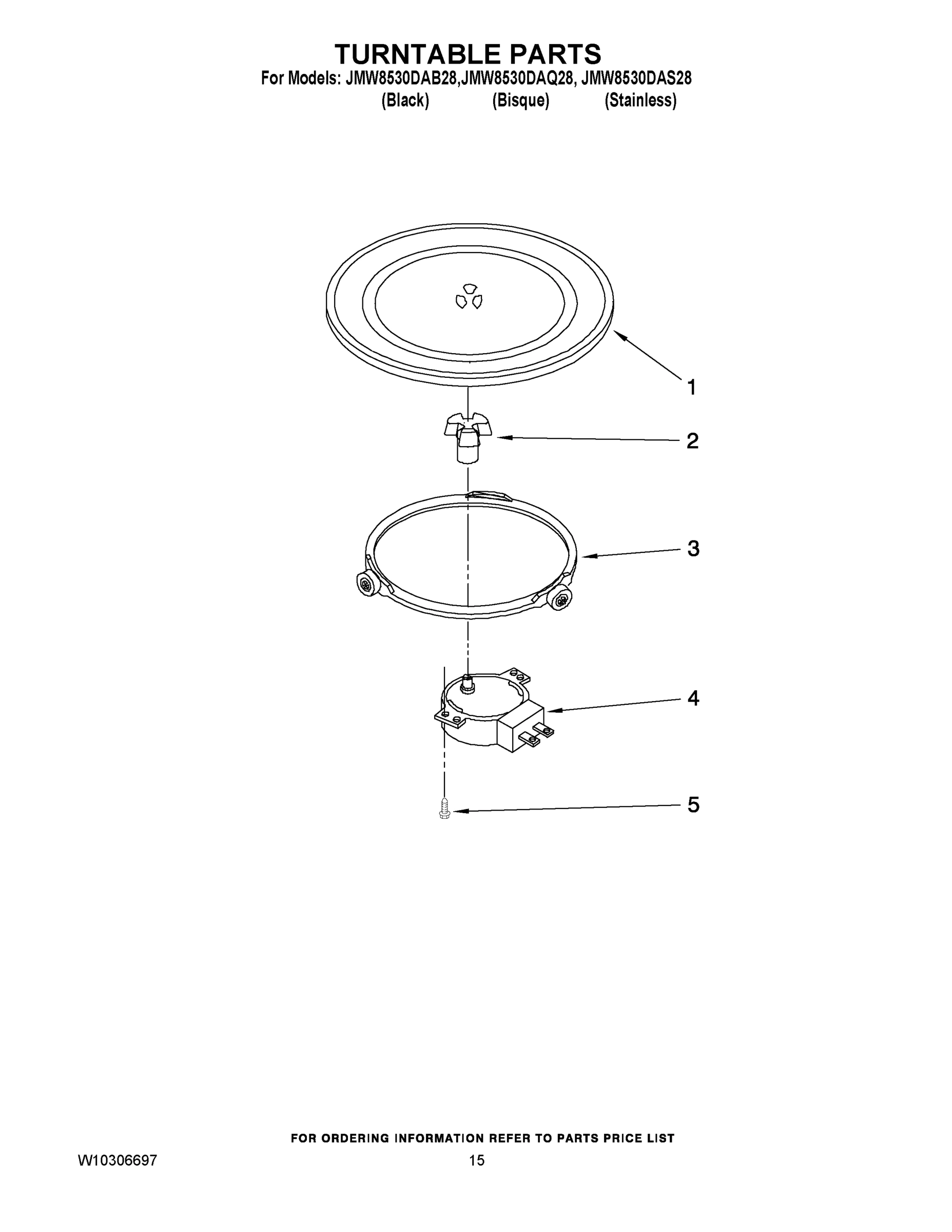

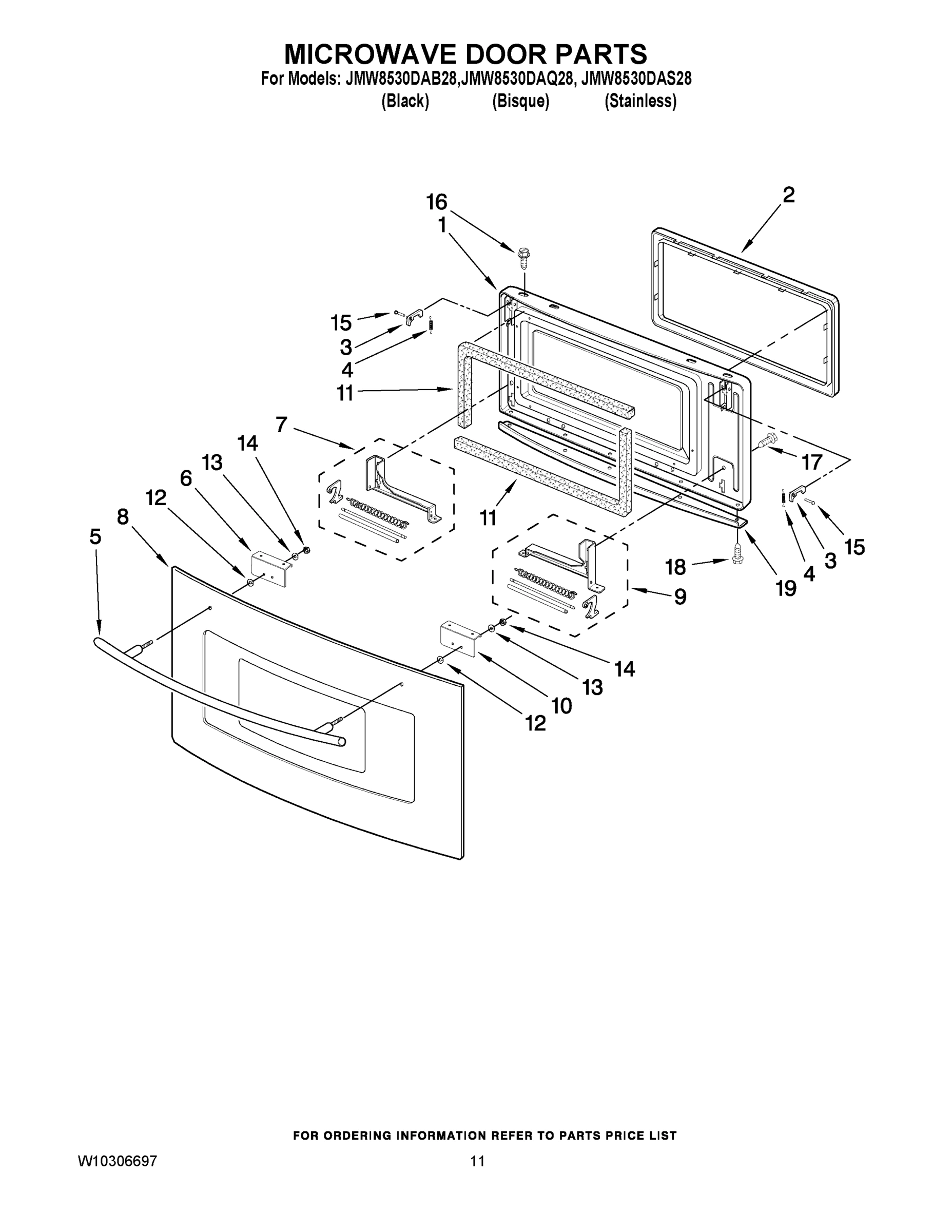

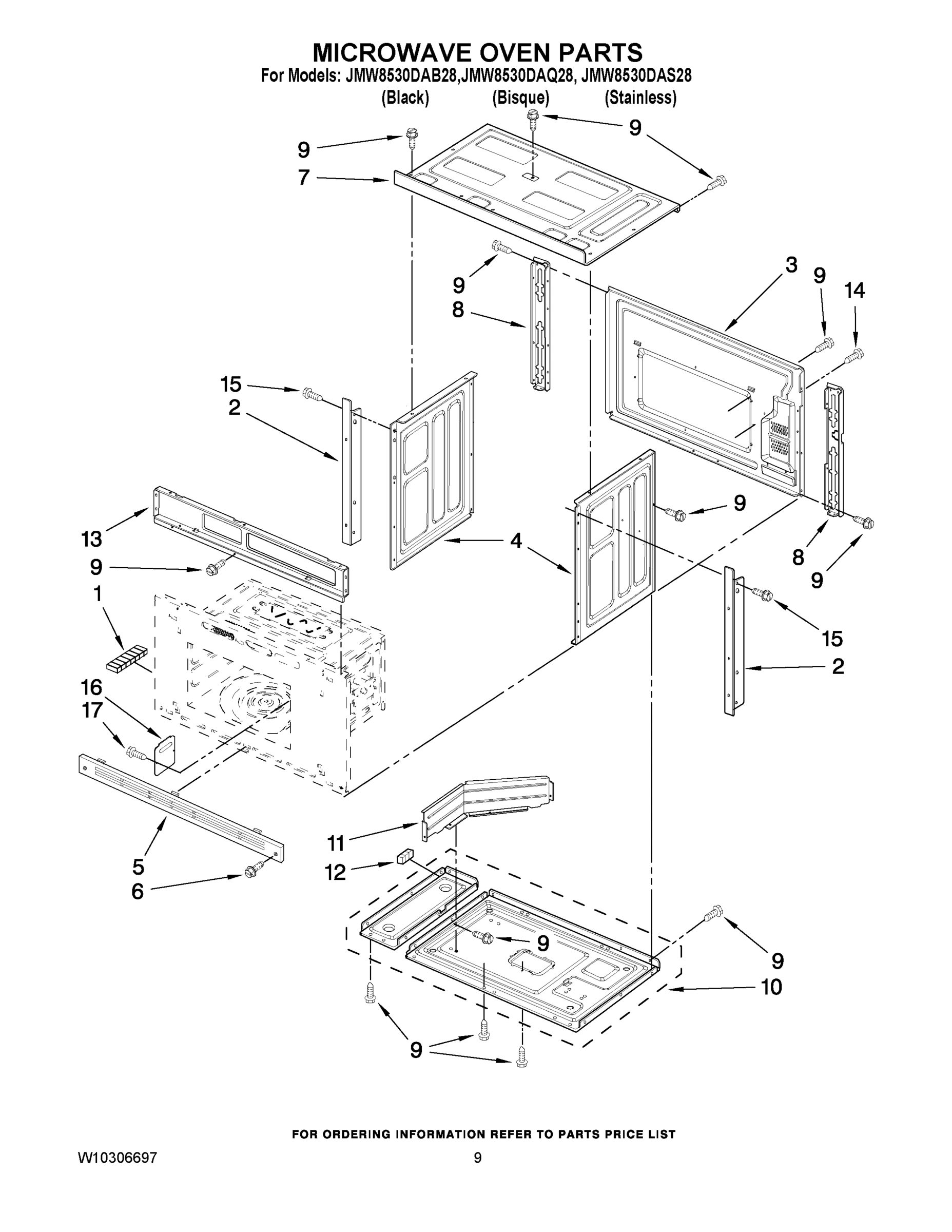

Model Whirlpool JMW8530DAB28 ELECTRIC WALL OVEN – Common Parts &amp; Diagrams

1

MICROCOMPUTER WPL 53001240 Contact Us For Availability

1

Board, Latch WPL 53001246 Contact Us For Availability

1

Frame, Door WPL 53001287 Contact Us For Availability

1

TUNNEL, AIR WPL R0130675 Contact Us For Availability

1

LINER-DOOR WPL 2402W31419 Contact Us For Availability

1

CONTROL, SINGLE WPL 8507P34560 Contact Us For Availability

1

CUSHION WPL R9800398 Contact Us For Availability

1

RACK-OVEN WPL W10273863 Contact Us For Availability

2

WP8183592 Whirlpool Microwave Lamp Bulb Assem In Stock WPL WP8183592 $30.71

2

Bracket, Control WPL 53001241 Contact Us For Availability

2

Switch, Micro WPL 53001036 Contact Us For Availability

2

SHAFT, TURN TABLE WPL R0130605 Contact Us For Availability

2

COVER, CHOKE WPL 53001219 Contact Us For Availability

2

HINGE, DOOR WPL 7106P11760 Contact Us For Availability

2

TRIM, CONTROL PNL WPL 3608F10770 Contact Us For Availability

2

Trim, Side (LH) WPL 53001262 Contact Us For Availability

2

Trim, Side (RH) WPL 53001263 Contact Us For Availability

2

PLATE, NON-CONVECT WPL 3605F21119 Contact Us For Availability

3

4392027 Whirlpool Microwave Primary Switch In Stock WPL 4392027 $93.43

3

WP59001168 Whirlpool Microwave Capacitor Backorder WPL WP59001168 $153.00

3

WPW10184147 Whirlpool Broil Element Backorder WPL WPW10184147 $141.10

3

Ring, Rotating WPL R0130677 Contact Us For Availability

3

LATCH WPL 53001220 Contact Us For Availability

3

TRIM, BTM DR VENT WPL 3608F10270 Contact Us For Availability

3

SUPPORT, TOP CNTRL WPL 3807F71751 Contact Us For Availability

3

COVER, BACK WPL 53001298 Contact Us For Availability

4

WPM0805101 Whirlpool Microwave Replacement Fu In Stock WPL WPM0805101 $5.35

4

PANEL, CONTROL (STAINLESS) WPL 53001245 Contact Us For Availability

4

PANEL, CONTROL (BLACK) WPL 53001242 Contact Us For Availability

4

PANEL, CONTROL (BISQUE) WPL 53001293 Contact Us For Availability

4

LEVER WPL 53001247 Contact Us For Availability

4

MOTOR, TURNTABLE WPL 53001025 Contact Us For Availability

4

SPRING WPL 53001221 Contact Us For Availability

4

Insulation, Door WPL 7002P24660 Contact Us For Availability

4

PANEL, CNTRL SIDE (LEFT) WPL 2624F07651 Contact Us For Availability

4

PANEL, CNTRL SIDE (RIGHT) WPL 2624F07751 Contact Us For Availability

4

Side, Chassis (Right Side) WPL 53001268 Contact Us For Availability

4

Side, Chassis (Left Side) WPL 53001269 Contact Us For Availability

4

ELEMENT, BAKE WPL 7406P32260 Contact Us For Availability

5

FOOT, PLASTIC (4) WPL 8038P03560 Contact Us For Availability

5

LEVER WPL 53001249 Contact Us For Availability

5

Screw WPL R0654180 Contact Us For Availability

5

Handle, Door WPL 53001222 Contact Us For Availability

5

BRACKET, CAPACITOR WPL 53001248 Contact Us For Availability

5

BRACKET, INNER GLASS WPL 3801F88651 Contact Us For Availability

5

FAN, TANGENTIAL WPL 7427P06260 Contact Us For Availability

5

Trim, Bottom WPL 53001264 Contact Us For Availability

5

RETAINER, ELEMENT BAKE WPL 3807F67845 Contact Us For Availability

6

SUPPORT, AIR CHANNEL WPL 3807F70651 Contact Us For Availability

6

Bracket, LH WPL 53001224 Contact Us For Availability

6

GUIDE, SUCTION WPL 53001250 Contact Us For Availability

6

FRAME-DOOR WPL 3603F07370 Contact Us For Availability

6

PANEL, CONTROL BOX REAR WPL 2624F10051 Contact Us For Availability

6

Screw WPL R9800360 Contact Us For Availability

6

SUPPORT, BROIL ELEMENT WPL 3807F75445 Contact Us For Availability

7

PAN, HIDDEN BAKE WPL 3401F07945 Contact Us For Availability

7

HINGE, LH WPL 53001226 Contact Us For Availability

7

DUCT WPL 53001251 Contact Us For Availability

7

RETAINER, DR GLASS WPL 3804F14445 Contact Us For Availability

7

ASSEMBLY, CABLE WPL 5700P82960 Contact Us For Availability

7

Top, Chassis WPL 53001267 Contact Us For Availability

7

BRACKET, SUPPORT (HIDDEN BAKE) WPL 3801F82351 Contact Us For Availability

8

ASSY., LIGHT SW WPL 7450P10960 Contact Us For Availability

8

SCREW WPL 7101P42660 Contact Us For Availability

8

GLASS, DOOR (BLACK) WPL 53001228 Contact Us For Availability

8

GLASS, DOOR (BISQUE) WPL 53001230 Contact Us For Availability

8

GLASS, DOOR (STAINLESS) WPL 53001239 Contact Us For Availability

8

Blade, Fan WPL 53001252 Contact Us For Availability

8

ASSY., DOOR GLASS (BLACK) WPL 7922P02060 Contact Us For Availability

8

ASSY., DOOR GLASS (BISQUE) WPL 7922P02260 Contact Us For Availability

8

ASSY., DOOR GLASS (STAINLESS) WPL W10202023 Contact Us For Availability

8

BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability

8

Bracket, Back (LH) WPL 53001270 Contact Us For Availability

8

Bracket, Back (RH) WPL 53001271 Contact Us For Availability

9

Screw WPL W11380570 No Longer Available

9

WPW10162386 Whirlpool Door Gasket In Stock WPL WPW10162386 $77.12

9

PLUG, BUTTON WPL 7718P03360 Contact Us For Availability

9

HINGE, RH WPL 53001236 Contact Us For Availability

9

Transformer, H.V. WPL 53001253 Contact Us For Availability

9

Screw WPL 7101P50060 Contact Us For Availability

Screw WPL 7101P42760 Contact Us For Availability

Bracket, RH WPL 53001238 Contact Us For Availability

GLASS, DOOR (SCREENED) WPL 7902P65660 Contact Us For Availability

BRKT., COOLING FAN WPL 3801F82951 Contact Us For Availability

Base, Plate WPL 53001278 Contact Us For Availability

SENSOR WPL 7430P04360 Contact Us For Availability

W10859575 Whirlpool Magnetron In Stock WPL W10859575 $262.73

WPW10186996 Whirlpool Door Latch Backorder WPL WPW10186996 $255.78

BOX, VENT WPL 4006W21745 Contact Us For Availability

Cushion, Door WPL 53001280 Contact Us For Availability

HANDLE, DOOR WPL 7701P47360 Contact Us For Availability

BARRIER WPL 53001273 Contact Us For Availability

RACK, OFFSET WPL 7801P16260 Contact Us For Availability

4344826 Whirlpool Refrigerator Screw Backorder WPL 4344826 $10.30

SCREEN, SMOKE ELM. WPL 8034P00860 Contact Us For Availability

WASHER WPL 53001286 Contact Us For Availability

RETAINER, INSUL. WPL 3804F30351 Contact Us For Availability

GLASS, CONTROL PNL (BLACK) WPL 7912P33660 Contact Us For Availability

GLASS, CONTROL PNL (BISQUE) WPL 7912P34360 Contact Us For Availability

GLASS, CONTROL PNL (STAINLESS) WPL 7912P35660 Contact Us For Availability

Cushion WPL W10182900 Contact Us For Availability

SWITCH, HI LIMIT WPL 7403P89960 Contact Us For Availability

Washer, Sprg Lck WPL 53001282 Contact Us For Availability

CORD, POWER WPL 53001254 Contact Us For Availability

Baffle, Door WPL 3601F37351 Contact Us For Availability

FRAME, CNTRL ASSY. WPL 3807W66470 Contact Us For Availability

Bracket, Cntrl WPL 53001289 Contact Us For Availability

ASSEMBLY, LIGHT WPL 7407P17960 Contact Us For Availability

Screw WPL R0654178 Contact Us For Availability

NUT WPL 53001283 Contact Us For Availability

SENSOR ASSEMBLY WPL 53001255 Contact Us For Availability

Glass, Inner WPL 7902P43660 Contact Us For Availability

RETAINER, MW (FRONT) WPL 3804F23451 Contact Us For Availability

RETAINER, MW (REAR) WPL 3804F24951 Contact Us For Availability

RETAINER, MW (RIGHT SIDE) WPL 3804F25151 Contact Us For Availability

RETAINER, MW (LEFT SIDE) WPL 3804F25251 Contact Us For Availability

TUBE, VENT WPL 8026P06560 Contact Us For Availability

PIN, LATCH WPL 53001281 Contact Us For Availability

Screw WPL R0654183 Contact Us For Availability

Screw WPL R0131307 Contact Us For Availability

PNL, CNTRL BOX TOP WPL 2624F09844 Contact Us For Availability

CHANNEL, BOTTOM WPL 3818F10851 Contact Us For Availability

SCREW WPL 53001284 Contact Us For Availability

Motor, Fan WPL 53001256 Contact Us For Availability

INSULATION, DOOR (STAINLESS ONLY) WPL 7002P39760 Contact Us For Availability

CANOPY, MICA WPL R0130667 Contact Us For Availability

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $5.30

PANEL, SIDE WPL 2618F21551 Contact Us For Availability

SCREW WPL 53001285 Contact Us For Availability

Thermostat WPL R0131025 Contact Us For Availability

Nut WPL 7103P17660 Contact Us For Availability

WPR9800486 Whirlpool Microwave High Voltage D In Stock WPL WPR9800486 $17.13

RETAINER, REAR INSULATION WPL 2624F09451 Contact Us For Availability

Screw, Tap WPL R9800309 Contact Us For Availability

WASHER WPL 7109P08260 Contact Us For Availability

19

PNL, TOP RETAINER WPL 2618F22651 Contact Us For Availability

19

Trim, Door Btm WPL 53001234 Contact Us For Availability

19

Screw WPL R9800411 Contact Us For Availability

20

Bracket, Therm. WPL 53001258 Contact Us For Availability

21

RECEIVER, HINGE WPL 7106P12760 Contact Us For Availability

21

Screw WPL R9900293 Contact Us For Availability

22

TRIM, SIDE (RIGHT) WPL 7744P46060 Contact Us For Availability

22

TRIM, SIDE (LEFT) WPL 7744P46160 Contact Us For Availability

22

FILTER ASSEMBLY WPL 53001259 Contact Us For Availability

23

TRIM, BOTTOM VENT WPL 3608F09970 Contact Us For Availability

23

FILTER, CHOKE WPL R9800442 Contact Us For Availability

24

Screw WPL 7101P43460 Contact Us For Availability

24

GUIDE, AIR WPL 53001260 Contact Us For Availability

25

BULB, OVEN WPL 899138001 Contact Us For Availability

25

BARRIER WPL 53001272 Contact Us For Availability

26

OUTLET, APPLIANCE WPL 7408P05560 Contact Us For Availability

26

BARRIER WPL 53001274 Contact Us For Availability

27

BREAKER, CIRCUIT WPL 7429P00660 Contact Us For Availability

27

Base, PCB WPL 53001275 Contact Us For Availability

28

Bottom WPL 53001277 Contact Us For Availability

29

Board, Power WPL 53001291 Contact Us For Availability

30

Plate, Shield WPL 53001276 Contact Us For Availability

285006 Whirlpool Spray In Stock WPL 285006 $52.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $30.02

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $19.58

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $21.50

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $48.31

INSULATION, BACK WPL 7002P35260 Contact Us For Availability

INSULATION, WRAP WPL 7002P42360 Contact Us For Availability

HARNESS, WIRE (CONTROL TOP) WPL 5171P07260 Contact Us For Availability

HARNESS, WIRE (SENSOR) WPL 5171P15460 Contact Us For Availability

HARNESS, WIRE (MAIN) WPL 5171P67560 Contact Us For Availability

Harness, Main WPL 53001257 Contact Us For Availability

ADHESIVE LOCTITE (1/3 OZ.)) WPL 591014 Contact Us For Availability
