Model Whirlpool JMW8330DAS16 ELECTRIC WALL OVEN/MICROWAVE COMBO – Common Parts & Diagrams

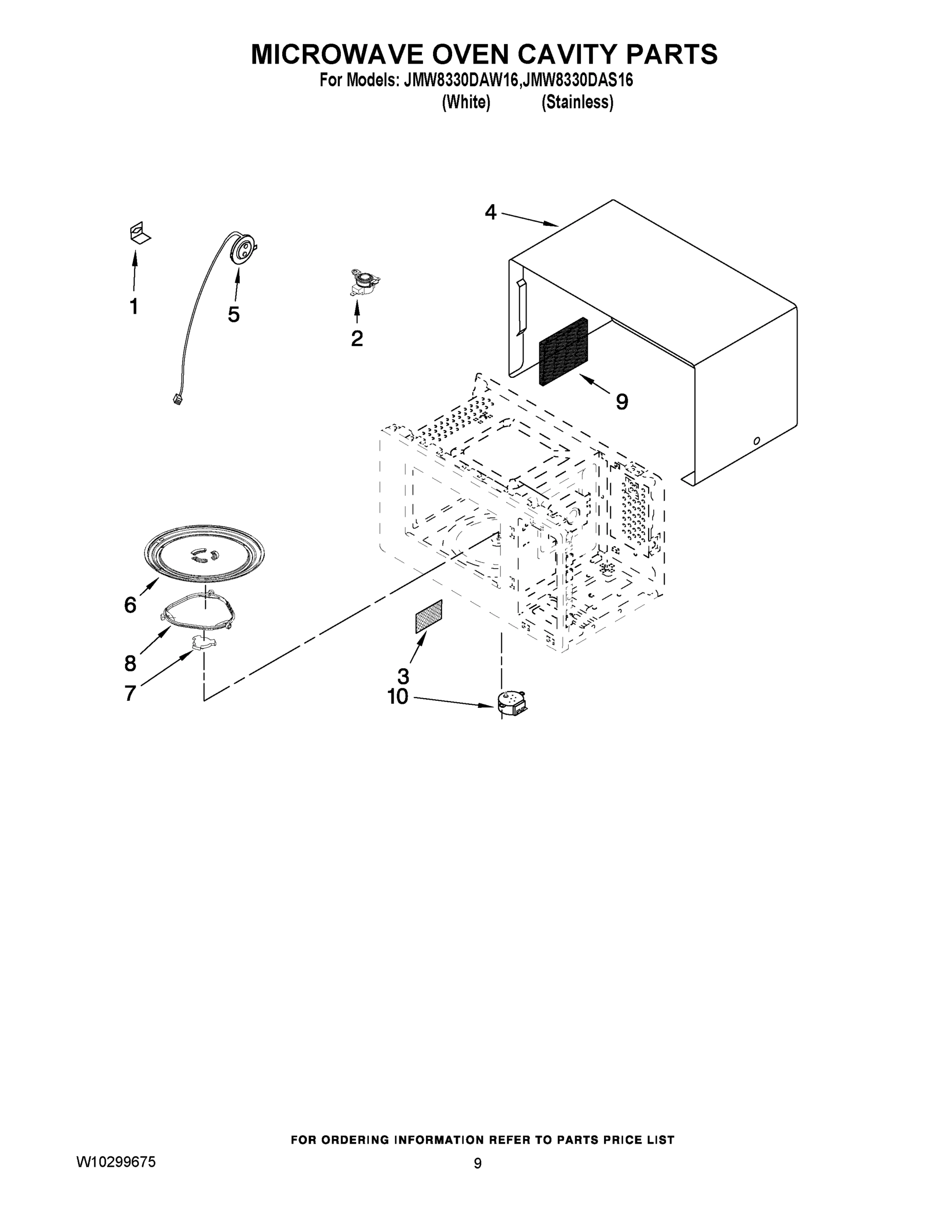

07 - MICROWAVE OVEN CAVITY PARTS

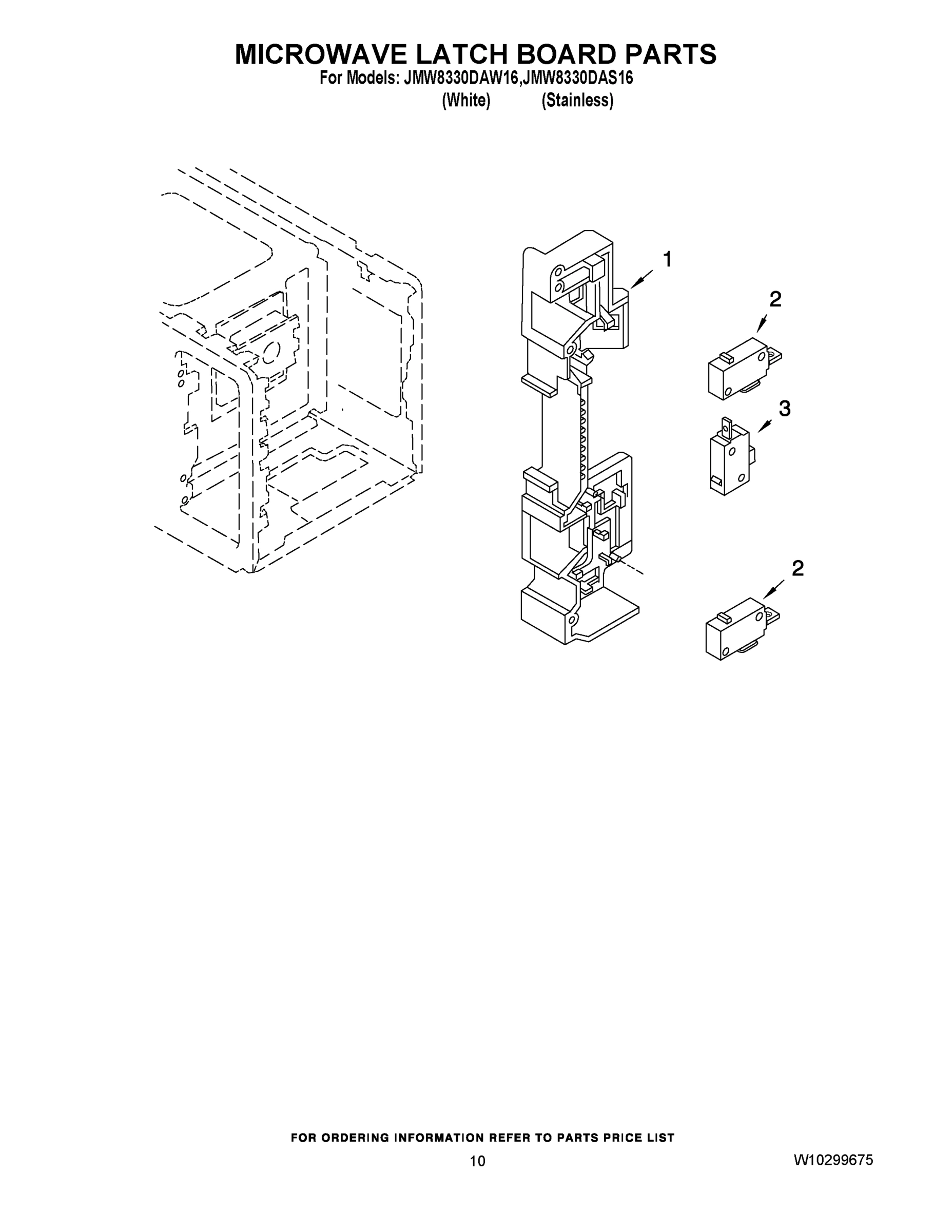

08 - MICROWAVE LATCH BOARD PARTS

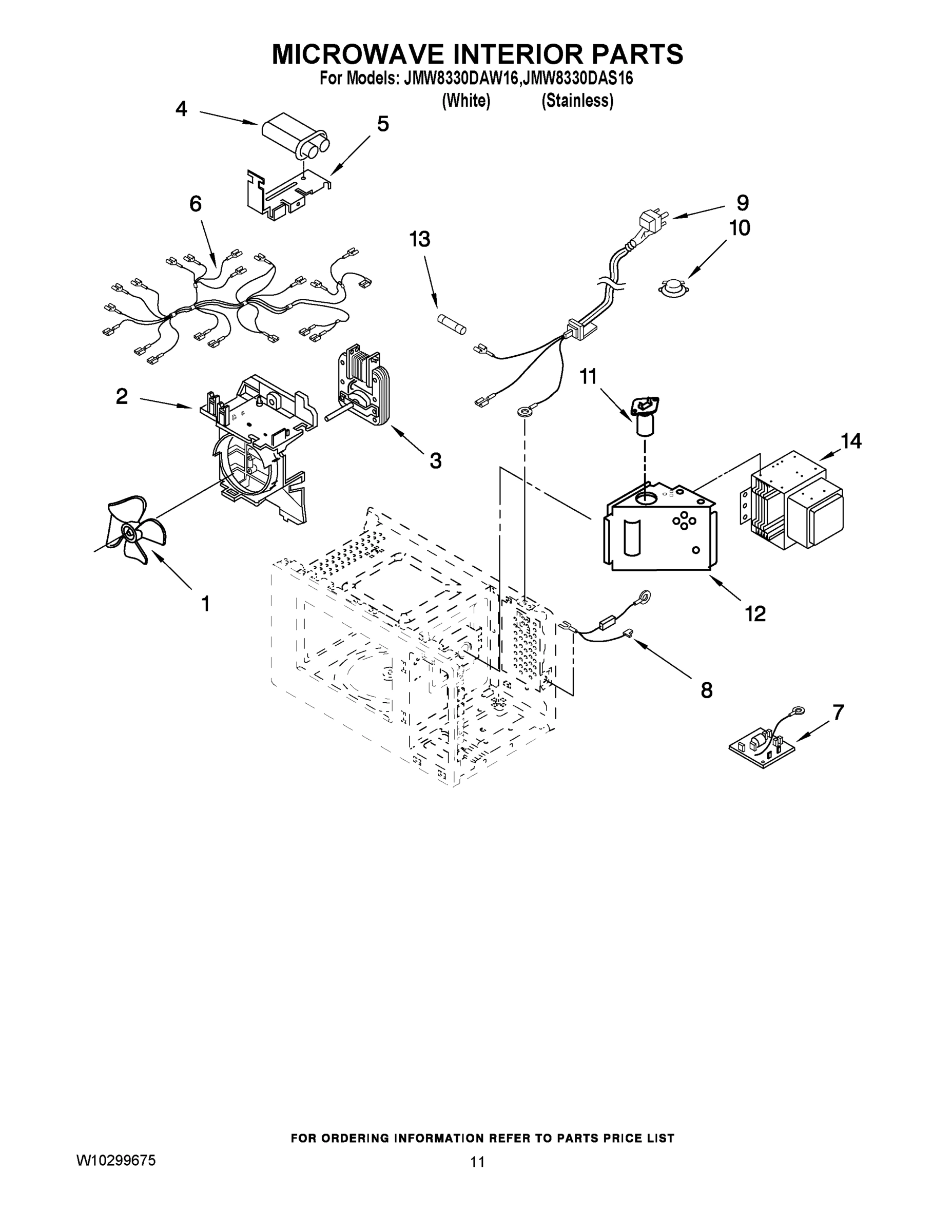

09 - MICROWAVE INTERIOR PARTS

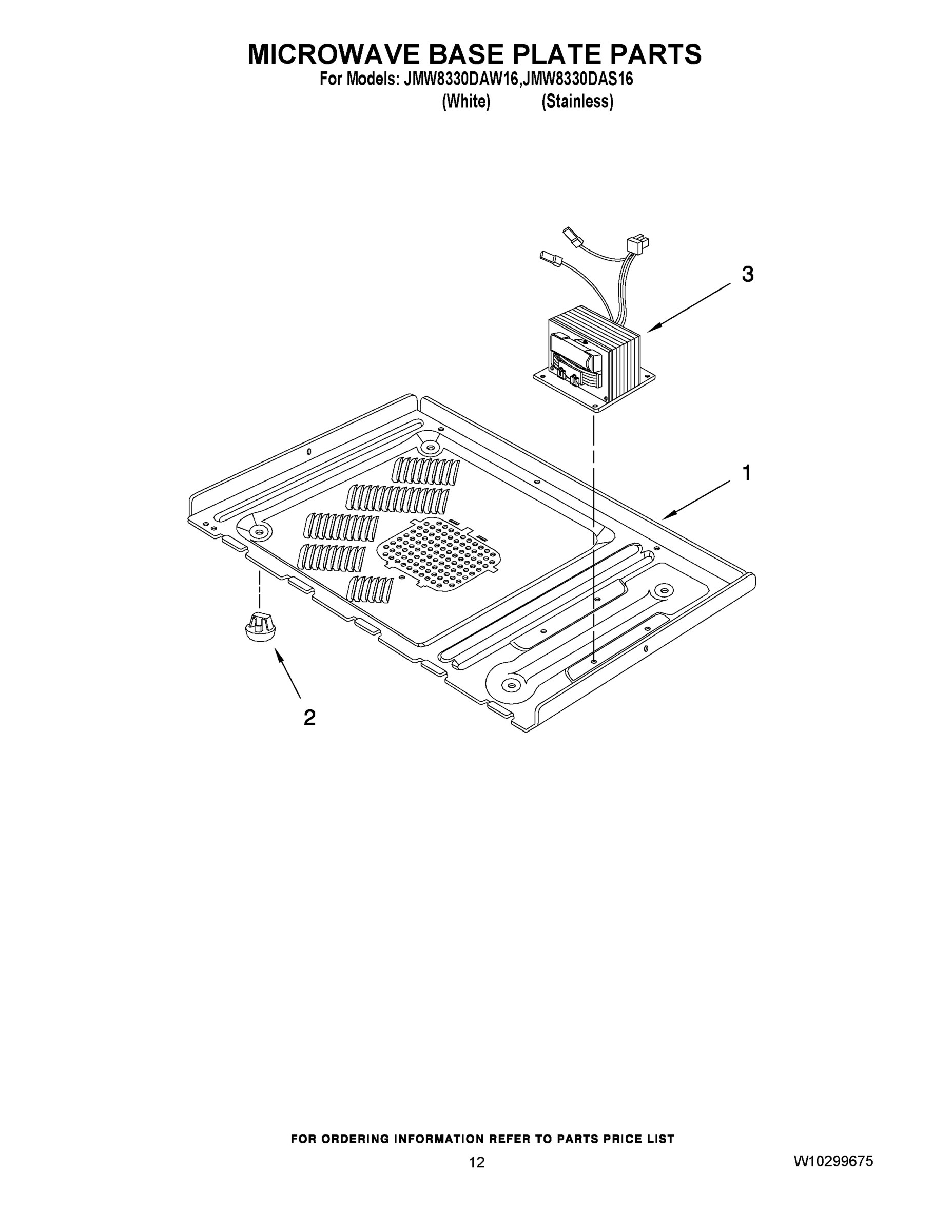

10 - MICROWAVE BASE PLATE PARTS

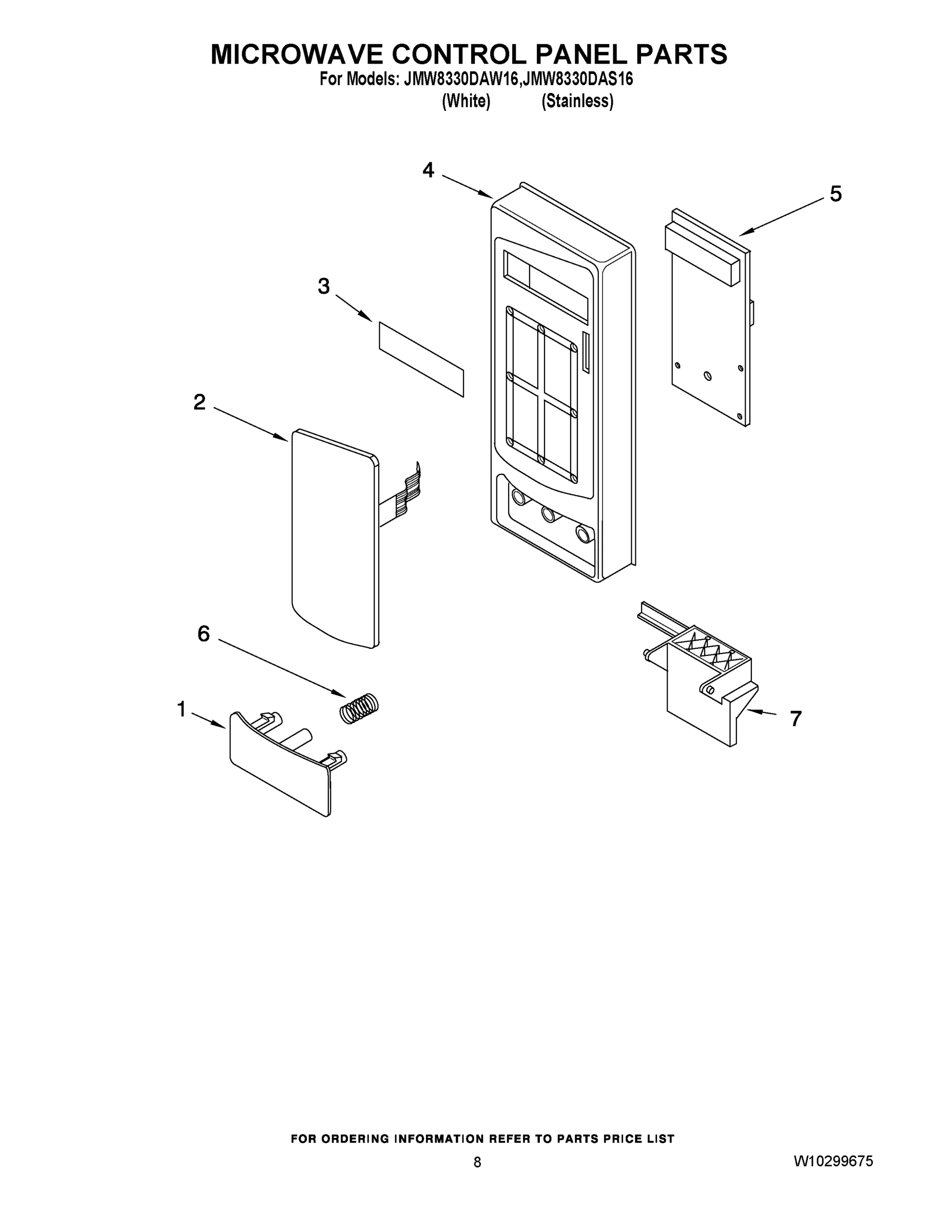

06 - MICROWAVE CONTROL PANEL PARTS

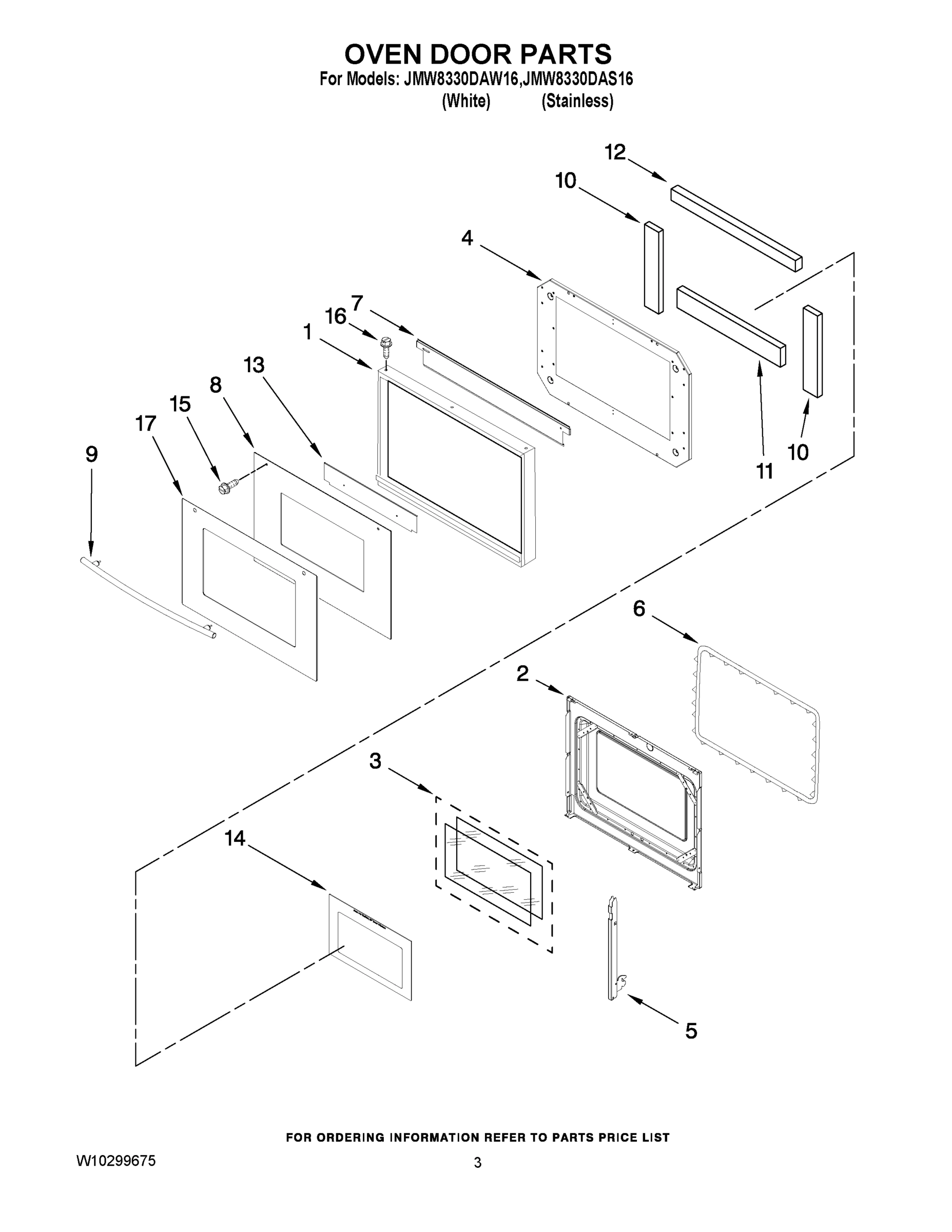

02 - OVEN DOOR PARTS

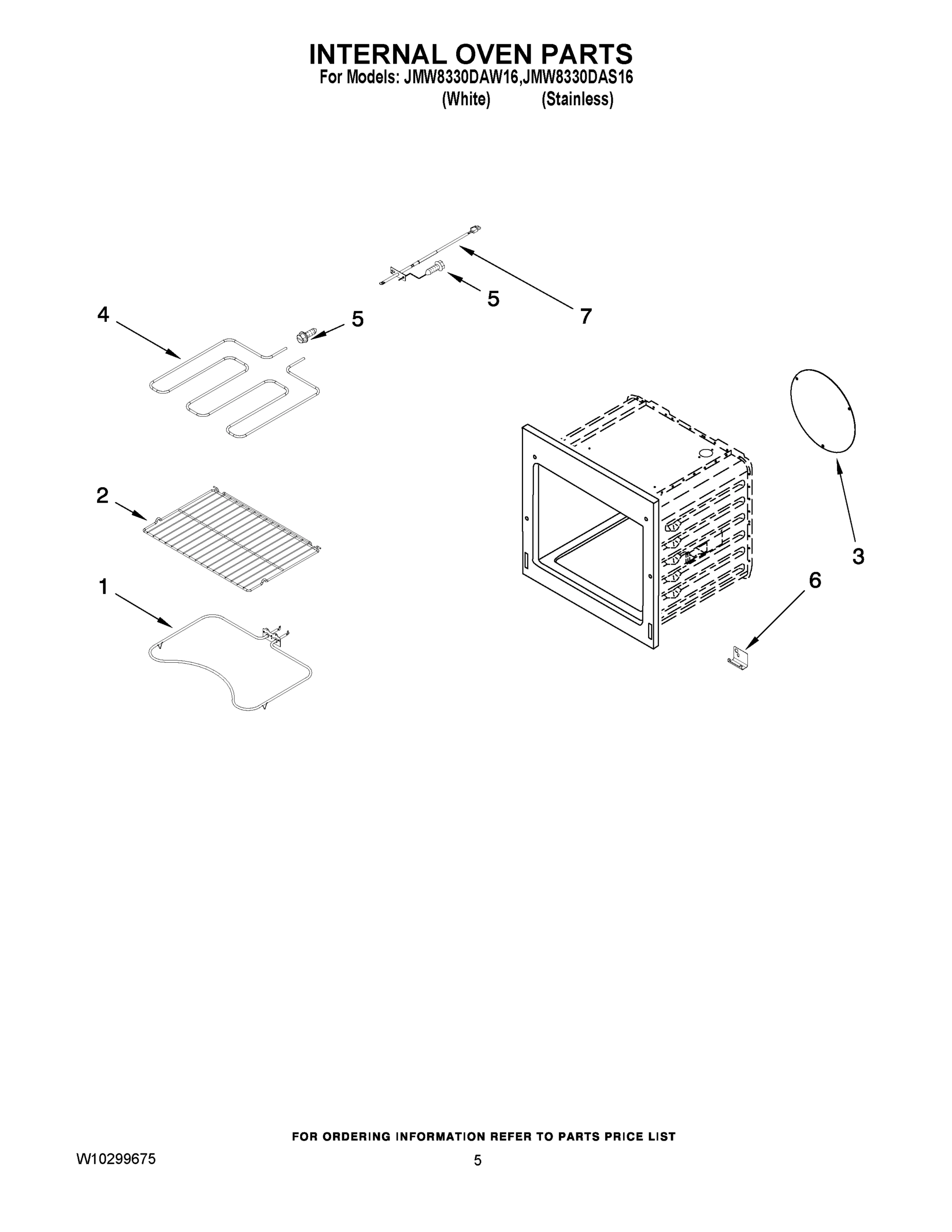

03 - INTERNAL OVEN PARTS

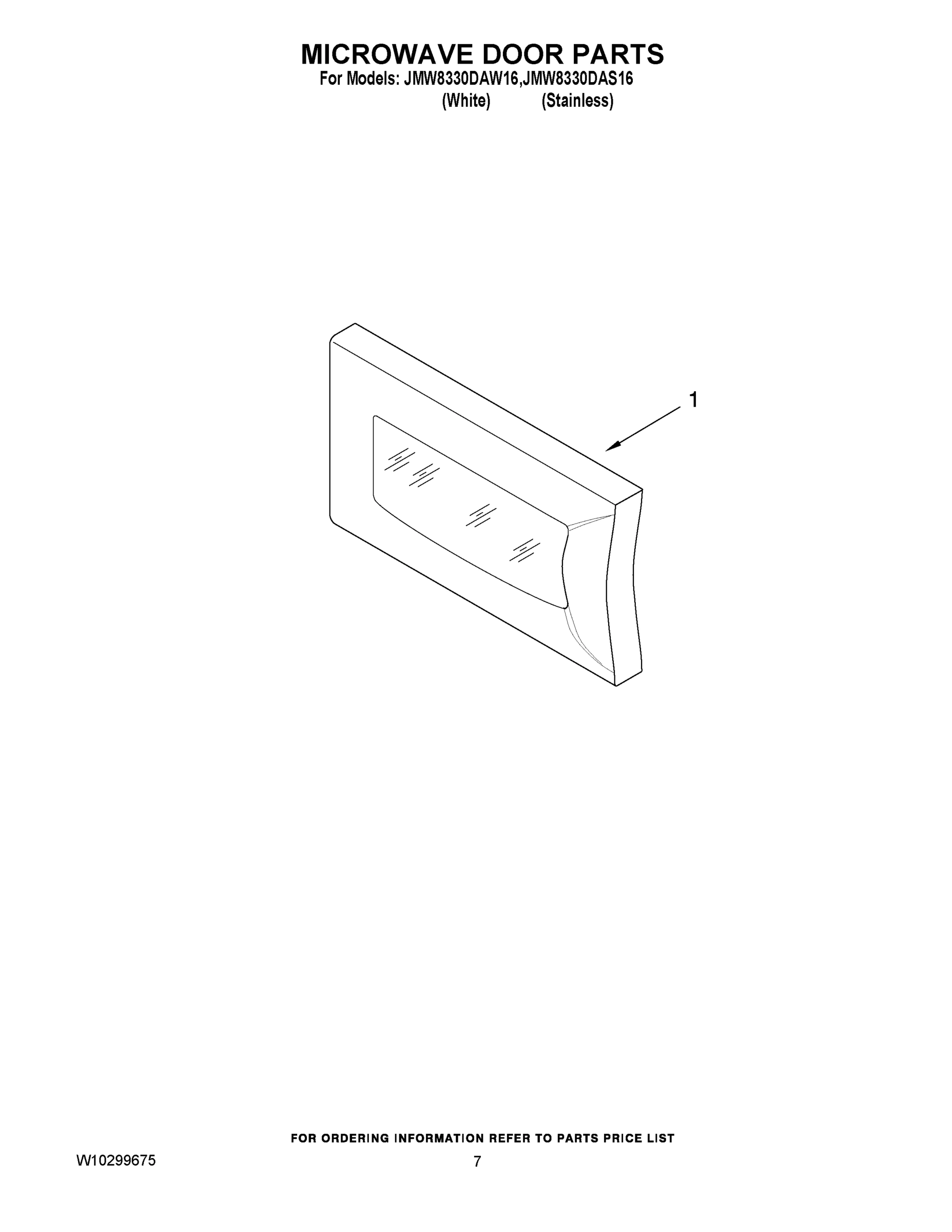

05 - MICROWAVE DOOR PARTS

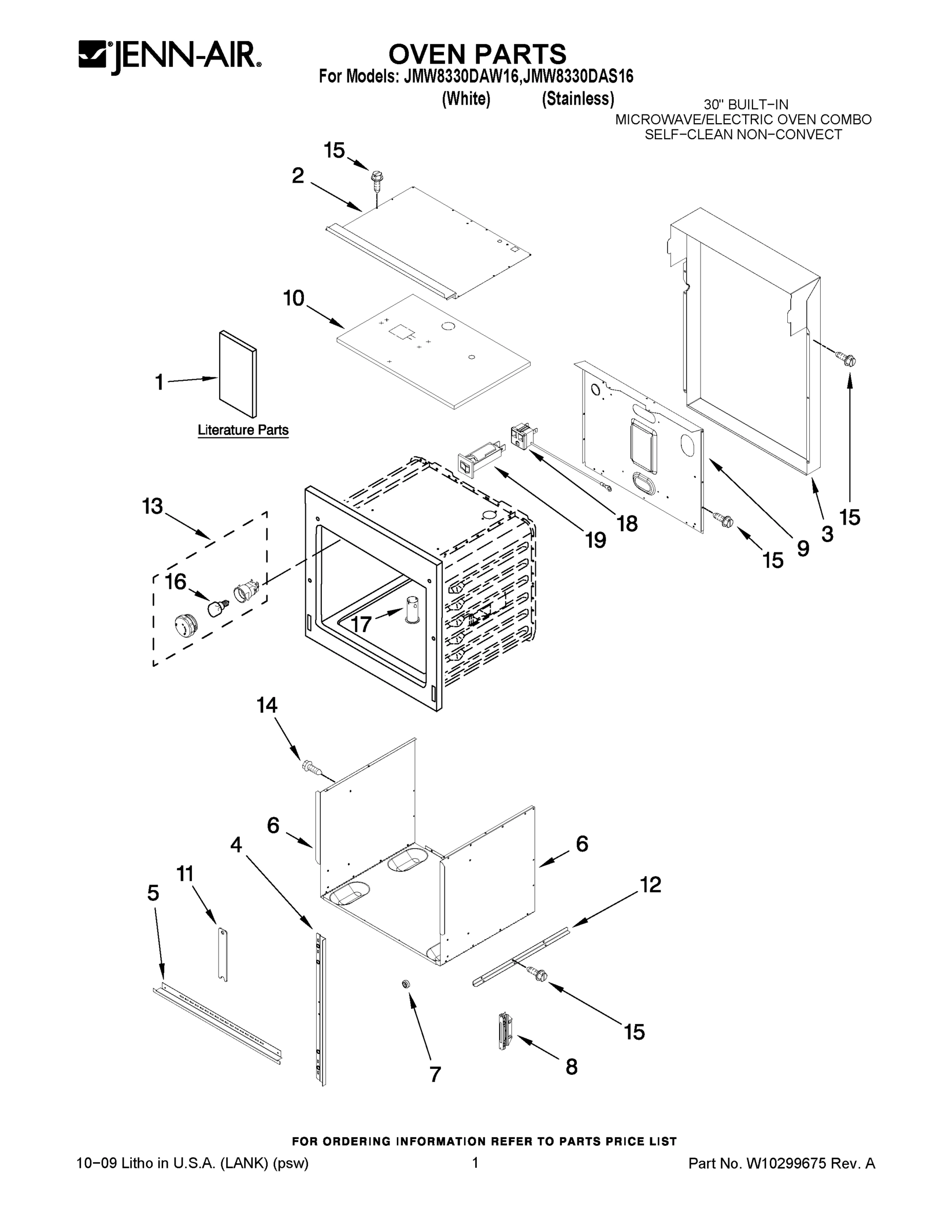

01 - OVEN PARTS

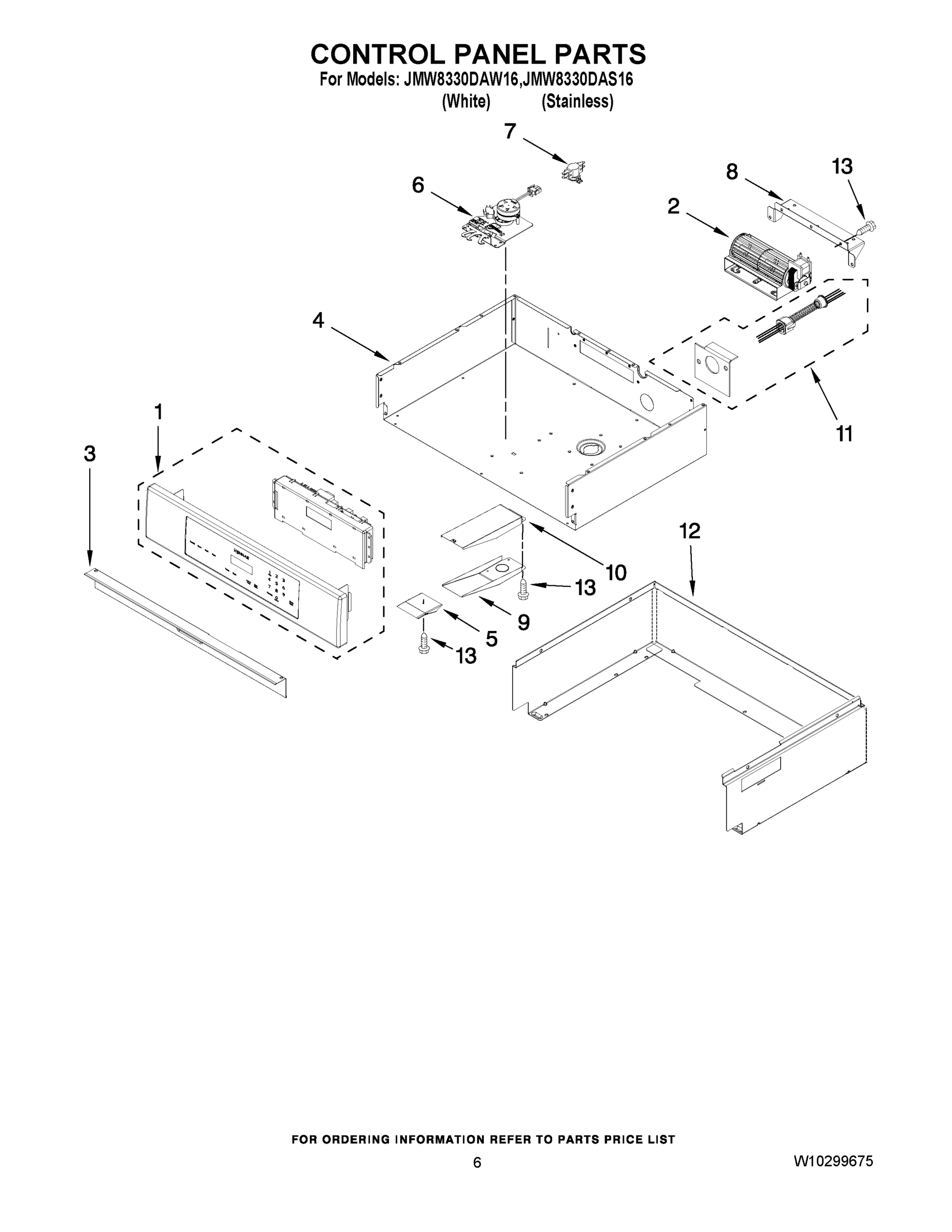

04 - CONTROL PANEL PARTS
11 - OPTIONAL PARTS
Common parts from model Whirlpool JMW8330DAS16 ELECTRIC WALL OVEN/MICROWAVE COMBO
1
BODY-LATCH WPL DE7200138A Contact Us For Availability
1
BLADE, FAN WPL DE3190051A Contact Us For Availability
1
BASE-PLATE WPL DE8010032K Contact Us For Availability
1
BUTTON (WHITE) WPL DE6401502A Contact Us For Availability
1
BUTTON (BLACK) WPL DE6401502B Contact Us For Availability
1
TRIM, FRAME DOOR ASSY. (BLACK) WPL 7706P56460 Contact Us For Availability
1
TRIM, FRAME DOOR ASSY. (WHITE) WPL 7706P56560 Contact Us For Availability
1
ELEMENT, BAKE WPL 7406P27160 Contact Us For Availability
1
ASSEMBLY, DOOR (WHITE) WPL DE9401342F Contact Us For Availability
1
ASSEMBLY, DOOR (STAINLESS) WPL DE9401342H Contact Us For Availability
1
INSTALLATION INSTRUCTIONS WPL 8101P74460 Contact Us For Availability
1
BROCHURE, TIPS SAFE COOKING WPL 9762761 Contact Us For Availability
1
OWNERS MANUAL WPL W10176680 Contact Us For Availability
1
WIRING DIAGRAM WPL W10239613 Contact Us For Availability
1
ASSEMBLY, CONTROL PANEL (WHITE) WPL 5765M45260 Contact Us For Availability
1
ASSEMBLY, CONTROL PANEL (STAINLESS) WPL 5765M48660 Contact Us For Availability
2
SW., MEMBRANE WPL W10261280 Contact Us For Availability
2
SWITCH, MICRO (125/250 VAC) WPL 3405001034 Contact Us For Availability
2
GUIDE, SUCTION WPL DE7100165A Contact Us For Availability
2
LEG WPL DE6140066A Contact Us For Availability
2
LINER, OVEN DOOR WPL 2402W26519 Contact Us For Availability
2
TOP, OUTER WPL 2624F07451 Contact Us For Availability
2
ASSY., FAN MOTOR WPL 7427P07960 Contact Us For Availability
3
SWITCH, MICRO WPL 3405001033 Contact Us For Availability
3
MOTOR-FAN WPL DE3110155T Contact Us For Availability
3
TRANSFORMER WPL DE2600061B Contact Us For Availability
3
WINDOW-DISPLAY WPL DE6740179A Contact Us For Availability
3
ASSY., WINDOW WPL 5700M86860 Contact Us For Availability
3
PLATE, NON-CONVECT WPL 3605F21119 Contact Us For Availability
3
BACK, OUTER WPL 2624F06151 Contact Us For Availability
3
TRIM, CONTROL PNL WPL 3608F10570 Contact Us For Availability
4
PANEL, CONTROL (STAINLESS) WPL W10261273 Contact Us For Availability
4
H.V. CAPACITOR WPL 2501001016 Contact Us For Availability
4
PANEL, CONTROL (WHITE) WPL W10261267 Contact Us For Availability
4
RETAINER, INSUL. WPL 3804F21851 Contact Us For Availability
4
ELEMENT, BROIL WPL 7406P27360 Contact Us For Availability
4
TRIM, SIDE (BLACK) WPL 7744P40660 Contact Us For Availability
4
TRIM, SIDE (WHITE) WPL 7744P40760 Contact Us For Availability
4
PANEL, TOP WPL 4026F09251 Contact Us For Availability
5
PCB WPL W10261245 Contact Us For Availability
5
H.V.C BRACKET WPL DE6150170A Contact Us For Availability
5
HINGE, DOOR WPL 7106P11560 Contact Us For Availability
5
TRIM, OVEN (BLACK) WPL 3608F08570 Contact Us For Availability
5
TRIM, OVEN (WHITE) WPL 3608F08571 Contact Us For Availability
5
EXTENSION, VENT WPL 8312P23260 Contact Us For Availability
6
ASSEMBLY, LEADWIRE WPL W10261281 Contact Us For Availability
6
SPRING WPL DE6170026A Contact Us For Availability
6
SEAL, DOOR WPL 7212P06160 Contact Us For Availability
6
CLIP, OVEN WPL 7112P12660 Contact Us For Availability
6
PANEL-SIDE WPL 2618F22251 Contact Us For Availability
7
FILTER, NOISE WPL DE9600399B Contact Us For Availability
7
LEVER-DOOR WPL DE6690113A Contact Us For Availability
7
BRACKET, HANDLE WPL W10205611 Contact Us For Availability
7
Sensor, Oven WPL 7430P04260 Contact Us For Availability
7
BUMPER, RUBBER WPL 7109P08560 Contact Us For Availability
7
THERMOSTAT, HI-LIMIT WPL 7403P85660 Contact Us For Availability
8
H.V. DIODE CABLE WPL DE9170063D Contact Us For Availability
8
GLASS, DOOR (BLACK) WPL 7902P69860 Contact Us For Availability
8
GLASS, DOOR (WHITE) WPL 7902P69960 Contact Us For Availability
8
RECEPTACLE, HINGE ASSEMBLY WPL 8014P03160 Contact Us For Availability
8
BKT., COOLING FAN WPL 3801F93651 Contact Us For Availability
9
CUSHION-RUBBER WPL DE6390035G Contact Us For Availability
9
POWER CORD WPL DE3900040G Contact Us For Availability
9
HANDLE, DOOR WPL 7701P51560 Contact Us For Availability
9
RETAINER, INSUL. WPL 2624F05651 Contact Us For Availability
9
VENT, TOP WPL 4011F43845 Contact Us For Availability
10
MOTOR-DRIVE WPL DE3110154A Contact Us For Availability
10
THERMOSTAT WPL DE4720030A Contact Us For Availability
10
INSULATION, DOOR WPL 7002P38060 Contact Us For Availability
10
INSULATION, (TOP/BACK) WPL 7002P35860 Contact Us For Availability
10
VENT, BOTTOM WPL 4006F16945 Contact Us For Availability
11
LAMP, BASELESS WPL DE0700005A Contact Us For Availability
11
INSULATION, BTM WPL 7002P38360 Contact Us For Availability
11
PLATE, HINGE TRAP WPL 3605F23650 Contact Us For Availability
12
DUCT, AIR WPL DE7100012A Contact Us For Availability
12
INSULATION, TOP WPL 7002P38460 Contact Us For Availability
12
BOTTOM, BRACE WPL 3802F11651 Contact Us For Availability
12
SUPPORT, MICROWAVE WPL 3807F74551 Contact Us For Availability
13
FUSE WPL 3601001198 Contact Us For Availability
13
SHIELD, HEAT WPL 3604F37045 Contact Us For Availability
13
SCREW WPL 7101P42660 Contact Us For Availability
13
ASSY., LIGHT WPL 7407P18160 Contact Us For Availability
14
GLASS, DOOR INNER WPL 7902P71360 Contact Us For Availability
14
SCREW WPL 7101P63560 Contact Us For Availability
16
Screw WPL 7101P42760 Contact Us For Availability
16
BULB-OVEN WPL 7407P10360 Contact Us For Availability
17
OVERLAY (STAINLESS ONLY) WPL W10190402 Contact Us For Availability
17
ELIMINATOR, SMOKE WPL 7505P32260 Contact Us For Availability
18
OUTLET, APPLIANCE WPL 7408P05560 Contact Us For Availability
19
BREAKER, CIRCUIT WPL 7429P00660 Contact Us For Availability
NI
INSULATION, BACK WPL 7002P25160 Contact Us For Availability
NI
INSULATION, WRAP WPL 7002P36860 Contact Us For Availability
NI
HARNESS, FLEX CABLE ASSY. WPL 5171P08360 Contact Us For Availability
NI
HARNESS, SENSOR & LOCK WPL 5171P07860 Contact Us For Availability
NI
HARNESS, MAIN WPL 5171P26460 Contact Us For Availability
NI
ADHESIVE LOCTITE (1/3 OZ.)) WPL 591014 Contact Us For Availability
× ![]()
