Model GE JKP36G*06 Electric Range – Common Parts & Diagrams

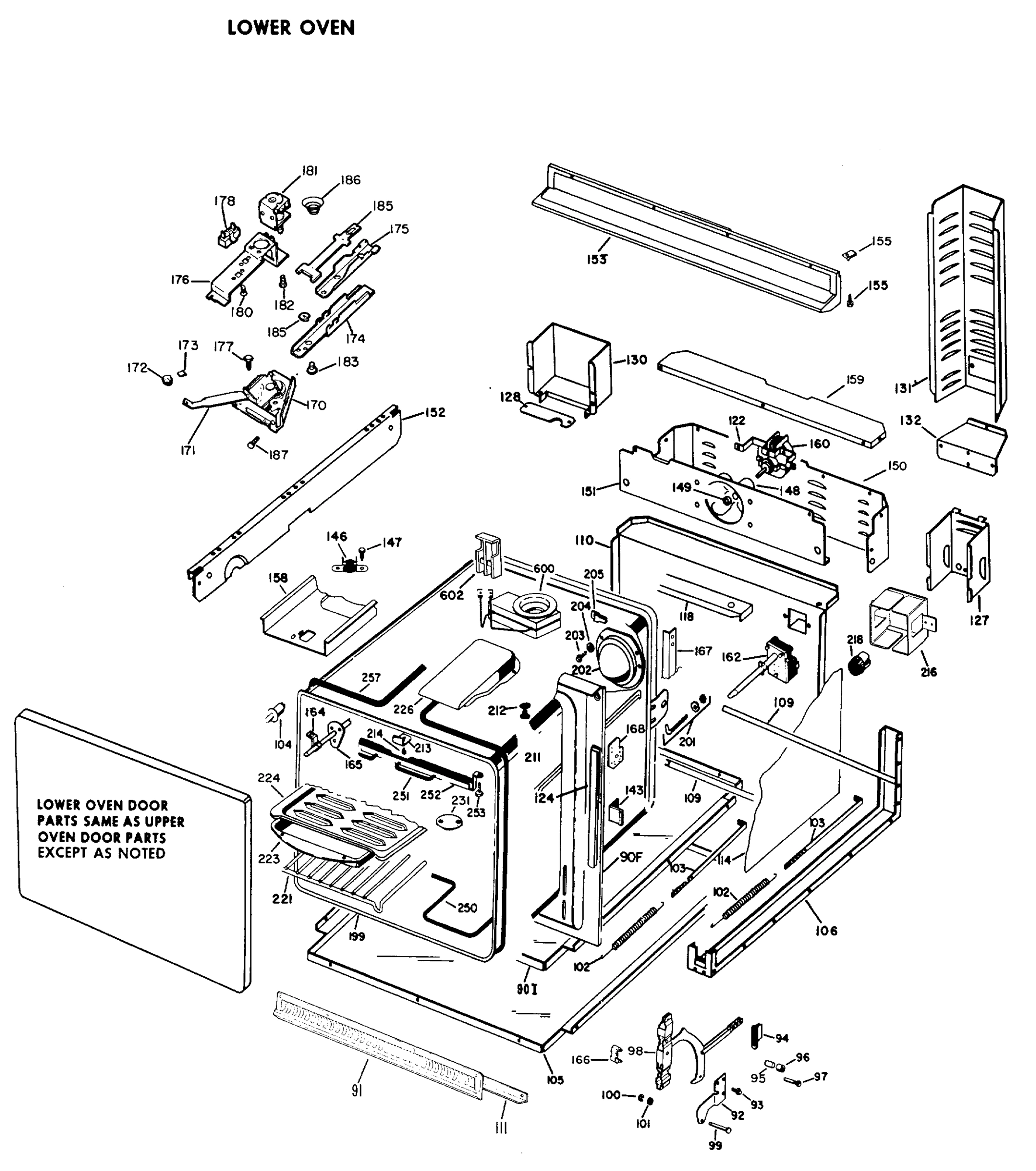

LOWER OVEN
UPPER OVEN
Common parts from model GE JKP36G*06 Electric Range
1
GEN WB02X3297 GEN WB02X3297 Contact Us For Availability
1
GEN WB07X1122 GEN WB07X1122 Contact Us For Availability
1
GEN WB07X1123 GEN WB07X1123 Contact Us For Availability
1
SCREW MT. NOSE GEN WZ05X0226 Contact Us For Availability
2
GEN WB36X0536 GEN WB36X0536 Contact Us For Availability
3
GEN WB20X0052 GEN WB20X0052 Contact Us For Availability
3
SCR 6-20 AB HXW 1/4 S GEN WZ04X0279 Contact Us For Availability
4
NUT GEN WB01X5220 Contact Us For Availability
4
GEN WB02X3453 GEN WB02X3453 Contact Us For Availability
5
GEN WB22X5082 GEN WB22X5082 Contact Us For Availability
5
GEN WB22X5083 GEN WB22X5083 Contact Us For Availability
6
OVEN KNOB-LOWER GEN WB03X0462 Contact Us For Availability
6
GEN WB03X0483 GEN WB03X0483 Contact Us For Availability
8
NEON LAMP 118V GEN WB02X1608 Contact Us For Availability
8
GEN WB02X3468 GEN WB02X3468 Contact Us For Availability
15
GEN WB01X0239 GEN WB01X0239 Contact Us For Availability
15
GEN WB02X3405 GEN WB02X3405 Contact Us For Availability
16
NUT GEN WB01X0540 Contact Us For Availability
17
GEN WB02X2006 GEN WB02X2006 Contact Us For Availability
19
GEN WB24X0200 GEN WB24X0200 Contact Us For Availability
20
WASHER GEN WB02X3429 Contact Us For Availability
21
GEN WB03X0459 GEN WB03X0459 Contact Us For Availability
22
GEN WB02X1973 GEN WB02X1973 Contact Us For Availability
23
GEN WB07X0635 GEN WB07X0635 Contact Us For Availability
26
GEN WB02X1119 GEN WB02X1119 Contact Us For Availability
27
GEN WZ04X0218 GEN WZ04X0218 Contact Us For Availability
28
GEN WB02X3291 GEN WB02X3291 Contact Us For Availability
28
GEN WZ04X0369 GEN WZ04X0369 Contact Us For Availability
28
GEN WZ04X0372 GEN WZ04X0372 Contact Us For Availability
29
GEN WB02X2407 GEN WB02X2407 Contact Us For Availability
31
THERMO KNOB GEN WB03X0463 Contact Us For Availability
31
GEN WB03X0482 GEN WB03X0482 Contact Us For Availability
32
GEN WB07X0980 GEN WB07X0980 Contact Us For Availability
33
SCR 8-32 M PHR 3/16 S GEN WZ02X0528 Contact Us For Availability
33
GEN WB02X3178 GEN WB02X3178 Contact Us For Availability
33
GEN WB02X3179 GEN WB02X3179 Contact Us For Availability
33
GEN WB02X6274 GEN WB02X6274 Contact Us For Availability
33
GEN WB02X6937 GEN WB02X6937 Contact Us For Availability
33
GEN WB24X0176 GEN WB24X0176 Contact Us For Availability
33
GEN WB24X0184 GEN WB24X0184 Contact Us For Availability
35
GEN WB15X0153 GEN WB15X0153 Contact Us For Availability
36
GEN WB01X0579 GEN WB01X0579 Contact Us For Availability
37
GEN WB07X1151 GEN WB07X1151 Contact Us For Availability
38
GEN WB02X3337 GEN WB02X3337 Contact Us For Availability
39
GEN WB09X0157 GEN WB09X0157 Contact Us For Availability
40
GEN WB07X1150 GEN WB07X1150 Contact Us For Availability
40
GEN WB07X1152 GEN WB07X1152 Contact Us For Availability
41
GEN WB02X3334 GEN WB02X3334 Contact Us For Availability
42
GEN WB02X3335 GEN WB02X3335 Contact Us For Availability
43
GEN WB02X3336 GEN WB02X3336 Contact Us For Availability
44
GEN WB36X0557 GEN WB36X0557 Contact Us For Availability
46
GEN WB02X3333 GEN WB02X3333 Contact Us For Availability
48
GEN WB02X3331 GEN WB02X3331 Contact Us For Availability
50
GEN WB55X0419 GEN WB55X0419 Contact Us For Availability
51
GEN WB02X3310 GEN WB02X3310 Contact Us For Availability
52
GEN WB01X0439 GEN WB01X0439 Contact Us For Availability
53
GEN WB36X0540 GEN WB36X0540 Contact Us For Availability
54
GEN WB02X3332 GEN WB02X3332 Contact Us For Availability
56
GEN WZ04X0410 GEN WZ04X0410 Contact Us For Availability
57
GEN WB09X0153 GEN WB09X0153 Contact Us For Availability
59
GEN WB55X0406 GEN WB55X0406 Contact Us For Availability
60
PAD GEN WB02X3285 Contact Us For Availability
62
GEN WB02X3312 GEN WB02X3312 Contact Us For Availability
62
GEN WB02X3314 GEN WB02X3314 Contact Us For Availability
63
GEN WB09X0154 GEN WB09X0154 Contact Us For Availability
64
GEN WB02X3315 GEN WB02X3315 Contact Us For Availability
65
GEN WB09X0128 GEN WB09X0128 Contact Us For Availability
67
GEN WB02X3316 GEN WB02X3316 Contact Us For Availability
68
GEN WB02X2276 GEN WB02X2276 Contact Us For Availability
68
GEN WB02X3313 GEN WB02X3313 Contact Us For Availability
68
GEN WB55X0407 GEN WB55X0407 Contact Us For Availability
69
GASKET WINDOW GEN WB02X3048 Contact Us For Availability
70
WINDOW GEN WB36X0448 Contact Us For Availability
71
GEN WB01X0547 GEN WB01X0547 Contact Us For Availability
72
GEN WB01X0548 GEN WB01X0548 Contact Us For Availability
73
GEN WB49X0354 GEN WB49X0354 Contact Us For Availability
74
GEN WB02X3317 GEN WB02X3317 Contact Us For Availability
74
GEN WB02X3318 GEN WB02X3318 Contact Us For Availability
75
GEN WB55X0408 GEN WB55X0408 Contact Us For Availability
76
GEN WZ04X0238 GEN WZ04X0238 Contact Us For Availability
76
GEN WB02X3040 GEN WB02X3040 Contact Us For Availability
77
GEN WB02X3319 GEN WB02X3319 Contact Us For Availability
77
GEN WB02X3320 GEN WB02X3320 Contact Us For Availability
78
GEN WZ04X0386 GEN WZ04X0386 Contact Us For Availability
90
GEN WB56X1327 GEN WB56X1327 Contact Us For Availability
91
TRIM, BOTTOM GEN WB07X0636 Contact Us For Availability
91
SCREW MT. BOTTOM TRIM GEN WZ04X0237 Contact Us For Availability
92
HINGE SUPPORT - RH GEN WB10X0154 Contact Us For Availability
92
HINGE SUPPORT LH GEN WB10X0155 Contact Us For Availability
92
GEN WB10 GEN WB10 Contact Us For Availability
93
SCREW MT. SUPPORT GEN WZ06X0086 Contact Us For Availability
94
HINGE LEVER GUIDE GEN WB02X3303 Contact Us For Availability
95
SLEEVE GEN WB02X3305 Contact Us For Availability
96
GEN WB02X3304 GEN WB02X3304 Contact Us For Availability
97
GEN WB01X0524 GEN WB01X0524 Contact Us For Availability
98
HINGE LEVER - RH & LH GEN WB10X0158 Contact Us For Availability
99
HINGE PIN GEN WB02X6195 Contact Us For Availability
100
HINGE PIN RETAINER GEN WB02X1082 Contact Us For Availability
101
GEN WZ10X0017 GEN WZ10X0017 Contact Us For Availability
102
DOOR SPRING GEN WB09X0156 Contact Us For Availability
103
LINK GEN WB02X3289 Contact Us For Availability
104
BARRIER, SWITCH GEN WB02X3421 Contact Us For Availability
104
SWITCH DOOR GEN WB24X0105 Contact Us For Availability
105
BOTTOM OUTER INNER GEN WB55X0302 Contact Us For Availability
106
CHANNEL & SPACER - RH & GEN WB59X0163 Contact Us For Availability
109
SIDE BRACE - RH & LH GEN WB02X2401 Contact Us For Availability
110
BACK COVER GEN WB49X0327 Contact Us For Availability
111
TRIM BRACKET (06) GEN WB02X2082 Contact Us For Availability
111
SUPPORT, TRIM GEN WB02X3425 Contact Us For Availability
114
SIDE INNER - RH & LH GEN WB59X0164 Contact Us For Availability
118
GEN WB02X2083 GEN WB02X2083 Contact Us For Availability
122
BRACKET MT. FAN GEN WB02X2846 Contact Us For Availability
122
GEN WZ05X0345 GEN WZ05X0345 Contact Us For Availability
124
GEN WB02X3422 GEN WB02X3422 Contact Us For Availability
127
GEN WB02X2845 GEN WB02X2845 Contact Us For Availability
128
PLATE GEN WB02X2842 Contact Us For Availability
131
GUARD GEN WB49X0268 Contact Us For Availability
132
GEN WB49X0223 GEN WB49X0223 Contact Us For Availability
143
SPACER - FRAME GEN WB02X2104 Contact Us For Availability
146
THERMAL FAN SWITCH GEN WB24X0199 Contact Us For Availability
148
FAN BLADE GEN WB02X2911 Contact Us For Availability
150
GEN WB49X0269 GEN WB49X0269 Contact Us For Availability
151
GEN WB49X0275 GEN WB49X0275 Contact Us For Availability
152
GEN WB49X0382 GEN WB49X0382 Contact Us For Availability
153
GEN WB07X1125 GEN WB07X1125 Contact Us For Availability
153
GEN WB49X0355 GEN WB49X0355 Contact Us For Availability
158
GEN WB49X0356 GEN WB49X0356 Contact Us For Availability
159
GEN WB49X0357 GEN WB49X0357 Contact Us For Availability
160
GEN WB02X1409 GEN WB02X1409 Contact Us For Availability
160
FAN MOTOR LOWER GEN WB26X5052 Contact Us For Availability
162
THERMAL SWITCH GEN WB24X0175 Contact Us For Availability
164
GEN WB02X3165 GEN WB02X3165 Contact Us For Availability
165
GASKET - PLATE GEN WB02X3163 Contact Us For Availability
165
MOUNTING PLATE - SWITCH GEN WB02X3164 Contact Us For Availability
166
SHIM GEN WB02X3403 Contact Us For Availability
167
ANGLE REAR GEN WB02X3299 Contact Us For Availability
168
SUPPORT GEN WB02X3302 Contact Us For Availability
170
LATCH ASSEMBLY GEN WB14X5035 Contact Us For Availability
171
HANDLE - UPPER GEN WB15X0150 Contact Us For Availability
171
GEN WB15X0151 GEN WB15X0151 Contact Us For Availability
172
KNOB GEN WB03X0434 Contact Us For Availability
173
RETAINER - KNOB GEN WB02X2030 Contact Us For Availability
174
CHANNEL - LATCH GEN WB02X3157 Contact Us For Availability
175
CHANNEL - LOCKING GEN WB02X3158 Contact Us For Availability
176
PLATE - MOUNTING - UPPER GEN WB02X7301 Contact Us For Availability
177
SCREW - CHANNEL TO LATCH GEN WZ04X0396 Contact Us For Availability
178
GEN WB02X3426 GEN WB02X3426 Contact Us For Availability
178
SWITCH - LATCH GEN WB24X0183 Contact Us For Availability
180
GEN WZ04X0297 GEN WZ04X0297 Contact Us For Availability
181
SOLENOID - UPPER OVEN GEN WB24X0197 Contact Us For Availability
181
GEN WB24X5096 GEN WB24X5096 Contact Us For Availability
182
SCREW MT. SOLENOID - UPP GEN WB01X0438 Contact Us For Availability
182
SCREW MT. SOLENOID - LOW GEN WZ04X0374 Contact Us For Availability
183
GEN WB02X6212 GEN WB02X6212 Contact Us For Availability
185
PAWL - LOCKING GEN WB02X3159 Contact Us For Availability
186
GEN WB09X0148 GEN WB09X0148 Contact Us For Availability
199
SCREW MTG. COVER GEN WB01X0422 Contact Us For Availability
199
PLUG BUTTON CAP. TUBE OP GEN WB02X1125 Contact Us For Availability
199
OVEN INSUL. GEN WB02X2116 Contact Us For Availability
199
COVER ROTISSIERIE OPENIN GEN WB02X3230 Contact Us For Availability
199
CLIP TUBE SUPPORT GEN WB02X3471 Contact Us For Availability
199
OVEN LINER (06-07) GEN WB53X0234 Contact Us For Availability
199
OVEN LINER (08 & UP) GEN WB53X0252 Contact Us For Availability
201
GEN WB09X0088 GEN WB09X0088 Contact Us For Availability
203
GEN WZ04X0292 GEN WZ04X0292 Contact Us For Availability
205
GEN WB02X1659 GEN WB02X1659 Contact Us For Availability
213
GEN WB02X3393 GEN WB02X3393 Contact Us For Availability
216
GEN WB02X3466 GEN WB02X3466 Contact Us For Availability
218
GEN WB08X0191 GEN WB08X0191 Contact Us For Availability
221
GEN WB48X0082 GEN WB48X0082 Contact Us For Availability
231
GEN WB02X0818 GEN WB02X0818 Contact Us For Availability
251
GEN WB02X1543 GEN WB02X1543 Contact Us For Availability
251
GEN WB44 GEN WB44 Contact Us For Availability
× ![]()
