Model Whirlpool JJW9527DDB29 ELECTRIC WALL OVEN – Common Parts & Diagrams

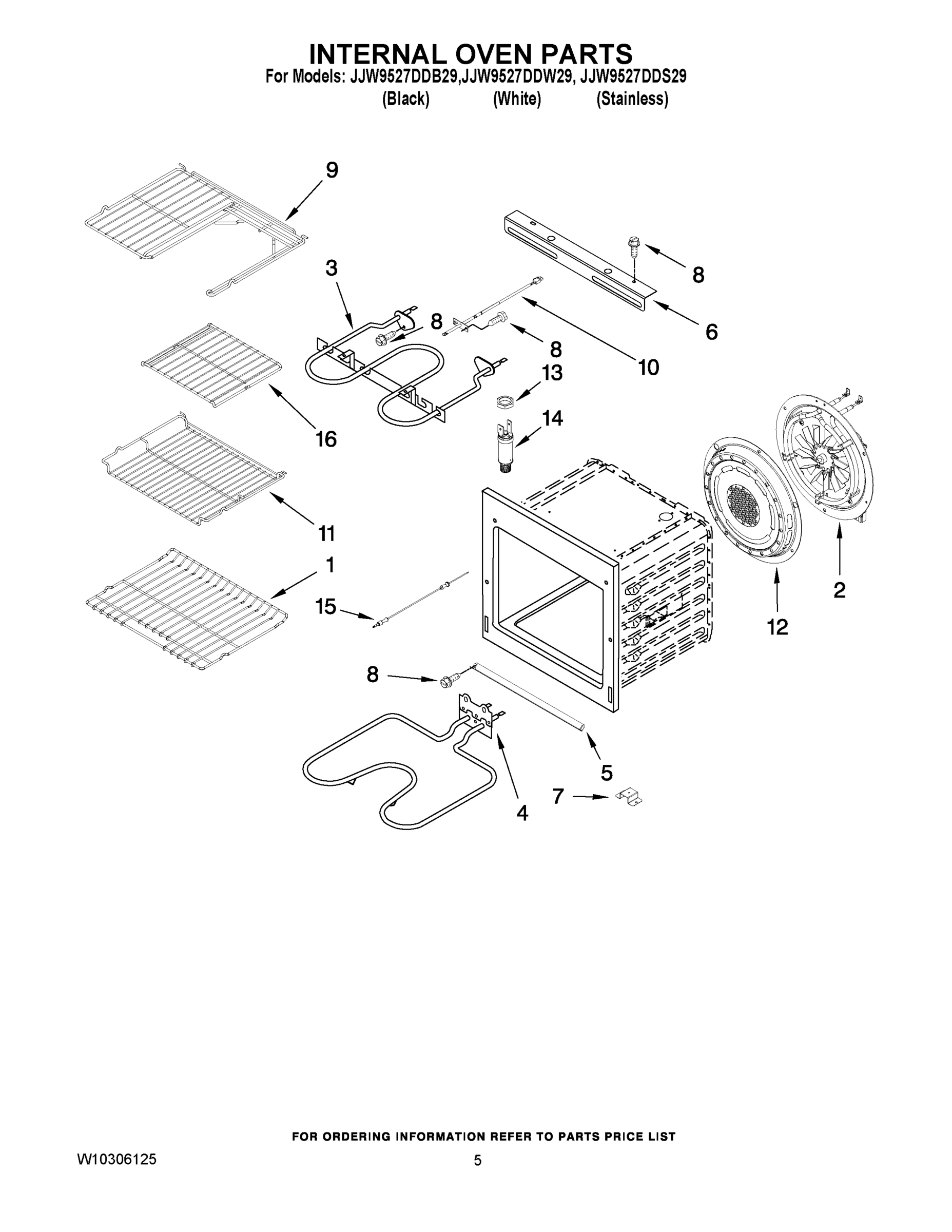

03 - INTERNAL OVEN PARTS

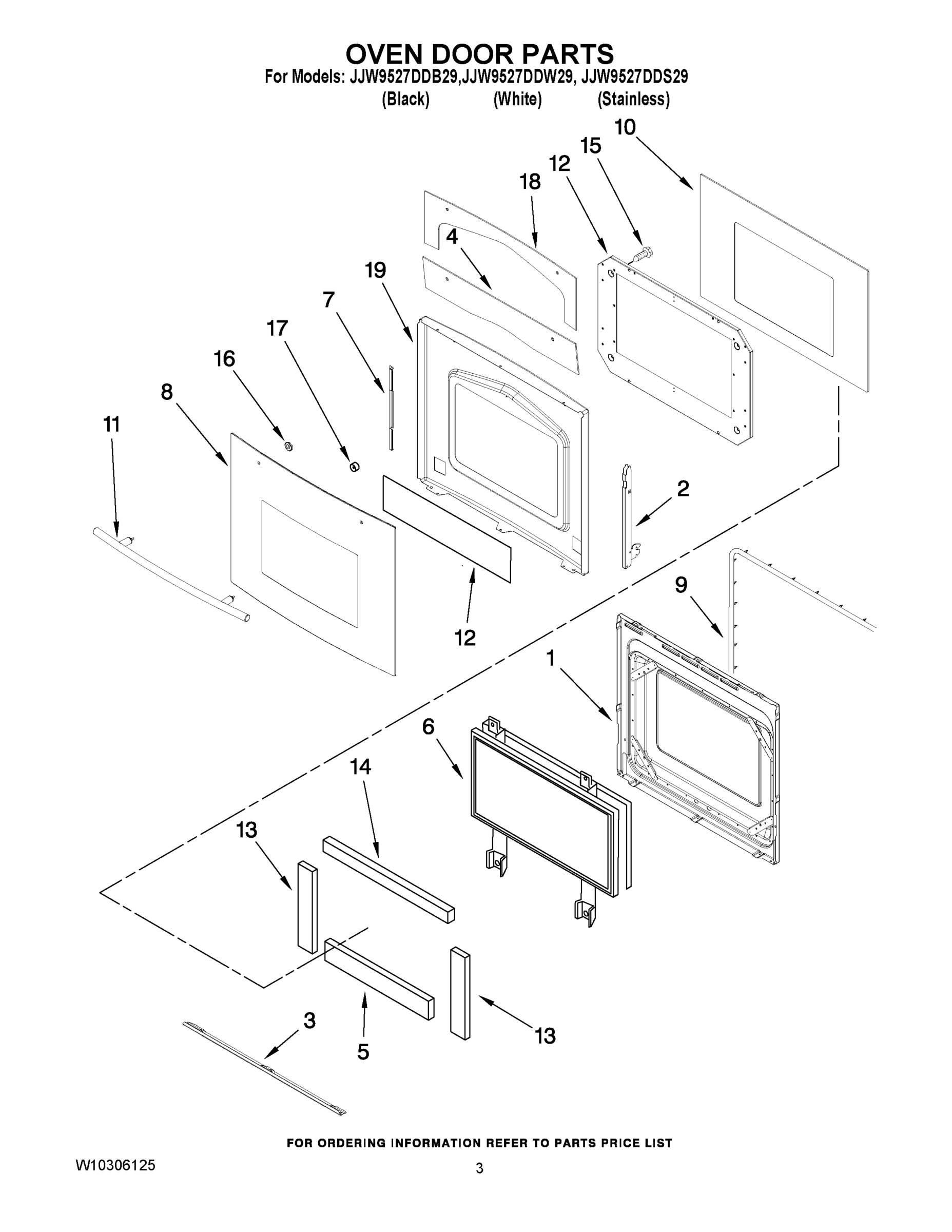

02 - OVEN DOOR PARTS

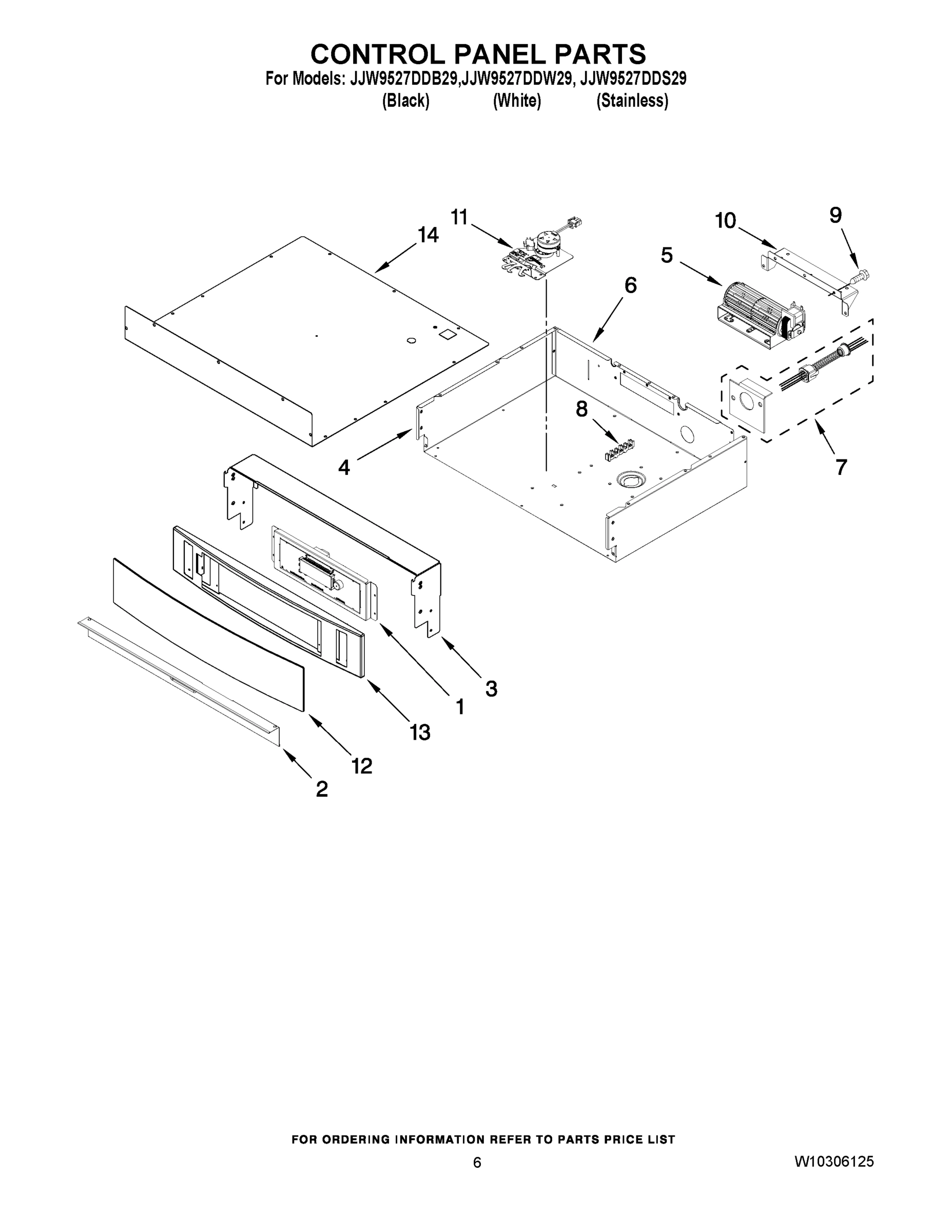

04 - CONTROL PANEL PARTS
05 - OPTIONAL PARTS

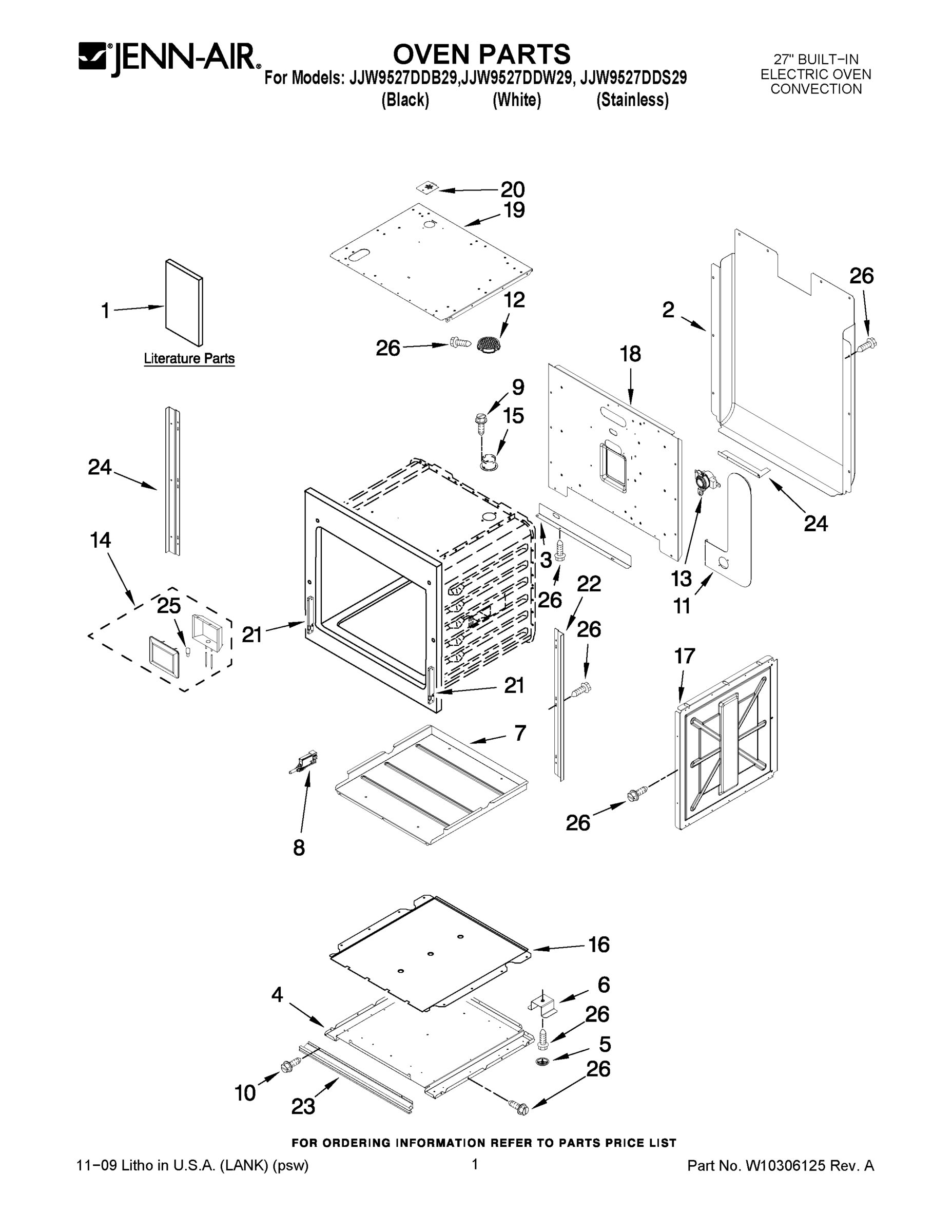

01 - OVEN PARTS
Common parts from model Whirlpool JJW9527DDB29 ELECTRIC WALL OVEN
1
LINER, DOOR WPL 2402W31119 Contact Us For Availability
1
CONTROL, SINGLE WPL 8507P34660 Contact Us For Availability
1
INSTALLATION INSTRUCTIONS WPL 8101P60260 Contact Us For Availability
1
DIAGRAM, WIRING (ENGLISH) WPL 8119P25360 Contact Us For Availability
1
DIAGRAM, WIRING (FRENCH) WPL 8119P25860 Contact Us For Availability
1
BROCHURE, TIPS SAFE COOKING (ENGLISH) WPL 9762761 Contact Us For Availability
1
BROCHURE, TIPS SAFE COOKING (FRENCH) WPL W10065852 Contact Us For Availability
1
OWNERS MANUAL WPL W10169641 Contact Us For Availability
2
ASSY., CONVECT FAN WPL W10206587 Contact Us For Availability
2
HINGE, DOOR WPL 7106P11860 Contact Us For Availability
2
TRIM, CONTROL PNL WPL 3608F10670 Contact Us For Availability
2
BACK, MAIN WPL 2624F04351 Contact Us For Availability
3
TRIM, BTM DR VENT WPL 3608F10270 Contact Us For Availability
3
SUPPORT, TOP CNTRL WPL 3807F71751 Contact Us For Availability
3
BAFFLE, REAR LOWER WPL 3601F34351 Contact Us For Availability
4
INSULATION, DOOR WPL 7002P39260 Contact Us For Availability
4
PANEL, CNTRL SIDE (LEFT) WPL 2624F07651 Contact Us For Availability
4
PANEL, CNTRL SIDE (RIGHT) WPL 2624F07751 Contact Us For Availability
4
PANEL, BOTTOM WPL 2624F07851 Contact Us For Availability
5
INSULATION, DOOR (BOTTOM) WPL 7002P20160 Contact Us For Availability
5
FAN, TANGENTIAL WPL 7427P06260 Contact Us For Availability
5
FOOT, PLASTIC (4) WPL 8038P03560 Contact Us For Availability
6
ASSY., WINDOW WPL 5700M86760 Contact Us For Availability
6
PANEL, CONTROL BOX REAR WPL 2624F10051 Contact Us For Availability
6
SUPPORT, AIR CHANNEL WPL 3807F70651 Contact Us For Availability
7
RETAINER, DR GLASS WPL 3804F14445 Contact Us For Availability
7
ASSEMBLY, CABLE WPL 5700P82960 Contact Us For Availability
7
PAN, HIDDEN BAKE WPL 3401F07945 Contact Us For Availability
8
ASSY., DOOR GLASS (BLACK) WPL 7922P01760 Contact Us For Availability
8
ASSY., DOOR GLASS (WHITE) WPL 7922P01860 Contact Us For Availability
8
ASSY., DOOR GLASS (STAINLESS) WPL W10202022 Contact Us For Availability
8
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
8
ASSY., LIGHT SW WPL 7450P10960 Contact Us For Availability
9
SEAL, DOOR WPL 7212P06060 Contact Us For Availability
9
Screw WPL 7101P43460 Contact Us For Availability
10
GLASS, DOOR (SCREENED) WPL 7902P70760 Contact Us For Availability
10
BRKT., COOLING FAN WPL 3801F82951 Contact Us For Availability
10
Screw WPL 7101P42760 Contact Us For Availability
11
RACK, OFFSET WPL W10275562 Contact Us For Availability
11
HANDLE, DOOR WPL 7701P47260 Contact Us For Availability
11
BOX, VENT WPL 4006W21845 Contact Us For Availability
12
COVER, CONVECT WPL 3605F33619 Contact Us For Availability
12
RETAINER, INSUL. WPL 3804F20051 Contact Us For Availability
12
GLASS, CONTROL PNL (BLACK) WPL 7912P33960 Contact Us For Availability
12
GLASS, CONTROL PNL (WHITE) WPL 7912P34960 Contact Us For Availability
12
GLASS, CONTROL PNL (STAINLESS) WPL 7912P35960 Contact Us For Availability
12
SCREEN, SMOKE ELM. WPL 8034P00860 Contact Us For Availability
13
NUT WPL 7103P17760 Contact Us For Availability
13
INSULATION, DOOR (SIDE) WPL 7002P19560 Contact Us For Availability
13
FRAME, CNTRL ASSY. WPL 3807W66370 Contact Us For Availability
13
SWITCH, HI LIMIT WPL 7403P89960 Contact Us For Availability
14
RECEPTACLE, MEAT PROBE WPL 7408P08860 Contact Us For Availability
14
INSULATION, DOOR (TOP) WPL 7002P24960 Contact Us For Availability
14
PANEL, CONTROL BOX TOP WPL 2624F09844 Contact Us For Availability
14
ASSEMBLY, LIGHT WPL 7407P17960 Contact Us For Availability
15
PROBE, MEAT WPL 7430P03860 Contact Us For Availability
15
TUBE, VENT WPL 8026P06660 Contact Us For Availability
16
RACK, OVEN HALF WPL 7801P14160 Contact Us For Availability
16
Nut WPL 7103P17660 Contact Us For Availability
16
CHANNEL, BOTTOM WPL 3818F10851 Contact Us For Availability
17
WASHER WPL 7109P08260 Contact Us For Availability
17
PANEL, SIDE WPL 2618F21551 Contact Us For Availability
18
INSULATION, DOOR (STAINLESS ONLY) WPL 7002P39660 Contact Us For Availability
18
RETAINER, REAR INSULATION WPL 2624F09651 Contact Us For Availability
19
FRAME, DOOR WPL 3603F07470 Contact Us For Availability
19
PNL, TOP RETAINER WPL 2618F22351 Contact Us For Availability
20
COVER, VENT WPL 4005F72645 Contact Us For Availability
21
RECEIVER, HINGE WPL 7106P12760 Contact Us For Availability
22
TRIM, SIDE (RIGHT) WPL 7744P46060 Contact Us For Availability
22
TRIM, SIDE (LEFT) WPL 7744P46160 Contact Us For Availability
23
TRIM, BOTTOM VENT WPL 3608F09870 Contact Us For Availability
24
COVER, REAR WPL 4005P71251 Contact Us For Availability
25
BULB, OVEN WPL 899138001 Contact Us For Availability
26
SCREW WPL 7101P42660 Contact Us For Availability
NI
HARNESS, WIRE (CONTROL TOP) WPL 5171P07260 Contact Us For Availability
NI
HARNESS, WIRE (SENSOR) WPL 5171P15360 Contact Us For Availability
NI
HARNESS, WIRE (MEAT PROBE JACK) WPL 5171P20860 Contact Us For Availability
NI
HARNESS, WIRE (MAIN) WPL 5171P67260 Contact Us For Availability
NI
ADHESIVE LOCTITE (1/3 OZ.)) WPL 591014 Contact Us For Availability
NI
INSULATION, BACK WPL 7002P40760 Contact Us For Availability
NI
INSULATION, WRAP WPL 7002P42260 Contact Us For Availability
× ![]()
