Model Whirlpool JJW9527CAS ELECTRIC WALL OVEN – Common Parts &amp; Diagrams

1

HANDLE, DOOR (STL) WPL 74006895 Contact Us For Availability

1

PANEL, TOP (OUTER) WPL 74006819 Contact Us For Availability

1

PANEL, TOP (INR) WPL 74006827 Contact Us For Availability

2

W11772394 Whirlpool Screw In Stock WPL W11772394 $8.39

2

RACK, OVEN WPL Y704660 Contact Us For Availability

2

WASHER WPL 7109P03660 Contact Us For Availability

2

POCKET, HANDLE (BLK) WPL 74005592 Contact Us For Availability

2

COVER, MAIN BACK WPL 71001813 Contact Us For Availability

2

EXTENSION, VENT WPL 71001843 Contact Us For Availability

3

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

3

WP71003424-includeCORE Whirlpool WP71003424 R Backorder WPL WP71003424-includeCORE $349.67

3

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

3

BRACKET, HANDLE WPL 71003386 Contact Us For Availability

3

TRIM, SIDE (BLK) WPL 74005622 Contact Us For Availability

3

PAN, BROIL WPL Y3401F02019 Contact Us For Availability

3

SWITCH, DOOR LOCK WPL 71001129 Contact Us For Availability

4

WP71001844 Whirlpool Thermostat Backorder WPL WP71001844 $148.74

4

WP7101P126-60 Whirlpool Screw Backorder WPL WP7101P126-60 $4.82

4

WPY706189 Whirlpool Stove Screw In Stock WPL WPY706189 $5.02

4

TRIM, CONTROL PANEL (BLK) WPL 71001946 Contact Us For Availability

4

GLASS, OUTER DOOR (STL) WPL 74006894 Contact Us For Availability

4

TRIM, OVEN (LWR-BLK) WPL 74005626 Contact Us For Availability

4

INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability

5

WP9781049 Whirlpool Light Lens Backorder WPL WP9781049 $76.26

5

SUPPORT,(CONTROL 27``)(BLK) WPL 74006908 Contact Us For Availability

5

FRAME, DOOR (BLK) WPL 74006315 Contact Us For Availability

5

PANEL, OVEN (SIDE/BTM/SIDE) WPL 74005645 Contact Us For Availability

5

LATCH, DOOR ASSY. WPL 71001845 Contact Us For Availability

6

SUPPORT, TOP CONTROL WPL 74006817 Contact Us For Availability

6

SUPPORT- T WPL 74007580 Contact Us For Availability

6

INSULATION, DOOR HINGE WPL 74006907 Contact Us For Availability

6

FRAME, OVEN WPL 71003180 Contact Us For Availability

6

VENT (BTM) WPL 71001846 Contact Us For Availability

7

WP7101P434-60 Whirlpool Screw Backorder WPL WP7101P434-60 $4.82

7

WP74008015 Whirlpool Bracket Assembly In Stock WPL WP74008015 $213.49

7

HARNESS, WIRE CONTROL (J2) WPL 71001798 Contact Us For Availability

7

HARNESS, TOUCH PAD/CLOCK WPL 71003403 Contact Us For Availability

7

HARNESS, CONTROL/RELAY BOARD WPL 71003404 Contact Us For Availability

7

HARNESS, SENSOR (LWR) WPL 74005199 Contact Us For Availability

7

HARNESS, MAIN (UPR) WPL 74006938 Contact Us For Availability

7

HARNESS, UPR DR SW. & MTR WPL 74007064 Contact Us For Availability

7

SHIELD, HEAT WPL 74006892 Contact Us For Availability

7

GASKET, WINDOW WPL 790058 Contact Us For Availability

7

WASHER, ALUM WPL 71001403 Contact Us For Availability

7

OVEN WELD ASSY. WPL 71003006 Contact Us For Availability

7

VENT (TOP) WPL 71001847 Contact Us For Availability

8

COOKBOOK WPL 71003508 Contact Us For Availability

8

GUIDE, COOKING (TRILINGUAL) WPL 74005475 Contact Us For Availability

8

MANUAL, USE & CARE WPL 74006564 Contact Us For Availability

8

INSULATION, DOOR (BTM) WPL 71001969 Contact Us For Availability

8

PANEL, BACK (INR) WPL 74004629 Contact Us For Availability

8

RECEPTACLE, PROBE WPL 71001863 Contact Us For Availability

8

BRACKET, FAN WPL 71001853 Contact Us For Availability

9

RETAINER, GLASS WPL 74003650 Contact Us For Availability

9

INSULATION (BACK-TOP) WPL 71002329 Contact Us For Availability

9

INSULATION (BTM) WPL 71003614 Contact Us For Availability

9

RECEPTACLE, BULB WPL 71001866 Contact Us For Availability

9

WIRE CABLE ASSY. WPL 71001848 Contact Us For Availability

GLASS, INNER DOOR WPL 74006893 Contact Us For Availability

PLATE, HINGE TRAP WPL 71001812 Contact Us For Availability

TUBE, VENT WPL 71002419 Contact Us For Availability

SWITCH, DOOR LIGHT WPL 71002904 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $17.41

WP3400029 Whirlpool Dishwasher Nut In Stock WPL WP3400029 $5.30

RETAINER, INSULATION WPL 74005638 Contact Us For Availability

INSULATION (WRAP) WPL 71001817 Contact Us For Availability

BOARD, RELAY WPL 74006612 Contact Us For Availability

12001656 Whirlpool Range Oven Temperature Sen In Stock WPL 12001656 $28.98

W10759523 Whirlpool Screw Backorder WPL W10759523 $4.55

WINDOW ASSEMBLY WPL 74005639 Contact Us For Availability

FAN MOTOR ASSY. WPL 71001851 Contact Us For Availability

M0282005 Whirlpool Nut Backorder WPL M0282005 $5.10

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $5.02

INSULATION, DOOR (SIDE) WPL 71001839 Contact Us For Availability

RACK, OVEN (OFFSET) WPL Y704662 Contact Us For Availability

14

LINER, OVEN DOOR WPL 74005615 Contact Us For Availability

14

NUT, HEX 3/8`` WPL Y703356 Contact Us For Availability

14

BLADE, FAN WPL 71001852 Contact Us For Availability

15

WP71001870 Whirlpool Temperature Probe Sensor Backorder WPL WP71001870 $171.29

15

WP71001970 Whirlpool Door Seal Backorder WPL WP71001970 $120.69

16

WP74008014 Whirlpool Range Oven Door Hinge In Stock WPL WP74008014 $118.85

16

SCREW, BLACK WPL 7101P27060 Contact Us For Availability

16

CLIP, OVEN WPL 71001170 Contact Us For Availability

17

SCREW WPL 702731 Contact Us For Availability

17

HEAT SINK WPL 74005614 Contact Us For Availability

17

MOTOR ASSY, CONVECTION WPL 74005657 Contact Us For Availability

18

INSULATION, TOP WPL 74005634 Contact Us For Availability

18

BUTTON, PLUG WPL 702929 Contact Us For Availability

19

74007237 Whirlpool Spacer Backorder WPL 74007237 $40.16

19

PLATE, CONVECTION (FRT) WPL 74005658 Contact Us For Availability

20

WP74003976 Whirlpool Screw Backorder WPL WP74003976 $4.82

NI

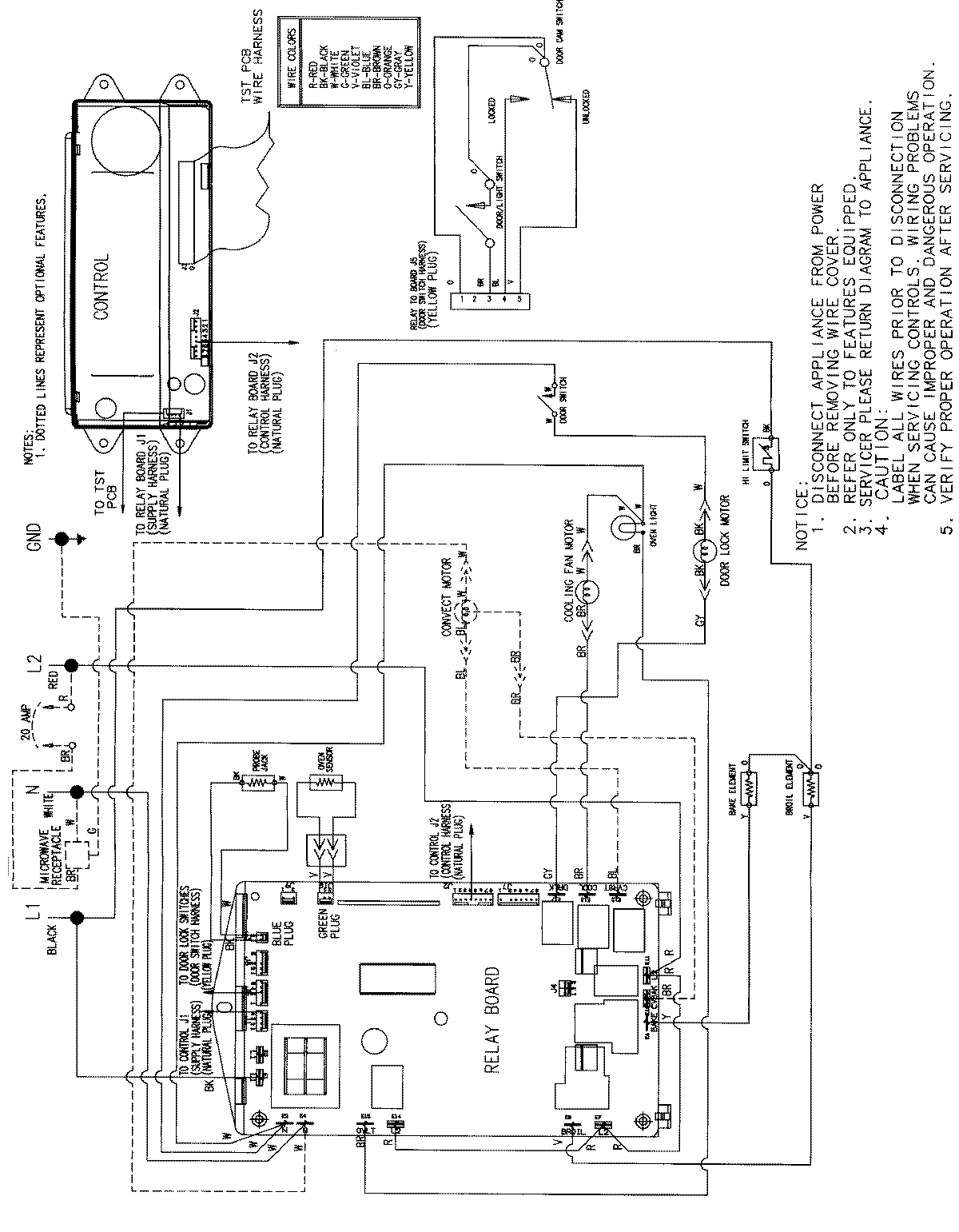

WIRING INFORMATION WPL 15002514 Contact Us For Availability
