Model Whirlpool JJW9327DDB11 ELECTRIC WALL OVEN – Common Parts & Diagrams

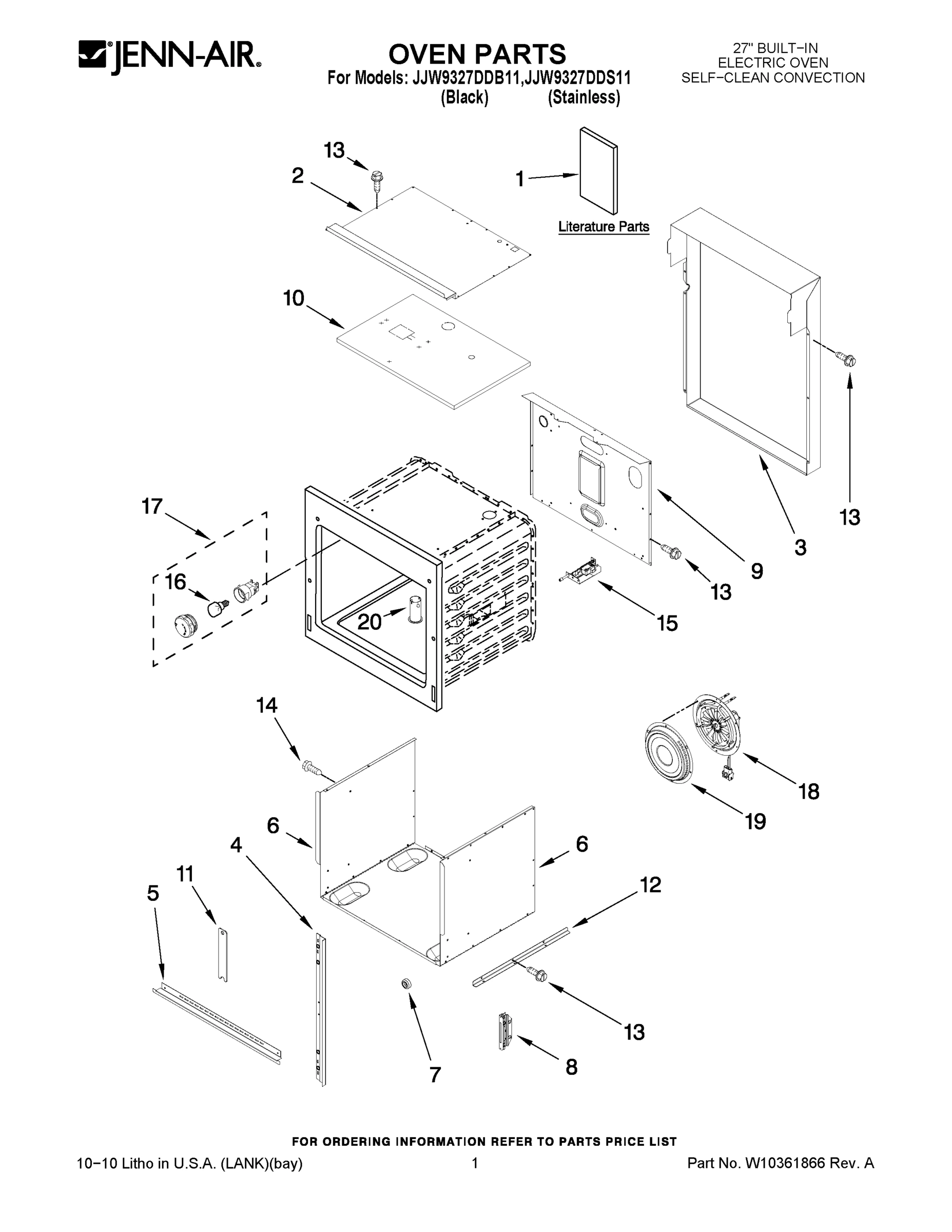

01 - OVEN PARTS

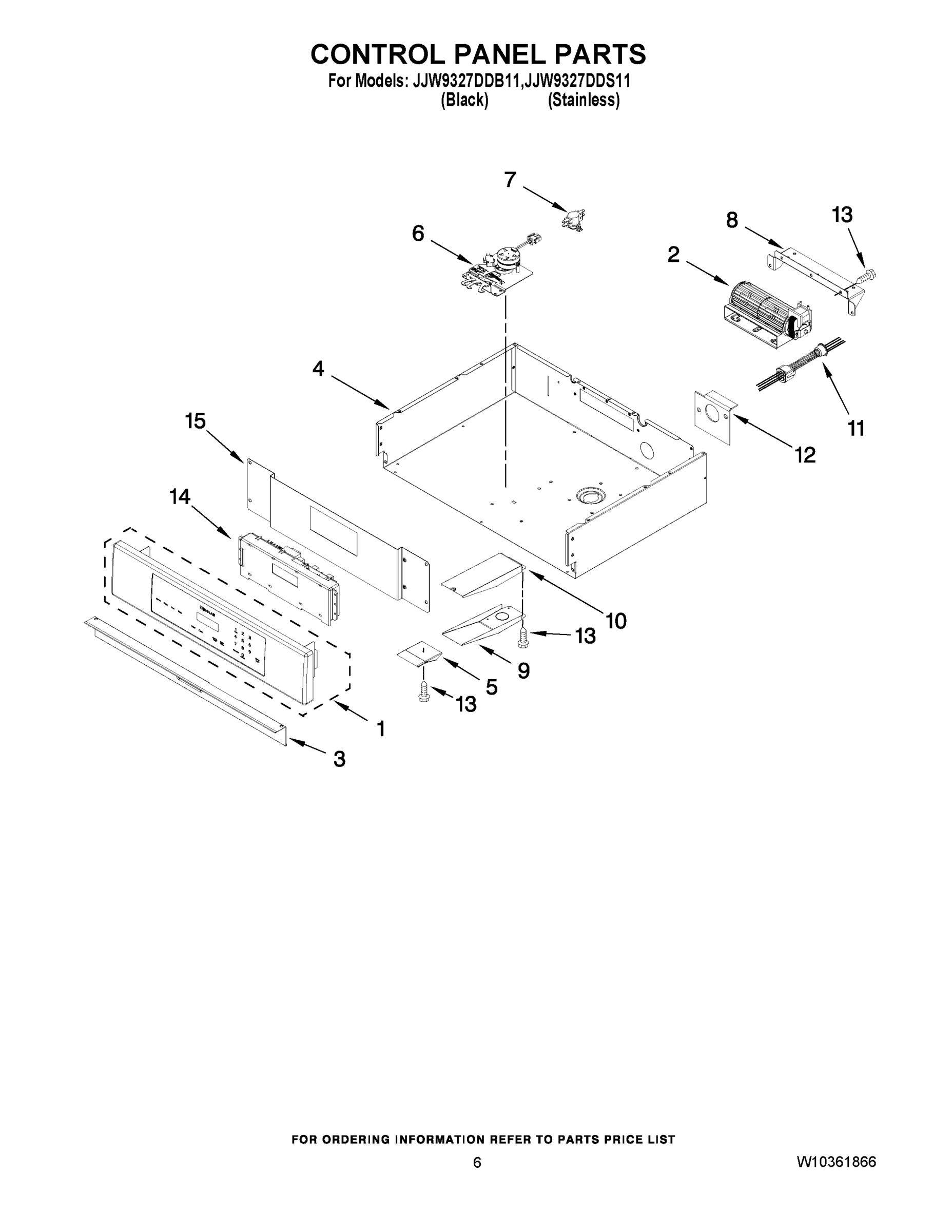

04 - CONTROL PANEL PARTS

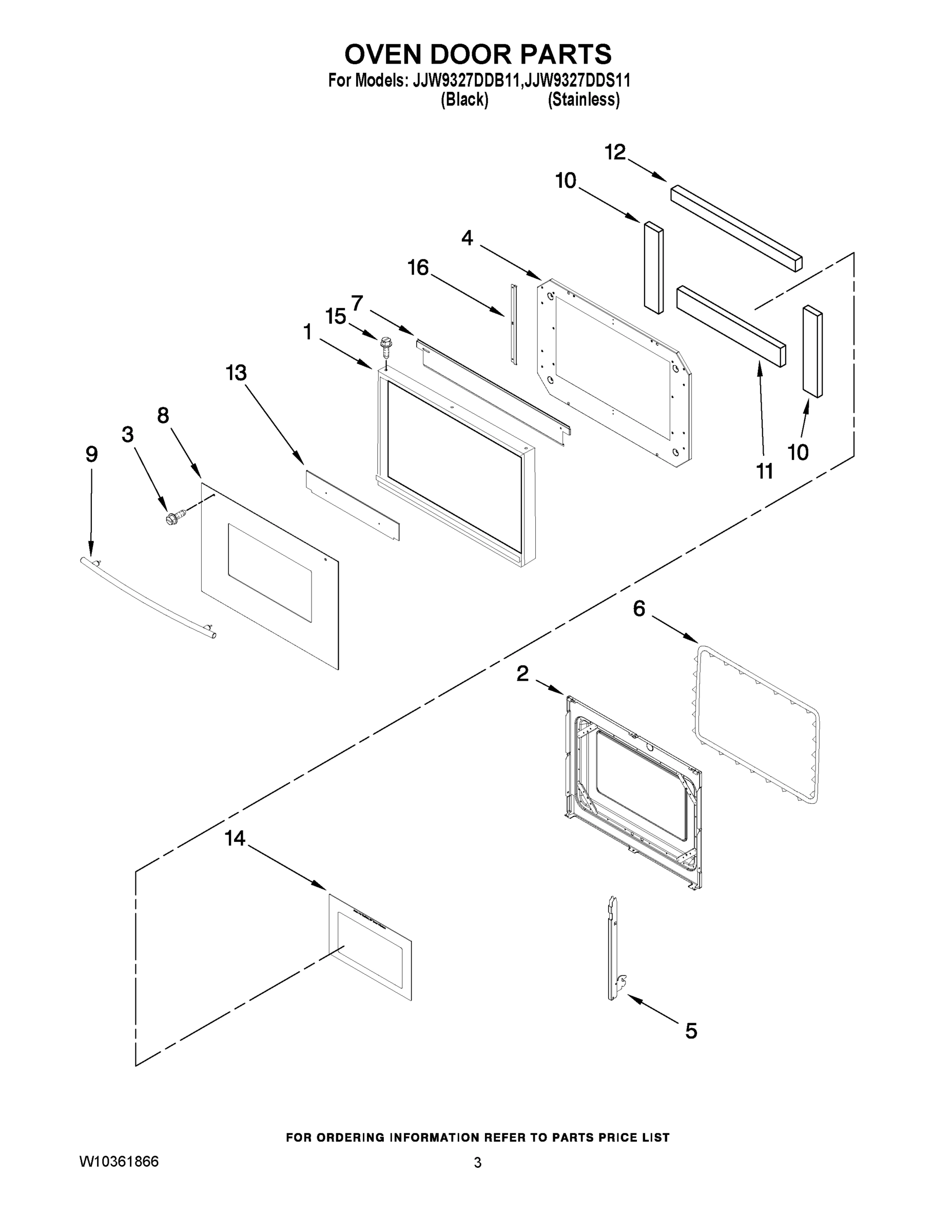

02 - OVEN DOOR PARTS

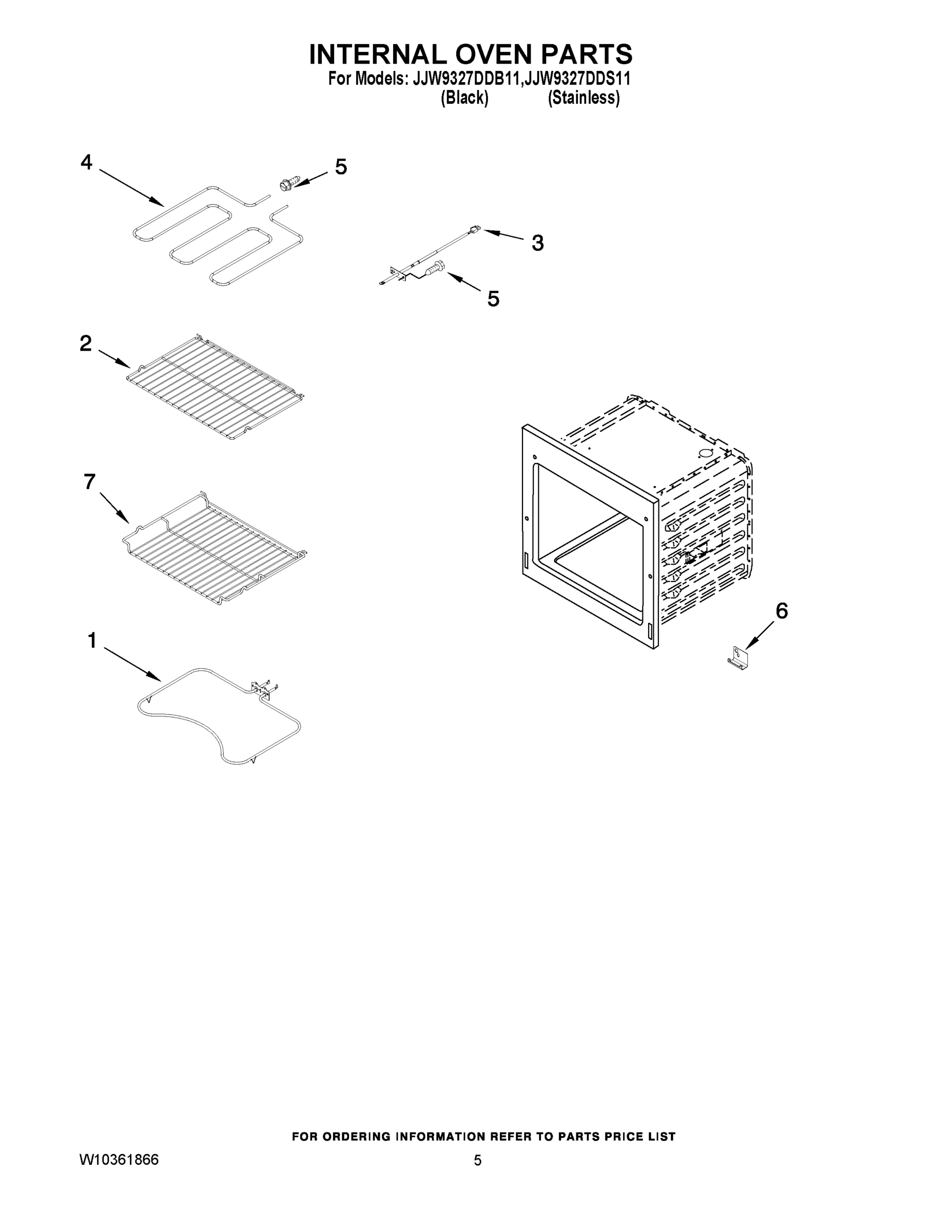

03 - INTERNAL OVEN PARTS
05 - OPTIONAL PARTS
Common parts from model Whirlpool JJW9327DDB11 ELECTRIC WALL OVEN
1
ASSEMBLY, CONTROL PANEL (BLACK) WPL W10297307 Contact Us For Availability
1
ASSEMBLY, CONTROL PANEL (STAINLESS) WPL W10312217 Contact Us For Availability
1
TRIM, FRAME DOOR ASSY. WPL 7706P56160 Contact Us For Availability
2
ASSY., FAN MOTOR WPL 7427P07960 Contact Us For Availability
2
LINER, OVEN DOOR WPL 2402W26419 Contact Us For Availability
2
RACK, OVEN (STRAIGHT) WPL 7801P15660 Contact Us For Availability
3
TRIM, CONTROL PNL WPL 3608F10470 Contact Us For Availability
3
SCREW, HANDLE WPL 7101P68160 Contact Us For Availability
3
Sensor, Oven WPL 7430P04260 Contact Us For Availability
4
ELEMENT, BROIL WPL W10310260 Contact Us For Availability
4
TRIM, SIDE WPL 7744P43360 Contact Us For Availability
4
PANEL, TOP WPL 4026F09151 Contact Us For Availability
4
RETAINER, INSUL. WPL 3804F20051 Contact Us For Availability
5
TRIM, OVEN WPL 3608F08470 Contact Us For Availability
5
EXTENSION, VENT WPL 8312P23260 Contact Us For Availability
5
HINGE, DOOR WPL 7106P11560 Contact Us For Availability
5
SCREW WPL 7101P46160 Contact Us For Availability
6
PANEL, SIDE WPL 2618F22151 Contact Us For Availability
6
SEAL, DOOR WPL 7212P06060 Contact Us For Availability
6
CLIP, OVEN WPL 7112P12660 Contact Us For Availability
7
RACK, OVEN OFFSET WPL W10275562 Contact Us For Availability
7
BUMPER, RUBBER WPL 7109P08560 Contact Us For Availability
7
THERMOSTAT, HI-LIMIT WPL 7403P85660 Contact Us For Availability
7
BRACKET, HANDLE WPL W10205610 Contact Us For Availability
8
RECEPTACLE, HINGE ASSEMBLY WPL 8014P03160 Contact Us For Availability
8
BKT., COOLING FAN WPL 3801F93651 Contact Us For Availability
8
GLASS, DOOR OUTER WPL 7902P81360 Contact Us For Availability
9
RETAINER, INSUL. WPL 2624F05551 Contact Us For Availability
9
VENT, TOP WPL 4011F43845 Contact Us For Availability
9
HANDLE, DOOR WPL 7701P54360 Contact Us For Availability
10
INSULATION, TOP/BACK WPL 7002P35760 Contact Us For Availability
10
VENT, BOTTOM WPL 4006F16945 Contact Us For Availability
10
INSULATION, DOOR WPL 7002P38060 Contact Us For Availability
11
PLATE, HINGE TRAP WPL 3605F23650 Contact Us For Availability
11
ASSY., WIRE CABLE WPL 5700P82960 Contact Us For Availability
11
INSULATION, BTM WPL 7002P38160 Contact Us For Availability
12
BOTTOM, BRACE WPL 3802F11651 Contact Us For Availability
12
BRACKET, CABLE WPL 8020P04860 Contact Us For Availability
12
INSULATION, TOP WPL 7002P38260 Contact Us For Availability
13
SCREW WPL 7101P42660 Contact Us For Availability
13
SHIELD, HEAT WPL 3604F36945 Contact Us For Availability
14
SCREW WPL 7101P63560 Contact Us For Availability
14
CONTROL, ELECTRIC WPL 8507P35960 Contact Us For Availability
14
GLASS, DOOR INNER (SCREENED) WPL 7902P71260 Contact Us For Availability
15
ASSY, LIGHT SWITCH WPL 7450P10960 Contact Us For Availability
15
BRACKET, MOUNTING (CONTROL) WPL 3801F83451 Contact Us For Availability
15
Screw WPL 7101P42760 Contact Us For Availability
16
BULB-OVEN WPL 7407P10360 Contact Us For Availability
16
RETAINER, GLASS WPL 3804F14445 Contact Us For Availability
17
ASSY., LIGHT WPL 7407P18160 Contact Us For Availability
18
FAN, CONVECTION WPL W10210594 Contact Us For Availability
19
COVER, CONV. FAN WPL 3605F32319 Contact Us For Availability
20
ELIMINATOR, SMOKE WPL 7505P32260 Contact Us For Availability
NI
INSULATION, BOTTOM WPL 7002P26360 Contact Us For Availability
NI
INSULATION, WRAP WPL 7002P36760 Contact Us For Availability
NI
HARNESS, SENSOR & LOCK WPL 5171P07860 Contact Us For Availability
NI
HARNESS, MAIN WPL 5171P93560 Contact Us For Availability
NI
ADHESIVE LOCTITE (1/3 OZ.)) WPL 591014 Contact Us For Availability
× ![]()
