Model Whirlpool JJW9130DDB ELECTRIC WALL OVEN – Common Parts &amp; Diagrams

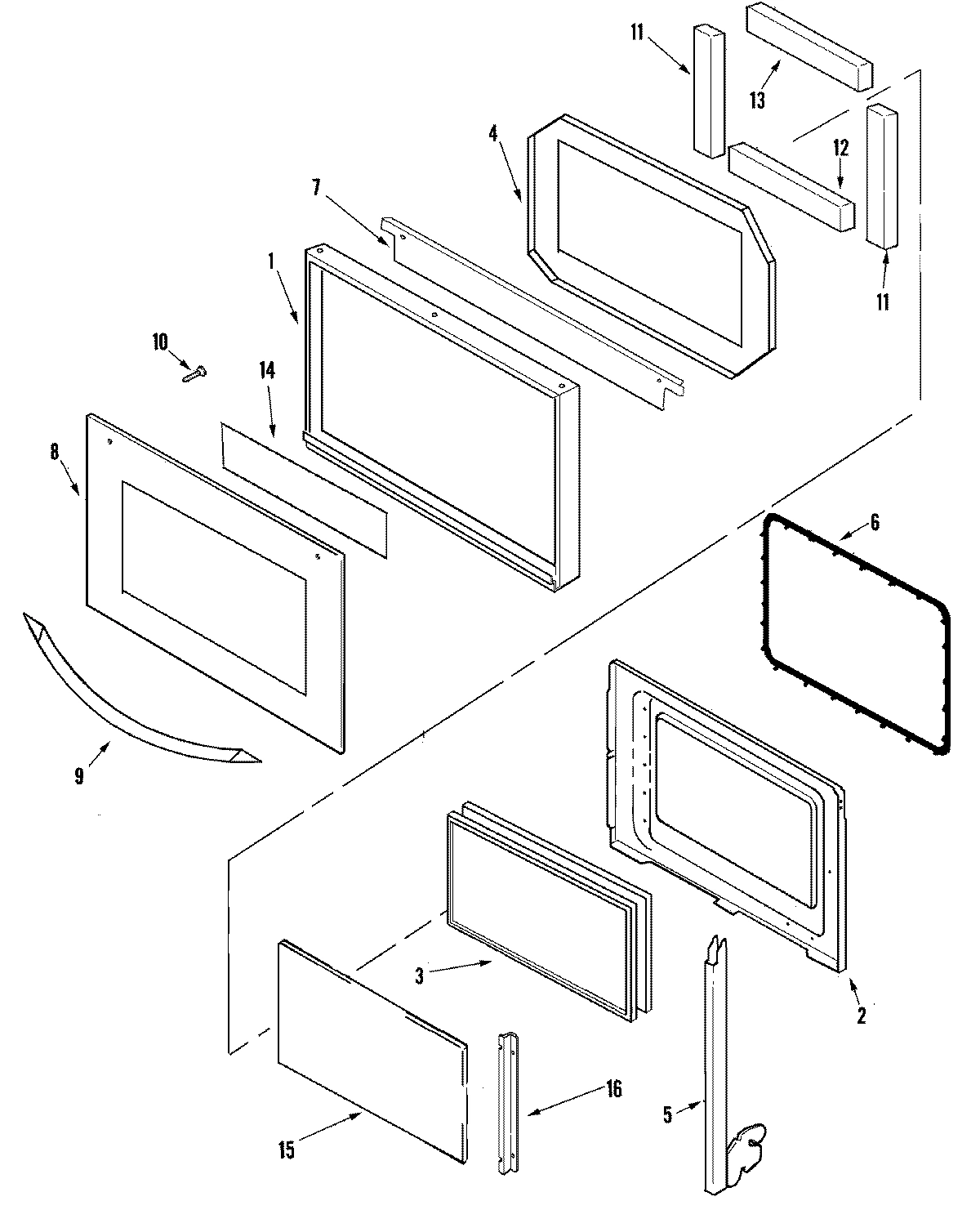

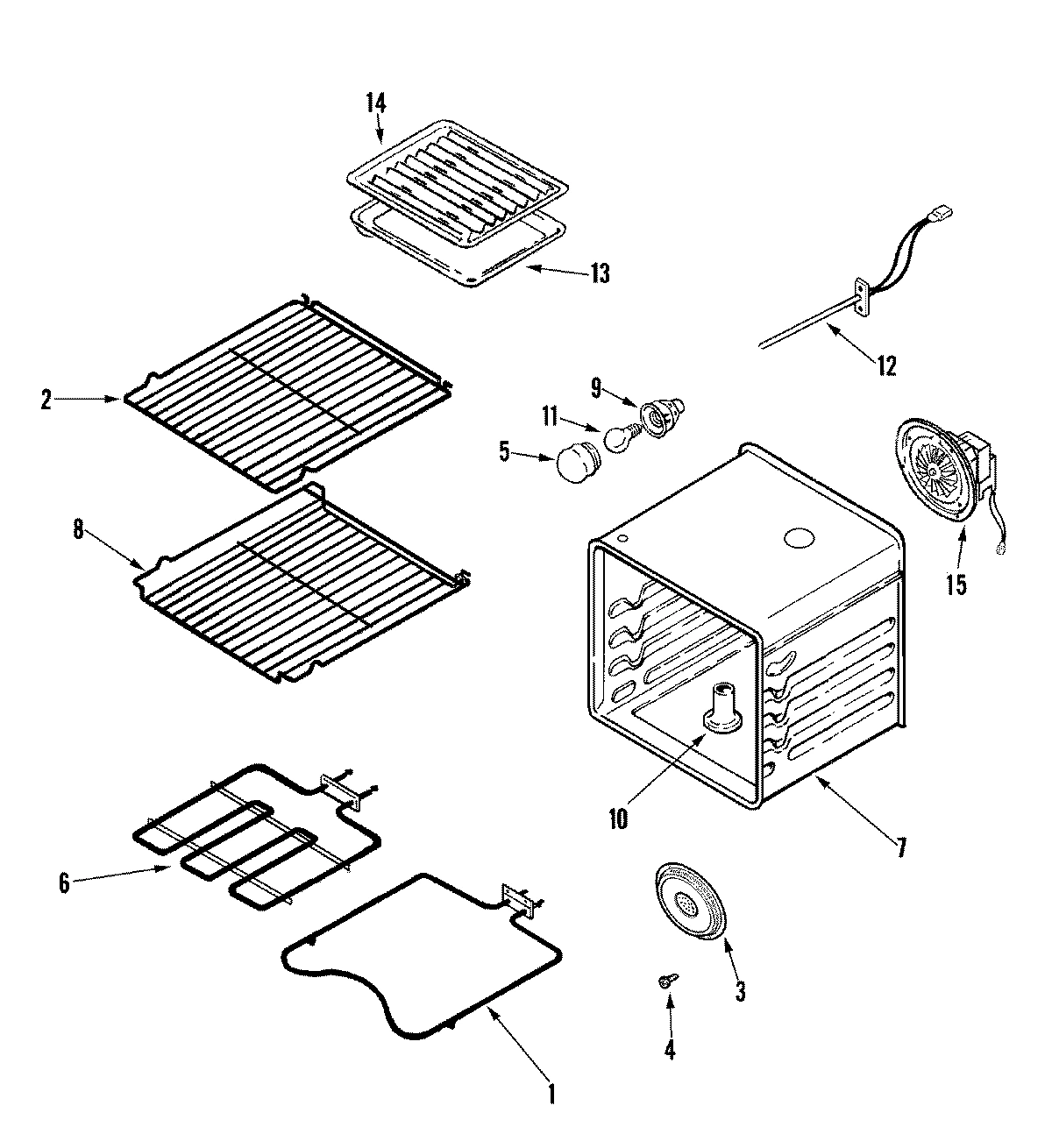

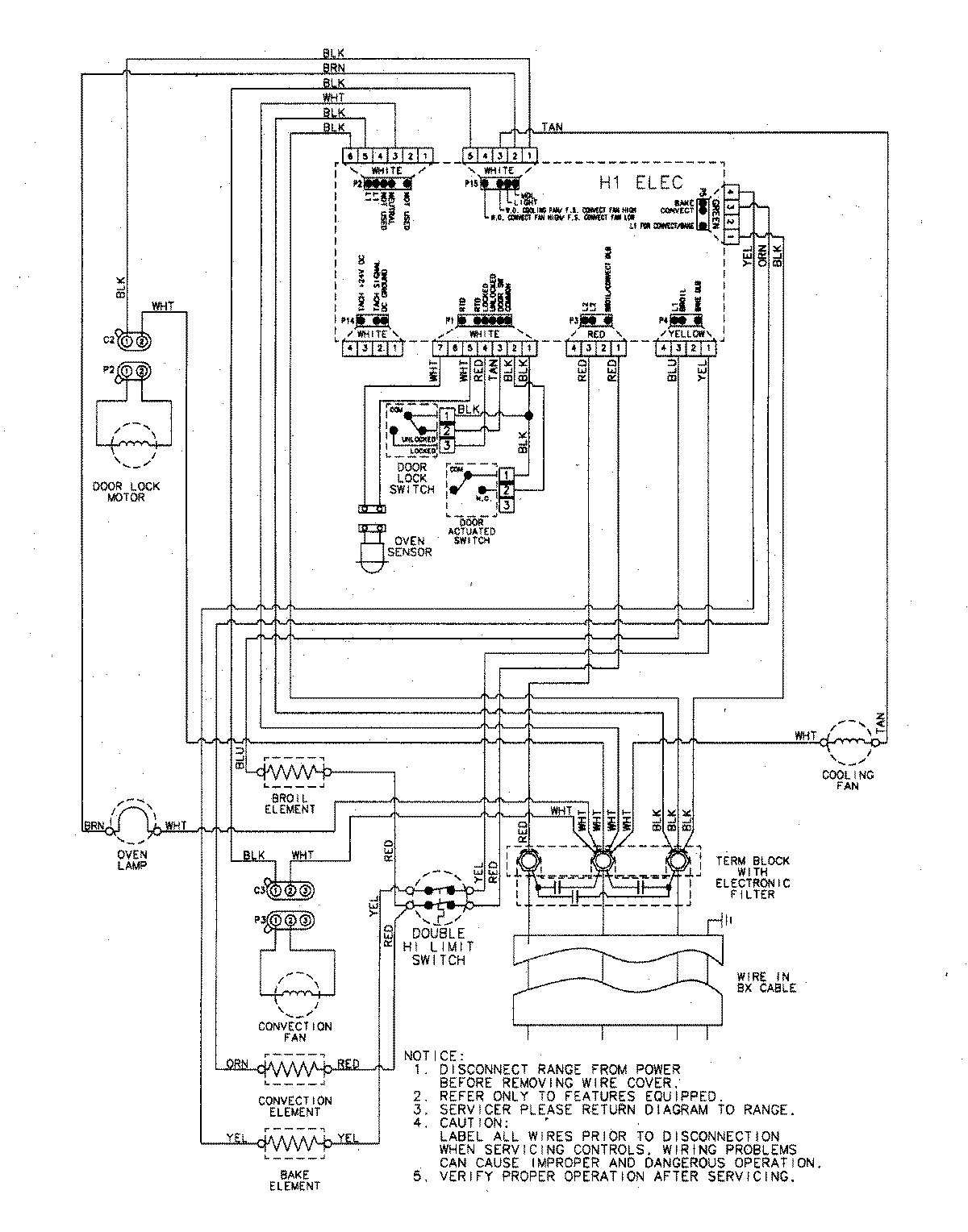

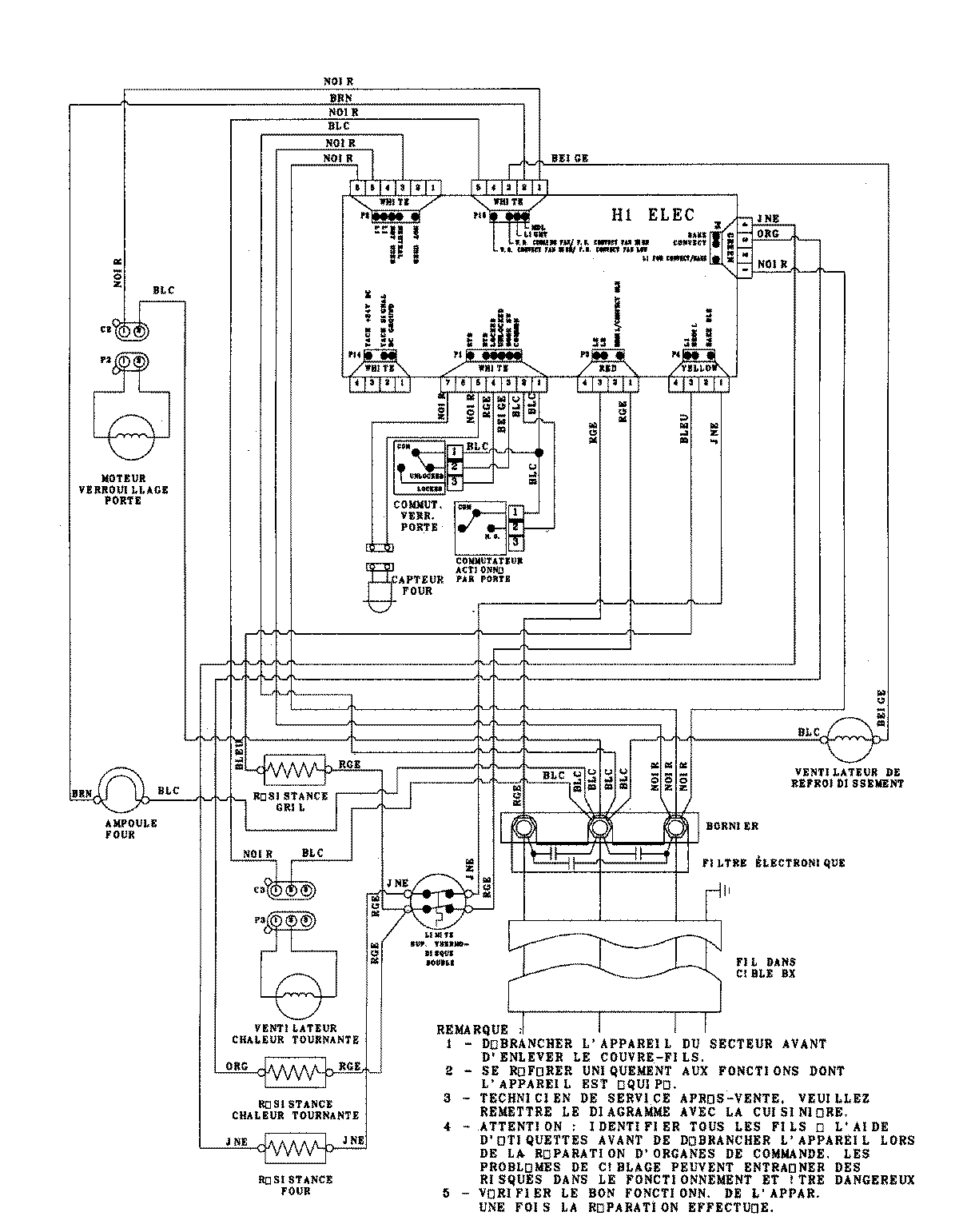

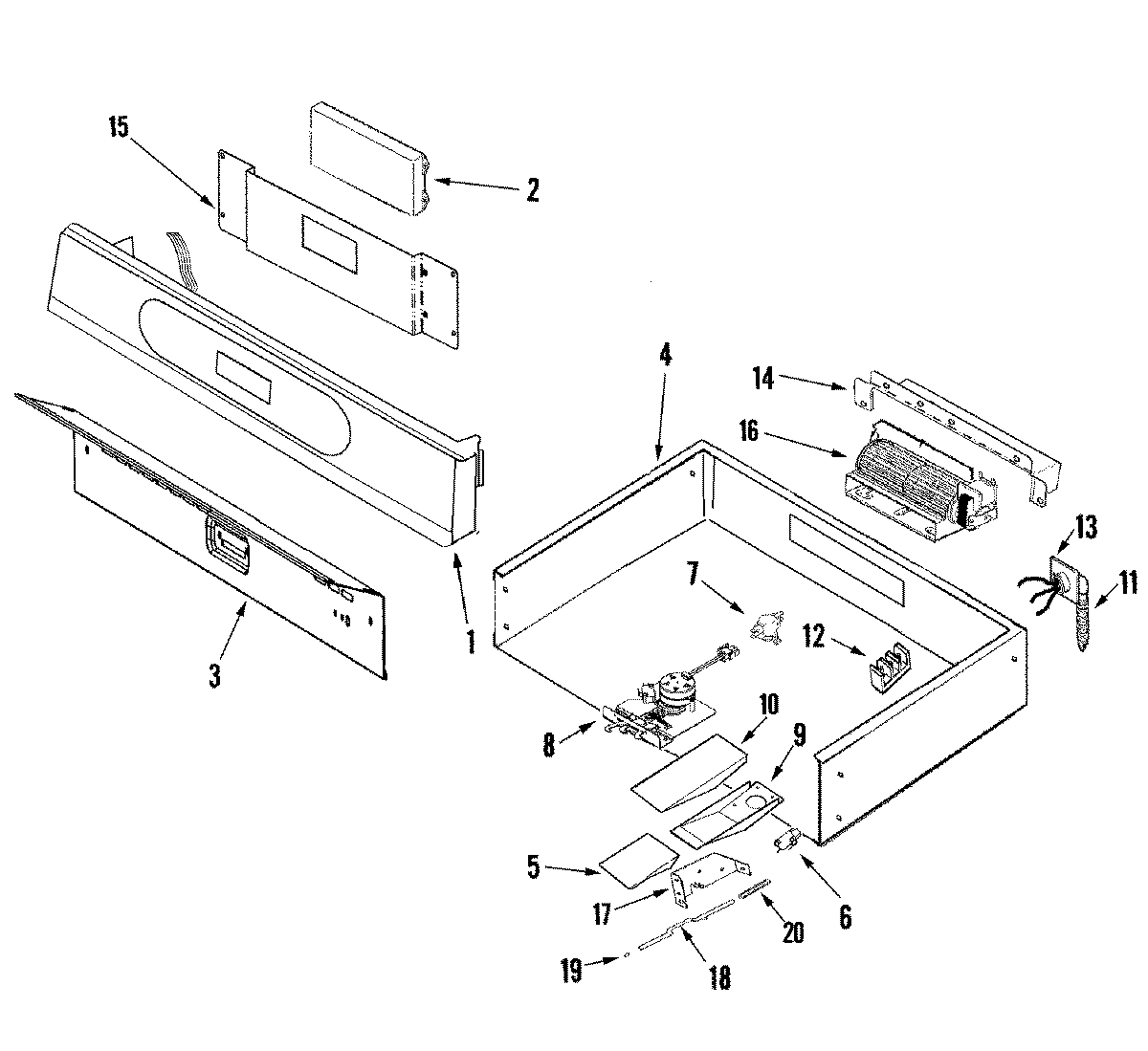

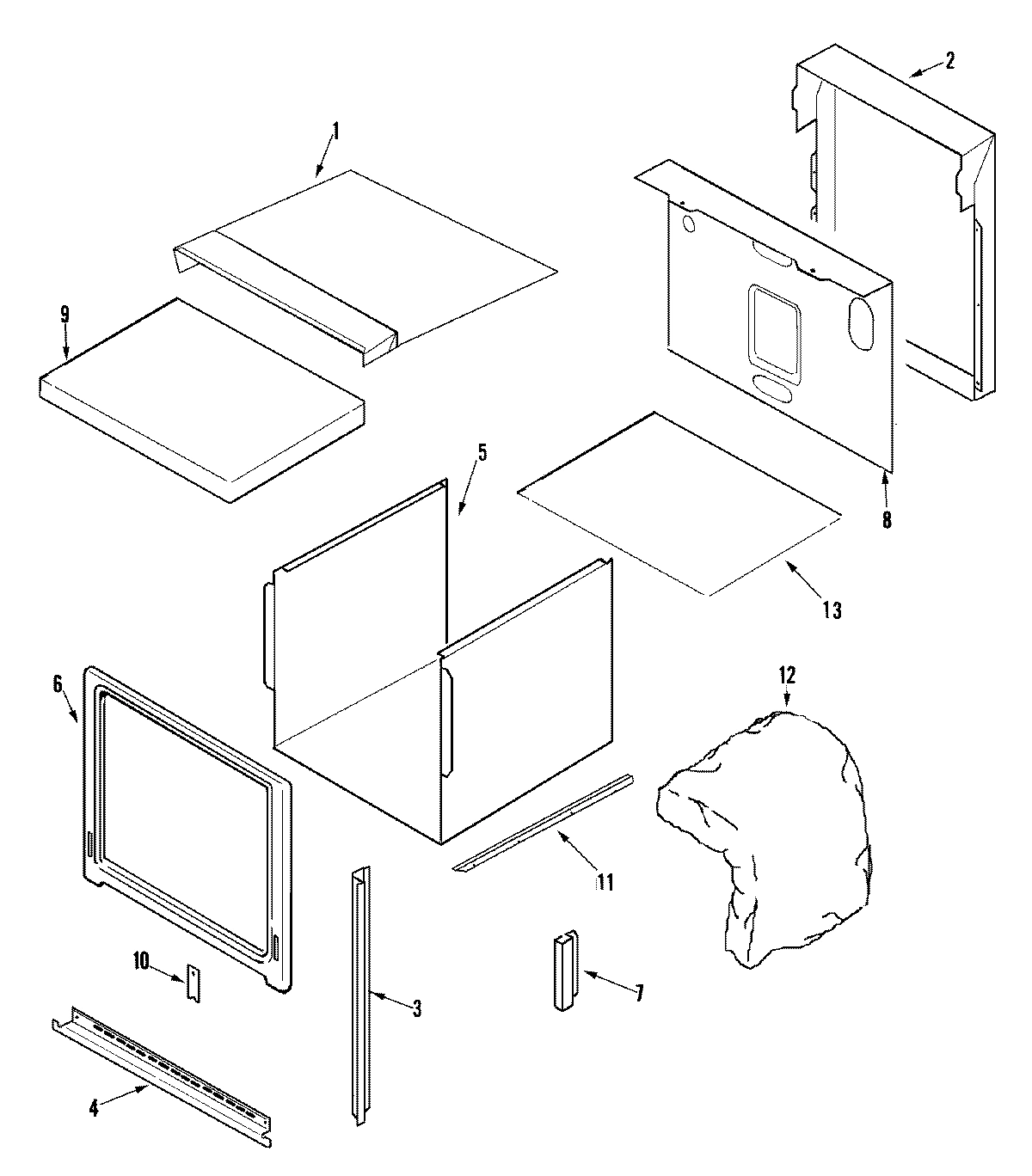

1

WPW10310258 Whirlpool Bake Element In Stock WPL WPW10310258 $138.66

1

WPY706189 Whirlpool Stove Screw In Stock WPL WPY706189 $5.02

1

FRAME, DOOR (BLK) WPL 74006751 Contact Us For Availability

1

INSULATION WPL 74008268 Contact Us For Availability

1

HARNESS, H1 LOCK & SENSOR WPL 74008295 Contact Us For Availability

2

WPW10282527 Whirlpool Oven Rack Backorder WPL WPW10282527 $118.37

2

LINER, OVEN DOOR WPL 74005642 Contact Us For Availability

2

CONTROL, H1 (CLOCK/CONVECT) WPL 74008952 Contact Us For Availability

2

HARNESS, MAIN WIRE W/FILTER WPL 74008316 Contact Us For Availability

3

WINDOW ASSEMBLY WPL 74005641 Contact Us For Availability

3

TRIM, CONTROL PANEL WPL 74008261 Contact Us For Availability

3

COVER, CONVECT FAN WPL 74008315 Contact Us For Availability

3

MANUAL, USE & CARE WPL 74008311 Contact Us For Availability

3

Manual, Use & Care WPL W10169646 Contact Us For Availability

4

WP74003976 Whirlpool Screw Backorder WPL WP74003976 $4.82

4

RETAINER, INSULATION WPL 74005648 Contact Us For Availability

4

PANEL, TOP (INR) WPL 74008262 Contact Us For Availability

4

GUIDE, COOKING (TRILINGUAL) WPL 74007136 Contact Us For Availability

5

WP74008014 Whirlpool Range Oven Door Hinge In Stock WPL WP74008014 $118.85

5

WP9781049 Whirlpool Light Lens Backorder WPL WP9781049 $76.26

5

SCREW, BLACK WPL 7101P27060 Contact Us For Availability

5

EXTENSION, VENT WPL 71001843 Contact Us For Availability

5

KIT, HALF RACK SALES (4.0) WPL UXA4905ADX Contact Us For Availability

6

WP71001841 Whirlpool Door Seal Backorder WPL WP71001841 $123.53

6

INSULATOR WPL 74008264 Contact Us For Availability

6

SCREW WPL 71001395 Contact Us For Availability

6

SVC MAN, WALLOVEN ELEC PEGASUS WPL 16022506 Contact Us For Availability

7

74008265 Whirlpool Oven High Limit Thermostat Backorder WPL 74008265 $148.74

7

WP74008015 Whirlpool Bracket Assembly In Stock WPL WP74008015 $213.49

7

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

7

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $4.82

7

BRACKET, HANDLE WPL 74008284 Contact Us For Availability

7

OVEN WELD ASSY. WPL 74008329 Contact Us For Availability

8

WP7450P108-60 Whirlpool Lite Switch Backorder WPL WP7450P108-60 $113.42

8

WPW10186996 Whirlpool Door Latch Backorder WPL WPW10186996 $255.78

8

PANEL, BACK INSULATION RETAIN WPL 74008276 Contact Us For Availability

8

GLASS, DOOR (BLK) WPL 74008282 Contact Us For Availability

8

SCREW, SWITCH WPL 7101P33060 Contact Us For Availability

9

INSULATION (BACK/TOP) WPL 74008279 Contact Us For Availability

9

HANDLE, DOOR (BLK) WPL 74006964 Contact Us For Availability

9

VENT (BTM) WPL 74008294 Contact Us For Availability

9

RECEPTACLE, BULB WPL 71001866 Contact Us For Availability

74008302 Whirlpool Oven Washer Backorder WPL 74008302 $4.41

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $4.65

PLATE, HINGE TRAP WPL 71001812 Contact Us For Availability

VENT (TOP) WPL 71001847 Contact Us For Availability

TUBE, VENT WPL 71002419 Contact Us For Availability

5700P829-60 Whirlpool Wire Harness Backorder WPL 5700P829-60 $240.86

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $17.41

INSULATION, DOOR (SIDE) WPL 74008285 Contact Us For Availability

GROMMET, ANTI-SHORT WPL 74004222 Contact Us For Availability

BOTTOM, BRACE WPL 74008280 Contact Us For Availability

12001656 Whirlpool Range Oven Temperature Sen In Stock WPL 12001656 $28.98

74008286 Whirlpool Oven Door Insulation (Bott Backorder WPL 74008286 $6.01

WP7101P434-60 Whirlpool Screw Backorder WPL WP7101P434-60 $4.82

WPW10281322 Whirlpool Connector Backorder WPL WPW10281322 $6.04

INSULATION (WRAP) WPL 74008278 Contact Us For Availability

NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability

BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability

CONNECTOR, CABLE WPL 7417P01760 Contact Us For Availability

74008287 Whirlpool Oven Door Top Insulation Backorder WPL 74008287 $5.79

INSULATION (BTM) WPL 71003614 Contact Us For Availability

BRACKET, CABLE WPL 74004712 Contact Us For Availability

PAN, BROIL WPL Y3401F02019 Contact Us For Availability

W10759523 Whirlpool Screw Backorder WPL W10759523 $4.55

HEAT SHIELD, DOOR WPL 74008288 Contact Us For Availability

BRACKET, COOLING FAN MOUNTING WPL 74008330 Contact Us For Availability

INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability

15

3801F834-51 Whirlpool Bracket Backorder WPL 3801F834-51 $5.46

15

GLASS, DOOR INNER WPL 74008289 Contact Us For Availability

15

FAN ASSEMBLY, CONVECTION WPL 74008317 Contact Us For Availability

16

FAN MOTOR ASSY. WPL 74008269 Contact Us For Availability

17

BRACKET, SWITCH ACTUATOR WPL 74001632 Contact Us For Availability

18

ROD, DOOR LIGHT SWITCH WPL 74003562 Contact Us For Availability

19

COVER, PLUNGER (DOOR LIGHT) WPL 74007586 Contact Us For Availability

20

SPRING, DOOR SWITCH WPL 74001629 Contact Us For Availability
