Model Whirlpool JJW3830WS02 ELECTRIC WALL OVEN – Common Parts & Diagrams

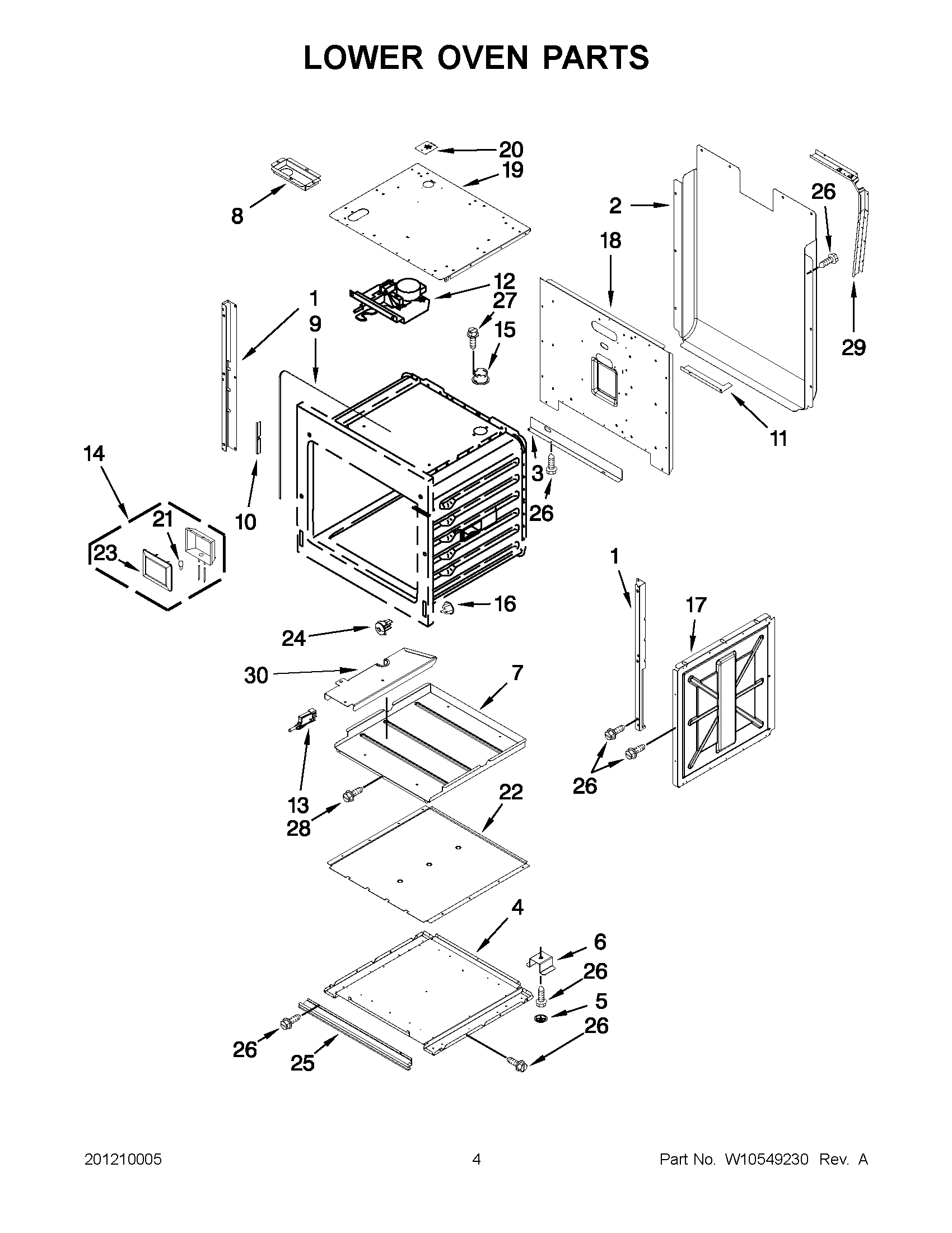

02 - LOWER OVEN PARTS

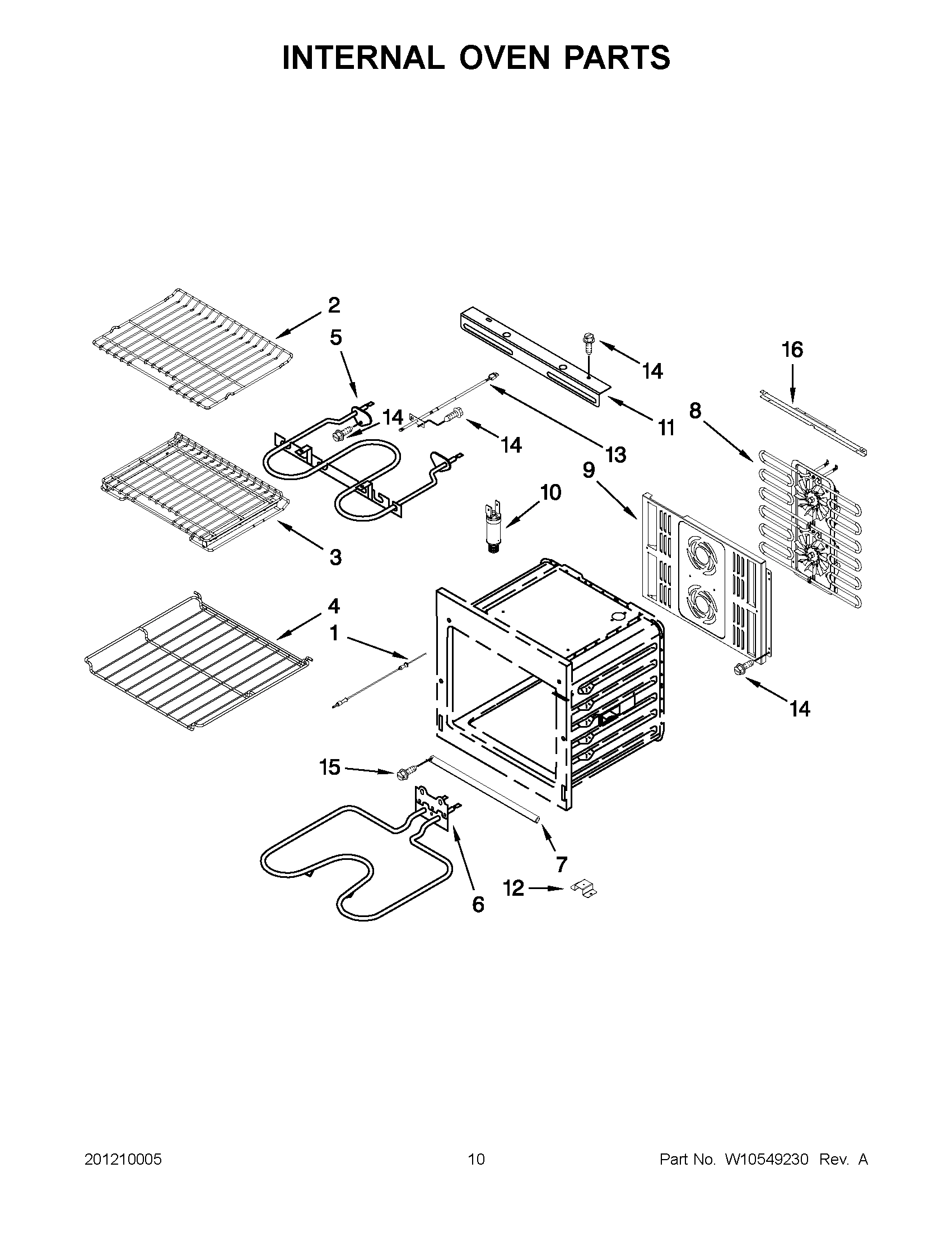

05 - INTERNAL OVEN PARTS

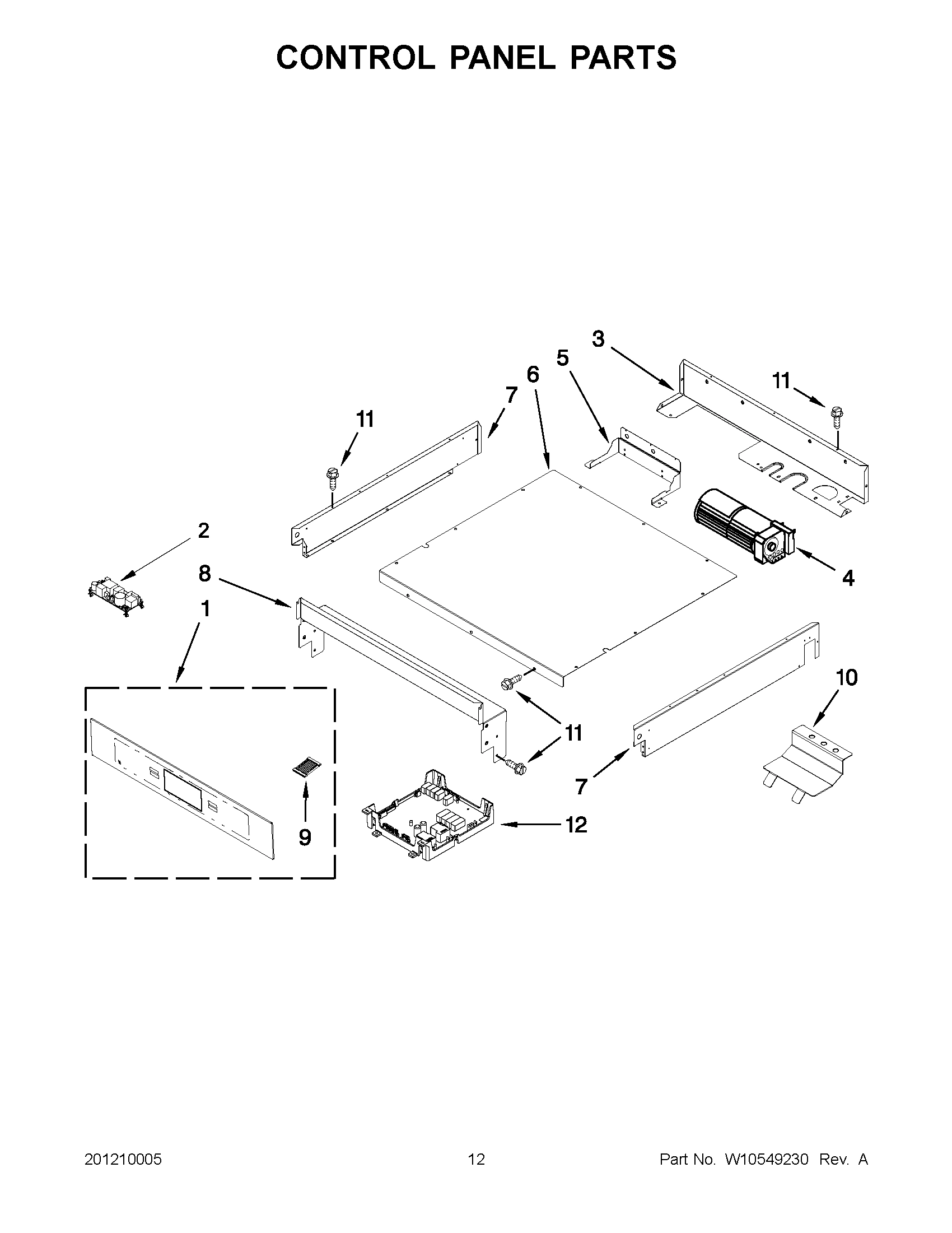

06 - CONTROL PANEL PARTS

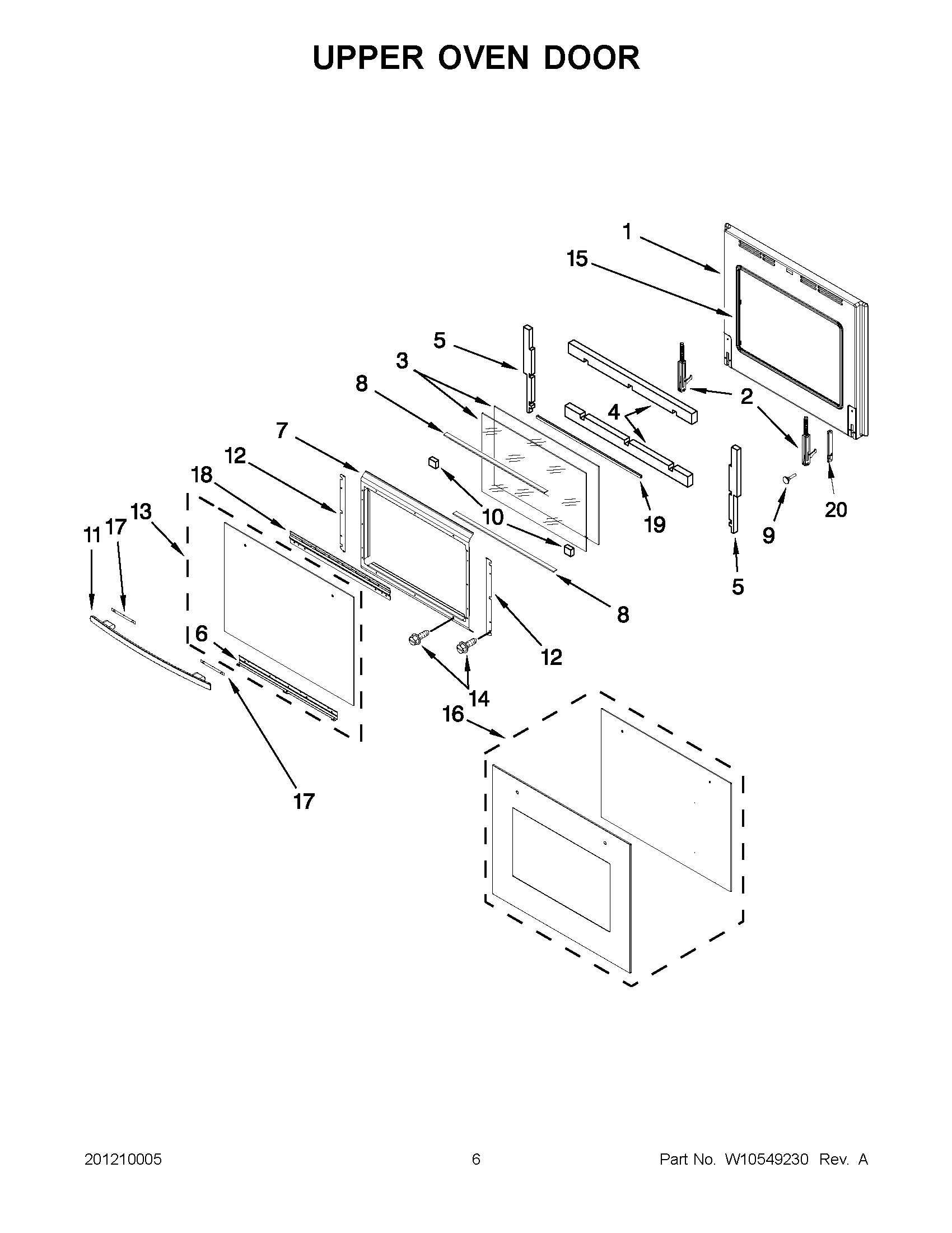

03 - UPPER OVEN DOOR

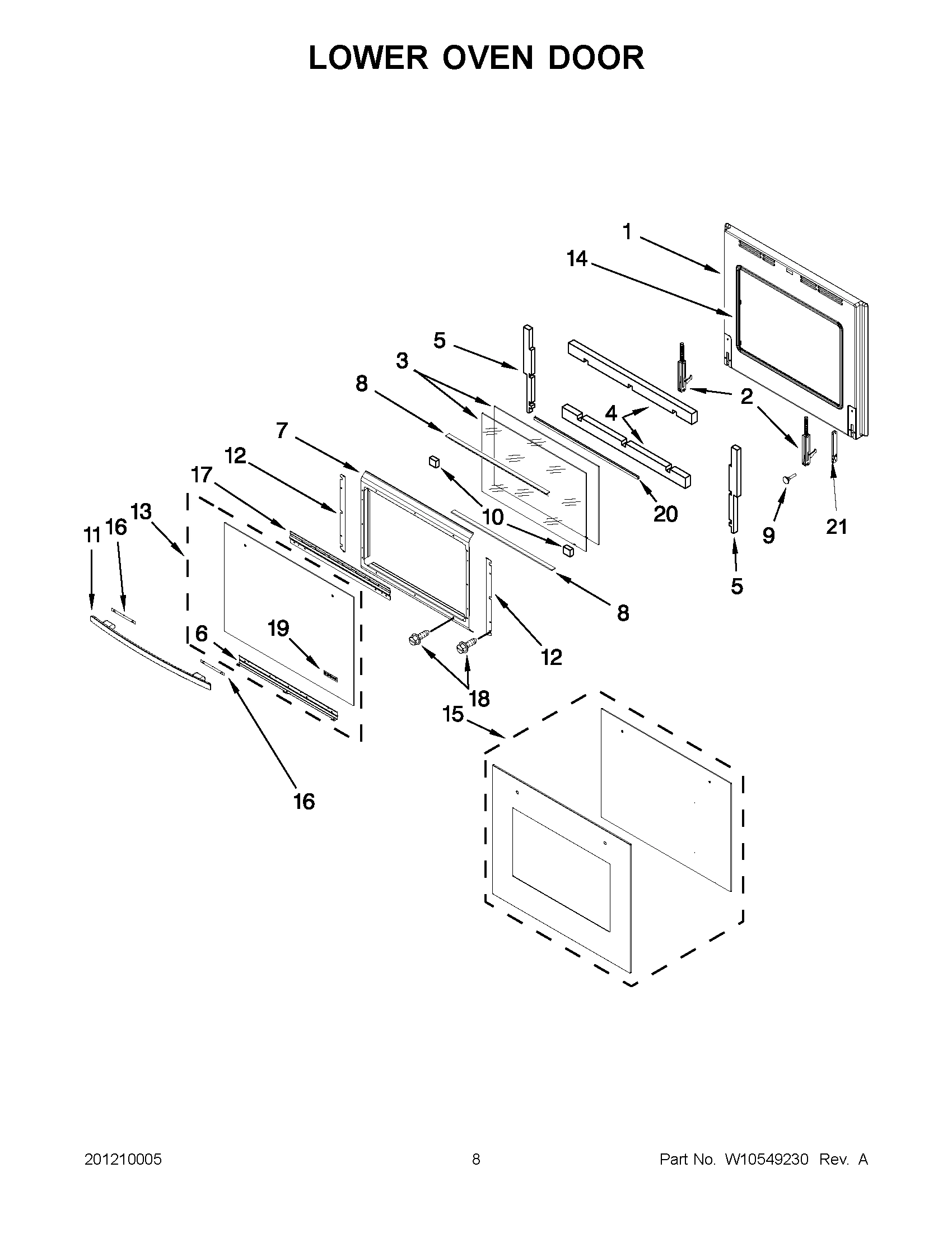

04 - LOWER OVEN DOOR

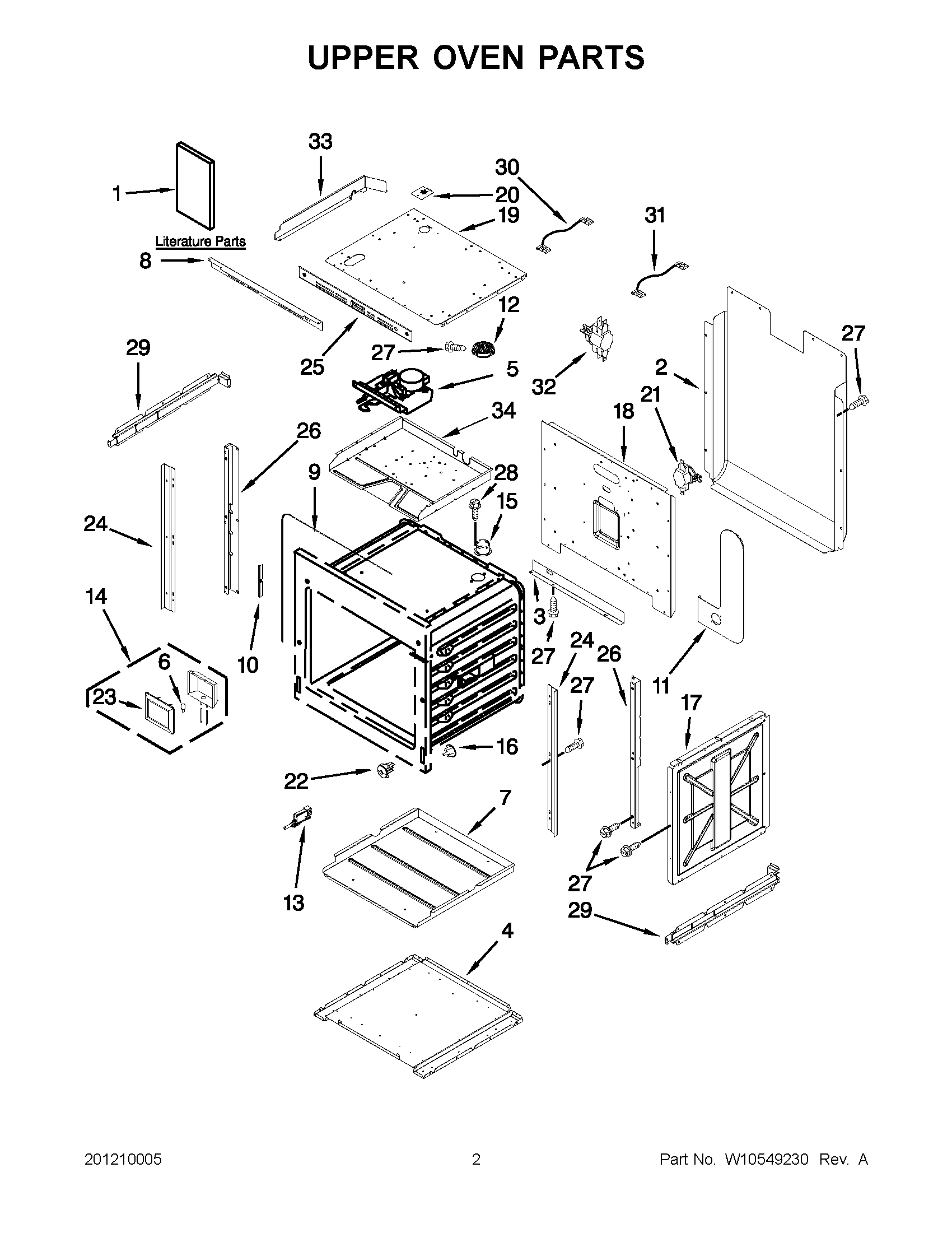

01 - UPPER OVEN PARTS
07 - OPTIONAL PARTS
Common parts from model Whirlpool JJW3830WS02 ELECTRIC WALL OVEN
1
TIPS, SAFER COOKING (ENGLISH) WPL 9762761 Contact Us For Availability
1
TIPS, SAFER COOKING (FRENCH) WPL W10065852 Contact Us For Availability
1
TECH SHEET (ENGLISH) WPL W10213731 Contact Us For Availability
1
TECH SHEET (FRENCH) WPL W10213740 Contact Us For Availability
1
ENERGY GUIDE WPL W10217584 Contact Us For Availability
1
INSTRUCTIONS, INSTALLATION WPL W10221386 Contact Us For Availability
1
USE & CARE GUIDE WPL W10450588 Contact Us For Availability
2
HINGE, DOOR (BLACK) WPL W10176157 Contact Us For Availability
2
RACK, BAKING WPL W10176138 Contact Us For Availability
2
HINGE, DOOR (STAINLESS) WPL W10277751 Contact Us For Availability
2
BACK, MAIN WPL 2624F05151 Contact Us For Availability
3
GLASS, INNER WPL W10176100 Contact Us For Availability
3
BAFFLE, REAR WPL W10254160 Contact Us For Availability
4
RACK, OFFSET WPL W10186988 Contact Us For Availability
4
PANEL, BOTTOM WPL W10280327 Contact Us For Availability
5
BRACKET, COOLING FAN LOWER WPL W10187016 Contact Us For Availability
5
INSULATION, DOOR (VERTICAL) WPL W10273591 Contact Us For Availability
6
BRACKET, DOOR CLIP WPL W10176175 Contact Us For Availability
7
PAN, HIDDEN BAKE WPL 3401F07945 Contact Us For Availability
8
KIT, TWIN CONVECT WPL W10213812 Contact Us For Availability
9
GASKET WPL W10213818 Contact Us For Availability
11
HANDLE, DOOR (STAINLESS) WPL W10186756 Contact Us For Availability
11
ASSEMBLY, BOX VENT WPL 4006W21745 Contact Us For Availability
12
MANAGER, APPLIANCE WPL W10292566 Contact Us For Availability
12
SCREEN, SMOKE ELIMINATOR WPL 8034P00860 Contact Us For Availability
13
SWITCH, MICRO WPL W10286173 Contact Us For Availability
13
ASSEMBLY, OUTER DOOR GLASS (STAINLESS) WPL W10186890 Contact Us For Availability
15
GLASS, CAVITY WPL W10213803 Contact Us For Availability
15
TUBE, VENT WPL 8026P06560 Contact Us For Availability
16
PLUG, BUTTON WPL 7718P03360 Contact Us For Availability
18
RETAINER, REAR INSULATION WPL W10175996 Contact Us For Availability
19
PANEL, TOP RETAINER WPL W10175998 Contact Us For Availability
20
HINGE, RECEIVER WPL W10175993 Contact Us For Availability
20
COVER, VENT WPL W10213792 Contact Us For Availability
21
SWITCH, HIGH LIMIT WPL 7403P89960 Contact Us For Availability
25
TRIM, CONTROL PANEL WPL W10176014 Contact Us For Availability
26
BRACKET, REINFORCEMENT LEFT HAND WPL W10277423 Contact Us For Availability
26
BRACKET, REINFORCEMENT RIGHT HAND WPL W10277424 Contact Us For Availability
27
SCREW WPL 7101P42660 Contact Us For Availability
28
Screw WPL 7101P43460 Contact Us For Availability
29
SUPPORT, UPPER OVEN WPL 3807F66951 Contact Us For Availability
30
JUMPER, THERMAL WPL W10277599 Contact Us For Availability
31
JUMPER, SECONDARY THERMAL FUSE WPL W10282791 Contact Us For Availability
NI
ACCESSORIES, SS CLEANER WPL W10355016 Contact Us For Availability
NI
ACCESSORIES, KITCHEN & APPLIANCE CLEANER WPL W10355010 Contact Us For Availability
NI
ACCESSORIES, ALUMINUM FOIL (18`` X 25`) WPL 241430 Contact Us For Availability
NI
WIRING HARNESS PARTS, ASSEMBLY, CONDUIT DOUBL WPL W10176089 Contact Us For Availability
NI
INSULATION, DOOR LOCK LOWER WPL 7002P27660 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED, WPL NP Contact Us For Availability
NI
INSULATION, BACK WPL W10175994 Contact Us For Availability
NI
INSULATION, WRAP WPL W10186989 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, MEAT PROBE JAC WPL 5171P20860 Contact Us For Availability
× ![]()
